1. Principle of wet wood pellet processing equipment

The core principle of wood pellet processing equipment (such as wood chip pellet machines) is to convert biomass feedstock into high-density pellet fuel through mechanical extrusion. The basic process includes three steps: feedstock pretreatment (crushing, drying, and screening), mechanical pressing, and finished product processing (cooling and packaging). For example, in a ring die pellet machine, a motor connected to a reducer via a coupling drives the ring die to rotate. Gravity forces the feedstock into the pressing zone, where the pressing rollers squeeze the material into the ring die holes. After being formed in the die, the pellets are cut into pellets of a fixed length by a cutter.

2.Characteristics of wet wood pellet processing equipment

(1)Wet wood biomass pellet processing equipment features high efficiency and low energy consumption. It can rapidly process biomass raw materials into fuel pellets, significantly improving production efficiency.

(2)The biomass pellet machine has strong material adaptability and is suitable for the molding of various biomass raw materials. The pellet machine is equipped with molds of various specifications. According to different biomass raw materials, the corresponding mold can be selected for processing, enhancing the adaptability of processing.

(3)The design of wet - wood biomass pellet processing equipment is mature. The finished pellets have stable molding, stable output, and high quality.

(4)Biomass pellet processing equipment is simple to operate, easy to use, has a high degree of automation, requires less labor, effectively reduces labor intensity, and improves production.

3. Application scenarios of wet wood pellet processing equipmen

(1)Biomass energy field: Wet wood pellets can be used as biomass fuel for power generation, heating, etc., replacing traditional fossil fuels and reducing environmental pollution.

(2)Animal feed: Wet wood pellets can be used as high-quality feed to improve the production efficiency of poultry and livestock

(3)Environmentally friendly processing: wet wood pellet processing equipment can effectively process wood waste, convert it into useful pellet fuel, and reduce environmental pollution

(4)Energy savings: Since wet wood pellets are a renewable energy source, using them saves energy and reduces dependence on finite fossil fuels

TONY Brand 32-40 Ton/Hour Wet Wood Log Pellet Manufacturing Plant can take wet wood, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with wet wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity:32-40 Ton/Hour

2. Raw materials: Wet wood log , branches, small - diameter logs, twigs, etc.

3. Moisture: Wet type, about 40%.

4. Application: All kinds of wood - based biomass materials suitable for pellet production.

Suitable customers: Green energy companies, forestry enterprises, and private wood - processing workshops that have advantages in wood raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Log Pellet Production Line

2. Raw Material: All kinds of wet wood Log

3. Moisture Content of Raw Material: 40%

4. Capacity: 32-40 tons per hour

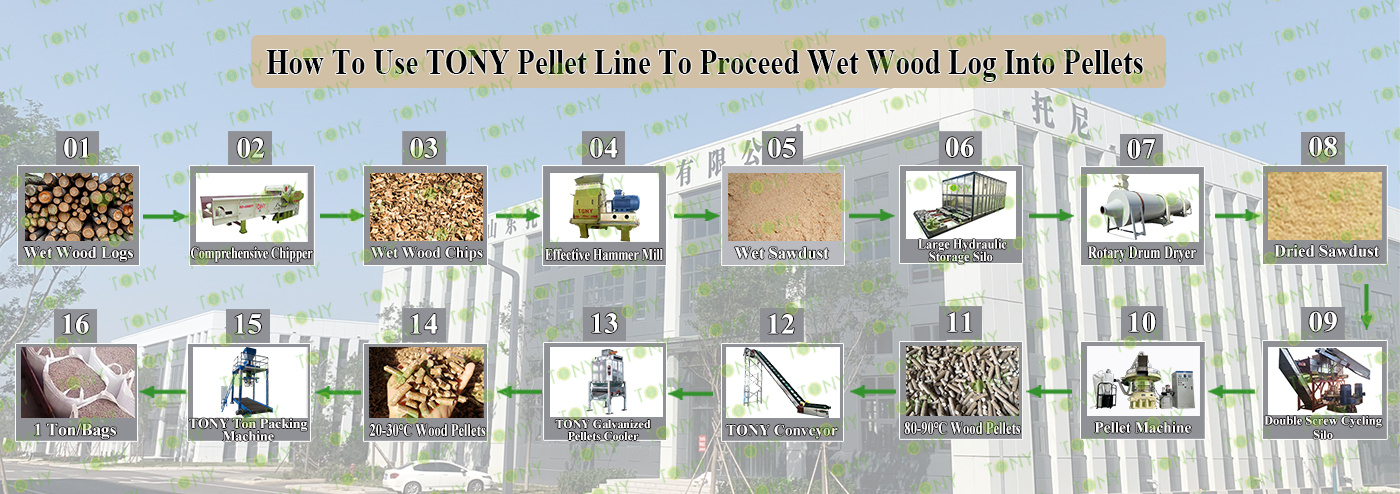

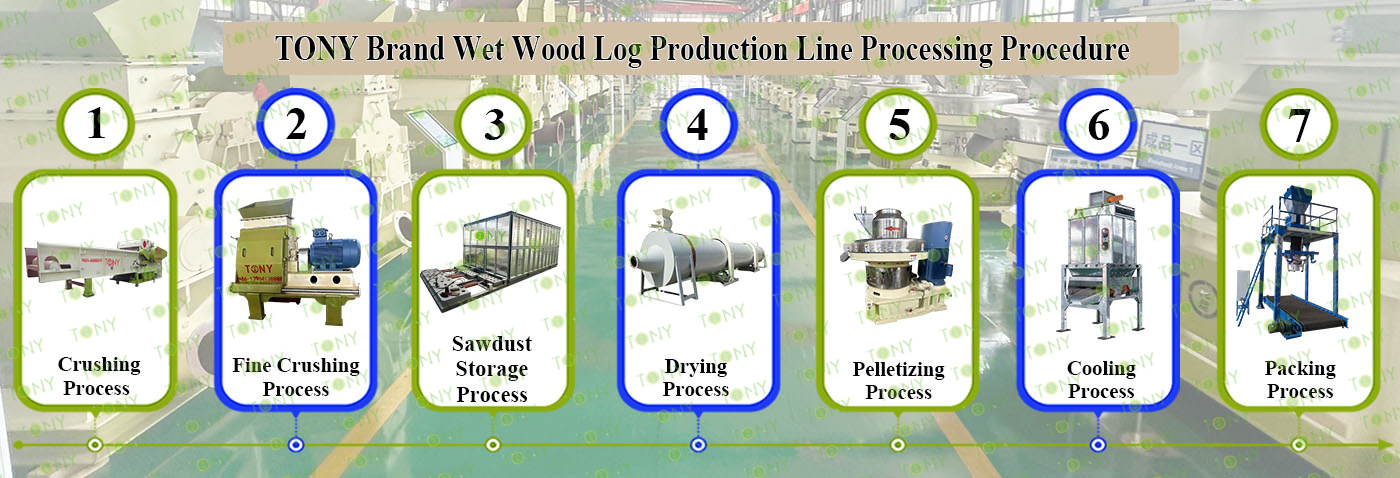

5. Process: Crushing Process - Fine Crushing Process -Sawdust Storage Process- Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1600-1000-315KW, Effective Hammer Mill-TFD100*200-315KW, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-2.5*24m, TONY Pellet Machine TYJ860-Ⅲ- 280KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Large Hydraulic Storage Silo	Rotary Drum Dryer
1.To Grind Wood Logs φ ≤40cm Into25-55mm Wood Chips.   2.Model: TPC1600-1000-315KW With 6 Blades*2set   3.Capacity:32-40Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD100*200-315KW*3sets 3.Capacity: 12-14Ton/Hour/Set	1.To Storage Sawdust Before Dryer Control Sawdust Flow Entering The Dryer Model: TCY-35*3sets 2.TONY Uses Galvanized Material	1.To Dry The 40% Sawdust Into 10-15% Sawdust.  2.Model: THGD2.5*24*6sets  3.Capacity:6-8Ton/Hour/Set
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine	Belt Conveyor
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*8sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*3sets 3.Capacity:32-40/Hour	1.To Pack Pellets Into 1Ton/Bags 2.Model: TBD* 3sets  3.Capacity: 32-40Ton/Hour	1.To Transport Wood Chips,Sawdust,Pellets. 2.Width: 80cm*33sets 3.Capacity:Designed With The Whole Line

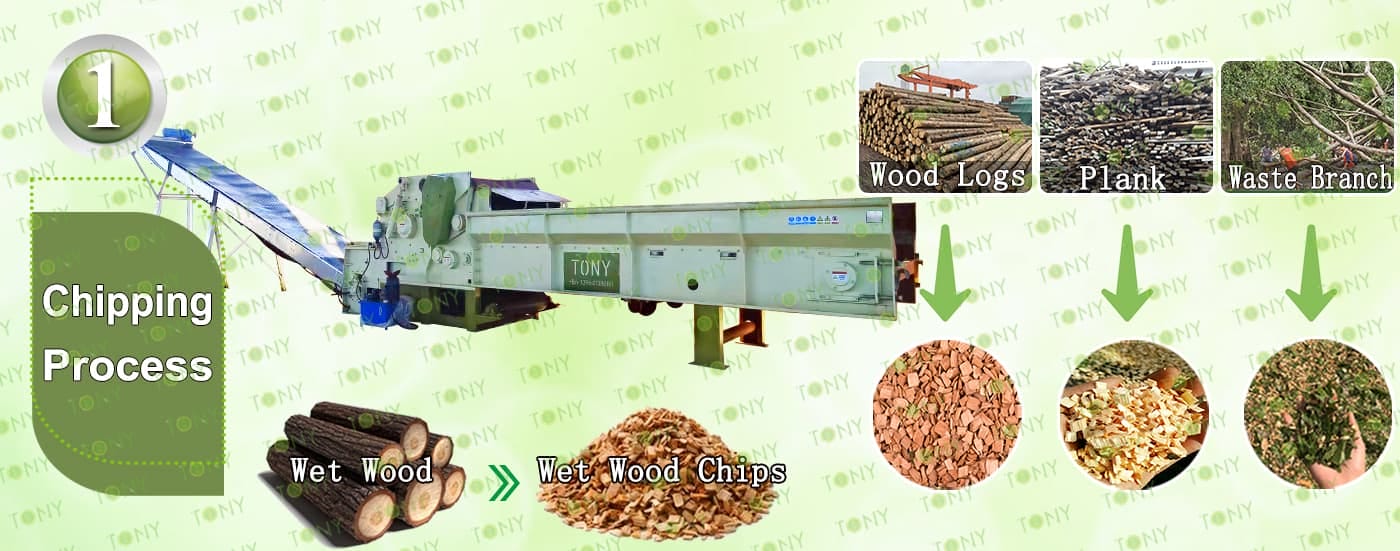

1.Wood Chipping Process:

A.This process is mainly used to grind the wood logs whose diamater is under 40cm into wood chips with size 25-55mm. The finish wood chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY brand comprehensive chipper TPC1600-1000 model with 6 flying blades type:

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:32-40Ton/Hour.

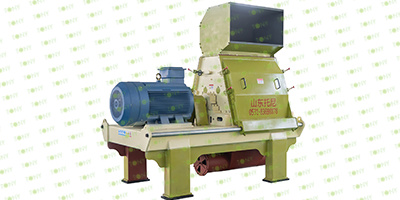

C.TONY effective hammer mill TFD100*200-315KW*3sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

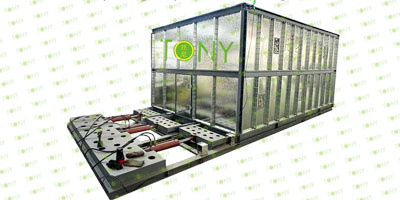

3.Sawdust Storage Process:

A. This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B. The customer chooses one TONY Brand Sawdust Storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust Blocked.

4.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:32-40Ton/Hour.

C.TONY use 6 sets of 2.5*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

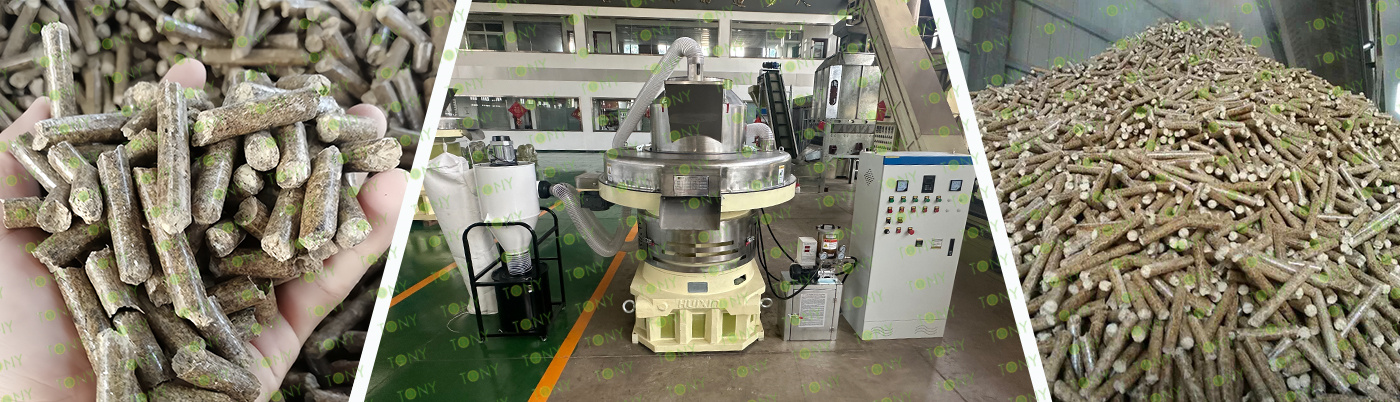

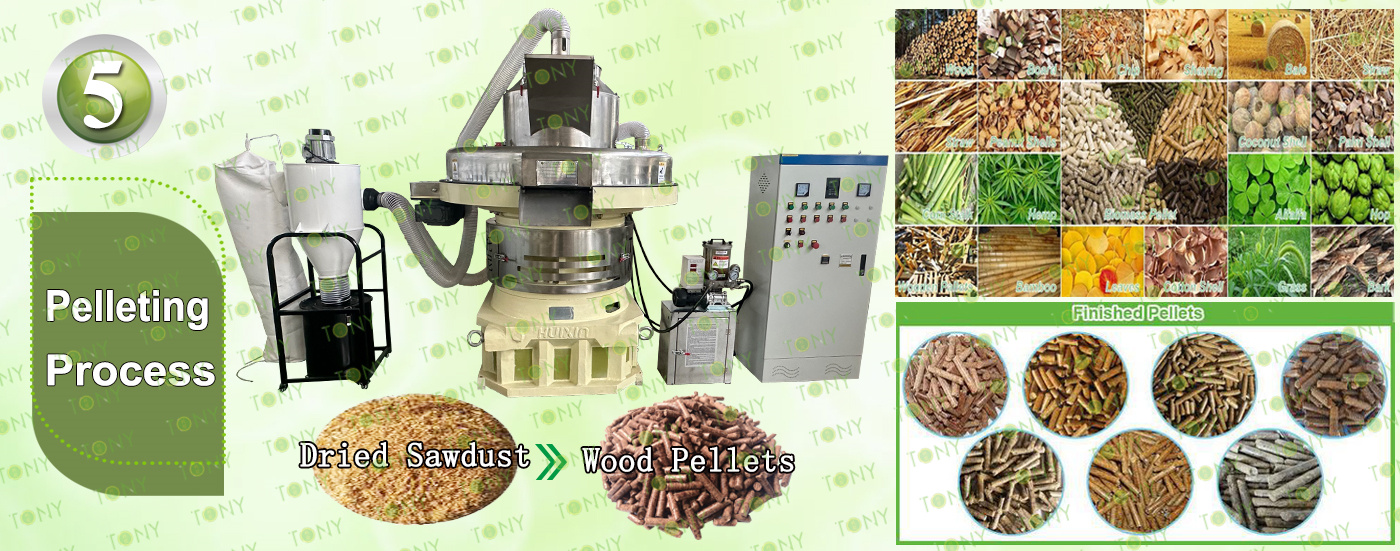

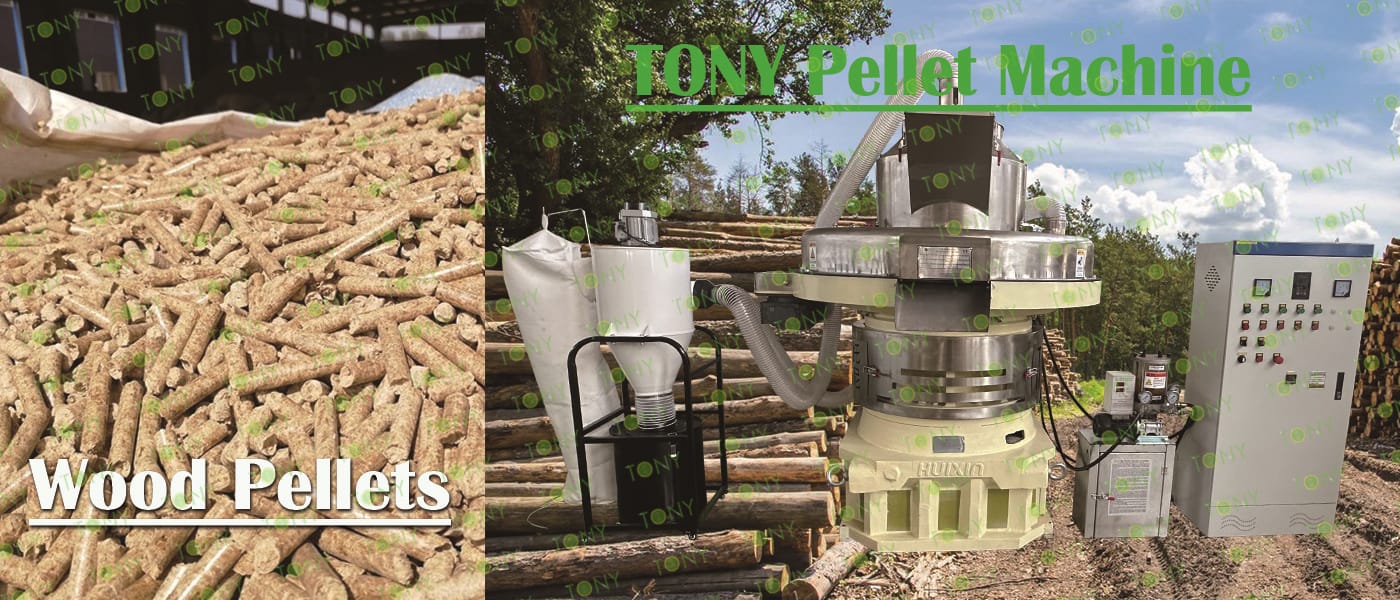

5.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:32-40Ton/Hour.

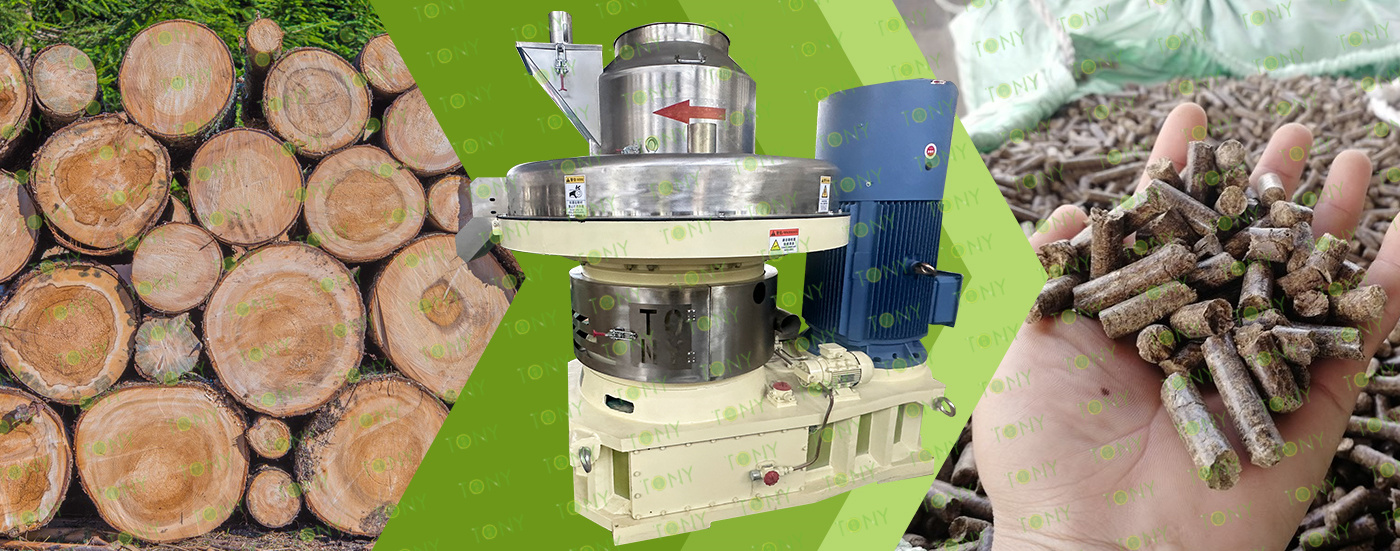

C.TONY brand vertical ring die pellet machine TYJ860-III-280KW*8sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

6.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.2 sets of TONY galvanized cooler separator

Main Parts:

(1)TONY's New Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

7.Packing Process:

A.This process is mainly used to pack pellets into 1ton/bags.

B.2 sets of TONY ton packing machine

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

1. Outstanding Environmental Protection and Low Carbon Emissions

Carbon Neutral: Wood pellet fuel is derived from wood processing waste (such as wood chips and sawdust) and is a biomass energy source. The carbon dioxide absorbed during plant growth is roughly balanced by the carbon dioxide released during combustion, making it a "carbon-neutral" energy source, significantly reducing its contribution to the greenhouse effect.

Low Pollutant Emissions: Compared to coal, wood pellets produce extremely low levels of pollutants such as sulfur dioxide and nitrogen oxides (often far below environmental standards) when burned, and dust emissions are also low, effectively reducing air pollution and meeting increasingly stringent environmental regulations.

2. Wide Source of Raw Materials and Controllable Costs

Abundant Raw Materials: The main raw materials are scraps, wood chips, sawdust, branches, and bark generated during wood processing. These materials are readily available and stable in forestry, furniture manufacturing, and papermaking. They can even be "turned waste into treasure," reducing the environmental impact of landfills or incineration.

Cost Advantages: The raw materials are mostly industrial waste, resulting in relatively low procurement costs. Furthermore, some regions offer subsidies for biomass energy projects, further reducing production and usage costs. Compared to other energy sources like natural gas and fuel oil, biomass energy is economical.

3. High Combustion Efficiency and Efficient Energy Utilization

High Density: Wood pellets are compressed and formed, resulting in a density significantly higher than that of raw wood or sawdust (typically 1.1-1.3 tons/cubic meter). They are less prone to loosening during combustion, maintaining a stable combustion state and a long-lasting flame. They also offer high thermal efficiency (typically exceeding 85%, compared to the 40%-50% of loose firewood).

Stable Combustion: The pellets have a regular shape and uniform size, facilitating automated feeding and combustion control. They can be precisely adjusted with a matching pellet stove, reducing energy waste and making them suitable for applications requiring a stable heat source.

4. Convenient Storage and Transportation

Small Size: Compressed pellets are only 1/5-1/8 the volume of raw sawdust, significantly saving storage space. They can be stored in bags or in bulk, eliminating the need for specialized storage facilities, making them suitable for homes, businesses, and other environments.

Low Transportation Costs: The high density allows for higher energy transport per unit volume, improving transportation efficiency and reducing transportation costs. Furthermore, the pellets are resistant to moisture (some products are treated to prevent moisture), minimizing loss during transportation.

5. Diverse Application Scenarios

Civilian Applications: They can be used for home heating and cooking (using devices such as pellet fireplaces and pellet stoves). They are simple and clean to operate, replacing traditional coal and firewood to improve the indoor environment.

Industrial Applications: They can be used as boiler fuel to provide steam or hot water for factories, hotels, and hospitals. In agriculture, they can be used for greenhouse heating and drying agricultural products (such as grains and medicinal herbs).

Power Generation: They can be used as fuel in biomass power plants, either mixed with coal or burned alone to generate electricity, contributing to the transformation of the energy structure.

1.Environmentally friendly features

(1)Low pollution emissions: The sulfur and phosphorus content during combustion is extremely low, and the concentration of SO₂ and NOx in the flue gas is much lower than that of coal. It will not produce acid rain, and CO₂ emissions are zero (because plants absorb CO₂ during growth)

(2)Ash utilization: Ashes after combustion are rich in organic potassium and can be recycled as high-efficiency organic fertilizer

2.Economical

(1)Wide range of raw materials: waste such as wood processing waste and crop straw can be used, and the production cost is lower than traditional fossil fuels.

(2)Substitution benefits: Replacing coal can save about 20% to 30% of fuel costs

3.Wide range of application scenarios

(1)Industrial applications: Widely used in boiler heating, power generation and industrial production, such as textile factories, food factories, etc.

(2)Civil heating and living energy: Wood pellets have high combustion efficiency, are easy to store and use, and are safe and hygienic.

(3)Biomass industrial boiler: As the main fuel for industrial boilers, it replaces coal, heavy oil and natural gas to solve environmental pollution problems.
