Project Brief Introduction:

1.Product:Wet Wood Log Pellet Line

2.Capacity:4-5T/Hour

3.TONY Brand 4-5Ton/Hour Wet Wood Log Pellet Line Project Process

4.Main Machine: Wood Chipper,Hammer Mill, Rotary Drum Dryer,TONY Pellet MachineTYJ551-III-132KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 580 kw

6.Need Area: About  735㎡  L:42M  W: 17.5M  H:6.517M

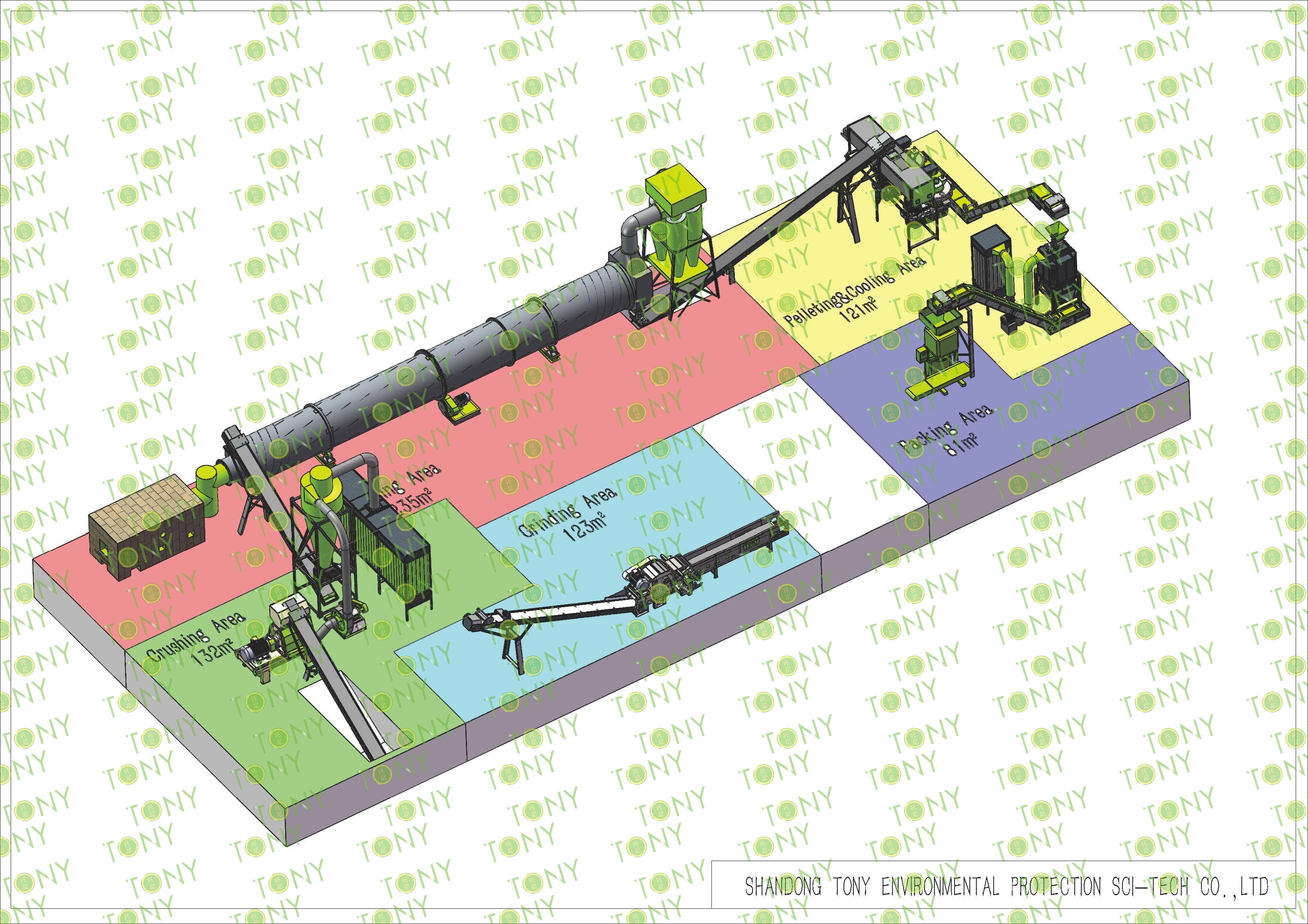

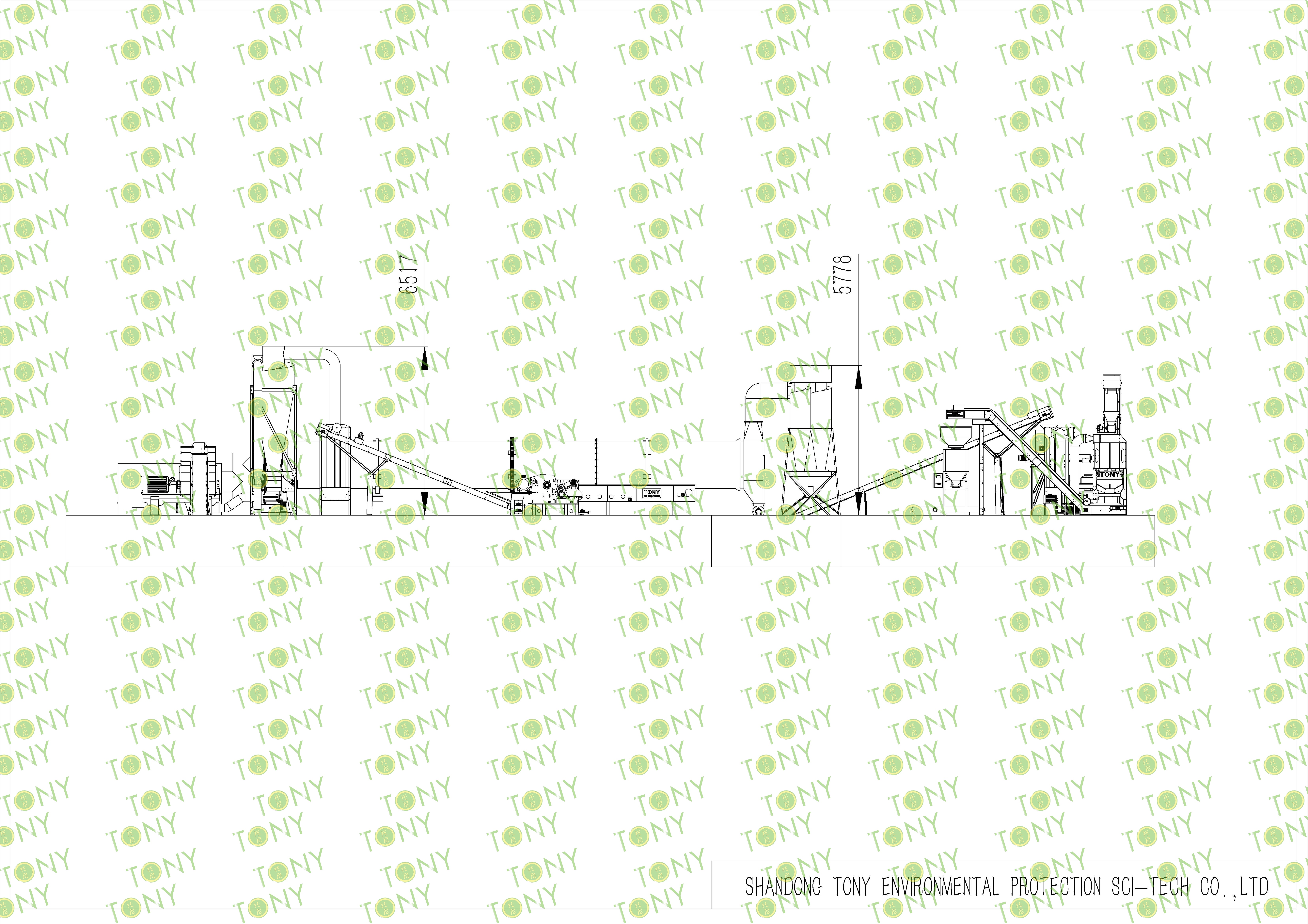

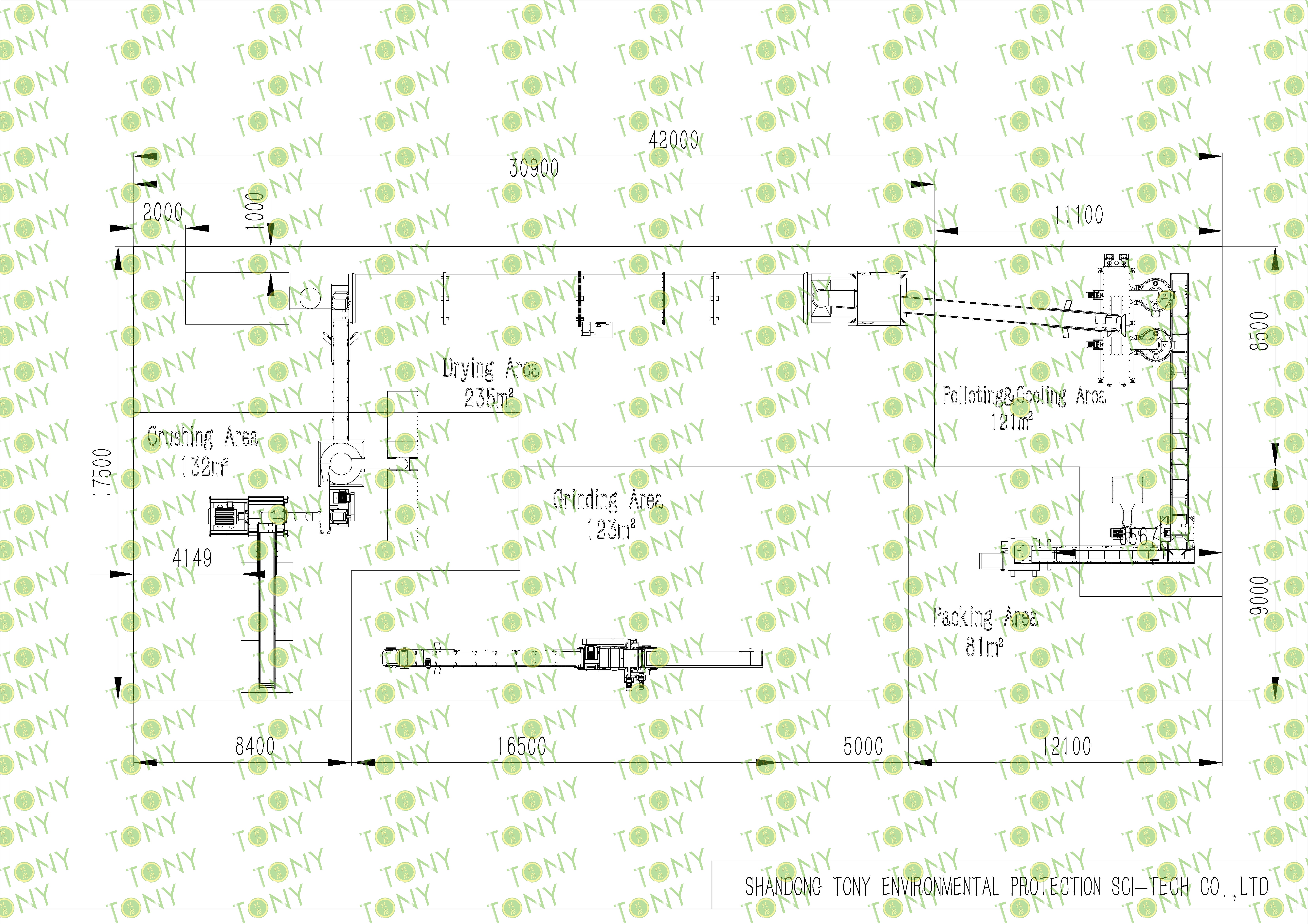

Project Layout For Customer:

1. The working principle of wet wood log biomass pellet processing equipment

The principle of wet sawdust pellet processing equipment is to compress wet sawdust into pellets by physical means. During the pelletizing process, the biomass sawdust raw materials fall vertically from the feed port. The rotation of the pressing wheel makes the material continuously and evenly distributed on the surface of the inner cavity of the mold. Under the rolling of the pressing roller, the powdered material passes through the hole of the mold. In this process, the material is subjected to high pressure and high temperature, which causes physical changes or appropriate chemical changes, prompting the powdered material to form a continuously elongated cylindrical solid body. The pellets are then cut by the cutting knife and discharged from the discharge port. At this point, the pellet pressing process is completed.

2. Characteristics of wet wood log  biomass pellet processing equipment

(1) Efficient molding and stable pellet quality. The core equipment, the ring die pelletizer, uses high-strength alloy ring die and wear-resistant pressure roller, which can withstand the high friction when wet sawdust is squeezed, ensuring continuous production.

(2)It has strong adaptability to high-moisture raw materials and can quickly reduce the moisture content to the 10%-15% required for pelleting. It can also operate stably even if the raw material humidity fluctuates greatly (such as sawdust collected in the rainy season).

(3)  Energy saving and environmental protection, high resource utilization

(4) High degree of automation and convenient operation. It can monitor raw material moisture, granulation temperature, output and other parameters in real time, automatically adjust drying time, feeding speed, roller speed, etc., and reduce manual intervention.

3. Application scenarios of wet wood log biomass pellet processing equipment

(1) Industrial energy field: Processed pellet fuel can be used as fuel for industrial equipment such as boilers, hot air furnaces, dryers, etc., replacing traditional fossil energy and reducing corporate carbon emissions.

(2)  Agricultural recycling: Processing wet waste such as corn stalks and peanut shells generated in agricultural production, converting them into heating fuel for breeding or raw materials for organic fertilizer, thus realizing resource recycling

(3)  Environmentally friendly waste treatment: Reduce the amount of wet wood log chips and sawdust generated by the wood processing industry, reduce landfill volume, and meet green production requirements

TONY Brand 4-5Ton/Hour Wet Wood  Log Pellet Manufacturing Plant can take wet wood log, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with wet wood  log as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 4-5Ton/Hour

2. Raw materials: Wet wood  log, branches, small - diameter logs, twigs, etc.

3. Moisture: Wet type, about 40%.

4. Application: All kinds of wood - based biomass materials suitable for pellet production.

Suitable customers: Green energy companies, forestry enterprises, and private wood - processing workshops that have advantages in wood raw materials.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Log Pellet Production Line

2. Raw Material: All kinds of wet wood log

3. Moisture Content of Raw Material: 40%

4. Capacity: 4-5 tons per hour

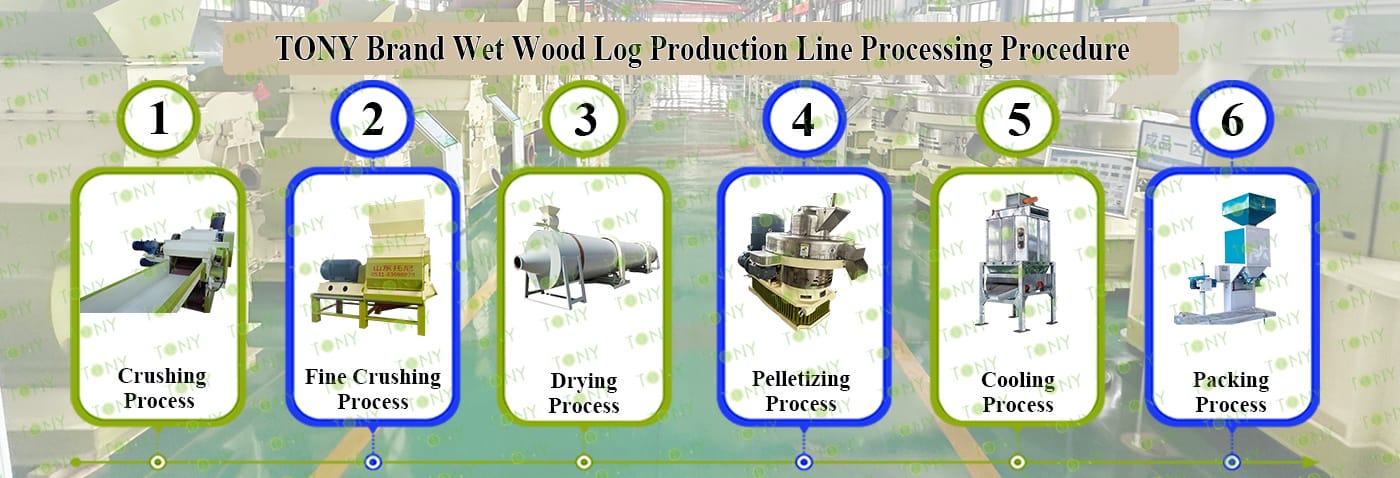

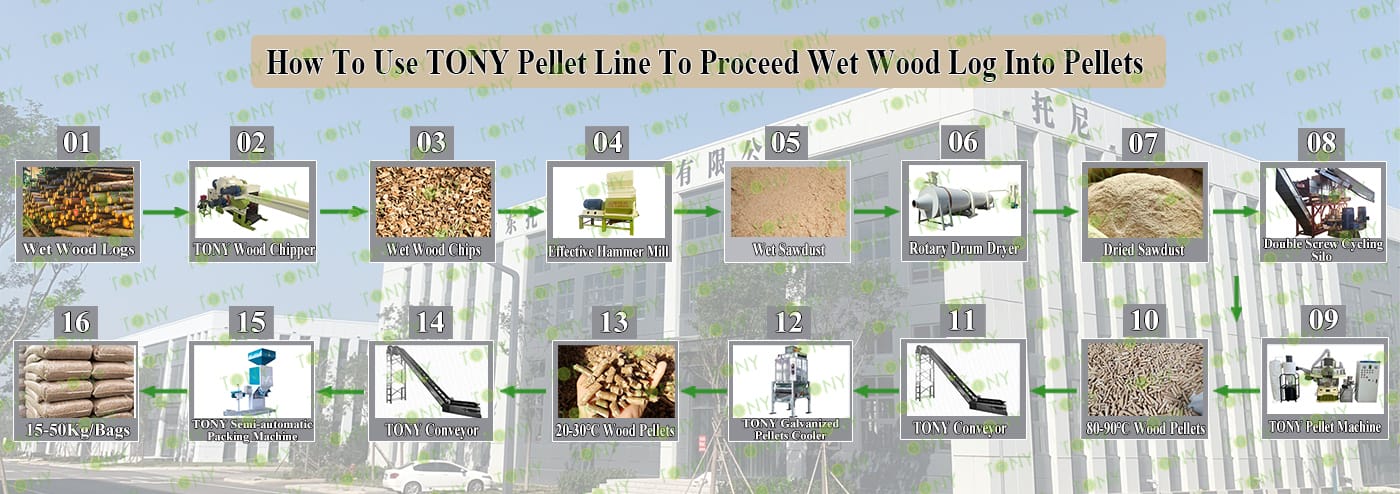

5. Process: Crushing Process - Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Wood Chipper TPQ216 - 55KW, Effective Hammer Mill-TFD75*132-132kw, Rotary Drum Dryer-1.8*20m, TONY Pellet Machine TYJ551 - Ⅲ - 132kw, Pellet Cooler, Small Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Wood Chipper	Effective Hammer Mill	Rotary Drum Dryer	Double Screw Cycling Silo
1.To Grind Wood Logs φ ≤20cm Into25-55mm Wood Chips.   2.Model: TPQ216-55KW With 2 Baldes*1set  3.Capacity: 4-7Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFQ75*132-132KW*1set 3.Capacity: 4-5Ton/Hour/Set	1.To Dry The 40% Sawdust Into 10-15% Sawdust.  2.Model: THGD1.8*20*1set 3.Capacity:4-5Ton/Hour/Set	1.To Stroage Sawdust before pellet machine; Adjust The Speed Of Sawdust Entering The Pellet Machine 2.Model: TLC-4*1set 3.Capacity:4-5Ton/Hour/Set
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Semi-automatic Packing Machine	Belt Conveyor
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ551-III-132KW*2 Sets  3.Capacity:2-2.5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃  Into 20-30℃ 2.Model: TCN-2.5*1set 3.Capacity:4-5Ton/Hour	1.To Pack Pellets Into 15-50KG/Bags. 2.Model: TBF-50*1Set  3.Capacity: 4-5Ton/Hour	1.To Transport Wood Chips,Sawdust,Pellets. 2.Width: 80cm*6sets 3.Capacity:Designed With The Whole Line

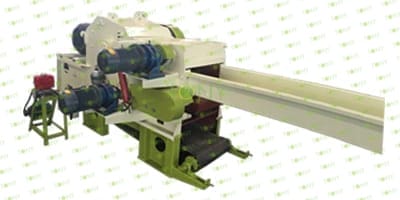

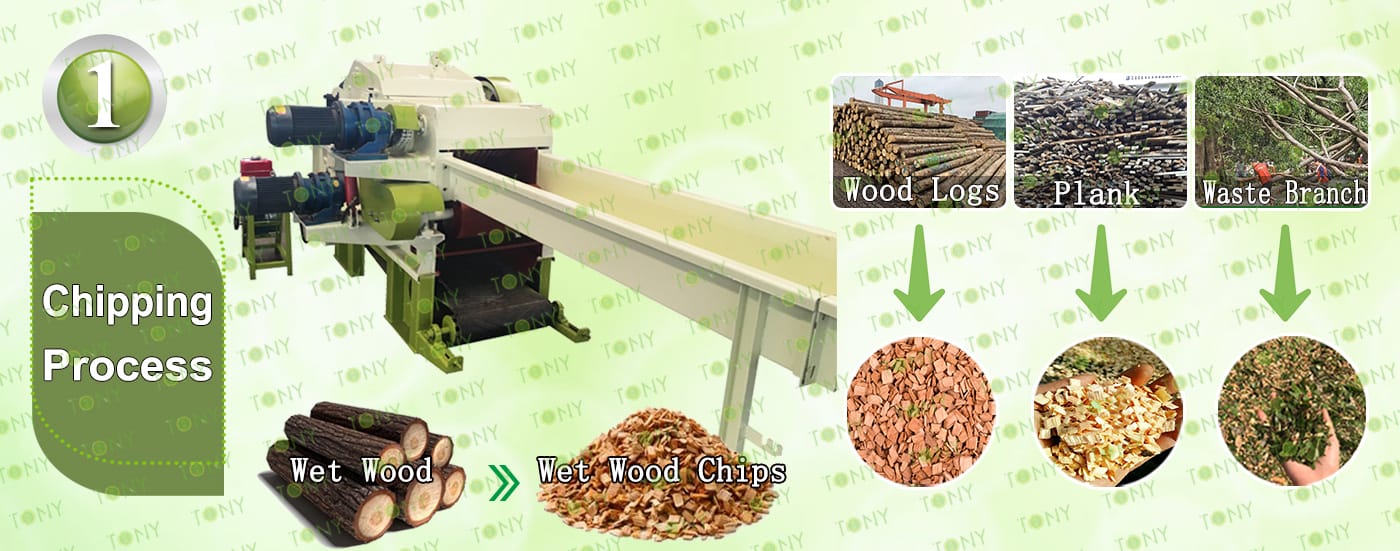

1.Wood Chipping Process：

A.This process is mainly used to grind the wood logs whose diamater is under 20cm into wood chips with size 25-55mm. The finish wood chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY Brand TPQ216 model with 2 flying blades type

C.Capacity:4-7Ton/Hour.

Main Parts:

(1).TONY's Wood Chipper.

(2). Feed And Discharge Belt Frequency Control To Prevent Card Material

(3). Hydraulic System Control Can Be Used For Thicker Materials

(4). Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

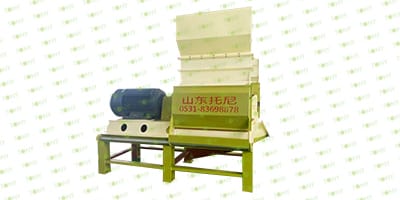

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:4-5Ton/Hour.

C.TONY use effective hammer mill  TFD75*132-132KW

Main Parts:

(1). TONY Effective Hammer Mill

(2). Galvanized Dust Collector.

(3). Sawdust Transportation Fan Blower.

(4). Cyclone With Airlock.

(5). Electrical Cabinets.

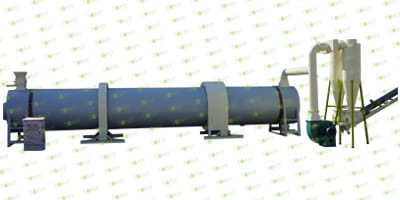

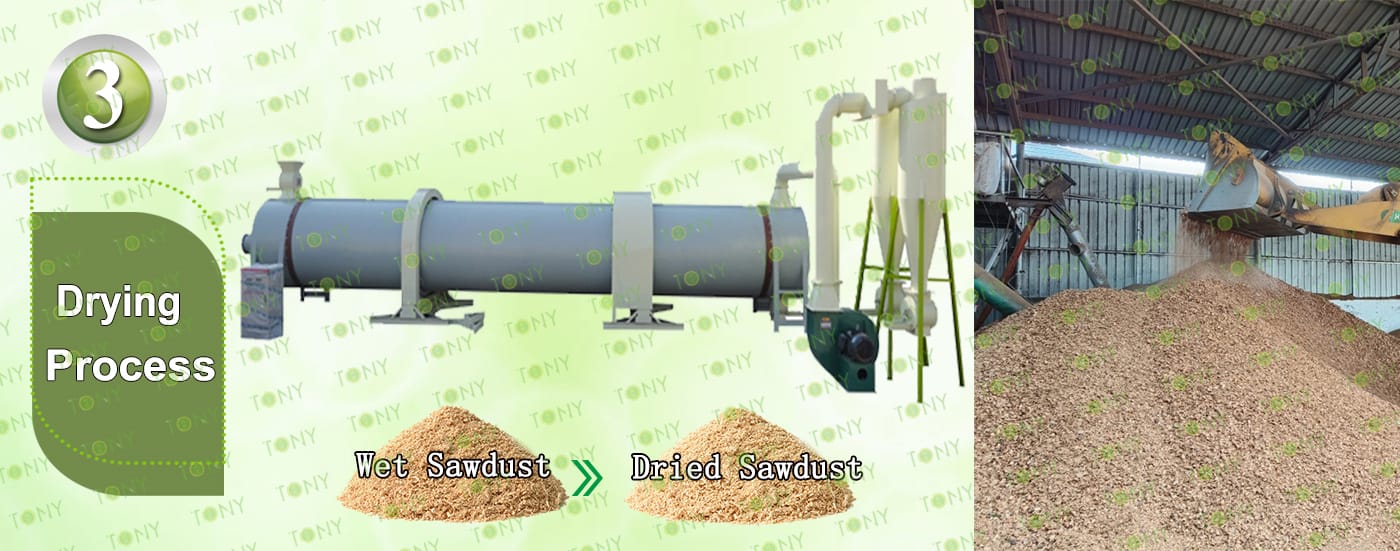

3.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:4-5Ton/Hour.

C.TONY use 1set of 1.8*20m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

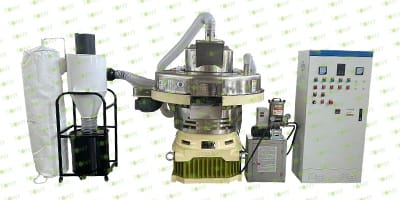

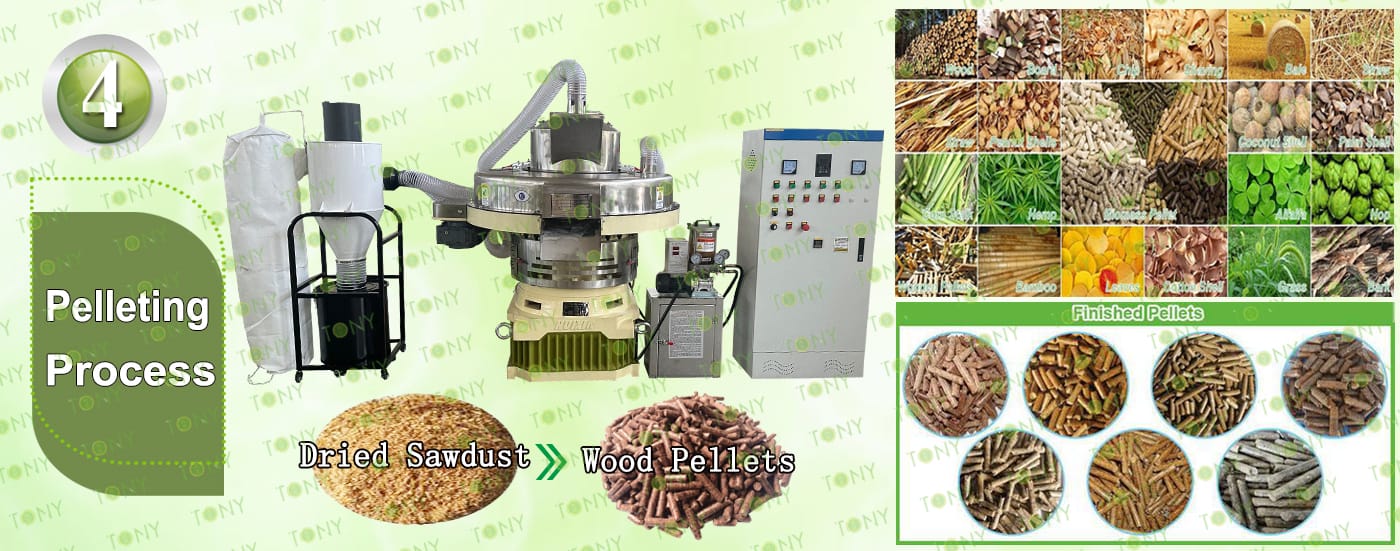

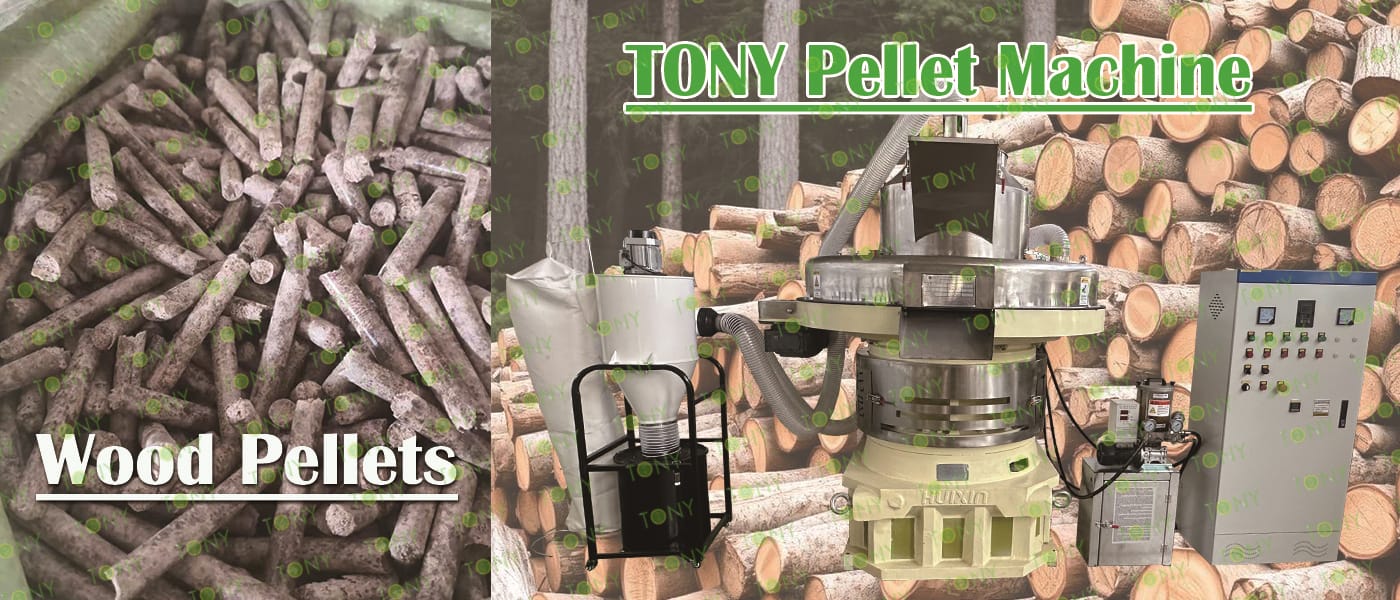

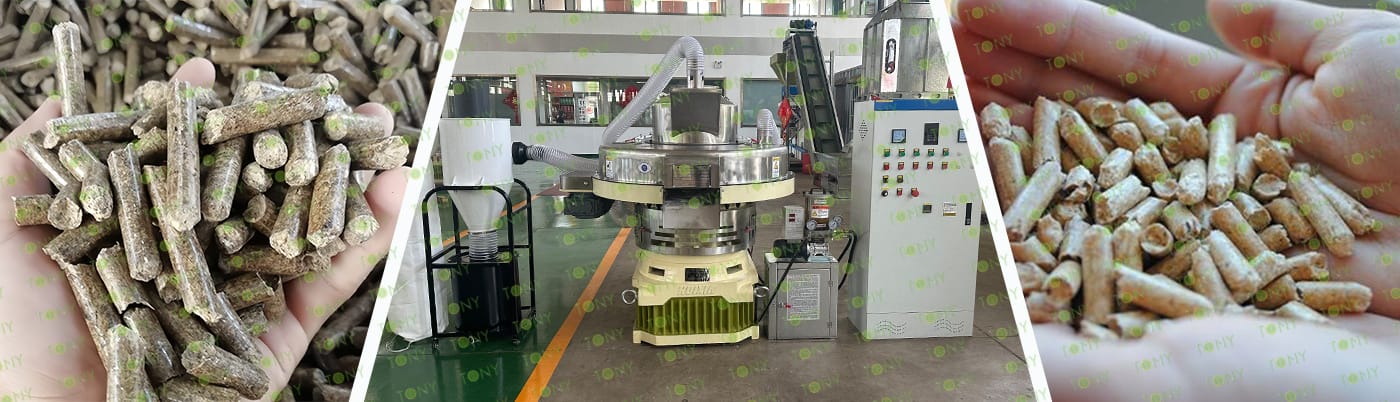

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:2-2.5Ton/Hour.

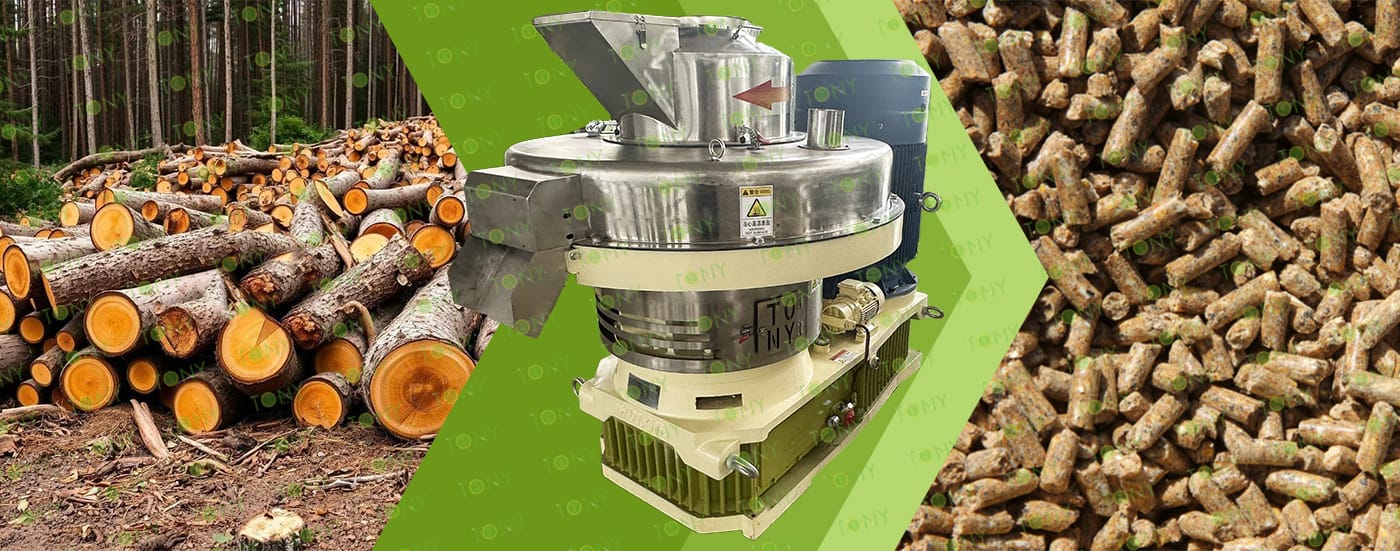

C.TONY Brand Vertical Ring Die Pellet Machine TYJ551-III-132KW

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1). TONY's New Vertical Ring Die Pellet Machine.

(2). Cyclone And Bags Dust Collectors.

(3). Automatic Lubrication System.

(4). Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.1Set Of TONY Galvanized Cooler Seperator With Capacity 4-5Ton/Hour

Main Parts:

(1)TONY's Galvanized Cooler Seperator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3) Fan Blower.

(4)Connect Pipes.

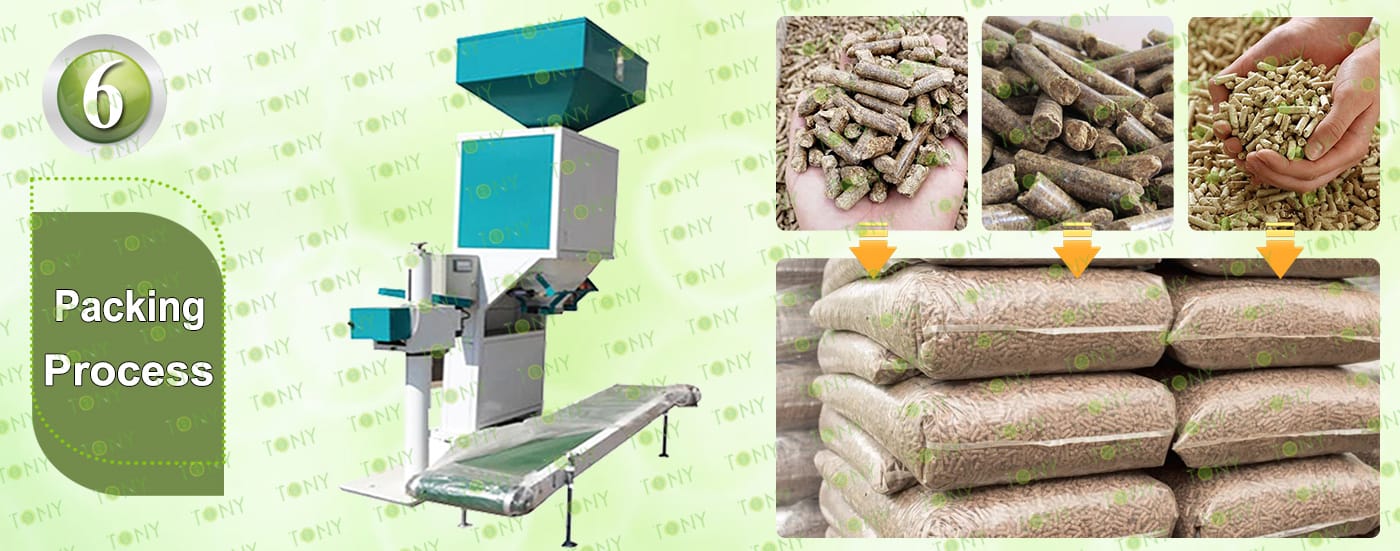

6.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.1 Set of TONY Semi-Automatic Packing Machine.

Main Parts:

(1)TONY's  Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

1. Biomass pellet fuel, due to its clean, environmentally friendly, high calorific value, and stable combustion properties, is widely used in industrial boilers, heating equipment, livestock farms, and food processing. With the advancement of the national "coal to biomass" policy, the phase-out of traditional coal-fired boilers is accelerating, and market demand continues to grow.

2. Utilizing agricultural waste to convert energy aligns with the "dual carbon" goals and has gained both policy and public recognition.

3. It is a labor-intensive industry that can create rural jobs and contribute to rural economic development.

4. With stable production technology, franchisees can access technical support and operational solutions, lowering the barrier to entry for entrepreneurs.

5. Biomass pellet processing projects offer both environmental benefits and economic potential, making them suitable for rural areas with favorable policies and abundant raw materials. By rationally controlling costs, selecting high-quality equipment, and precisely matching market demand, they are expected to achieve stable profitability.

Advantages of Wet Wood Log  as Biomass Pellet Fuel

When wet wood log is processed into biomass pellet fuel, it offers numerous advantages, which are not only evident in environmental protection, economic aspects, and contributions to social development and energy structure improvement, but also in its unique combustion performance. The main advantages are as follows:

1. Calorific Value and Combustion Residue

The calorific value of wet wood  log biomass pellet fuel after combustion, as well as its ash content, is approximately 10% lower than that of medium - grade coal. However, wet wood log biomass pellets burn out completely under normal working conditions. In contrast, coal cannot burn out entirely, leaving cinders with a combustible composition accounting for 10% to 15% of the total. As a result, in practical applications, the effective calorific values of the two are comparable.

2. Ignition Ease

wet wood log biomass pellet fuel has a better ignition property compared to coal. It ignites easily, significantly reducing the ignition time required for starting the combustion process.

3. Solid Emissions

The solid emissions of wet wood log biomass pellet fuel are much lower than those of coal. This not only cuts down on the cost of slag disposal but also reduces environmental pollution. The solid emissions of wet wood log biomass pellet fuel are mainly ash, accounting for about 0.4% - 7.0% of the total weight. In contrast, the solid emissions from coal combustion are a mixture of ash, alkali, and unburned coal, making up about 25% to 40% of the total weight.

4. Air Pollution and Corrosion

The degree of air pollution and boiler corrosion caused by coal is far greater than that of wet wood log biomass pellet fuel. Coal soot contains a large amount of particulate carbon and toxic and corrosive gases such as SO₂ and CO. The main component of wet wood log biomass pellet fuel is C - H organic matter. There is no particulate carbon and SO₂ gas in its flue gas. Instead, it mainly consists of C - H volatile gases, and its SO₂ and CO emissions are nearly zero. When burned, the smoke color is less than Ringelmann 1 level. This greatly reduces air pollution and carbon dioxide emissions, and wet wood log biomass pellet fuel is internationally renowned as a "clean fuel."

5. Cost and Time Savings

Using wet wood log biomass pellet fuel for boiler operation incurs less cost and time compared to burning coal. For example, a 0.5t boiler using wet wood log biomass pellet fuel costs 11% less than when burning coal and saves 34% of the time. In another case, for a 0.5t boiler, the fuel cost relative to coal is reduced by 10%, and the time saved is 16%.

6. Continuous Combustion

The continuous combustion time of wet wood log biomass pellet fuel is generally 8 to 10 times longer than that of soft, bulk materials. It can maintain a stable and continuous combustion state, ensuring a more reliable energy supply.
