Project Brief Introduction:

1.Product:Wet Wood Log Pellet Line

2.Capacity:18-20T/Hour

3.TONY Brand 18-20Ton/Hour Wet Wood Log Pellet Line Project Process

4.Main Machine: Comprehensive Chipper,Hammer Mill,Large Hydraulic Storage Silo，Rotary Drum Dryer,TONY Pellet MachineTYJ860-III-280KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 2550 kw

6.Need Area: About  608 ㎡  L:38M  W: 16M  H:5.489M

Project Layout For Customer:

3D

1. The working principle of wet wood log biomass pellet processing equipment

Pelletizing equipment is the core of pellet processing. It mechanically compresses dried wood chips into dense cylindrical pellets.

(1)Core equipment: Ring die pellet machine (mainstream).

(2)Ring die pellet machine principle:Dried wood chips enter the pelletizing chamber through a feeder and are pushed between the ring die and the press rollers by a stirring paddle.

The ring die (with evenly distributed holes in the inner wall, 6-12 mm in diameter) is stationary, while the press rollers (two to three with a patterned surface) rotate at high speed, applying pressure (up to 50-100 MPa) to the wood chips.

Under high pressure, the wood fibers undergo plastic deformation and hydrogen bonding (no adhesive is required; the wood's own lignin softens under the heat generated by the extrusion friction, acting as a natural adhesive). The wood chips are then extruded through the die holes to form continuous cylindrical strips.

The strips are cut by a cutter on the outside of the ring die, forming pellets 20-50 mm in length.

2. Characteristics of wet wood log biomass pellet processing equipment

(1) Broad spectrum processing capability: Processable raw materials include wood (logs, wood chips, sawdust), crops (straw, rice husks, corn cobs), herbs (reeds, forage grass), etc. By adjusting the crushing and pulverizing parameters, it can adapt to raw materials of different hardness and fiber content (for example, hardwood requires stronger crushing capacity, and straw needs to control the pulverization particle size to prevent agglomeration).

(2) Clear requirements for raw material pretreatment: The raw material moisture content must be controlled at 8%-15% (too high will easily cause adhesion and mold clogging, too low will result in insufficient particle strength), and the particle size is usually required to be 1-3mm. Therefore, the equipment system often integrates drying and screening modules to ensure that the raw materials meet the standards.

3. Modularization of core equipment and continuous production process

(1) Modular combination: A typical production line consists of "crushing equipment (coarse crushing) → grinding equipment (fine crushing) → drying equipment (humidity control) → granulating equipment (molding) → cooling equipment (cooling) → screening equipment (selection) → packaging equipment". Each module can be flexibly increased or decreased according to production capacity requirements (for example, some auxiliary equipment can be omitted for small production lines).

(2) Continuous operation: Through the connection of various links such as conveyor belts and screw feeders, automated continuous production from raw material input to finished product output is achieved.

4. Application scenarios of wet wood log biomass pellet processing equipment

(1)Industrial Energy: Processing equipment provides fuel (replacing coal and oil) for factory boilers and kilns, such as steam boilers in textile and food factories, and heating kilns in the ceramic and building materials industries. This stable production of pellets ensures energy supply.

(2)Power Generation:Biomass power plants require large quantities of standardized pellets as fuel. Large-scale processing equipment can meet the power plants' stringent requirements for pellet calorific value and density, ensuring combustion efficiency and stable power generation.

(3)Agriculture and Animal Husbandry: Some processing equipment can produce pellets for livestock bedding (such as straw pellets) or raw material pellets for organic fertilizer production. The equipment can be adapted to different agricultural needs by adjusting the process.

(4)Residential Heating:For pellets used in home fireplaces and small heating appliances, processing equipment must control pellet size and hardness to accommodate residential combustion equipment. The equipment's refined production capacity directly impacts the user experience of these pellets.

(5)Environmental Protection and Waste Management:In garbage and sewage treatment plants, processing equipment can convert organic waste (such as sludge and food waste) into fuel pellets for resource utilization. Corrosion- and clogging-resistant designs are key.

TONY Brand 18-20 Ton/Hour Wet Wood Log Pellet Manufacturing Plant can take wet wood, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with wet wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity:18-20 Ton/Hour

2. Raw materials: Wet wood log , branches, small - diameter logs, twigs, etc.

3. Moisture: Wet type, about 40%.

4. Application: All kinds of wood - based biomass materials suitable for pellet production.

Suitable customers: Green energy companies, forestry enterprises, and private wood - processing workshops that have advantages in wood raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Log Pellet Production Line

2. Raw Material: All kinds of wet wood Log

3. Moisture Content of Raw Material: 40%

4. Capacity: 18-20 tons per hour

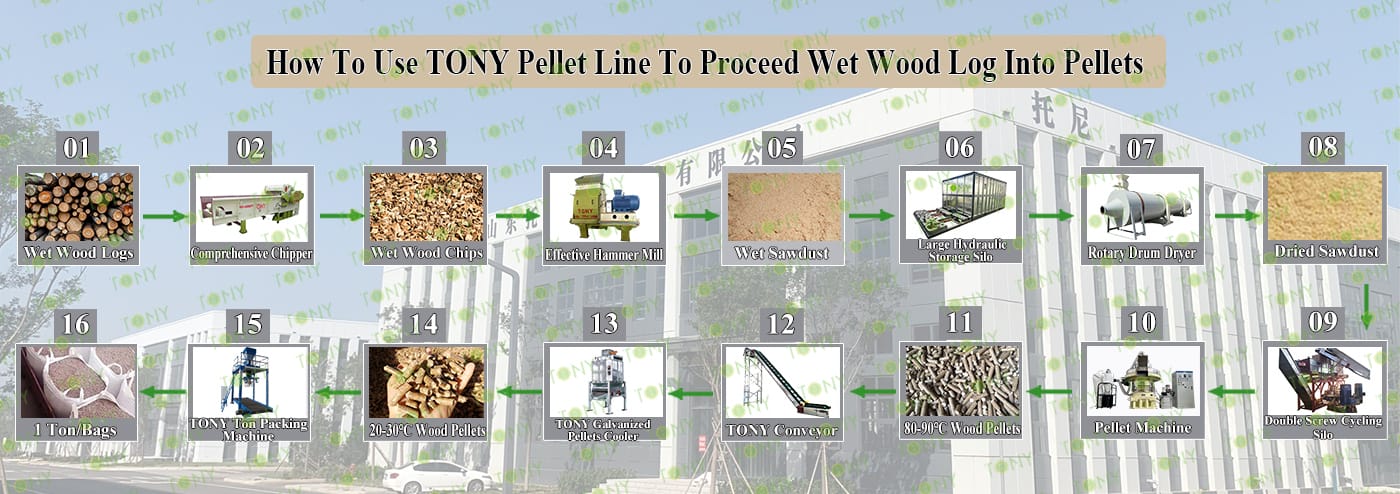

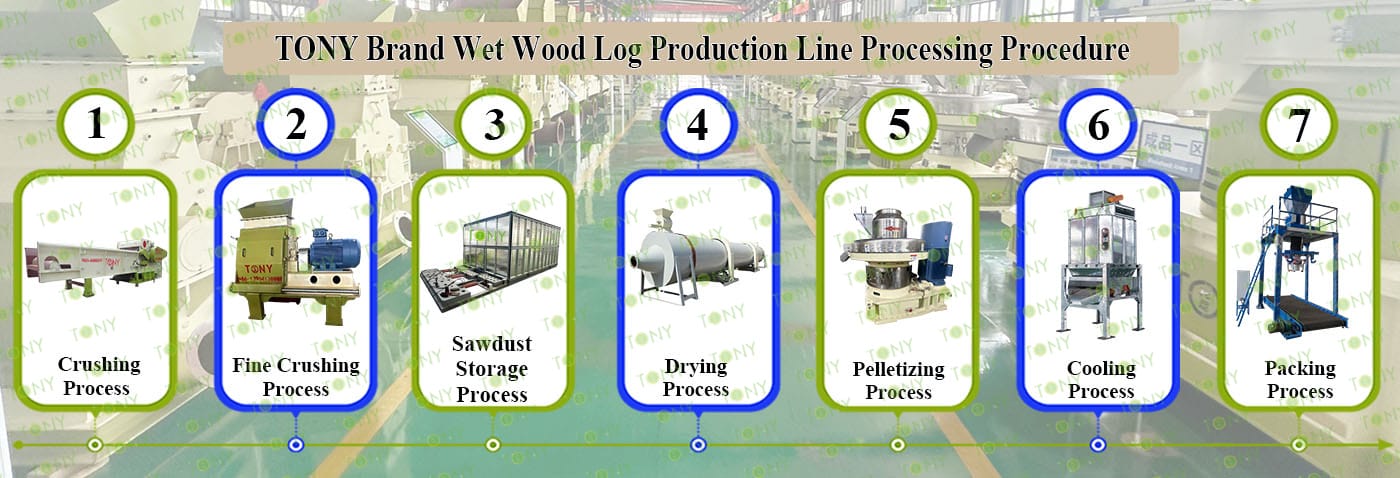

5. Process: Crushing Process - Fine Crushing Process -Sawdust Storage Process- Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1300-600-160KW, Effective Hammer Mill-TFD75*132-132KW, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-3*24m, TONY Pellet Machine TYJ860 - Ⅲ - 280kw, Pellet Cooler, Ton Packing Machine and Belt Conveyors

图

图

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Large Hydraulic Storage Silo	Rotary Drum Dryer
1.To Grind Wood Logs φ ≤30cm Into25-55mm Wood Chips.   2.Model: TPC1300-600-160KW With 6 Blades*2sets   3.Capacity:24-30Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD75*132-132KW*4sets 3.Capacity: 4-5Ton/Hour/Set	1.To Storage Sawdust Before Dryer Control Sawdust Flow Entering The Dryer. 2.Model: TCY-25*2sets 3.TONY Uses Galvanized Material	1.To Dry The 40% Sawdust Into 10-15% Sawdust.  2.Model: THGD3*24*2sets 3.Capacity: 9-10Ton/Hour/Set
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine	Belt Conveyor
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*4sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*2sets 3.Capacity:18-20Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags. 2.Model: TBD* 2sets 3.Capacity: 18-20 Ton/Hour	1.To Transport Wood Chips,Sawdust,Pellets. 2.Width: 80cm*20sets 3.Capacity:Designed With The Whole Line

图

1.Wood Chipping Process:

A.This process is mainly used to grind the wood logs whose diamater is under 30cm into wood chips with size 25-55mm. The finish wood chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY brand comprehensive chipper TPC1300-600-160KW model with 6 flying blades type:

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

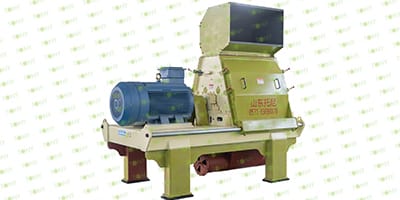

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:18-20Ton/Hour.

C.TONY effective hammer mill TFD75*132-132KW*4Sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

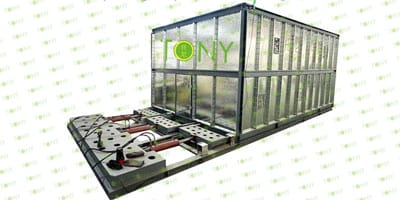

3.Sawdust Storage Process:

A. This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B. The customer chooses one TONY Brand Sawdust Storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust Blocked.

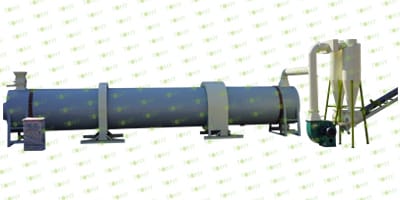

4.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:18-20Ton/Hour.

C.TONY use 2 sets of 3*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

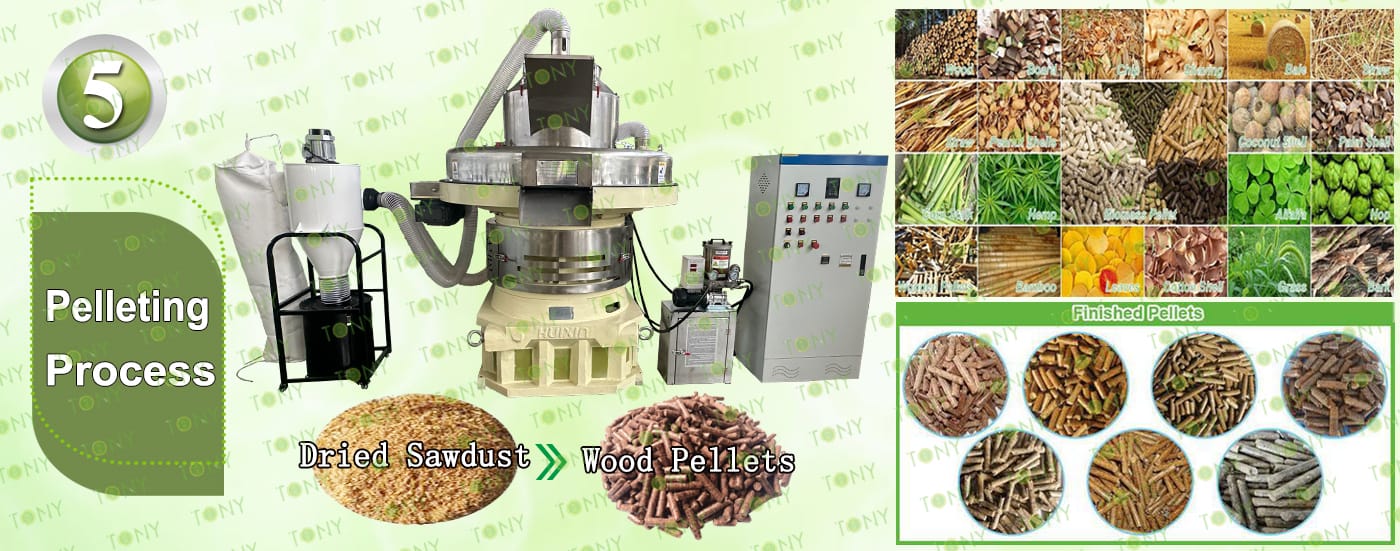

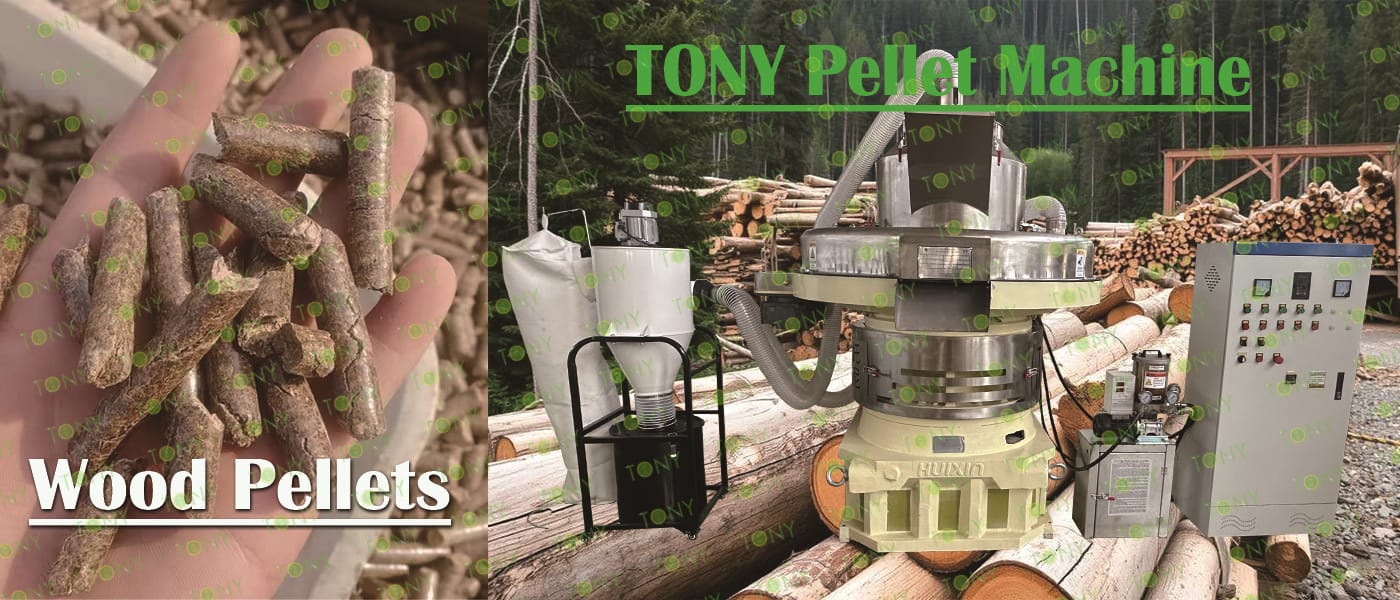

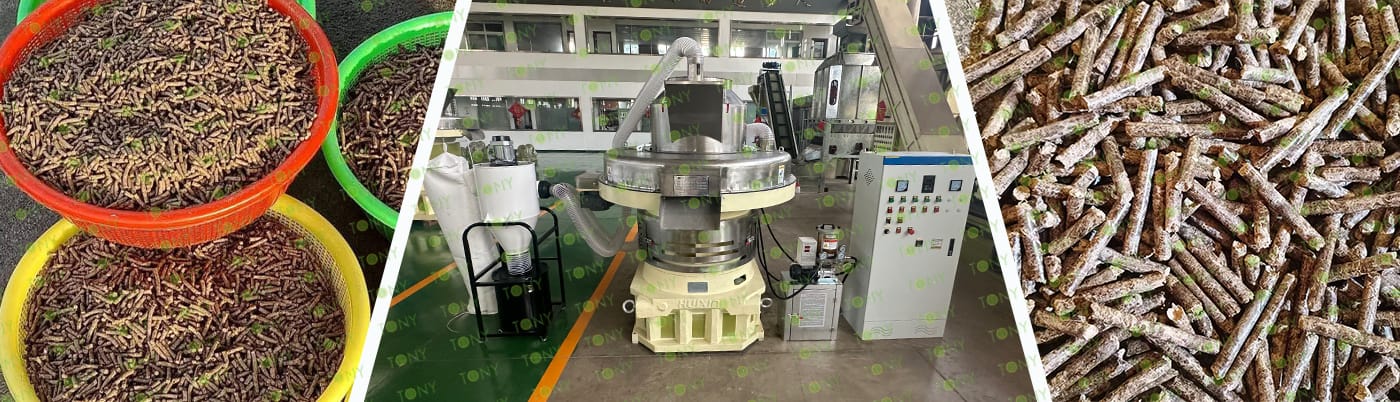

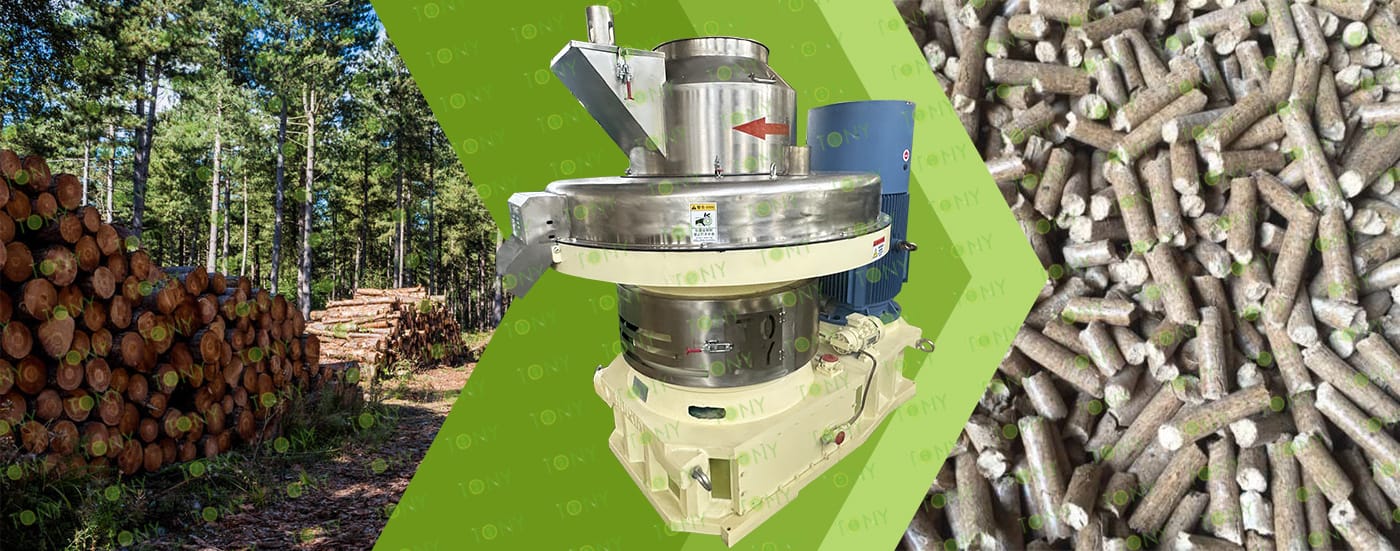

5.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:18-20Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-280KW*4 sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

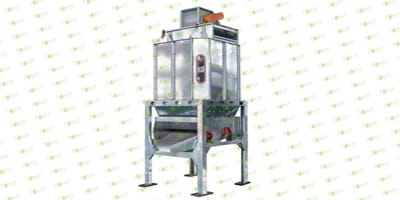

6.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.2 sets of TONY galvanized cooler separator

Main Parts:

(1)TONY's New Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

7.Packing Process:

A.This process is mainly used to pack pellets into 1ton/bags.

B.2 sets of TONY ton packing machine

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

1.Significant Economic Benefits:

The selling price of biomass pellets is relatively high, but after deducting equipment depreciation, factory rental, transportation costs, and taxes, the monthly net profit is substantial.

2.Mature and Stable Technology:

Biomass pellet production technology is relatively mature. The entire production line adopts a modular design, supporting automated feeding, crushing, drying, pelletizing, cooling, and packaging, reducing manual labor. The core pelletizer can operate continuously for over 12 hours without clogging, achieving a pelletizing rate of over 98%. By optimizing the compression ratio and power matching, power consumption per ton is less than 55 kWh, saving over 15% energy compared to traditional equipment.

3.Outstanding Environmental Advantages:

Biomass pellets produce low carbon dioxide emissions during combustion, essentially achieving zero emissions. They also contain very low levels of sulfur oxides, nitrogen oxides, and dust, helping to mitigate the greenhouse effect, improve air quality, reduce environmental pollution, and meet environmental requirements.

4.Easy Storage and Transportation:

After compression molding, biomass pellets have a higher density and a more regular shape, making them easier to store and transport. This reduces storage and transportation costs, improves the efficiency of biomass energy, and enables their application in a wider range of regions.

Biomass pellet fuel refers to a granular fuel made by using crops (such as straw), wood (such as wood, pine, fir, etc.), sawdust and other agricultural and forestry processing waste (such as rice husks, tree bark, furniture factory foot feed, wood powder, cotton poles, peanut shells, medicinal residue, bamboo chips, sludge, building formwork, wooden pallets, etc.) as raw materials. After being extruded by a biomass pellet machine, the crushed raw materials are made by cold compact molding and processing under normal temperature conditions using a press roller and ring mold.

1.Density: The density of raw materials is generally 0.1 - 0.13t/m³, and the particle density after forming is 1.1 - 1.4t/m³. It has a large density and small size, which is convenient for storage and transportation, and greatly improves the combustion performance of biomass.

2.Shape: granular.

3.Odor: During the production process, no additives can be added, so the original smell of its raw materials is still maintained.

4.Elemental composition: 75-85% carbon content, 3-6% ash content, 1-3% moisture content, absolutely no impurities such as coal gangue, stones, etc. that do not heat and consume heat, and do not contain thiophosphate.

5.Catalyst value: The biomass pellet fuel generates a large amount of heat, with a heat generation of around 3900-4800 kcal/kg. The calorific value of the pellet fuel made from different raw materials varies. For example, larch particles are about 4022 kcal (16829kj/kg), red pine particles are about 3978 kcal (16645kj/kg), wood chip mixed particles are about 3896 kcal (16302kj/kg), and wood chip peanut shell particles are about 3812 kcal (15948kj/kg). The fuel calorific value produced by general biomass pellet fuel manufacturers is about 4100±100Kcal/Kg, and 1 ton of biomass pellet fuel is equivalent to 0.55-0.6 tons of standard coal or 0.4 tons of diesel/fuel oil
