Project Brief Introduction:

1.Product:Dried Straw Pellet Line

2.Capacity:7.5-9 T/Hour

3.TONY Brand 7.5-9 Ton /Hour Dried Straw Pellet Line Project Process

4.Main Machine: Straw Cutter,Hammer Mill,TONY Pellet Machine TYJ760-Ⅲ-160KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 1100 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

原材料图+颗粒机图片

1. The working principle of dried straw biomass pellet processing equipment

(1) Pretreatment: Dried straw is collected, dried, and crushed under certain temperature and pressure.

(2) Compression molding: Special biomass solidification molding equipment is used to squeeze the pretreated dry straw into regular, dense rod-shaped, block-shaped, or granular fuel.

2. Characteristics of dried straw biomass pellet processing equipment

(1) High-efficiency crushing: The combination of high-speed rotating blades and screens can quickly and effectively crush straw into the required fine particles, thereby improving biomass utilization.

(2) Versatility: Not only suitable for straw, but also can process other biomass materials such as alfalfa, bamboo, wood, etc.

(3) High energy efficiency: Advanced power systems and energy-saving technologies are usually used to improve energy utilization efficiency, reduce energy consumption, and thus save operating costs.

(4) High crushing uniformity: It can achieve uniform and fine crushing of biomass straw, making it easier to carry out subsequent fermentation, pressing or processing.

(5) Automatic control: Many equipment are equipped with advanced automatic control systems, which can achieve intelligent operation, easy operation, and improve work efficiency.

(6) Easy to use and simple operation: There are a variety of molds, and the particle size can be adjusted at will by replacing the mold.

3. Application scenarios of dried straw biomass pellet processing equipment

(1) Heating and household energy: Pellets have high combustion efficiency and are easy to store. They can be used directly for home heating or cooking, making them a clean alternative to loose coal.

(2) Industrial boilers: They replace coal and natural gas to provide heat, reduce carbon emissions, and comply with environmental protection policies.

(3) Thermal power plants: They are used as a fuel for power generation. They are renewable energy and reduce dependence on fossil energy.

(4) Biomass heating projects: They are a heat source for centralized heating systems. Raw materials are localized, reducing transportation costs.

(5) Waste treatment: They convert agricultural "green waste" such as straw and rice husks into fuel to avoid incineration pollution.

(6) Agricultural recycling: Biomass fertilizers produced during the production process can be returned to farmland, achieving the goal of "taking from the field and using it in the field."

2标题

TONY Brand 7.5-9 TPH Dried Straw Line can process dried straw and various biomass materials related to agricultural waste into biomass pellets. Straw processing into biomass pellets has a wide range of uses .As fuel: straw pellet fuel can be used as boiler fuel for power plants, industrial boilers, civil heating and other fields. Its calorific value is similar to coal, but the price is lower, and the combustion process produces fewer pollutants, is a more environmentally friendly fuel. As feed: Straw pellets processed by straw pellet machining can be used as feed for livestock. This method can make full use of crop straw, reduce feed costs, and also help solve the problem of straw disposal. These uses can not only effectively use agricultural waste, reduce environmental pollution, but also create economic benefits and promote sustainable agricultural development.

1. Capacity: 7.5-9 Ton/Hour

2. Raw materials: Dried straw, including dried corn straw, dried wheat straw, dried cotton straw, dried flax straw, dried beet straw and other agricultural straw

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, agricultural cooperatives, and small - scale rural processing units that have ready access to straw and related agricultural residues.

5. Finished Pellets Markets: Large power plants, domestic heating systems in rural and suburban areas, industrial heating facilities in rural - based industries, combustion heat applications in local manufacturing units, heating systems in rural schools and community centers, boiler rooms in small - scale rural enterprises, and canteens in rural educational institutions.,farms, feed mills.

3标题


原材料--成品图

1. Project Name: Dried Straw Production Line

2. Raw Material: Bales of Dried Straw

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 7.5-9 TPH

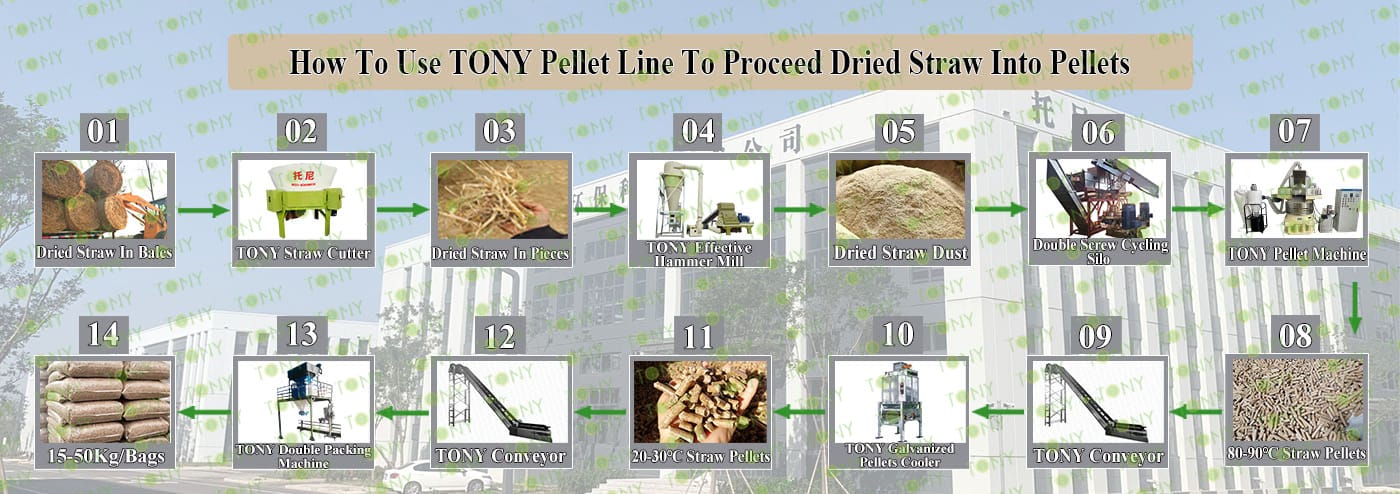

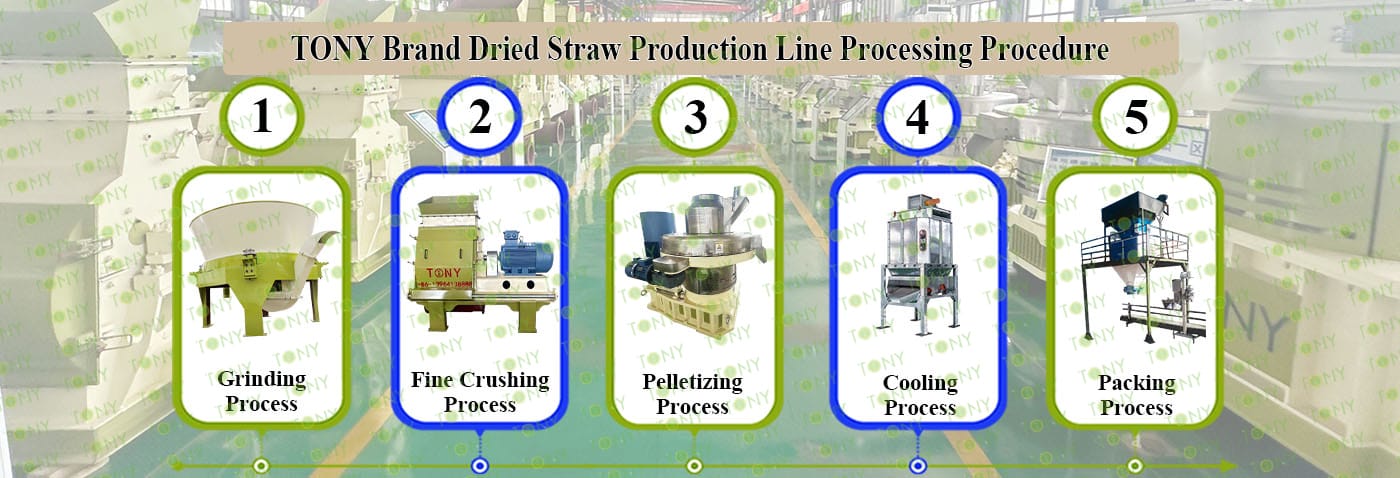

5. Process: Grinding Process - Fine Crushing Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Straw Cutter -TPX2500-110kw, Effective Hammer Mill- TFD95*280-280kw, TONY Pellet Machine-TYJ760-III-160kw, Galvanized Pellets Cooler, Double Packing Machine and Belt Conveyors

4标题

流程图1

流程图

5标题

原材料+颗粒图

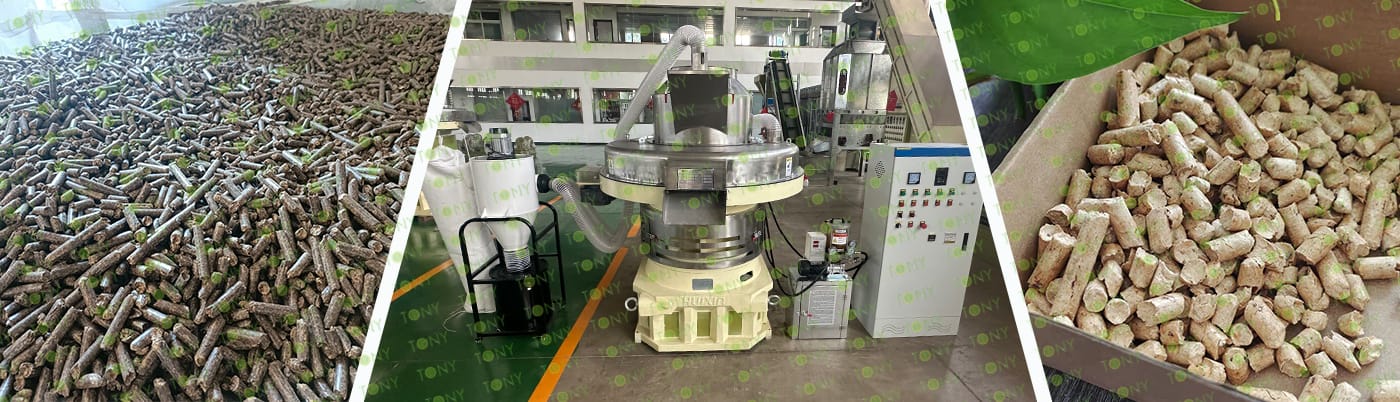

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1标题

TPX2500-110kw旋切机图

带原材料-成品图

1.Grinding Process:

A.The process is mainly used to grind dried straw within 2.2m in diameter into dried straw pieces. The rotary cutting mode of the outer chain of the gear, the rotary cutting rotor blade is sharp, and the blade types are various, which can be rotated to cut various bales of straw with different diameters, different thicknesses, different lengths and different water contents

B.TONY brand straw cutter TPX2500-110kw models *2sets

C.Capacity:4-5Ton/Hour/Set

Main Parts:

(1)Tony's New Straw Cutter

(2)Enlarged Turntable

(3)Rotary Cutting System

(4)Drive system

(5)Electrical Cabinet.

5.2标题

高效粉碎机

带锯末图

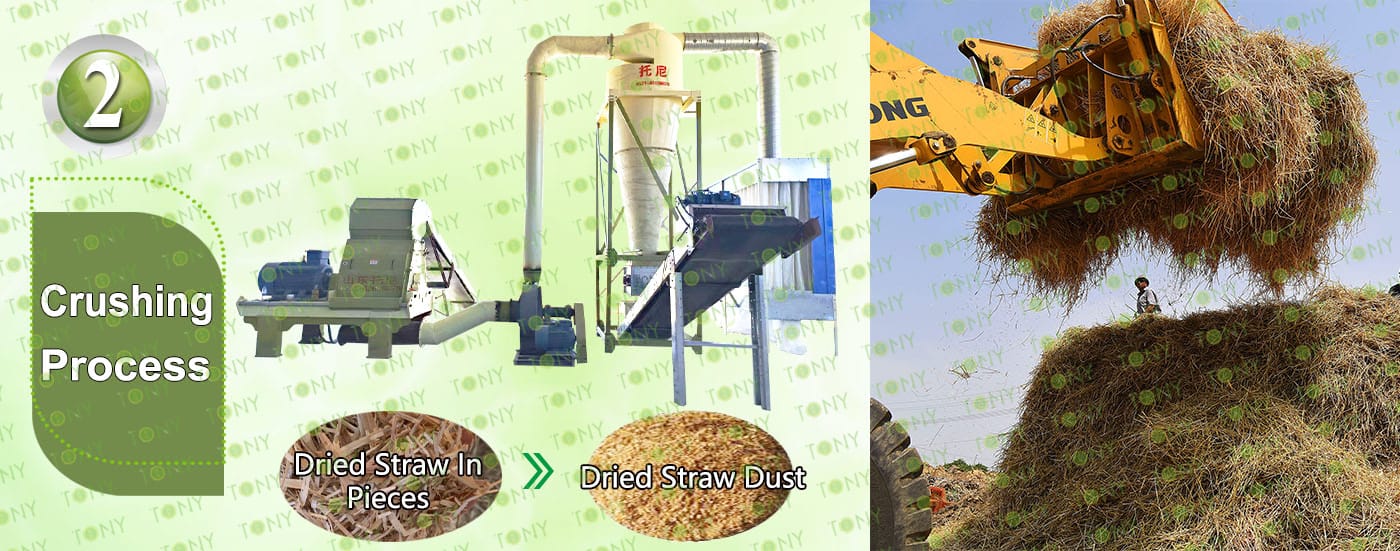

2.Fine Crushing Process:

A. The process is mainly used to crush 60-70mm dried straw pieces into 8-14mm dried straw dust.

B.TONY brand effective hammer mill TFD95*280-280kw *1set.

C.Capacity: 7.5-9 tons/hour.

Main parts:

(1)TONY Effective Hammer Mill

(2)Galvanized Dust Collector.

(3)Sawdust Conveying Fan.

(4)Cyclone With Airlock.

(5)Electrical Cabinet.

5.3标题

颗粒机四件套带 原材料，颗粒图

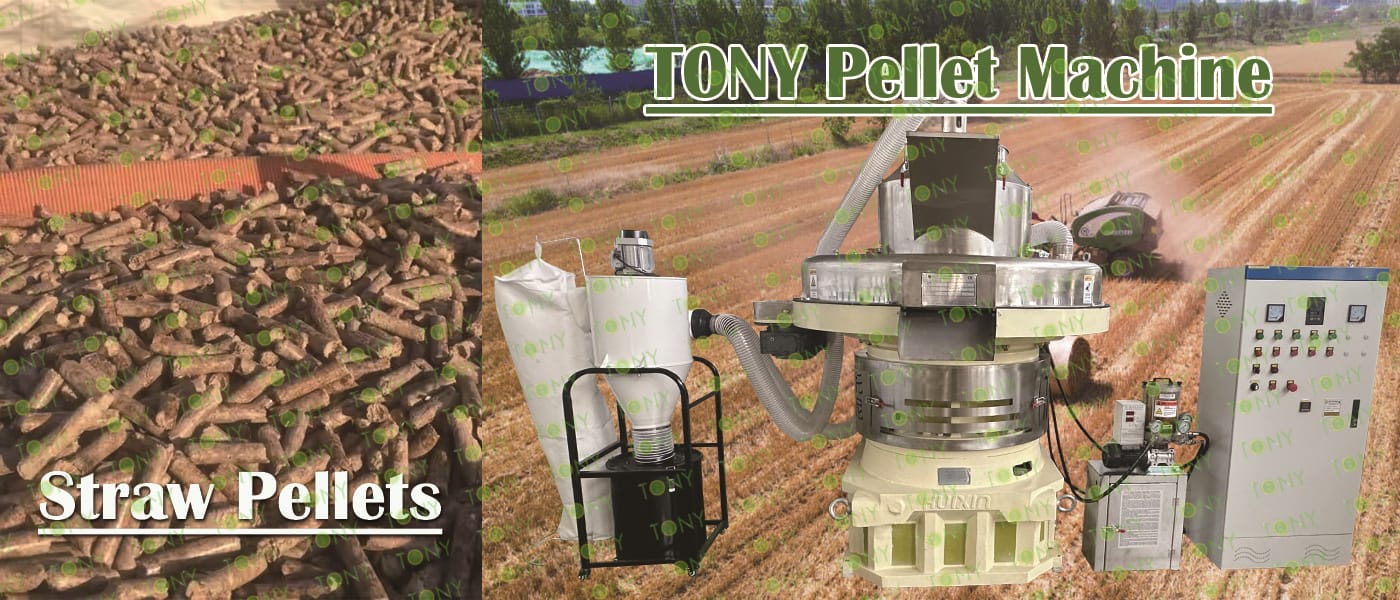

3.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ760-Ⅲ-160kw *3sets

C. Capacity:7.5-9Ton/Hour.

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.4标题

镀锌冷却机+颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:7.5-9 Ton/Hour.

Main Parts:

(1)TONY's new Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5标题

双胞包装机

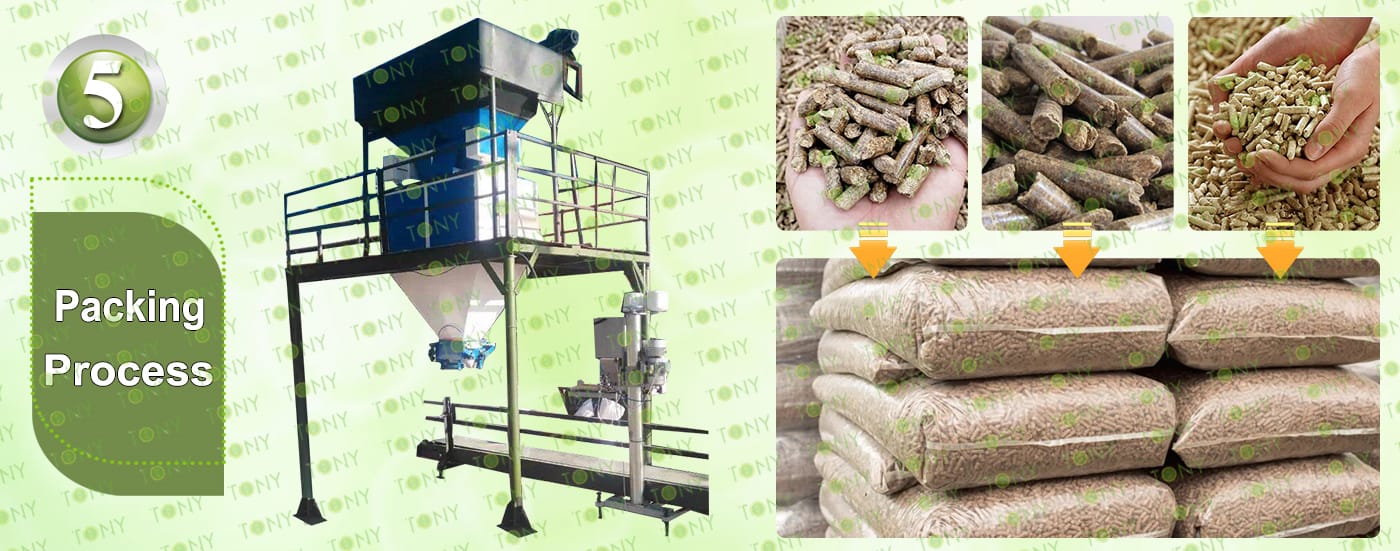

5. Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.TONY brand double packing machine* 1set.

C.Capacity:7.5-9 Ton/Hour.

Main Parts:

(1)TONY's New Double Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6标题

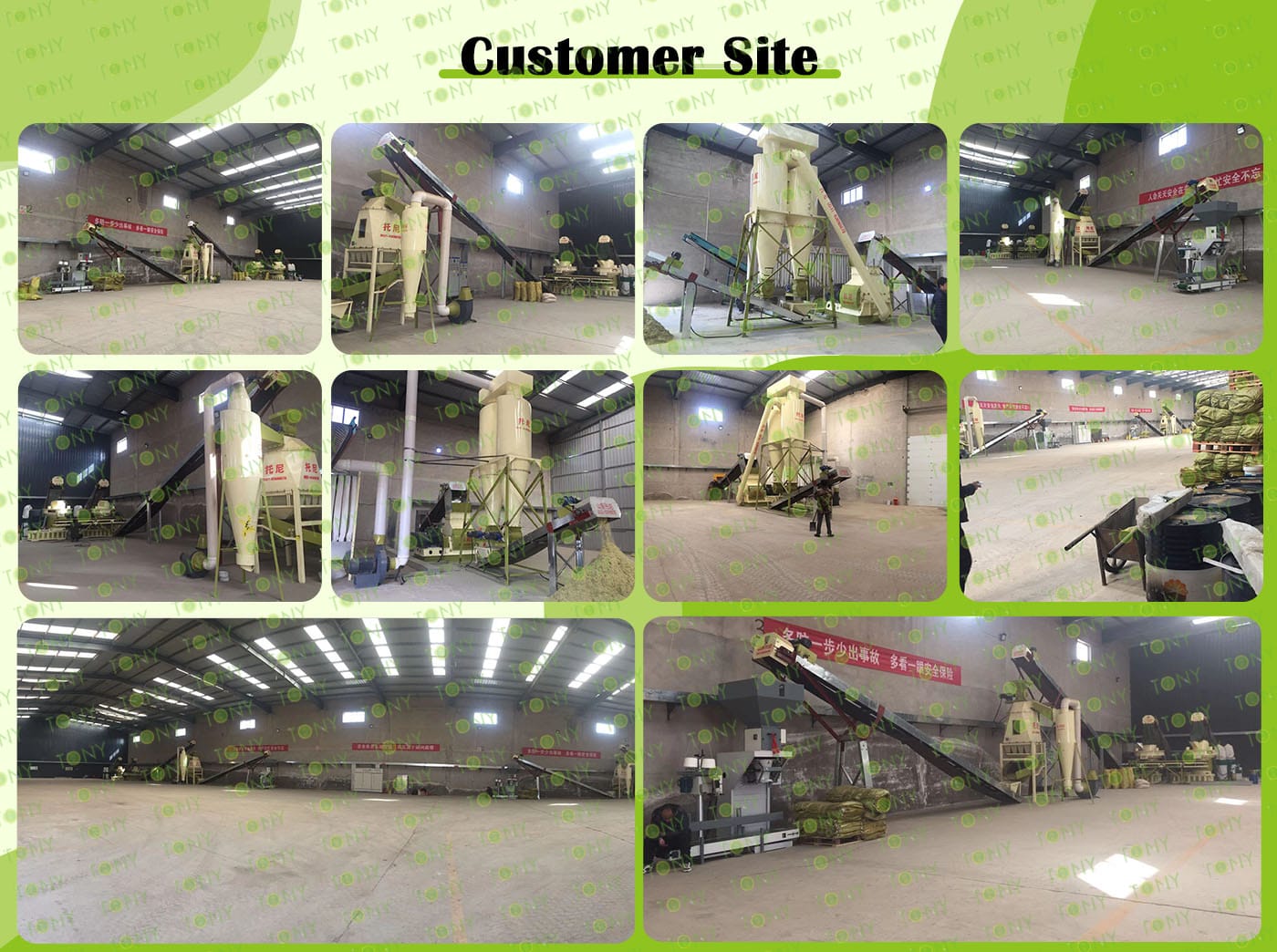

客户生产案例图

7标题

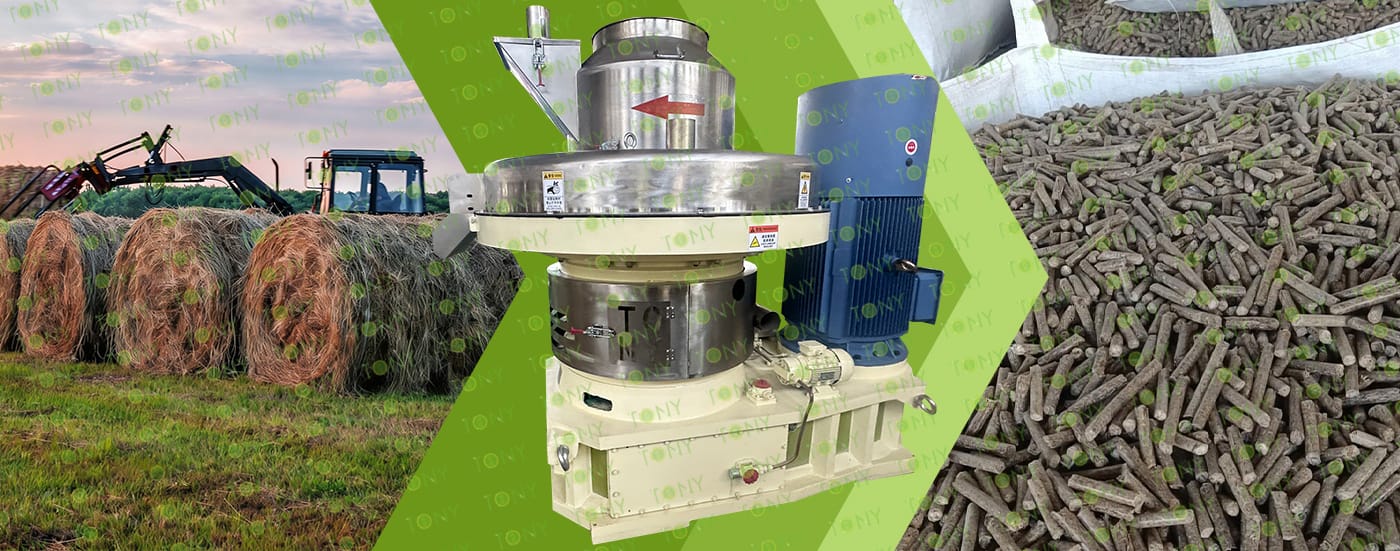

图 秸秆捆+颗粒 颗粒机

Production Advantages of the Dry Straw Biomass Pellet Project

The physical properties of dry straw make the production process more efficient and less prone to failures, which is the core guarantee for the project's long-term stable operation. The project's streamlined process, high stability, and adaptability to large-scale operations are key.

1. Simplified Production Process:

Eliminating the core drying step, the production line only requires three steps: crushing - forming - cooling. This reduces the number of steps compared to wet straw projects, shortening the production cycle by 30%. Furthermore, no specialized personnel are required to operate the drying equipment, reducing training costs.

2. Lower Equipment Failure Rate:

Dry straw has a crisp texture and is less likely to stick to the crusher screen during crushing. The forming process eliminates the mold clogging and loose pellets caused by high moisture content. The equipment failure rate is 20%-30% lower than that of wet straw projects, reducing annual downtime for maintenance by over 50 hours. This ensures continuous production and improves annual capacity utilization (reaching over 85%, compared to approximately 70% for wet straw projects).

3. Easy to automate:

Dry straw has good fluidity and can be easily connected to automatic feeding, automatic screening, and automatic packaging systems. Medium-sized projects can be operated by 3-5 people, which is 2-3 fewer people than wet straw projects, saving labor costs.

8标题

秸秆图加颗粒图

Storage Advantages of Straw Pellets

The pellet form fundamentally solves the problems of traditional straw feed: difficult storage and expensive transportation, significantly reducing back-end costs for farms.

1. High Density, Less Storage Space:

The pellet density reaches 0.8-1.0g/cm³, 10-15 times that of loose straw. One ton of pellets requires only 1.2-1.5m³ of storage space, saving over 80% of warehouse space compared to loose straw. They are particularly suitable for small and medium-sized farms with limited space.

2. Moisture-Resistant, Long Shelf Life:

The pellet surface is firm and smooth, making it less susceptible to moisture absorption. Under dry and ventilated conditions, it can be stored for 6-12 months. Loose straw, on the other hand, can easily become moldy and spoil after just one to two months. This prevents livestock and poultry diseases (such as enteritis) and feed waste caused by moldy feed.

3. Low transportation loss and cost savings:

The pellets are uniformly shaped and dust-free, resulting in a transport loss rate of less than 3% (compared to approximately 10%-15% for loose straw). They also require no specialized transport equipment and can be transported by ordinary trucks. The transportation cost per ton of feed is 40%-50% lower than for loose straw.
