Project Brief Introduction:

1.Product:Dried Straw Pellet Line

2.Capacity:2-2.5 T/Hour

3.TONY Brand 2-2.5 Ton /Hour Dried Straw Pellet Line Project Process

4.Main Machine: Straw Cutter,Hammer Mill,TONY Pellet Machine TYJ551-Ⅲ-132KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 270 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:



1. The working principle of dried straw biomass pellet processing equipment

The core principle of straw drying biomass pellet processing equipment is to convert low-moisture dry straw into high-density, easy-to-store solid pellet fuel through raw material pretreatment and high-pressure extrusion molding. Its core difference is that compared with wet straw equipment, it does not require a complex drying process.

2. Characteristics of dried straw biomass pellet processing equipment

(1)Wide Raw Material Compatibility

It can process not only dry straw but also a variety of biomass materials, such as rice husks, sawdust, and peanut shells. Only fine-tuning of the crushing and pelletizing parameters is required based on the hardness of the raw material.

(2)Outstanding Automation and Continuity

The ring die pelletizing line automates the entire process from crushing to pelletizing to cooling and screening, reducing manual intervention and allowing a single person to monitor the entire production line.

The equipment offers high operational stability and can operate continuously for 8-12 hours, meeting the needs of industrial mass production and avoiding the efficiency loss caused by frequent downtime.

(3)Environmentally Friendly and Energy-Saving

The production process uses no chemical additives, relying solely on the straw's own lignin for bonding. The finished pellets emit no harmful gases during combustion, meeting environmental standards.

(4)Controllable Forming Efficiency and Quality

The pelletizer can control pellet density and hardness by adjusting the roller pressure and die hole parameters, ensuring that the finished pellets are resistant to breakage and easy to store and transport.

3. Application scenarios of dried straw biomass pellet processing equipment

(1)Biomass Energy Production

This is the equipment's primary application scenario, with the finished pellets primarily used as a clean fuel.

Industrial Boiler Fuel: This fuel is used to power boilers in textile mills, chemical plants, food processing plants, and other industries, replacing traditional coal and reducing carbon emissions while complying with environmental protection policies.

Residential Heating/Cooking: In rural areas of northern China or in areas with centralized heating, pellets are used as fuel for wall-mounted boilers and biomass stoves, offering cleaner combustion and higher thermal efficiency than loose coal.

Power Generation: This fuel provides standardized fuel for biomass power plants, featuring high pellet density and stable combustion, ensuring continuous and efficient operation of the generator sets.

(2)Livestock Feed: Dry straw pellets are processed into feed tailored to specific regions and livestock needs.

Ruminant Feed: Corn stalks, wheat straw, and other materials can be crushed and pelletized to form a base feed for ruminants such as cattle and sheep. The pellet form facilitates storage and feeding, and nutrients can be added as needed. Feed processing plant supporting equipment: Large feed mills use it as raw material processing equipment to convert straw into feed raw material pellets, which are then mixed with other ingredients to make complete feed.

3.图片


1. Project Name: Dried Straw Production Line

2. Raw Material: Bales of Dried Straw

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 2-2.5 TPH

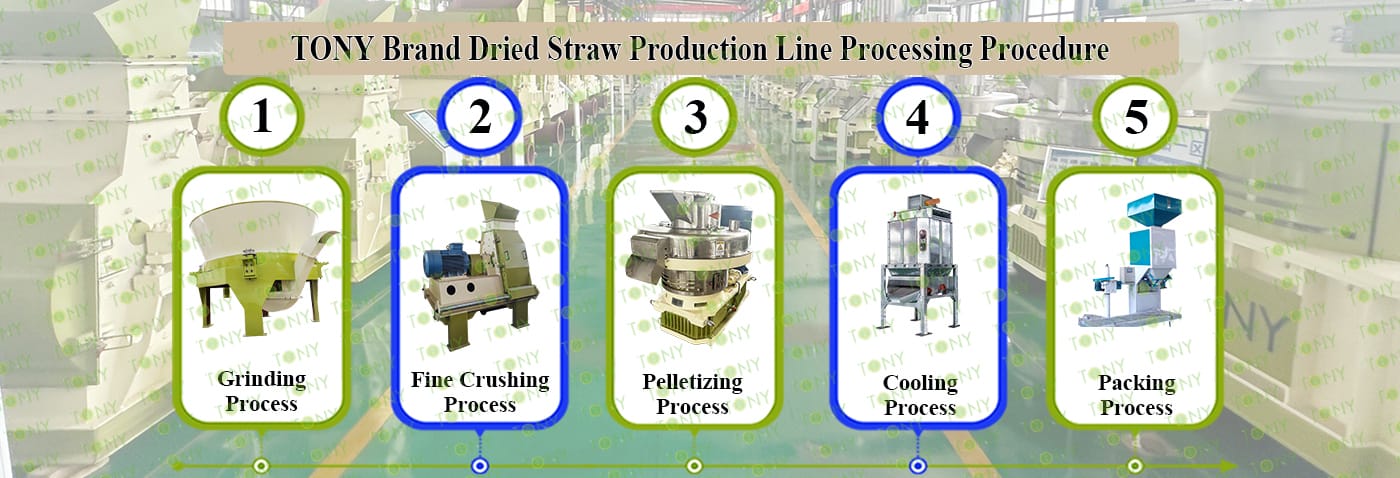

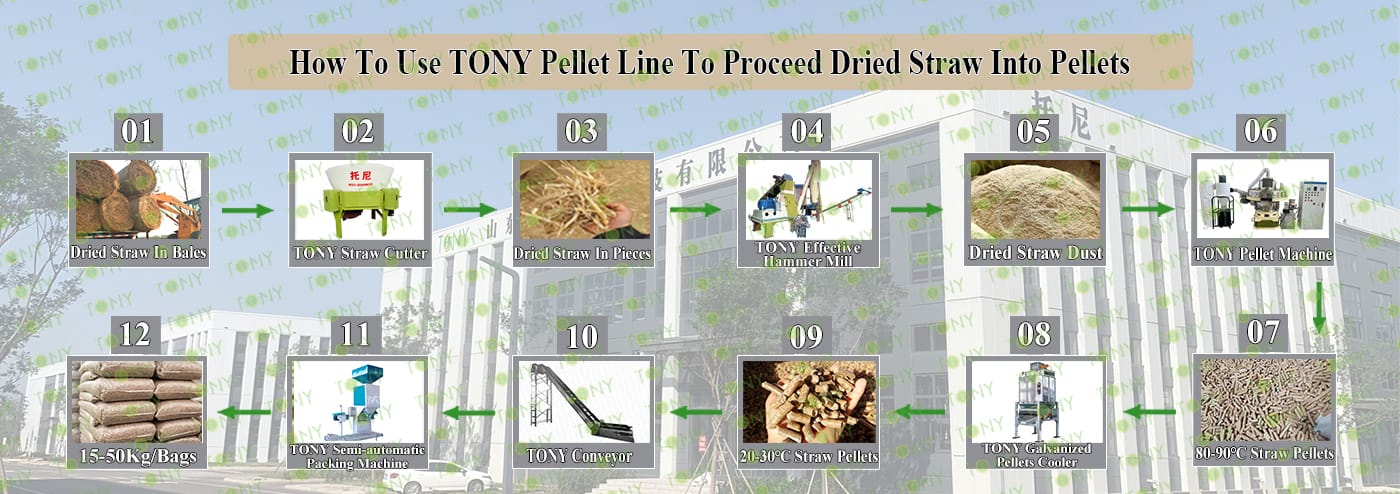

5. Process: Grinding Process - Fine Crushing Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Straw Cutter -TPX2000-55kw, Effective Hammer Mill- TFD65*75-55kw, TONY Pellet Machine-TYJ551-III-132kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片



5.图片






5.1图片


1.Grinding Process

A.The process is mainly used to grind dried straw within 1.8m in diameter into dried straw pieces. The rotary cutting mode of the outer chain of the gear, the rotary cutting rotor blade is sharp, and the blade types are various, which can be rotated to cut various bales of straw with different diameters, different thicknesses, different lengths and different water contents

B.TONY brand straw cutter TPX2000-55kw models *1set

C.Capacity:2-2.5Ton/Hour/Set

Main Parts:

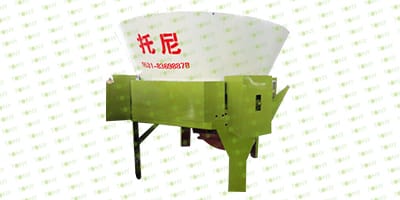

(1)Tony's New Straw Cutter

(2)Enlarged Turntable

(3)Rotary Cutting System

(4)Drive system

(5)Electrical Cabinet.

5.2图片

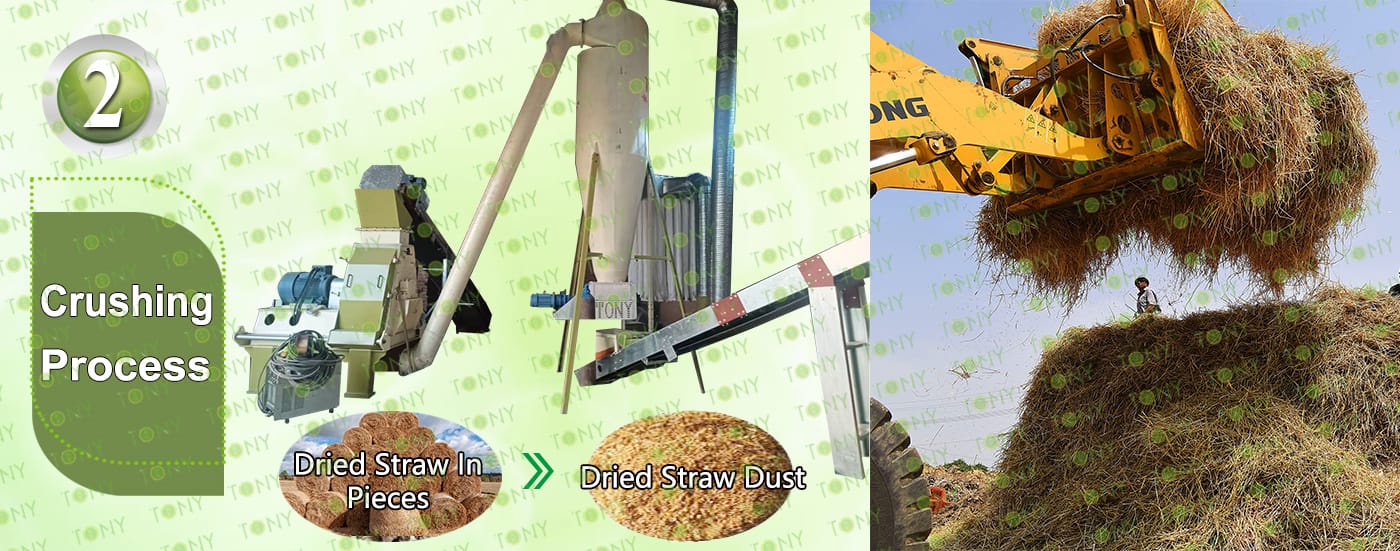

2.Fine Crushing Process

A. The process is mainly used to crush 60-70mm dried straw pieces into 8-14mm dried straw dust.

B.TONY brand effective hammer mill TFD65*75-55kw *1set.

C.Capacity: 2-2.5 tons/hour.

Main parts:

(1)TONY effective Hammer Mill

(2)Galvanized Dust Collector.

(3)Sawdust Conveying Fan.

(4)Cyclone With Airlock.

(5)Electrical Cabinet.

5.3图片

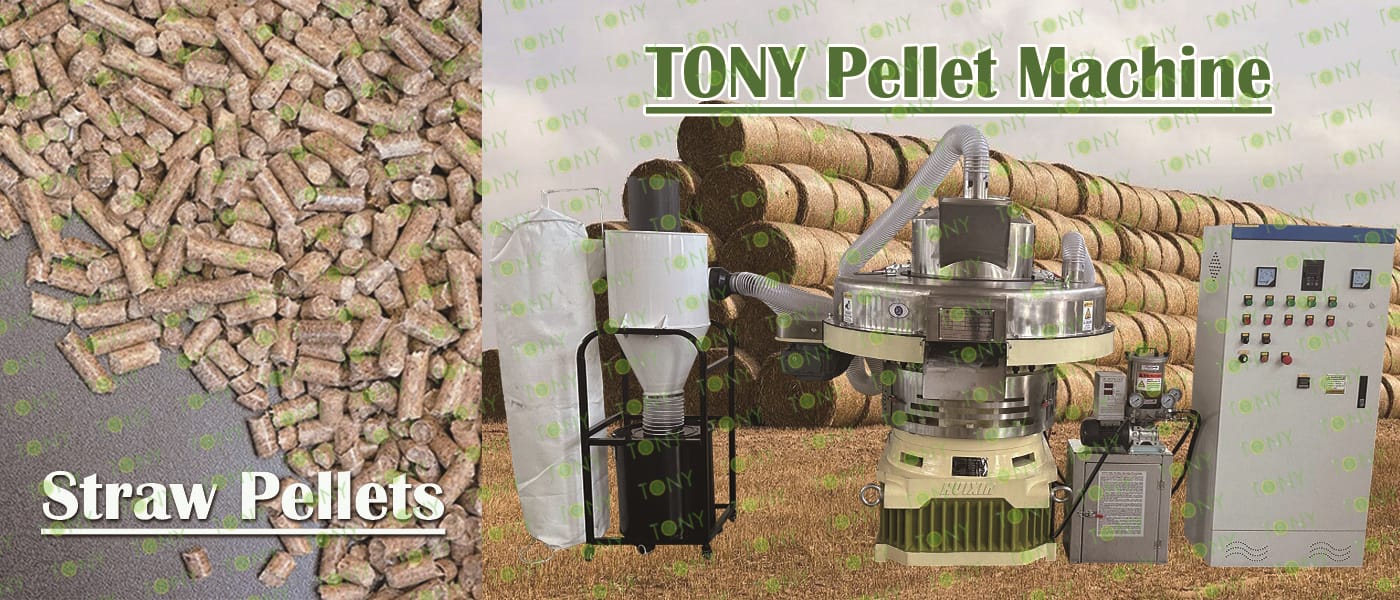

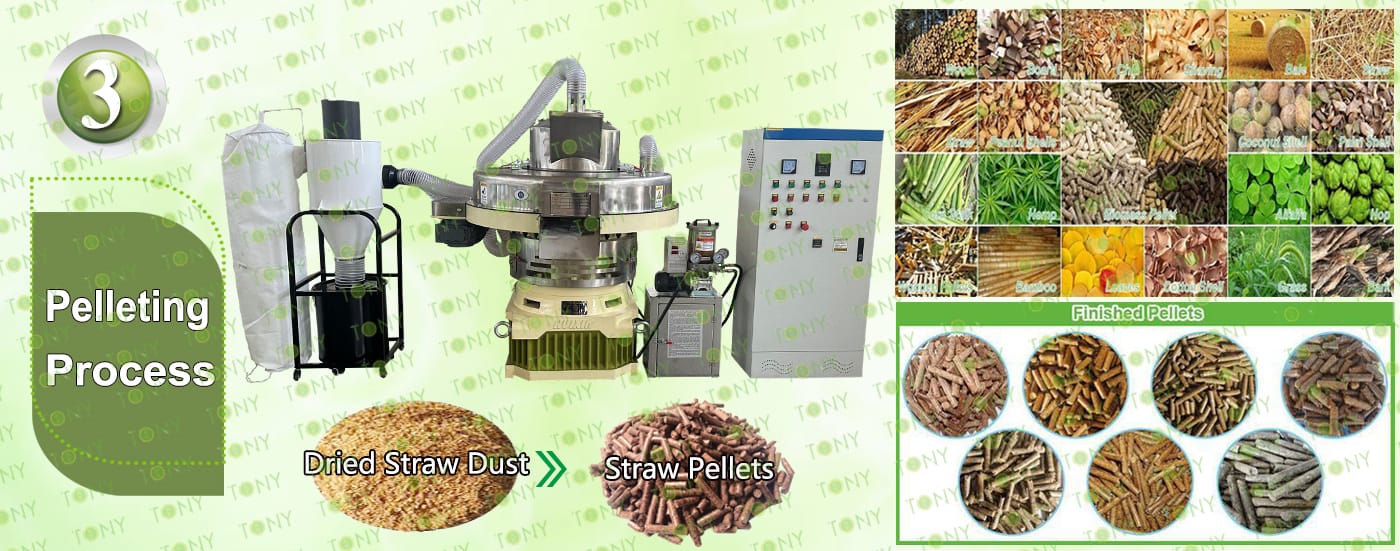

3.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

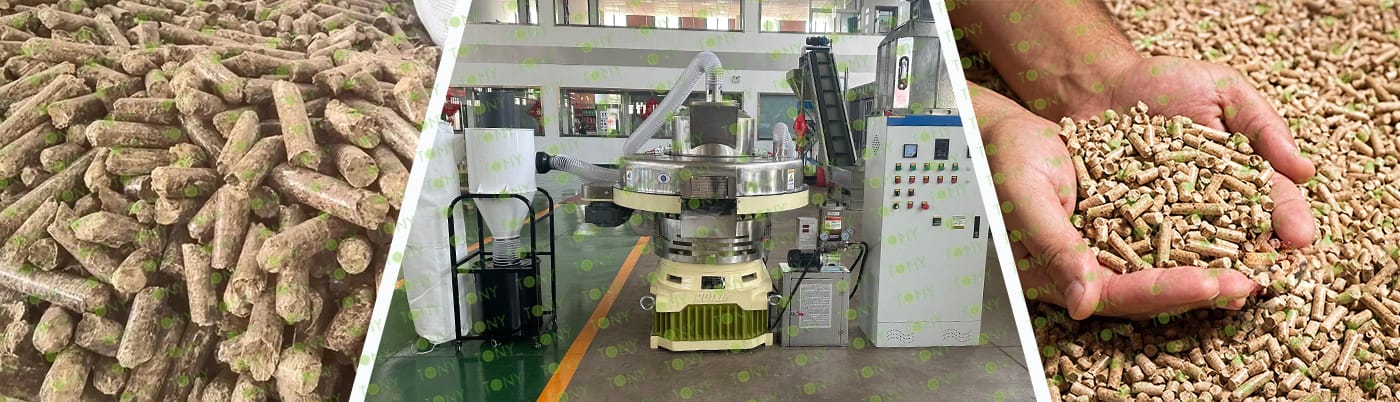

B.TONY brand vertical ring die pellet machine TYJ551-Ⅲ-132kw *1set

C. Capacity:2-2.5Ton/Hour.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.4图片


4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:2-2.5 Ton/Hour.

Main Parts:

(1)TONY's new Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片


5. Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.TONY brand semi-automatic packing machine* 1set.

C.Capacity:2-2.5 Ton/Hour.

Main Parts:

(1)TONY's New Semi-Automatic Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6图片


7.图片


1.Project Overview:

This biomass pellet processing startup primarily processes agricultural and forestry waste, such as straw and forestry residues, into biomass pellets through crushing, drying, and extrusion. These pellets can be used as a clean fuel in a wide range of applications, including industrial boilers, residential heating, and biomass power generation. They can also be used to produce organic fertilizer and animal feed, demonstrating their environmentally friendly and renewable nature.

2.Market Demand:

With rising environmental awareness and policy support, demand for biomass pellets continues to grow. Demand is particularly strong in northern China as a clean heating alternative. Furthermore, in the industrial sector, biomass pellets are gradually replacing traditional fossil fuels, creating a growing market.

8.图片


1. Outstanding environmental attributes and strong policy compatibility

Using agricultural waste (dry straw) as a raw material, it replaces traditional coal combustion, reducing sulfur dioxide emissions by over 60%, significantly reducing nitrogen oxide and dust emissions, and complying with national "dual carbon" policies and environmental protection requirements.

The ash produced after combustion contains elements such as potassium and calcium and can be directly returned to the fields as organic fertilizer, achieving a "raw material-energy-fertilizer" cycle with zero secondary pollution.

2. Convenient storage and transportation, high practicality

The density of loose dry straw is only approximately 50-80 kg/m³, but after pelletization, it can reach 1100-1300 kg/m³, reducing its volume and saving over 90% of storage space.

The pellets have a regular shape, are dust-free, and are not easily scattered. They can be transported by ordinary trucks, reducing transportation costs by over 70% compared to bulk straw and facilitating automated feeding (e.g., into boilers and biomass furnaces).

3. High Energy Density and Wide Range of Applications

Dry straw pellets offer a stable calorific value of approximately 15-18 MJ/kg (equivalent to 0.5-0.6 kg of standard coal). Their combustion efficiency exceeds 85%, significantly exceeding that of loose straw burning, and can meet the calorific demands of various scenarios.

They are suitable for both residential and industrial applications, including direct use in rural wall-mounted boilers for heating and household cooking, as well as fuel for industrial boilers (food, textile, and chemical industries) and biomass power plants. They can also be used as ruminant feed, adjusted to meet specific needs.
