Project Brief Introduction:

1.Product:Dried Straw Pellet Line

2.Capacity:3.5-4 T/Hour

3.TONY Brand 3.5-4Ton /Hour Dried Straw Pellet Line Project Process

4.Main Machine: Straw Cutter,Hammer Mill,TONY Pellet Machine TYJ860-Ⅲ-250KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 510 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:



1. The working principle of dried straw biomass pellet processing equipment

The core principle of dried straw biomass pellet processing equipment is to convert low-moisture dry straw into high-density, easy-to-store solid pellet fuel through raw material pretreatment and high-pressure extrusion molding. The core difference is that it does not require a complicated drying process compared to wet straw equipment.

2. Characteristics of dried straw biomass pellet processing equipment

Dry straw pellet processing equipment is specialized equipment for agricultural waste conversion. Its core features focus on efficiently processing dry straw and ensuring pellet quality. First, it offers high raw material adaptability, precisely addressing the coarse fibers and high impurities of dry straw. The pulverizer pulverizes the straw, and is compatible with various straw types, including corn, wheat, and rice. Second, it features exceptional automation and continuity. The mainstream production line automates the entire "pulverization - pelletizing - cooling - screening" process. Ring die pelletizers can operate continuously for up to 8-12 hours, with a single operator monitoring, reducing labor costs and avoiding frequent downtime. Third, it is environmentally friendly and energy-efficient. Production requires no chemical additives, relying on the straw's own lignin for bonding, resulting in a product combustion process that produces no harmful emissions. Some equipment recycles the pellet heat for drying, creating an energy cycle and reducing energy consumption. Fourth, pellet quality is controllable. By adjusting roller pressure and die hole parameters, the pelletizer maintains a stable pellet density of 1.1-1.3 g/cm³, ensuring pellet durability and ease of transport.

3. Application scenarios of dried straw biomass pellet processing equipment

(1) Civil heating and living energy: Straw biomass pellets can be used as fuel for civil heating and living energy, with high fuel utilization and easy storage.

(2) Industrial boiler fuel: Straw biomass pellets can be used as the main fuel for industrial boilers, replacing coal and solving environmental pollution problems.

(3) Power generation fuel: Straw biomass pellets can be used as fuel for thermal power generation, with a calorific value of 3400~6000 kcal.

(4) Organic granular fertilizer production: Straw biomass pellet machines have now developed into the flower market and are used to make organic granular fertilizer.

(5) Livestock and poultry feed: Depending on the raw materials, the pellets pressed by the straw pellet machine can be used as biomass fuel or livestock and poultry feed.

2.图片

TONY Brand 3.5-4 TPH Dried Straw Line can process dried straw and various biomass materials related to agricultural waste into biomass pellets. Straw processing into biomass pellets has a wide range of uses .As fuel: straw pellet fuel can be used as boiler fuel for power plants, industrial boilers, civil heating and other fields. Its calorific value is similar to coal, but the price is lower, and the combustion process produces fewer pollutants, is a more environmentally friendly fuel. As feed: Straw pellets processed by straw pellet machining can be used as feed for livestock. This method can make full use of crop straw, reduce feed costs, and also help solve the problem of straw disposal. These uses can not only effectively use agricultural waste, reduce environmental pollution, but also create economic benefits and promote sustainable agricultural development.

1. Capacity: 3.5-4 Ton/Hour

2. Raw materials: Dried straw, including dried corn straw, dried wheat straw, dried cotton straw, dried flax straw, dried beet straw and other agricultural straw

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, agricultural cooperatives, and small - scale rural processing units that have ready access to straw and related agricultural residues.

5. Finished Pellets Markets: Large power plants, domestic heating systems in rural and suburban areas, industrial heating facilities in rural - based industries, combustion heat applications in local manufacturing units, heating systems in rural schools and community centers, boiler rooms in small - scale rural enterprises, and canteens in rural educational institutions.,farms, feed mills.

3.图片


1. Project Name: Dried Straw Production Line

2. Raw Material: Bales of Dried Straw

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 3.5-4 TPH

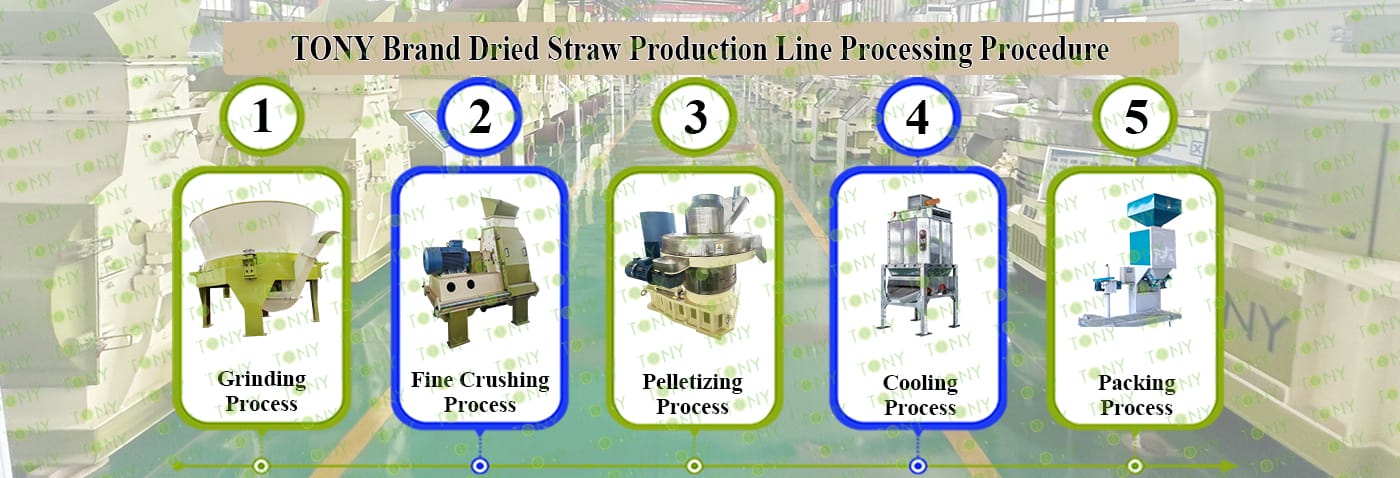

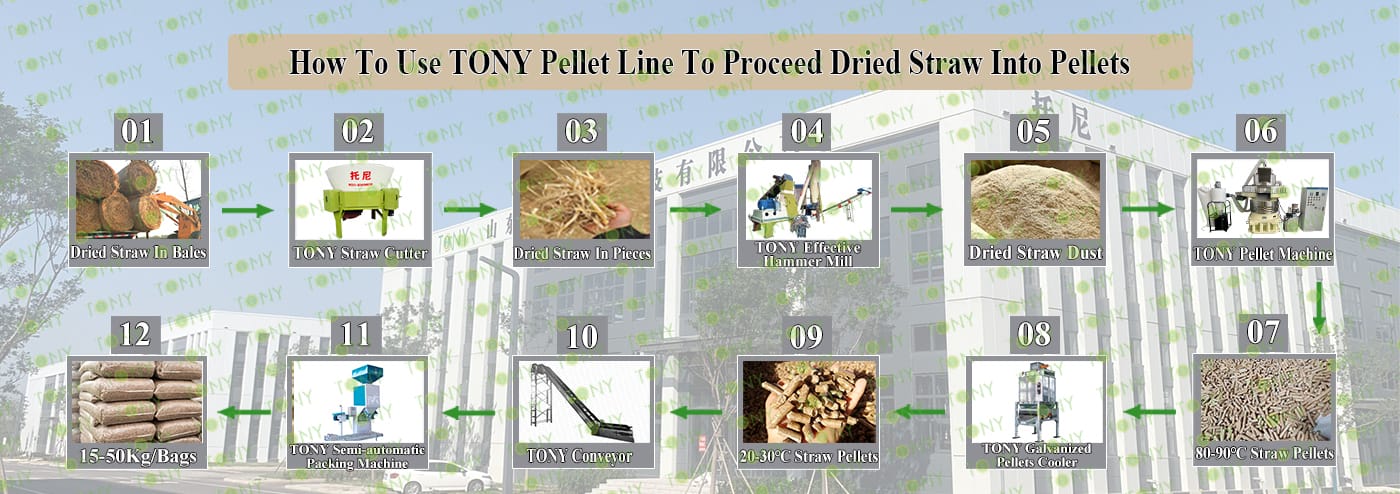

5. Process: Grinding Process - Fine Crushing Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Straw Cutter -TPX2500-110kw, Effective Hammer Mill- TFD75*100-110kw, TONY Pellet Machine-TYJ860-III-250kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片



5.图片






5.1图片


1.Grinding Process

A.The process is mainly used to grind dried straw within 2.2m in diameter into dried straw pieces. The rotary cutting mode of the outer chain of the gear, the rotary cutting rotor blade is sharp, and the blade types are various, which can be rotated to cut various bales of straw with different diameters, different thicknesses, different lengths and different water contents

B.TONY brand straw cutter TPX2500-110kw models *1set

C.Capacity:4-5Ton/Hour/Set

Main Parts:

(1)Tony's New Straw Cutter

(2)Enlarged Turntable

(3)Rotary Cutting System

(4)Drive system

(5)Electrical Cabinet.

5.2图片


2.Fine Crushing Process

A. The process is mainly used to crush 60-70mm dried straw pieces into 8-14mm dried straw dust.

B.TONY brand effective hammer mill TFD75*100-110kw *1set.

C.Capacity: 3-4 tons/hour.

Main parts:

(1)TONY effective Hammer Mill

(2)Galvanized Dust Collector.

(3)Sawdust Conveying Fan.

(4)Cyclone With Airlock.

(5)Electrical Cabinet.

5.3图片

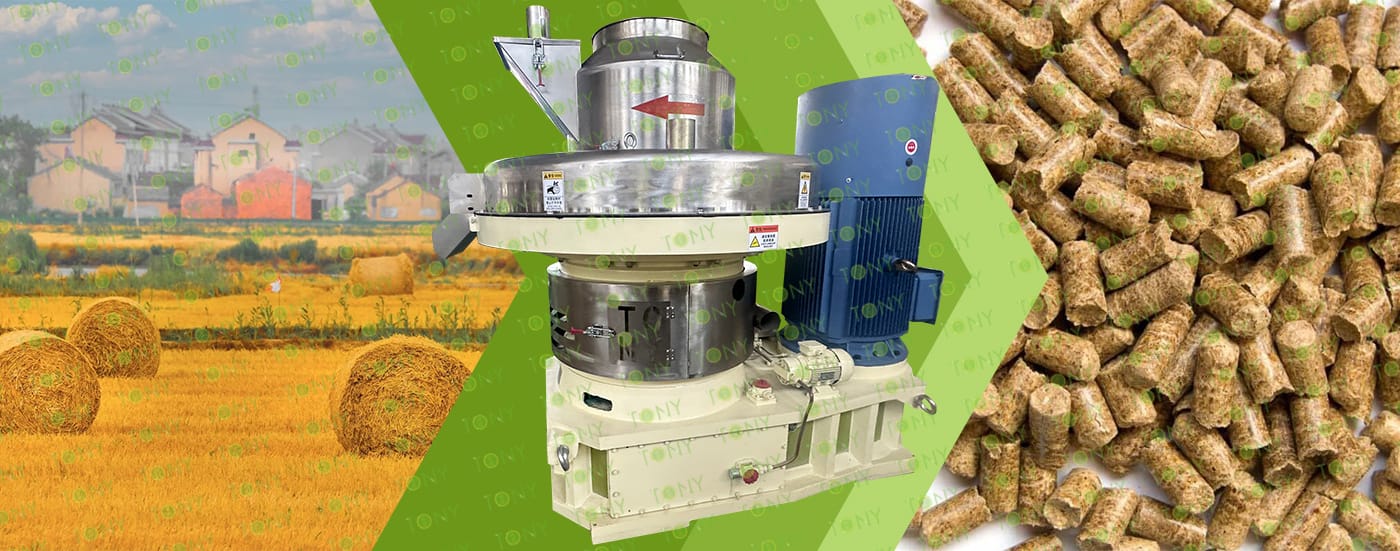

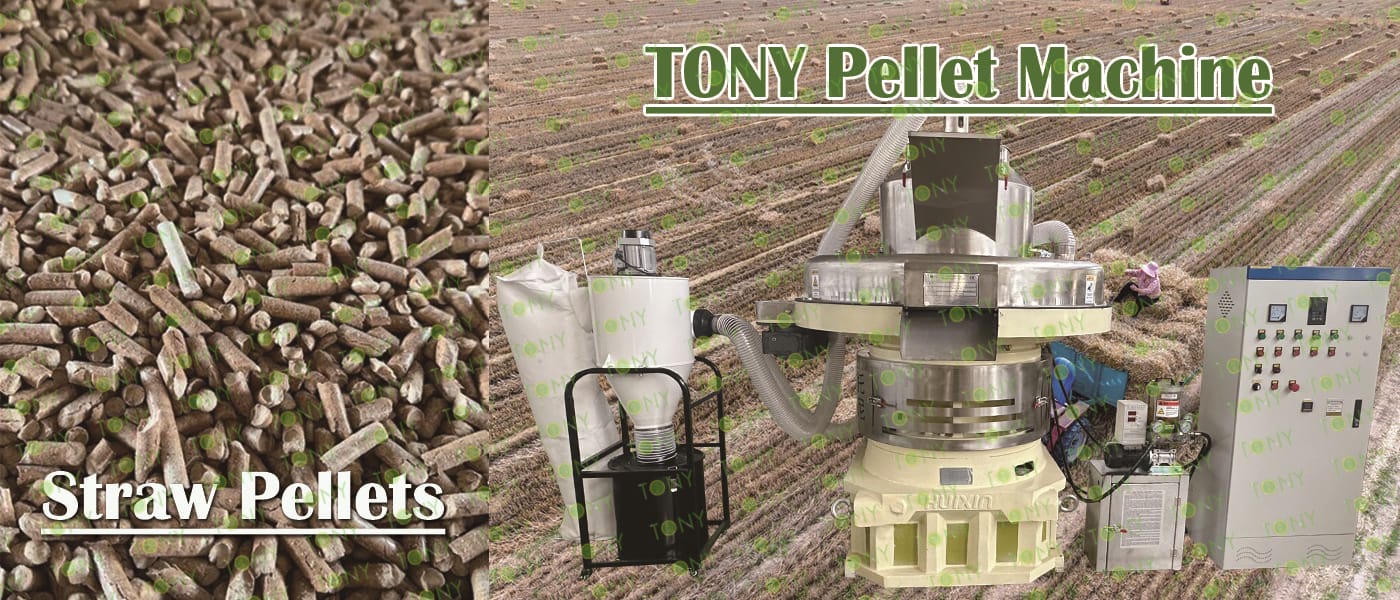

3.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ860-Ⅲ-250kw *1set

C. Capacity:3.5-4Ton/Hour.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.4图片


4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:3.5-4Ton/Hour.

Main Parts:

(1)TONY's new Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片


5. Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.TONY brand semi-automatic packing machine* 1set.

C.Capacity:3.5-4 Ton/Hour.

Main Parts:

(1)TONY's New Semi-Automatic Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片


7.图片


The core of this project is to address the supply-demand imbalance between the difficulty of processing straw and the high demand for clean fuel. Compared to other entrepreneurial projects, it offers the following advantages:

1.Raw material advantages:

Dry straw is widely available at extremely low cost, primarily from corn, wheat, and rice-producing areas. The purchase price is low, and in some areas, it is even available free (farmers need to process the straw and are willing to sell it at a low price). The raw material supply is stable and unaffected by international market fluctuations.

2.Market advantages:

Downstream demand is robust and continues to grow. On the one hand, the "coal-to-biomass" policy in rural northern China is driving demand for residential heating. On the other hand, industrial boilers (such as those in food and textile factories) need to replace coal to meet emission standards, making biomass pellets a preferred choice.

8.图片


1. Environmentally friendly and recyclable:

The raw material is dry agricultural waste straw, avoiding air pollution caused by straw burning. No chemical additives are used during combustion (it relies on its own lignin for bonding), resulting in far lower sulfur dioxide and dust emissions than coal. The ash contains potassium, calcium, and other elements, allowing it to be directly returned to the field as organic fertilizer, completing the "raw material - energy - fertilizer" ecological cycle.

2. Convenient storage and transportation:

The density of loose dry straw is only 50-80 kg/m³, but after being pelletized, the density increases to 1100-1300 kg/m³, significantly reducing the volume and saving storage space. The pellets have a regular shape, are dust-free, and are not prone to scattering. They can be transported by ordinary trucks, reducing transportation costs by over 70% compared to bulk straw. They are also compatible with automated feeding equipment (such as boilers and biomass furnaces).

3. Strong economic efficiency and wide application:

The raw material cost is extremely low, and the unit heat cost is lower than that of natural gas, liquefied gas and other energy sources. It is very attractive for scenarios such as civil heating, industrial boilers (food factories, textile factories), and biomass power generation. The market demand is rigid and stable.
