Project Brief Introduction:

1.Product:Dried Straw Pellet Line

2.Capacity:2.8-3.2 T/Hour

3.TONY Brand 2.8-3.2 Ton /Hour Dried Straw Pellet Line Project Process

4.Main Machine: Straw Cutter,Hammer Mill,TONY Pellet Machine TYJ760-Ⅲ-185KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 380 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:



1. The working principle of dried straw biomass pellet processing equipment

The core advantage of  dried straw processing equipment lies in its simplified process, reduced energy consumption, and reduced equipment complexity. After being crushed, the raw material enters the pelletizing chamber directly. The pellets are then formed by a pressing wheel and die. The pellets are discharged through the die holes and cut. The finished product is then cooled and packaged.

2. Characteristics of dried straw biomass pellet processing equipment

(1) Environmental protection and energy saving: Biomass pellet fuel contains the lowest sulfur, nitrogen and ash content, which meets the clean fuel index. It can meet environmental protection requirements without taking any measures during combustion. Moreover, biomass pellets are made of agricultural waste as raw materials, and no pollution such as three wastes will be generated during the production process.

(2) Economic and efficient: Straw pellet machine has the advantages of small investment, convenient production and maintenance, low energy consumption, and good economic benefits.

(3) Resource recycling: It reduces environmental pollution and effectively utilizes discarded straw, corn cobs, rice straw, branches, leaves, etc., protecting the environment.

(4) Strong adaptability: It can adapt to different materials and has a good pressing effect. The compression molding of sawdust, corn straw, etc. requires a lot of pressure. Among similar pelletizing equipment, the roller mold is the core component of the entire equipment and is made of alloy steel, which increases its service life.

3. Application scenarios of dried straw biomass pellet processing equipment

(1) Home heating: Users use biomass pellet stoves to heat their homes. Compared to traditional loose coal heating, pellet burning produces no black smoke or odor, and the indoor temperature is more stable (adjustable via a thermostat). The heating cost is 20%-30% lower than natural gas and more than 50% lower than electric heating.

(2) Small venue heating/cooking: Rural cooperatives, small restaurants, B&Bs, and other places can use small pellet stoves for cooking or local heating. Pellets are easy to store (in woven bags or ton bags) and can be added quickly, eliminating the need for frequent handling. This solves the problem of loose straw being "dirty, messy, and difficult to store."

2.图片

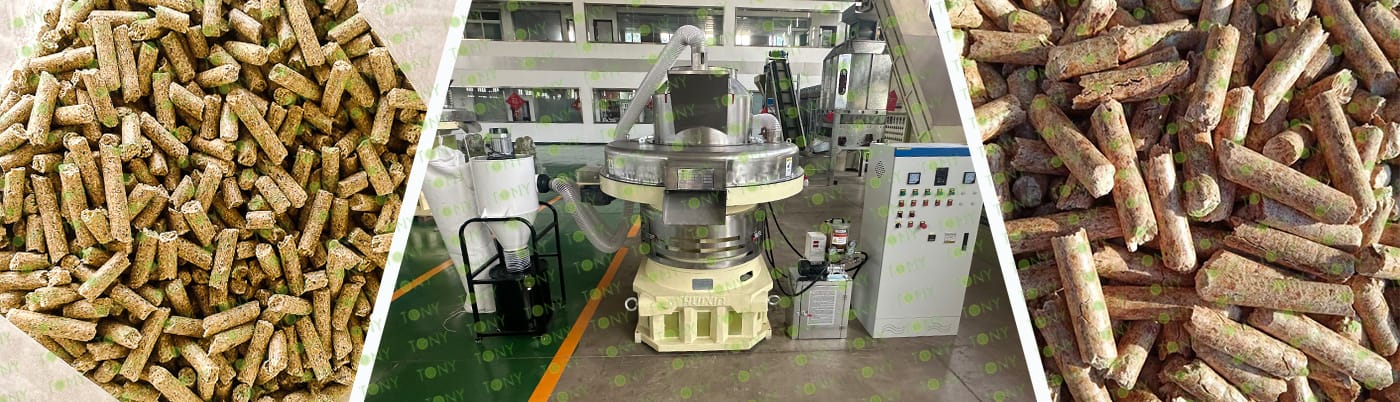

TONY Brand 2.8-3.2 TPH Dried Straw Line can process dried straw and various biomass materials related to agricultural waste into biomass pellets. Straw processing into biomass pellets has a wide range of uses .As fuel: straw pellet fuel can be used as boiler fuel for power plants, industrial boilers, civil heating and other fields. Its calorific value is similar to coal, but the price is lower, and the combustion process produces fewer pollutants, is a more environmentally friendly fuel. As feed: Straw pellets processed by straw pellet machining can be used as feed for livestock. This method can make full use of crop straw, reduce feed costs, and also help solve the problem of straw disposal. These uses can not only effectively use agricultural waste, reduce environmental pollution, but also create economic benefits and promote sustainable agricultural development.

1. Capacity: 2.8-3.2 Ton/Hour

2. Raw materials: Dried straw, including dried corn straw, dried wheat straw, dried cotton straw, dried flax straw, dried beet straw and other agricultural straw

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, agricultural cooperatives, and small - scale rural processing units that have ready access to  straw and related agricultural residues.

5. Finished Pellets Markets: Large power plants, domestic heating systems in rural and suburban areas, industrial heating facilities in rural - based industries, combustion heat applications in local manufacturing units, heating systems in rural schools and community centers, boiler rooms in small - scale rural enterprises, and canteens in rural educational institutions.,farms, feed mills.

3.图片


1. Project Name: Dried Straw Production Line

2. Raw Material: Bales of Dried Straw

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 2.8-3.2 TPH

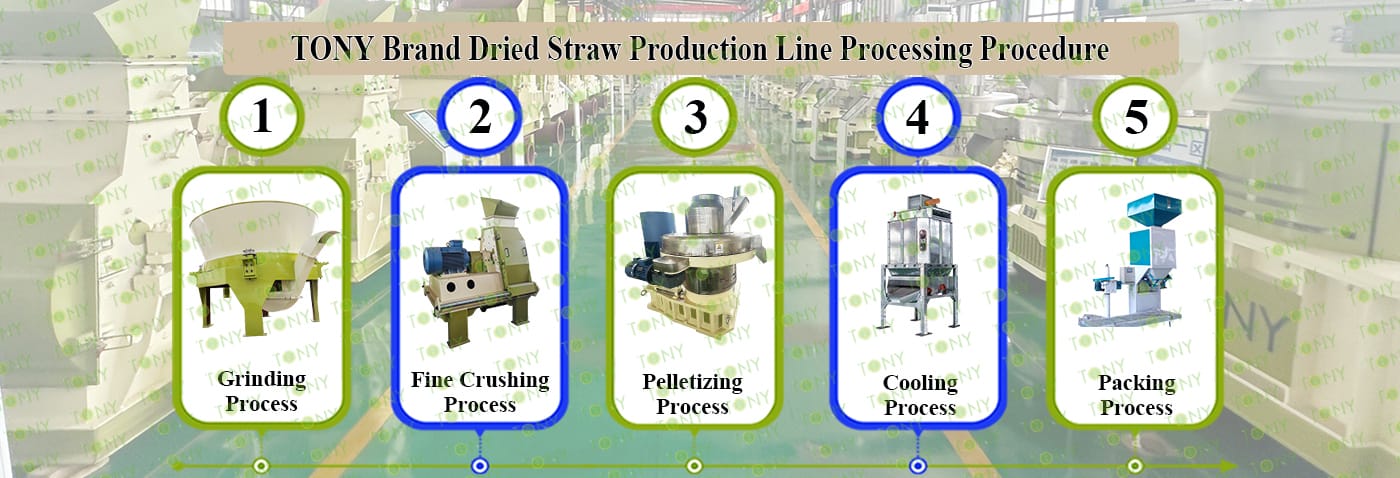

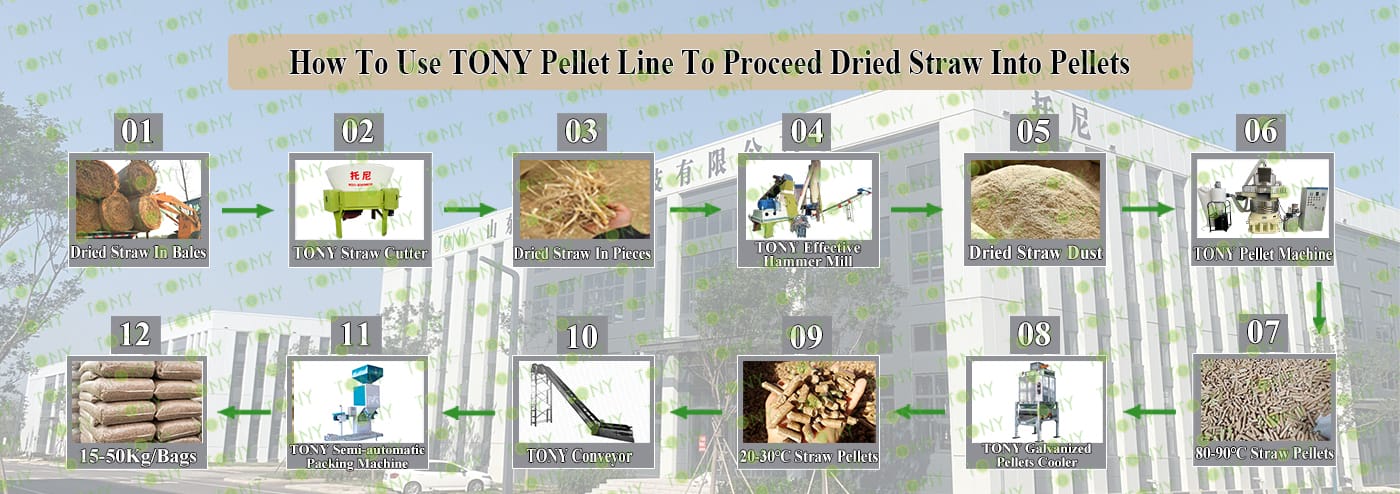

5. Process: Grinding Process - Fine Crushing Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Straw Cutter -TPX2000-75kw, Effective Hammer Mill- TFD75*100-90kw, TONY Pellet Machine-TYJ760-III-185kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片



5.图片






5.1图片

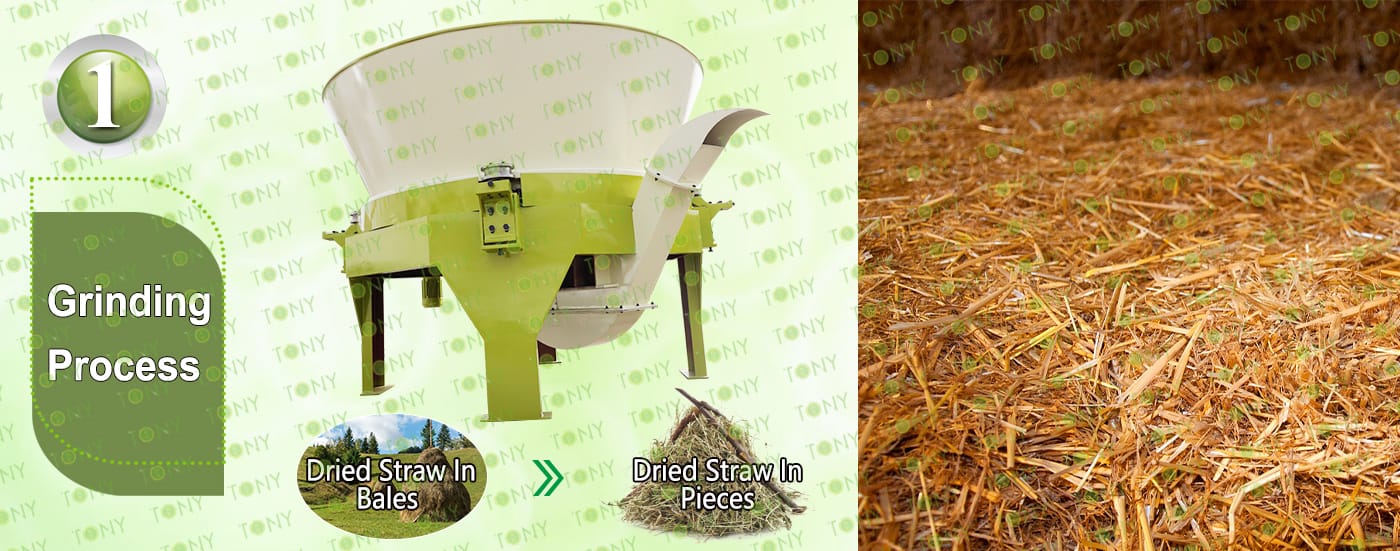

1.Grinding Process

A.The process is mainly used to grind dried straw within 1.8m in diameter into dried straw pieces. The rotary cutting mode of the outer chain of the gear, the rotary cutting rotor blade is sharp, and the blade types are various, which can be rotated to cut various bales of straw with different diameters, different thicknesses, different lengths and different water contents

B.TONY brand straw cutter TPX2000-75kw models *1set

C.Capacity:2.5-3.5Ton/Hour/Set

Main Parts:

(1)Tony's New Straw Cutter

(2)Enlarged Turntable

(3)Rotary Cutting System

(4)Drive system

(5)Electrical Cabinet.

5.2图片


2.Fine Crushing Process

A. The process is mainly used to crush 60-70mm dried straw pieces into 8-14mm dried straw dust.

B.TONY brand effective hammer mill TFD75*100-90kw *1set.

C.Capacity: 3-3.5 tons/hour.

Main parts:

(1)TONY Effective Hammer Mill

(2)Galvanized Dust Collector.

(3)Sawdust Conveying Fan.

(4)Cyclone With Airlock.

(5)Electrical Cabinet.

5.3图片

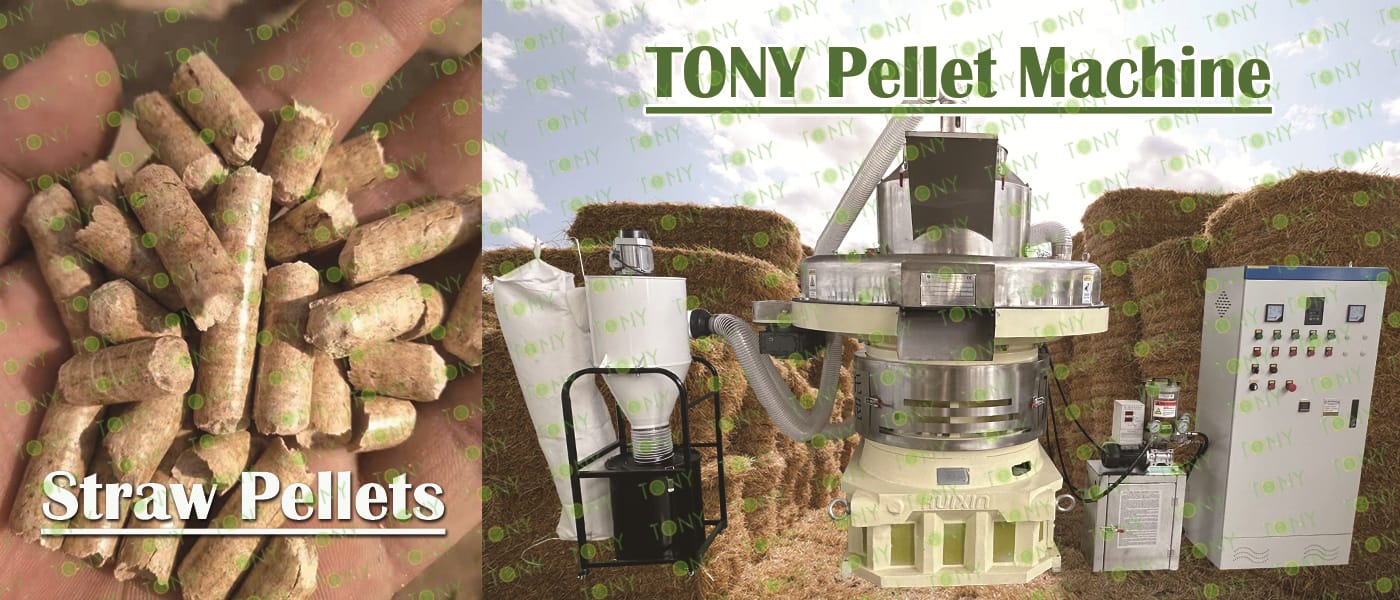

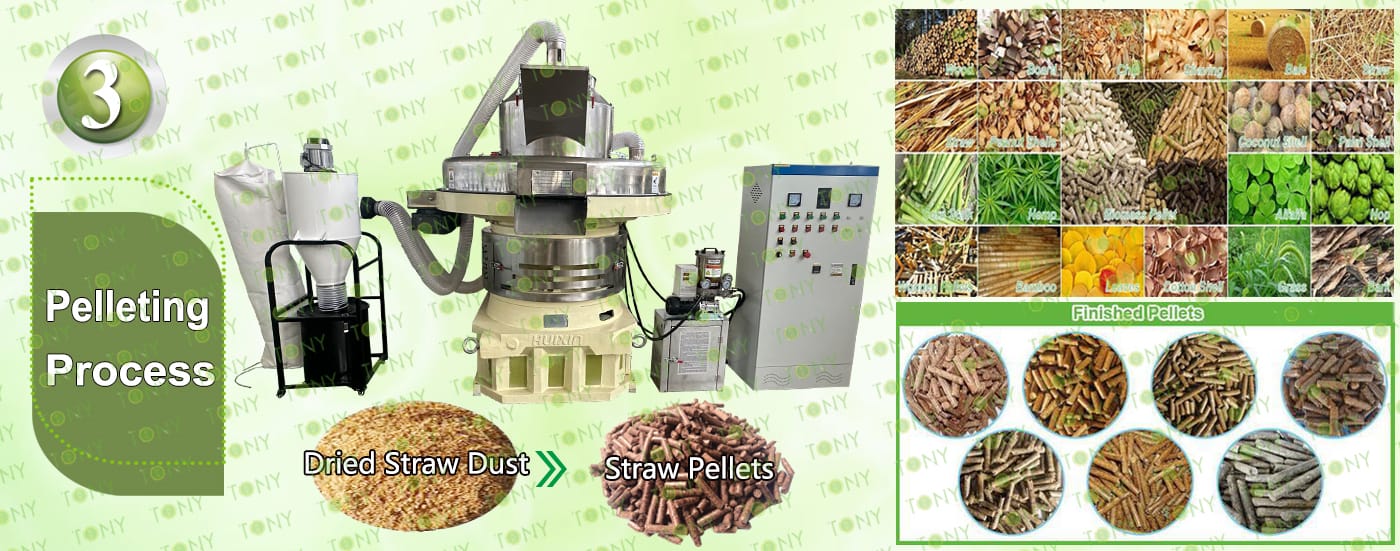

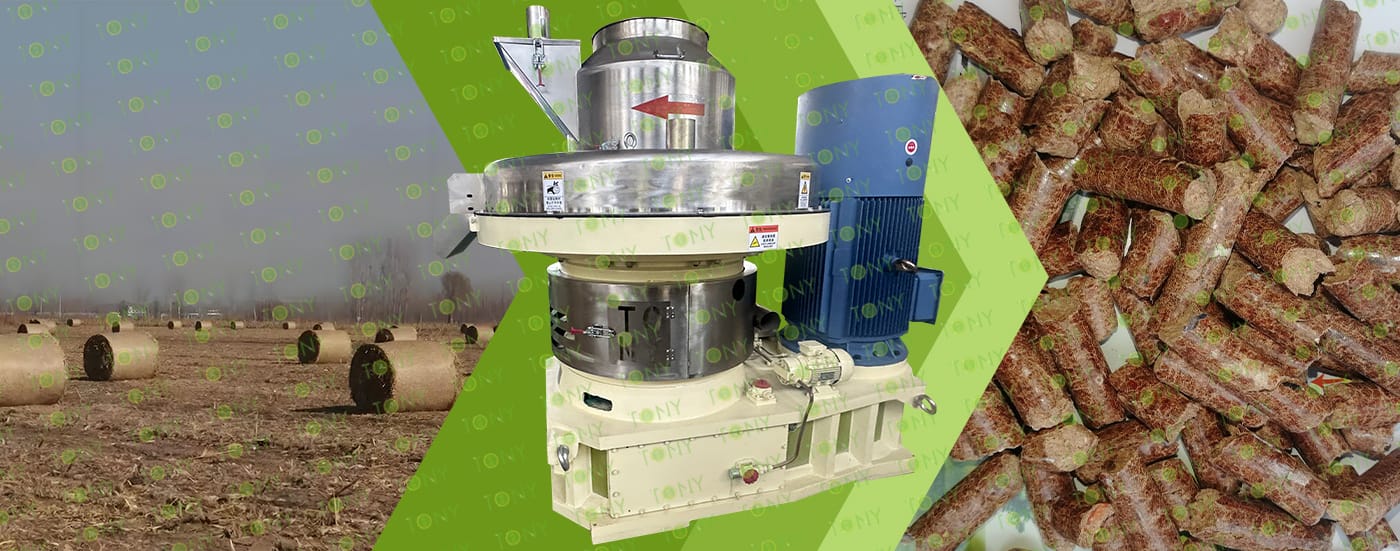

3.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ760-Ⅲ-185kw *1set

C. Capacity:2.8-3.2Ton/Hour.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.4图片


4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:2.8-3.2 Ton/Hour.

Main Parts:

(1)TONY's new Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片


5. Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.TONY brand semi-automatic packing machine* 1set.

C.Capacity:2.8-3.2 Ton/Hour.

Main Parts:

(1)TONY's New Semi-Automatic Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片


7.图片


The significance of the project processing dry straw into biomass pellets

1. Environmental:

Solving the problem of straw burning and contributing to the "dual carbon" goals

The project addresses the environmental pain points of agricultural waste disposal at the source, with direct implications for ecological protection

2. Resource:

Transforming "waste" into "treasure," enhancing the value of straw resources

The project overcomes the dilemma of dry straw being "low-value and difficult to utilize," achieving efficient recycling of agricultural resources

3. Economic:

Driving rural employment and income growth, revitalizing the regional economy

Rooted in rural areas, the project can directly drive farmers' income growth and rural industrial development, with significant economic and social benefits

4. Social:

Improving rural energy structure and enhancing quality of life

The project changes traditional rural energy consumption habits at the energy consumption end, bringing direct improvements to people's livelihoods.

8.图片


Whether used as an energy source or feed, pellets offer significant market competitiveness in terms of performance and cost.

1. Energy Pellets:

High Efficiency, Low Energy Consumption: With a combustion efficiency exceeding 85% (50% for loose straw and 70% for coal), stable calorific value (15-18 MJ/kg), and precise temperature control, they are suitable for industrial boilers and heating applications. Costs are 10%-20% lower than coal and 30%-40% lower than natural gas, significantly reducing energy costs.

2. Feed Pellets:

Nutritionally Controllable: Through conditioning and the addition of molasses and soybean meal, palatability is improved (cattle and sheep feed intake increases by 20%-30%), crude fiber digestibility increases by 15%-20%, and average daily weight gain for fattening cattle increases by 0.3-0.5 kg. These pellets consume 30%-40% less than complete concentrate feed, reducing breeding costs.
