Project Brief Introduction:

1.Product:Dried Straw Pellet Line

2.Capacity:2.5-3 T/Hour

3.TONY Brand 2.5-3 Ton /Hour Dried Straw Pellet Line Project Process

4.Main Machine: Straw Cutter,Hammer Mill,TONY Pellet Machine TYJ760-Ⅲ-160KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 360 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:



1. The working principle of dried straw biomass pellet processing equipment

The core principle of dried straw biomass pellet processing equipment is to convert low-moisture dry straw into high-density, easy-to-store solid pellet fuel through raw material pretreatment and high-pressure extrusion molding. The core difference is that it does not require a complicated drying process compared to wet straw equipment.

2. Characteristics of dried straw biomass pellet processing equipment

(1)Full-process integration capability:

Crushing and pelletizing equipment forms a continuous production line, covering the crushing, grinding, pelletizing, cooling and other links of raw materials. It is suitable for the production of biomass pellets from a variety of biomass raw materials such as bamboo, straw, sawdust, and bagasse. The finished products can be used in power generation, artificial boards, papermaking and other fields.

(2)Environmental protection and economy:

By processing waste such as straw and rice straw, resource waste is reduced. Pellet fuel has high combustion efficiency and low smoke, which is in line with the trend of energy conservation and environmental protection. The equipment is easy to operate and has low maintenance costs, making it suitable for large-scale production or individual operations.

(3) Application scenarios and industry adaptability:

The processed straw pellets can be used as biomass fuel for home heating, industrial boilers or biomass power plants; the crushed straw can also be directly used to produce feed, realizing the diversified utilization of raw materials.

3. Application scenarios of dried straw biomass pellet processing equipment

(1) Industrial boiler fuel

Application targets: Industrial enterprises that require a stable heat source, such as textile mills, paper mills, food processing plants, and chemical plants (such enterprises traditionally rely on coal-fired boilers, which puts great pressure on environmental protection).

(2) Civilian clean heating/cooking

Application targets: Winter heating, home cooking, and decentralized energy needs in small places such as homestays and farmhouses.

(3) Biomass power generation/cogeneration

Application targets: Small and medium-sized biomass power plants (installed capacity 10-30MW), industrial park cogeneration projects (providing electricity and steam for the park).

(4) Agricultural and animal husbandry auxiliary

Application targets: Organic fertilizer production enterprises, flower and seedling planting bases.

2.图片

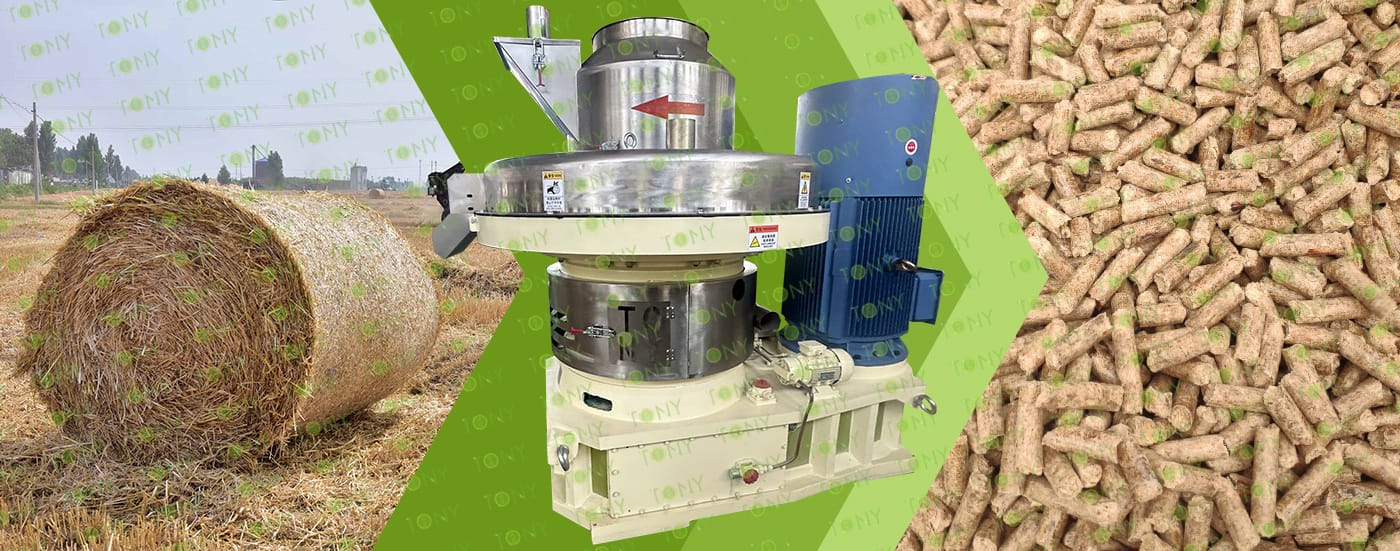

TONY Brand 2.5-3 TPH Dried Straw Line can process dried straw and various biomass materials related to agricultural waste into biomass pellets. Straw processing into biomass pellets has a wide range of uses .As fuel: straw pellet fuel can be used as boiler fuel for power plants, industrial boilers, civil heating and other fields. Its calorific value is similar to coal, but the price is lower, and the combustion process produces fewer pollutants, is a more environmentally friendly fuel. As feed: Straw pellets processed by straw pellet machining can be used as feed for livestock. This method can make full use of crop straw, reduce feed costs, and also help solve the problem of straw disposal. These uses can not only effectively use agricultural waste, reduce environmental pollution, but also create economic benefits and promote sustainable agricultural development.

1. Capacity: 2.5-3 Ton/Hour

2. Raw materials: Dried straw, including dried corn straw, dried wheat straw, dried cotton straw, dried flax straw, dried beet straw and other agricultural straw

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, agricultural cooperatives, and small - scale rural processing units that have ready access to straw and related agricultural residues.

5. Finished Pellets Markets: Large power plants, domestic heating systems in rural and suburban areas, industrial heating facilities in rural - based industries, combustion heat applications in local manufacturing units, heating systems in rural schools and community centers, boiler rooms in small - scale rural enterprises, and canteens in rural educational institutions.,farms, feed mills.

3.图片


1. Project Name: Dried Straw Production Line

2. Raw Material: Bales of Dried Straw

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 2.5-3 TPH

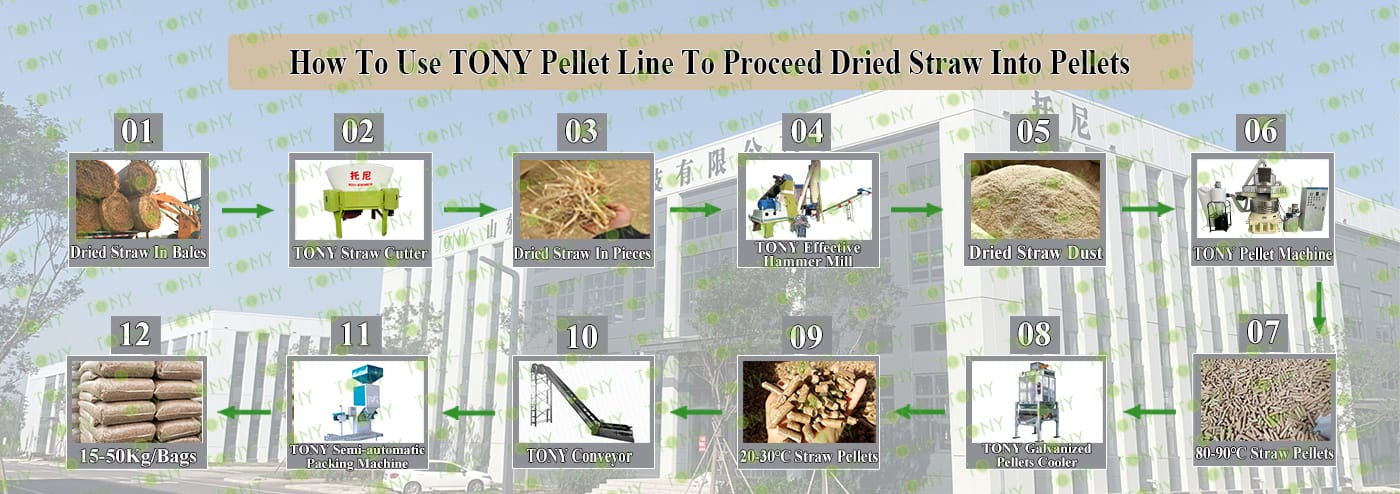

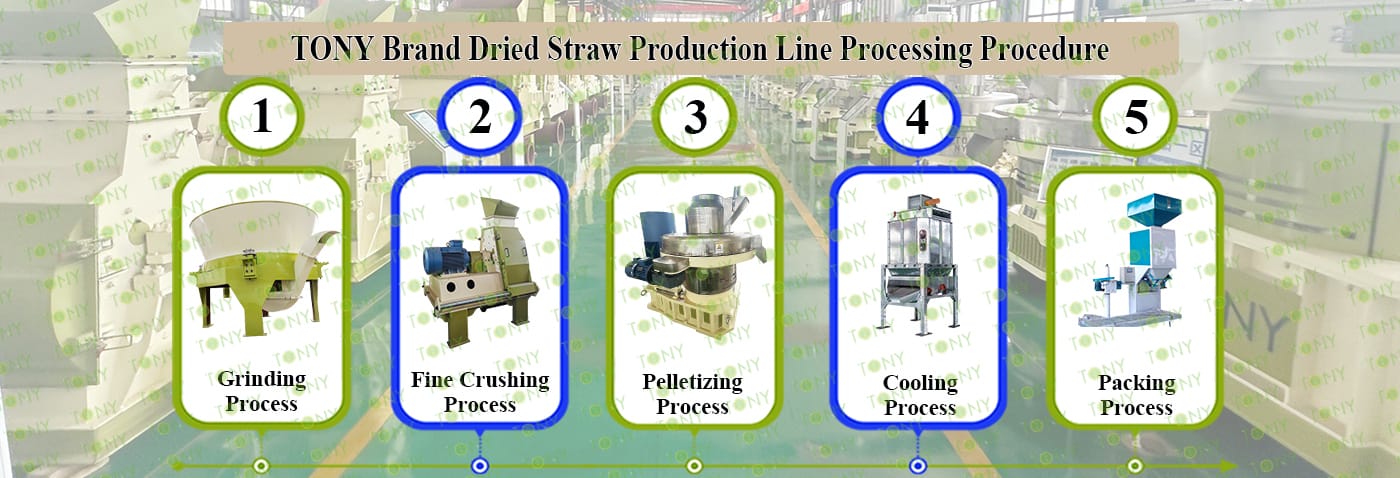

5. Process: Grinding Process - Fine Crushing Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Straw Cutter -TPX2000-75kw, Effective Hammer Mill- TFD65*75-75kw, TONY Pellet Machine-TYJ760-III-160kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片



5.图片





5.1图片

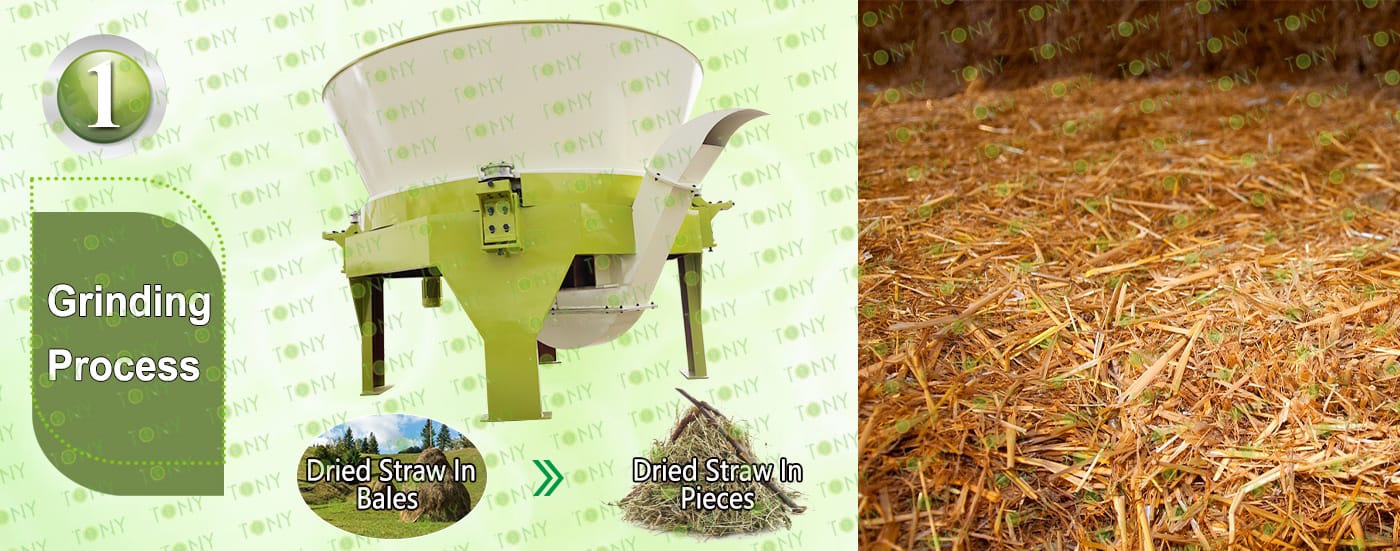

1.Grinding Process

A.The process is mainly used to grind dried straw within 1.8m in diameter into dried straw pieces. The rotary cutting mode of the outer chain of the gear, the rotary cutting rotor blade is sharp, and the blade types are various, which can be rotated to cut various bales of straw with different diameters, different thicknesses, different lengths and different water contents

B.TONY brand straw cutter TPX2000-75kw models *1set

C.Capacity:2.5-3.5Ton/Hour/Set

Main Parts:

(1)Tony's New Straw Cutter

(2)Enlarged Turntable

(3)Rotary Cutting System

(4)Drive system

(5)Electrical Cabinet.

5.2图片


2.Fine Crushing Process

A. The process is mainly used to crush 60-70mm dried straw pieces into 8-14mm dried straw dust.

B.TONY brand effective hammer mill TFD65*75-75KW*1set

C.Capacity: 2.5-3tons/hour.

Main parts:

(1)TONY Effective Hammer Mill

(2)Galvanized Dust Collector.

(3)Sawdust Conveying Fan.

(4)Cyclone With Airlock.

(5)Electrical Cabinet.

5.3图片

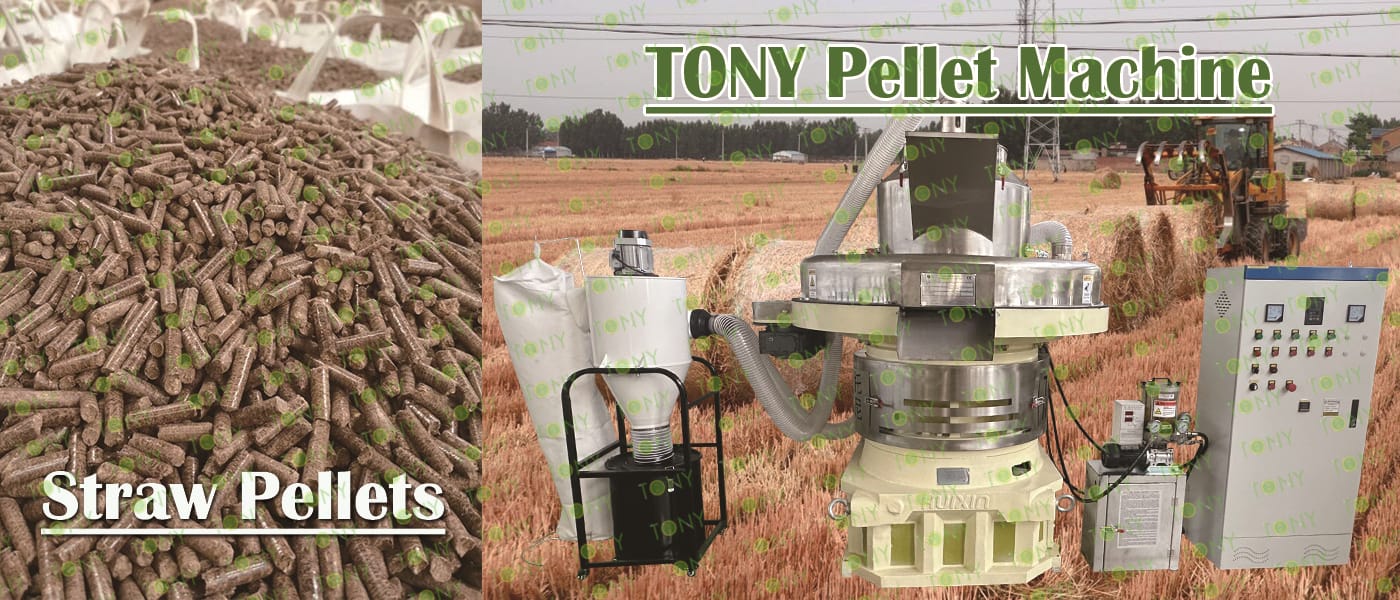

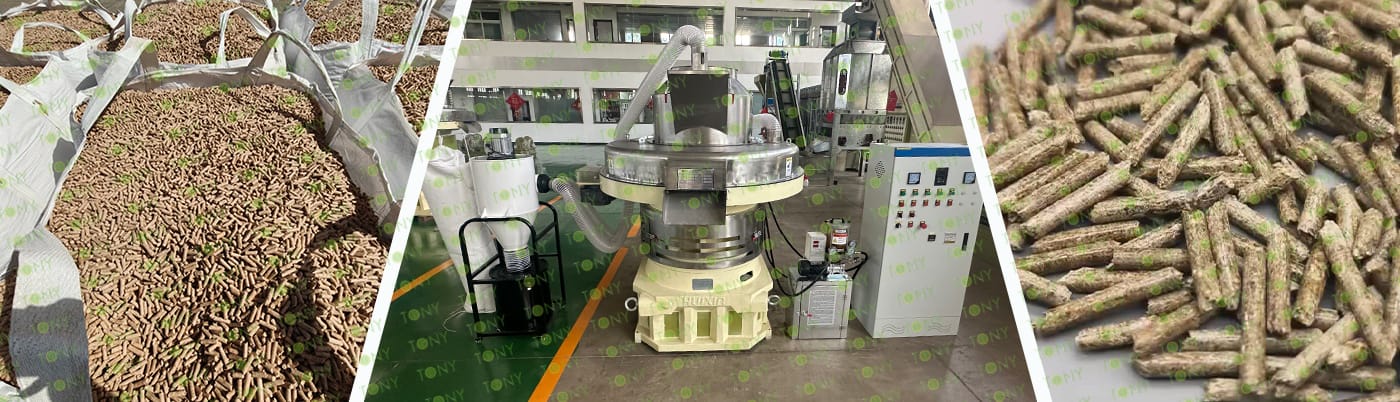

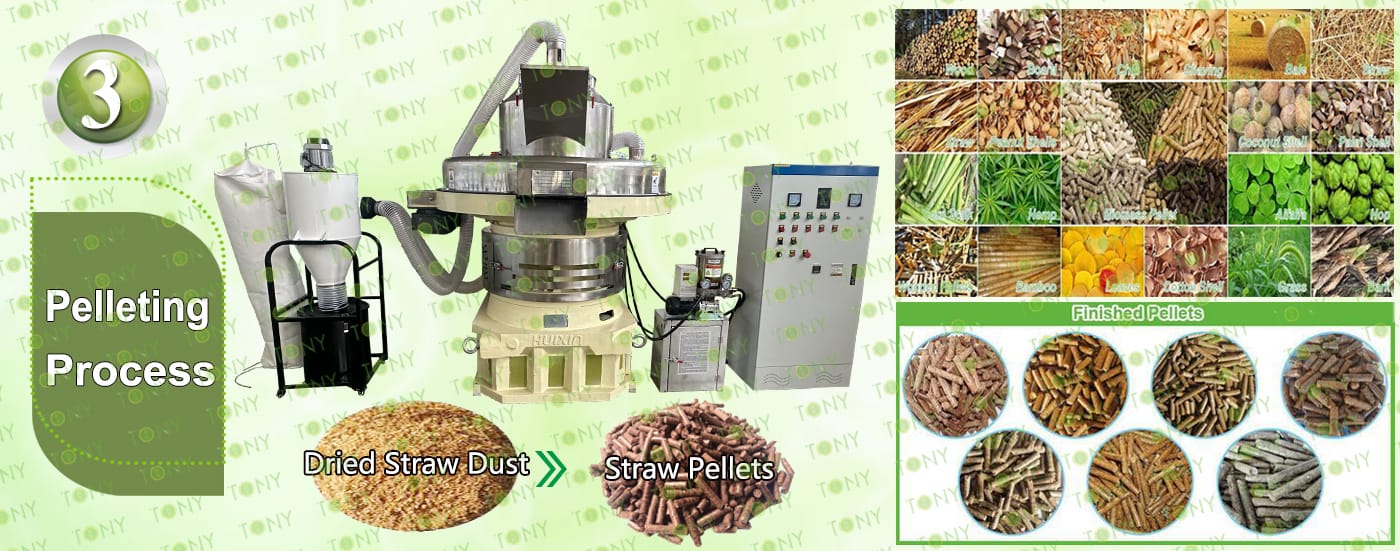

3.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ760-Ⅲ-160kw *1set

C. Capacity:2.5-3Ton/Hour.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.4图片


4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:2.5-3 Ton/Hour.

Main Parts:

(1)TONY's new Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片


5. Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.TONY brand semi-automatic packing machine* 1set.

C.Capacity:2.5-3 Ton/Hour.

Main Parts:

(1)TONY's New Semi-Automatic Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片


7.图片


1. Current Market Demand for Straw Pellets

Currently, straw pellets are not widely used in most parts of my country, primarily due to low market awareness, an imbalance between supply and demand, and immature technology. However, with national policies promoting green and environmentally friendly energy and supporting the industry, market demand for straw pellets is gradually growing. According to Zhilian Data, market demand for straw pellets has reached millions of tons, while supply only accounts for approximately 2% of the national bamboo production, creating a significant supply-demand imbalance.

2. Market Prospects for Straw Pellets

As a renewable fuel, straw pellets offer promising market prospects. First, they align with national policies on environmentally friendly and green energy, resulting in broad market demand. Second, straw pellets have a wide range of uses, including home heating, industrial heating, and power machinery fuel, creating a significant market opportunity. Furthermore, straw pellets have relatively low production and transportation costs, offering significant market advantages. Furthermore, as technology matures and production efficiency and output continue to rise, the competitiveness of straw pellets will continue to improve.

In short, the straw pellet fuel market has broad prospects, and its status will continue to rise with the development of China's economy and changes in the policy environment. Currently, related industry companies need to further strengthen technological research and development, improve product quality, and improve the market supply chain to ensure market prospects and production and sales market share.

8.图片


1. Environmentally friendly:

Straw pellets are low in carbon and sulfur. Compared to coal, they can reduce carbon dioxide emissions by 97.91%, sulfur dioxide emissions by 99.15%, and nitrogen dioxide emissions by 72.09%, achieving near-zero emissions.

2. Renewable raw materials:

Straw pellets are primarily made from agricultural and forestry waste, such as straw, making them inexpensive, renewable, and sustainable.

3. High calorific value:

Biomass pellets have a calorific value of 3600-4200 kcal/kg. When used with a dedicated biomass stove, they can achieve a thermal efficiency exceeding 85%.

4. Cost-effective:

Straw pellets have relatively low production and operating costs. Their environmentally friendly nature and support from national policies also help reduce their cost of use.

5. Versatile applications:

Straw pellets can be used in a variety of applications, including home heating, cooking, hot water supply, and biomass power generation.
