The working principle of wet wood log biomass pellet processing equipment

The core principle of wet wood pellet processing equipment is to produce pellets through extrusion. First, wet wood chips with a high moisture content (usually kept within an appropriate range to avoid being too wet or too dry) are fed into the equipment's crushing or pretreatment unit for initial crushing and mixing to achieve a more uniform texture. The treated wet wood chips are then conveyed between the pelletizer's rollers and a ring die (or flat die). The rotating rollers press the pellets, subjecting them to immense pressure within the die holes of the ring die (or flat die), compressing them into pellets of a defined density and shape. Finally, the pellets are cut and (in some equipment) cooled before processing is complete.

2. Characteristics of wet wood log biomass pellet processing equipment

(1) Strong adaptability: It can directly process wet sawdust with high moisture content without the need for complex pre-drying processes, thus reducing the initial processing costs.

(2) Good molding effect: Through high-pressure extrusion, wet sawdust pellets can have high density and strength, are not easy to break, and are easy to store and transport.

(3) High degree of integration: Some equipment integrates functions such as crushing, conveying, pelletizing, and cutting, realizing integrated processing and saving operation steps.

(4) Relatively reasonable energy consumption: Designed based on the characteristics of wet materials, the material's own moisture can be used to assist in molding during the extrusion process. Compared with equipment that processes dry materials, it has more energy consumption advantages under certain conditions.

(5) Convenient operation: Most of them use automated control systems, which can easily adjust parameters such as particle size and output, making it suitable for continuous production.

3. Application scenarios of wet wood log biomass pellet processing equipment

(1) Biomass energy: Processing wet sawdust into pellet fuel for boiler combustion, biomass power generation, etc., replacing traditional fossil energy and reducing carbon emissions.

(2) Agricultural and forestry waste treatment: Processing wet sawdust, branch debris, etc. generated in agricultural and forestry operations. The pellets produced can be used as organic fertilizer raw materials or livestock bedding, achieving recycling.

(3) Environmental engineering: Used to process wet sawdust waste generated by industries such as wood processing and furniture manufacturing, reducing landfill volume and reducing environmental pollution risks.

(4) Small processing sites: Suitable for on-site processing of wet sawdust in small and medium-sized wood processing plants, forest farms, etc., avoiding the costs of raw material transportation and drying, and improving resource utilization efficiency.

TONY Brand 40-50 Ton/Hour Wet Wood Log Pellet Manufacturing Plant can take wet wood, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with wet wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity:40-50Ton/Hour

2. Raw materials: Wet wood log , branches, small - diameter logs, twigs, etc.

3. Moisture: Wet type, about 40%.

4. Application: All kinds of wood - based biomass materials suitable for pellet production.

Suitable customers: Green energy companies, forestry enterprises, and private wood - processing workshops that have advantages in wood raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Log Pellet Production Line

2. Raw Material: All kinds of wet wood Log

3. Moisture Content of Raw Material: 40%

4. Capacity: 40-50 tons per hour

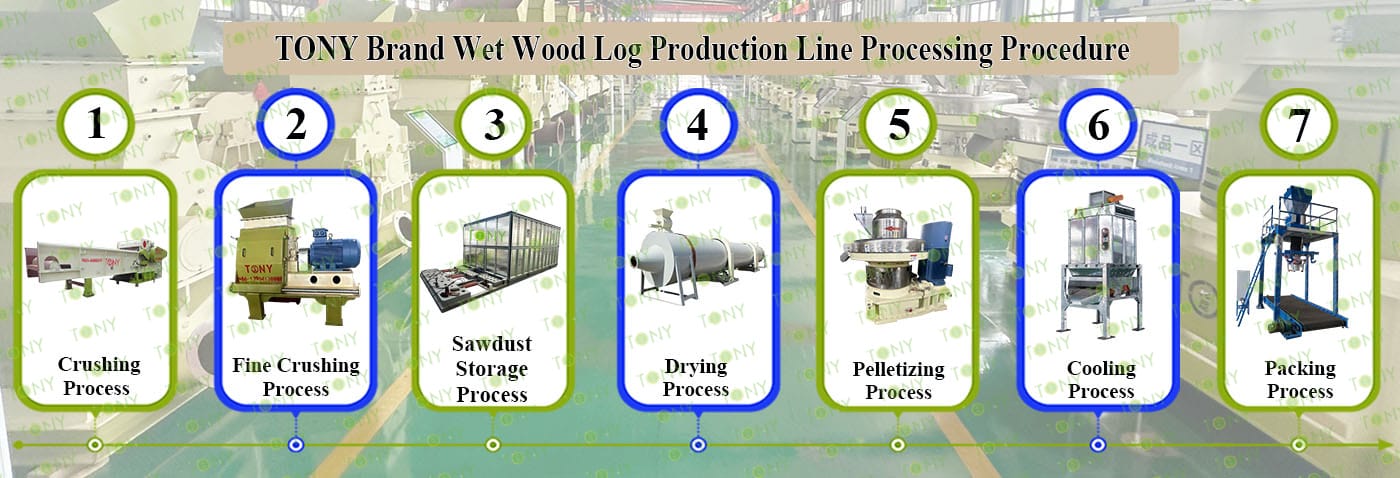

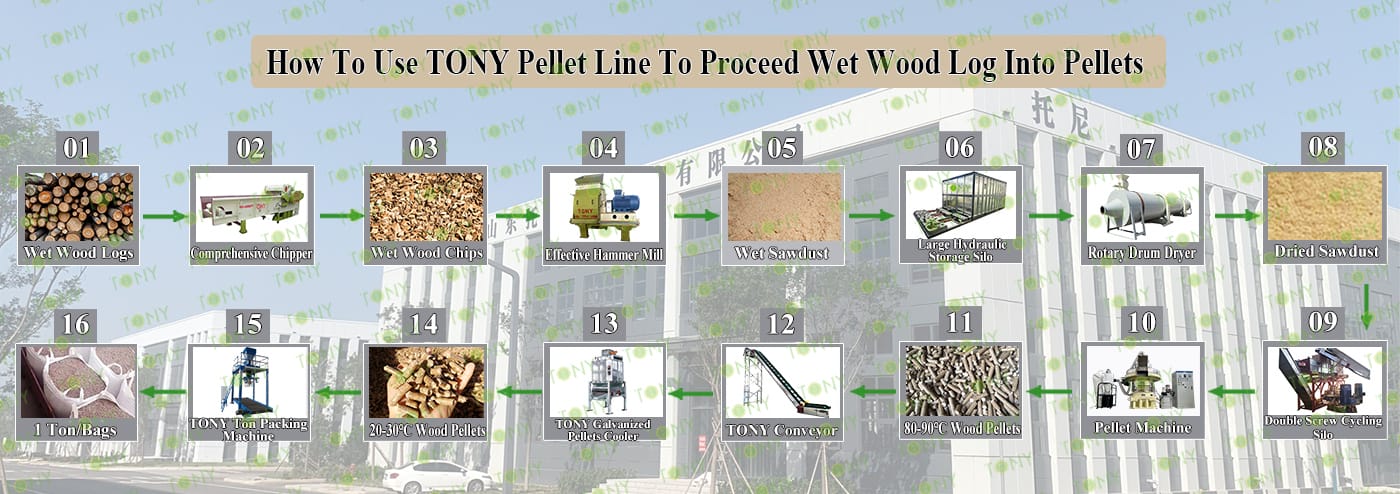

5. Process: Crushing Process - Fine Crushing Process -Sawdust Storage Process- Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1600-1000-315KW, Effective Hammer Mill-TFD120*200-355KW, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-3.2*28m, TONY Pellet Machine TYJ860-Ⅲ-280KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Large Hydraulic Storage Silo	Rotary Drum Dryer
1.To Grind Wood Logs φ ≤35cm Into25-55mm Wood Chips.    2.Model: TPC1600-1000-315KW With 6 Blades*3set    3.Capacity:40-50Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD120*200-355KW*4sets 3.Capacity: 10-13Ton/Hour/Set	1.To Storage Sawdust Before Dryer Control Sawdust Flow Entering The Dryer 2.Model: TCY-35*4sets 3.TONY Uses Galvanized Material	1.To Dry The 40% Sawdust Into 10-15% Sawdust.   2.Model: THGD3.2*28*4sets 3.Capacity:10-13Ton/Hour/Set
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine	Belt Conveyor
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*10sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*2sets 3.Capacity:40-50Ton/Hour	1.To Pack Pellets Into 1Ton/Bags 2.Model: TBD* 2sets 3.Capacity: 40-50Ton/Hour	1.To Transport Wood Chips,Sawdust,Pellets. 2.Width: 80cm*24sets 3.Capacity:Designed With The Whole Line

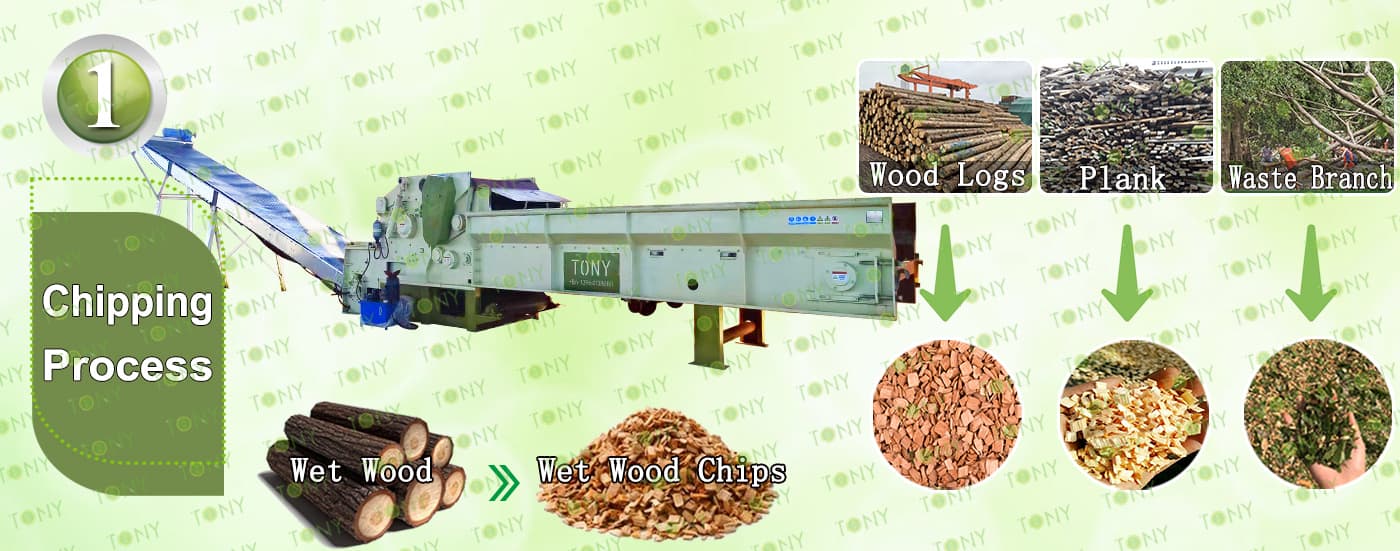

1.Wood Chipping Process：

A.This process is mainly used to grind the wood logs whose diamater is under 40cm into wood chips with size 25-55mm. The finish wood chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY brand comprehensive chipper TPC1600-100 model with 6 flying blades type:

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

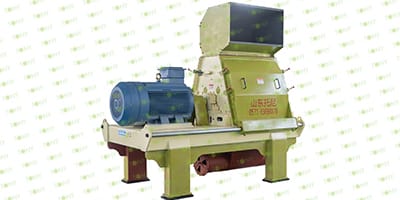

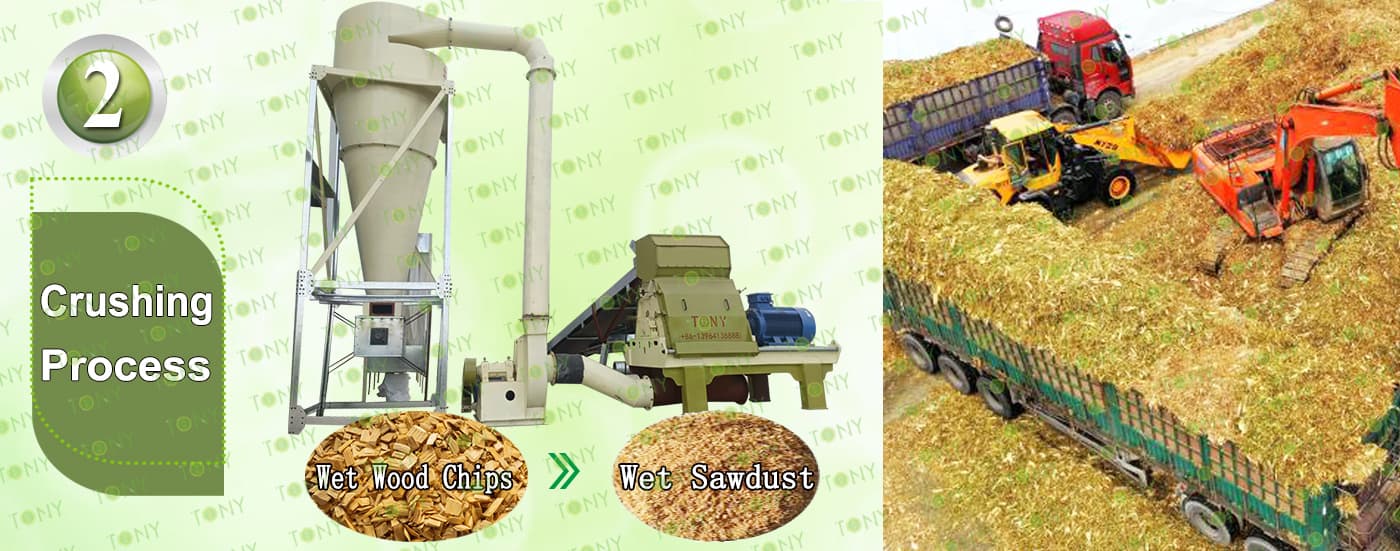

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:40-50Ton/Hour.

C.TONY effective hammer mill TFD120*200-355KW*4sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

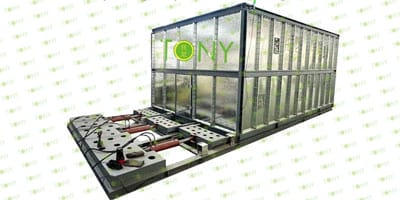

3.Sawdust Storage Process:

A. This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B. The customer chooses one TONY Brand Sawdust Storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust Blocked.

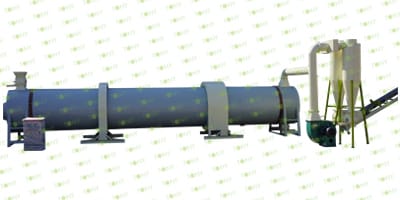

4.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:40-50Ton/Hour.

C.TONY use 4set of 3.2*28m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

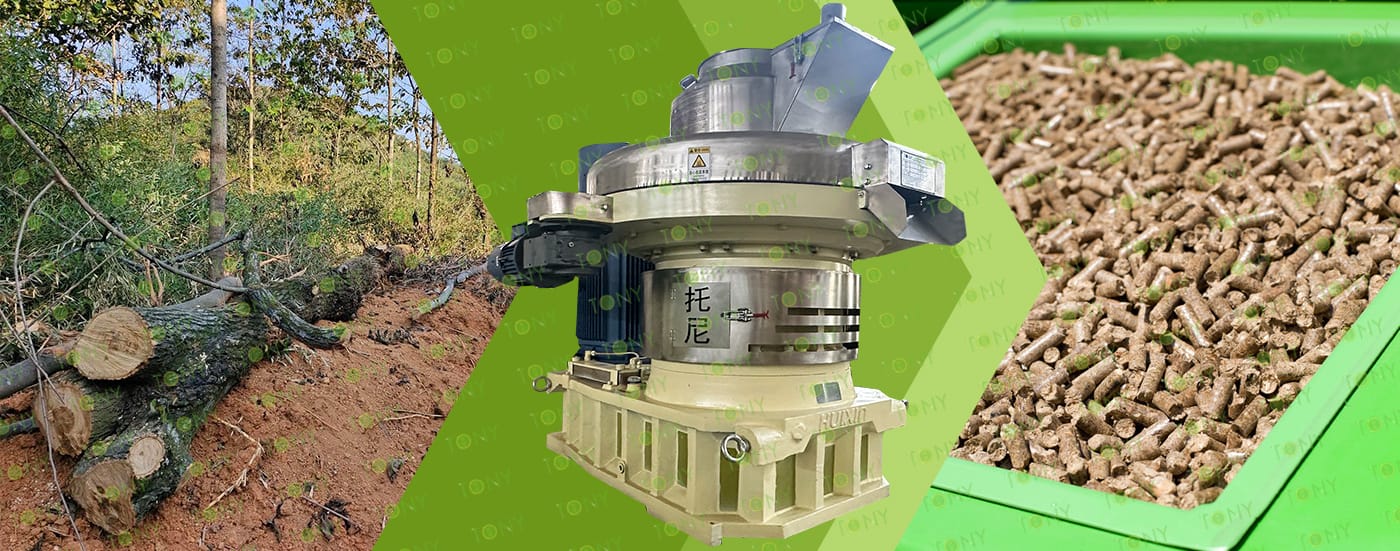

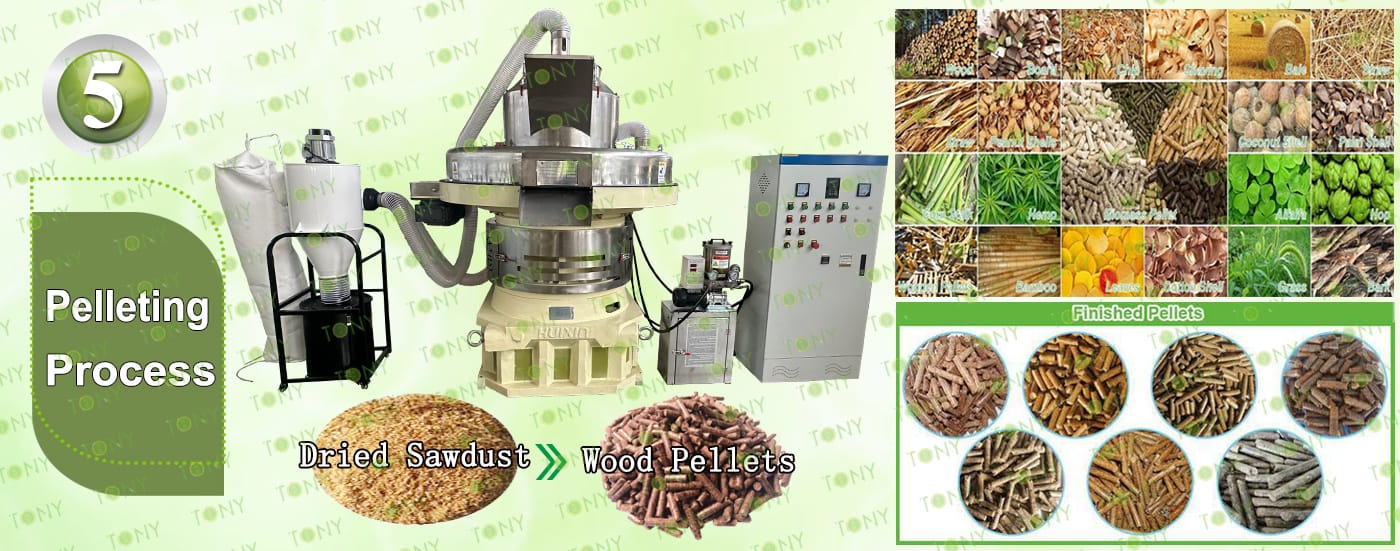

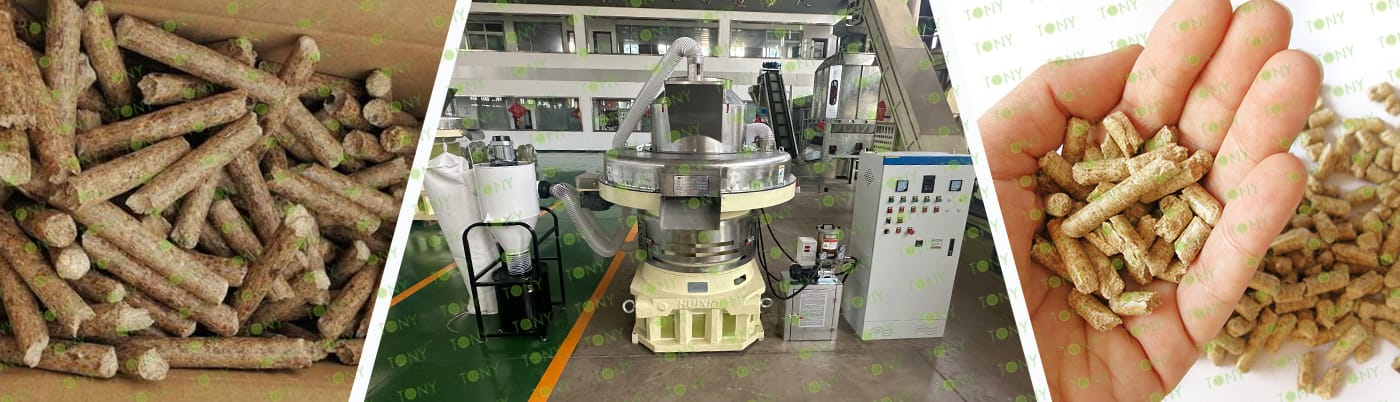

5.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:40-50Ton/Hour.

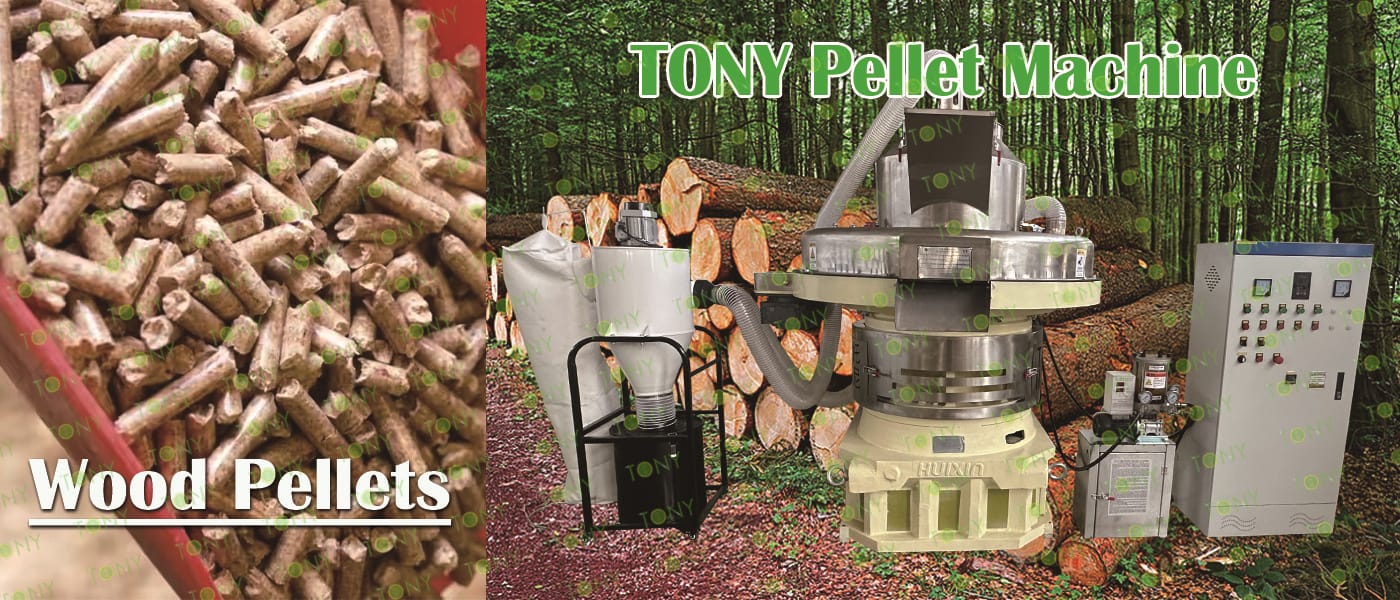

C.TONY Brand Vertical Ring Die Pellet Machine TYJ860-III-280KW*10 sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

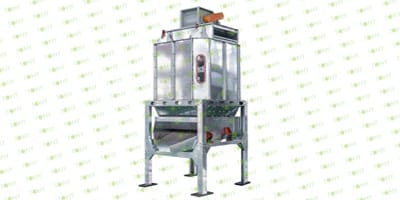

6.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.2 sets of TONY galvanized cooler separator

Main Parts:

(1)TONY's New Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

7.Packing Process:

A.This process is mainly used to pack pellets into 1ton/bags.

B.2 sets of TONY ton packing machine

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

1.Outstanding Environmental Benefits:

Biomass pellets primarily produce carbon dioxide and water during combustion, with minimal emissions of pollutants such as sulfur dioxide, nitrogen oxides, and dust. Furthermore, because the raw materials absorb carbon dioxide during growth, they are nearly "zero-carbon" throughout their lifecycle, offering high environmental value.

2.Quick Return on Investment:

The investment threshold for this project is relatively low. A small pellet machine can be operational within a day. If the equipment produces 10 tons per day, with an ex-factory price of 800 to 1,100 yuan per ton, the net profit can reach 3,000 yuan per day, typically achieving a payback period of 3-6 months.

3.Excellent Product Characteristics:

After processing and forming, biomass pellets significantly increase their energy density, making them easier to store and transport. Their regular shape and stable chemical composition provide a stable flame during combustion, with a calorific value generally ranging from 3,500 kcal/kg to 5,000 kcal/kg and a combustion efficiency of 97%, meeting various heating and power generation needs.

1.Storage and transportation advantages

(1) High density and easy storage:

After compression molding, the volume is greatly reduced, which is convenient for storage and not easily affected by moisture and deterioration.

(2) Convenient transportation:

The regular shape facilitates mechanized loading and unloading and transportation, reducing logistics costs.

2.Application scenario advantages

(1) Wide range of applications:

It can be used in industrial boilers, biomass power plants, home fireplaces, agricultural greenhouse heating and other scenarios, replacing traditional energy sources such as coal and natural gas, with high application flexibility.

(2) Convenient use:

It can be fed through automated equipment, is easy to operate, and is compatible with many existing combustion equipment, without the need for large-scale equipment modification.
