1. The working principle of  wet straw biomass pellet processing equipment

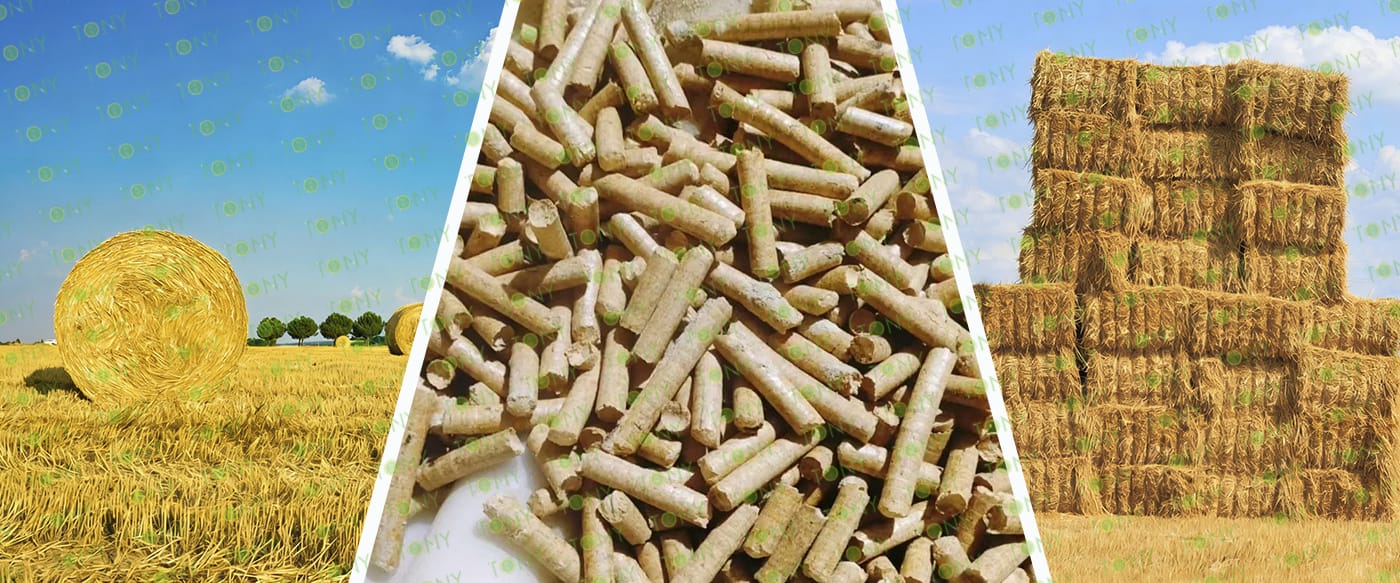

Straw pellet machine is a machine that compresses various types of biomass waste, such as straw, rice husk, sawdust, wood chips, etc., into a shaped fuel with a certain shape and high density by mechanical pressure. After the raw materials are extruded and formed, the density can reach 0.8-1.3t/m³, the energy density is equivalent to that of medium-quality coal, and the combustion characteristics are significantly improved.

2. Characteristics of  wet straw biomass pellet processing equipment

(1) No need for natural drying, saving space and labor costs: The equipment can directly process wet straw with a moisture content of 30%-60%. The raw material collection radius is smaller, reducing transportation costs.

(2) Strong production continuity: As long as there is wet straw raw material, continuous production can be achieved, which is especially suitable for rainy areas or enterprises that need continuous production throughout the year.

(3) Wide range of raw material adaptability and higher utilization rate: In addition to common wet straw such as corn stalks and wheat straw, it can also process a variety of high-moisture agricultural waste such as wet sawdust, sugarcane bagasse, and peanut shells. It can be flexibly switched according to local raw material supply conditions, improving raw material utilization and reducing dependence on a single raw material.

(4) Reduced costs and more environmentally friendly. The equipment can use the lignin contained in the straw itself to play a bonding role under high extrusion temperature without adding any additives. The produced pellets are more in line with green fuel standards.

3. Application scenarios of  wet straw biomass pellet processing equipment

(1) Boilers in small and medium-sized enterprises: Many small and medium-sized enterprises need to use boilers in their production processes. Traditional coal-fired boilers are gradually restricted due to environmental issues. Biomass pellet fuel, as a clean energy source, can replace coal for use in boilers in these enterprises.

(2) Home heating and hot water systems: With the improvement of environmental awareness and government support for clean energy, biomass pellet fuel has also begun to enter the home market. It can be used in home heating and hot water systems, such as fireplaces, heating stoves, etc.

(3) Agriculture and forestry: In the fields of agriculture and forestry, biomass pellet fuel can be used to dry grains, heat greenhouses, etc. In addition, biomass pellet fuel made from crop waste can also help farmers deal with agricultural waste such as straw, reducing environmental pollution.

(4) Industrial production: Some industrial production processes require a large amount of heat energy, such as food processing, textiles and other industries. Biomass pellet fuel can be used as a source of heat energy for these industries, reducing dependence on traditional fossil fuels.

2.图片

TONY Brand 36-45 TPH Wet Straw Line can process wet straw and various biomass materials related to agricultural waste into biomass pellets. Straw processing into biomass pellets has a wide range of uses .As fuel: straw pellet fuel can be used as boiler fuel for power plants, industrial boilers, civil heating and other fields. Its calorific value is similar to coal, but the price is lower, and the combustion process produces fewer pollutants, is a more environmentally friendly fuel. As feed: Straw pellets processed by straw pellet machining can be used as feed for livestock. This method can make full use of crop straw, reduce feed costs, and also help solve the problem of straw disposal. These uses can not only effectively use agricultural waste, reduce environmental pollution, but also create economic benefits and promote sustainable agricultural development.

1. Capacity: 36-45 Ton/Hour

2. Raw materials: Wet straw, including wet corn straw, wet wheat straw, wet cotton straw, wet flax straw, wet beet straw and other agricultural straw

3. Moisture: About 30-35%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, agricultural cooperatives, and small - scale rural processing units that have ready access to wet straw and related agricultural residues.

5. Finished Pellets Markets: Large power plants, domestic heating systems in rural and suburban areas, industrial heating facilities in rural - based industries, combustion heat applications in local manufacturing units, heating systems in rural schools and community centers, boiler rooms in small - scale rural enterprises, and canteens in rural educational institutions.,farms, feed mills.

3.图片


1. Project Name: Wet Straw Production Line

2. Raw Material: Bales of  Wet Straw

3. Moisture Content of Raw Material: 30-35%

4. Capacity: 36-45 TPH

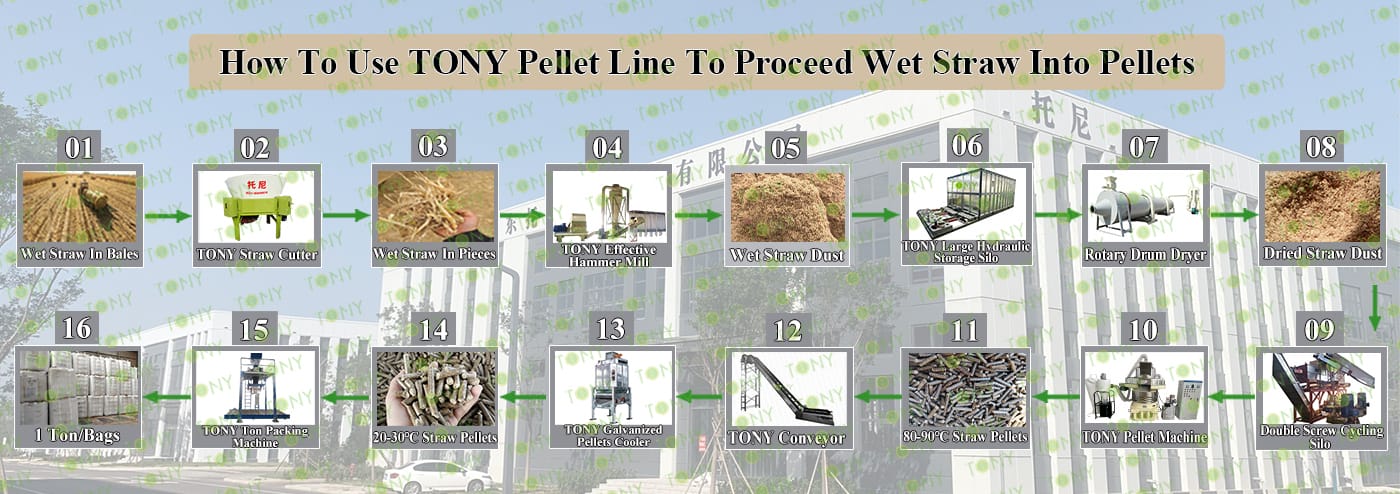

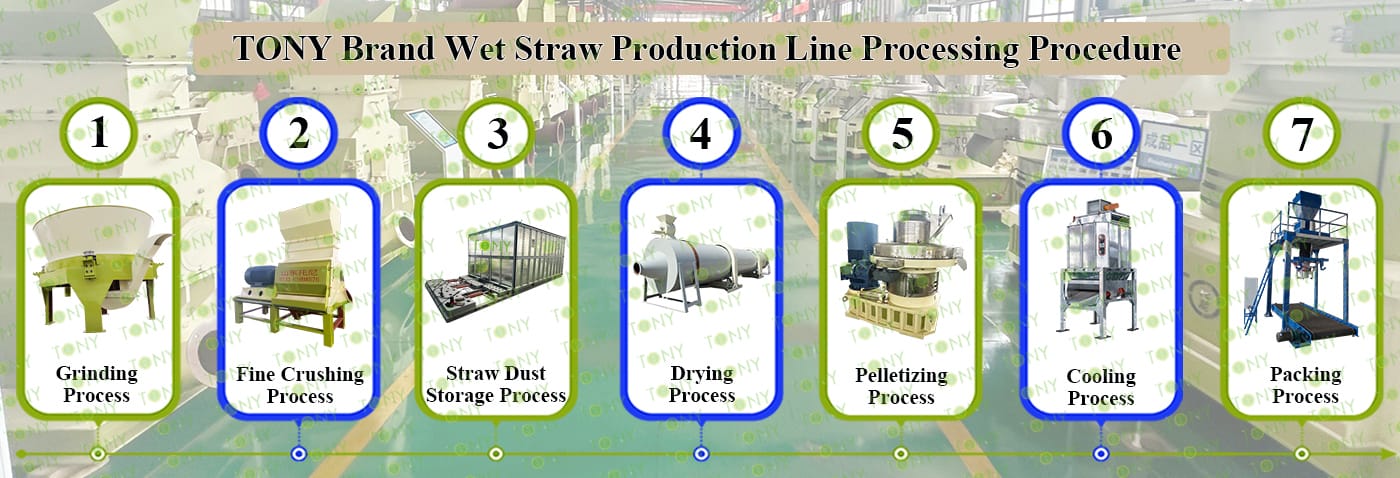

5. Process: Grinding Process - Fine Crushing Process - Straw Dust Storage Process-Drying Process-Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Straw Cutter -TPX3500-160kw, Effective Hammer Mill- TFD100-200-315kw, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-3.2*24m ,TONY Pellet Machine-TYJ860-III-280kw, Galvanized Pellets Cooler, Ton Packing Machine and Belt Conveyors

4.图片

流程图1

流程图

5.图片


5.1图片

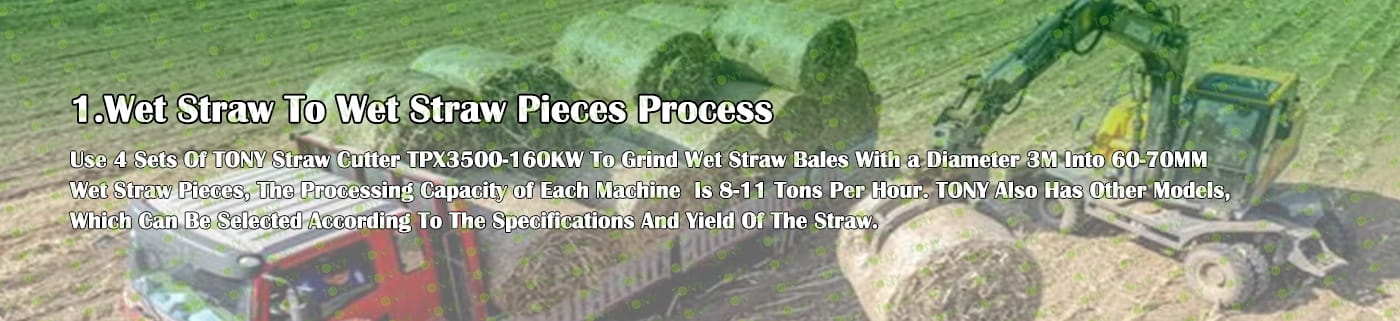

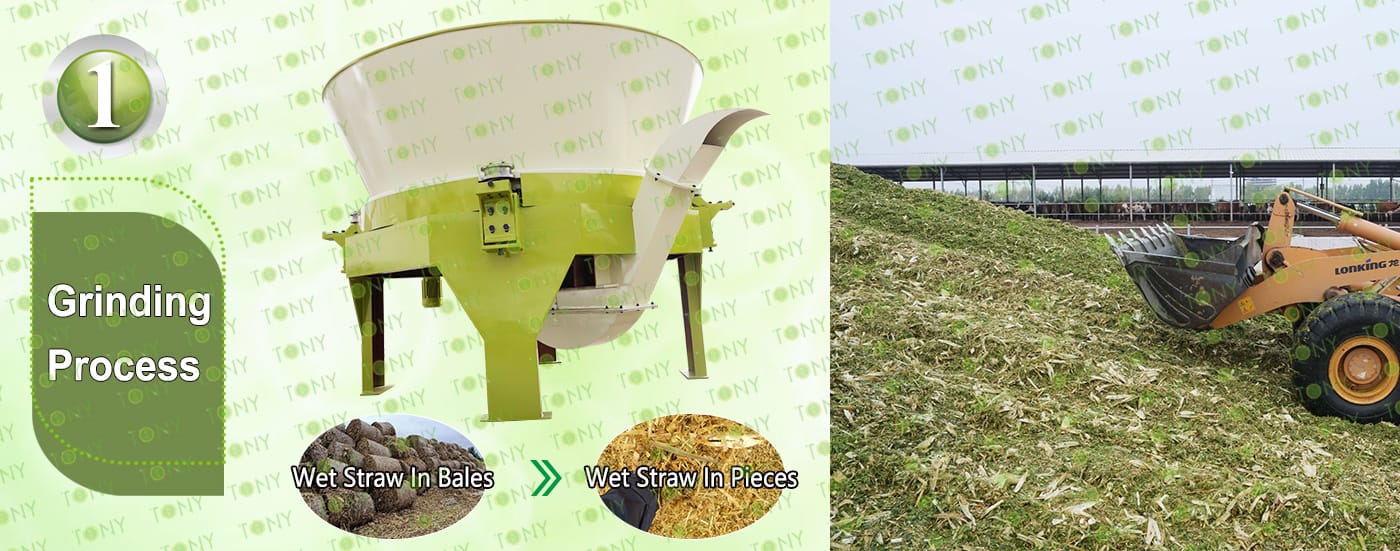

1.Grinding Process:

A.The process is mainly used to grind wet straw within 3m in diameter into wet straw pieces. The rotary cutting mode of the outer chain of the gear, the rotary cutting rotor blade is sharp, and the blade types are various, which can be rotated to cut various bales of straw with different diameters, different thicknesses, different lengths and different water contents

B.TONY brand straw cutter TPX3500-160kw models *4sets

C.Capacity:8-11Ton/Hour/Set

Main Parts:

(1)Tony's New Straw Cutter

(2)Enlarged Turntable

(3)Rotary Cutting System

(4)Drive system

(5)Electrical Cabinet.

5.2图片

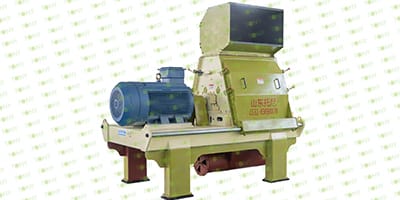

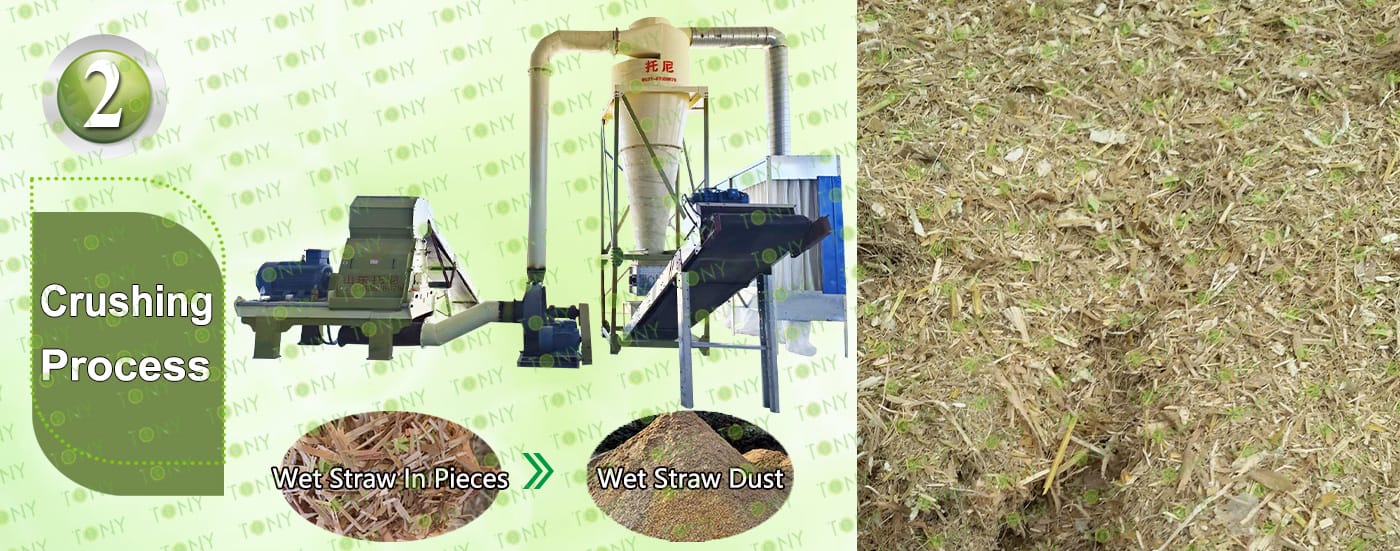

2.Fine Crushing Process:

A. The process is mainly used to crush 60-70mm wet straw pieces into 8-14mm wet straw dust.

B.TONY brand effective hammer mill TFD100*200-315kw *4sets.

C.Capacity: 36-45 tons/hour.

Main parts:

(1)TONY Effective Hammer Mill

(2)Galvanized Dust Collector.

(3)Sawdust Conveying Fan.

(4)Cyclone With Airlock.

(5)Electrical Cabinet.

5.3图片


3.Straw Dust Storage Process:

A. This process is mainly used to storage the straw dust that comes out of the hammer mill.It is hydraulic galvanized storage silo which is more stable and straw dust in it is not easy to be blocked.

B.TONY Brand Large Hydraulic Storage Silo to storage the straw dust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's new Large Hydraulic Storage Silo.

(2)With Screws Inside the Storage Bin to Prevent Straw Dust Blocked.

5.4图片

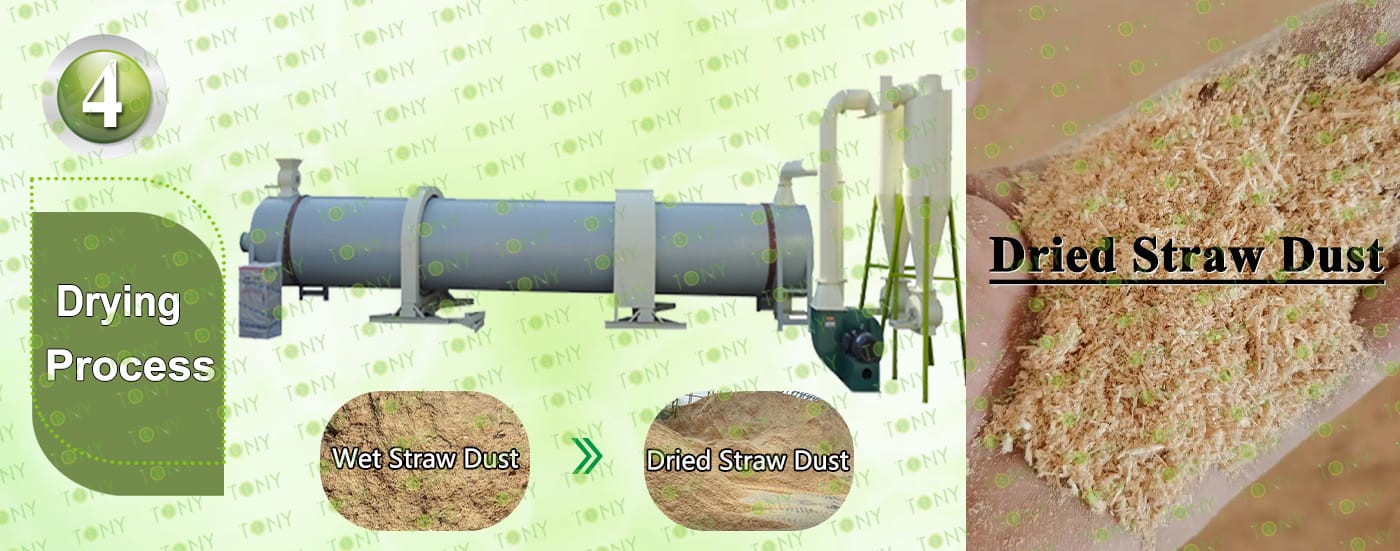

4.Drying Process:

A.This process is mainly used to dry the straw dust from 30-35% to 10-15%.  B.Capacity: 36-45 Ton/Hour.

C.TONY use 4 sets of 3.2*24m rotary drum dryer for this process,TONY hot stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.(Reducers With Motors and Pips)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.5图片

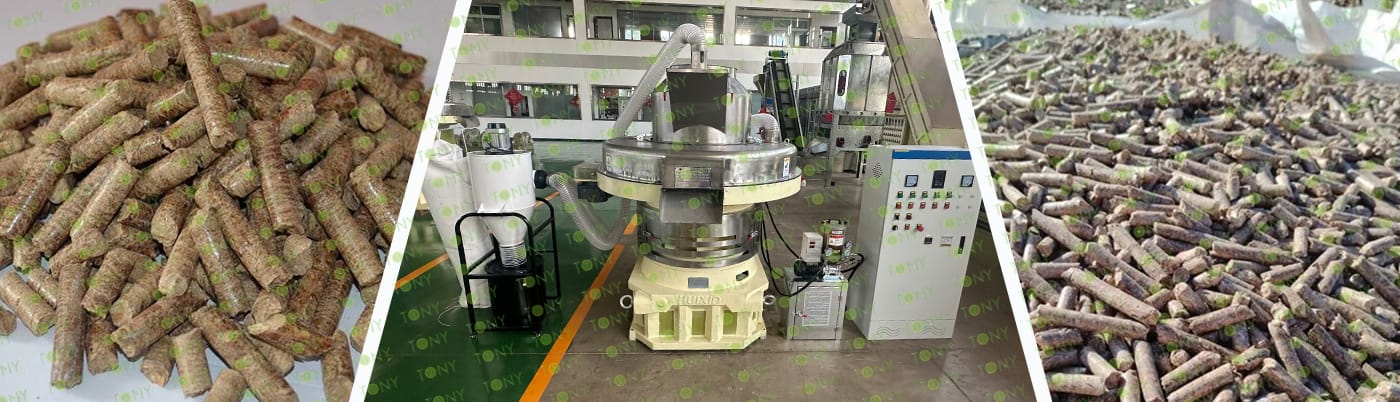

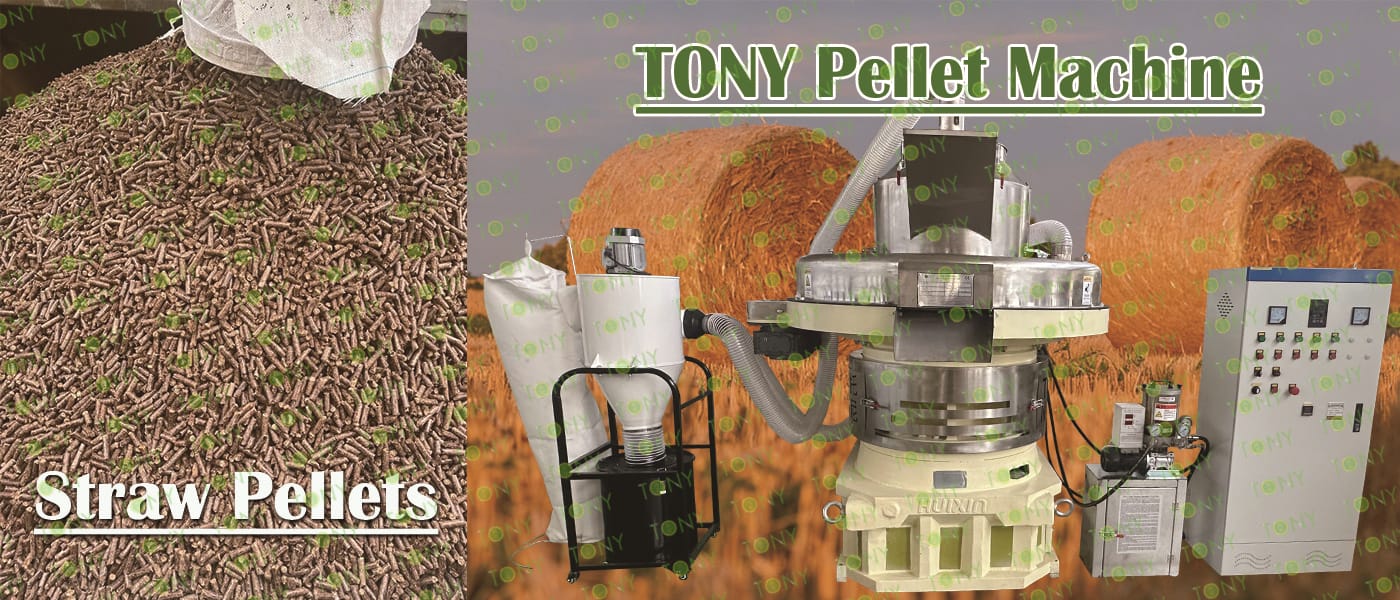

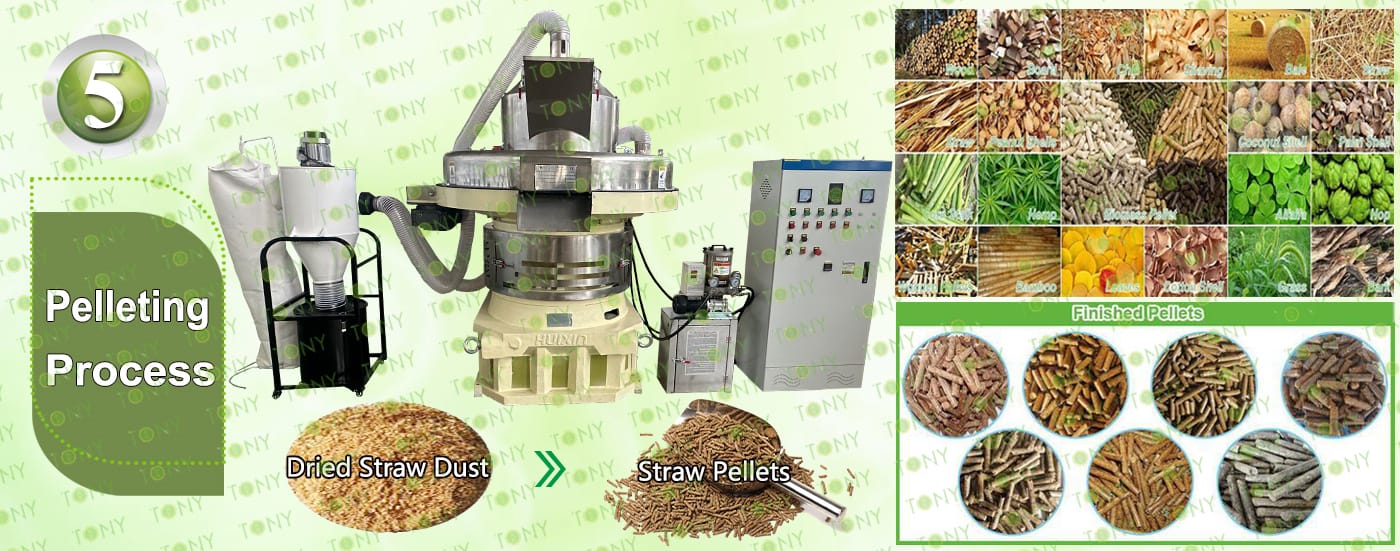

5.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ860-Ⅲ-280kw *9sets

C.Capacity:36-45Ton/Hour.

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.6图片


6.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*3sets

C.Capacity:36-45 Ton/Hour.

Main Parts:

(1)TONY's new Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.7图片


7.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.TONY brand ton packing machine*3sets

C.Capacity:36-45 Ton/Hour.

Main Parts:

(1)TONY Ton Packing Machine

(2) Electronic Platform Scale Metering System

(3) Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

6.图片


7.图片


The project of processing wet straw into biomass pellets focuses on establishing a "raw material recovery - processing production - fuel sales" industrial chain by addressing the issue of difficult storage and high transportation costs of wet straw. By solving the problems of difficult storage and high transportation costs of wet straw, this project aims to achieve the dual goals of resource utilization and commercial profitability of agricultural waste.

This project direction has great prospects. It not only aligns with environmental protection policies but also can revitalize idle rural resources and clarify the core elements of the project, helping you to proceed with the implementation more securely.

Core advantages of the project: Why choose the processing of wet straw

The wet straw processing project is more competitive in terms of raw material acquisition and regional adaptability, which is its core appeal.

1. Easy raw material acquisition and low cost: Directly purchase wet straw that has just been harvested in the fields, without waiting for natural drying. Farmers do not need to bear the drying cost, and their willingness is higher. The purchase price of raw materials is usually 20%-30% lower than that of dry straw; at the same time, the factory can be set up nearby, reducing the distance of raw material transportation (the transportation cost of wet straw is high, and processing nearby can reduce transportation costs by more than 50%).

2. Strong policy adaptability: Directly solve the problem of pollution caused by straw burning, which belongs to the "straw utilization" project. It is easy to apply for equipment purchase subsidies, production subsidies or local special support funds, reducing the initial investment pressure.

3.Stable market demand: Processed pellet fuel can be sold to industrial boilers, biomass power plants, heating companies, etc. Especially in areas with strict environmental protection policies, there is a strong demand for clean fuel. The wet straw project can quickly respond to the local market and reduce the transportation cost of finished products.

8.图片


Straw biomass pellet feed offers significant advantages in storage, nutrition, and usage.

1. Physical Properties: Easy to store and transport, minimizing waste.

It has a high density and is resistant to moisture absorption and mold, allowing for a storage period of 6-12 months. The pellets are uniform in shape, free of dust, and have a transport loss rate of less than 3%, making them suitable for bulk purchases by large-scale farms.

2. Nutritional Properties: Good palatability and a more balanced nutrition profile.

During processing, straw fibers are softened (to a particle size of 2-3mm) and tempered (by adding water, molasses, urea, or trace elements) to improve palatability. This increases cattle and sheep intake by 20%-30% compared to loose straw, reducing picky eating and waste.

Nutritional formulas can be customized to meet livestock needs. For example, soybean meal or bran can be added to increase protein content (from the original 3%-5% in straw to 8%-12%), or minerals can be added to meet the nutritional needs of different growth stages (such as calves and fattening cattle), addressing the nutritional monotony of loose straw.

3. Usage Features: Convenient Operation and High Controllability

No pre-cutting or silage preparation is required; the pellets can be fed directly or with minimal soaking, reducing pre-processing steps on the farm. A single person can complete the feeding operation, reducing labor costs.

The pellet feed's consistent nutritional content per unit weight facilitates precise control of feeding amounts, avoiding growth variations in livestock and poultry caused by uneven nutrition in loose straw and improving breeding efficiency.
