Project Brief Introduction:

1.Product:Dried Sunflower Husk Pellet Line

2.Capacity:7.5-9 Ton /Hour

3.TONY Brand 7.5-9  Ton /Hour Dried Sunflower Husk Pellet Line Project Process

4.Main Machine: TONY Pellet Machine TYJ760-Ⅲ-160KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 530 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

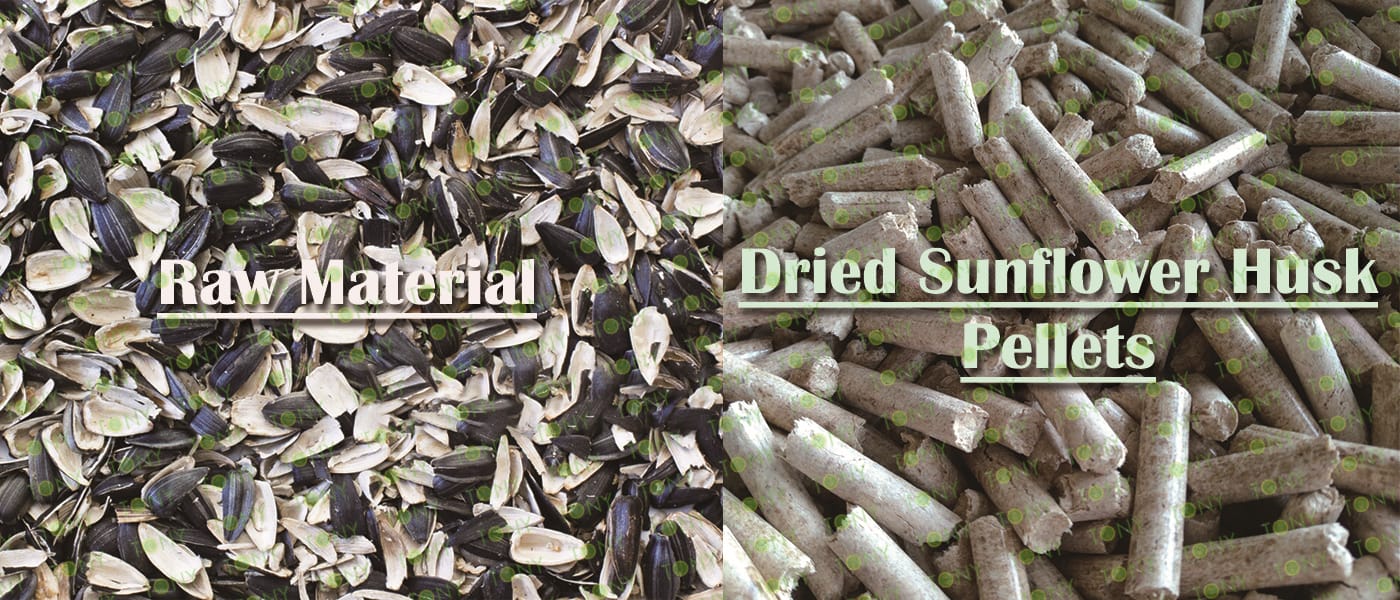

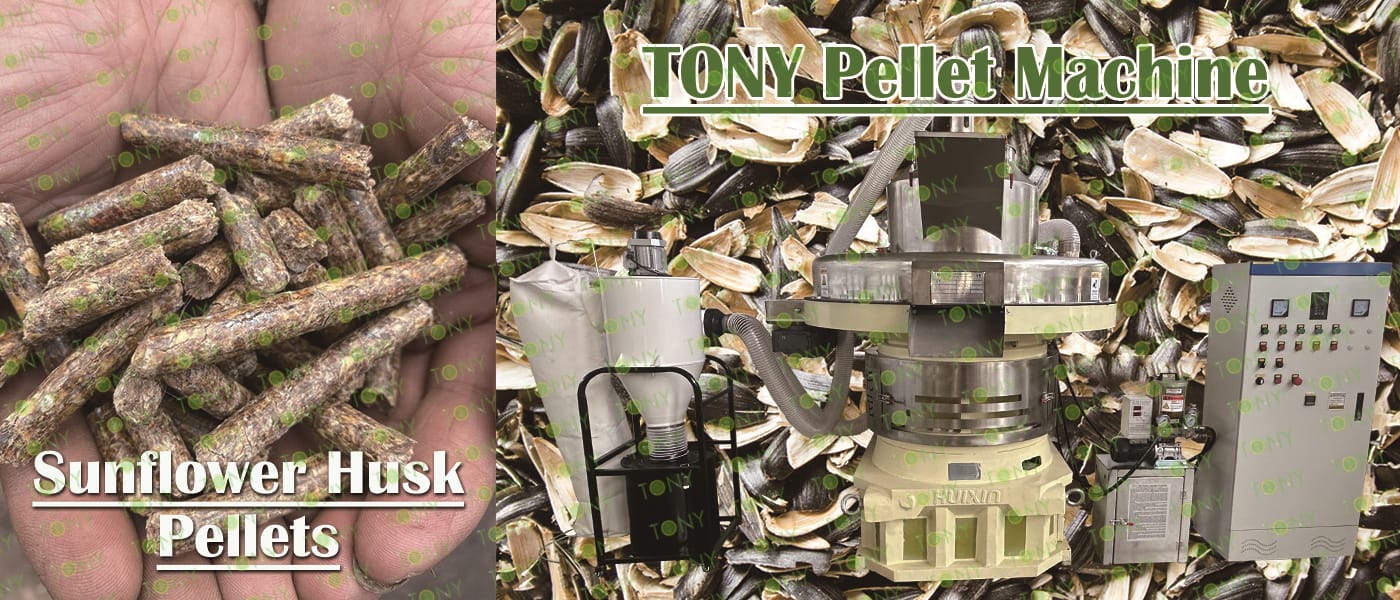

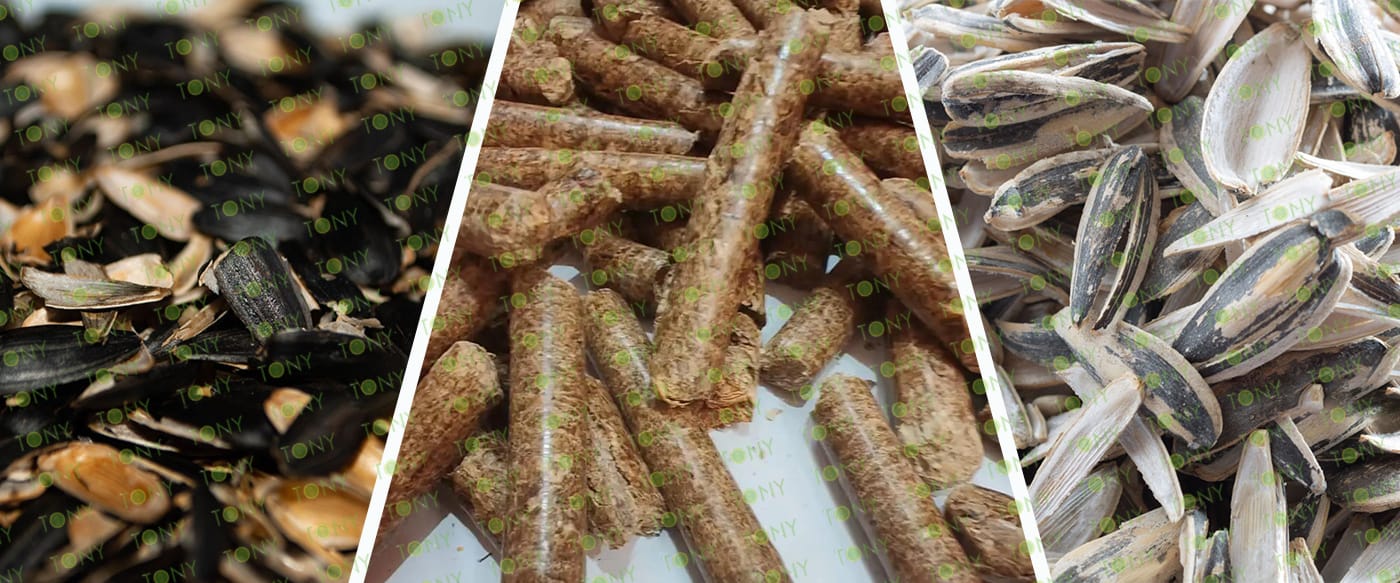

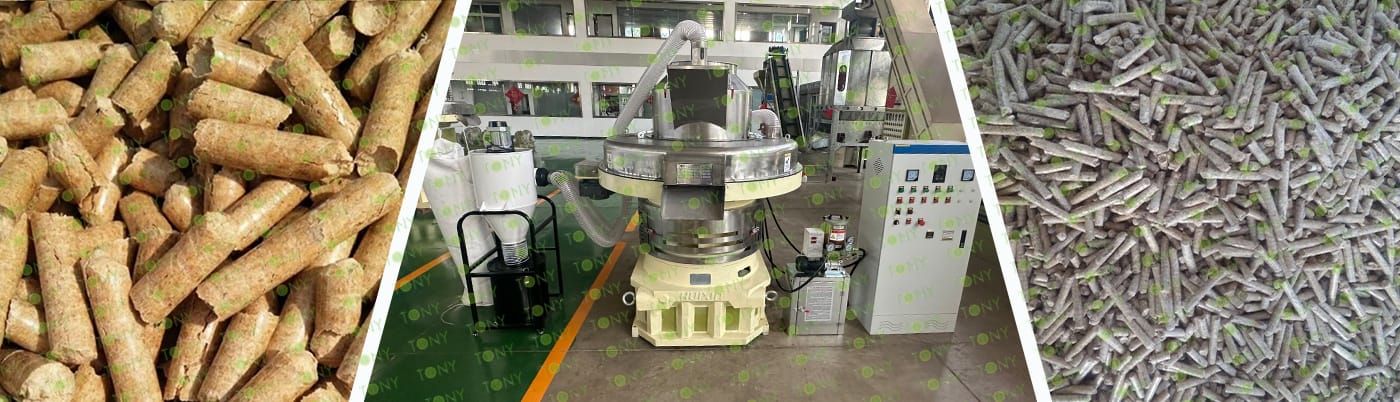

原材料图+颗粒机图片

1. The working principle of dried sunflower husk biomass pellet processing equipment

The material is shaped by the interaction of extrusion pressure and die friction between the mold and the pressure roller. Dried sunflower husk processing equipment requires no additives or binders during processing, and it strengthens cell walls and binds cellulose. Lignin is mainly distributed insoluble in any solvent at room temperature, has no melting point, but has a softening point. When the temperature reaches a certain level, lignin softens, its binding force increases, and under certain pressure, it shapes the material.

2. Characteristics of dried sunflower husk biomass pellet processing equipment

Modern dried sunflower husk processing equipment increasingly adopts automation and intelligent control technologies to reduce manual labor intensity and improve production efficiency. The equipment is equipped with advanced control systems, allowing operators to set operating parameters, monitor equipment status, and achieve remote control via a user interface. For example, a PLC control system can precisely control equipment startup, shutdown, and speed adjustment, while simultaneously collecting and analyzing various data during operation, such as temperature, pressure, and output, to provide a basis for production decisions.

3. Application scenarios of dried sunflower husk biomass pellet processing equipment

(1) Combustion: Dried Sunflower Husk pellets can be used as fuel, replacing coal. The rice ash produced after burning rice husks is rich in silica, which is a good cementing material.

(2) Animal Feed: Dried Sunflower Husk pellets can be used as animal feed in large-scale farms, facilitating storage and transportation.

(3) Residential Heating and Energy Use: Dried Sunflower Husk pellets can be used for residential heating and energy use, being clean and pollution-free, and easy to store and transport.

(4) Industrial Boiler and Kiln Fuel: Dried Sunflower Husk pellets can be used as fuel for industrial boilers and kilns, replacing coal and natural gas, helping to solve environmental pollution problems.

(5) Gasification and Thermal Power Generation: Dried Sunflower Husk pellets can be used as fuel for gasification and thermal power generation, helping to address the issue of small thermal power plant closures.

2.图片

TONY Brand 7.5-9TPH Dried Sunflower Husk Pellet Line can process dried sunflower husk and various biomass materials into biomass pellets. Sunflower husks have a moderate density and high fiber content, exhibiting strong stability after compression molding and combustion efficiency approaching that of coal. The raw materials are widely available and inexpensive, mostly derived from agricultural processing waste, enabling resource recycling and reuse. Combustion produces minimal pollutants, containing no sulfur or phosphorus, thus meeting environmental protection requirements. The technology for processing sunflower husks into biomass pellets is mature and highly feasible, representing an excellent pathway for the resource utilization of waste.transformation, and has economic, environmental and social value.

1. Capacity: 7.5-9 Ton/Hour

2. Raw materials: Dried Sunflower Husk

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Agricultural product processing workers, such as operators of sunflower seed oil mills and nut processing plants; biomass energy-related entrepreneurs, including individuals or enterprises looking to enter the biomass pellet production field; and business owners with stable fuel needs, such as small and medium-sized heating companies, food processing plants, farms and other customers with advantages in  raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating heating, boiler room, school canteen, foundry heat source.

3.图片


1. Project Name: Dried Sunflower Husk Pellet Production Line

2. Raw Material: Dried Sunflower Husk

3. Moisture Content of Raw Material:10-15%

4. Capacity: 7.5-9 TPH

5. Process: Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: TONY Pellet Machine-TYJ760-III-160kw, Galvanized Pellets Cooler, Double Packing Machine and Belt Conveyors

4.图片

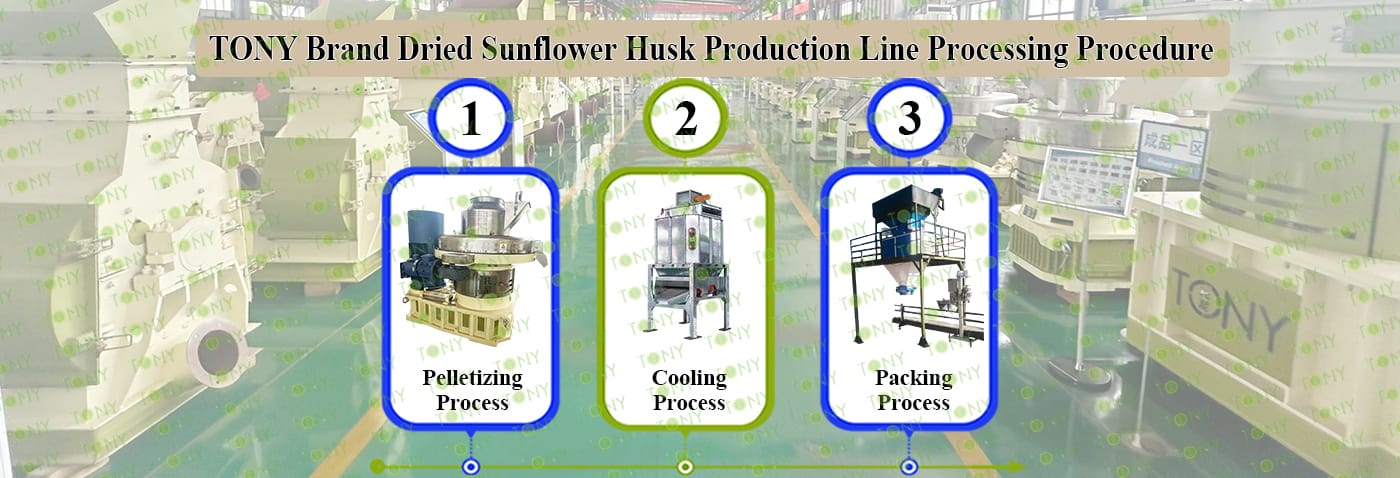

流程图1

流程图2

5.图片

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

颗粒机四件套带 原材料，颗粒图

1.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ760-Ⅲ-160kw *3sets

C.Capacity:7.5-9 tons/hour.

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.2图片

镀锌冷却机+颗粒图

2.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:7.5-9 tons/hour.

Main Parts:

(1)TONY's New Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.3图片


3. Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.TONY brand double packing machine* 1set.

C.Capacity:7.5-9 tons/hour.

Main Parts:

(1)TONY's New Double Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

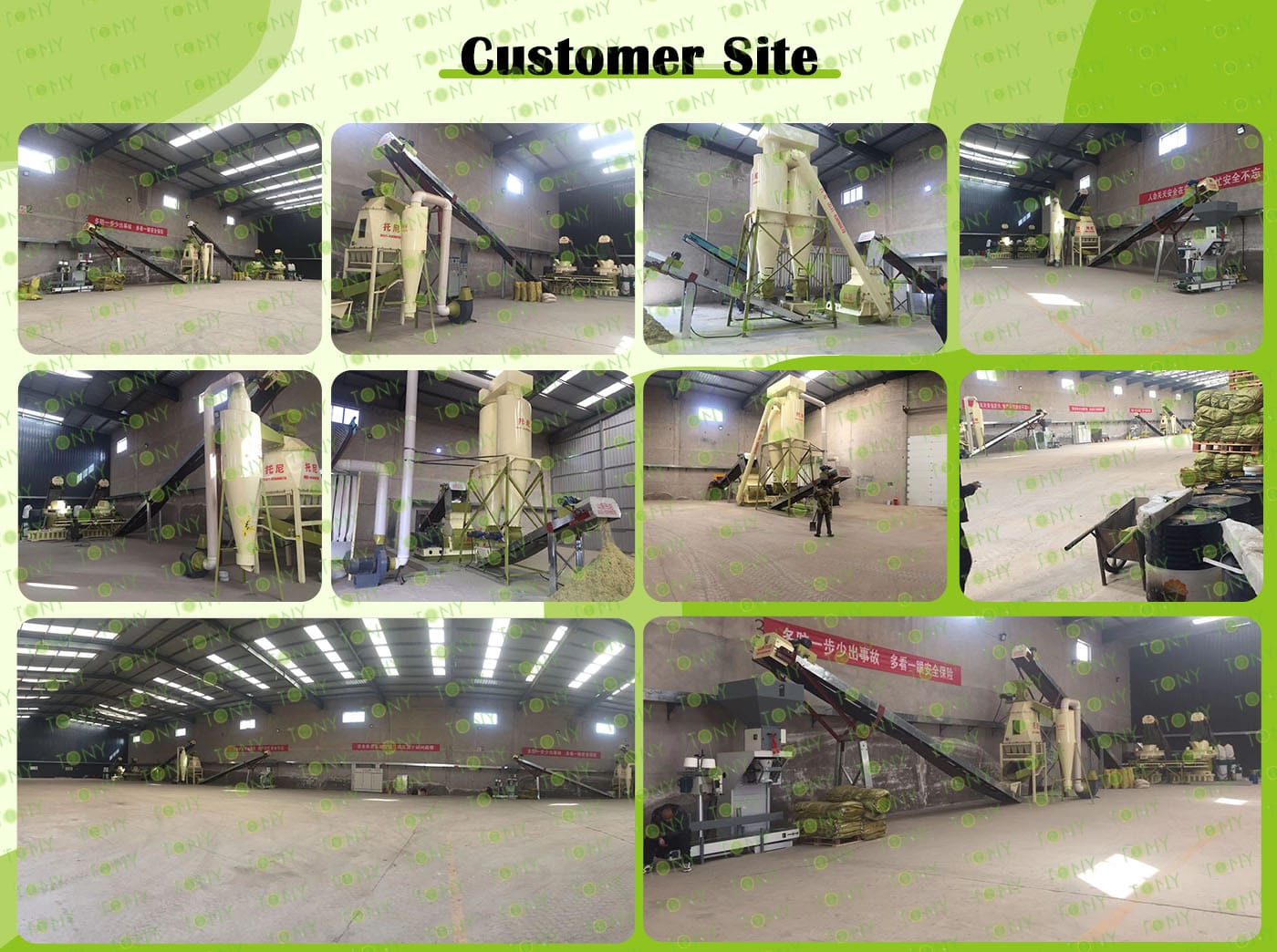

客户生产案例图

7.图片

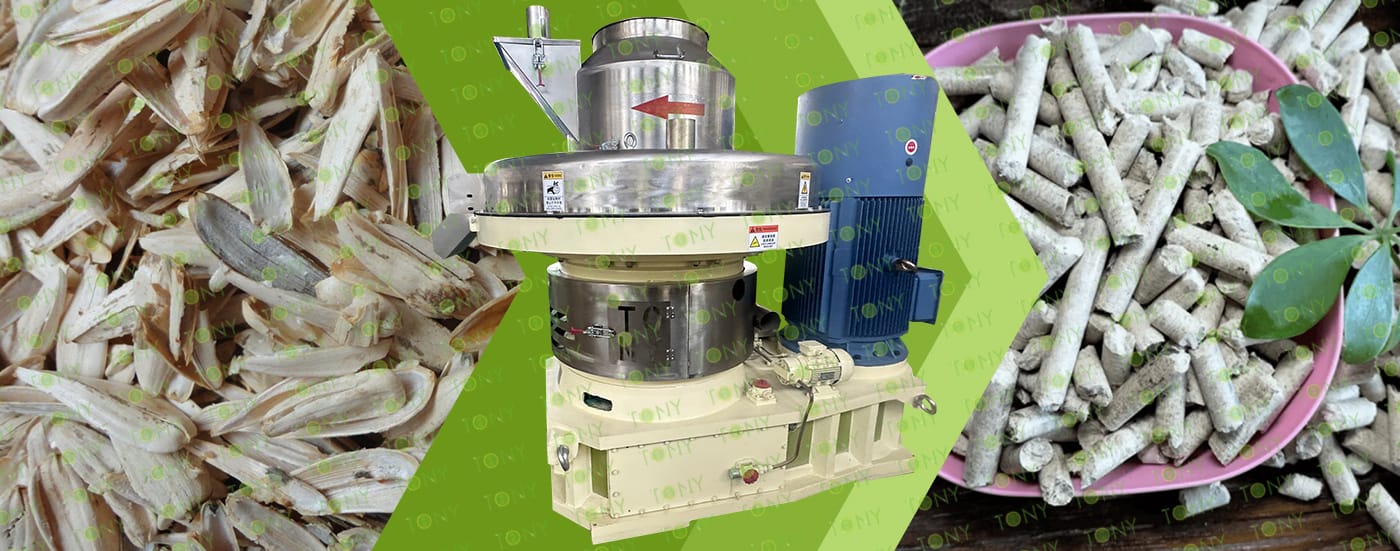

图 葵花籽壳+颗粒 颗粒机

Processing dried sunflower husk into biomass pellets is a policy-supported entrepreneurial direction with clear market demand. Initial investment is manageable, making it suitable for small and medium-sized investors. The government has listed biomass energy as a key supported area, and local governments offer equipment subsidies and tax breaks. Dried sunflower husk, as agricultural waste, is low-cost (approximately 300 yuan/ton) and readily available. After processing into pellet fuel, the average market price is about 800 yuan/ton, resulting in significant profit margins. Purchasing locally can reduce transportation costs, and long-term agreements with oil mills and farmers are recommended. However, the market is volatile; high profits can lead to low sales volume. Balancing price and sales volume is crucial. Establishing stable clients (such as biomass power plants) is advisable. Local clean energy subsidies can be applied for, covering up to 30% of equipment costs in some areas. Processing dried sunflower husk into biomass pellets is a policy-supported and technologically mature entrepreneurial direction.

8.图

葵花籽壳图加颗粒图

1. High-efficiency combustion and high calorific value:

Dried sunflower husk biomass pellets have a high calorific value during combustion. Due to their high density and high combustion efficiency, the core temperature can reach a high level during combustion, with a calorific value of 3700-4000 kcal per kilogram, providing sufficient heat for heating, power generation, and other applications.15

2. Clean and environmentally friendly:

Dried sunflower husk biomass pellets produce low pollution during combustion, with dust concentration less than 40 mg/m³ and sulfur dioxide emissions only 1/15 that of coal and 1/7 that of oil. This makes it an effective method for improving air quality and preventing the greenhouse effect, and a relatively ideal clean energy source.15

3. Convenient transportation and easy storage:

After being processed into pellets, the volume of dried sunflower husk is compressed by nearly 9 times, making it convenient for transportation and storage, greatly reducing storage and transportation costs. In addition, dried sunflower husk pellets are not prone to mold in summer, are fire-retardant, and can be stored well for a long time, making them suitable as an environmentally friendly backup fuel.15

4. Residual Ash Utilization:

Dried sunflower husk biomass pellets produce little residual ash after combustion. The collected ash can be directly returned to the field as potash fertilizer, achieving resource recycling.¹⁵

9.图片

绿色地球+原材料+颗粒图
