Project Brief Introduction:

1.Product:Dried Sunflower Husk Pellet Line

2.Capacity:2.5-3 Ton /Hour

3.TONY Brand 2.5-3 Ton /Hour Dried Sunflower Husk Pellet Line Project Process

4.Main Machine: TONY Pellet Machine TYJ760-Ⅲ-160KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 190 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

原材料图+颗粒机图片

1. The working principle of dried sunflower husk biomass pellet processing equipment

The core principle of the Dried Sunflower Husk pellet processing equipment is to transform Sunflower Husk into high-density biomass pellets with stable combustion performance through continuous processes such as pelleting, cooling, and screening.

2. Characteristics of dried sunflower husk biomass pellet processing equipment

(1) The Dried Sunflower Husk pelletizing equipment is highly efficient and low-consumption, rapidly processing biomass raw materials into fuel pellets, significantly improving production efficiency.

(2) The biomass pelletizer has strong material adaptability and is suitable for molding various biomass raw materials. This pelletizer is equipped with molds of various specifications, allowing for selection of appropriate molds based on different biomass raw materials, enhancing processing adaptability.

(3) The Dried Sunflower Husk pelletizing equipment has a mature design, producing pellets with stable output and excellent quality.

(4) The biomass pelletizing equipment is simple to operate, easy to use, highly automated, requires less labor, effectively reducing labor intensity and increasing output.

3. Application scenarios of dried sunflower husk biomass pellet processing equipment

(1) Biomass Energy: Sunflower Husk pellets can be used as biomass fuel for power generation, heating, etc., replacing traditional fossil fuels and reducing environmental pollution.

(2) Environmentally Friendly Processing: Sunflower Husk pellet processing equipment can efficiently process rice husks, converting them into usable pellet fuel, reducing environmental pollution.

(3) Energy Saving: Sunflower Husk pellets are a renewable energy source： using Sunflower Husk pellets can save energy and reduce dependence on limited fossil fuels.

2.图片

TONY Brand 2.5-3 TPH Dried Sunflower Husk Pellet Line can process dried sunflower husk and various biomass materials into biomass pellets. Sunflower husks have a moderate density and high fiber content, exhibiting strong stability after compression molding and combustion efficiency approaching that of coal. The raw materials are widely available and inexpensive, mostly derived from agricultural processing waste, enabling resource recycling and reuse. Combustion produces minimal pollutants, containing no sulfur or phosphorus, thus meeting environmental protection requirements. The technology for processing sunflower husks into biomass pellets is mature and highly feasible, representing an excellent pathway for the resource utilization of waste.transformation, and has economic, environmental and social value.

1. Capacity: 2.5-3 Ton/Hour

2. Raw materials: Dried Sunflower Husk

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Agricultural product processing workers, such as operators of sunflower seed oil mills and nut processing plants; biomass energy-related entrepreneurs, including individuals or enterprises looking to enter the biomass pellet production field; and business owners with stable fuel needs, such as small and medium-sized heating companies, food processing plants, farms and other customers with advantages in  raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating heating, boiler room, school canteen, foundry heat source.

3.图片


原材料--成品图

1. Project Name: Dried Sunflower Husk Pellet Production Line

2. Raw Material: Dried Sunflower Husk

3. Moisture Content of Raw Material:10-15%

4. Capacity: 2.5-3 TPH

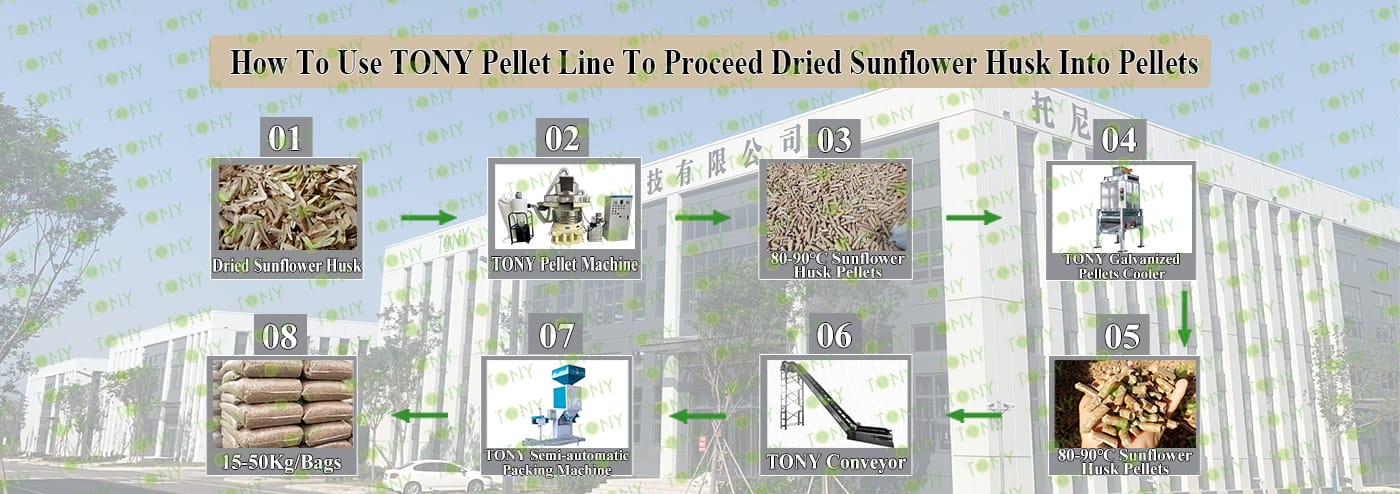

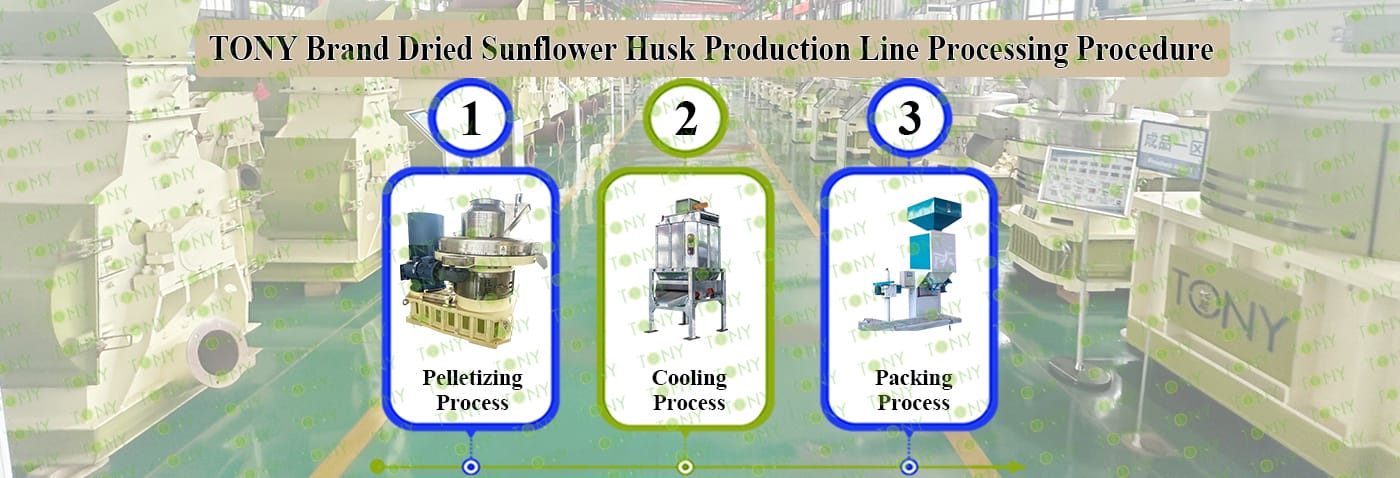

5. Process: Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: TONY Pellet Machine-TYJ760-III-160kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片

流程图1

流程图.

5.图片

原材料+颗粒图

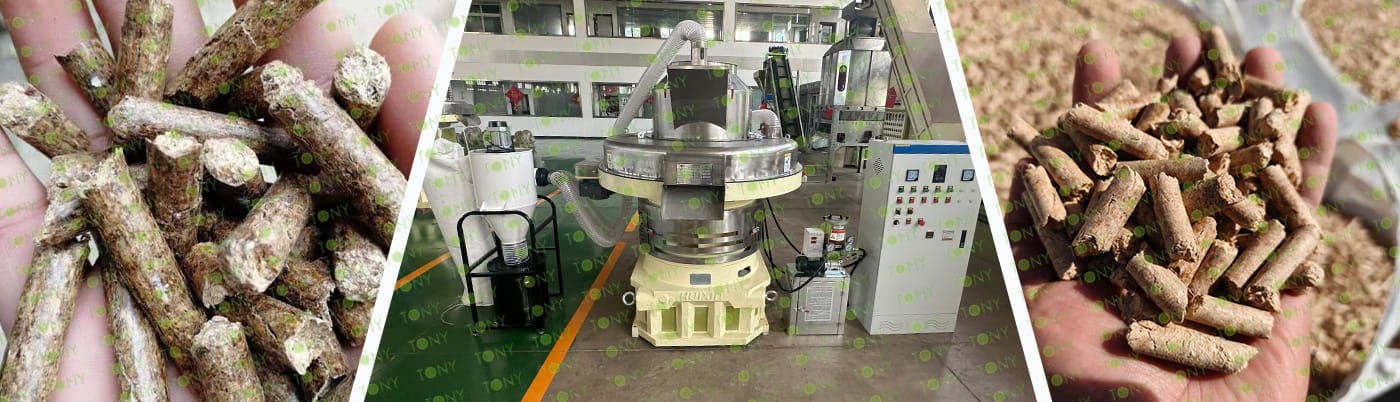

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

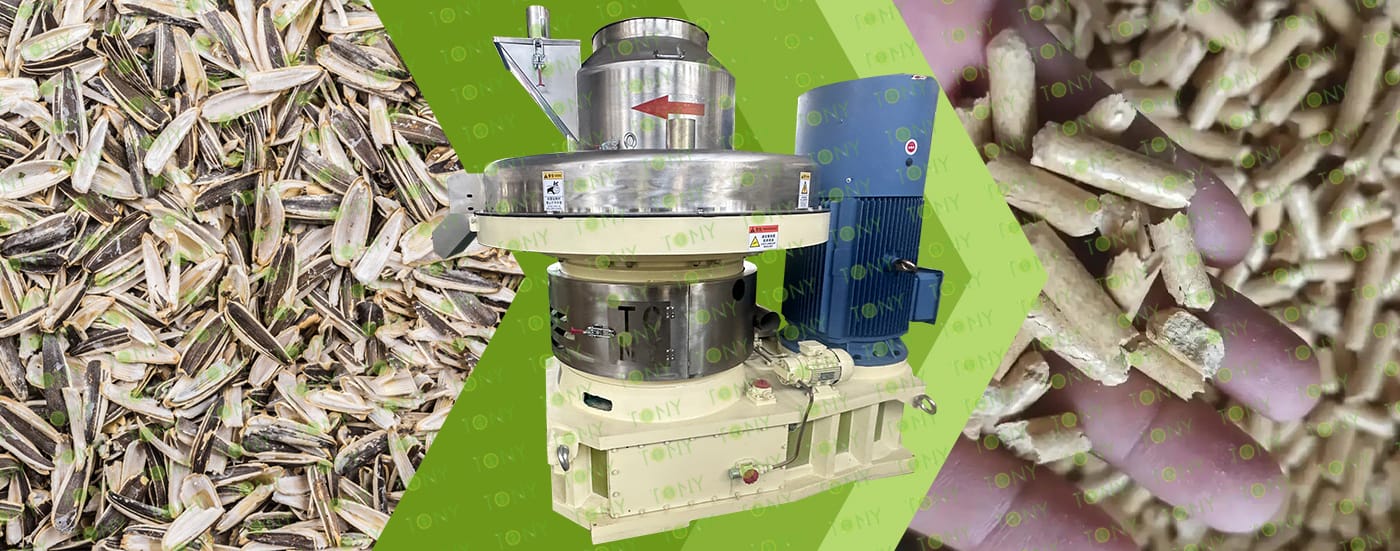

颗粒机四件套带 原材料，颗粒图

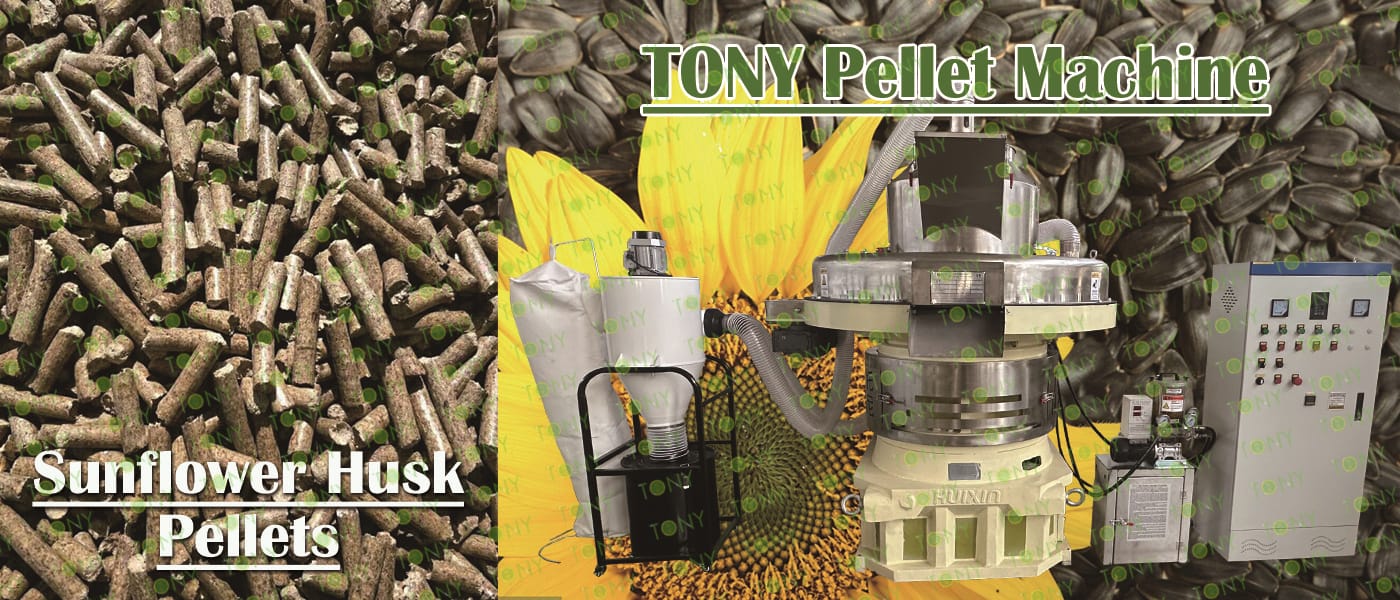

1.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ760-Ⅲ-160kw *1set

C.Capacity:2.5-3 tons/hour.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.2图片

镀锌冷却机+颗粒图

2.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:2.5-3 tons/hour.

Main Parts:

(1)TONY's New Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.3图片

半自动包装机

3. Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.TONY brand semi-automatic packing machine* 1set.

C.Capacity:2.5-3 tons/hour.

Main Parts:

(1)TONY's New Semi-Automatic Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

客户生产案例图

7.图片

图 葵花籽壳+颗粒 颗粒机

1.Wide And Sufficient Sources

(1)High Yield: As a widely planted economic crop, sunflowers are planted on a large scale in many places in my country, such as Inner Mongolia, Xinjiang, Northeast China, etc., and a large amount of sunflower shells can be produced every year. According to statistics, the output of sunflower shells in some large sunflower seed processing industries alone is quite considerable.

(2)Easy To Collect: The sunflower seed processing industry is relatively concentrated, and sunflower shells are collected centrally during the processing process, which is convenient for unified transportation and processing, greatly reducing the cost and difficulty of raw material collection, and providing a stable supply of raw materials for large-scale production of sunflower shell biomass pellet fuel.

2.Strong Renewability

(1)Short Growth Cycle: The growth cycle of sunflowers is usually 3-4 months. Compared with some biomass raw materials such as trees, they grow fast and can form usable biomass resources in a relatively short time. They can continuously provide raw materials for the production of biomass pellet fuels and realize sustainable utilization of resources.

(2)Recyclable: Sunflower shells are made into biomass pellet fuel, and the ash produced after burning can be returned to the field as high-quality organic potash fertilizer, which helps promote the growth of crops such as sunflowers, forming a "resources-products-waste-resources" recycling model, further reflecting its advantages as a renewable resource.

8.图片

葵花籽壳图加颗粒图

1. Cost Advantage:

Sunflower husk pellet are waste materials with low raw material costs, which can effectively reduce production costs.

2. Environmental Benefits:

It can realize the reuse of waste and reduce garbage accumulation. It is a biodegradable material and will not cause pollution after decomposition.

3. Combustion Performance:

It contains oil and fiber, has a relatively high calorific value and a low ignition point, and is easy to ignite, which can effectively provide heat.

4. Physical Characteristics:

The hardness and toughness are moderate. The particle form is stable and the shape is regular, which is convenient for storage, transportation and use.

5. Wide Application:

It can be used in many fields such as fuel, feed, fertilizer, and substrate for cultivating edible fungi, with high comprehensive utilization value.

6. Economic Drive:

It is conducive to developing related industrial chains, creating employment opportunities and promoting local economic development.

9.图片

绿色地球+原材料+颗粒图
