Project Brief Introduction:

1.Product:Dried Sunflower Husk Pellet Line

2.Capacity:6-7 Ton /Hour

3.TONY Brand 6-7 Ton /Hour Dried Sunflower Husk Pellet Line Project Process

4.Main Machine: TONY Pellet Machine TYJ551-Ⅲ-132KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 440 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

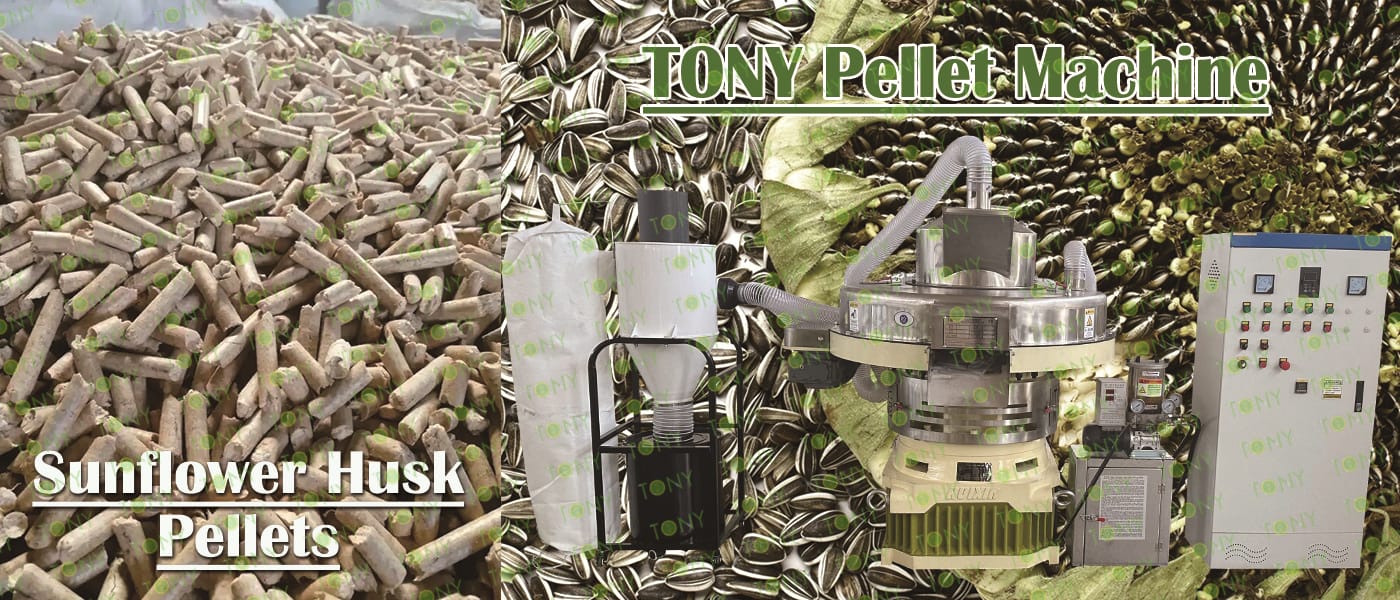

原材料图+颗粒机图片

1. The working principle of dried sunflower husk biomass pellet processing equipment

The dried sunflower husk processing equipment works by compressing the material into shape through the extrusion pressure between the mold and the pressure rollers, as well as the frictional force of the mold holes. No additives or binders are needed during this process. This equipment effectively converts biomass materials such as dried rice husks into high-density pellet fuel, which can be used in biomass power generation, boilers, fireplaces, and other applications, achieving resource reuse and environmental benefits.

2. Characteristics of dried sunflower husk biomass pellet processing equipment

Modern dried sunflower husk processing equipment increasingly adopts automation and intelligent control technologies to reduce manual labor intensity and improve production efficiency. The equipment is equipped with advanced control systems, allowing operators to set operating parameters, monitor equipment status, and achieve remote control via a user interface. For example, a PLC control system can precisely control equipment startup, shutdown, and speed adjustment, while simultaneously collecting and analyzing various data during operation, such as temperature, pressure, and output, to provide a basis for production decisions.

3. Application scenarios of dried sunflower husk biomass pellet processing equipment

(1) Fossil Fuel Alternative: Processed Dried Sunflower Husk pellets have a high calorific value (approximately 3000-4000 kcal/kg) and relatively clean and stable combustion, making them a high-quality solid biomass fuel.

(2) Industrial Boilers: Providing steam or heat to textile mills, food factories, chemical plants, paper mills, etc., replacing coal or natural gas, reducing carbon emissions and energy costs.

(3) Biomass Power Plants: Directly burning biomass pellets to generate electricity, an important component of renewable energy.

(4)District Heating: Providing fuel for centralized heating facilities in schools, hospitals, and communities.

(5) Residential Heating: Suitable for household biomass pellet stoves, providing a clean heating method for rural or urban households.

(6) Biomass Gasification/Liquefaction Feedstock: Dried Sunflower Husk pellets can serve as a high-quality feedstock for more advanced biomass gasification (producing combustible gases) or pyrolysis liquefaction (producing bio-oil), further converting them into clean energy.

2.图片

TONY Brand 6-7 TPH Dried Sunflower Husk Pellet Line can process dried sunflower husk and various biomass materials into biomass pellets. Sunflower husks have a moderate density and high fiber content, exhibiting strong stability after compression molding and combustion efficiency approaching that of coal. The raw materials are widely available and inexpensive, mostly derived from agricultural processing waste, enabling resource recycling and reuse. Combustion produces minimal pollutants, containing no sulfur or phosphorus, thus meeting environmental protection requirements. The technology for processing sunflower husks into biomass pellets is mature and highly feasible, representing an excellent pathway for the resource utilization of waste.transformation, and has economic, environmental and social value.

1. Capacity: 6-7 Ton/Hour

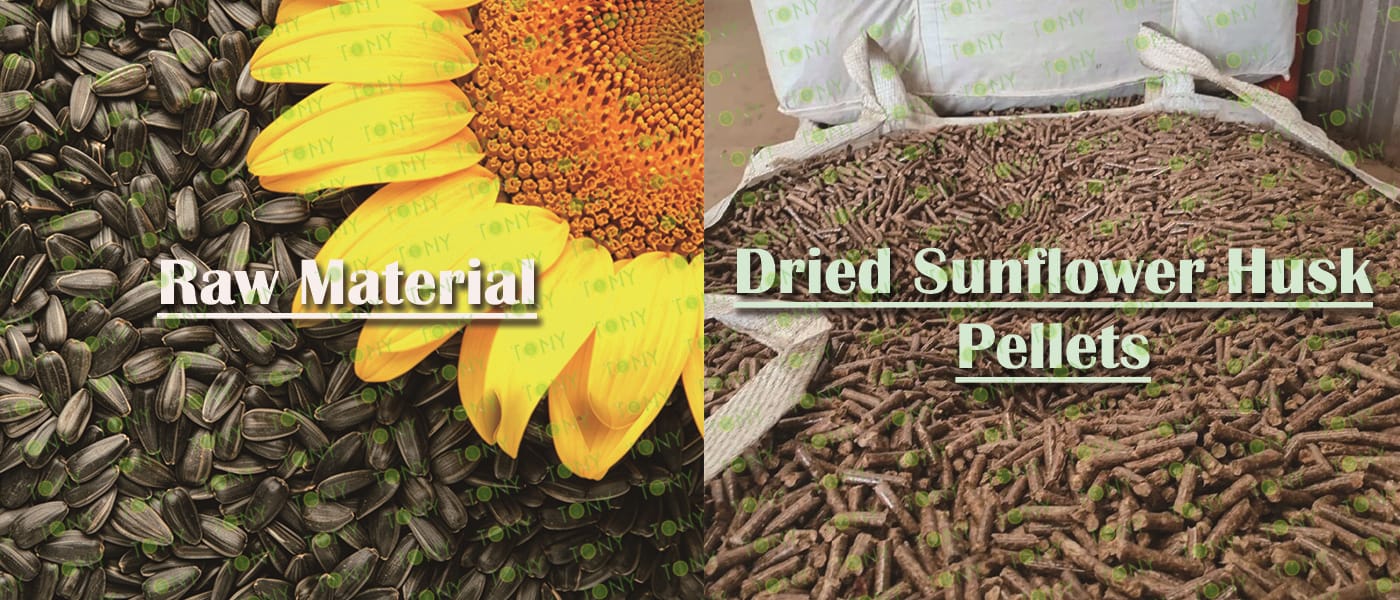

2. Raw materials: Dried Sunflower Husk

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Agricultural product processing workers, such as operators of sunflower seed oil mills and nut processing plants; biomass energy-related entrepreneurs, including individuals or enterprises looking to enter the biomass pellet production field; and business owners with stable fuel needs, such as small and medium-sized heating companies, food processing plants, farms and other customers with advantages in  raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating heating, boiler room, school canteen, foundry heat source.

3.图片


1. Project Name: Dried Sunflower Husk Pellet Production Line

2. Raw Material: Dried Sunflower Husk

3. Moisture Content of Raw Material:10-15%

4. Capacity: 6-7 TPH

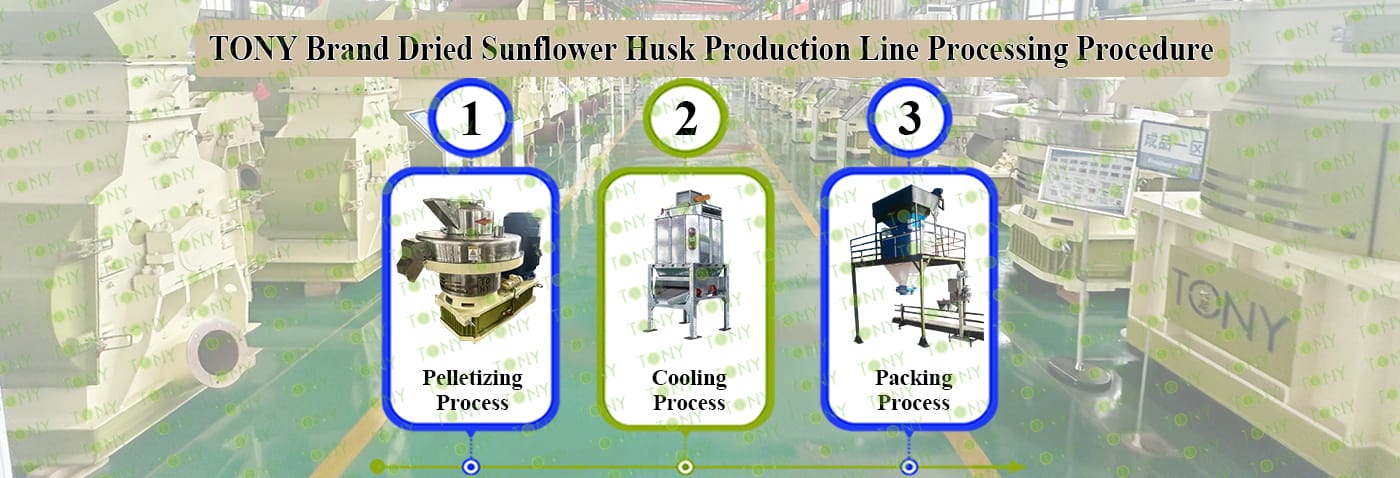

5. Process: Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: TONY Pellet Machine-TYJ551-III-132kw, Galvanized Pellets Cooler, Double Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

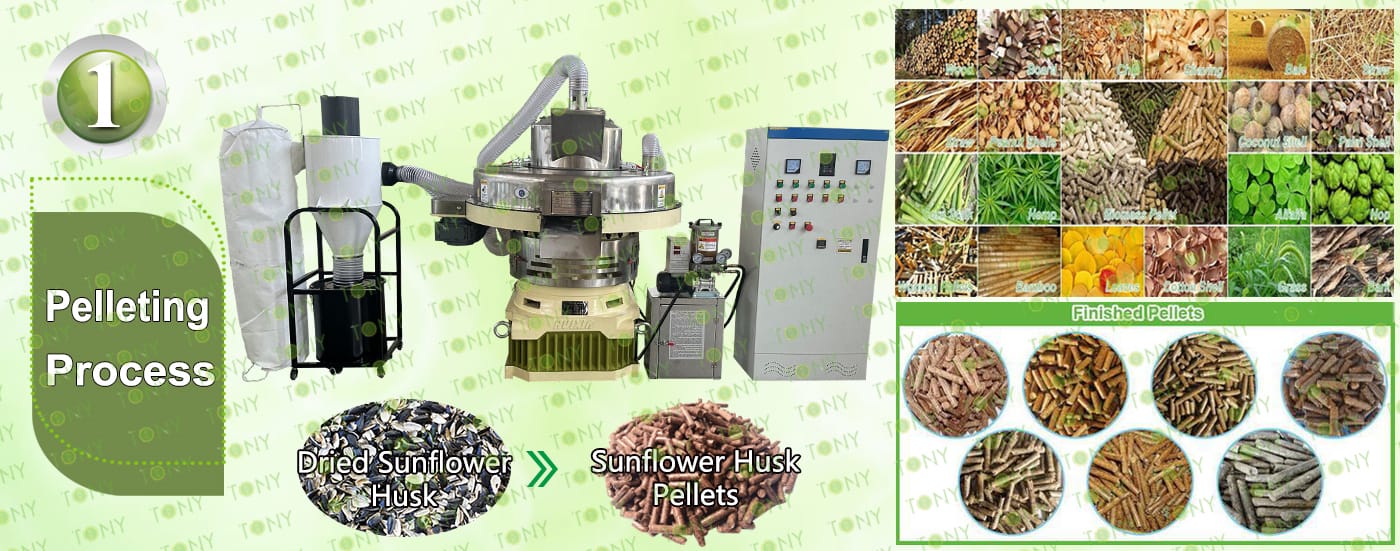

颗粒机四件套带 原材料，颗粒图

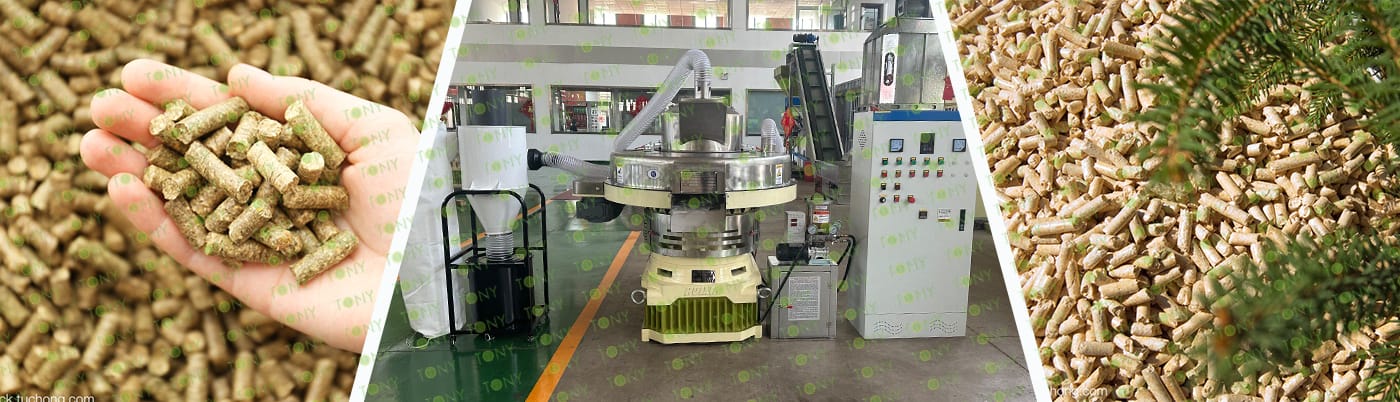

1.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ551-Ⅲ-132kw *3sets

C.Capacity:6-7 tons/hour.

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.2图片

镀锌冷却机+颗粒图

2.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:6-7 tons/hour.

Main Parts:

(1)TONY's New Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.3图片


3. Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.TONY brand double packing machine* 1set.

C.Capacity:6-7 tons/hour.

Main Parts:

(1)TONY's New Double Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

客户生产案例图

7.图片

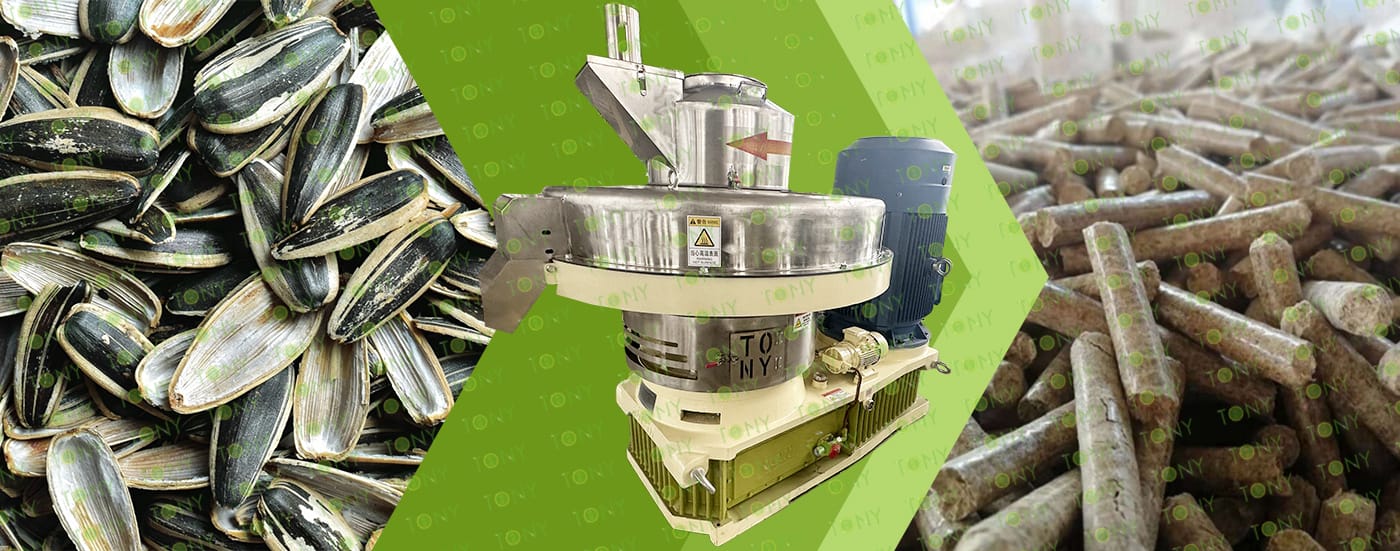

图 葵花籽壳+颗粒 颗粒机

In the context of 2025, the dried sunflower husk biomass pellet processing business has significant environmental, economic, and social value. Key success factors include: near-zero raw material cost advantage, policy support (subsidies and carbon trading), technological innovation (intelligent processing), and controllable risk. Dried sunflower husk, as agricultural and forestry waste, is characterized by low raw material cost (approximately 300 RMB/ton) and wide availability, making it suitable for pressing into high-density fuel pellets using pellet mills. The government has listed biomass energy as a key supported area, local governments provide equipment subsidies and tax breaks, and the demand for replacing coal in industrial boilers is substantial, with an annual demand growth rate exceeding 15%7. Furthermore, the project also has environmental benefits, reducing pollution from straw burning and aligning with the "dual carbon" policy. Dried sunflower husk biomass pellet processing is suitable for small and medium-sized investors, requiring initial investment in equipment and raw material channels to achieve stable returns by leveraging policy dividends and environmental requirements.

8.图片

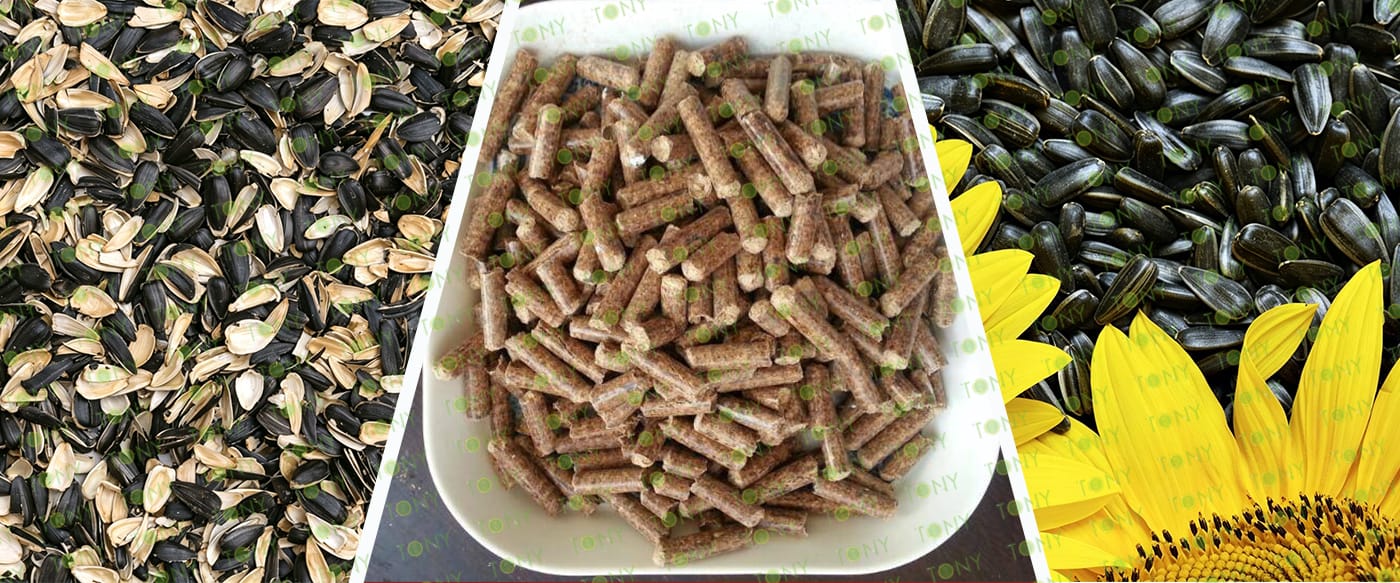

葵花籽壳图加颗粒图

The raw material cost advantage and carbon emission reduction certification value of dried sunflower husk pellets are prominent. The core advantages of dried sunflower husk biomass pellets are their outstanding environmental attributes, low raw material cost, wide application scenarios, and policy compatibility and safety.

1. Renewable Energy:

Dried sunflower husk biomass pellets are derived from agricultural waste (sunflower husk), belonging to renewable energy. Compared with fossil fuels, the carbon dioxide produced by its combustion can be reabsorbed by plants, resulting in a smaller environmental impact.

2. Value-Added as a By-product for Oil Companies:

Each ton of pellets generates a profit of 200-400 yuan, forming a closed-loop industrial chain of "oil extraction - waste shells - fuel - ash residue returned to the field".

3. Policy Subsidy Support:

China's biomass heating project subsidy will increase to 180-350 yuan/ton by 2025, and biomass fuel is exempt from EU carbon tariffs.

4. Performance Advantages:

The calorific value is stable at 4200-4500 kcal/kg, close to that of medium-quality coal, with high combustion efficiency, meeting core needs such as industrial heating and home use. The particles have high density, good formability, and are not easily broken. They burn without open flame and produce little smoke, making them suitable for existing biomass boilers without requiring major equipment modifications.

9.图片

绿色地球+原材料+颗粒图
