Project Brief Introduction:

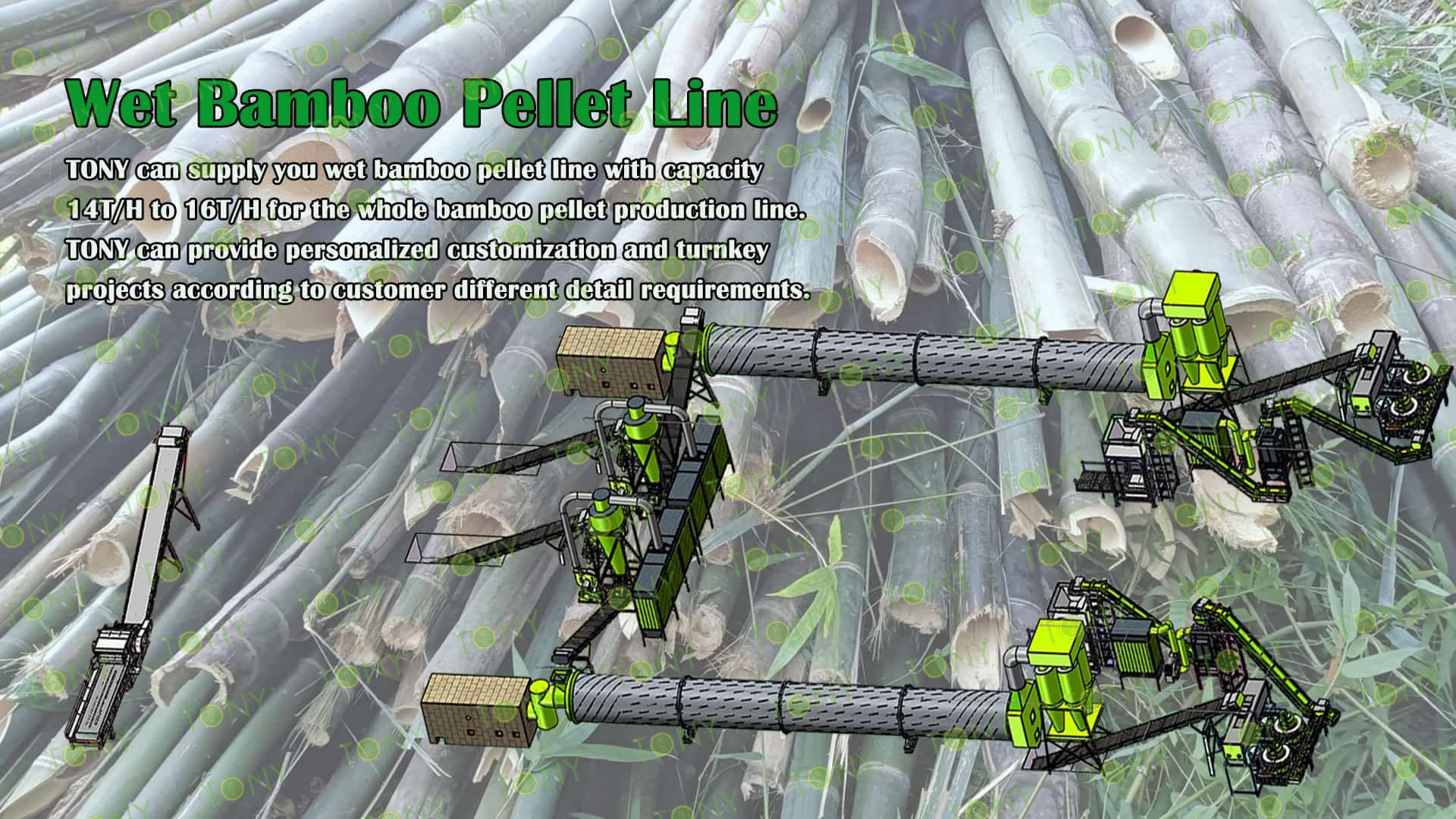

1.Product:Wet Bamboo Pellet Line

2.Capacity: 14-16 T/Hour

3.TONY Brand 14-16 Ton /Hour Wet Bamboo Pellet Line Project Process

4.Main Machine: Comprehensive Chipper,Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ860-Ⅲ-250KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 2200 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

Project Layout For Customer:

3D图

1. The working principle of wet bamboo biomass pellet processing equipment

The vertical ring die pellet machine is a key equipment for pressing bamboo into pellet fuel. Its working principle is as follows:

(1) The dried bamboo powder is evenly transported to the "extrusion chamber" between the ring die and the pressing roller through the spiral feeder;

(2) The motor drives the ring die to rotate at high speed (15-30r/min) through the reducer. The friction between the ring die and the pressing roller drives the pressing roller to rotate. At the same time, the hydraulic system applies pressure to the pressing roller, so that the bamboo powder in the extrusion chamber is subjected to a huge extrusion force;

(3) The bamboo powder is forced into the forming hole of the ring die under high pressure. The bamboo powder in the forming hole generates high temperature (80-120℃, no additional heating is required, which is "friction heat") due to extrusion. The hemicellulose (one of the main components of bamboo) in the bamboo fiber will soften slightly and act as a "binder", so that the bamboo powder is solidified and formed in the forming hole;

(4) The formed columnar particles are squeezed out from the outside of the ring die and cut into particles 3-5 times the hole diameter by the cutter (installed on the outside of the ring die, which can adjust the particle length). Finally, they are passed through a cooler (air cooling/ The pellets are cooled by water (to prevent moisture from returning to room temperature), and then pass through a screening machine to remove the fine particles. The qualified pellets enter the finished product warehouse.

2. Characteristics of wet bamboo biomass pellet processing equipment

(1) Pretreatment equipment: strong and adaptable, anti-clogging, easy to maintain

Pretreatment equipment (chippers, crushers) is the first step in "breaking the physical properties of bamboo". Its features are "wear resistance, particle size control, and anti-entanglement" to avoid subsequent equipment blocking or overload.

(2) Drying equipment: efficient dehydration, temperature control and anti-coking

The moisture content of wet bamboo is as high as 40%-60%. The drying equipment needs to balance between "rapid dehydration" and "avoiding bamboo powder coking". Its features are "sufficient heat exchange, precise temperature control, and clean exhaust gas".

(3) Molding equipment (ring die pellet machine): high pressure and wear resistance, self-adhesive molding

Molding is the core link. The ring die pellet machine is the best equipment for high-fiber bamboo. Its features are designed around "high-pressure extrusion, wear resistance and damage resistance, and self-adhesiveness without adding glue".

(4) Auxiliary equipment: ensuring continuous production, controlling quality, and reducing losses. Auxiliary equipment (transportation, cooling, and control systems) are key to "connecting various modules and stabilizing production." Their features include "anti-blocking, temperature control, and intelligence."

3. Application scenarios of wet bamboo biomass pellet processing equipment

(1) Biomass pellet fuel production

Wet bamboo pellet processing equipment can crush bamboo into biomass pellets, which can be used as renewable energy for boiler combustion, power generation or heating. These pellets have the characteristics of high calorific value and low emissions, and are widely used in industrial energy substitution and rural clean energy promotion.

(2) Organic fertilizer and biofertilizer manufacturing

In bio-organic fertilizer plants, wet bamboo pellet processing equipment can be used to process wet materials such as bamboo chips, humus, and mushroom residues, crush them and make them into organic fertilizer base materials, thereby improving the uniformity and fermentation efficiency of fertilizers.

(3) Resource processing of landscaping waste

Waste such as bamboo branches and leaves generated by urban garden pruning can be centrally processed through wet bamboo pellet equipment to achieve waste reduction and resource recycling.

(4) Deep processing of bamboo charcoal and bamboo fiber

After being crushed into fine powder, bamboo can also be used as a precursor material for bamboo charcoal and bamboo fiber products, and used to produce high-end environmentally friendly materials. It has a wide range of applications in building materials, textiles, agriculture and other fields.

2.图片

TONY Brand 14-16 Ton/Hour Wet Bamboo Pellet Manufacturing Plant can take wet bamboo as the main raw material. After pretreatment and processing, it is solidified into high - density bamboo pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in bamboo resources.

1. Capacity: 14-16 Ton/Hour

2. Raw materials: Wet Bamboo

3. Moisture: Wet type, about 40%.

4. Application: All kinds of bamboo materials suitable for pellet production.

Suitable customers: Bamboo product processing companies, large-scale farms, agricultural/forestry parks, areas with dense bamboo resources, biomass energy companies/fuel traders, green environmental protection technology companies, and other places where bamboo raw materials have advantages

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片


1. Project Name: Wet Bamboo Pellet Production Line

2. Raw Material: All kinds of wet bamboo

3. Moisture Content of Raw Material: 40%

4. Capacity: 14-16 tons per hour

5. Process: Crushing Process - Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1400-700-250KW, Effective Hammer Mill-TFD85*250-250kw, Rotary Drum Dryer-2.5*24m, TONY Pellet Machine TYJ860-Ⅲ-250kw, Galvanized Pellets Cooler, Ton Packing Machine and Belt Conveyors

4.图片



5.图片



3D图

3D图

3D图

5.1图片


1.Wet Bamboo To Bamboo Chips Process:

A.This process is mainly used to grind the bamboo whose diamater is under 35 cm into bamboo chips with size 25-55mm. The finish bamboo chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY brand comprehensive chipper TPC1400-700-250Kw with 6 flying blades type*1 set

C.Capacity:20-30Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

5.2图片


2.Bamboo Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm bamboo chips into 8-14mm bamboo dust.

B.Capacity:14-16 Ton/Hour.

C.TONY brand effective hammer mill TFD85*250-250kw*2 sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.3图片


3.Bamboo Dust Drying Process:

A.This process is mainly used to dry the bamboo dust  from 40% to 10-15%.

B.Capacity:14-16 Ton/Hour.

C.TONY use 2 sets of 2.5*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.4图片


4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:14-16Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-Ⅲ-250kw*4 sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's new Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.5图片


5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:14-16 Ton/Hour.

C.TONY brand galvanized pellets cooler *2 sets

Main Parts:

(1)TONY's new Galvanized Pellets Cooler With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.6图片


6.Packing Process:

A.This process is mainly used to pack pellets into 1 Ton/Bags.

B.Capacity:14-16 Ton/Hour.

C.TONY brand ton packing machine*2 sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

6.图片


7.图片


Raw material advantages of the wet bamboo biomass pellet project:Stable raw material supply, low cost, and strong adaptability

As the core raw material of the project, bamboo's natural properties provide a "source guarantee" for the project, resolving the pain points of traditional biomass pellets (such as wood chip pellets) that rely on forests and have unstable supply.

1. Fast growth and high renewability

Bamboo is one of the fastest-growing plants in the world. Most species (such as moso and nan bamboo) can mature into a forest in 1-2 years and reach harvestable maturity in 5 years, while trees typically take 10-20 years to mature. Furthermore, bamboo does not need to be replanted after harvesting. New bamboo shoots naturally sprout from the underground stems (bamboo rhizomes), achieving "one-time planting, perpetual use." This shortens the raw material supply cycle and enhances sustainability, avoiding the risk of resource depletion.

2. Wide Sources of Raw Materials and Controllable Costs

Diverse Supply Channels: In addition to targeted commercial bamboo forests, a large amount of recycled bamboo industry waste (such as bamboo board processing scraps, bamboo furniture offcuts, and discarded bamboo fences/scaffoldings) can be recycled. The procurement cost of this raw material is extremely low (in some areas, recycling is even free, requiring only transportation costs), and is 30%-50% lower than the cost of virgin wood (such as pine and fir).

Strong Regional Adaptability: Projects can be located nearby, reducing the raw material transportation radius (typically ≤ 50 kilometers), further reducing transportation costs (far lower than the cost of transporting wood across regions).

3. Wet Bamboo Properties Suitable for Processing Requirements

Bamboo fiber has a high density (approximately 0.6-0.8g/cm³) and strong toughness. Even with a high moisture content (30%-50%), it maintains good formability after crushing and drying. The pelletized pellets are hard (crushing strength ≥ 95%) and are resistant to moisture absorption, making them superior to herbaceous biomass materials such as straw and rice husks, which tend to loosen and become moldy due to moisture absorption, resulting in more stable product quality.

8.图片


The core value of bamboo biomass pellets lies in their excellent energy supply. Their energy characteristics are reflected in the following aspects:

1. High calorific value and high combustion efficiency

Bamboo fibers have a high density (especially mature bamboo species such as moso bamboo and nanmu bamboo). After compression into pellets, the bulk density can reach 1.1-1.3g/cm³. The low calorific value is generally 18-20MJ/kg (approximately 4300-4800 kcal/kg), approaching that of medium-grade bituminous coal (approximately 20-25MJ/kg) and far exceeding straw pellets (14-16MJ/kg) and wood chip pellets (16-18MJ/kg). The pellets also have a dense structure, allowing for good air circulation during combustion, resulting in a heat conversion rate exceeding 85% and no noticeable black smoke. This avoids the problem of "strong fire but low thermal efficiency" associated with burning loose bamboo.

2. Low combustion residue and high ash utilization rate.

Bamboo has an extremely low ash content (typically only 0.5%-1.5%), far lower than coal (10%-30%) and straw (5%-8%). The resulting ash is small and rich in potassium, silicon, and other elements. It can be directly used as potash fertilizer for farmland or landscaping fertilizer, achieving a "energy-residue-agriculture" cycle and reducing solid waste disposal costs.
