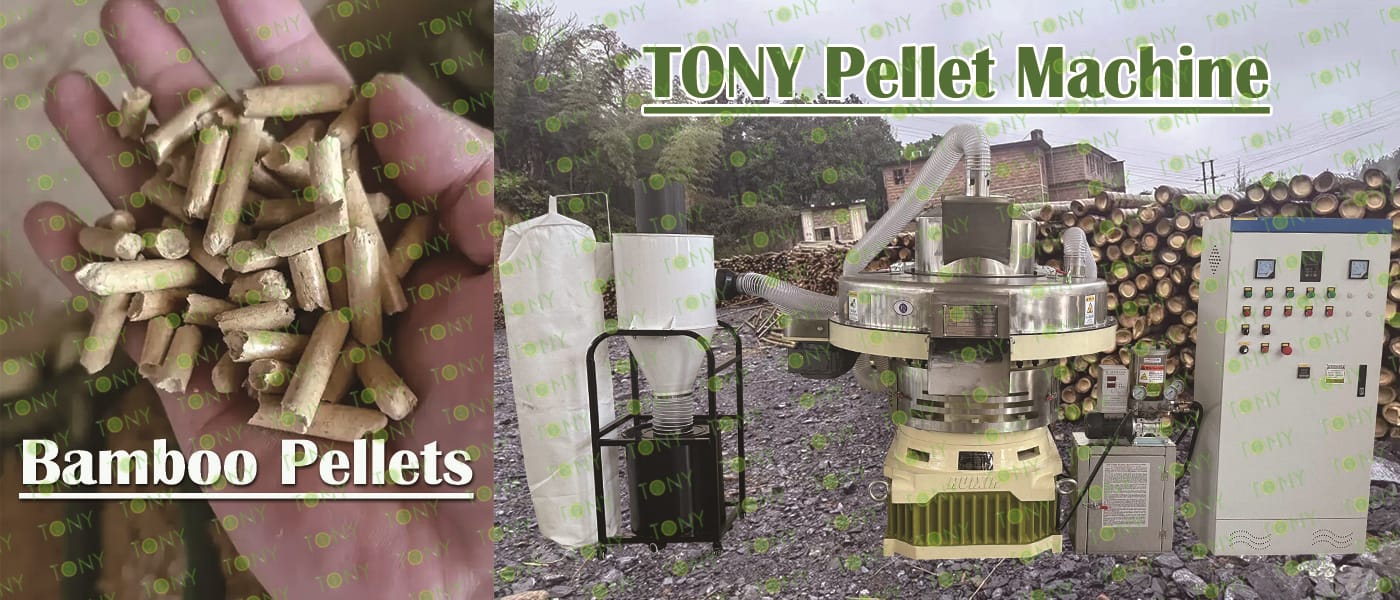

1.图片
Project Brief Introduction:
1.Product:Wet Bamboo Pellet Line
2.Capacity: 2-2.5 T/Hour
3.TONY Brand2-2.5Ton /Hour Wet Bamboo Pellet Line Project Process
4.Main Machine: Wood Chipper,Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ551-Ⅲ-132kw,Pellets Cooler,Packing Machine And Belt Conveyors
5.Total Power: About 330 kw
6.Need Area: About ㎡ L: M W: M H: M

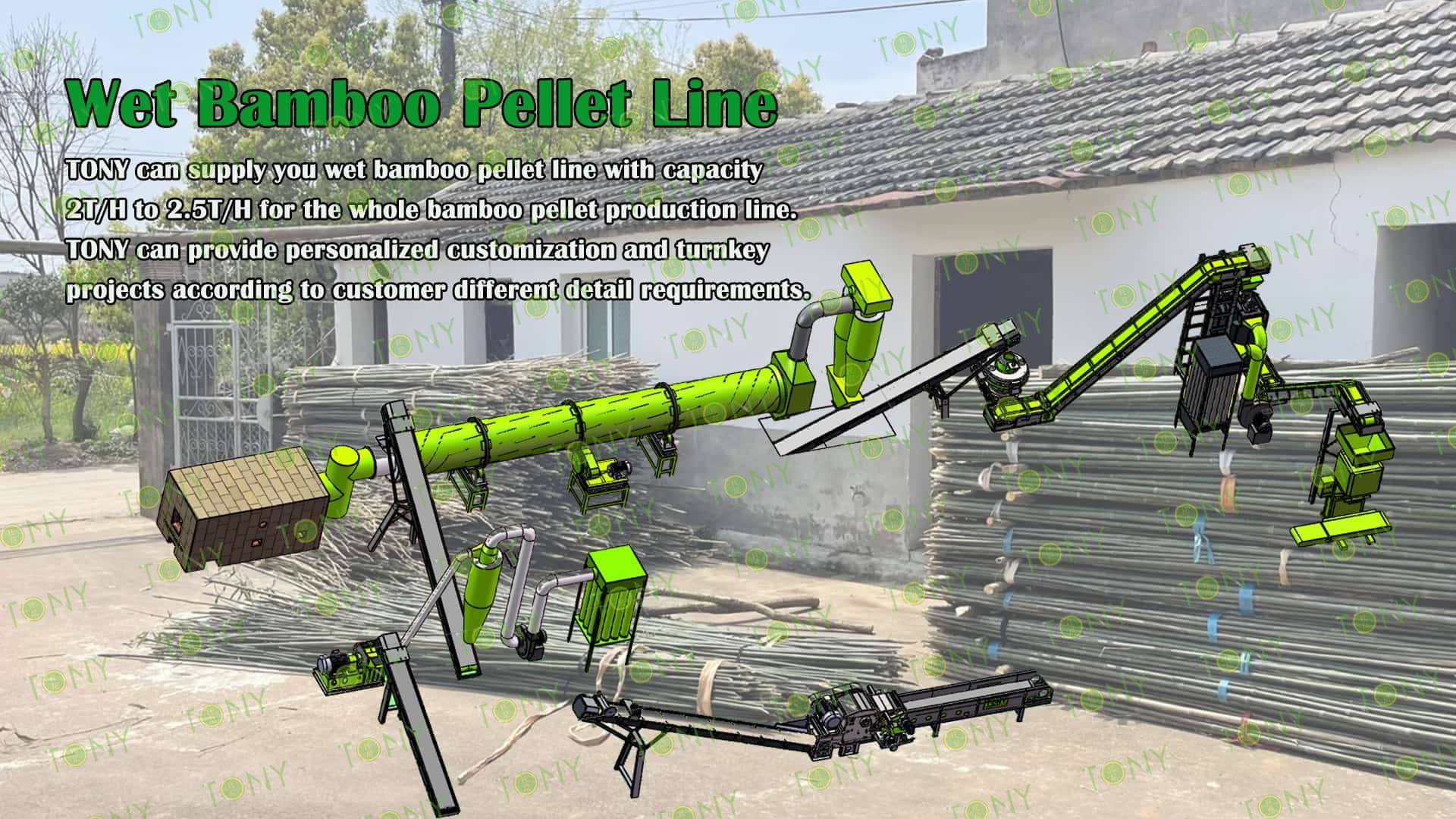

Project Layout For Customer:
三维图
原材料图+颗粒机图片
1. The working principle of wet bamboo biomass pellet processing equipment
The wet bamboo processing equipment is designed to handle bamboo with high moisture content (15%-40%), addressing the issue of clogging caused by the wet material. It utilizes a continuous process of "crushing - grinding - drying (optional)" to produce uniform bamboo powder. In the pre-treatment stage, a crusher cuts the bamboo into 5cm pieces. An efficient grinder then pulverizes these pieces into 4-14mm particles. The resulting wet bamboo powder is dried to a moisture content of 10%-15% using a dryer, and finally, a vertical ring die granulator extrudes the powder into 4-10mm granules.
2. Characteristics of wet bamboo biomass pellet processing equipment
High particle uniformity: Wet bamboo pelletizing equipment thoroughly mixes the raw materials, resulting in pellets with uniform size, regular shape, and high density. This helps improve product quality and stability.
Strong controllability: The equipment allows for precise control of pellet size, shape, and porosity by adjusting parameters such as the moisture content of the wet material and the pelletizing time, thus meeting the requirements of different products.
Low energy consumption: Compared to other pelletizing methods, wet bamboo pelletizing equipment generally has lower energy consumption.
Environmentally friendly: The wet bamboo pelletizing process does not require any water or solvents as binders, thus reducing environmental pollution compared to other materials.
3. Application scenarios of wet bamboo biomass pellet processing equipment
Biomass Energy Applications: Processing wet bamboo into biomass pellets for use as fuel in boilers and for home heating, thus replacing traditional fossil fuels.
Forest Waste Management: Processing and utilizing wet bamboo waste to recover resources and reduce environmental pollution.
Industrial Applications: In industries such as engineered wood products and paper manufacturing, wet bamboo pellets can be used as an intermediate raw material, facilitating subsequent processing.
2.图片
TONY Brand 2-2.5 Ton/Hour Wet Bamboo Pellet Manufacturing Plant can take wet bamboo as the main raw material. After pretreatment and processing, it is solidified into high - density bamboo pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in bamboo resources.
1. Capacity: 2-2.5 Ton/Hour
2. Raw materials: Wet Bamboo
3. Moisture: Wet type, about 40%.
4. Application: All kinds of bamboo materials suitable for pellet production.
Suitable customers: Bamboo product processing companies, large-scale farms, agricultural/forestry parks, areas with dense bamboo resources, biomass energy companies/fuel traders, green environmental protection technology companies, and other places where bamboo raw materials have advantages
5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.
3.图片

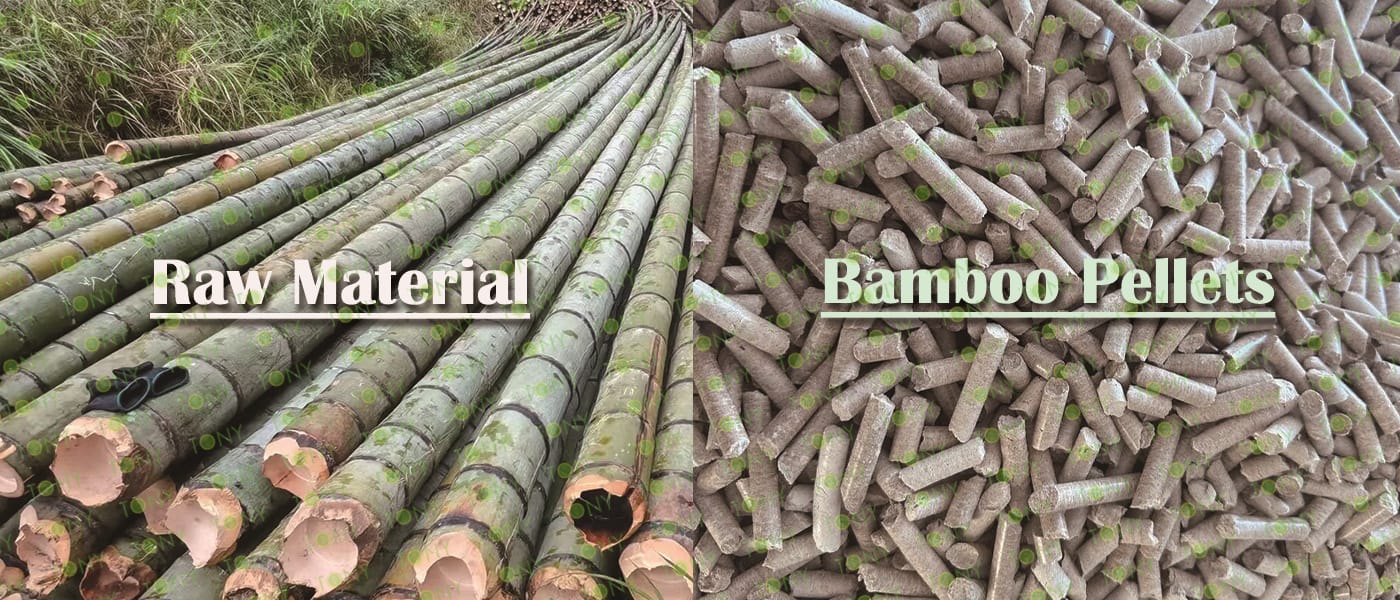

原材料--成品图
1. Project Name: Wet Bamboo Pellet Production Line
2. Raw Material: All kinds of wet bamboo
3. Moisture Content of Raw Material: 40%
4. Capacity: 2-2.5 tons per hour
5. Process: Crushing Process - Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process
6. Main Equipment: Wood Chipper TPQ216 - 55KW, Effective Hammer Mill-TFD65*75-55kw, Rotary Drum Dryer-1.8*12m, TONY Pellet Machine TYJ551-Ⅲ-132kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

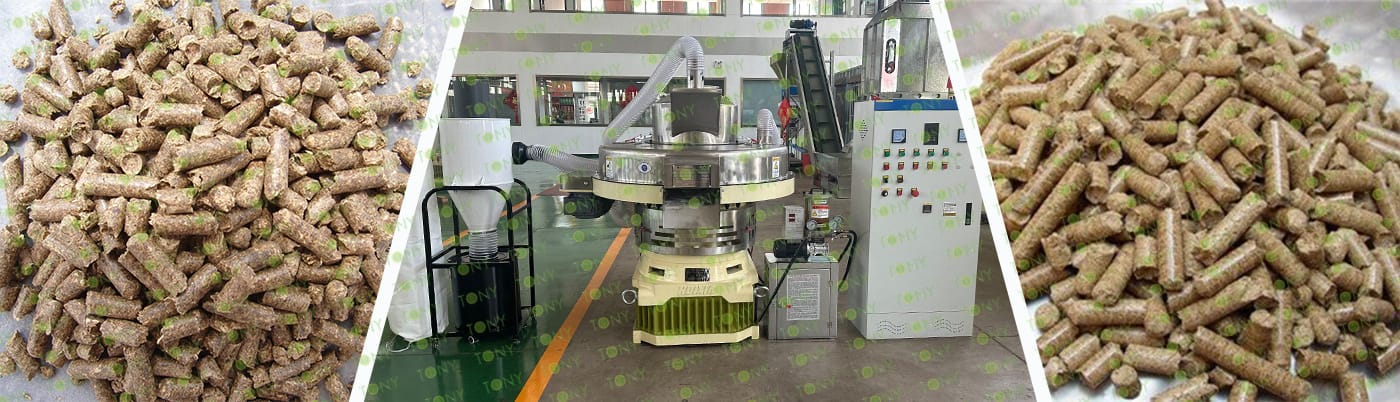

4.图片
|

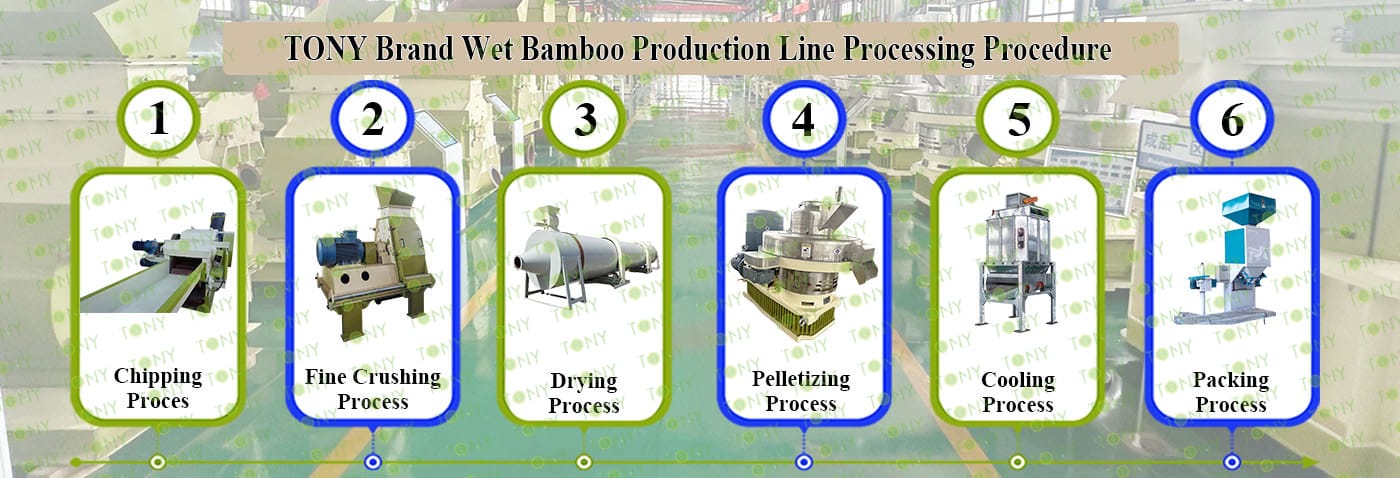

How to use the TONY pellet production line to make pellets from wet bamboo? The process mainly includes the following steps and equipment: 1. Use TONY wood chipper to cut wet bamboo with a diameter of less than 20 cm into bamboo chips 25 - 55 mm in length. 2. Use TONY effective hammer mill to crush the 25-55 mm bamboo chips into 8-14 mm bamboo dust. 3. Use TONY rotary drum dryer to dry the bamboo dust with a 40% moisture content down to a moisture content of 10%-15%. 4. Use TONY vertical ring die pellet machine to produce pellets with a diameter of 6-8 mm. 5. Use TONY galvanized pellets cooler to cool the pellets from 80-90°C to 20-30°C. 6. Use TONY semi - automatic packing machine to pack the pellets into bags, each weighing 15-50 kg. For more detailed information and quotations, you can contact TONY. TONY can provide all the above - mentioned products at highly competitive prices and with excellent quality. |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
流程图1
流程图.
5.图片
原材料+颗粒图
颗粒+机器图
三维图
| Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout. | ||
| Wood Chipper | Effective Hammer Mill | Rotary Drum Dryer |
| 1.To Grind Bamboo φ ≤20 cm Into25-55mm Bamboo Chips. 2.Model: TPQ216-55KW With 2 Baldes*1set 3.Capacity: 4-7 Ton/Hour. |
1.To Crush 25-55mm Bamboo Chips Into 8-14mm Bamboo Dust. 2.Model: TFD65*75-55KW*1set 3.Capacity: 2-2.5 Ton/Hour/Set |
1.To Dry The 40% Bamboo Dust Into 10-15% Bamboo Dust. 2.Model: THGD1.8*12*1set 3.Capacity:2-2.5 Ton/Hour/Set |
| Vertical Ring Die Pellet Machine | Galvanized Pellets Cooler | Semi-automatic Packing Machine |
| 1.To Press Dry Bamboo Dust Into 6-8mm Biomass Pellets 2.Model: TYJ551-III-132KW*1set 3.Capacity:2-2.5 Ton/Hour/Set 4.New 304SS Type |
1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-1.5*1set 3.Capacity:2-2.5 Ton/Hour |
1.To Pack Pellets Into 15-50KG/Bags. 2.Model: TBF-50*1set 3.Capacity: 2-2.5 Ton/Hour |
三维图
5.1图片
TPQ216-55KW机器图
带原材料-成品图
1.Wet Bamboo To Bamboo Chips Process:
A.This process is mainly used to grind the bamboo whose diamater is under 20 cm into bamboo chips with size 25-55mm. The finish bamboo chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.
B.TONY brand wood chipper TPQ216-55kw with 2 flying blades type*1 set
C.Capacity:4-7Ton/Hour.
Main Parts:
(1)TONY's Wood Chipper.
(2)Feed And Discharge Belt Frequency Control To Prevent Card Material
(3)Hydraulic System Control Can Be Used For Thicker Materials
(4)Electronic Control System Allows The Equipment To Be Used Normally
Contact Tony For More Details With Quotation
5.2图片
高效粉碎机
带锯末图

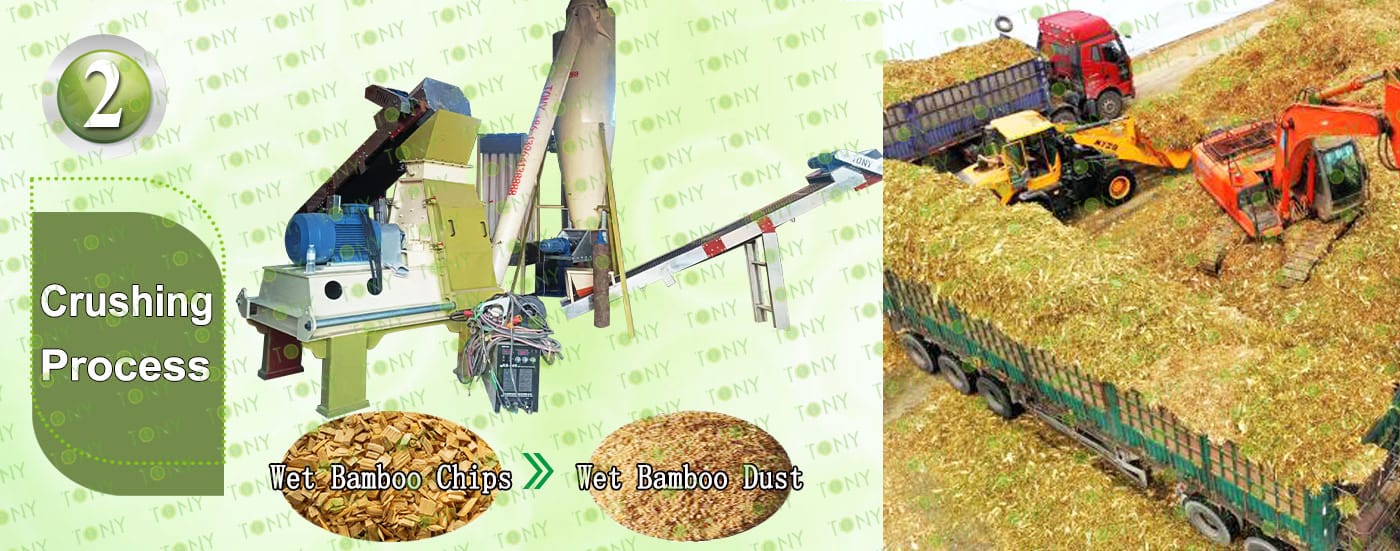

2.Bamboo Chips Fine Crushing Process:
A.This process is mainly used to crush 25-55mm bamboo chips into 8-14mm bamboo dust.
B.Capacity:2-2.5 Ton/Hour.
C.TONY brand Effective Hammer Mill TFD65*75-55kw*1set
Main Parts:
(1)TONY Effective Hammer Mill.
(2)Galvanized Dust Collector.
(3)Sawdust Transportation Fan Blower.
(4)Cyclone With Airlock.
(5)Electrical Cabinets.
5.3图片
烘干机
带锯末图
3.Bamboo Dust Drying Process:
A.This process is mainly used to dry the bamboo dust from 40% to 10-15%.
B.Capacity:2-2.5 Ton/Hour.
C.TONY use 1 set of 1.8*12m rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame. There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace
TONY dryer use spiral tube material, and is not easy to deform.
Unlike other manufacturers with iron plate splicing welding, very easy to deformation.
Main Parts:
(1)TONY's Rotary Drum Dryer Main Body. (Reducers With Motors and Pips.)
(2)TONY's Hot Stove.
(3)Fan Blower+Cyclone With Airlock.
5.4图片

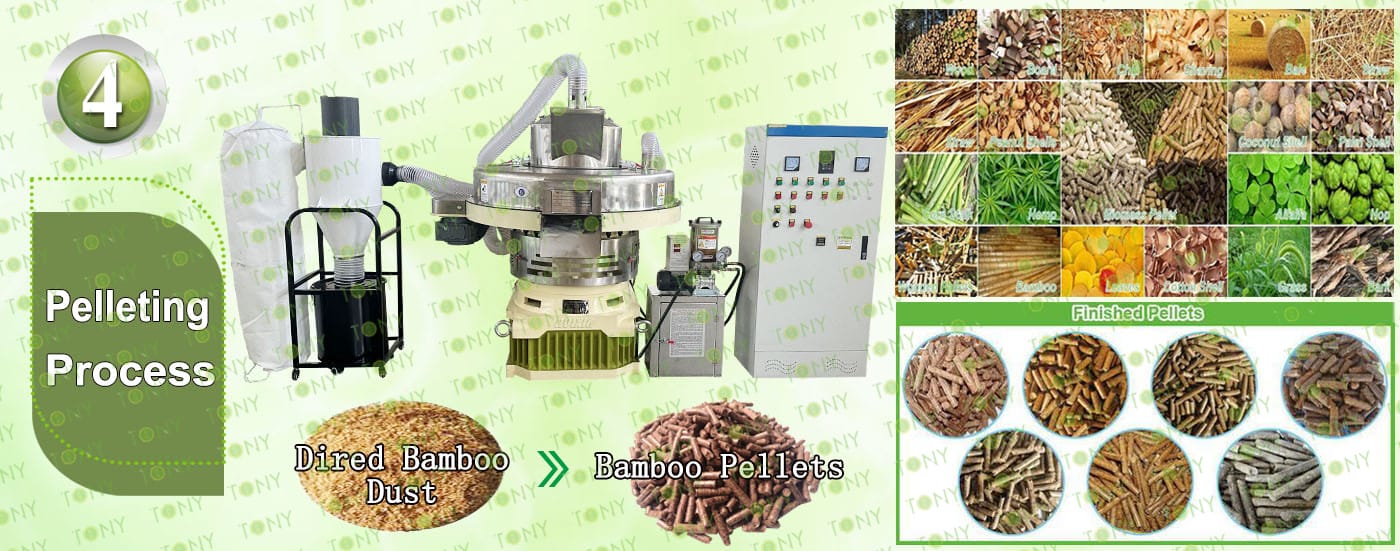

颗粒机四件套带 原材料，颗粒图

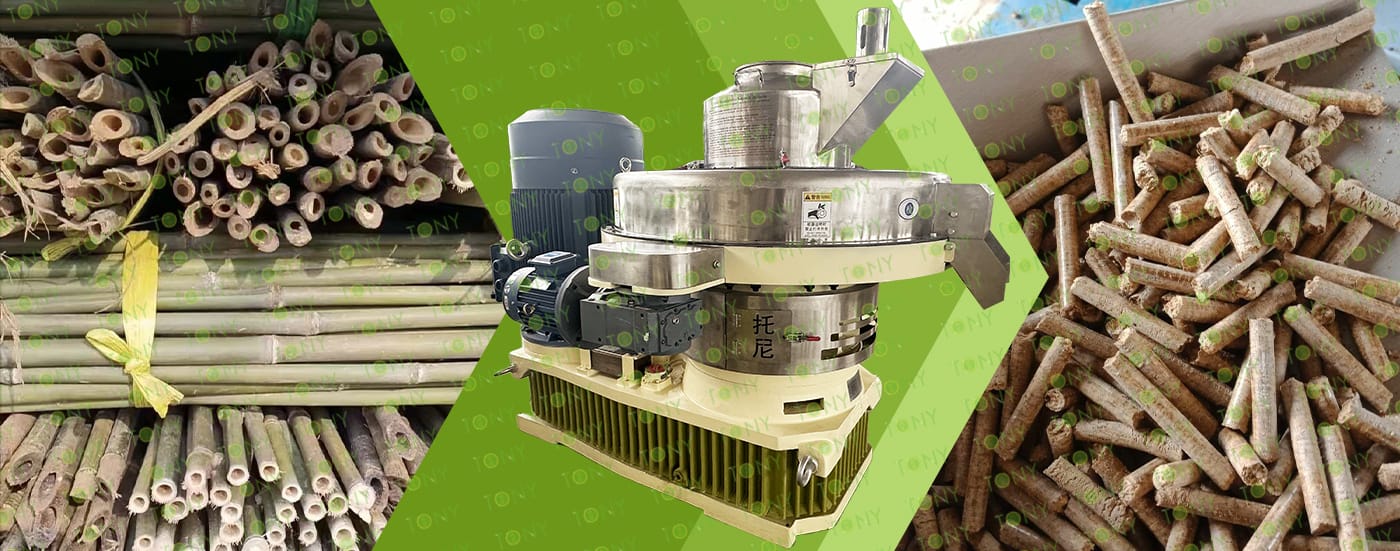

4.Pelletizing Process:
A.This process is mainly used to to product pellets into φ6-8mm.
B.Capacity:2-2.5Ton/Hour.
C.TONY brand vertical ring die pellet machine TYJ551-III-132kw*1 set
Main Parts:
(1)TONY's new Vertical Ring Die Pellet Machine.
(2)Cyclone And Bags Dust Collectors.
(3)Automatic Lubrication System.
(4)Electrical Cabinets.
You can chose TONY new type SS304 pellet machine
5.5图片
镀锌冷却仓加颗粒图
5.Cooling Process:
A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃
B.Capacity:2-2.5 Ton/Hour.
C.TONY brand galvanized pellets cooler *1 set
Main Parts:
(1)TONY's new Galvanized Pellets Cooler With Vibrating Screen.
(2)Cyclone And Bags Dust Collectors.
(3) Fan Blower.
(4)Connect Pipes.
5.6图片
包装机
6.Packing Process:
A.This process is mainly used to pack pellets into 15-50KG/Bags.
B.Capacity:2-2.5 Ton/Hour.
C.TONY brand semi-automatic packing machine*1 set
Main Parts:
(1)TONY Semi-Automatic Packing Machine.
(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.
(3)Bags Transportation Conveyors.
(4)Feeding Inlet Silo.
(5)Electrical Cabinets.
6.图片
客户生产线案例图
7.图片
图 湿竹子+颗粒 颗粒机
The global energy structure is transitioning towards low-carbon energy, and biomass energy, with its renewable and low-pollution advantages, has become an important direction. my country has abundant bamboo resources, with over ten million tons of bamboo processing waste (bamboo chips and scraps) generated annually. This project utilizes wet bamboo as raw material to produce biomass pellets, addressing the environmental issue of bamboo waste accumulation while also replacing traditional fossil fuels, aligning with the "dual carbon" target. The market demand is urgent. The biomass pellets produced by this project have advantages such as high combustion efficiency, no sulfur and nitrogen pollution during combustion, and convenient storage and transportation. They can be widely used in industrial boilers, residential heating, and biomass power generation, replacing coal and natural gas, while meeting environmental emission standards and satisfying the emission reduction needs of enterprises. They can also be exported to regions with high demand for biomass energy, such as Europe.
8.图片
湿竹子图 颗粒图
High and stable calorific value: Bamboo has a high cellulose content, and when processed into pellets, its calorific value can reach 4500-5000 kcal/kg, comparable to medium-grade coal and far exceeding that of straw pellets (3000-3800 kcal/kg). This meets the high energy demands of industrial boilers, heating systems, and other applications. Complete combustion with no coking: During the processing of wet bamboo, a conditioning step softens the fibers while maintaining a porous structure, allowing oxygen to easily penetrate during combustion. The ash residue is only 2-3% (much lower than the 10-20% ash content of coal), and there are no harmful gases from the combustion of sulfur or nitrogen. It complies with national environmental emission standards (e.g., GB 13271-2014 "Emission Standard of Air Pollutants for Boilers"). High density and easy storage: After being pressed by a ring die pelletizer, the density of bamboo pellets reaches 1.1-1.3 g/cm³, with a volume only 1/10 to 1/8 that of loose bamboo. This reduces transportation costs by more than 70%. The pellets are uniform in shape and resistant to moisture absorption and deterioration.
9.图片
绿色地球+原材料+颗粒图
