Project Brief Introduction:

1.Product:Wet Bamboo Pellet Line

2.Capacity: 4-5 T/Hour

3.TONY Brand 4-5 Ton /Hour Wet Bamboo Pellet Line Project Process

4.Main Machine: Wood Chipper,Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ551-Ⅲ-132KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 580 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

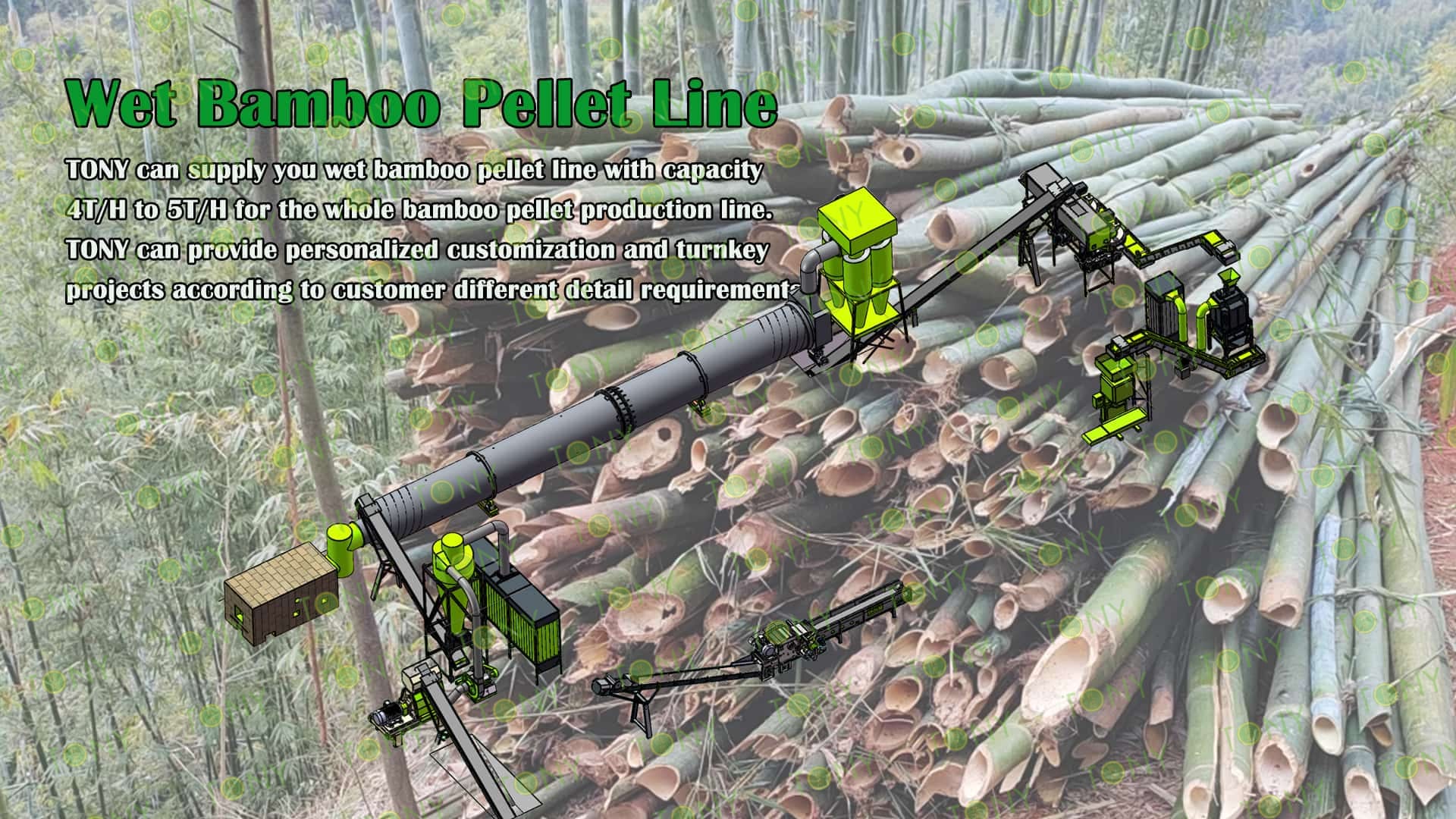

Project Layout For Customer:

3D图

原材料图+颗粒机图片

1. The working principle of wet bamboo biomass pellet processing equipment

(1) Crushing pretreatment stage

The wet bamboo is crushed by a bamboo crusher. The feed size is usually limited to less than 80mm in diameter. The crushed material needs to be screened to control the particle size to ensure the uniformity of the finished product.

The equipment can be equipped with motors, diesel engines or tractor power to meet the mobility needs of different operating scenarios. It is especially suitable for on-site processing in forests or fields.

(2) Drying and dehydration stage

The wet bamboo chips after crushing need to be dried to remove moisture and reduce the moisture content to 10%-15% to meet the process requirements of pellet pressing. This step usually uses a biomass hot air furnace and a drum dryer to achieve efficient dehydration by using the heat generated by burning waste.

(3) Pellet forming stage

The dried bamboo chips are fed into the pellet press through a screw conveyor and squeezed into high-density cylindrical pellets in a high-pressure mold. No binder is added during the process. The molding is achieved by relying on the thermoplasticity of the raw material's own lignin.

The finished pellets are packaged after cooling. The final calorific value can reach 4000-4800kcal/kg and the ash content is less than 1%. They can be used as fuel or industrial raw materials.

2. Characteristics of wet bamboo biomass pellet processing equipment

(1) Crushing process: Various types of equipment are suitable for different processing needs. Bamboo crushers are divided into hammer type and multifunctional type, which can process materials into standardized particles of 2-5mm, meeting the fineness requirements of industries such as biomass fuel and papermaking.

(2) Drying and molding: Connecting equipment ensures the quality of particles. The wet bamboo chips after crushing need to be reduced to 10-15% by drying unit, and then pressed by pellet machine and molded under high pressure. The drying equipment needs to be designed according to the high fiber characteristics of bamboo to ensure uniform evaporation of moisture; the molding equipment densifies the material into pellet fuel with a calorific value of 4000-4800kcal/kg through extrusion, and the ash content is controlled below 1%.

3. Application scenarios of wet bamboo biomass pellet processing equipment

(1) Feed processing: Bamboo pellet machines can directly press crushed materials such as corn, soybean meal, straw, grass, and rice husks into pellets for animal consumption.

(2) Biomass fuel production: Bamboo pellet machines can make biomass raw materials such as straw and sawdust into fuel pellets, which can be used as a renewable energy source to replace fossil fuels.

2.图片

TONY Brand 4-5 Ton/Hour Wet Bamboo Pellet Manufacturing Plant can take wet bamboo as the main raw material. After pretreatment and processing, it is solidified into high - density bamboo pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in bamboo resources.

1. Capacity: 4-5 Ton/Hour

2. Raw materials: Wet Bamboo

3. Moisture: Wet type, about 40%.

4. Application: All kinds of bamboo materials suitable for pellet production.

Suitable customers: Bamboo product processing companies, large-scale farms, agricultural/forestry parks, areas with dense bamboo resources, biomass energy companies/fuel traders, green environmental protection technology companies, and other places where bamboo raw materials have advantages

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

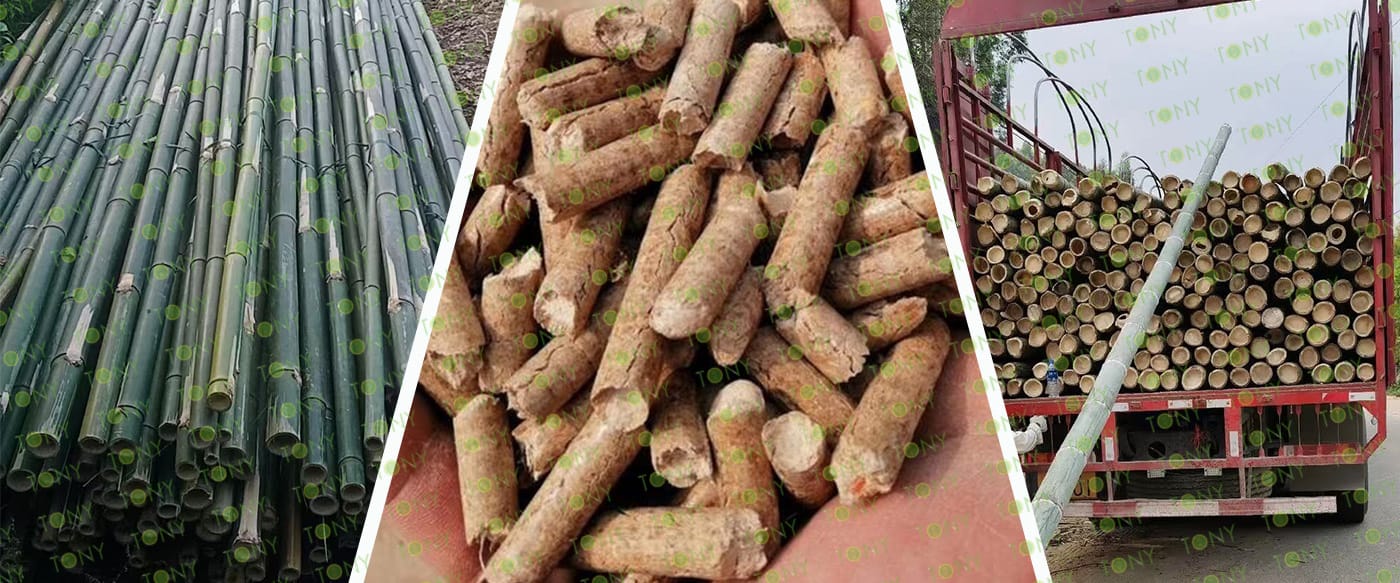

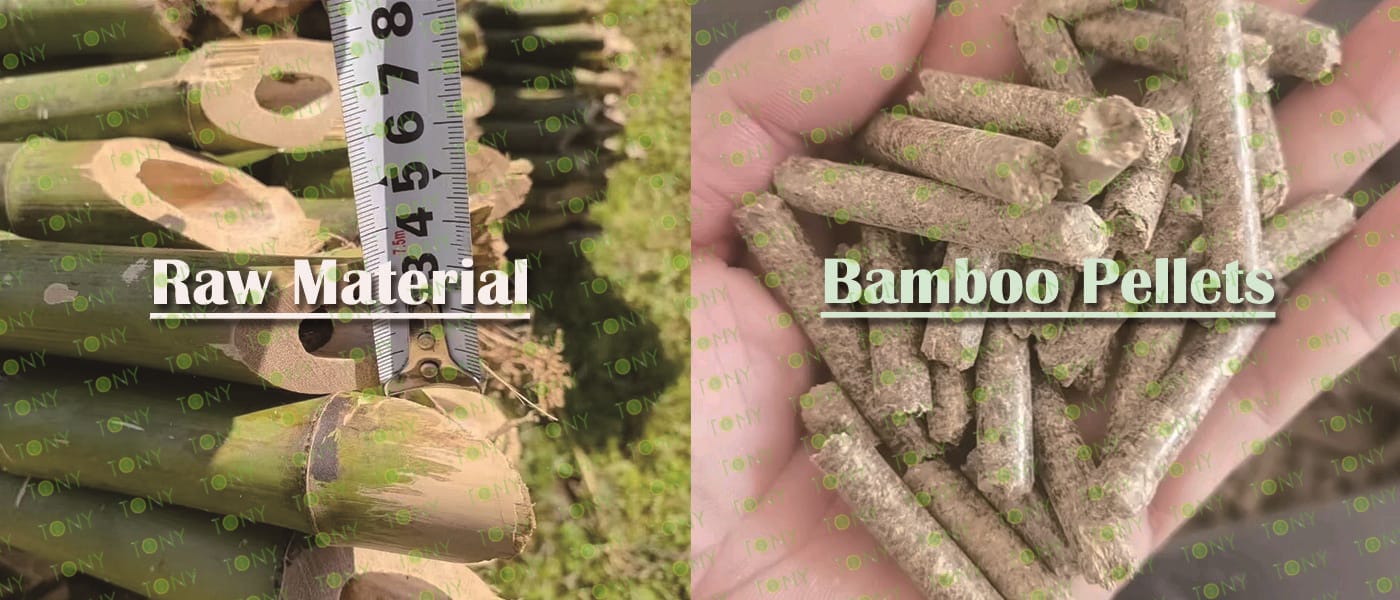

原材料--成品图

1. Project Name: Wet Bamboo Pellet Production Line

2. Raw Material: All kinds of wet bamboo

3. Moisture Content of Raw Material: 40%

4. Capacity: 4-5 tons per hour

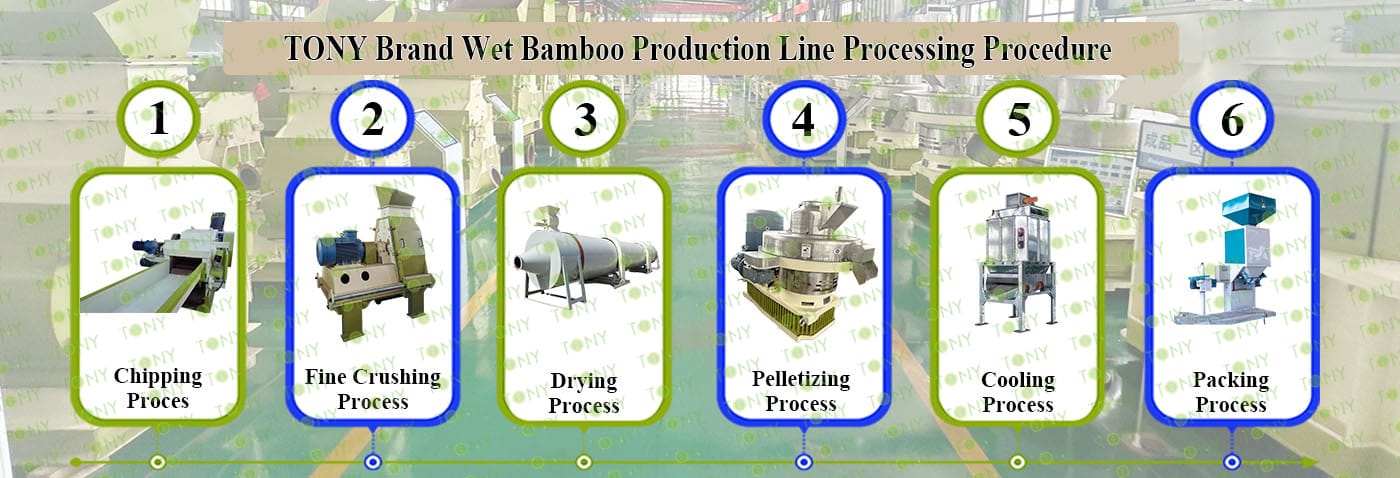

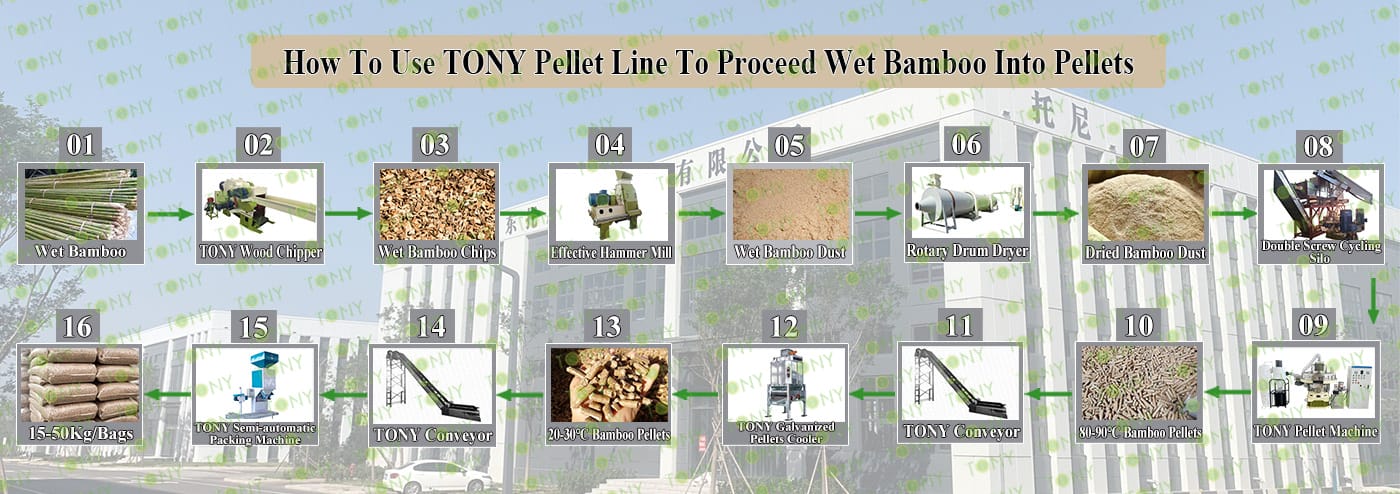

5. Process: Crushing Process - Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Wood Chipper TPQ216 - 55kw, Effective Hammer Mill-TFD75*132-132kw, Rotary Drum Dryer-1.8*20m, TONY Pellet Machine TYJ551-Ⅲ-132kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片

流程图1

流程图.

5.图片

原材料+颗粒图

颗粒+机器图

3D

3D

5.1图片

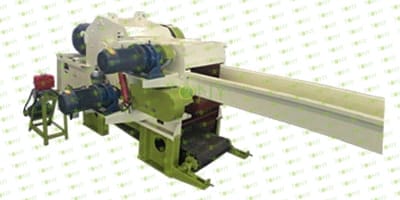

TPQ216-55KW机器图

带原材料-成品图

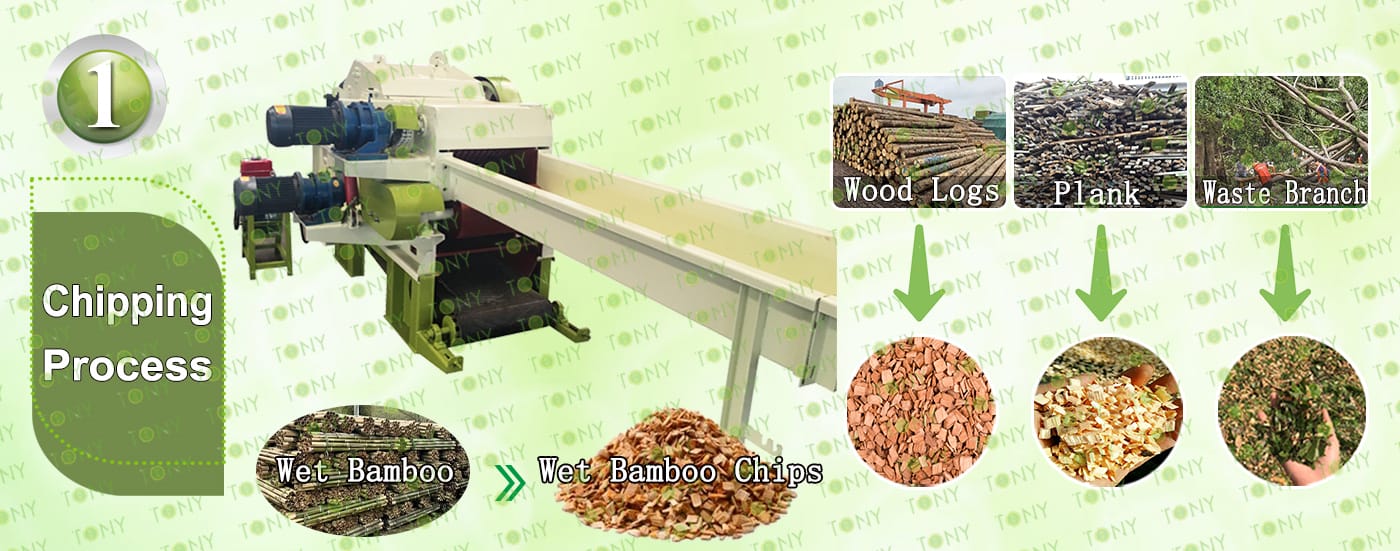

1.Wet Bamboo To Bamboo Chips Process:

A.This process is mainly used to grind the bamboo whose diamater is under 20 cm into bamboo chips with size 25-55mm. The finish bamboo chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY brand wood chipper TPQ216-55kw with 2 flying blades type*1 set

C.Capacity:4-7Ton/Hour.

Main Parts:

(1)TONY's Wood Chipper

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

5.2图片

高效粉碎机

带锯末图

2.Bamboo Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm bamboo chips into 8-14mm bamboo dust.

B.Capacity:4-5 Ton/Hour.

C.TONY brand effective hammer mill TFD75*132-132kw*1set

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.3图片

烘干机

带锯末图

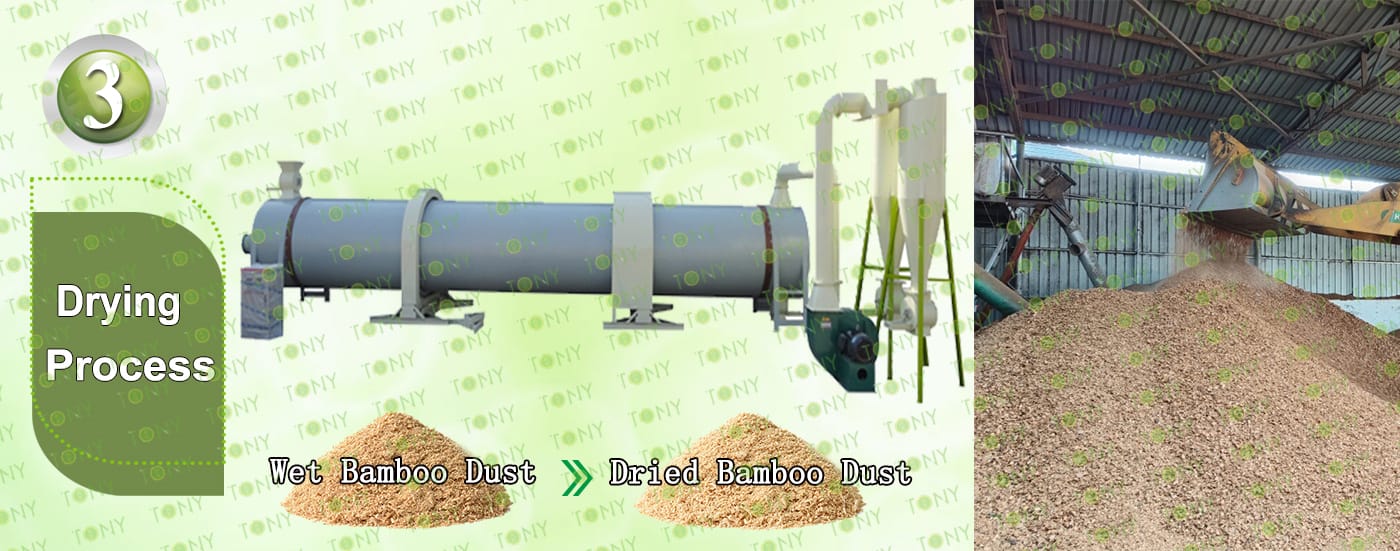

3.Bamboo Dust Drying Process:

A.This process is mainly used to dry the bamboo dust  from 40% to 10-15%.

B.Capacity:4-5 Ton/Hour.

C.TONY use 1 set of 1.8*20m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.4图片

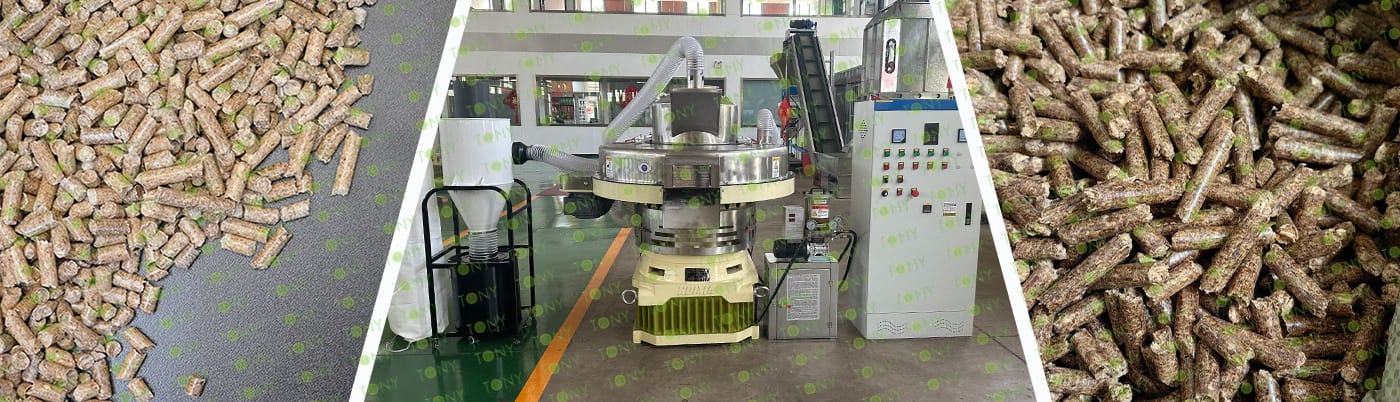

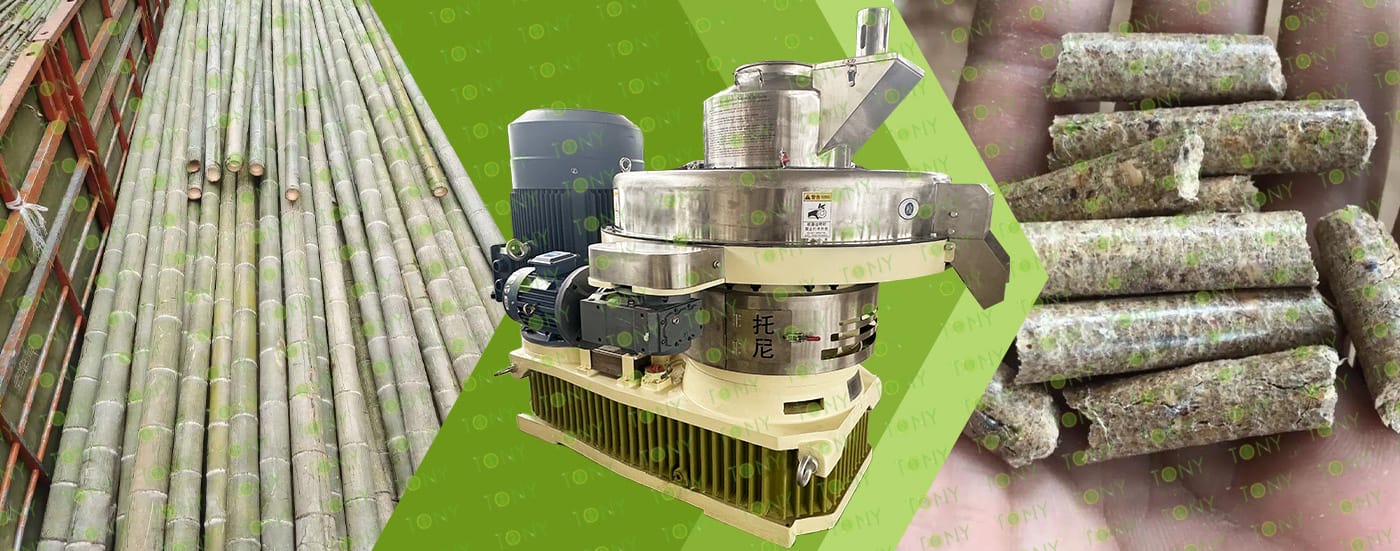

颗粒机四件套带 原材料，颗粒图

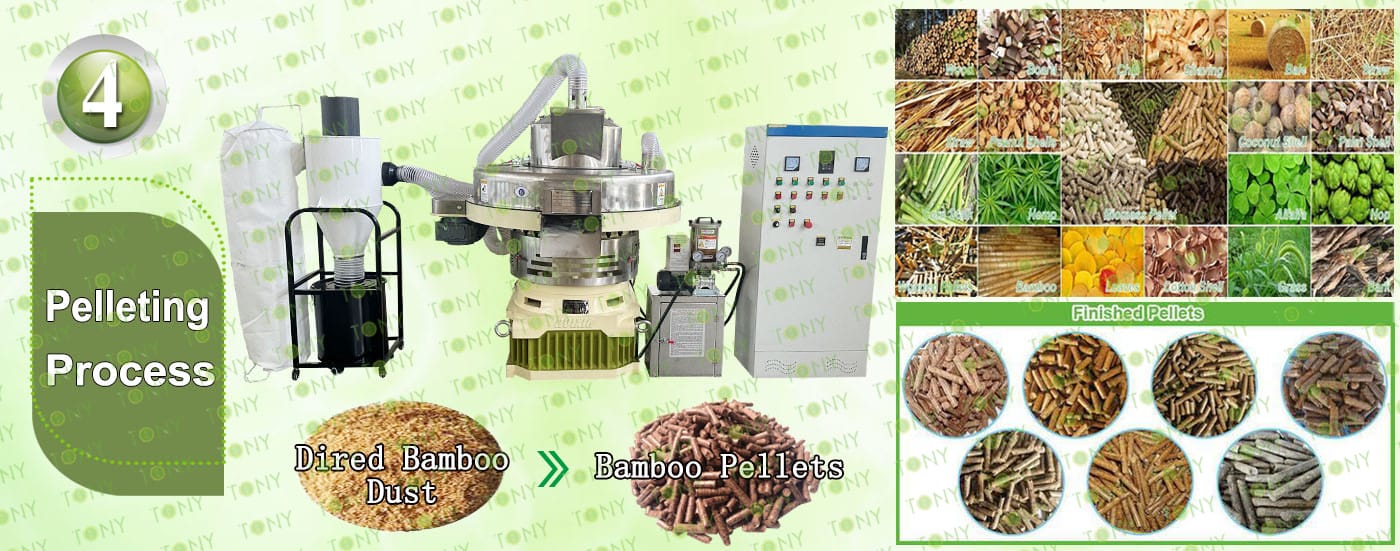

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:4-5Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ551-III-132kw*2 sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's new Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.5图片

镀锌冷却仓加颗粒图

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:4-5 Ton/Hour.

C.TONY brand galvanized pellets cooler *1 set

Main Parts:

(1)TONY's new Galvanized Pellets Cooler With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3) Fan Blower.

(4)Connect Pipes.

5.6图片

包装机

6.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:4-5 Ton/Hour.

C.TONY  brand semi-automatic packing machine*1 set

Main Parts:

(1)TONY Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

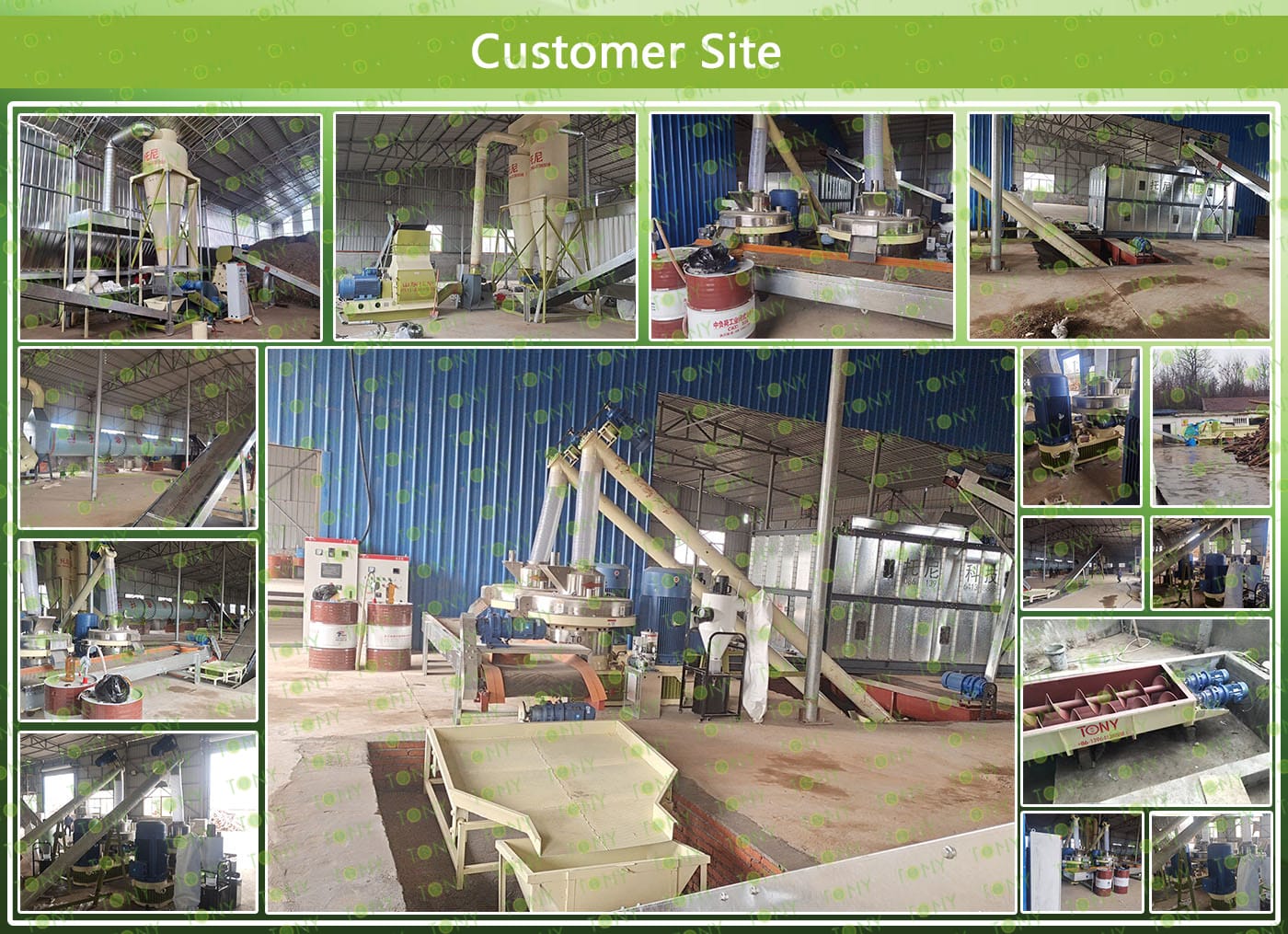

客户生产线案例图

7.图片

图 湿竹子+颗粒 颗粒机

Purpose and Benefits of the Wet Bamboo Biomass Pellet Processing Project

1. Purpose: The pelletized fuel is a new bioenergy source that can replace firewood, coal, fuel oil, and liquefied petroleum gas. It is widely used in heating, household stoves, hot water boilers, industrial boilers, and biomass power plants.

2. Economic Benefits: In the long term, the market demand for biomass pellet fuel is high, and the project is expected to generate significant economic returns after completion and operation.

3. Environmental Benefits: Biomass pellets do not produce sulfides during combustion, only carbon dioxide and water, which is environmentally friendly and meets energy conservation and emission reduction requirements. Furthermore, using wet bamboo to process biomass pellets efficiently utilizes bamboo processing residues, reduces waste emissions, and promotes resource recycling and ecological protection.

8.图片

湿竹子图 颗粒图

The core value of bamboo biomass pellets lies in their excellent energy supply. Their energy characteristics are reflected in the following aspects:

1. High calorific value and high combustion efficiency

Bamboo fibers have a high density (especially mature bamboo species such as moso bamboo and nanmu bamboo). After compression into pellets, the bulk density can reach 1.1-1.3g/cm³. The low calorific value is generally 18-20MJ/kg (approximately 4300-4800 kcal/kg), approaching that of medium-grade bituminous coal (approximately 20-25MJ/kg) and far exceeding straw pellets (14-16MJ/kg) and wood chip pellets (16-18MJ/kg). The pellets also have a dense structure, allowing for good air circulation during combustion, resulting in a heat conversion rate exceeding 85% and no noticeable black smoke. This avoids the problem of "strong fire but low thermal efficiency" associated with burning loose bamboo.

2. Low combustion residue and high ash utilization rate.

Bamboo has an extremely low ash content (typically only 0.5%-1.5%), far lower than coal (10%-30%) and straw (5%-8%). The resulting ash is small and rich in potassium, silicon, and other elements. It can be directly used as potash fertilizer for farmland or landscaping fertilizer, achieving a "energy-residue-agriculture" cycle and reducing solid waste disposal costs.

9.图片

绿色地球+原材料+颗粒图

10.图片

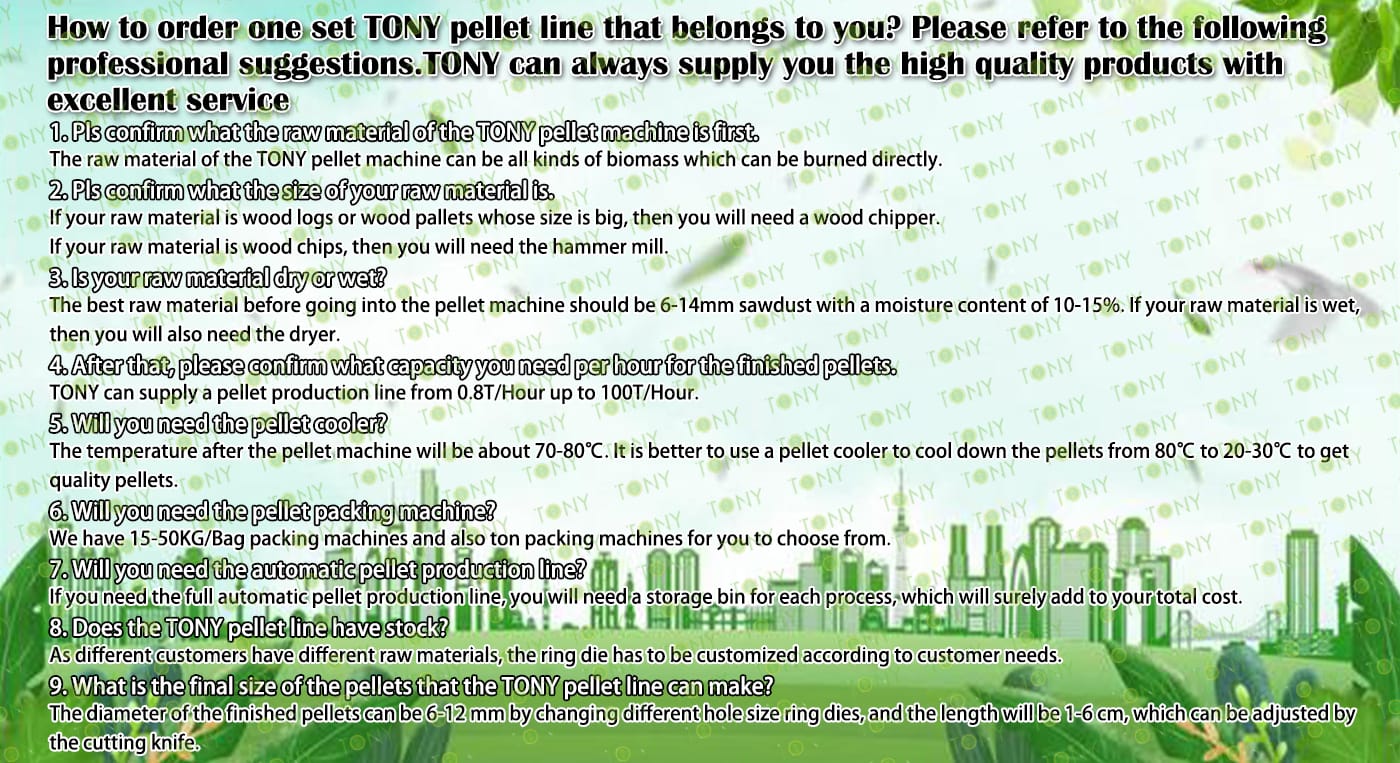

How to order one set TONY pellet line that belongs to you? Please refer to the following professional suggestions.TONY can always supply you the high quality products with excellent service

1. Pls confirm what the raw material of the TONY pellet machine is first.

The raw material of the TONY pellet machine can be all kinds of biomass which can be burned directly.

2. Pls confirm what the size of your raw material is.

If your raw material is wood logs or wood pallets whose size is big, then you will need a wood chipper.

If your raw material is wood chips, then you will need the hammer mill.

3. Is your raw material dry or wet?

The best raw material before going into the pellet machine should be 6-14mm sawdust with a moisture content of 10-15%. If your raw material is wet, then you will also need the dryer.

4. After that, please confirm what capacity you need per hour for the finished pellets.

TONY can supply a pellet production line from 0.8T/Hour up to 100T/Hour.

5. Will you need the pellet cooler?

The temperature after the pellet machine will be about 70-80℃. It is better to use a pellet cooler to cool down the pellets from 80℃ to 20-30℃ to get quality pellets.

6. Will you need the pellet packing machine?

We have 15-50KG/Bag packing machines and also ton packing machines for you to choose from.

7. Will you need the automatic pellet production line?

If you need the full automatic pellet production line, you will need a storage bin for each process, which will surely add to your total cost.

8. Does the TONY pellet line have stock?

As different customers have different raw materials, the ring die has to be customized according to customer needs.

9. What is the final size of the pellets that the TONY pellet line can make?

The diameter of the finished pellets can be 6-12 mm by changing different hole size ring dies, and the length will be 1-6 cm, which can be adjusted by the cutting knife.
