Project Brief Introduction:

1.Product:Wet Bamboo Pellet Line

2.Capacity: 3T/Hour

3.TONY Brand 3Ton /Hour Wet Bamboo Pellet Line Project Process

4.Main Machine: Wood Chipper,Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ760-Ⅲ-200kw,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 440 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

Project Layout For Customer:

三维图

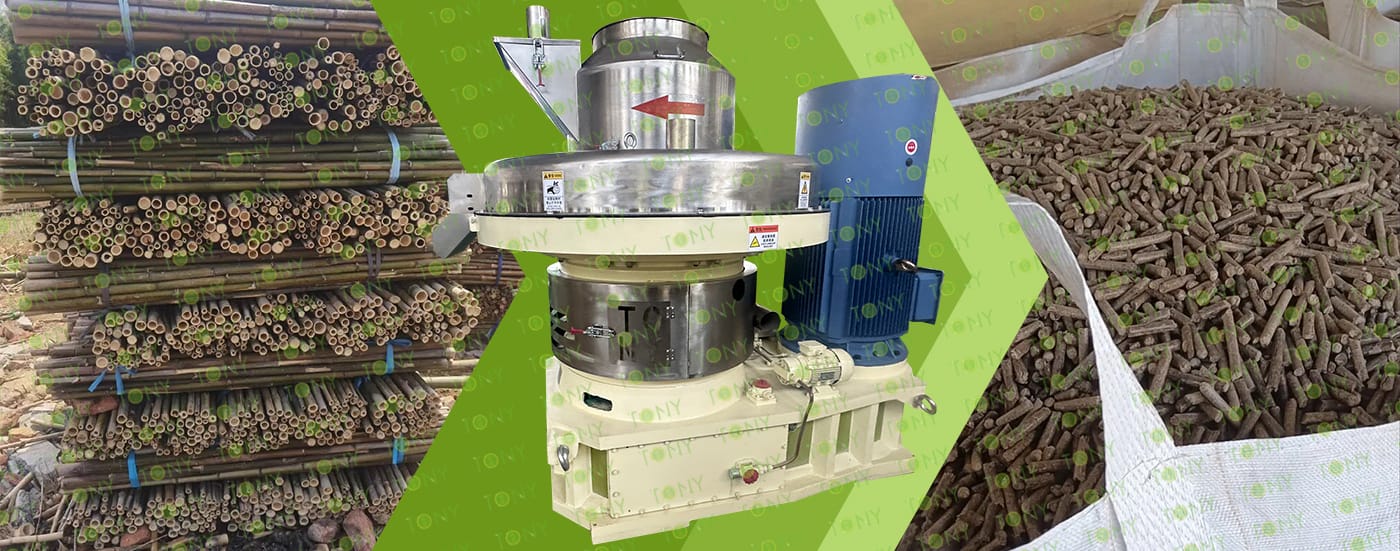

原材料图+颗粒机图片

1. The working principle of wet bamboo biomass pellet processing equipment

Biomass pellet processing involves converting loose agricultural and forestry waste (such as wood chips, straw, rice husks, and bamboo) into high-density, regularly shaped pellet fuel through a series of physical and mechanical processes. The core process includes three key steps: raw material pretreatment (crushing and pulverization), drying, and forming. Each step requires specialized equipment to transform the material's physical state.

2. Characteristics of wet bamboo biomass pellet processing equipment

Wet bamboo pellet processing equipment (i.e., a wood biomass pellet machine and supporting production line) is specifically designed to process wood materials such as sawdust, bamboo, and branches into high-density pellets.

It is compatible with a wide range of wood materials: sawdust, wood chips, shavings, sawdust, bamboo shavings, shredded branches, and waste wood. Both softwoods (such as pine and fir) and hardwoods (such as oak and birch) can be efficiently processed after pretreatment (crushing and grinding).

Managing raw material moisture fluctuations: Dedicated drying equipment (such as a drum dryer) controls the moisture content of the wood raw material to 10%-15% (the optimal moisture range for wood pellet production), avoiding problems such as clogging and loose pellets caused by excessive moisture.

Flexible particle size control: The accompanying crusher can crush the wood raw material to the size of sawdust, meeting the pellet machine's fineness requirements and ensuring uniform pellets.

3. Application scenarios of wet bamboo biomass pellet processing equipment

(1) Civilian solid fuel: Wet bamboo biomass pellet fuel has a high utilization rate, is easy to store and use, is hygienic and safe, and can be used for home heating.

(2) Main solid fuel for industrial boilers: It can replace raw coal, heavy oil and gas, reducing air pollution. Every 10,000 tons of biomass fuel burned can replace 7,000 tons of standard coal, reducing sulfur dioxide emissions by 165 tons, smoke emissions by 80 tons, and carbon dioxide emissions by 14,400 tons.

(3) Thermal power generation: The fuel calorific value can reach 3,400-6,000 kcal.

In short, wet bamboo biomass pellet fuel can be described as "environmentally friendly", "energy-saving", "renewable", and "zero-carbon emission". It is the best renewable energy source to replace coal. From the perspectives of cost, energy saving, and environmental protection, biomass fuel is a better alternative to coal.

2.图片

TONY Brand 3 Ton/Hour Wet Bamboo Pellet Manufacturing Plant can take wet bamboo as the main raw material. After pretreatment and processing, it is solidified into high - density bamboo pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in bamboo resources.

1. Capacity: 3 Ton/Hour

2. Raw materials: Wet Bamboo

3. Moisture: Wet type, about 40%.

4. Application: All kinds of bamboo materials suitable for pellet production.

Suitable customers: Bamboo product processing companies, large-scale farms, agricultural/forestry parks, areas with dense bamboo resources, biomass energy companies/fuel traders, green environmental protection technology companies, and other places where bamboo raw materials have advantages

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片


原材料--成品图

4.图片

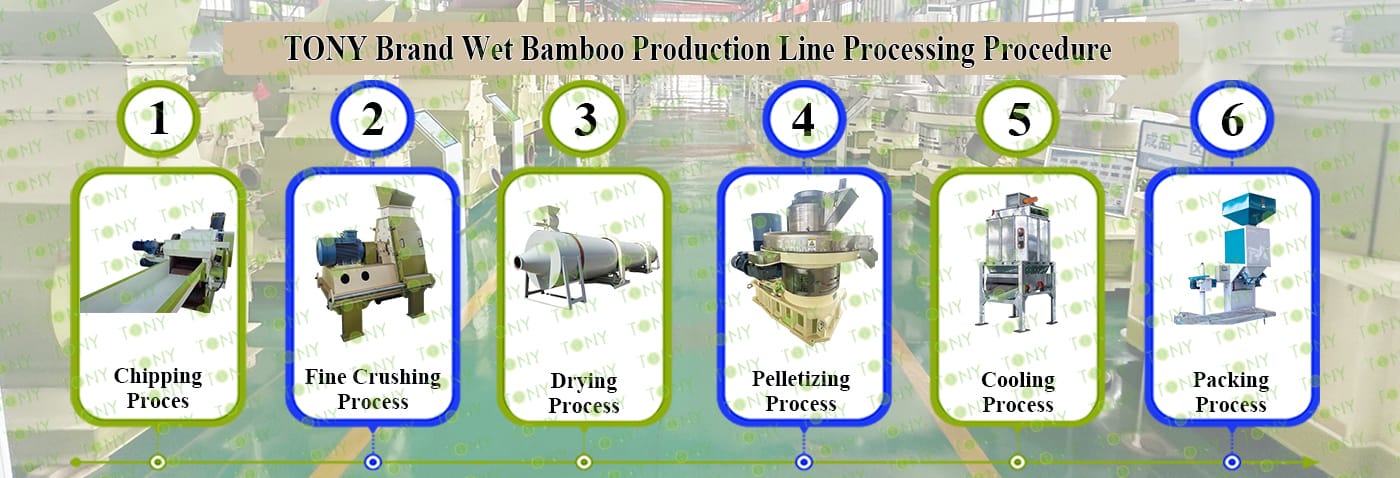

流程图1

流程图.

5.图片

原材料+颗粒图

颗粒+机器图

三维图

三维图

5.1图片

TPQ216-55KW机器图

带原材料-成品图

1.Wet Bamboo To Bamboo Chips Process:

A.This process is mainly used to grind the bamboo whose diamater is under 20 cm into bamboo chips with size 25-55mm. The finish bamboo chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY brand wood chipper TPQ216-55kw with 2 flying blades type*1 set

C.Capacity:4-7Ton/Hour.

Main Parts:

(1)TONY's Wood Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

5.2图片

高效粉碎机

带锯末图

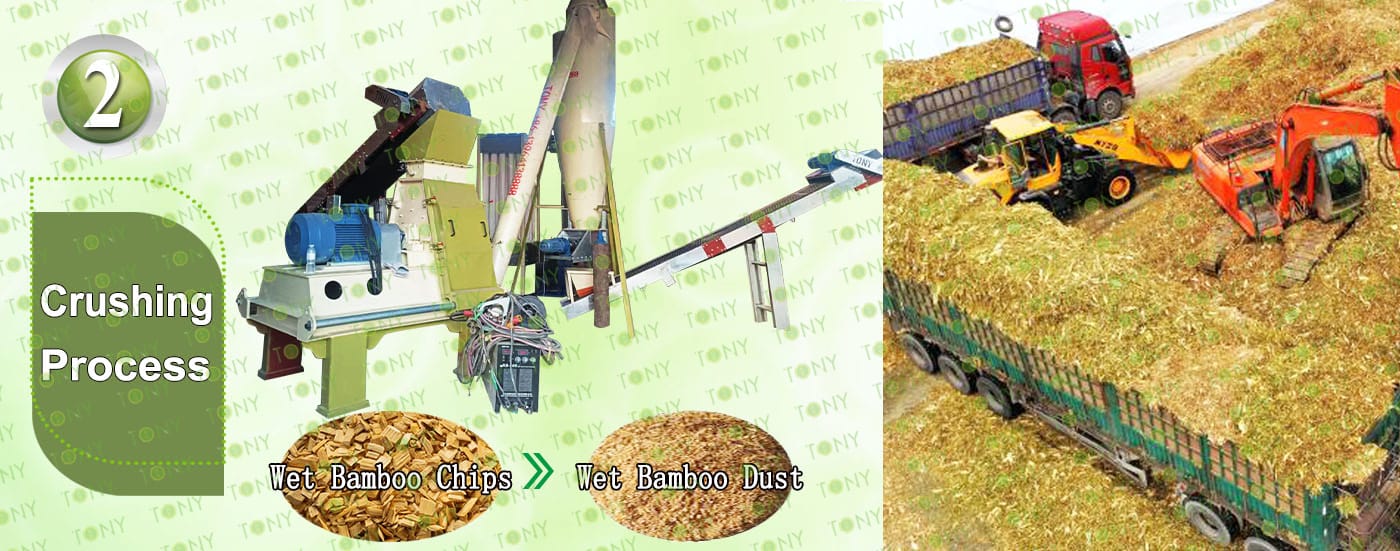

2.Bamboo Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm bamboo chips into 8-14mm bamboo dust.

B.Capacity:3 Ton/Hour.

C.TONY brand Effective Hammer Mill TFD75*100-90kw*1set

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.3图片

烘干机

带锯末图

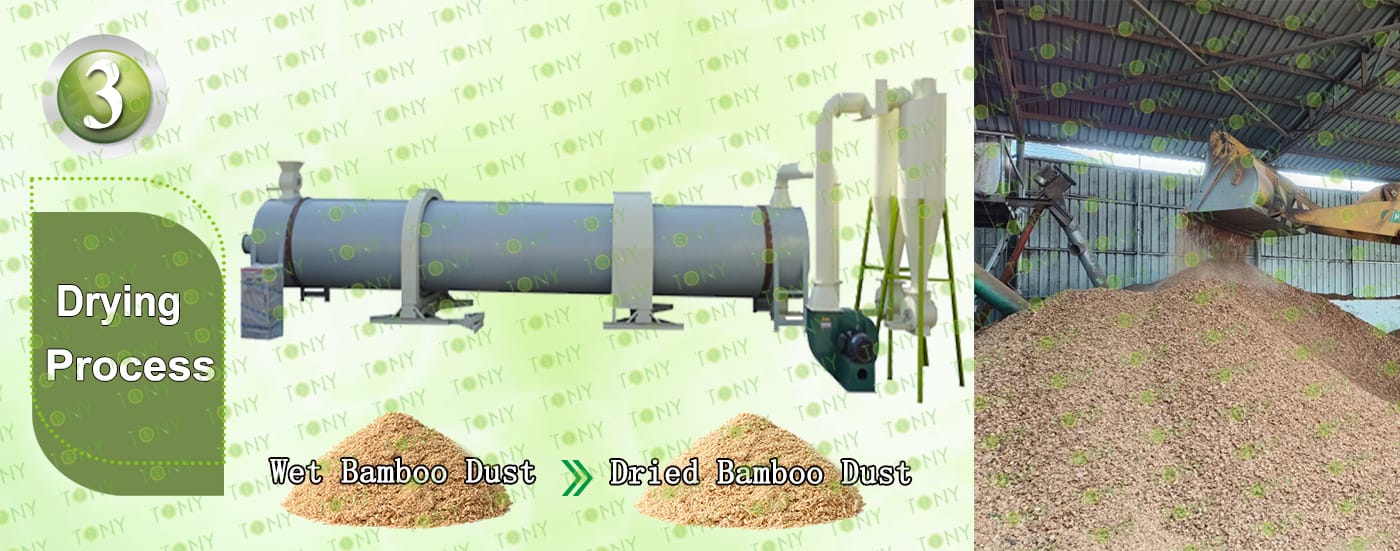

3.Bamboo Dust Drying Process:

A.This process is mainly used to dry the bamboo dust  from 40% to 10-15%.

B.Capacity:3 Ton/Hour.

C.TONY use 1 set of 1.8*15m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.4图片

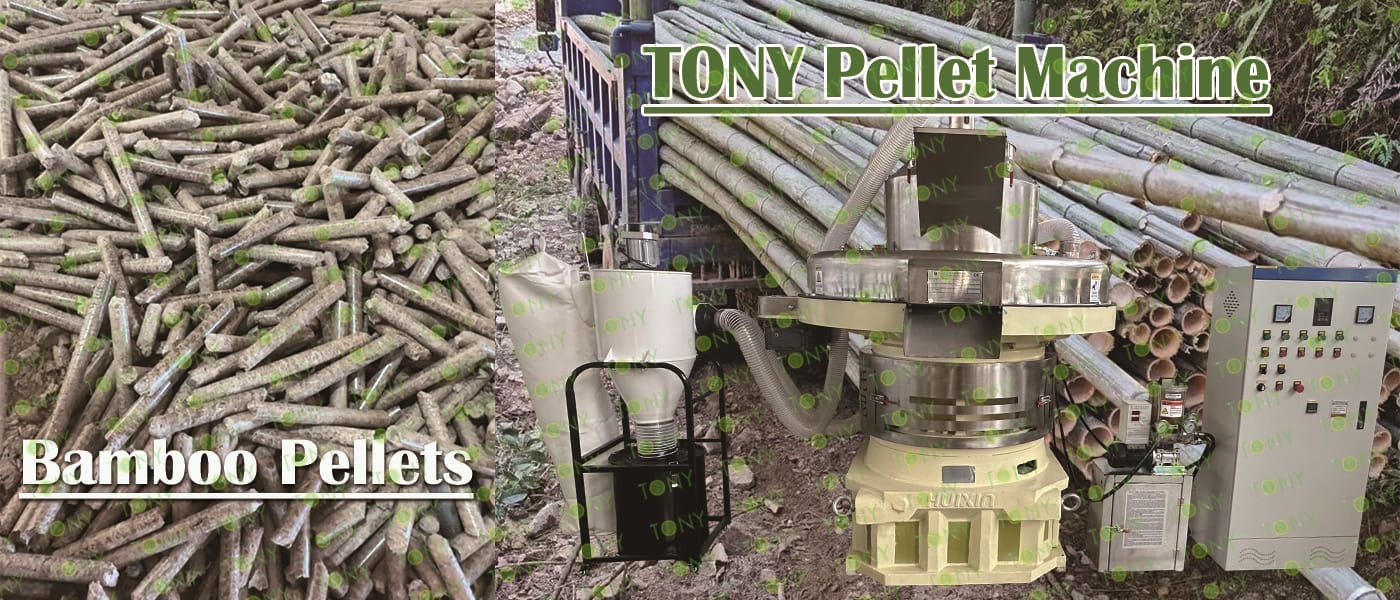

颗粒机四件套带 原材料，颗粒图

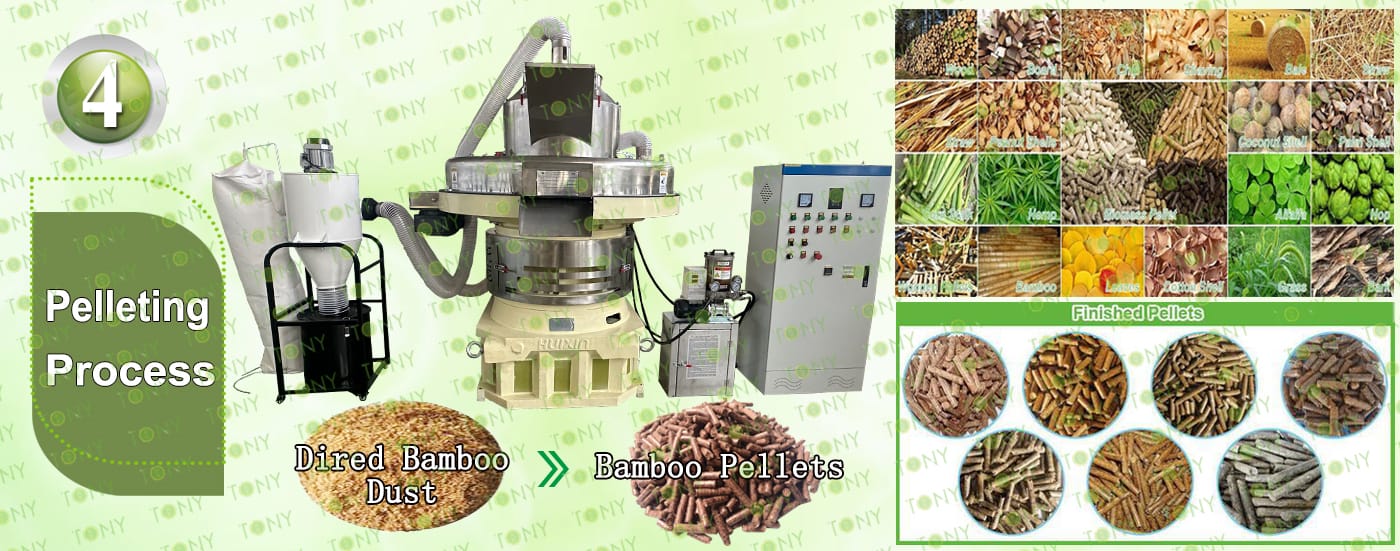

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:3 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ760-III-200kw*1 set

Main Parts:

(1)TONY's new Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.5图片

镀锌冷却仓加颗粒图

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:3 Ton/Hour.

C.TONY brand galvanized pellets cooler *1 set

Main Parts:

(1)TONY's new Galvanized Pellets Cooler With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.6图片

包装机

6.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:3 Ton/Hour.

C.TONY  brand semi-automatic packing machine*1 set

Main Parts:

(1)TONY Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

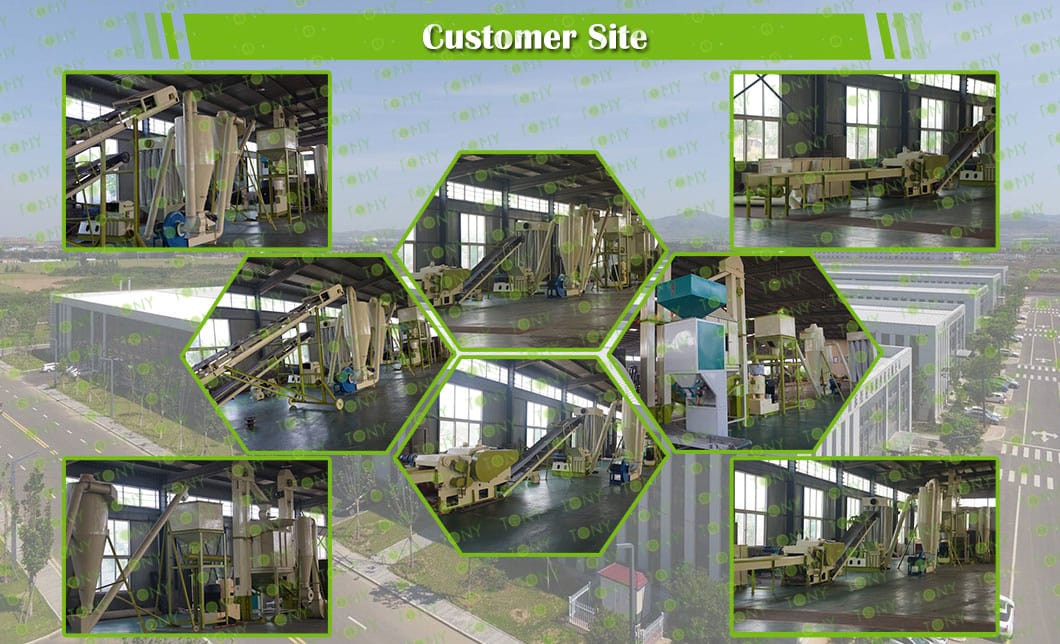

客户生产线案例图

7.图片

图 湿竹子+颗粒 颗粒机

1. Excellent environmental performance and low carbon emissions

Carbon neutrality: Bamboo pellet fuel is derived from bamboo processing waste (such as bamboo chips and bamboo strips) and is a biomass energy source. The carbon dioxide absorbed during plant growth is roughly balanced by the carbon dioxide released during combustion, making it a "carbon neutral" energy source and significantly reducing its contribution to the greenhouse effect.

Low pollutant emissions: Compared with coal, the content of pollutants such as sulfur dioxide and nitrogen oxides produced by bamboo pellet combustion is extremely low (usually far below environmental standards), and the dust emission is also low, effectively reducing air pollution and meeting increasingly stringent environmental regulations.

2. Wide sources of raw materials and controllable costs

(1) Abundant raw materials: The main raw materials are scraps, bamboo chips, bamboo strips, and brushed materials generated during bamboo processing. These materials are obtained and stable in bamboo chopstick factories, furniture factories, and bamboo board factories. They can even be "turned into treasure" to reduce the impact of landfill or incineration on the environment.

(2) Cost advantage: The raw materials are mostly industrial waste, and the procurement cost is relatively low. In addition, some regions provide subsidies for biomass energy projects, further reducing production and use costs. Compared with other energy sources such as natural gas and fuel oil, biomass energy has economic benefits.

3. High combustion efficiency and high energy utilization efficiency

(1) High density: Bamboo pellets are compressed and molded, and their density is significantly higher than that of logs or sawdust (usually 1.1-1.3 tons/cubic meter). They are not easy to loosen during combustion, the combustion state is stable, and the flame lasts. High thermal efficiency (usually more than 85%, while bulk firewood is only 40%-50%).

(2) Stable combustion: The pellets are regular in shape and uniform in size, which is convenient for automated feeding and combustion control. They can be precisely adjusted with the matching pellet stove to reduce energy waste and are suitable for applications that require a stable heat source.

4. Convenient storage and transportation

Small volume: The volume of compressed pellets is only 1/5-1/8 of the original sawdust, which significantly saves storage space. They can be stored in bags or in bulk, without the need for special storage facilities, and are suitable for various environments such as homes and businesses.

Low transportation cost: High density makes the transportation energy per unit volume higher, thereby improving transportation efficiency and reducing transportation costs. In addition, pellets are moisture-proof (some products are treated to prevent moisture), which can minimize losses during transportation.

5. Diverse application scenarios

(1) Civilian use: It can be used for home heating and cooking (for example, using pellet fireplaces and pellet stoves). It is easy to operate and clean, and can replace traditional coal and firewood to improve the indoor environment.

(2) Industrial application: It can be used as boiler fuel to provide steam or hot water for factories, hotels and hospitals. In the agricultural field, it can be used for greenhouse heating and drying agricultural products (such as grains and medicinal materials).

(3) Power generation: Biomass power plants can be used as fuel, mixed with coal or burned alone to generate electricity, contributing to the transformation of the energy structure.

8.图片

湿竹子图 颗粒图

1.Environmental characteristics

(1) Low pollution emissions: The sulfur and phosphorus content during combustion is extremely low, and the concentration of SO₂ and NOx in the flue gas is much lower than that of coal. It will not produce acid rain, and the CO₂ emission is zero (because plants absorb CO₂ during their growth process).

(2)Ash utilization: The ash after combustion is rich in organic potassium and can be recycled as a high-efficiency organic fertilizer.

2. Economic efficiency

(1)Wide range of raw materials: It can utilize waste materials such as bamboo board factory processing waste and bamboo chopstick factory scraps. The production cost is lower than traditional fossil fuels.

(2)Substitution benefits: Replacing coal can save about 20%~30% of fuel costs.

3. Wide range of application scenarios

(1) Industrial application: It is widely used in boiler heating, power generation and industrial production, such as textile factories, food factories, etc.

(2) Civil heating and living energy: Bamboo pellets have high combustion efficiency, are easy to store and use, and are safe and hygienic.

(3) Biomass industrial boilers: As the main fuel for industrial boilers, it replaces coal, heavy oil and natural gas to solve environmental pollution problems.
