Project Brief Introduction:

1.Product:Dried Hay/Grass/Alfalfa Pellet Line

2.Capacity:4-5 Ton /Hour

3.TONY Brand 4-5 Ton /Hour Dried Hay/Grass/Alfalfa Pellet Line Project Process

4.Main Machine: Straw Cutter,Hammer Mill,TONY Pellet Machine TYJ860-III-280KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 480 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

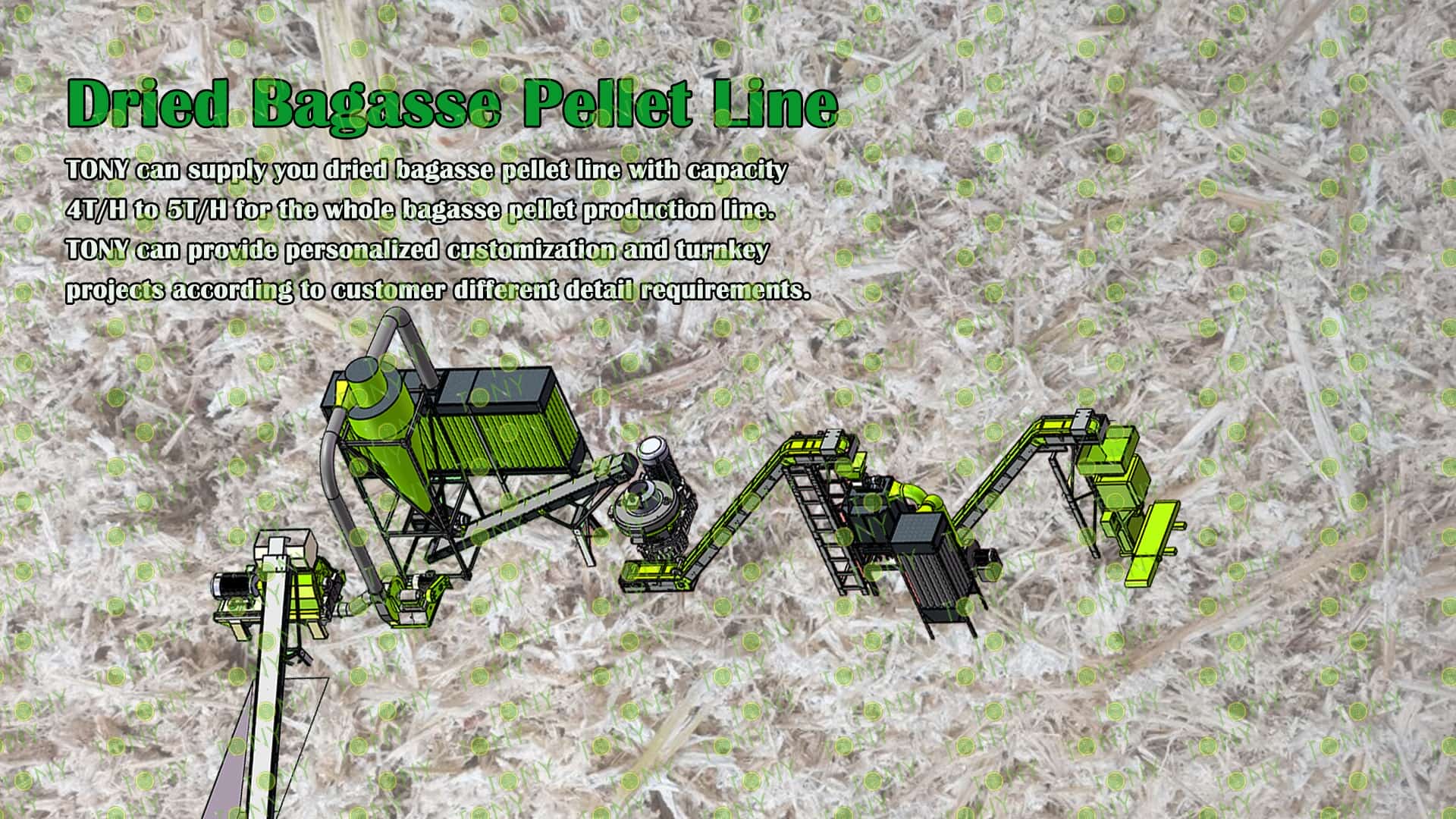

Project Layout For Customer:

3D图3

原材料图+颗粒机图片

1. The working principle of dried bagasse biomass pellet processing equipment

The biomass pellet machine is a core device that converts dry sugarcane bagasse and other agricultural and forestry waste into high-density, easy-to-store fuel. Its working principle revolves around the four core links of "raw material pretreatment - extrusion molding - heating and curing - cutting molding". Through the combination of mechanical force and physical and chemical effects, the sugarcane bagasse is transformed from loose material into standardized pellets.

2. Characteristics of dried bagasse biomass pellet processing equipment

The equipment must meet the requirements of high fiber processing capacity, low ash adaptability and efficient molding. The core features are reflected in drying efficiency, pelletizing process optimization and environmental performance.

(1) Pellet mill Ring die and roller design, high pressing frequency, using lignin natural bonding molding

(2) Cooling and packaging machine Integrated design, saving space and processing time Durability of pellet mill wearing parts: The life of the ring die and roller is twice that of ordinary products, reducing maintenance costs.

(3) Environmental protection and energy saving: There is no SO₂ emission during the production process, and the ash after combustion can be used as organic fertilizer, achieving cleanliness throughout the entire life cycle.

(4) Multifunctional adaptability: It can process a variety of raw materials such as wood chips and straw to meet the energy needs of the sugar factory itself and surrounding residents.

3. Application scenarios of dried bagasse biomass pellet processing equipment

(1) Main sugarcane producing areas and their surrounding areas (core raw material oriented)

The core advantage of this type of location is the convenient access to raw materials and extremely low cost, which is the area where the equipment is most concentrated. Application logic: Sugar mills produce a large amount of sugarcane bagasse waste every year. The equipment can be directly connected to the sugar mill to recycle raw materials. The processed pellets can be used for the sugar mill's own boilers (replacing coal) and can also be sold to surrounding markets, greatly reducing the cost of raw material transportation. Typical scenario: Sugar mills build supporting small pellet processing plants to jointly participate in raw material recycling and processing.

(2) Areas with clean fuel demand (end demand oriented)

The core of this type of location is that there is a clear fuel gap or environmental protection requirements. The pellets produced by the equipment can directly meet local demand. Specific locations: rural areas with high heating demand, small and medium-sized industrial clusters with high environmental protection requirements (such as food processing parks, textile industrial parks), and the surrounding areas of biomass power plants. Application logic: Northern rural areas need to replace loose coal to achieve clean heating, and industrial clusters need low-pollution fuels to meet environmental protection standards. The pellets produced by the equipment can be directly used as fuel for local heating, industrial boilers, and power generation in power plants, realizing "local production and local consumption."

(3) Agricultural Circular Economy and Specialized Industry Scenarios (Resource Reuse-Oriented)

Application Logic: Planting bases can crush the pellets and use them as seedling substrates or organic fertilizer raw materials, reducing agricultural production costs; board mills and activated carbon plants can use the pellets as production auxiliary materials, replacing traditional raw materials such as wood and coal, in line with the concept of green production.

Typical Scenario: Organic fertilizer plants purchase small equipment to mix sugarcane bagasse pellets with livestock and poultry manure for composting; board mills install processing lines to crush the pellets and use them for board pressing.

2标题

TONY Brand 4-5Ton/Hour Dried Bagasse Pellet Manufacturing Plant can take dried bagasse as the main raw material. After pretreatment and processing, it is solidified into high - density Bagasse pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in bagasse resources.

1. Capacity: 4-5 Ton/Hour

2. Raw materials: Dried bagasse

3. Moisture: dried type, about 10-15%.

4. Application: All kinds of bagasse materials suitable for pellet production.

Suitable customers: Sugarcane processing factories are the direct output of bagasse, such as sugar mills, sugarcane ethanol factories, sugarcane pulping factories, etc.; centralized storage and transit places, such as sugar mills, ethanol factories, agricultural product processing parks, where multiple sugarcane processing factories often gather to form a park. The storage and transit areas of bagasse are uniformly planned within the park, and the resource concentration is extremely high.and other places where bagasse raw materials have advantages

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3标题


原材料--成品图

1. Project Name: Dried Bagasse Pellet Production Line

2. Raw Material: All kinds of dried bagasse

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 4-5 tons per hour

5. Process: Fine Crushing Process -  Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:  Effective Hammer Mill-TFD75*132-132,  TONY Pellet Machine- TYJ860-Ⅲ-280KW galvanized pellets cooler, Semi-automatic Packing Machine and Belt Conveyors

4标题

流程图1

流程图

5标题

原材料+颗粒图

颗粒+机器图

三维图

三维图

三维图

5.1标题

高效粉碎机

带锯末图

1.Bagasse Fine Crushing Process:

A.This process is mainly used to crush larger bagasse into 8-14mm bagasse.

B.Capacity:4-5 Ton/Hour.

C.TONY brand effective hammer mill TFD75*132-132KW*1set

Main Parts:

(1) TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3) Sawdust Transportation Fan Blower.

(4) Cyclone With Airlock.

(5) Electrical Cabinets.

5.2标题

颗粒机四件套带 原材料，颗粒图

2.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:4-5Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-280kw*1 set

Main Parts:

(1)TONY's new Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4) Electrical Cabinets.

5.3标题

镀锌冷却仓加颗粒图

3.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:4-5 Ton/Hour.

C.TONY brand galvanized pellets cooler *1 set

Main Parts:

(1)TONY's new Galvanized Pellets Cooler With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3) Fan Blower.

(4)Connect Pipes.

5.4标题

包装机

4.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:4-5Ton/Hour.

C.TONY  brand semi-automatic packing machine*1 set

Main Parts:

(1)TONY Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6标题

客户生产案例图

7标题

图 干甘蔗渣+颗粒 颗粒机

1. Bagasse Biomass Pellet Processing Project Overview: Bagasse offers significant advantages as a biomass pellet raw material. Its widespread cultivation and high calorific value (approximately 4,000 kcal) make it a high-quality raw material for biomass pellet processing. This project not only achieves efficient resource utilization but also has promising market prospects and economic benefits. Bagasse can be widely used in heating, household stoves, hot water boilers, industrial boilers, and other applications, replacing traditional fuels such as firewood and coal.

2. Market Prospects: Product Features: Molded bagasse biomass pellets have a high specific gravity, are compact, and are non-flammable, making them easy to store and transport. They have a wide range of applications and strong demand:

In the industrial sector, many industrial boilers, kilns, and other equipment are increasingly using bagasse biomass pellets as a fuel to replace traditional fossil fuels such as coal, reducing production costs and environmental pollution. Demand for these pellets continues to grow.

In the heating sector, especially in winter, the demand for clean energy is particularly urgent. Bagasse biomass pellets, due to their environmental and high efficiency, are an ideal alternative to traditional coal, with stable market demand. In addition, the application of bagasse biomass pellet fuel in areas such as household hot water supply and agricultural greenhouse heating is also gradually expanding, driving the growth of market demand.

8标题

干甘蔗渣图 颗粒图

1Environmental characteristics

(1) Low pollution emissions: The sulfur and phosphorus content during combustion is extremely low, and the concentration of SO₂ and NOx in the flue gas is much lower than that of coal. It will not produce acid rain, and CO₂ emissions are zero (because plants absorb CO₂ during their growth).

 (2) Ash utilization: The ash after combustion is rich in organic potassium and can be recycled as a high-efficiency organic fertilizer.

2. Economic benefits

(1) Wide range of raw material sources: Sugarcane bagasse is the remaining part after sugarcane juice is squeezed, and millions of tons can be produced each year. The production cost of pellets is lower than that of traditional fossil fuels.

(2) Substitution benefits: Replacing coal can save about 20% to 30% of fuel costs.

  3. Wide range of application scenarios

(1) Industrial application: Widely used in boiler heating, power generation and industrial production, such as textile factories, food factories, etc.

(2) Civil heating and living energy: Sugarcane bagasse pellets have high combustion efficiency, are easy to store and use, and are safe and hygienic.

(3) Biomass industrial boilers: As the main fuel for industrial boilers, it replaces coal, heavy oil and natural gas to solve environmental pollution problems.
