1. The working principle of wet wood log biomass pellet processing equipment

The core principle of wood pellet processing equipment (such as wood chip pellet machines) is to convert biomass feedstock into high-density pellet fuel through mechanical extrusion. The basic process includes three steps: feedstock pretreatment (crushing, drying, and screening), mechanical pressing, and finished product processing (cooling and packaging). For example, in a ring die pellet machine, a motor connected to a reducer via a coupling drives the ring die to rotate. Gravity forces the feedstock into the pressing zone, where the pressing rollers squeeze the material into the ring die holes. After being formed in the die, the pellets are cut into pellets of a fixed length by a cutter

2. Characteristics of wet wood log biomass pellet processing equipment

(1) High degree of automation, reducing manual intervention

The PLC control system is used to link the crushing, tempering, molding, cooling and other links, and automatically adjust the feed amount, pressure wheel speed and other parameters according to the moisture and hardness of the raw materials, reducing production interruptions caused by fluctuations in the characteristics of wet materials.

Equipped with an automatic mold cleaning device, when the mold is detected to be blocked, it can automatically reverse the pressure wheel or spray a release agent to reduce the frequency of shutdowns for cleaning.

(2) Balance between energy consumption and adaptability, taking into account both efficiency and cost

Compared with equipment that processes dry materials, wet material processing equipment consumes slightly more energy (because it needs to overcome the viscosity and moisture resistance of the wet material), but it eliminates the need for a separate drying step (or significantly reduces drying energy consumption), and the overall energy consumption may be lower (especially when the moisture content of the raw materials is extremely high).

It has strong adaptability to raw materials and can not only process wet wood, but also mix and process other high-moisture biomass (such as straw, sugarcane bagasse, etc.), making it suitable for small and medium-sized processing plants with complex raw materials.

3. Application scenarios of wet wood log biomass pellet processing equipment

It can be used for home heating and cooking (through devices like pellet fireplaces and pellet stoves). It's simple and clean to operate, replacing traditional coal and firewood to improve the indoor environment.

(1)Industrial Use:It can be used as a boiler fuel to provide steam or hot water for factories, hotels, hospitals, and more. In agriculture, it can be used for greenhouse heating and drying agricultural products (such as grains and medicinal herbs).

(2) Power Generation: It can be used as a fuel in biomass power plants, either mixed with coal or burned alone to generate electricity, contributing to the transformation of the energy structure.

TONY Brand 80-100Ton/Hour Wet Wood Log Pellet Manufacturing Plant can take wet wood, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with wet wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity:80-100Ton/Hour

2. Raw materials: Wet wood log , branches, small - diameter logs, twigs, etc.

3. Moisture: Wet type, about 40%.

4. Application: All kinds of wood - based biomass materials suitable for pellet production.

Suitable customers: Green energy companies, forestry enterprises, and private wood - processing workshops that have advantages in wood raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Log Pellet Production Line

2. Raw Material: All kinds of wet wood Log

3. Moisture Content of Raw Material: 40%

4. Capacity: 80-100 tons per hour

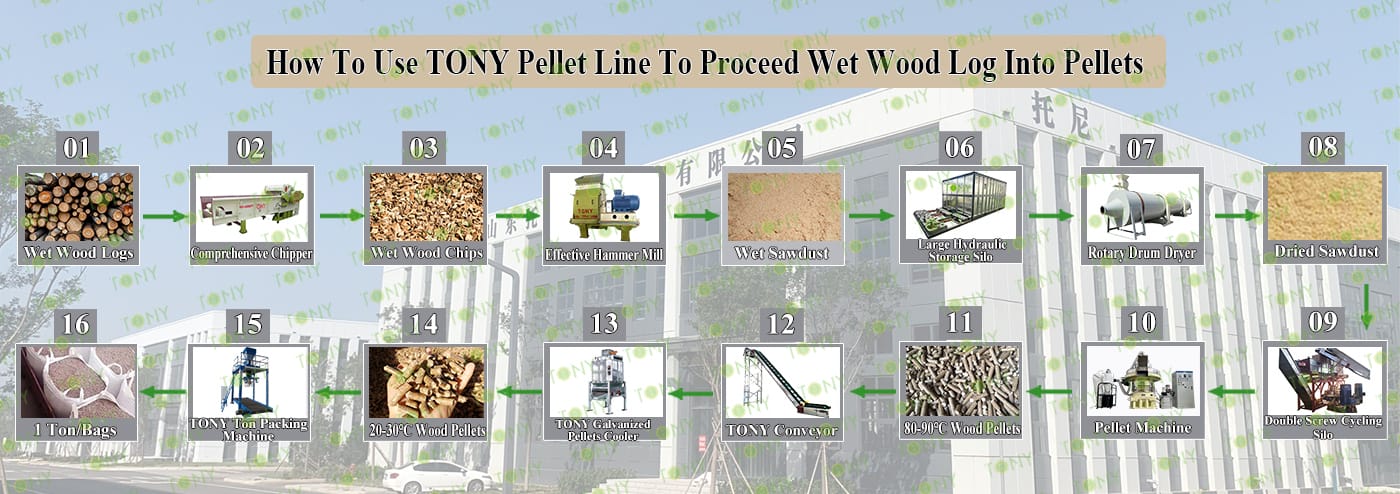

5. Process: Crushing Process - Fine Crushing Process -Sawdust Storage Process- Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1800-500KW, Effective Hammer Mill-TFD1600-500KW, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-3.5*24m, TONY Pellet Machine TYJ860-Ⅲ-280KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Large Hydraulic Storage Silo	Rotary Drum Dryer
1.To Grind Wood Logs φ ≤40cm Into25-55mm Wood Chips.   2.Model: TPC1800-500KW With 6 Blades*3sets   3.Capacity:80-100 Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD1600-500KW*6sets 3.Capacity: 14-17Ton/Hour/Set	1.To Storage Sawdust Before Dryer Control Sawdust Flow Entering The Dryer 2.Model: TCY-45*6sets 3.TONY Uses Galvanized Material	1.To Dry The 40% Sawdust Into 10-15% Sawdust. 2.Model: THGD3.5*28*6sets 3.Capacity: 14-17Ton/Hour/Set

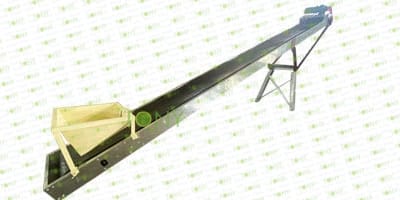

Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine	Belt Conveyor
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*20sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*6sets 3.Capacity:80-100Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags. 2.Model: TBD* 6sets 3.Capacity: 80-100 Ton/Hour	1.To Transport Wood Chips,Sawdust,Pellets. 2.Width: 80cm*40sets 3.Capacity:Designed With The Whole Line

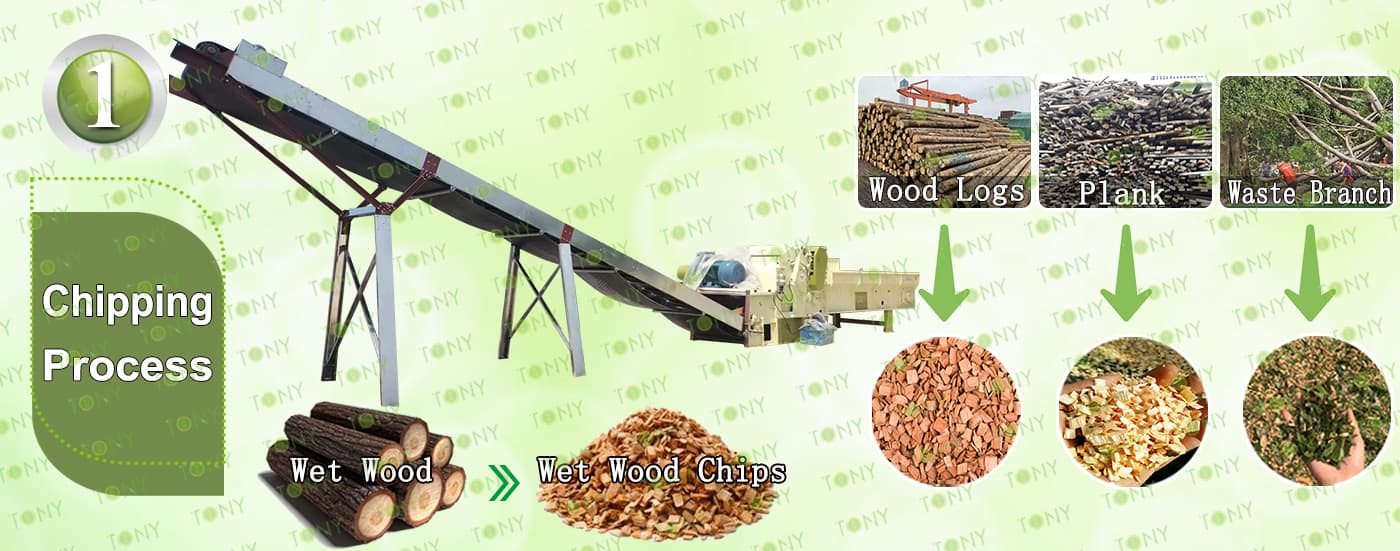

1.Wood Chipping Process：

A.This process is mainly used to grind the wood logs whose diamater is under 40cm into wood chips with size 25-55mm. The finish wood chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY brand comprehensive chipper TPC1800-500kw model with 6 flying blades type:

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

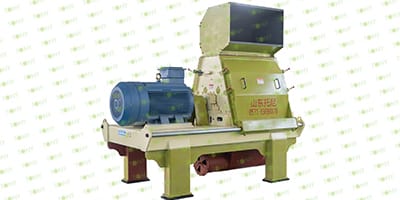

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:80-100Ton/Hour.

C.TONY effective hammer mill TFD1600-500KW*6Sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

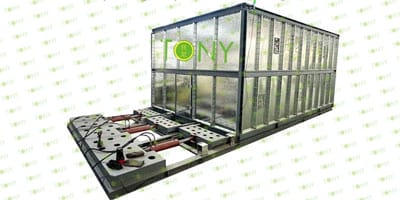

3.Sawdust Storage Process:

A. This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B. The customer chooses one TONY Brand Sawdust Storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust Blocked.

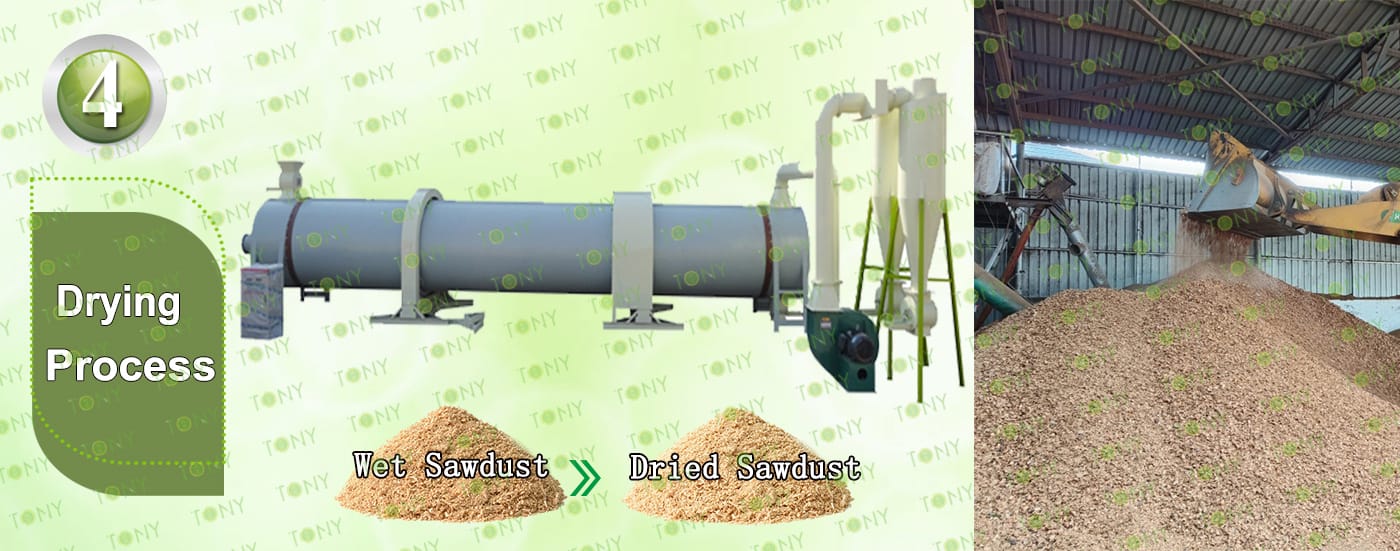

4.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity: 80-100 Ton/Hour.

C.TONY use 6 sets of 3.5*28 m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

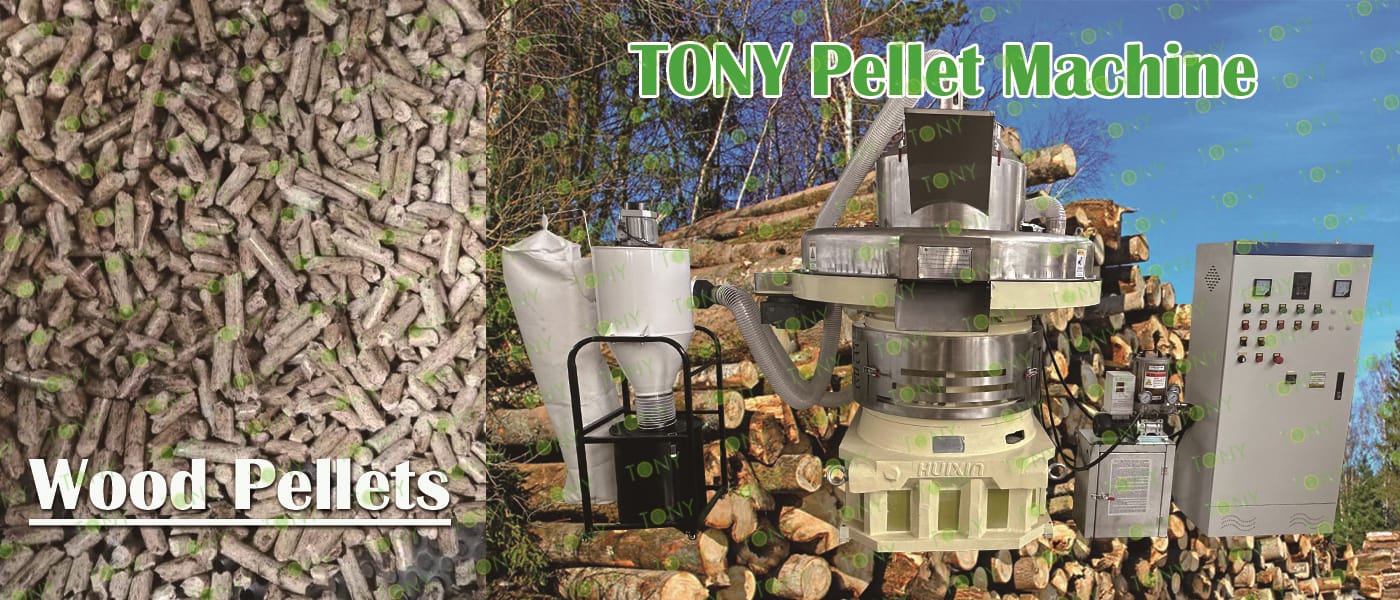

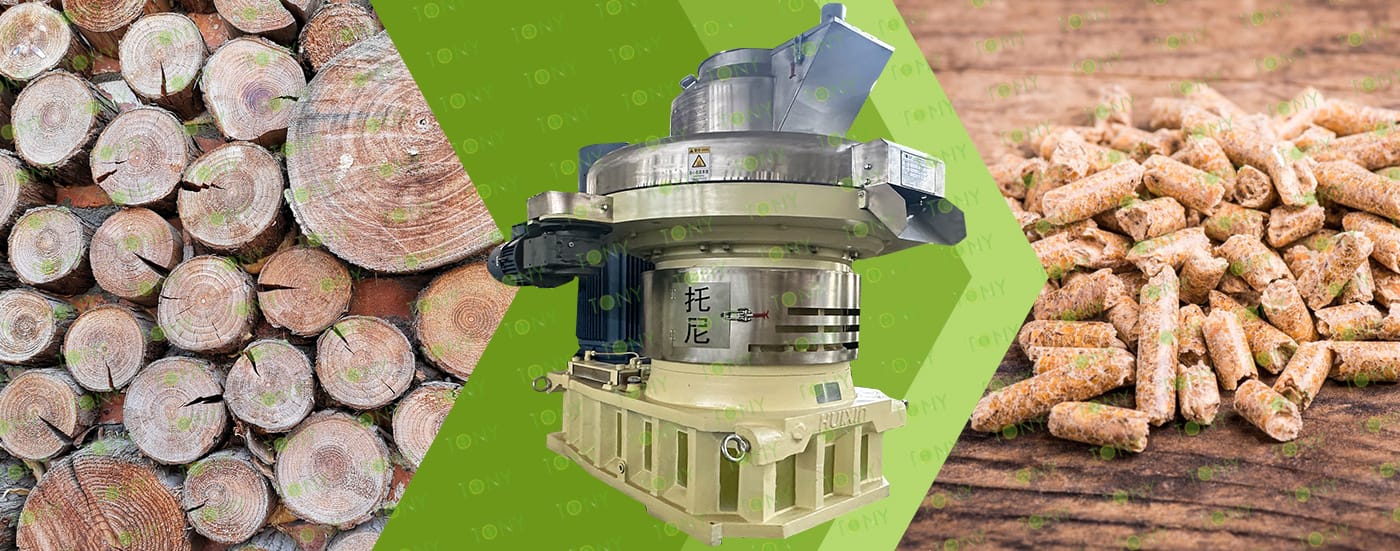

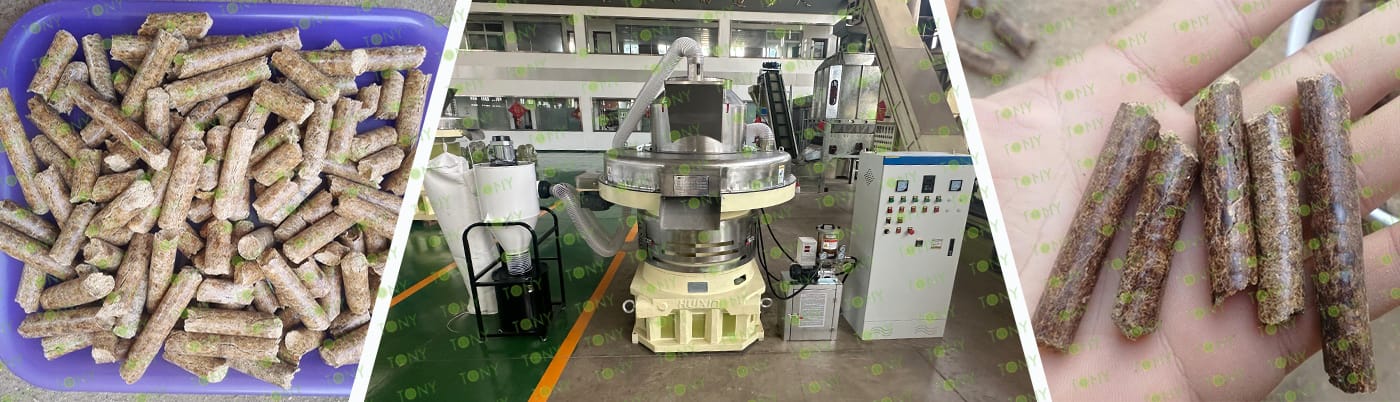

5.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:80-100Ton/Hour.

C.TONY Brand Vertical Ring Die Pellet Machine TYJ860-III-280KW*20 sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's new Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

6.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.6 sets of TONY galvanized cooler separator

Main Parts:

(1)TONY's New Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

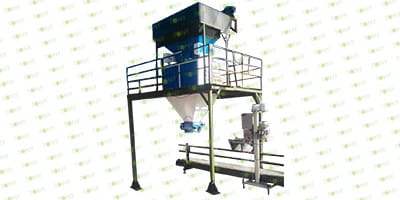

7.Packing Process:

A.This process is mainly used to pack pellets into 1ton/Bags.

B.6 sets of TONY ton packing machine

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

Project Market Analysis

1. Market Demand

(1) Industrial sector: With the increasingly stringent environmental protection policies, many industrial enterprises (such as food factories, chemical plants, textile factories, etc.) are restricted in the use of traditional high-pollution fuels (such as coal), and are in urgent need of finding clean and efficient alternative energy sources. Wood pellets, as an ideal biomass fuel, have similar combustion characteristics to coal, but significantly reduce pollutant emissions, can meet the heating needs of industrial boilers, and have relatively low operating costs. Therefore, the market demand in the industrial sector continues to grow.

(2) Civilian sector: In terms of winter heating and rural living energy consumption, wood pellets are gradually gaining favor among consumers due to their environmental protection and economic characteristics. Compared with traditional coal heating, using wood pellets for heating can not only reduce indoor air pollution and improve the living environment, but also effectively reduce heating costs. In addition, with the continuous improvement of people's environmental awareness, the pursuit of a green and healthy lifestyle has also led to a continuous increase in the demand for wood pellets in the civil market.

(3) Biomass power generation sector: As an important renewable energy power generation method, biomass power generation has developed rapidly with the support of national policies. As a high-quality fuel for biomass power generation, wood pellets offer stable calorific value and high combustion efficiency. This improves power generation efficiency, reduces costs, and provides a reliable fuel source for biomass power generation companies. Consequently, demand for wood pellets in the biomass power generation sector has been increasing year by year.

2. Market Supply

Currently, the wood pellet market primarily comes from small and medium-sized processing companies and individual operators. While there are a large number of manufacturers in the market, their overall scale is relatively small, their production equipment and technical levels vary, and product quality varies significantly. Limited production scales hinder some companies from meeting large-scale market demand. Meanwhile, some companies employ outdated production processes, resulting in pellets with low calorific value and high ash content, failing to meet the demands of the high-end market. Therefore, while overall production capacity can meet certain market demands, the supply of high-quality, stable products is relatively insufficient, creating market opportunities for new entrants.

Wood pellets are solid fuels made from wood processing waste (such as wood chips, sawdust, and shavings) through crushing, drying, and extrusion. Their main characteristics and advantages are as follows:

Core Characteristics

1.Stable Physical Form

They are regular cylindrical pellets (typically 6-10 mm in diameter and 20-50 mm in length) with a high density (approximately 1.1-1.3 tons/cubic meter). They are significantly more compact than raw wood chips (which have a density of only 0.1-0.2 tons/cubic meter), making them easier to store, transport, and meter. They are also less prone to moisture absorption and agglomeration.

2.Single Composition and Stable Combustion

Mainly composed of wood cellulose, they contain no impurities such as gangue and sulfur. They produce a stable flame, high thermal efficiency, and low ash content (typically less than 1%) during combustion, minimizing wear and tear on combustion equipment.

3.Easy to ignite and good flame control.

Compared to fuels like coal and biomass briquettes, wood pellets have a lower ignition point (approximately 200-250°C) and ignite quickly. The combustion intensity can be precisely controlled by adjusting the feed rate, making them suitable for automated combustion equipment (such as pellet stoves and boilers).

4.Excellent environmental performance.

A renewable energy source, the carbon dioxide released during combustion is essentially balanced by the carbon dioxide absorbed during the tree's growth, achieving "carbon neutrality." Furthermore, sulfur and nitrogen emissions are extremely low (far lower than coal), meeting environmental emission standards.
