1. The working principle of dried wood pallets biomass pellet processing equipment

The overall principle of wood pallet pellet processing equipment is essentially to transform "irregular, high-impurity, high-moisture" waste wood pallets into "regular, impurity-free, high-density, and easy-to-store" biomass pellets through the continuous physical processing of "dismantling and impurity removal → crushing and volume reduction → crushing and refinement → drying and moisture control → high-temperature and high-pressure molding → cooling and stabilization." No chemical agents are added throughout the process, and molding is achieved by relying on the adhesiveness of the wood's own fibers. This not only solves the problem of environmentally friendly disposal of wood pallet waste, but also achieves resource recycling (the pellets can be used as fuel, feed carrier, etc.)..

2. Characteristics of dried wood pallets biomass pellet processing equipment

(1) The wood pallet pellet processing equipment is highly efficient and low-consumption, and can quickly process biomass raw materials into fuel pellets, significantly improving production efficiency.

(2) The biomass pellet machine has strong material adaptability and is suitable for molding various biomass raw materials. The pellet machine is equipped with molds of various specifications, and the corresponding molds can be selected for processing according to different biomass raw materials, which enhances the adaptability of processing.

(3) The wood pallet biomass pellet processing equipment has a mature design, and the finished pellets are stably molded, with stable output and excellent quality.

(4) The biomass pellet processing equipment is simple to operate, easy to use, highly automated, requires less labor, effectively reduces labor intensity, and increases output.

3. Application scenarios of dried wood pallets biomass pellet processing equipment

(1) Civilian solid fuel: Wood pallet pellet fuel has a high utilization rate, is easy to store and use, is hygienic and safe, and can be used for home heating.

(2) Main solid fuel for industrial boilers: It can replace raw coal, heavy oil, and gas, reducing air pollution. Every 10,000 tons of biomass fuel burned can replace 7,000 tons of standard coal, reducing sulfur dioxide emissions by 165 tons, smoke emissions by 80 tons, and carbon dioxide emissions by 14,400 tons.

(3) Thermal power generation: The fuel calorific value can reach 3,400-6,000 kcal.

In short, wood pallet biomass pellet fuel can be described as "environmentally friendly", "energy-saving", "renewable", and "zero-carbon emission". It is the best renewable energy source to replace coal. From the perspectives of cost, energy saving, and environmental protection, biomass fuel is a better alternative to coal.

TONY Brand 80-100Ton/Hour Dried Wood Pallets Pellet Manufacturing Plant can take dried wood pallets, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings. After pretreatment and processing, dried wood pallets is solidified into high - density wood pellet fuel.The content of pollutants such as sulfur dioxide and nitrogen oxides produced by biomass pellets during combustion is extremely low, and the dust emission is also low, which can effectively reduce air pollution. Moreover, the raw material sources of biomass pellets are very wide, and the combustion efficiency is high. Compared with traditional fossil energy, it reduces the production and use costs and has higher economic efficiency. It has received a lot of attention and promotion.

1. Capacity: 80-100 Ton/Hour

2. Raw materials: Dried wood pallets

3. Moisture: Dry type, about 10-15%.

4. Application: All kinds of  waste wood pallets or more waste wood raw materials

Suitable customers: Logistics and warehousing companies, various manufacturing plants, ports and airports, construction sites, large supermarkets and shopping malls, and other places where waste wood pallets have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Dried Wood Pallets Pellet Production Line

2. Raw Material: All kinds of dried wood pallets

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 80-100 tons per hour

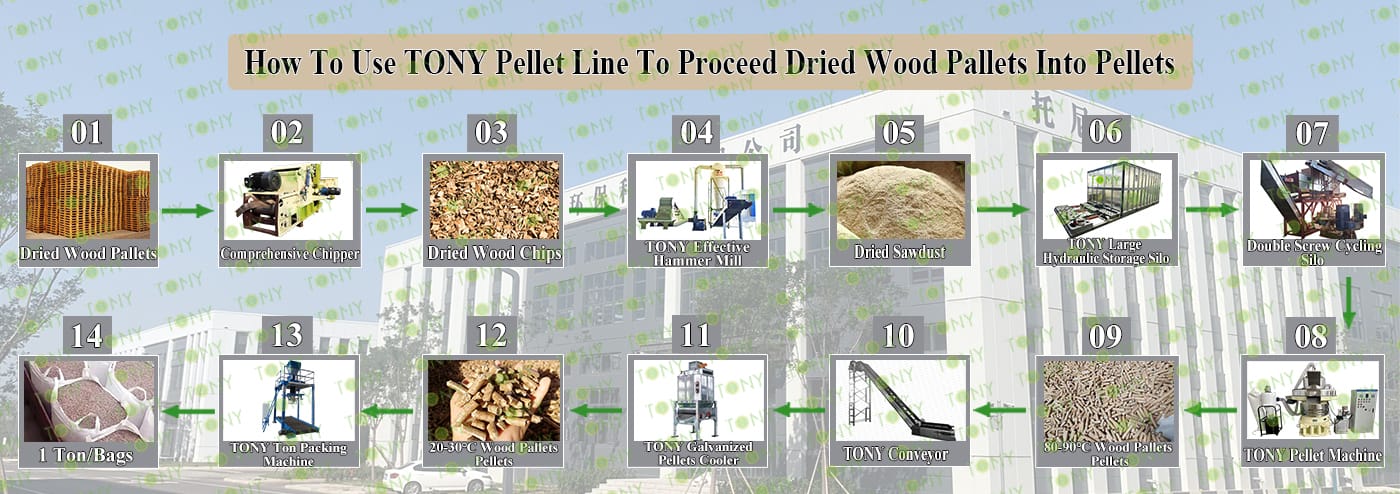

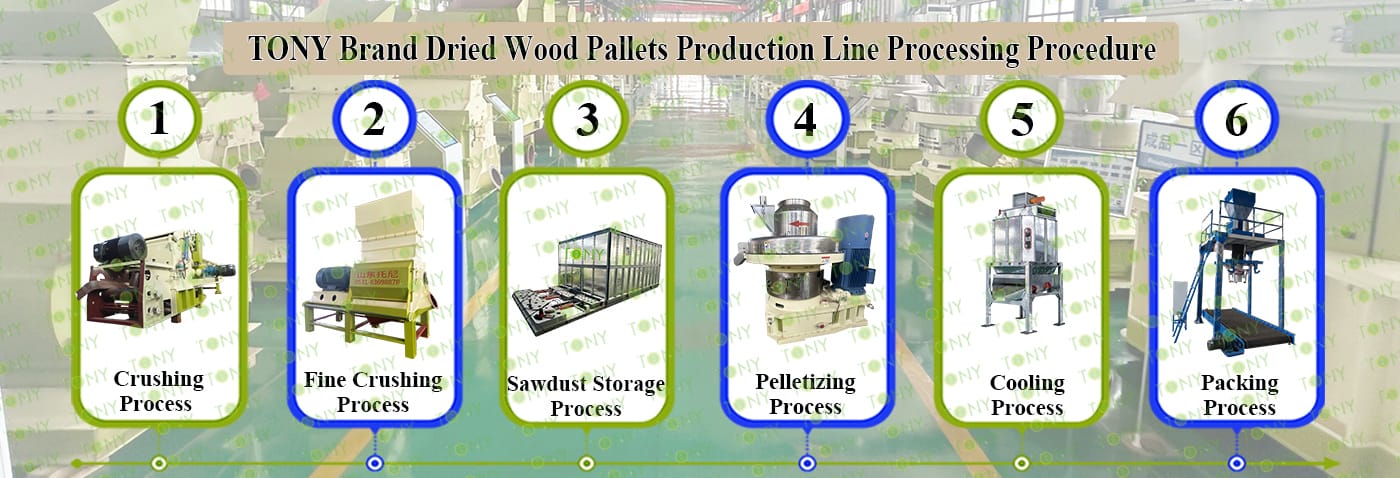

5. Process: Crushing Process - Fine Crushing Process -Sawdust Storage Process- Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1800-500KW, Effective Hammer Mill-TFD1600-500KW, TONY Large Hydraulic Storage Silo,TONY Pellet Machine TYJ860-Ⅲ-280KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Large Hydraulic Storage Silo
1.To Grind Wood pallets Width  ≤1.8m Into25-55mm Wood Chips.   2.Model: TPC1800-500KW With 32 Hammer Heads*3sets  3.Capacity: 80-100Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD1600-500KW*6sets 3.Capacity: 14-17Ton/Hour/Set	1.To Storage Sawdust Before Pellet machine 2.Model: TCY-45*6sets  3.TONY Uses Galvanized Material
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*20sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*6sets 3.Capacity:80-100Ton/Hour	.To Pack Pellets Into 1Ton/Bags. 2.Model: TBD*6sets 3.Capacity: 80-100Ton/Hour

1.Wood Pallets Chipping Process:

A. This process is mainly used to grind wooden pallets with nails less than 1.8 m  in width into wood chips with a size of 25-55 mm. The final size of the wood chips can be adjusted by replacing the screen with different sizes and replacing or adjusting the hammer heads with different specifications.

B.TONY brand comprehensive chipper TPC1800-500KW model with  32 hammer heads*3sets

C.Capacity:80-100Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

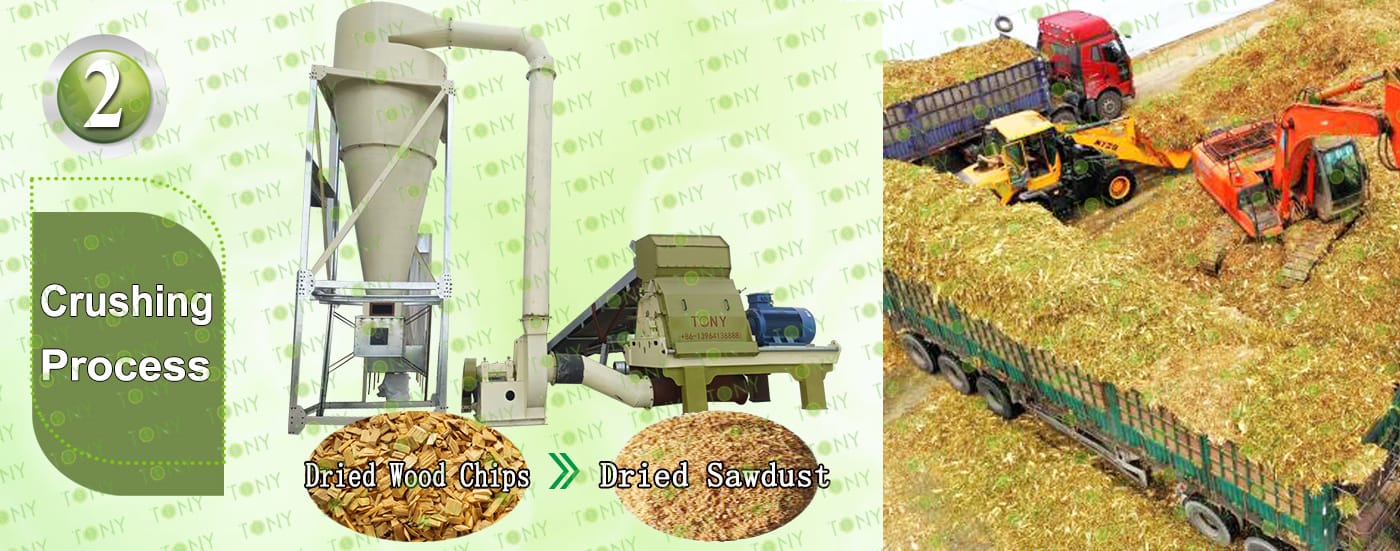

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:80-100Ton/Hour.

C.TONY brand effective hammer mill TFD1600-500KW*6sets

Main Parts:

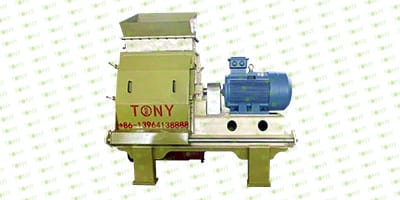

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

3.Sawdust Storage Process:

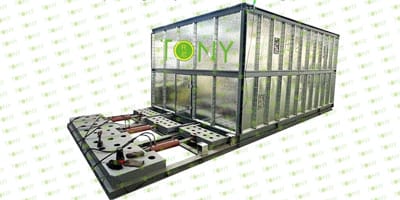

A. This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B. TONY brand sawdust storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust blocked.

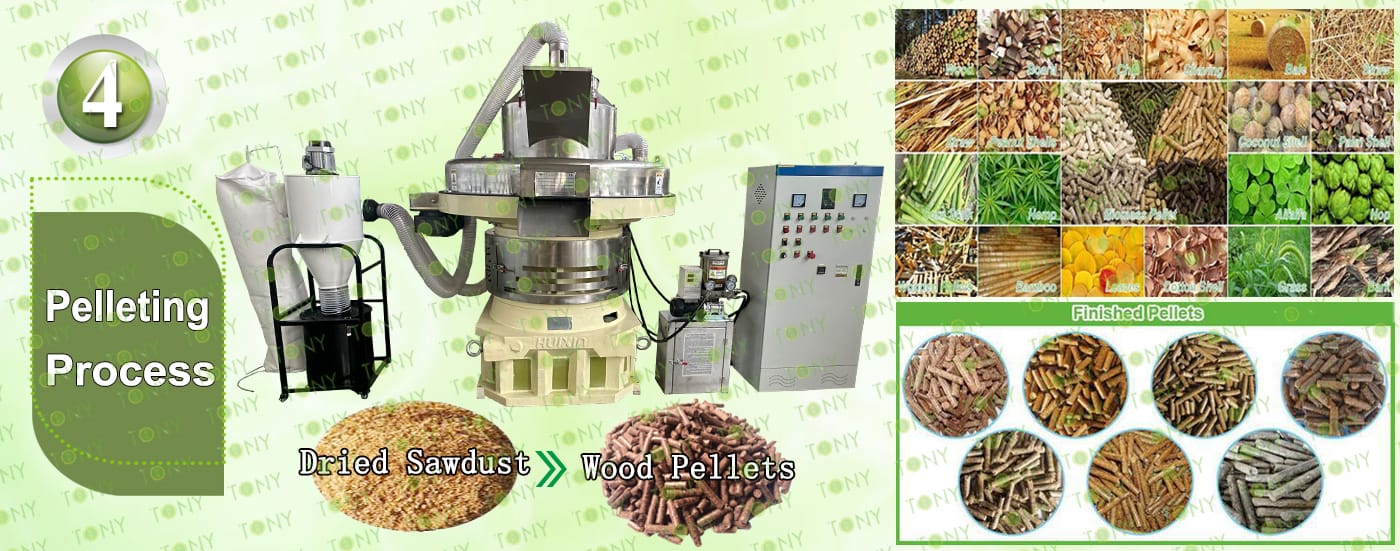

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:80-100Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-Ⅲ-280KW*20sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

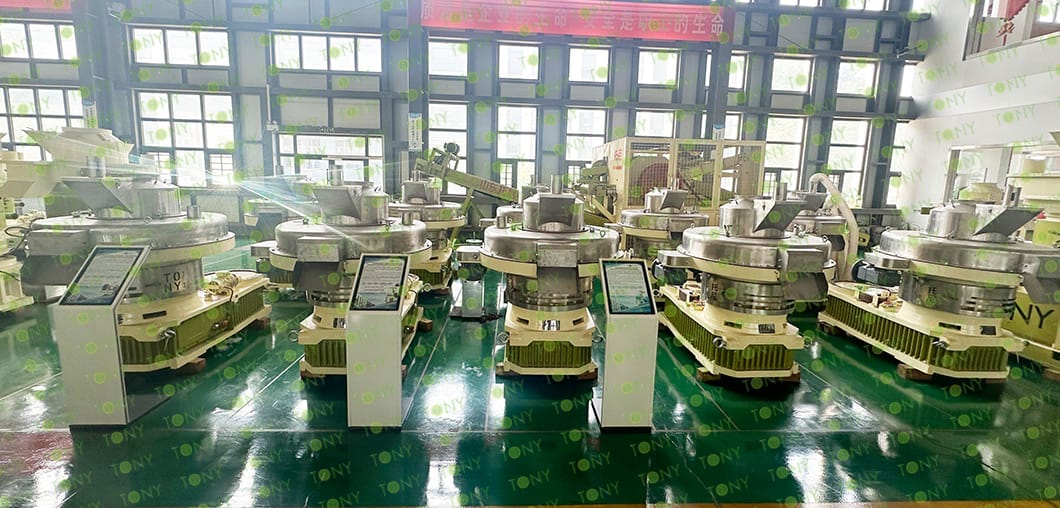

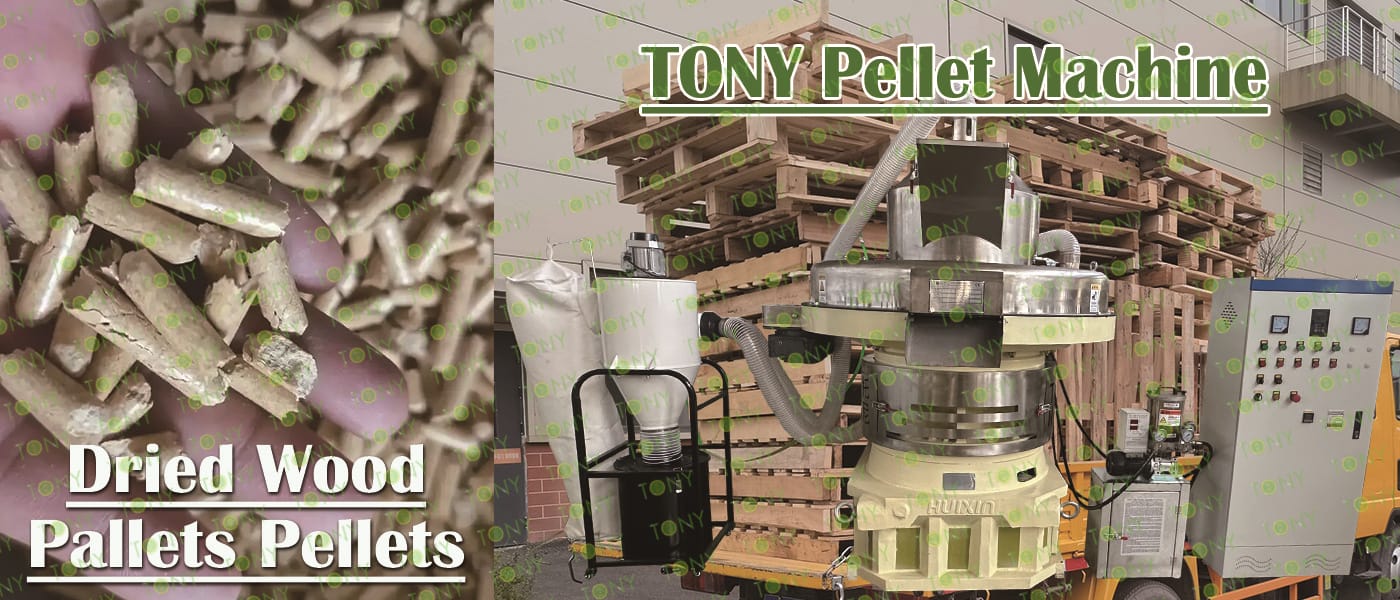

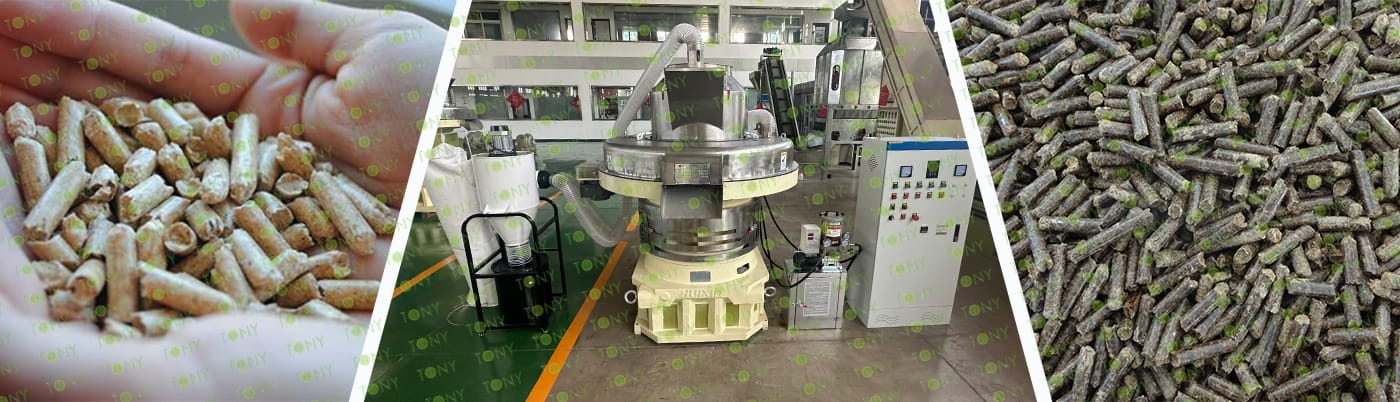

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity: 80-100Ton/Hour.

C.TONY brand galvanized cooler seperator*6sets

Main Parts:

(1)TONY's Galvanized Cooler Seperator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

6.Packing Process:

A.This process is mainly used to pack pellets into 1ton/bags.

B.6 sets of TONY ton packing machine

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

How to ensure the stability and sustainability of the raw material supply chain for pallet pellet projects?

Dry pallets are the core raw material, and their supply stability directly determines the life and death of the project. Raw material sustainability must be achieved through "multiple channels + resource expansion + cost lock-in":

1. Establish a diversified recycling network to avoid single dependence

(1) Sign long-term recycling agreements with local and surrounding logistics parks, manufacturing factories, and e-commerce warehousing companies (such as waste wooden pallets in the home appliance, furniture, and machinery industries), clarify the recycling price, frequency, and quality standards (such as no mold, no heavy metal pollution, no chemical coating), and avoid the interruption of raw material supply due to the loss of a single customer.

(2) Expand "supplementary raw material" channels: If the supply of some pallets is insufficient, other agricultural and forestry waste (such as sawdust, straw, and branches) can be used in combination. By optimizing the formula (such as dry pallet fragments accounting for 60%-80%, mixed sawdust improves formability), the dependence on a single raw material can be reduced, while meeting the raw material standards of biomass pellets.

2. Control raw material costs and transportation radius

(1) Raw material transportation costs usually account for 15%-25% of the total cost. The recycling radius needs to be controlled within 50-100 kilometers (adjusted according to the regional raw material density) to avoid long-distance transportation resulting in excessive costs.

(2) Agree on a "tiered price" with raw material suppliers: when the monthly recycling volume reaches a certain scale, give price discounts; or sign a "long-term fixed price agreement" to avoid the cost risks brought by fluctuations in wood raw material prices (such as the increase in pallet recycling prices during the peak season).

3. Establish a raw material reserve and pretreatment system

(1) Build a standardized raw material warehouse (ventilated, moisture-proof, and fire-proof) to reserve at least 1-2 months of raw material consumption to cope with the surge in demand during the peak season or sudden recycling interruptions (such as factory shutdowns and epidemic control).

(2) Add a "sorting + impurity removal" process in the pretreatment stage: remove impurities in the dry pallet by manual or mechanical means (such as magnetic separators to remove nails, vibrating screens to remove mud and sand) to avoid damage to subsequent pelletizing equipment and improve the purity of pellet fuel (reducing ash content).

1.Environmentally friendly features

(1)Low pollution emissions:

The sulfur and phosphorus content during combustion is extremely low, and the concentration of SO₂ and NOx in the flue gas is much lower than that of coal. It will not produce acid rain, and CO₂ emissions are zero (because plants absorb CO₂ during growth)

(2)Ash utilization:

Ashes after combustion are rich in organic potassium and can be recycled as high-efficiency organic fertilizer

2.Economical

(1)Wide range of raw materials:

Waste such as wood processing waste and crop straw can be used, and the production cost is lower than traditional fossil fuels.

(2)Substitution benefits:

Replacing coal can save about 20% to 30% of fuel costs

3.Wide range of application scenarios

(1)Industrial applications:

Widely used in boiler heating, power generation and industrial production, such as textile factories, food factories, etc.

(2)Civil heating and living energy:

Wood pellets have high combustion efficiency, are easy to store and use, and are safe and hygienic.

(3)Biomass industrial boiler:

As the main fuel for industrial boilers, it replaces coal, heavy oil and natural gas to solve environmental pollution problems.
