Project Brief Introduction:

1.Product:Dried Wood Pallets Pellet Line

2.Capacity: 2.8-3.2T/Hour

3.TONY Brand 2.8-3.2 Ton /HourDried Wood Pallets Pellet Line Project Process

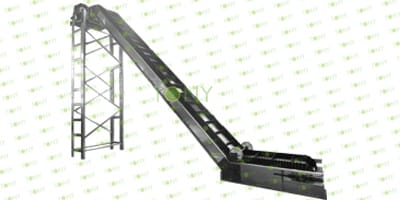

4.Main Machine: Comprehensive Chipper,Hammer Mill, TONY Pellet Machine TYJ760-III-185KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 400 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M（根据实际写）

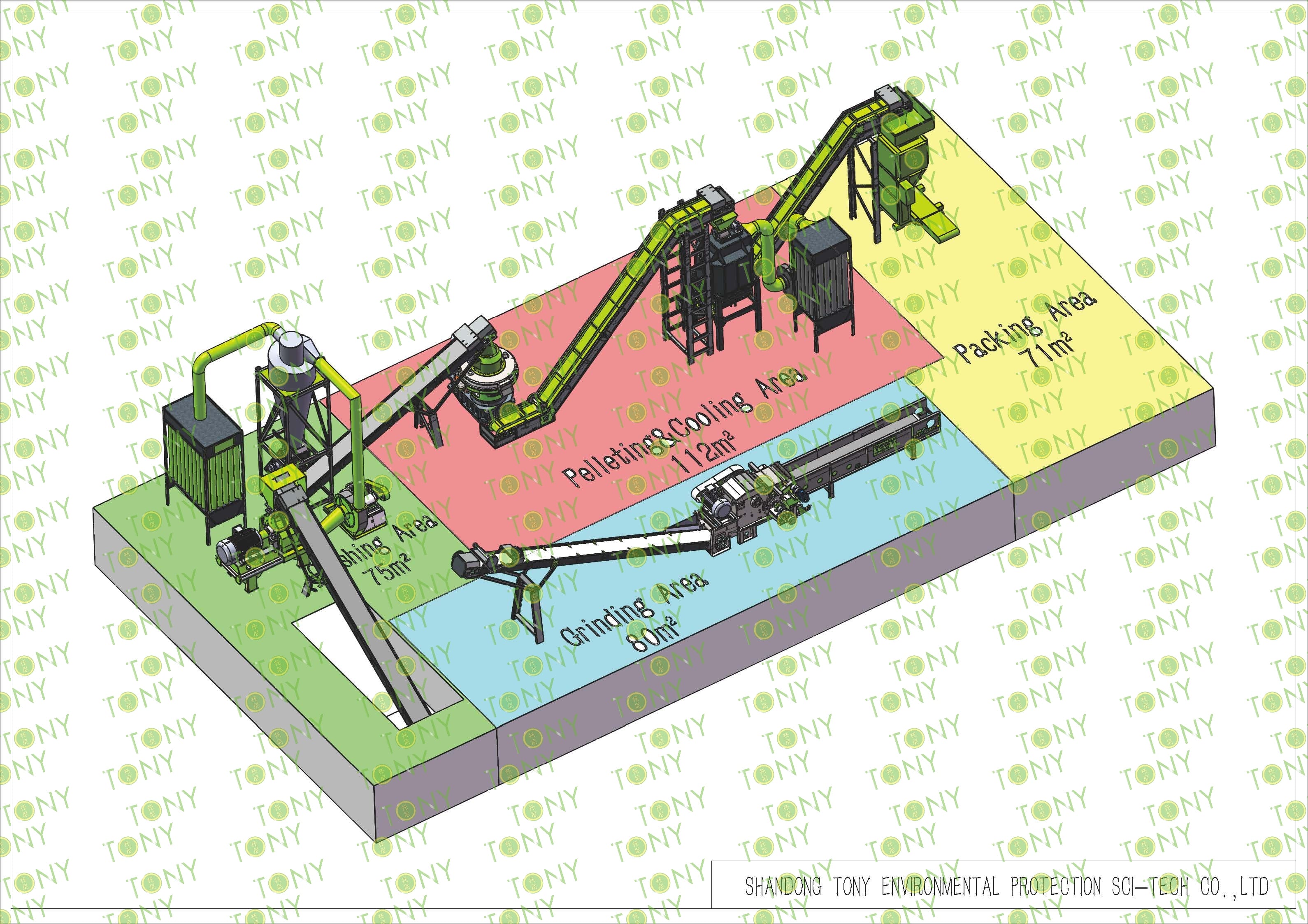

Project Layout For Customer:

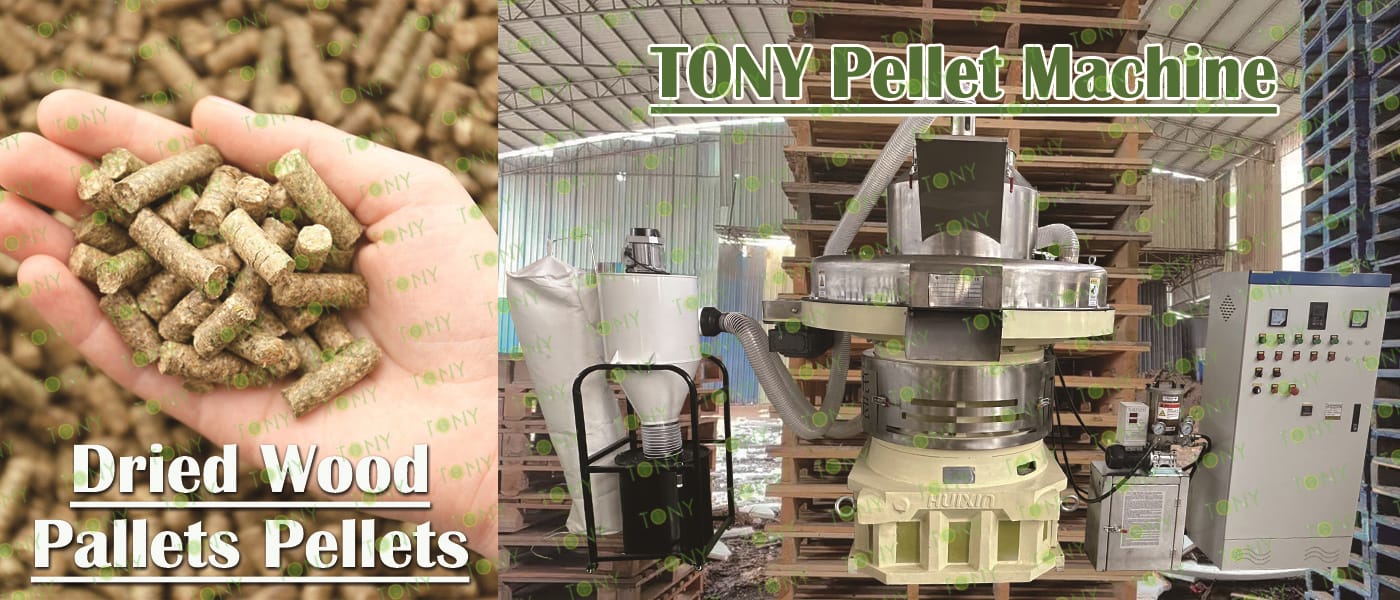

原材料图+颗粒机图片

1. The working principle of dried wood pallets biomass pellet processing equipment

The operating principle of the dry wood pallet biomass pellet processing equipment is centered around a three-stage process: "raw material conversion - forming and processing - finished product optimization," achieving efficient conversion of discarded dry wood pallets into biomass pellets. The first stage involves raw material pretreatment: a nail removal device removes the metal connectors of the dry wood pallets. The pallets are then crushed into coarse wood chips using a crusher, and then refined using a grinder.

The core stage is the extrusion molding process: qualified fine powder is fed into the pelletizer via a screw conveyor. It is first enhanced in a conditioner before entering the "ring die-pressing roller" system. The rollers rotate against the ring die, forcing the raw material into the die holes. High pressure and friction generate heat, softening the lignin (a natural binder), resulting in cylindrical pellets that are then cut into fixed-length pellets by a cutter.

Finally, the finished product is processed: the hot pellets enter a cooler, where they are cooled to room temperature. They are then screened through a vibrating screen to remove debris and fines, resulting in qualified biomass pellets, completing the entire process.

2. Characteristics of dried wood pallets biomass pellet processing equipment

The dry wood pallet biomass pellet processing equipment offers distinctive features and strong adaptability. It can process discarded dry wood pallets with metal connectors. Specialized nail removal and wear-resistant crushing equipment remove impurities and break up the board, eliminating the need for complex sorting.

It prioritizes the quality of the finished product. The pelletizer's "ring die-pressing roller" high-pressure forming method ensures stable calorific value and resists cracking and loosening.

The equipment features a high degree of automation, multi-step assembly line operation, and a PLC control system for automatic parameter adjustment. It is environmentally friendly and energy-saving, reducing energy consumption. It also includes a dust collection device to reduce pollution. Its core components are durable and have low maintenance costs.

3. Application scenarios of dried wood pallets biomass pellet processing equipment

Dry wood pallet biomass pellet processing equipment has a wide range of applications, covering environmental protection and energy needs across multiple sectors. In the industrial sector, the pellets produced can replace coal and natural gas as fuel for boilers and hot air furnaces in the food processing, chemical, and building materials industries, helping companies reduce energy costs and carbon emissions, in line with the "coal reduction and carbon reduction" policy.

In the consumer sector, during the winter heating season in northern China, pellets can be used in household biomass heating stoves, small hotels, and office building heating boilers. Compared to electric and natural gas heating, they are more economical, produce no black smoke, and meet environmental heating needs.

In agriculture, pellets provide a stable heat source for drying grain, fruits, vegetables, and traditional Chinese medicines, with adjustable temperatures and low costs, avoiding agricultural drying pollution. Furthermore, they can be integrated with forestry processing parks to process discarded dry wood pallets and scraps, achieving self-sufficiency and self-distribution of solid waste. In the environmental protection sector, logistics parks, warehousing companies, and municipal solid waste treatment centers can use this equipment to convert discarded dry wood pallets, which would otherwise be landfilled or incinerated, into high-value pellets, reducing environmental burdens, forming a "solid waste-to-resource" cycle, and promoting the resource utilization of wood waste.

2标题

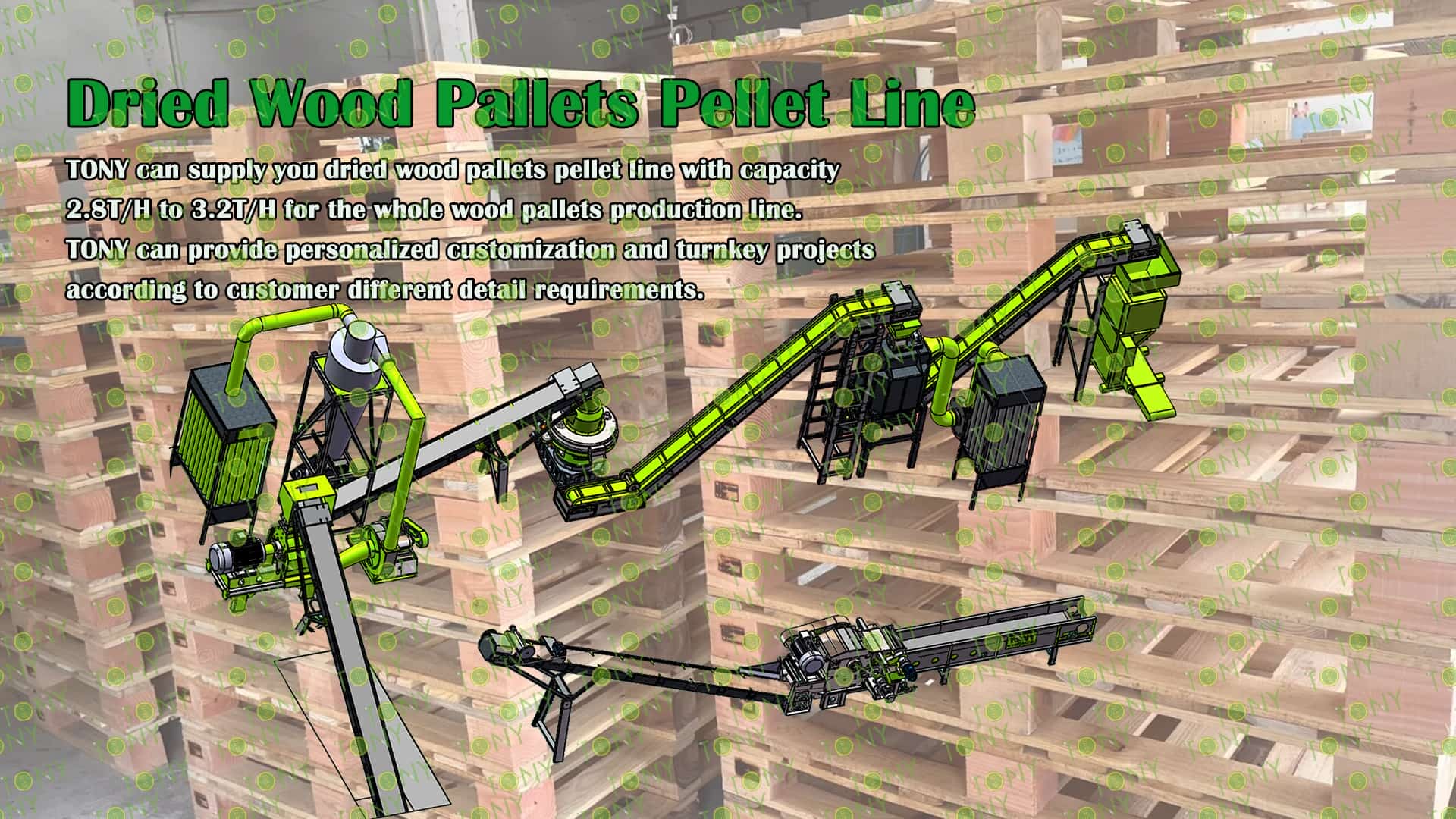

TONY Brand 2.8-3.2 Ton/Hour Dried Wood Pallets Pellet Manufacturing Plant can take dried wood pallets, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings. After pretreatment and processing, dried wood pallets is solidified into high - density wood pellet fuel.The content of pollutants such as sulfur dioxide and nitrogen oxides produced by biomass pellets during combustion is extremely low, and the dust emission is also low, which can effectively reduce air pollution. Moreover, the raw material sources of biomass pellets are very wide, and the combustion efficiency is high. Compared with traditional fossil energy, it reduces the production and use costs and has higher economic efficiency. It has received a lot of attention and promotion.

1. Capacity: 2.8-3.2 Ton/Hour

2. Raw materials: Dried wood pallets

3. Moisture: Dry type, about 10-15%.

4. Application: All kinds of  waste wood pallets or more waste wood raw materials

Suitable customers: Logistics and warehousing companies, various manufacturing plants, ports and airports, construction sites, large supermarkets and shopping malls, and other places where waste wood pallets have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3标题

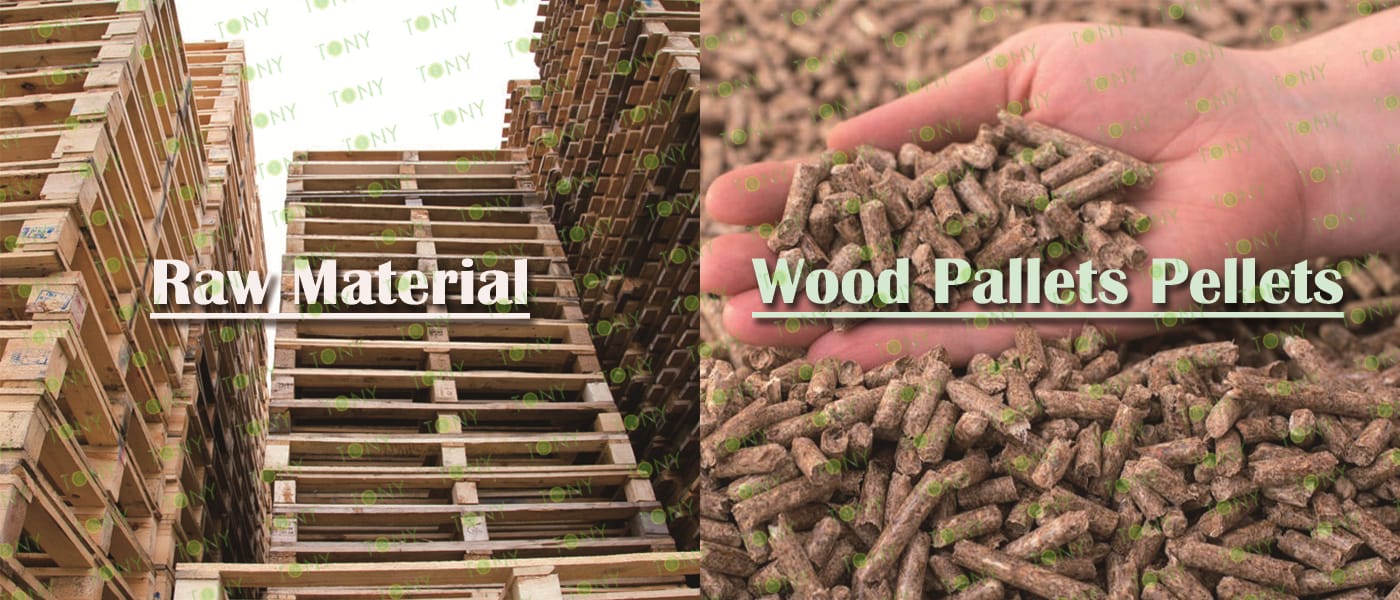

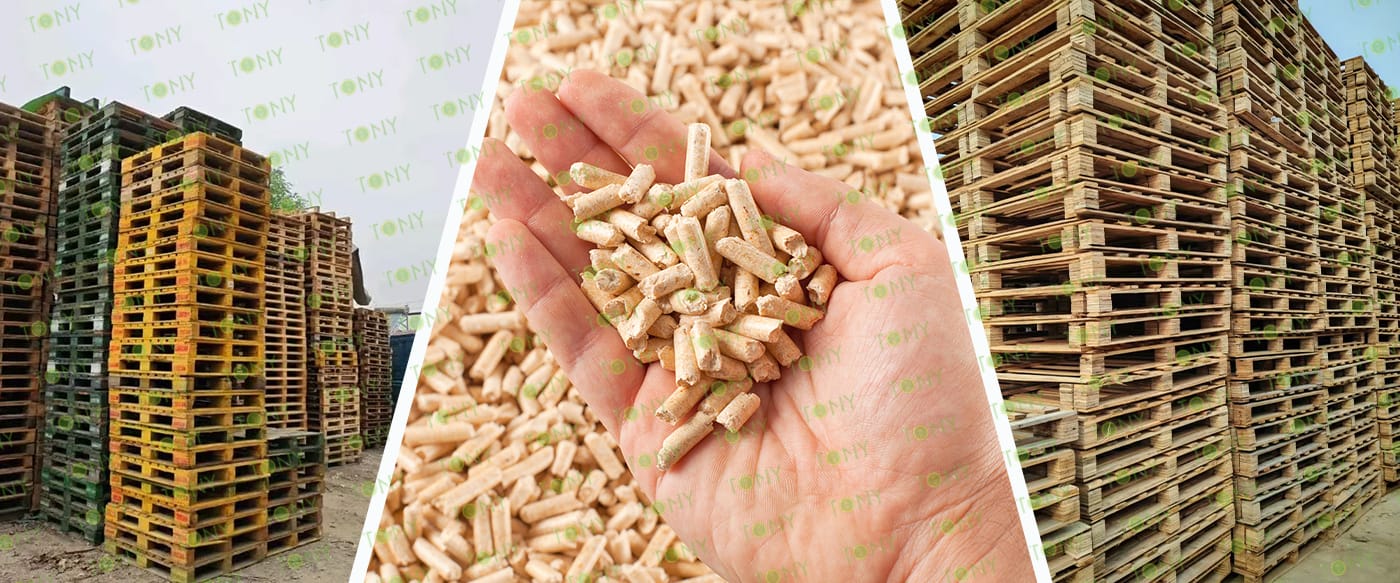

原材料--成品图

1. Project Name: Dried Wood Pallets Pellet Production Line

2. Raw Material: All kinds of dried wood pallets

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 2.8-3.2 tons per hour

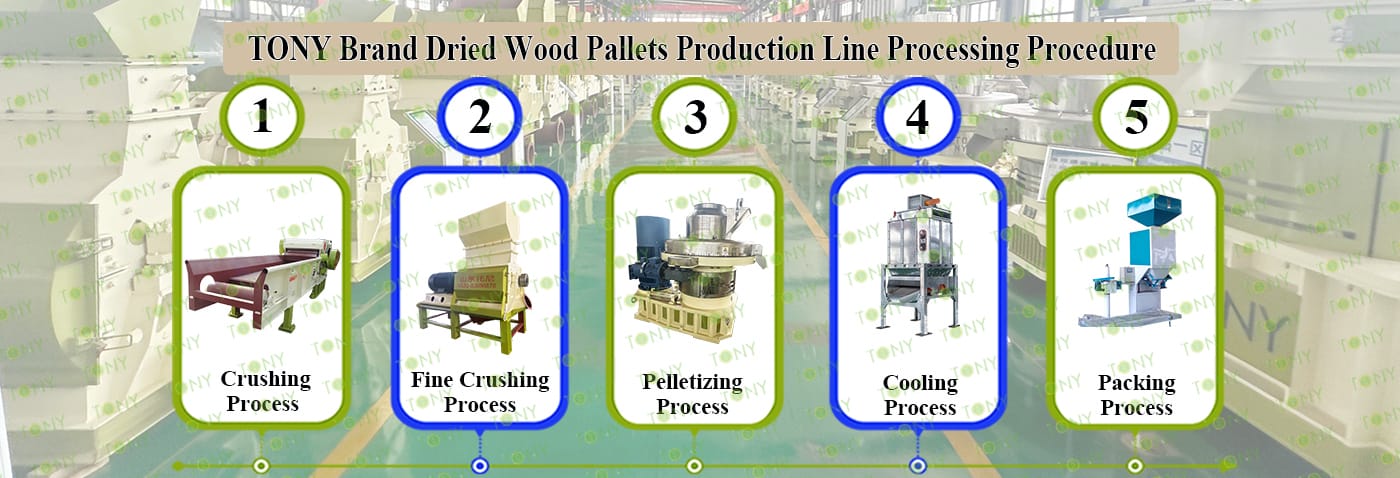

5. Process: Crushing Process - Fine Crushing Process -  Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1000-90KW, Effective Hammer Mill-TFD75*100-90kw,  TONY Pellet Machine TYJ760 - Ⅲ - 185kw, Pellet Cooler, Semi-automatic Packing Machine and Belt Conveyors

4标题

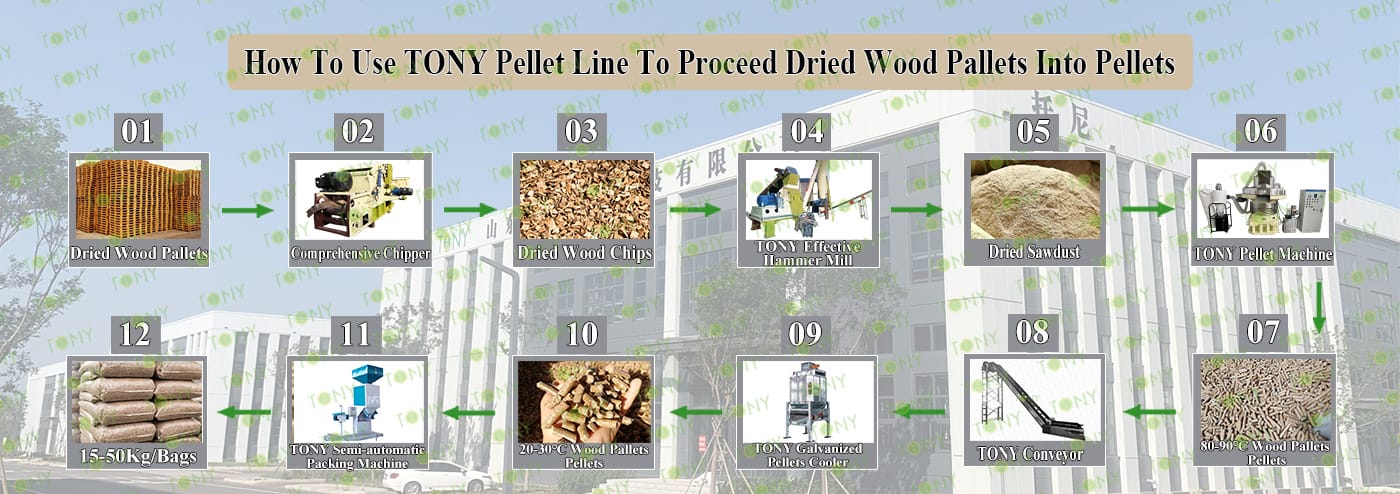

流程图1

流程图

5标题

原材料+颗粒图

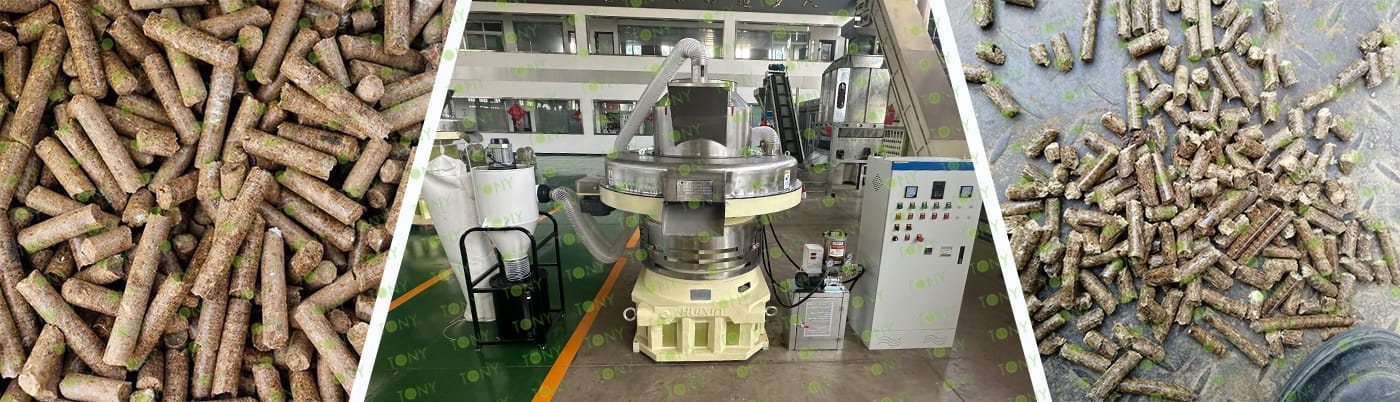

颗粒+机器图

5.1标题

TPC1000-90KW机器图

带原材料-成品图

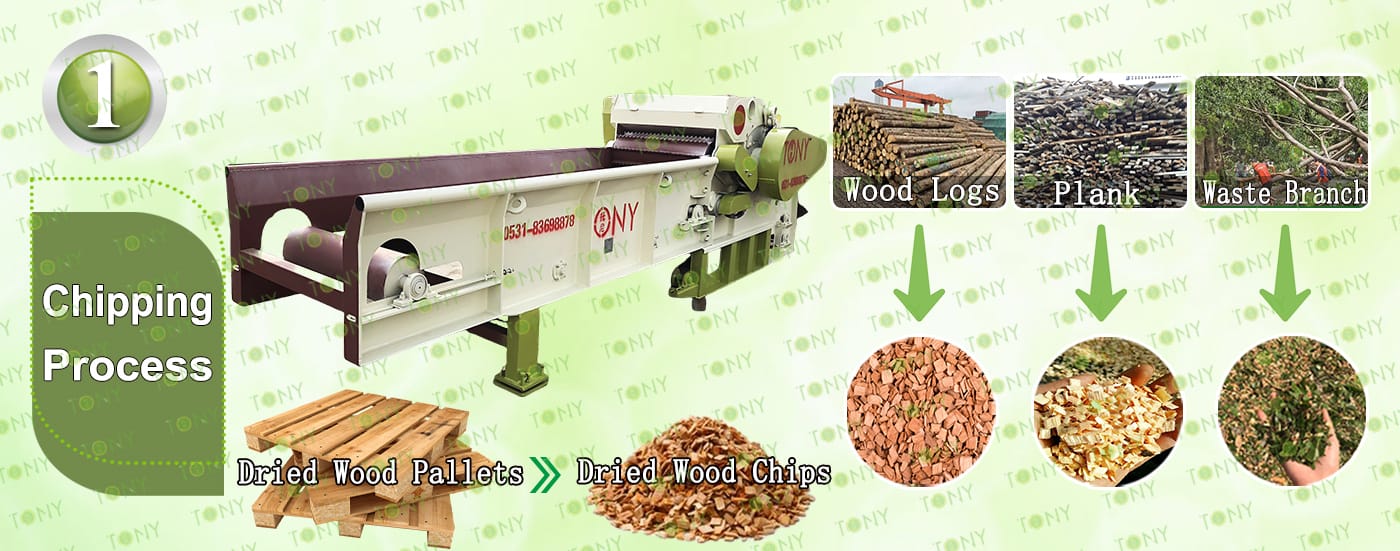

1.Wood Pallets Chipping Process:

A. This process is mainly used to grind wooden pallets with nails less than 1 m  in width into wood chips with a size of 25-55 mm. The final size of the wood chips can be adjusted by replacing the screen with different sizes and replacing or adjusting the hammer heads with different specifications.

B.TONY Brand comprehensive chipper TPC1000-90kw model with  16 hammer heads*1sets

C.Capacity:7-10Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally  Contact Tony For More Details With Quotation

5.2标题

高效粉碎机

带锯末图

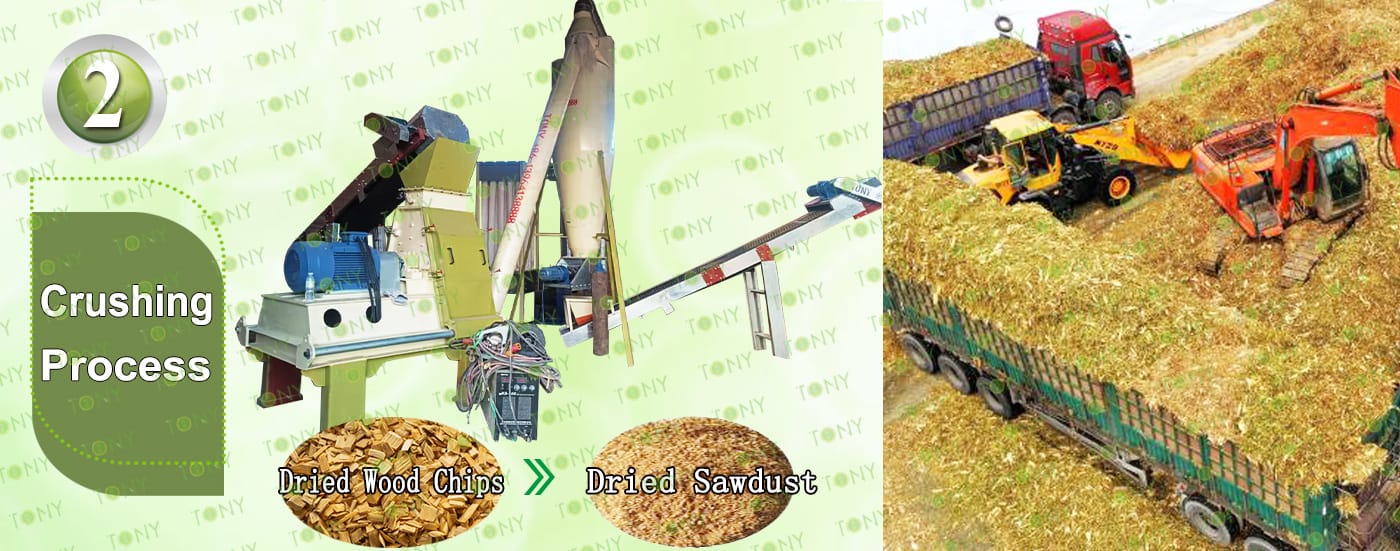

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:2.8-3.2Ton/Hour.

C.TONY brand effective hammer mill TFD75*100-90KW*1set

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.3标题

颗粒机四件套带 原材料，颗粒图

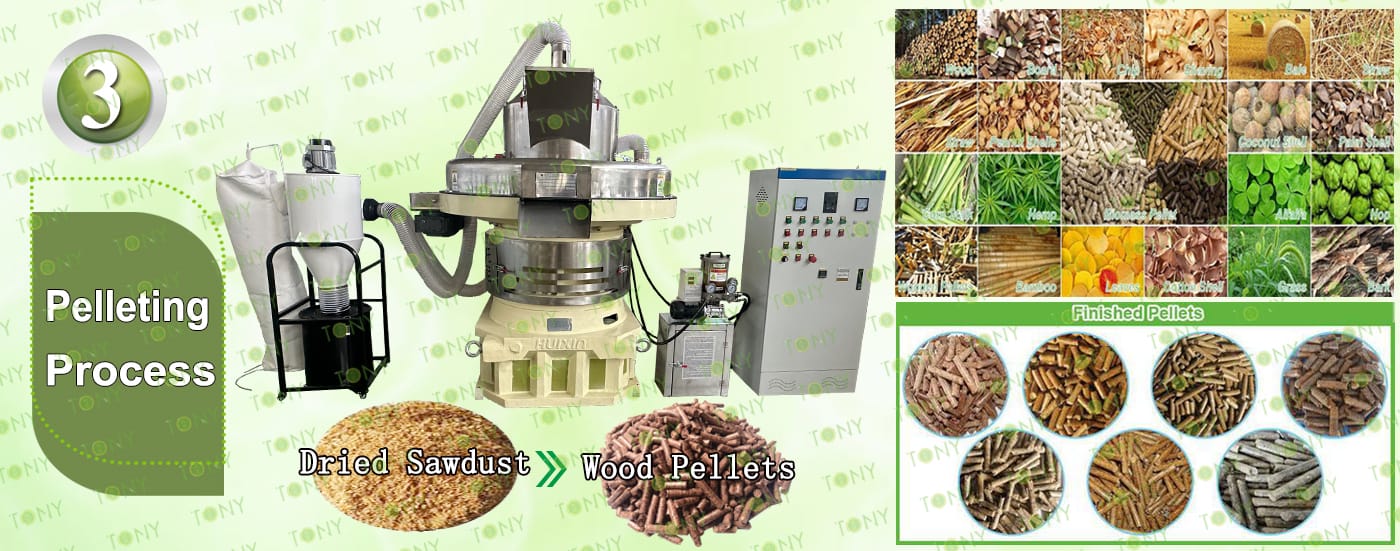

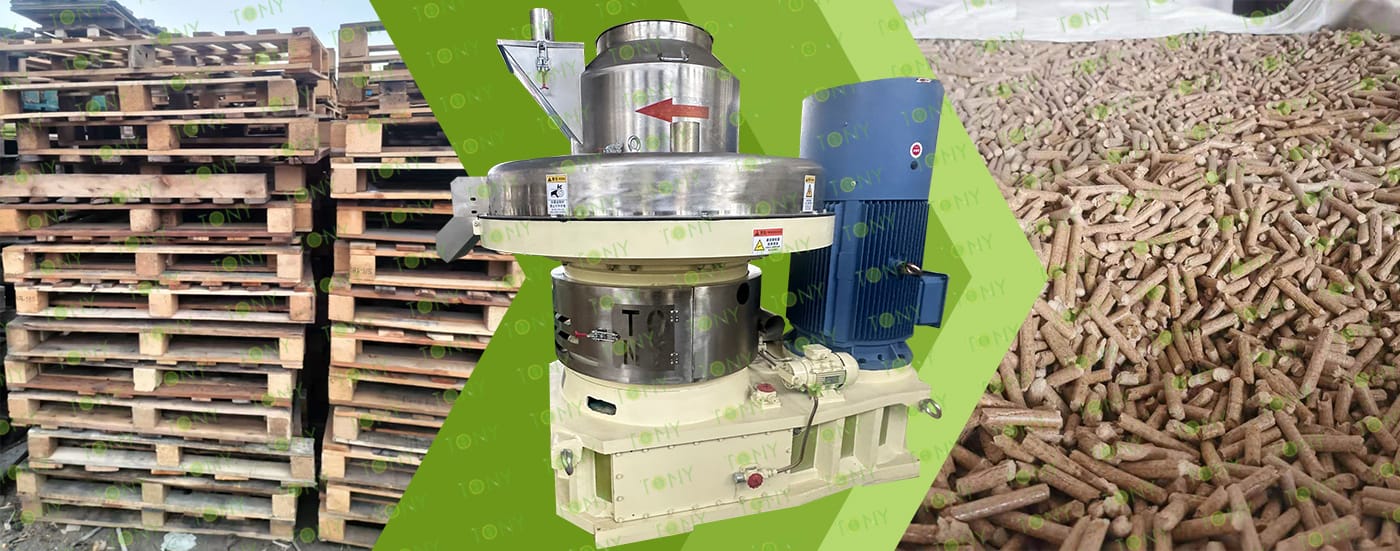

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:2.8-3.2Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ760-III-185KW*1set

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.4标题

镀锌冷却仓加颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:2.8-3.2Ton/Hour.

C.TONY brand galvanized cooler seperator*1set

Main Parts:

(1)TONY's Galvanized Cooler Seperator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5标题

包装机

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.Capacity:2.8-3.2Ton/Hour.

C.TONY semi-automatic packing machine*1 set

Main Parts:

(1)TONY's Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6标题

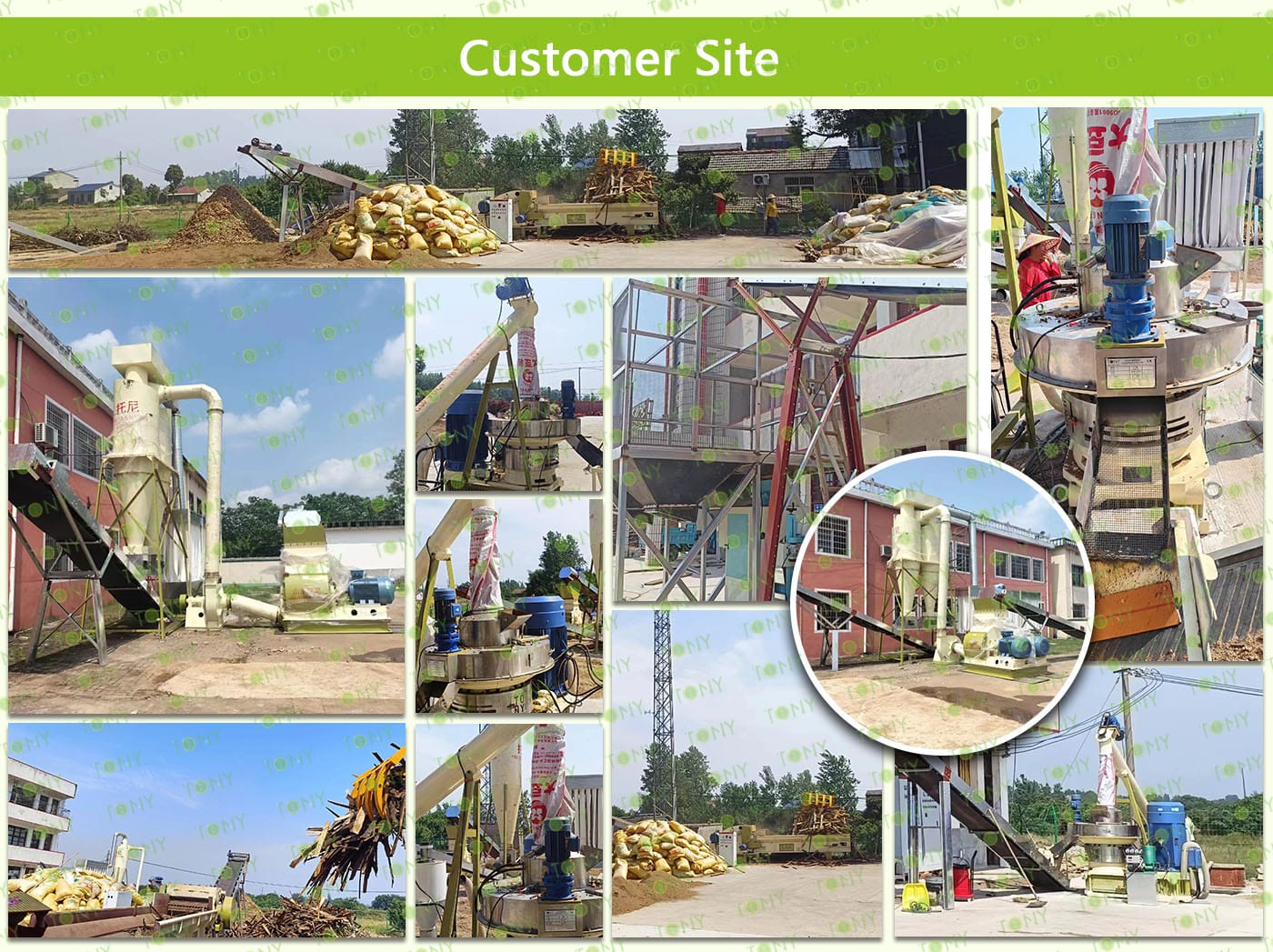

客户生产线案例图

7标题

图 干托盘+颗粒 颗粒机

For industrial boilers, research the number, scale, and fuel consumption of industrial enterprises in the local and surrounding areas that are using biomass pellets to replace traditional fuels like coal and natural gas. For example, analyze the potential demand for biomass pellets from food processing plants, wood processing plants, and other enterprises, and analyze their requirements for quality indicators such as pellet calorific value and density.

For the heating market, focus on investigating the willingness and market size of urban centralized heating companies, small heating stations, and rural areas in cold northern regions to adopt biomass pellets. Understand the price acceptance of pellets among different customer groups. For example, decentralized heating users in rural areas may be more price-sensitive, while urban commercial heating users have higher requirements for product quality and supply stability.

Study the application of biomass pellets in power generation, focusing on biomass power plant construction plans, fuel supply conditions for existing power plants, and the potential for sourcing biomass pellets processed from wooden pallets. For example, if a region plans to build a new biomass power plant, establish early contact with the project to understand its fuel demand and potential for cooperation.

8标题

干木托盘图 颗粒图

Strong market demand and guaranteed sales

With stricter environmental protection policies (such as the expansion of "coal-free zones" and the conversion of industrial boilers from coal to gas or coal to biomass), the market demand for biomass pellets as a clean alternative fuel continues to grow. Its downstream customers include:

1.Industrial sector:

boiler heating in the food processing, textile, chemical and other industries;

2.Commercial sector:

central heating in hotels, hospitals, and residential areas;

3.Energy sector:

small biomass power stations and biomass gasification projects;

4.Some regions can also export to countries with high demand for biomass fuels,

such as Europe, Japan, and South Korea, to expand the international market.
