Project Brief Introduction:

1.Product:Dried Wood Pallets Pellet Line

2.Capacity: 5-6T/Hour

3.TONY Brand 5-6 Ton /Hour Dried Wood Pallets Pellet Line Project Process

4.Main Machine: Comprehensive Chipper,Hammer Mill, TONY Pellet Machine TYJ760-Ⅲ-160KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 605 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

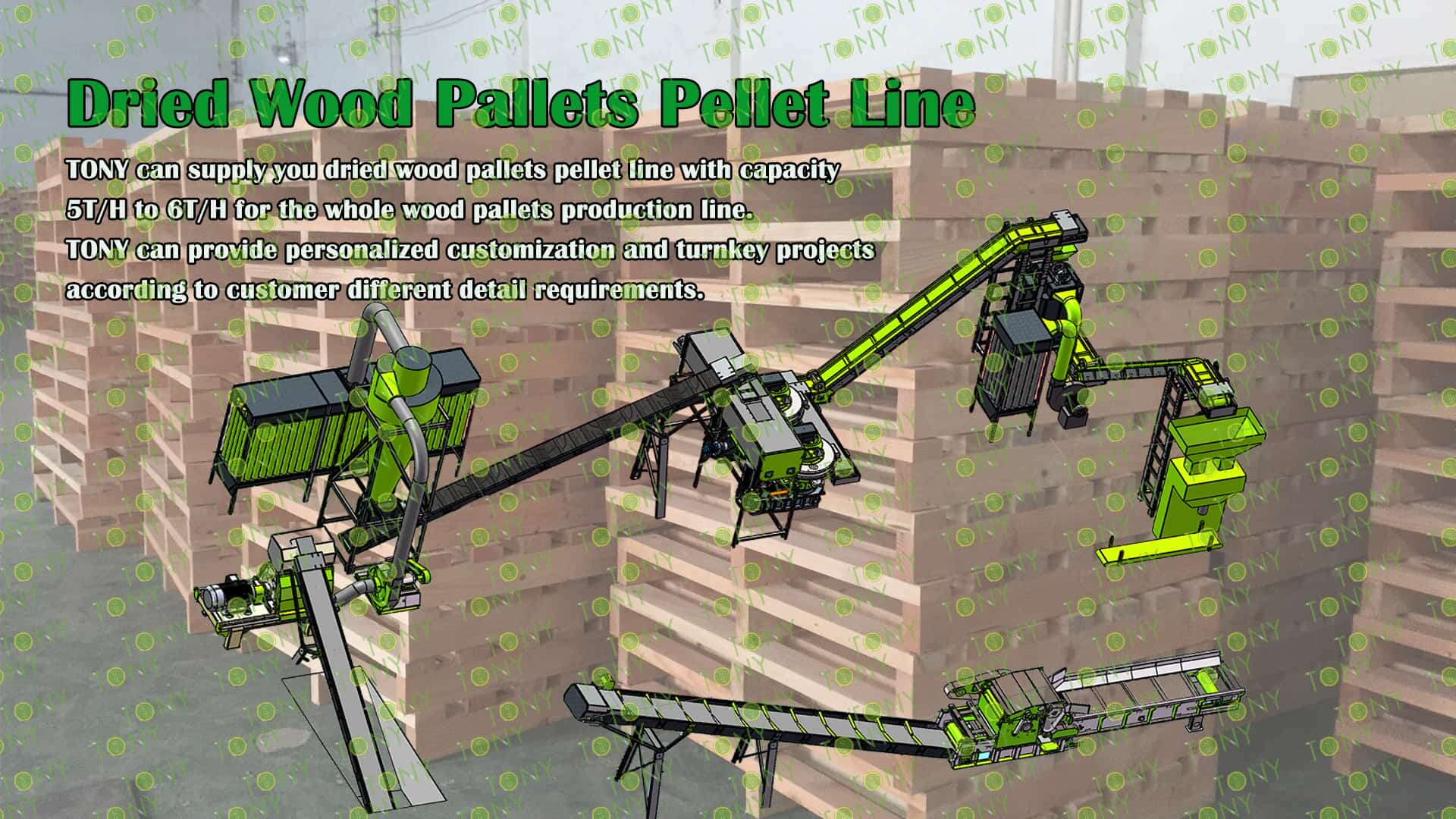

Project Layout For Customer:

3D图

原材料图+颗粒机图片

1. The working principle of dried wood pallets biomass pellet processing equipment

The core of the equipment for processing dry pallet pellet fuel is to convert wooden dry pallets (mainly composed of cellulose, hemicellulose, and lignin) into high-density, easy-to-store pellet fuel through the continuous process of "pretreatment → crushing → extrusion molding → cooling and screening". The working principle of the equipment system can be disassembled and explained according to the core process. The functions and principles of the equipment in each link are closely connected, ultimately realizing the transformation of raw materials into finished products.

2. Characteristics of dried wood pallets biomass pellet processing equipment

(1)Strong Raw Material Adaptability: Compatible with the diverse characteristics of waste dry pallets.

Dry pallets, as raw materials, can be made of a variety of materials (pine, poplar, and other woods), vary in size, and may contain small amounts of impurities (after pretreatment). The equipment is specifically designed to accommodate this raw material, reducing raw material restrictions.

(2)High-Quality Finished Pellets: Meeting the requirements of "efficient combustion + easy storage."

Through precise process control, the equipment produces pellets with outstanding density, combustibility, and stability, far exceeding the value of bulk wood waste.

(3)High Production Efficiency: Automated and continuous operation reduces labor costs.

The equipment system utilizes a "continuous production line + automated control" system, reducing manual intervention and increasing output per unit time, making it suitable for large-scale production.

(4)Significant Environmental Benefits: Achieving the dual environmental benefits of "solid waste recycling + clean combustion."

One of the core advantages of dry pallet pellet processing equipment is its environmental friendliness. It not only addresses the pollution problem of waste pallets but also replaces fossil fuels and reduces carbon emissions.

(5) High Economic Value: "Low-cost raw materials + high-demand finished products" creates significant profit potential.

From an industry chain perspective, the equipment offers significant advantages. Low raw material costs and high market demand for finished products make this processing project highly profitable.

(6)Convenient Operation and Maintenance: Lowering the technical barrier to entry makes it suitable for a wide range of operations.   The equipment is designed with practicality in mind, offering easy operation and manageable maintenance costs, making it easy for both small and medium-sized businesses and individual operators to get started quickly.

3. Application scenarios of dried wood pallets biomass pellet processing equipment

(1)Large logistics parks/freight companies: Using this equipment, discarded pallets can be processed into fuel pellets, saving processing fees and allowing the company to use the pellets for internal use (for park heating and forklift fuel) or export them, achieving the dual benefits of "cost reduction and revenue increase."

(2)Warehousing centers/e-commerce warehouses: Long-term storage of goods requires a large number of pallets. Each year, damaged pallets (such as those with cracked edges or insufficient load-bearing capacity) accumulate and take up warehouse space. This equipment can be used for on-site disposal, converting unused space into a "pellet production area," eliminating the waste caused by long-term pallet stacking.

(3)Pallet rental/recycling companies: Professional pallet rental companies routinely screen and discard substandard pallets (which account for 5%-10% of total turnover). This equipment can convert these "end-of-life pallets" into fuel pellets, increasing the economic value of the pallets throughout their lifecycle. (Traditionally, discarded pallets are sold at a low price as scrap wood, but their value increases 3-5 times after being processed into pellets.)

2.图片

TONY Brand 5-6 Ton/Hour Dried Wood Pallets Pellet Manufacturing Plant can take dried wood pallets, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings. After pretreatment and processing, dried wood pallets is solidified into high - density wood pellet fuel.The content of pollutants such as sulfur dioxide and nitrogen oxides produced by biomass pellets during combustion is extremely low, and the dust emission is also low, which can effectively reduce air pollution. Moreover, the raw material sources of biomass pellets are very wide, and the combustion efficiency is high. Compared with traditional fossil energy, it reduces the production and use costs and has higher economic efficiency. It has received a lot of attention and promotion.

1. Capacity: 5-6 Ton/Hour

2. Raw materials: Dried wood pallets

3. Moisture: Dry type, about 10-15%.

4. Application: All kinds of  waste wood pallets or more waste wood raw materials

Suitable customers: Logistics and warehousing companies, various manufacturing plants, ports and airports, construction sites, large supermarkets and shopping malls, and other places where waste wood pallets have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片


原材料--成品图

1. Project Name: Dried Wood Pallets Pellet Production Line

2. Raw Material: All kinds of dried wood pallets

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 5-6 tons per hour

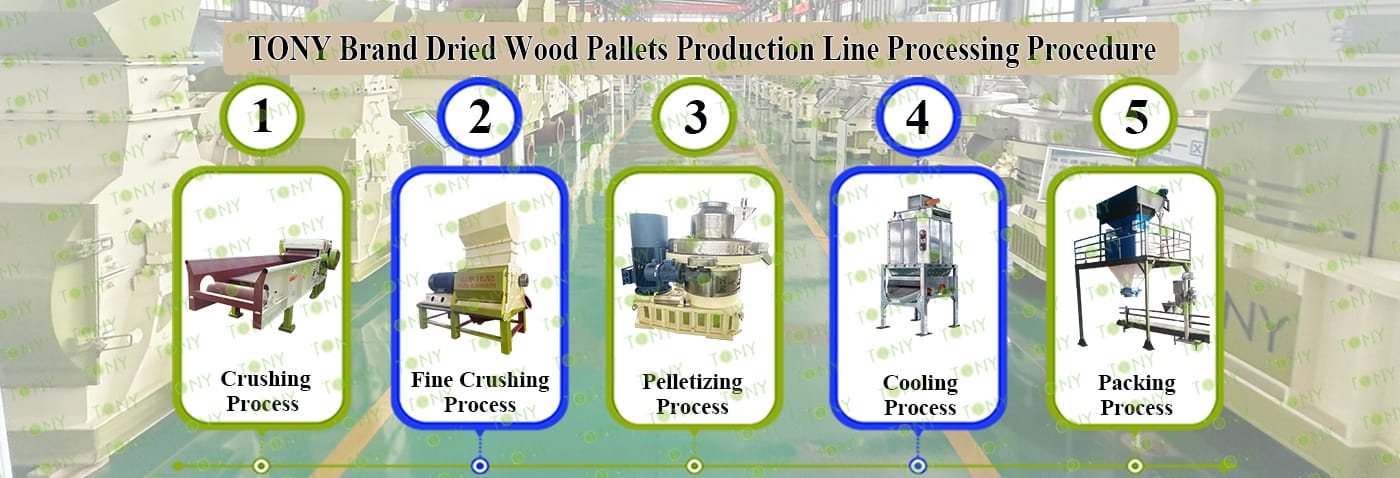

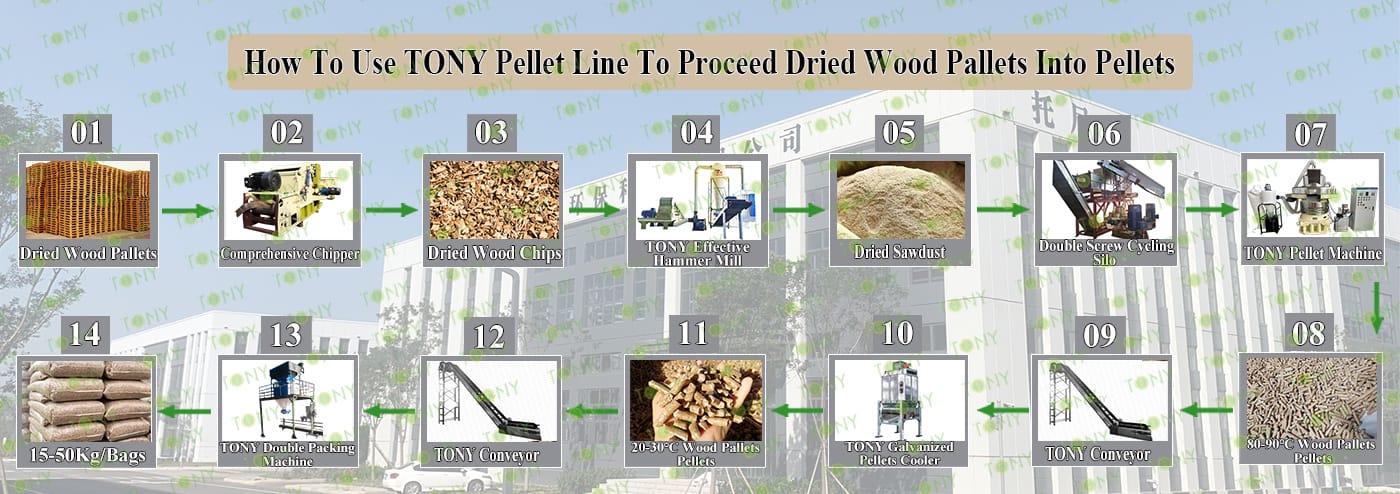

5. Process: Crushing Process - Fine Crushing Process -  Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1000-90KW, Effective Hammer Mill-TFD75*160-160kw,  TONY Pellet Machine TYJ760 - Ⅲ - 160kw, Pellet Cooler, Double Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

原材料+颗粒图

颗粒+机器图

5.1图片

TPC1000-90KW机器图

带原材料-成品图

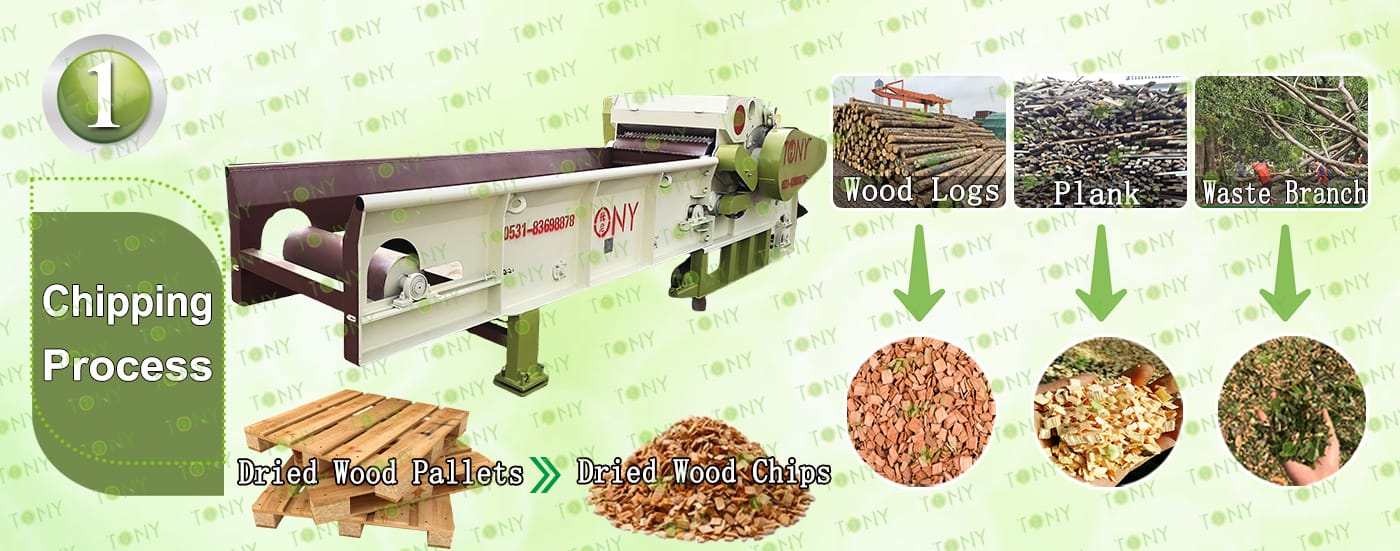

1.Wood Pallets Chipping Process:

A. This process is mainly used to grind wooden pallets with nails less than 1 m  in width into wood chips with a size of 25-55 mm. The final size of the wood chips can be adjusted by replacing the screen with different sizes and replacing or adjusting the hammer heads with different specifications.

B.TONY Brand comprehensive chipper TPC1000-90kw model with  16 hammer heads*1set

C.Capacity:7-10Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

5.2图片

高效粉碎机

带锯末图

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:5-6Ton/Hour.

C.TONY brand effective hammer mill TFD75*160-160KW*1set

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.3图片

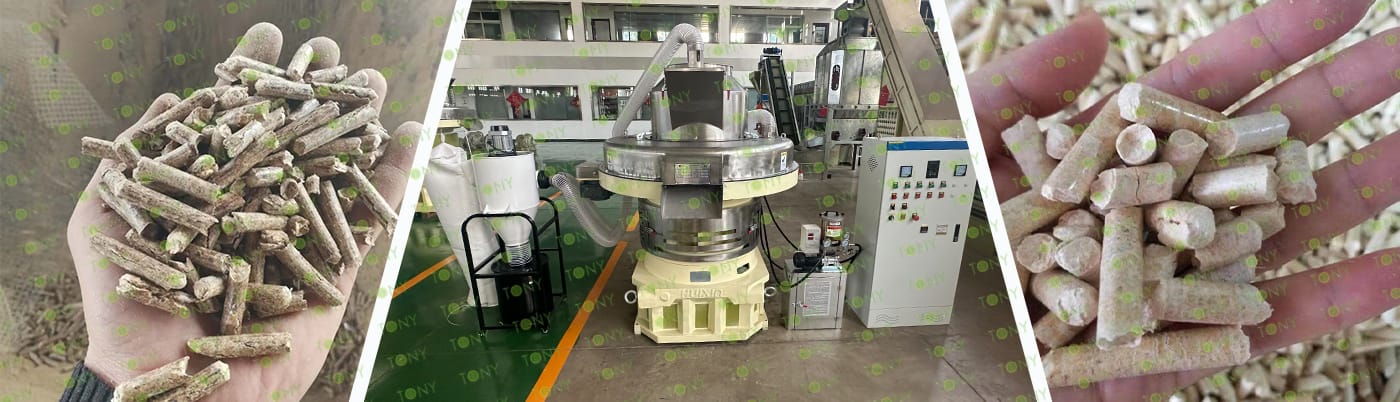

颗粒机四件套带 原材料，颗粒图

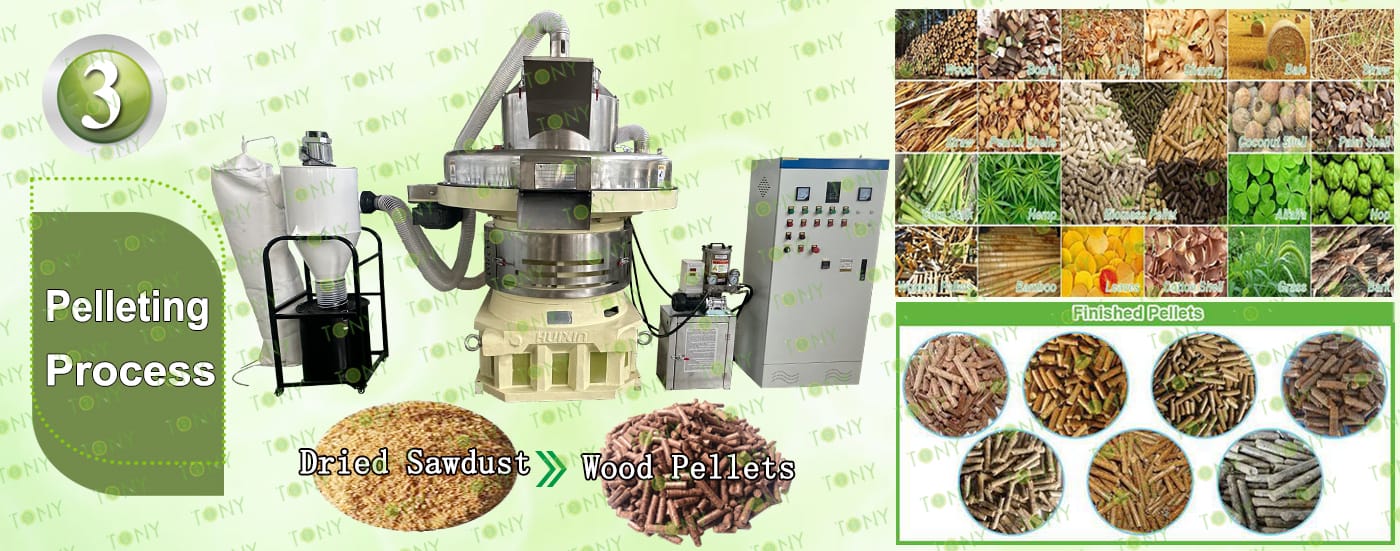

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:5-6Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ760-III-160KW*2sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.4图片

镀锌冷却仓加颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:5-6Ton/Hour.

C.TONY brand galvanized cooler seperator*1set

Main Parts:

(1)TONY's Galvanized Cooler Seperator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片

双胞包装机

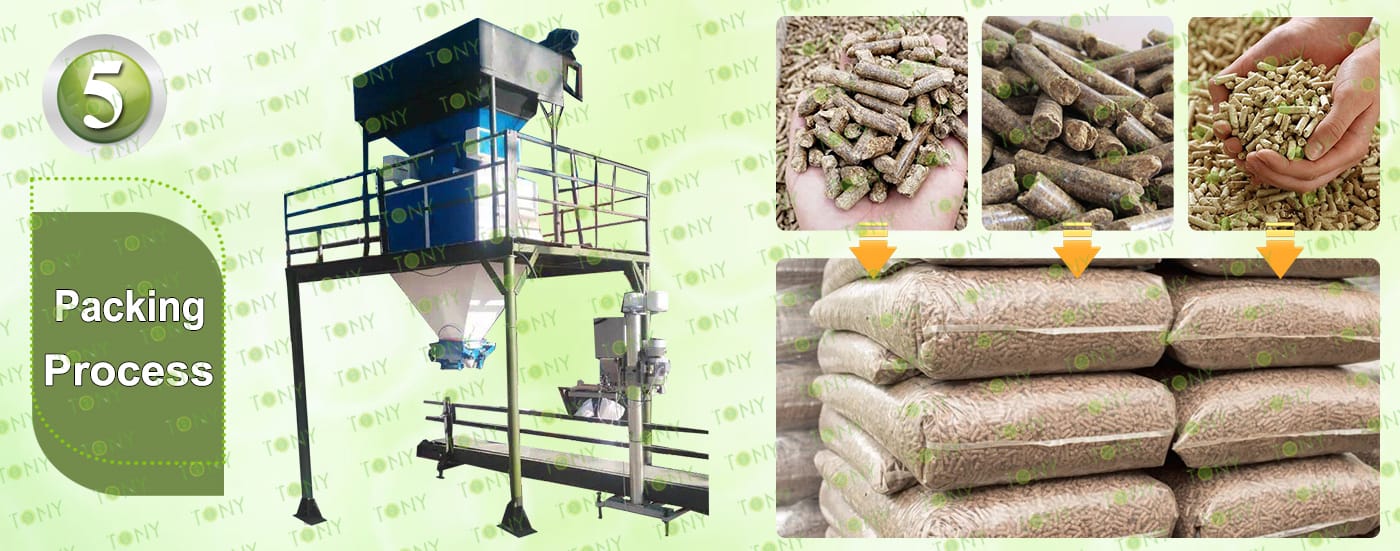

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.Capacity:5-6Ton/Hour.

C.TONY double packing machine*1 set

Main Parts:

(1)TONY's  Double Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

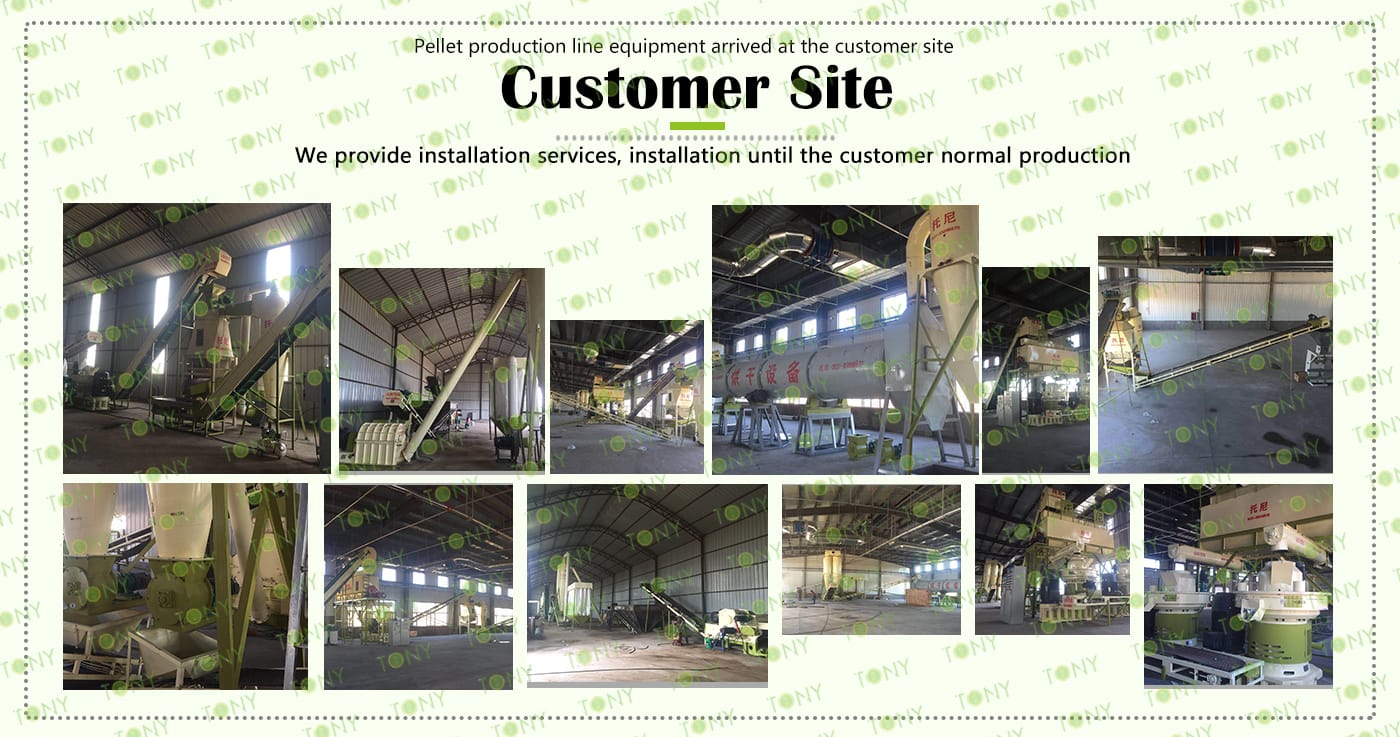

客户生产线案例图

7.图片

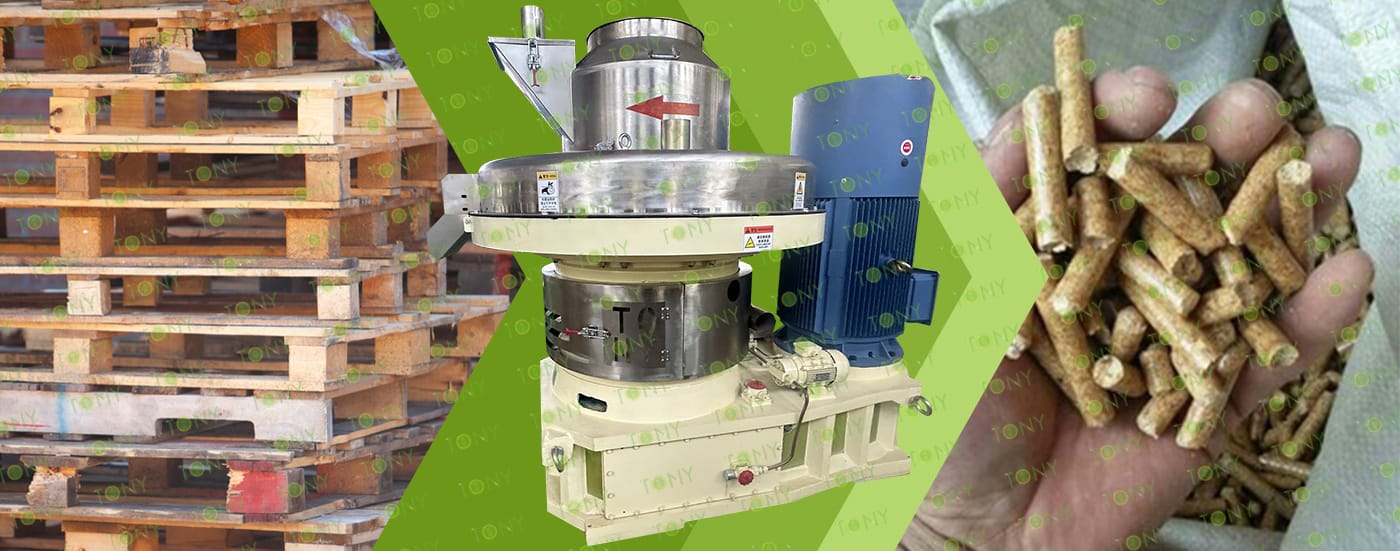

图 干托盘+颗粒 颗粒机

How to deal with the profit fluctuations of the pallet pellet project? The sustainability of the project requires both "increasing revenue" and "reducing costs", while establishing a risk buffer mechanism:

1. Refining cost control to improve gross profit margin

(1) Control "variable costs": Raw materials (accounting for 50%-60%) are locked in price through long-term agreements; energy consumption (electricity and heat, accounting for 15%-20%) is reduced through waste heat recovery and equipment frequency conversion transformation; labor (accounting for 10%-15%) is reduced through automated equipment (such as automatic feeders and pellet packaging machines).

(2) Optimize "fixed costs": Equipment depreciation (depreciation based on 5-8 years) is diluted by improving capacity utilization; factory rent can be negotiated with the industrial park for "long-term low-price lease" (e.g., for a lease term of more than 5 years, the annual rent increase does not exceed 5%).

2. Develop a risk contingency plan to deal with emergencies

(1) Raw material supply disruption: Reserve 1-2 months of raw materials and sign emergency agreements with 2-3 "backup suppliers" (such as wood pallet recycling companies in surrounding cities) to ensure that raw materials are replenished within 72 hours.

(2) Response to market price drops: If the price of pellets drops due to competition or policy fluctuations, maintain gross profit margin and avoid losses by "reducing costs" (such as adjusting the raw material formula and increasing the proportion of low-priced straw) or "improving efficiency" (increasing production capacity and diluting unit costs).

8.图片

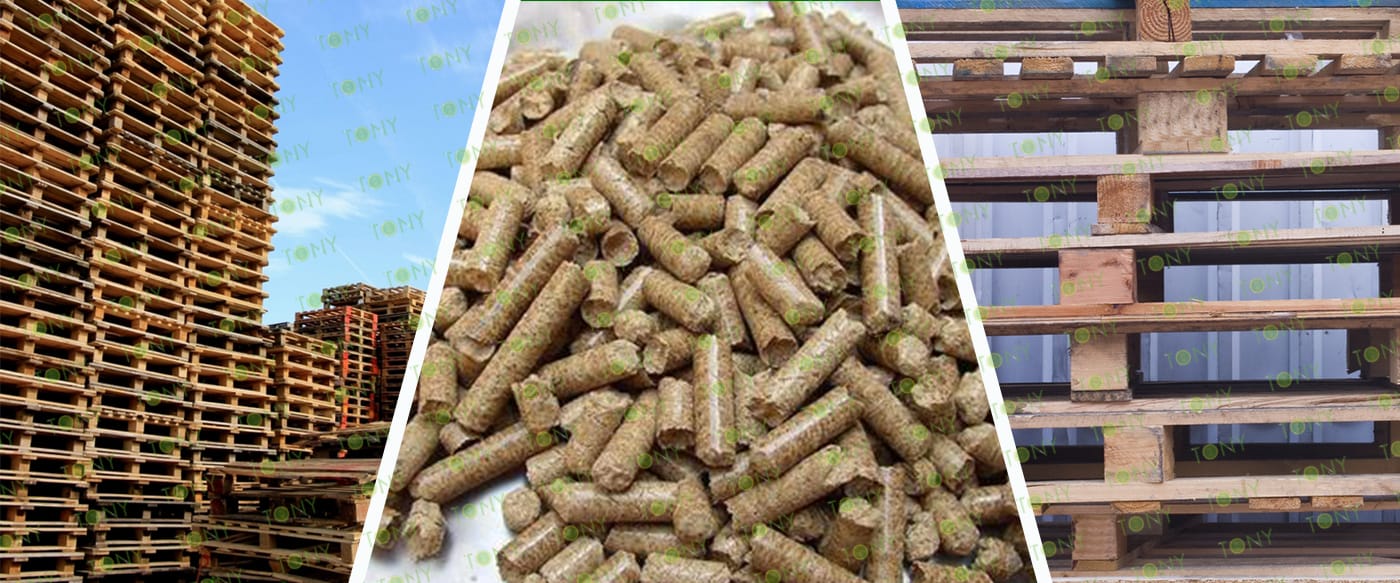

干木托盘图 颗粒图

Dry pallet pellets are positioned as "mid-to-high-end wood pellets" and are suitable for different applications:

1. Residential applications (home fireplaces, heating stoves):

They offer significant quality advantages—low ash content (requires long cleaning cycles, typically every 1-2 weeks), smokeless and odorless (combustion is complete, with pollutant emissions far lower than coal and bulk biomass), high density (requires minimal storage space, with 1 ton of pellets equivalent to approximately 0.8-1 cubic meters), and a superior user experience compared to ordinary straw pellets.

2. Industrial applications (factory boilers, biomass power plants):

They offer quality that meets the requirements of continuous operation—stable calorific value (fluctuation ≤5%), high pellet yield (reducing feed system clogging), and low ash content (reducing coking on boiler heating surfaces and extending equipment life). They can partially or completely replace coal (calorific value: 1.8-2 tons of pellets equals 1 ton of coal) and comply with environmental protection policies (carbon emissions from biomass fuel combustion are near "carbon neutral").

3. Special Applications (Greenhouse Heating, Food Processing and Drying):

Pellets produced from pure solid wood pallets meet low-pollution requirements and are suitable for applications with high air quality requirements.

9.图片

绿色地球+原材料+颗粒图

10.图片

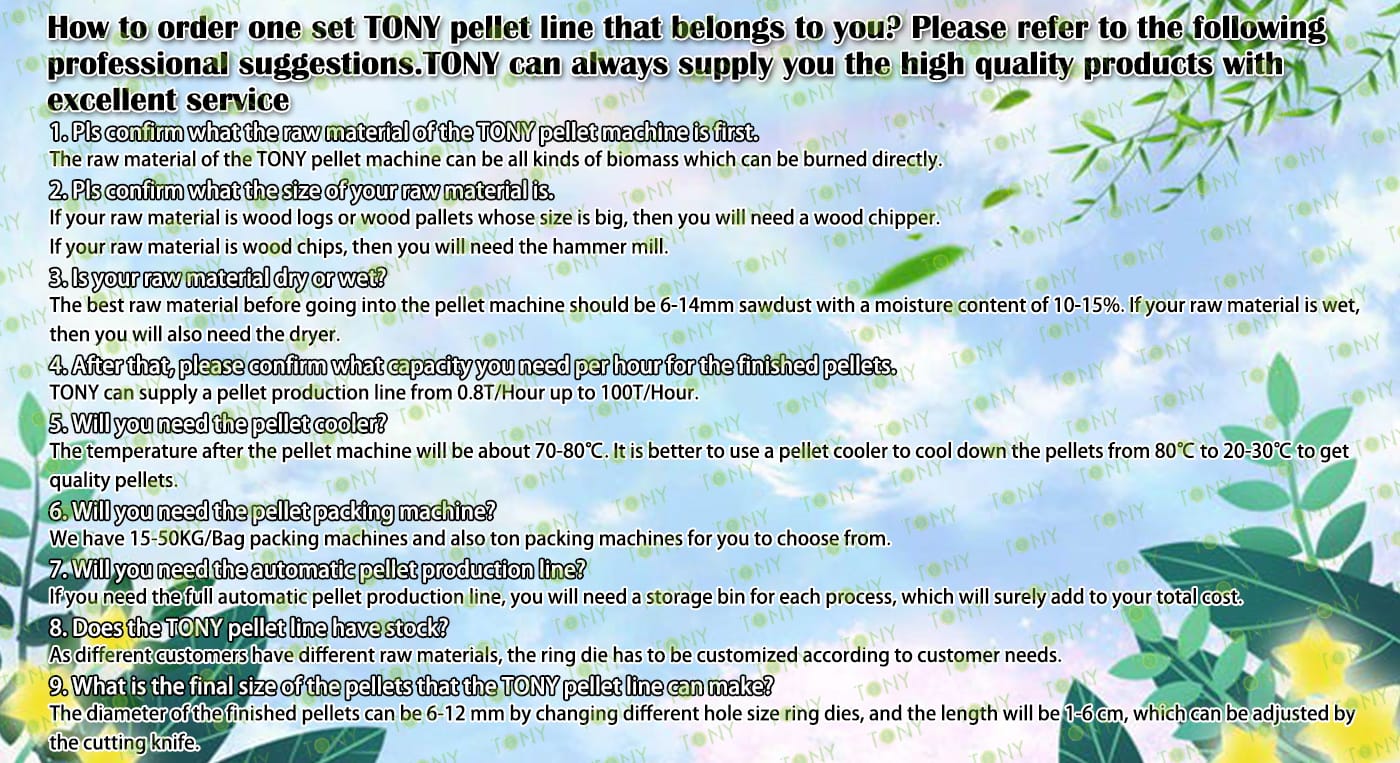

How to order one set TONY pellet line that belongs to you? Please refer to the following professional sugsestions.TONY can always supply you the high quality products with excellent service

1. Pls confirm what the raw material of the TONY pellet machine is first.

The raw material of the TONY pellet machine can be all kinds of biomass which can be burned directly.

2. Pls confirm what the size of your raw material is.

If your raw material is wood logs or wood pallets whose size is big, then you will need a wood chipper.

If your raw material is wood chips, then you will need the hammer mill.

3. Is your raw material dry or wet?

The best raw material before going into the pellet machine should be 6-14mm sawdust with a moisture content of 10-15%. If your raw material is wet, then you will also need the dryer.

4. After that, please confirm what capacity you need per hour for the finished pellets.

TONY can supply a pellet production line from 0.8T/Hour up to 100T/Hour.

5. Will you need the pellet cooler?

The temperature after the pellet machine will be about 70-80℃. It is better to use a pellet cooler to cool down the pellets from 80℃ to 20-30℃ to get quality pellets.

6. Will you need the pellet packing machine?

We have 15-50KG/Bag packing machines and also ton packing machines for you to choose from.

7. Will you need the automatic pellet production line?

If you need the full automatic pellet production line, you will need a storage bin for each process, which will surely add to your total cost.

8. Does the TONY pellet line have stock?

As different customers have different raw materials, the ring die has to be customized according to customer needs.

9. What is the final size of the pellets that the TONY pellet line can make?

The diameter of the finished pellets can be 6-12 mm by changing different hole size ring dies, and the length will be 1-6 cm, which can be adjusted by the cutting knife.
