1. The working principle of dried wood pallets biomass pellet processing equipment

The dry pallet biomass pellet processing equipment uses waste dry pallets as raw material. Through three core steps: pretreatment, extrusion molding, and cooling and packaging, it transforms the loose wood material into high-density biomass pellets. Its operating principles revolve around "raw material adaptation" and "converting mechanical energy into molding force."

First, in the pretreatment stage, the equipment receives dry pallets through a feed system. A crusher breaks the pallets into wood blocks, which are then further pulverized into wood chips by a grinder.

Next, in the core extrusion molding process, a screw feeder evenly feeds the pretreated wood chips into the pelletizer. Inside the pelletizer, a compression roller and an annular die form an extrusion chamber. A motor drives the rollers to rotate at high speed, forcing the wood chips into the die's molding holes. Within the die, the wood chips are subjected to high temperature and pressure, softening the hemicellulose in the wood fibers and creating bonding forces. Finally, they are continuously extruded into cylindrical pellets.

Finally, in the cooling and packaging phase, the pellets enter a cooler where they are cooled by reverse-blowing cold air, bringing the temperature down to room temperature (to prevent moisture and mildew during storage). The cooled pellets are then screened by a vibrating screen to remove broken, fine particles (which can be returned for re-pelleting). Qualified pellets are then sent to the finished product warehouse for storage or packaging, completing the entire processing process. This entire process recycles waste dry wood pallets.

2. Characteristics of dried wood pallets biomass pellet processing equipment

(1)Wide adaptability of raw materials, achieving "waste resource conversion":It can directly process discarded dry pallet wood (including common pallet materials such as pine, fir, poplar, and miscellaneous wood), eliminating the need for complex sorting (only metal parts need to be removed). This solves the problem of difficult dry pallet recycling and environmental pollution, aligning with the concept of a "circular economy."

(2)Stable pellet quality and excellent fuel performance:Using "ring die-roller" high-pressure extrusion technology, combined with the wood's own lignin bonding, the finished pellets achieve a density of 1.1-1.3 g/cm³, high hardness, and resistance to breakage, making them easy to transport and store over long distances.

The finished pellets have a low moisture content, stable calorific value, and are smokeless and odorless when burned. Pollutant emissions are significantly lower than coal (SO₂ emissions are only 1/10 of coal, and NOx emissions are reduced by over 30%), meeting environmental standards (such as GB/T31740-2015 "Biomass Solid Pellet Fuels").

3. Application scenarios of dried wood pallets biomass pellet processing equipment

Dry wood pallet biomass pellet processing equipment has a wide range of applications, covering environmental protection and energy needs across multiple sectors. In the industrial sector, the pellets produced can replace coal and natural gas as fuel for boilers and hot air furnaces in the food processing, chemical, and building materials industries, helping companies reduce energy costs and carbon emissions, in line with the "coal reduction and carbon reduction" policy.

In the consumer sector, during the winter heating season in northern China, pellets can be used in household biomass heating stoves, small hotels, and office building heating boilers. Compared to electric and natural gas heating, they are more economical, produce no black smoke, and meet environmental heating needs.

In agriculture, pellets provide a stable heat source for drying grain, fruits, vegetables, and traditional Chinese medicines, with adjustable temperatures and low costs, avoiding agricultural drying pollution. Furthermore, they can be integrated with forestry processing parks to process discarded dry wood pallets and scraps, achieving self-sufficiency and self-distribution of solid waste. In the environmental protection sector, logistics parks, warehousing companies, and municipal solid waste treatment centers can use this equipment to convert discarded dry wood pallets, which would otherwise be landfilled or incinerated, into high-value pellets, reducing environmental burdens, forming a "solid waste-to-resource" cycle, and promoting the resource utilization of wood waste.

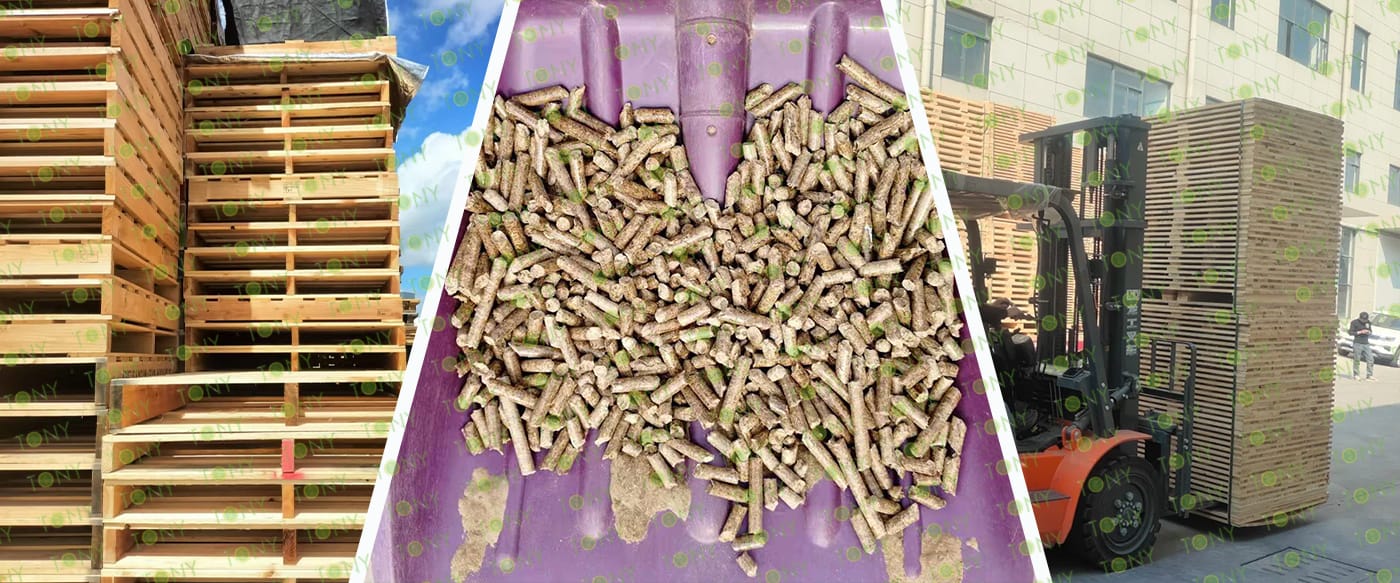

TONY Brand 48-60Ton/Hour Dried Wood Pallets Pellet Manufacturing Plant can take dried wood pallets, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings. After pretreatment and processing, dried wood pallets is solidified into high - density wood pellet fuel.The content of pollutants such as sulfur dioxide and nitrogen oxides produced by biomass pellets during combustion is extremely low, and the dust emission is also low, which can effectively reduce air pollution. Moreover, the raw material sources of biomass pellets are very wide, and the combustion efficiency is high. Compared with traditional fossil energy, it reduces the production and use costs and has higher economic efficiency. It has received a lot of attention and promotion.

1. Capacity: 48-60Ton/Hour

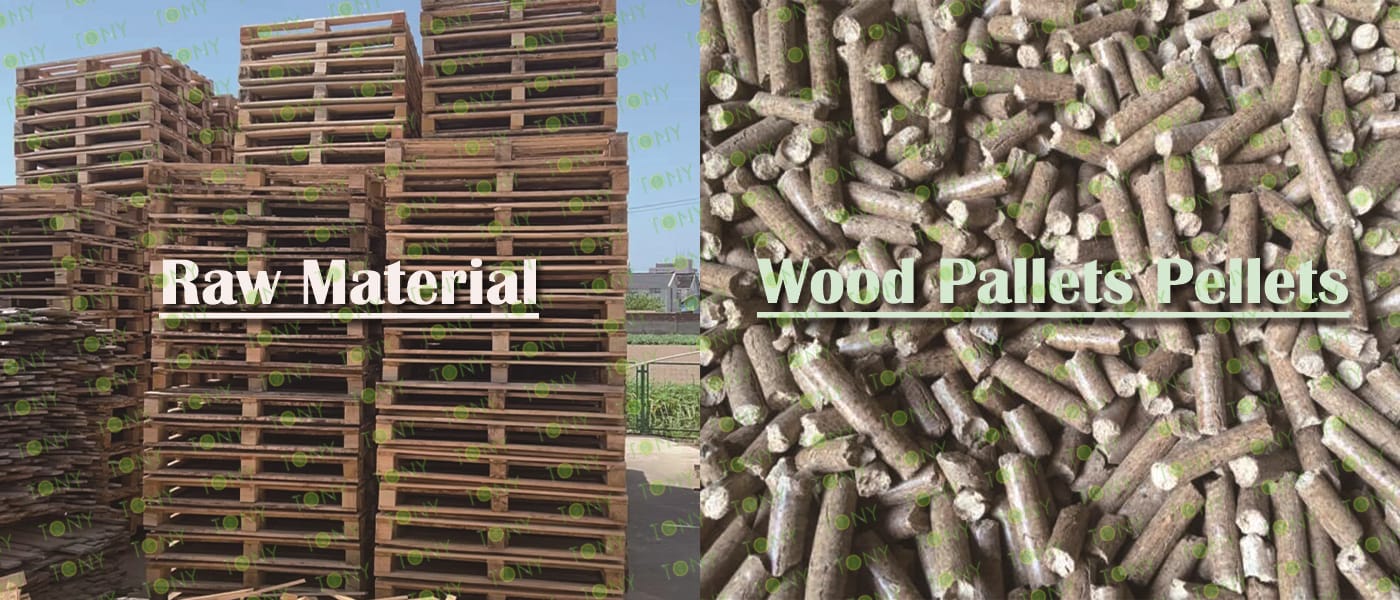

2. Raw materials: Dried wood pallets

3. Moisture: Dry type, about 10-15%.

4. Application: All kinds of  waste wood pallets or more waste wood raw materials

Suitable customers: Logistics and warehousing companies, various manufacturing plants, ports and airports, construction sites, large supermarkets and shopping malls, and other places where waste wood pallets have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Dried Wood Pallets Pellet Production Line

2. Raw Material: All kinds of dried wood pallets

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 48-60 tons per hour

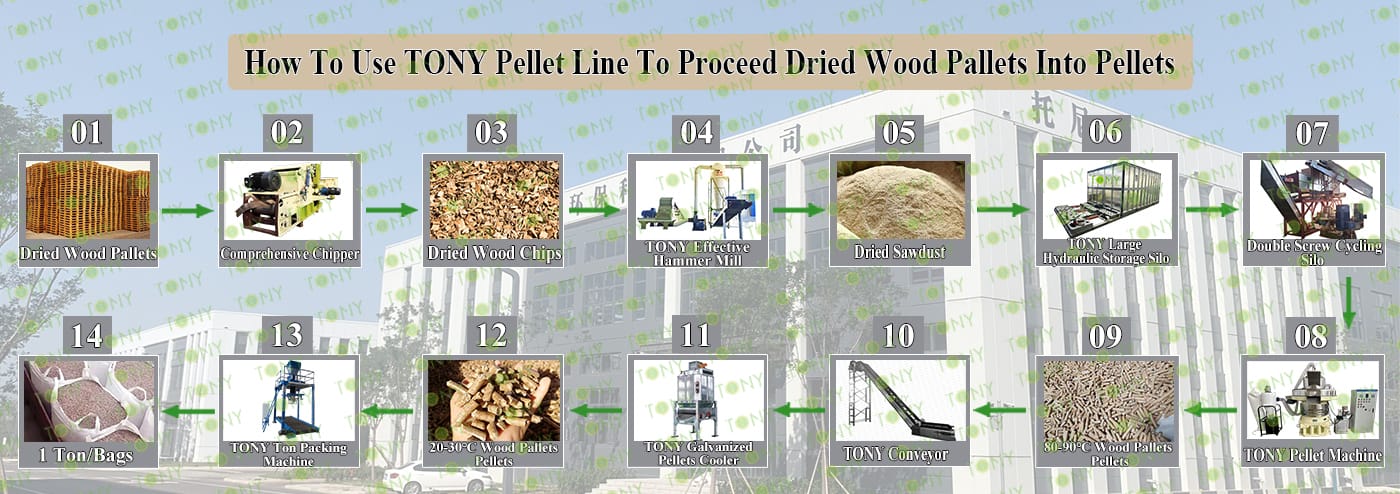

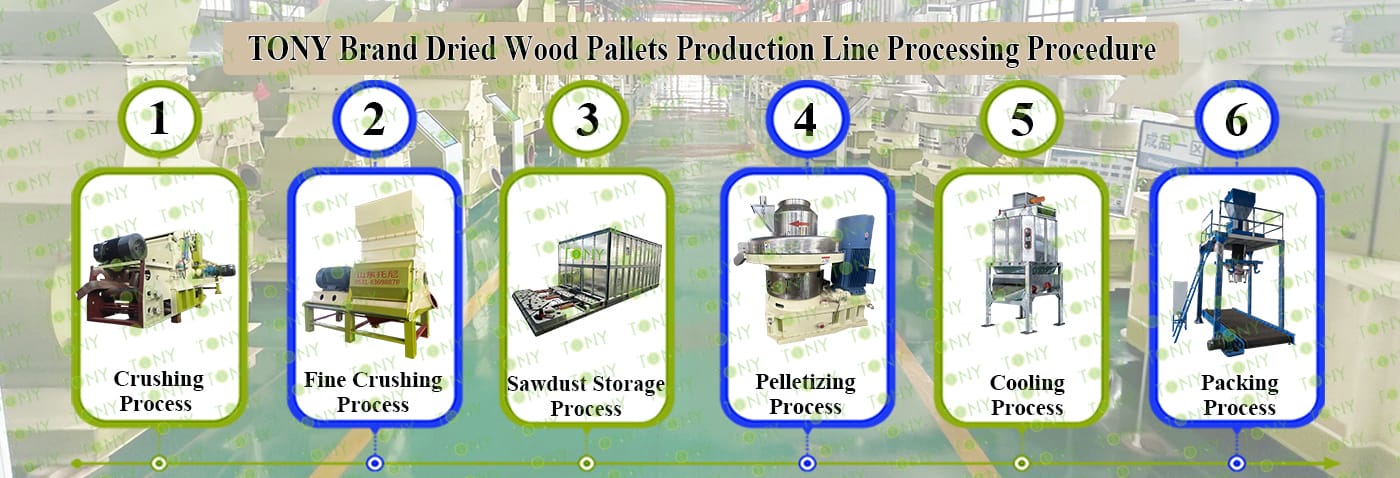

5. Process: Crushing Process - Fine Crushing Process -Sawdust Storage Process- Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1600-1000-315KW, Effective Hammer Mill-TFD120*200-355KW, TONY Large Hydraulic Storage Silo,TONY Pellet Machine TYJ860-Ⅲ-280KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors.

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Large Hydraulic Storage Silo
1.To Grind Wood pallets Width  ≤1.6m Into25-55mm Wood Chips.   2.Model: TPC1600-1000-315KW With 32 Hammer Heads*3sets  3.Capacity: 48-60Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD120*200-355KW*5sets 3.Capacity: 10-12Ton/Hour/Set	1.To Storage Sawdust Before Pellet machine 2.Model: TCY-30*5sets  3.TONY Uses Galvanized Material
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*12sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*5sets 3.Capacity:48-60Ton/Hour	1.To Pack Pellets Into 1Ton/Bags. 2.Model: TBD*5sets 3.Capacity: 48-60Ton/Hour

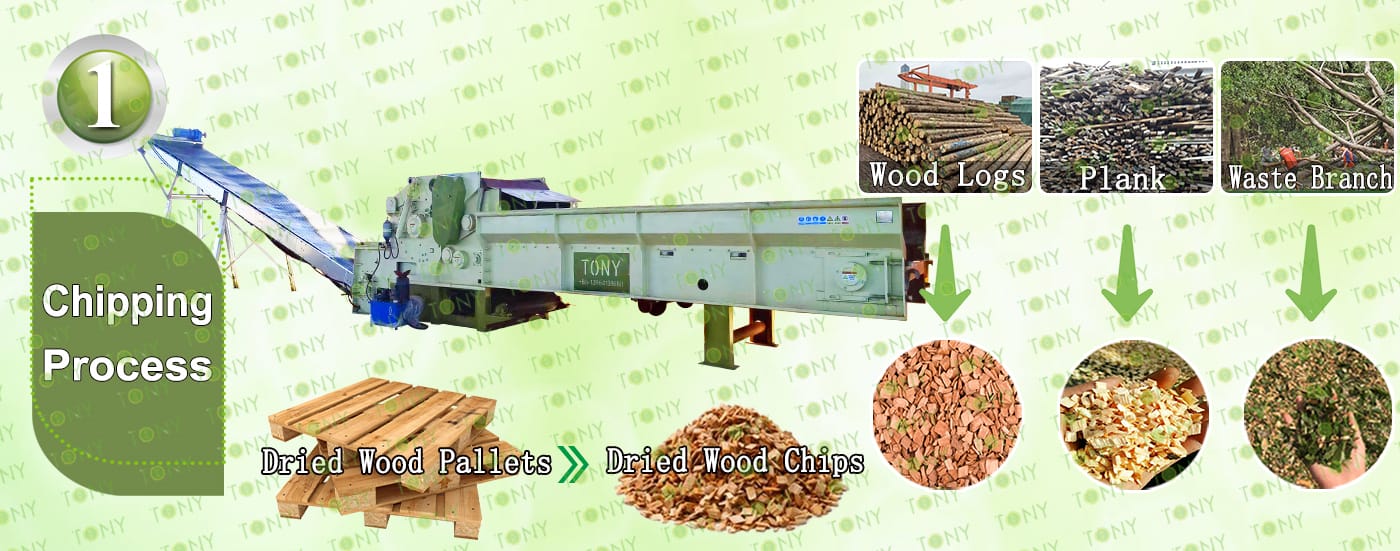

1.Wood Pallets Chipping Process:

A. This process is mainly used to grind wooden pallets with nails less than 1.6m  in width into wood chips with a size of 25-55 mm. The final size of the wood chips can be adjusted by replacing the screen with different sizes and replacing or adjusting the hammer heads with different specifications.

B.TONY brand comprehensive chipper TPC1600-1000-315KW model with  32 hammer heads*3sets

C.Capacity:48-60Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

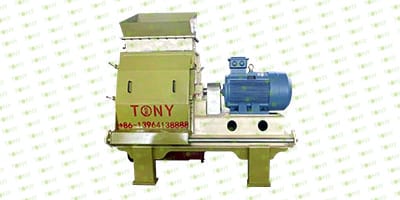

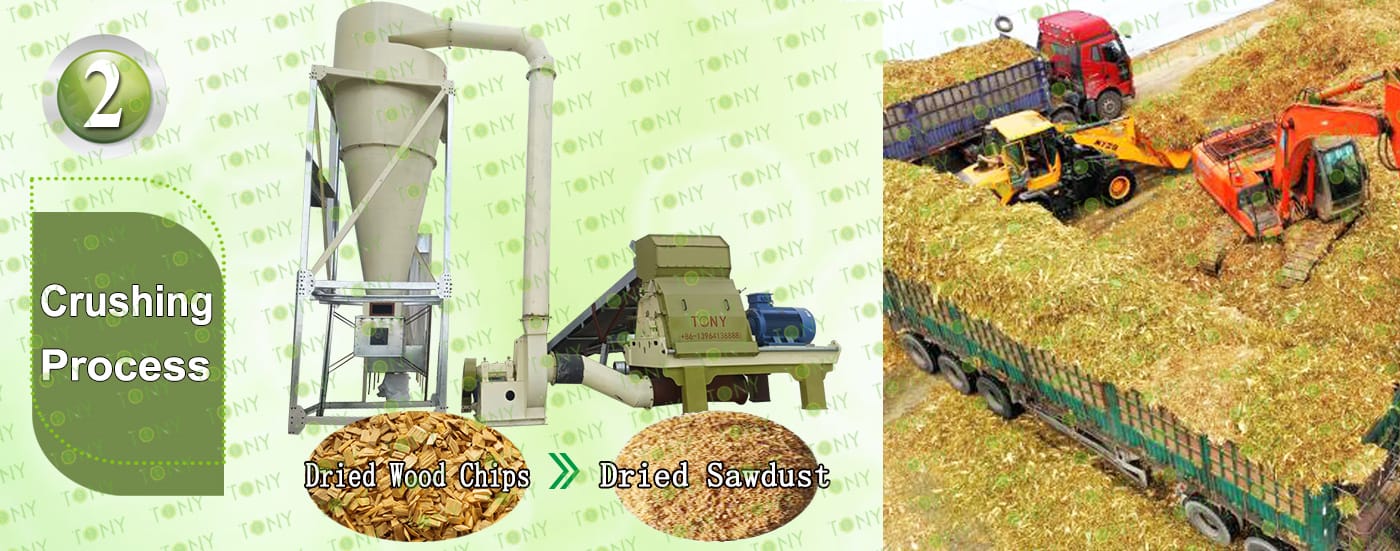

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:48-60Ton/Hour.

C.TONY brand effective hammer mill TFD120*200-355KW*5sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

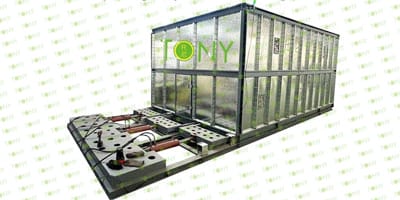

3.Sawdust Storage Process:

A. This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B. TONY brand sawdust storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust Blocked.

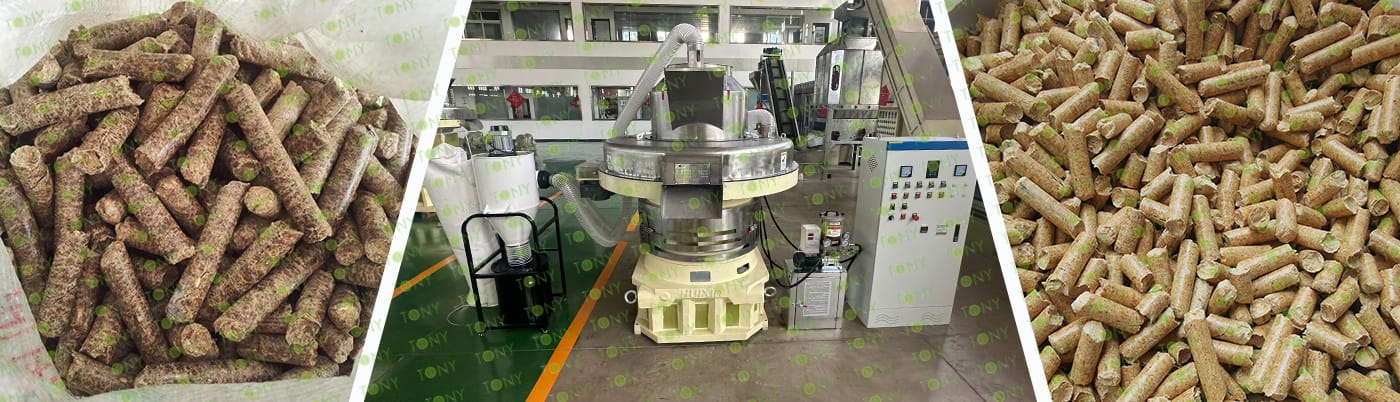

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:48-60Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-Ⅲ-280KW*12sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

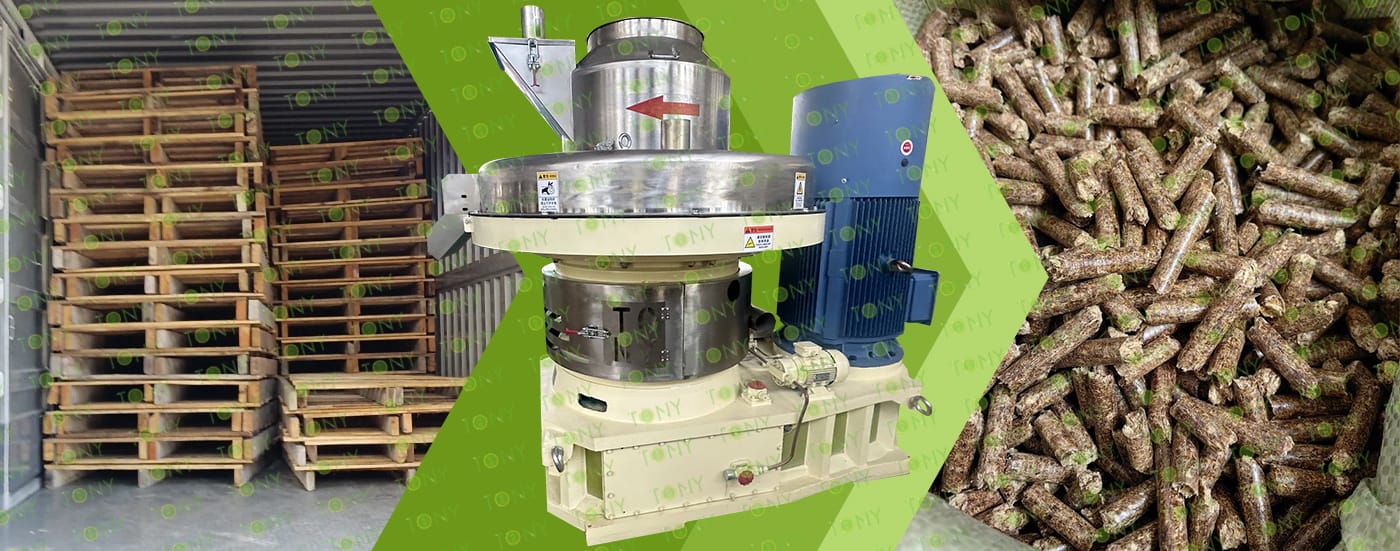

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:48-60Ton/Hour.

C.TONY brand galvanized cooler seperator*5sets

Main Parts:

(1)TONY's Galvanized Cooler Seperator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

6.Packing Process:

A.This process is mainly used to pack pellets into 1ton/bags.

B.5 sets of TONY ton packing machine

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

The biomass pellet processing startup project is an environmentally friendly venture capitalizing on the dual trends of "solid waste resource utilization" and "clean energy substitution." Using waste wood (such as discarded dry pallets from the logistics industry, lumber mill scraps, agricultural and forestry pruning branches, and furniture production waste) as its core raw material, it utilizes specialized equipment such as shredding, crushing, drying, and extrusion to produce high-density biomass pellet fuel. Suitable for small and medium-sized investors, it offers both economic returns and social value.

 The project's core competitiveness lies primarily in its low cost and high adaptability of the raw material: The raw material is widely sourced, mostly from waste resources, and can be purchased at low prices in logistics parks, furniture factories, and forestry farms. Some partners even provide it free of charge (though transportation costs must be covered). Furthermore, the equipment can efficiently sort and process dry pallets with metal connectors and branches containing impurities through pre-processing, eliminating the need for extensive manual screening and achieving a raw material utilization rate of over 90%. Furthermore, to promote the development of "zero-waste cities," local governments often provide site and equipment subsidies for solid waste resource utilization projects, further reducing initial startup pressures.

 In terms of market demand, the project aligns with the energy structure adjustment needs under the "dual carbon" policy. In the industrial sector, boiler heating in small and medium-sized factories and the drying process in food processing companies require alternatives to highly polluting coal fuels, and biomass pellets can be directly integrated into existing equipment. In the agricultural sector, there is a strong demand for low-cost fuels for winter insulation in greenhouses and heating livestock and poultry farms. In the civilian sector, biomass pellets are becoming a high-quality alternative to coal due to their convenient storage and smokeless combustion in rural areas of northern China. Demand for these products covers multiple scenarios and is growing year by year.

Widely available and low-cost raw materials. Discarded wooden pallets are a common waste material in logistics, warehousing, wood processing, and manufacturing, generating significant quantities annually (e.g., discarded pallets from e-commerce and machinery companies). This raw material eliminates the need to purchase additional wood and can often be recycled at a low price. In some areas, collection is even free (companies are willing to pay for the removal of discarded pallets, even though they need to dispose of them). This significantly reduces raw material procurement costs and ensures project profitability.

1.Raw material pre-processing is relatively easy.

 Wooden pallets are primarily made from common hardwoods or softwoods, such as pine, fir, and poplar. Their fiber structure is intact, requiring no complex sorting (only impurities like nails and plastic need to be removed). They can be directly crushed and processed, resulting in low energy consumption and high efficiency.

2.Strong raw material supply stability.

 The logistics industry has a long-standing demand for wooden pallets, and the generation of discarded pallets has steadily increased with the scale of logistics. By establishing long-term recycling agreements with warehousing companies and manufacturing plants, a stable raw material supply chain can be established, avoiding the risk of running out of material to process.
