Project Brief Introduction:

1.Product:Dried Wood Chips Pellet Line

2.Capacity: 12-14T/Hour

3.TONY Brand 12-14Ton /Hour Dried Wood Chips Pellet Line Project Process

4.Main Machine: Hammer Mill,TONY Pellet Machine TYJ860-Ⅲ-220KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 1550 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

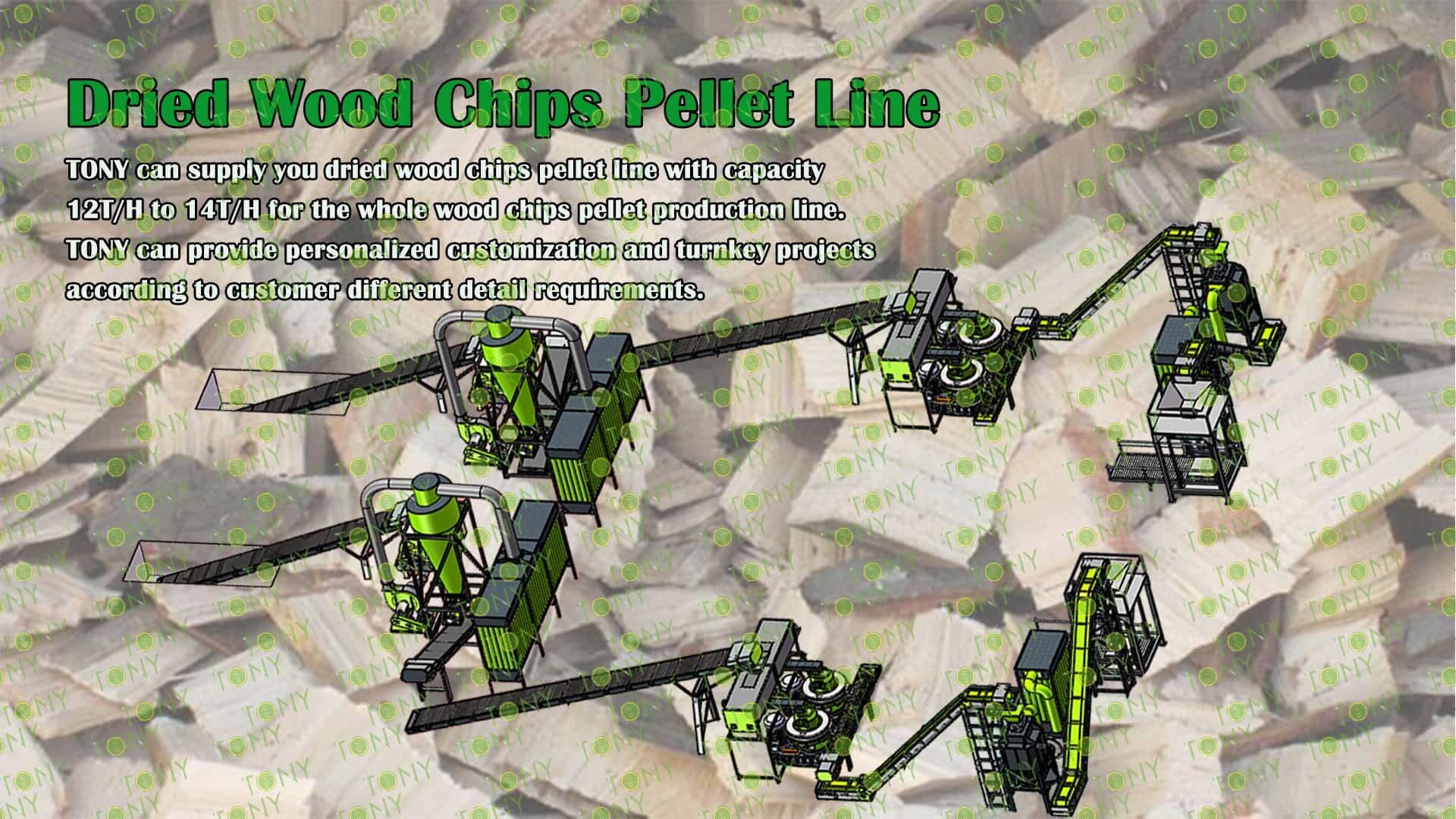

Project Layout For Customer:


原材料图+颗粒机图片

1.The working principle of dried wood chips biomass pellet processing equipment

The core principle of the dry wood chip processing biomass pellet equipment is to transform loose, low-density dry wood chips into high-density, easy-to-store and transport columnar pellets through the process of "pretreatment → extrusion molding → cooling and shaping". Its core technology revolves around "physical extrusion shaping" and "adaptation of raw material characteristics". The core system includes the feeding system, pretreatment system, extrusion molding system, transmission system, and cooling system, and each part works together to achieve the "from wood chip to pellet" transformation.

2.Characteristics of dried wood chips biomass pellet processing equipment

(1)Strong adaptability: The biomass pellet machine can adapt to various raw materials, including dry wood chips.

(2)High-efficiency pelletizing: The centrifugal force is used to make the material continuously move in a circular motion and adhere to the inner wall of the die, forming a uniform annular material layer. The roller continuously rotates and squeezes the material, forcing it into the ring die hole for molding.

(3)Environmental protection and energy saving: The pellet fuel produced by the biomass pellet machine has the advantages of high density, high calorific value, good combustion, low cost, convenient use, clean and hygienic, easy to store and transport, etc. It can replace firewood, coal, natural gas, liquefied gas, etc. and is widely used in domestic stoves, heating stoves, hot water boilers, drying furnaces, industrial boilers, etc.

(4)High degree of automation: The TONY biomass pellet machine has a fully automatic lubrication function and can work 24 hours a day, reducing manual intervention and improving production efficiency.

(5)Low maintenance cost: Some biomass pellet machine equipment has low maintenance cost, no need to add grease, the wearing parts are practical and durable, and the roller bearings are international brands and are not easy to damage.

(6)Compact process: The biomass pellet machine has compact process, small footprint, good dust removal effect, low noise and good production environment.

3.Application scenarios of dried wood chips biomass pellet processing equipment

The equipment for processing dry wood chips into biomass pellets has a wide range of applications, covering energy production, industrial processing, residential life and other fields. Its application scenarios are closely related to the characteristics of the processed biomass pellet fuel.

(1)Application in the field of energy production

Biomass power generation: The processed biomass pellets can be used as fuel for biomass power plants and converted into electricity through combustion to realize the utilization of renewable energy.

Industrial boiler fuel: In enterprise production, biomass pellets can replace traditional coal for boiler combustion, provide heat energy for production and reduce pollutant emissions.

(2)Application in the field of industrial processing

Pretreatment of raw materials for board production: Dry wood chips are processed into sawdust and wood chips, which can be used as raw materials for the production of particleboard, fiberboard, plywood and other boards, giving full play to the value of wood itself.

Auxiliary processing for furniture manufacturing: Dry wood chips are crushed into wood chips suitable for making furniture, and further processed by cutting, grinding and other processes to make various parts of furniture.

(3)Application in the field of residential life

Heating for residents: Biomass pellet fuel has a long burning time and high calorific value. It can be used in fireplaces, heating equipment, etc. in residents' homes to meet winter heating needs.

Household appliance fuel: Some household biomass fuel appliances use biomass pellets as fuel to provide hot water or heating for daily use.

(4)Application in agriculture and environmental protection

Agricultural waste resource utilization: Related equipment can also process agricultural waste such as crop straw. The processed biomass pellets realize the recycling of agricultural resources and meet environmental protection requirements.

Environmentally friendly energy substitution: Under the current resource and environmental situation, biomass pellet fuel is an environmentally friendly energy source. The application of its processing equipment can help reduce dependence on traditional fossil energy and alleviate environmental problems such as smog.

2.图片

TONY Brand 12-14Ton/Hour Dried Wood Chips Pellet Manufacturing Plant can take dried wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, dried wood chips is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 12-14Ton/Hour

2. Raw materials: Dried wood chips

3. Moisture: Dry type, about 10-15%.

4. Application: All kinds of  wood chips or more waste wood raw materials

Suitable customers: Solid wood furniture production, artificial board processing (plywood, fiberboard, particleboard), wood component processing, construction and decoration, packaging and logistics, such as pallets and wooden boxes, will generate a large amount of waste wood chips due to repeated use, size mismatch or changes in cargo transportation needs. Paper and pulp production.Where waste wood chip resources are advantageous.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

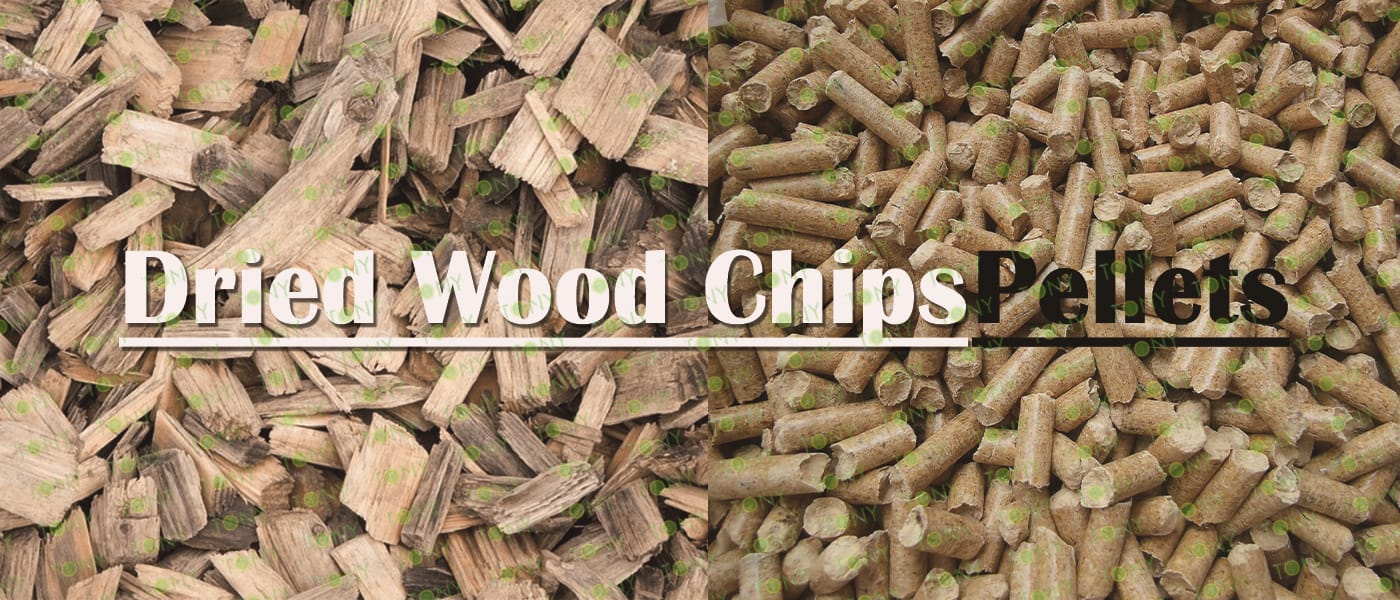

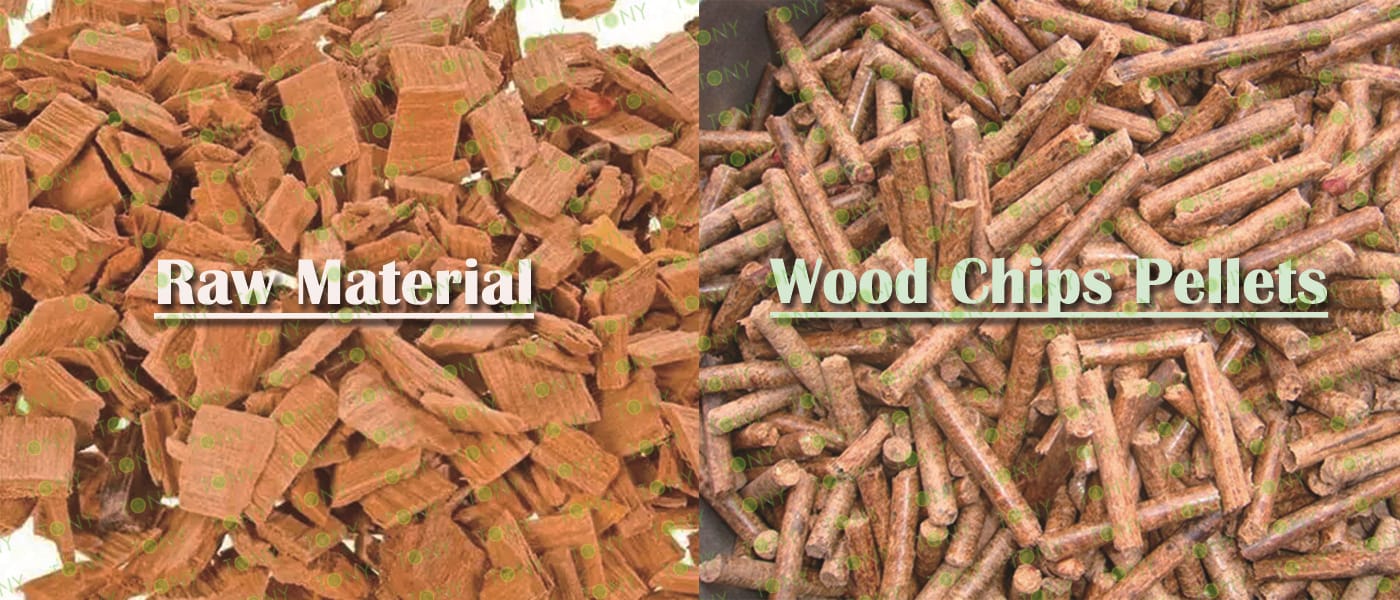

原材料--成品图

1. Project Name: Dried Wood Chips Pellet Production Line

2. Raw Material: All kinds of dried wood chips

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 12-14 tons per hour

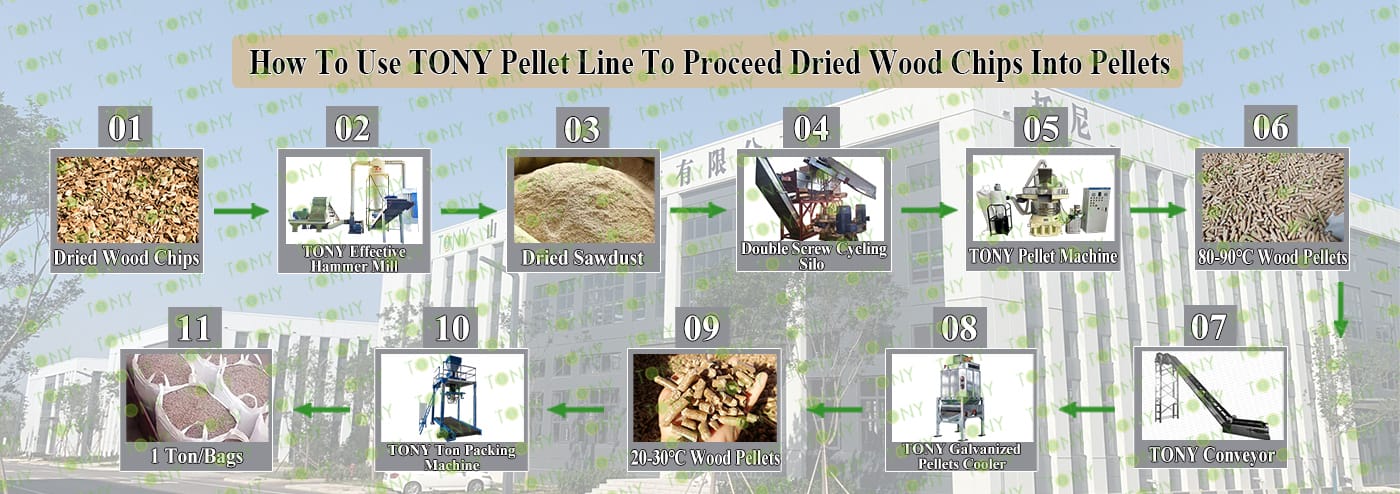

5. Process: Fine Crushing Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Effective Hammer Mill-TFD85*220-220KW,  TONY Pellet Machine TYJ860-Ⅲ-220KW, Galvanized Pellets Cooler, Ton Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

原材料+颗粒图

颗粒+机器图

三维图

三维图

5.1图片

高效粉碎机

带锯末图

1.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:12-14Ton/Hour.

C.TONY brand effective hammer mill TFD85*220-220KW*2sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.2图片

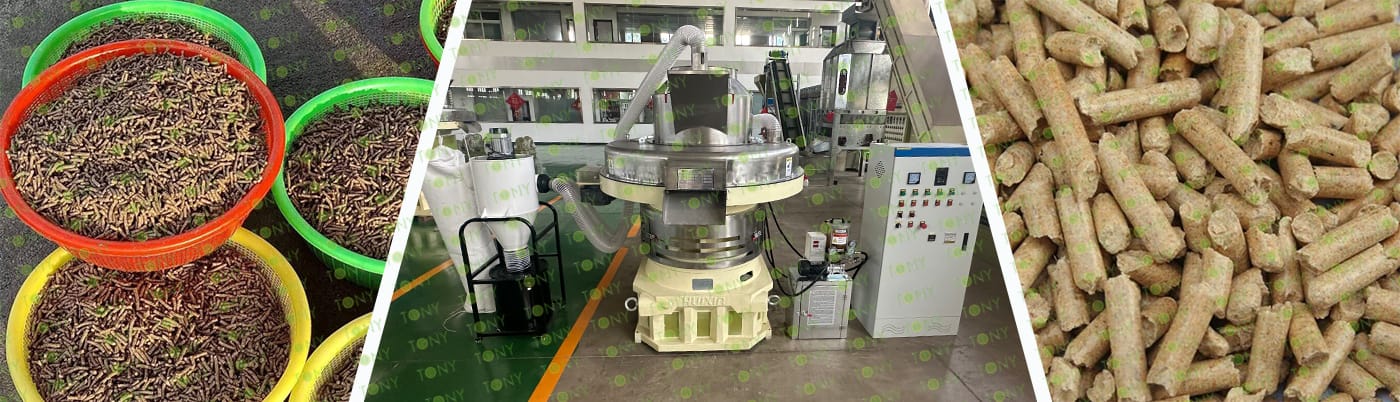

颗粒机四件套带 原材料，颗粒图

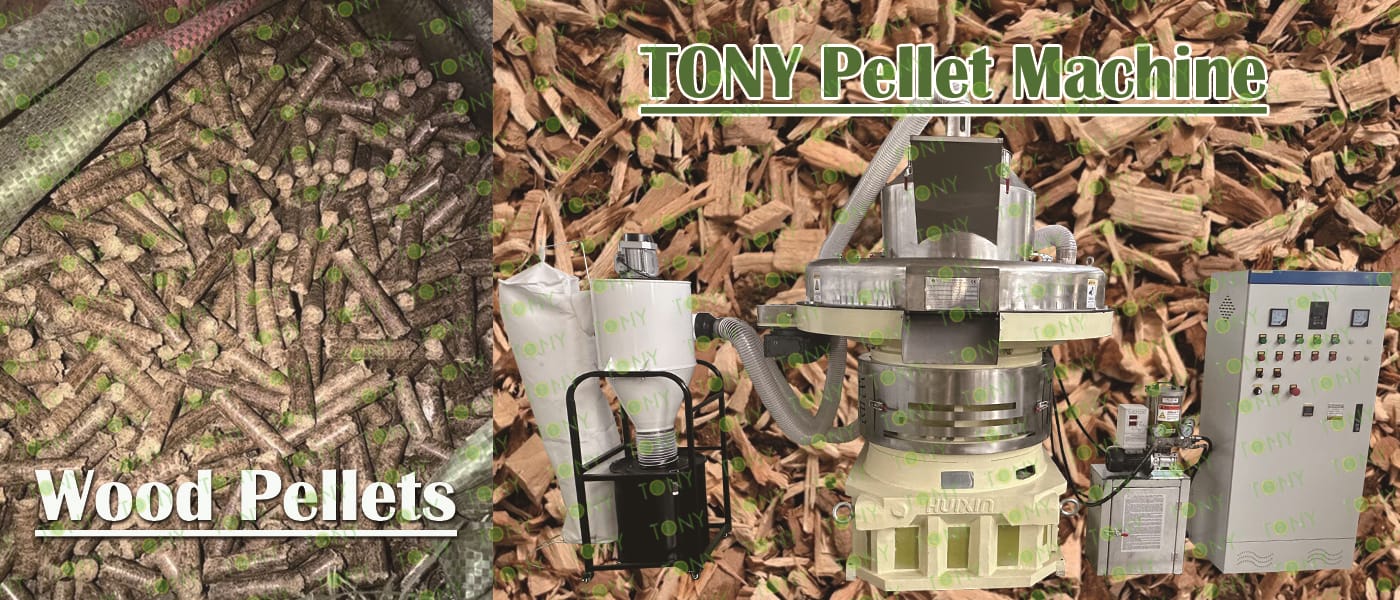

2.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:12-14Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-Ⅲ-220KW*4sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.3图片

镀锌冷却仓加颗粒图

3.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:12-14Ton/Hour.

C.TONY brand galvanized pellets cooler separator*2sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.4图片

吨包机

4.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.Capacity:12-14Ton/Hour.

C.TONY brand ton packing machine*2sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

6.图片

客户生产线案例图

7.图片

图 干木片+颗粒 颗粒机

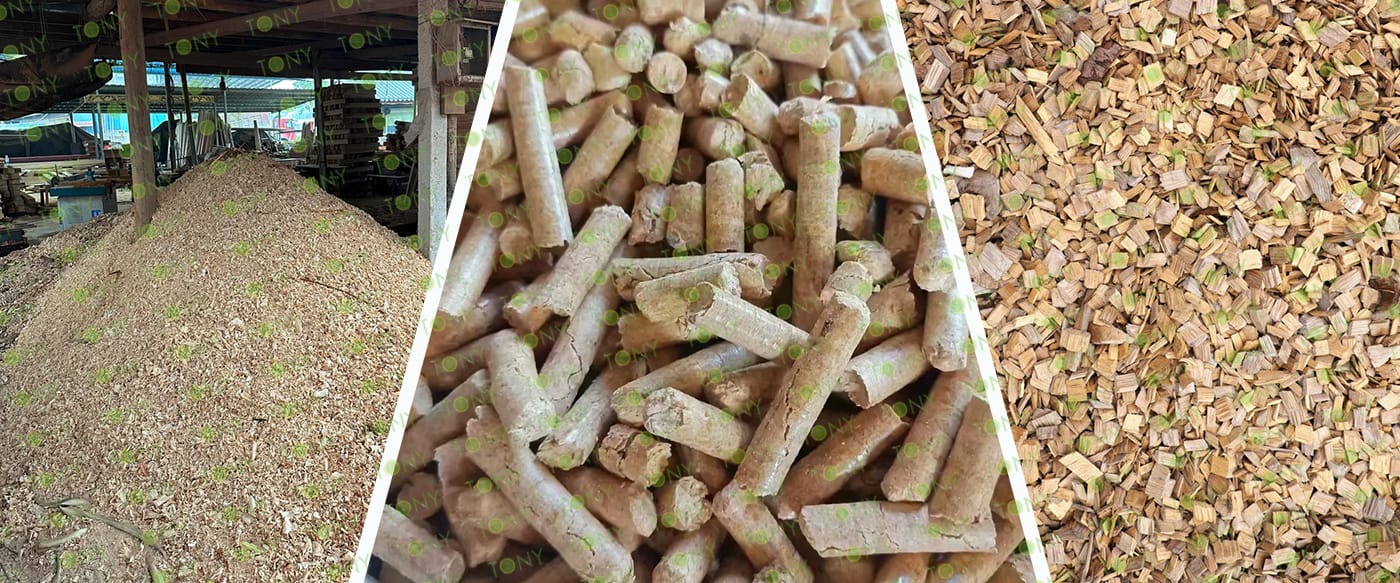

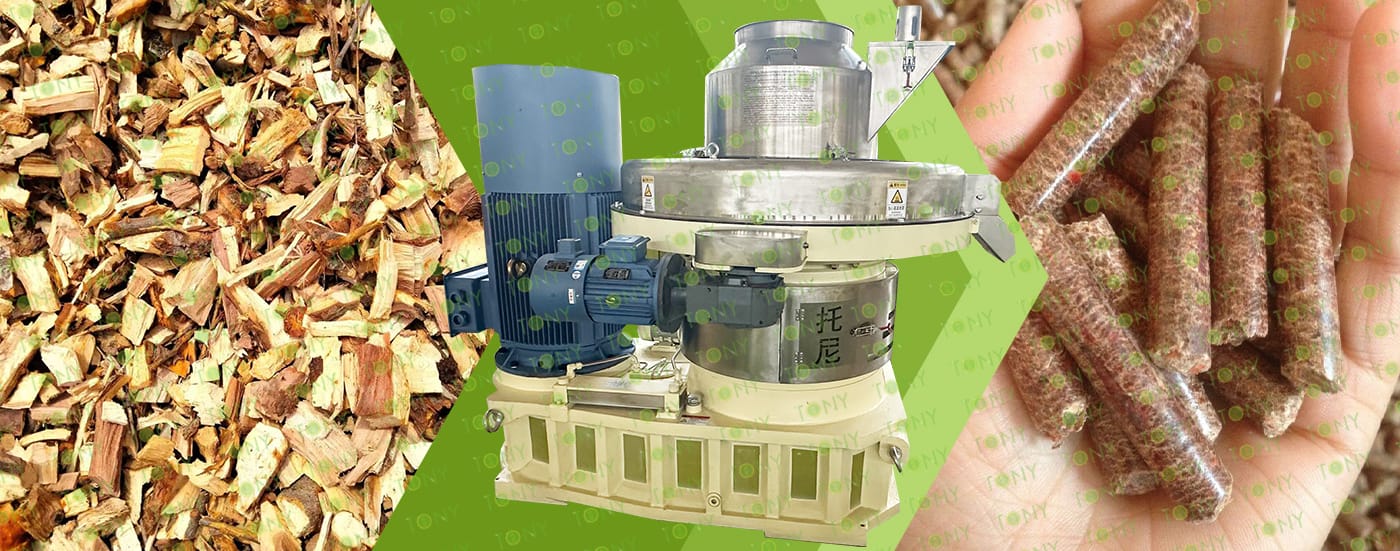

Raw Material Advantages of Dry Wood Chips for Biomass Pellets

Dry wood chips, as the core raw material for this project, offer the advantages of a wide range of sources, low cost, and easy storage. This fundamentally addresses the pain points of biomass projects, often associated with raw material shortages and price fluctuations:

1.Wide-ranging and stable raw material sources

Major sources include: wood processing plant scraps (such as sawdust and wood chips), forestry logging residues (such as branches and trunk segments), fruit tree pruning branches (such as waste branches from apple and pear orchards), and waste from wood-based panel manufacturers. In regions with abundant timber resources (such as the forested areas of Northeast China, Southwest China, and East China), the raw material collection radius can typically be controlled within 50 kilometers, resulting in low transportation costs and year-round supply with no significant seasonal fluctuations (dry wood chips with a moisture content of ≤15% can be stored for long periods).

2.Low raw material cost, reducing production costs

The purchase price of dry wood chips is significantly lower than that of raw materials such as straw and rice husks. Some wood processing plants even provide them free of charge (only the transportation costs are covered) to process the waste. This offers significant profit potential.

3.Simple raw material pretreatment, requiring no additional investment.

Dry wood chips are inherently low in moisture and easy to crush (typically 10%-15% moisture content, requiring no additional drying). They are 5-10mm thick, and can be crushed into 3-5mm wood powder using a standard hammer mill. Compared to straw, which requires prior sun drying and impurity removal, pretreatment equipment and energy costs are reduced by 30%-40%.

8.图片

木片图 颗粒图

Biomass pellets processed from wood chips offer the following advantages:

1.Renewable Energy:

Biomass pellets are derived from waste wood and agricultural residues, resulting in minimal environmental impact and a renewable energy source.

2.Low CO2 Emissions:

Compared to fossil fuels, the combustion of biomass pellets produces lower CO2 emissions, contributing to global climate change mitigation.

3.High Calorific Value:

Pine wood pellets have a calorific value of 4200-5000 kcal/kg, making them one of the highest calorific biomass fuels.

4.Low Ash Content:

Pine wood pellets have a low ash content, typically 1-3. Compared to coal, this ash content leaves very little ash and residual ash. This low ash content significantly increases the fuel's utilization rate, saving fuel.

5.Environmental Advantages:

The main components of the combustible gases released after pyrolysis of pine wood pellets are H2, CH4, CmHn, and CO. Emissions of SO2, CO, and NO after full combustion are negligible. Therefore, pine wood pellets offer significant environmental advantages compared to coal.

6.Economical:

The utilization rate and unit price of pine wood pellet fuel are high. Compared with fuel oil, gas, electricity and other energy sources, pine wood pellet fuel is a relatively cost-effective energy source. It can generally save 50% compared with fuel oil and gas, and 80% compared with electricity. It is 10% cheaper than anthracite and about 20-30% more expensive than low-quality polluting coal.
