1. The working principle of  wet straw biomass pellet processing equipment

The wet straw pellet processing equipment uses wet straw as raw material, firstly processes it into sawdust-like raw material that meets the pelleting requirements through crushing and pulverizing equipment, then dries the pulverized material to control the moisture content, and then uses a biomass pellet machine to extrude the dried material into shape, and finally obtains the finished pellets after cooling and packaging. The whole process converts the originally discarded wet straw into usable pellet fuel, realizing the recycling and reuse of resources.

2. Characteristics of  wet straw biomass pellet processing equipment

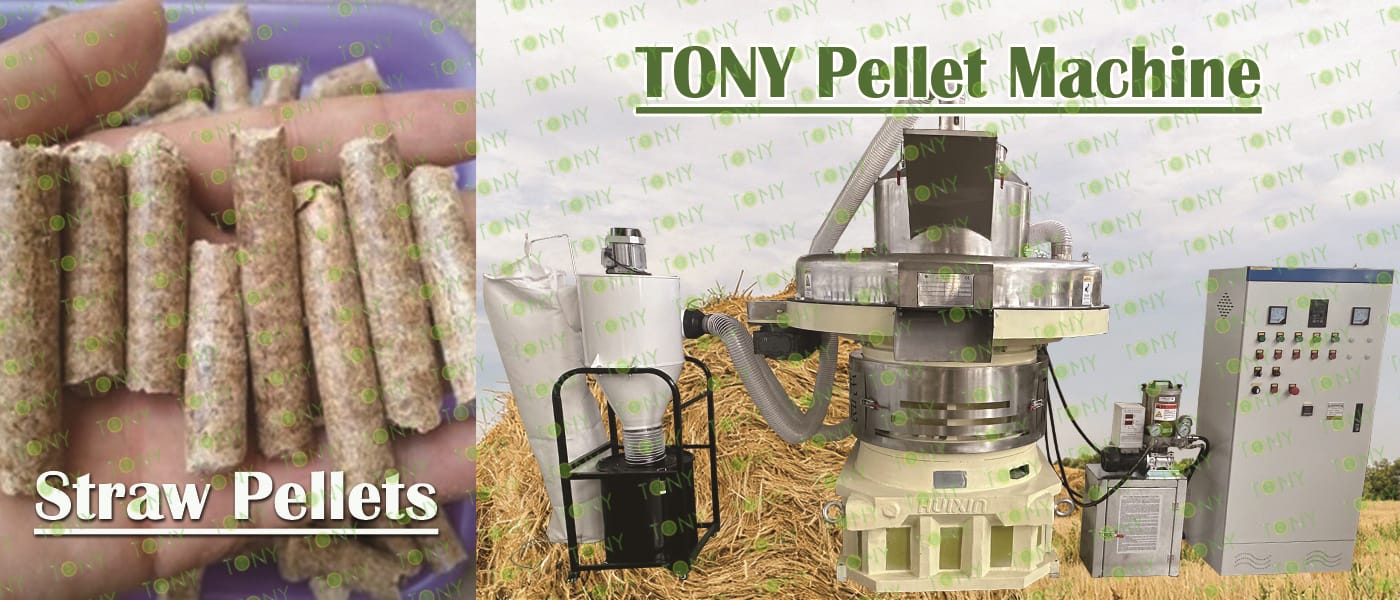

(1)Efficient pelletizing and stable pellet quality. The core equipment, the ring die pelletizer, utilizes a high-strength alloy ring die and wear-resistant rollers to withstand the high friction of wet straw compression, ensuring continuous production.

(2)Highly adaptable to high-moisture raw materials, it can quickly reduce moisture to the required 10%-15% for pelleting. Even with large moisture fluctuations (such as sawdust collected during the rainy season), stable operation is maintained.

(3) Energy-saving and environmentally friendly, with high resource utilization.

(4)Highly automated and easy to operate, it monitors parameters such as raw material moisture, pelletizing temperature, and output in real time, automatically adjusting drying time, feed rate, roller speed, and other parameters to minimize manual intervention.

3. Application scenarios of  wet straw biomass pellet processing equipment

(1) Industrial boiler fuel

Application targets: Industrial enterprises that require a stable heat source, such as textile mills, paper mills, food processing plants, and chemical plants (such enterprises traditionally rely on coal-fired boilers, which puts great pressure on environmental protection).

(2) Civilian clean heating/cooking

Application targets: Winter heating, home cooking, and decentralized energy needs in small places such as homestays and farmhouses.

(3) Biomass power generation/cogeneration

Application targets: Small and medium-sized biomass power plants (installed capacity 10-30MW), industrial park cogeneration projects (providing electricity and steam for the park).

(4) Agricultural and animal husbandry auxiliary

Application targets: Organic fertilizer production enterprises, flower and seedling planting bases.

2.图片

TONY Brand 28-35 TPH Wet Straw Line can process wet straw and various biomass materials related to agricultural waste into biomass pellets. Straw processing into biomass pellets has a wide range of uses .As fuel: straw pellet fuel can be used as boiler fuel for power plants, industrial boilers, civil heating and other fields. Its calorific value is similar to coal, but the price is lower, and the combustion process produces fewer pollutants, is a more environmentally friendly fuel. As feed: Straw pellets processed by straw pellet machining can be used as feed for livestock. This method can make full use of crop straw, reduce feed costs, and also help solve the problem of straw disposal. These uses can not only effectively use agricultural waste, reduce environmental pollution, but also create economic benefits and promote sustainable agricultural development.

1. Capacity: 28-35 Ton/Hour

2. Raw materials: Wet straw, including wet corn straw, wet wheat straw, wet cotton straw, wet flax straw, wet beet straw and other agricultural straw

3. Moisture: About 30-35%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, agricultural cooperatives, and small - scale rural processing units that have ready access to wet straw and related agricultural residues.

5. Finished Pellets Markets: Large power plants, domestic heating systems in rural and suburban areas, industrial heating facilities in rural - based industries, combustion heat applications in local manufacturing units, heating systems in rural schools and community centers, boiler rooms in small - scale rural enterprises, and canteens in rural educational institutions.,farms, feed mills.

3.图片


1. Project Name: Wet Straw Production Line

2. Raw Material: Bales of  Wet Straw

3. Moisture Content of Raw Material: 30-35%

4. Capacity: 28-35 TPH

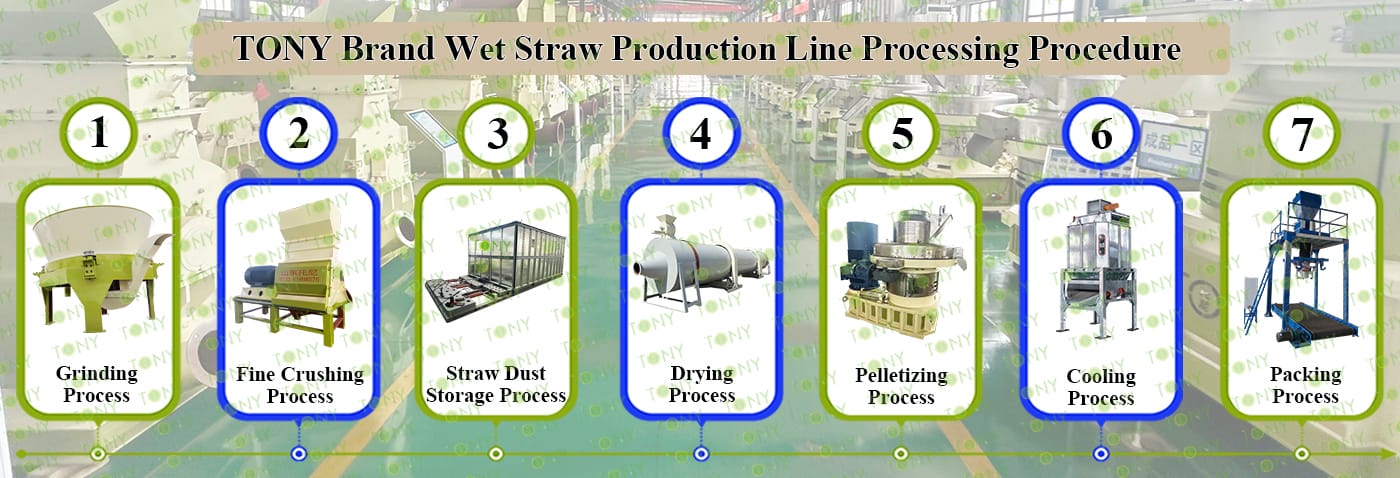

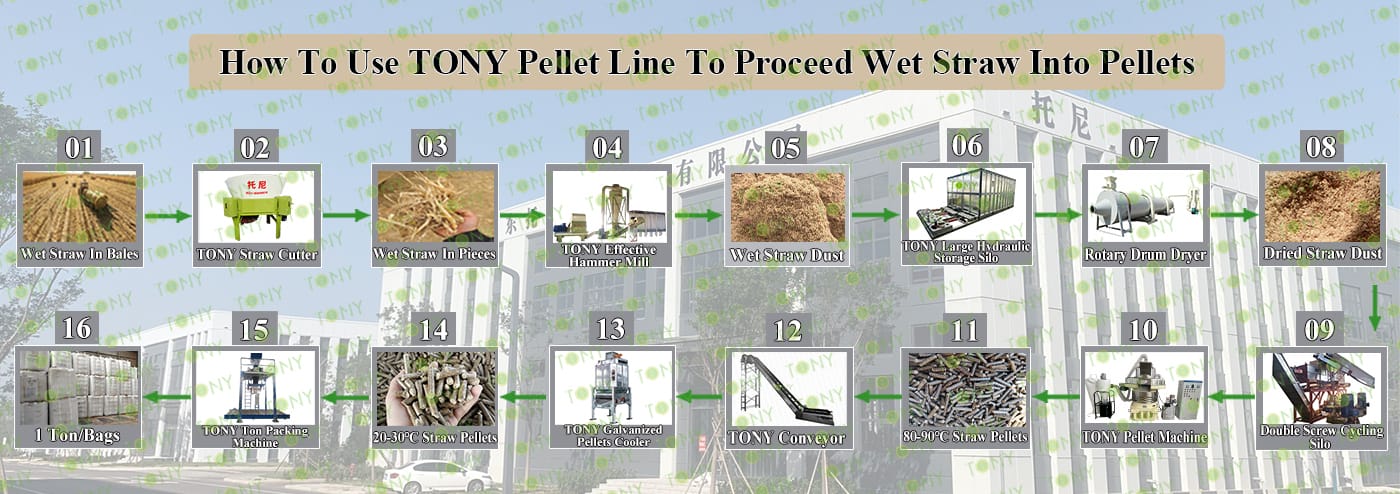

5. Process: Grinding Process - Fine Crushing Process - Straw Dust Storage Process-Drying Process-Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Straw Cutter -TPX3000-132kw, Effective Hammer Mill- TFD85*250-250kw, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-2.2*24m ,TONY Pellet Machine-TYJ860-III-280kw, Galvanized Pellets Cooler, Ton Packing Machine and Belt Conveyors

4.图片

流程图1

流程图

5.图片

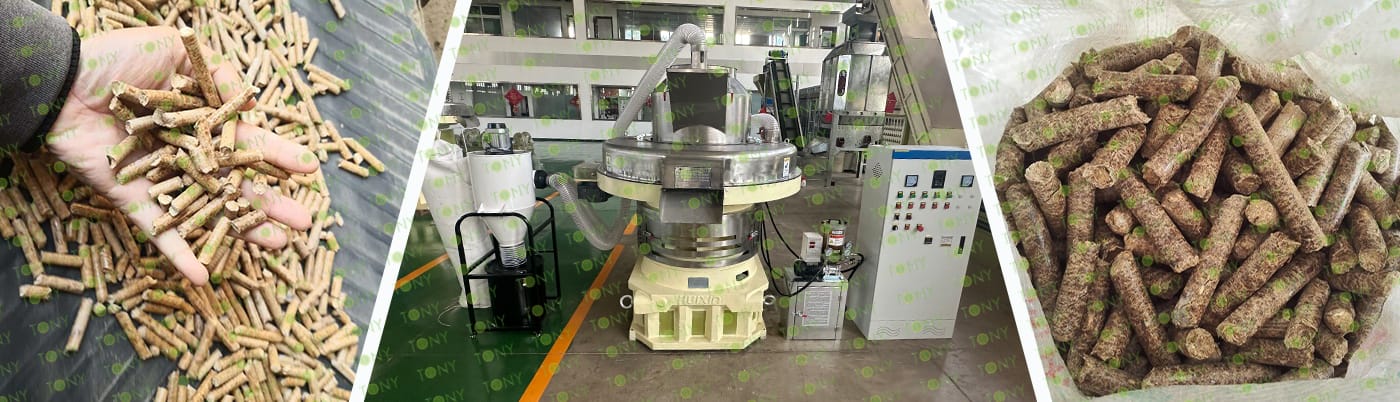

原材料+颗粒图

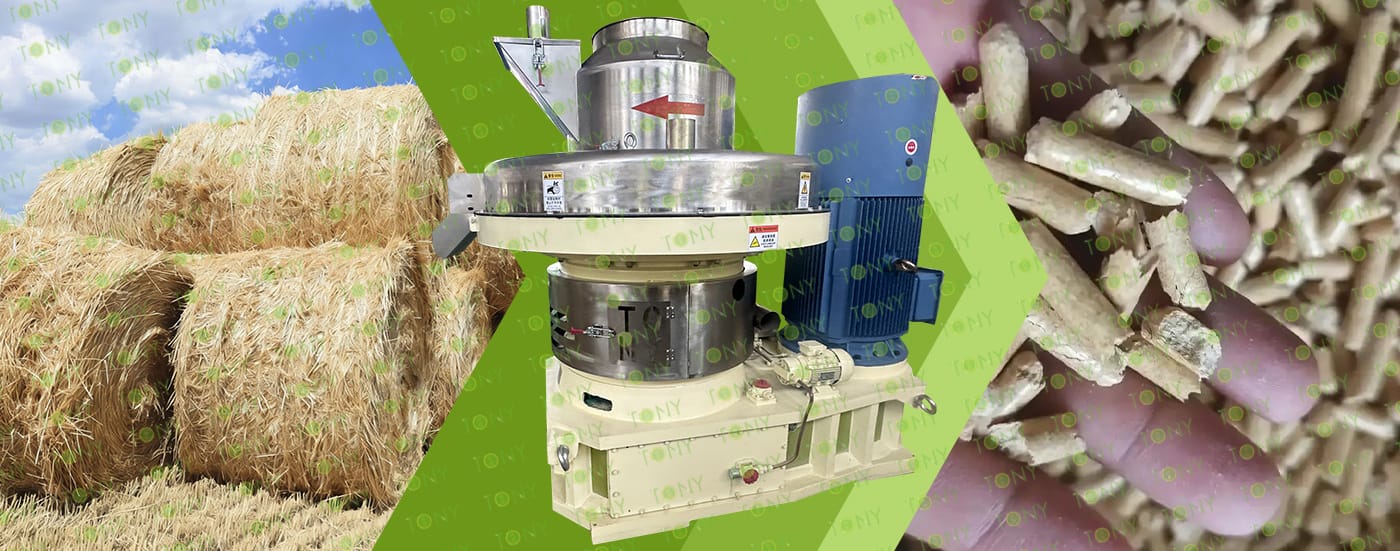

颗粒+机器图

5.1图片


1.Grinding Process:

A.The process is mainly used to grind wet straw within 2.5m in diameter into wet straw pieces. The rotary cutting mode of the outer chain of the gear, the rotary cutting rotor blade is sharp, and the blade types are various, which can be rotated to cut various bales of straw with different diameters, different thicknesses, different lengths and different water contents

B.TONY brand straw cutter TPX3000-132kw models *4sets

C.Capacity:5-9Ton/Hour/Set

Main Parts:

(1)Tony's New Straw Cutter

(2)Enlarged Turntable

(3)Rotary Cutting System

(4)Drive system

(5)Electrical Cabinet.

5.2图片


2.Fine Crushing Process:

A. The process is mainly used to crush 60-70mm wet straw pieces into 8-14mm wet straw dust.

B.TONY brand effective hammer mill TFD85*250-250kw *5sets.

C.Capacity: 28-35tons/hour.

Main parts:

(1)TONY Effective Hammer Mill

(2)Galvanized Dust Collector.

(3)Sawdust Conveying Fan.

(4)Cyclone With Airlock.

(5)Electrical Cabinet.

5.3图片


3.Straw Dust Storage Process:

A. This process is mainly used to storage the straw dust that comes out of the hammer mill.It is hydraulic galvanized storage silo which is more stable and straw dust in it is not easy to be blocked.

B.TONY Brand Large Hydraulic Storage Silo to storage the straw dust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's new Large Hydraulic Storage Silo.

(2)With Screws Inside the Storage Bin to Prevent Straw Dust Blocked.

5.4图片


4.Drying Process:

A.This process is mainly used to dry the straw dust from 30-35% to 10-15%.  B.Capacity: 28-35 Ton/Hour.

C.TONY use 5 sets of 2.2*24m rotary drum dryer for this process,TONY hot stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.(Reducers With Motors and Pips)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.5图片


5.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ860-Ⅲ-280kw *7sets

C. Capacity:28-35Ton/Hour.

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.6图片


6.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*2sets

C.Capacity:28-35 Ton/Hour.

Main Parts:

(1) TONY's new Galvanized Pellets Cooler Separator With Vibrating Screen.

(2) Cyclone and bags dust collectors.

(3) Fan Blower.

(4) Connect Pipes.

5.7图片


7.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.TONY brand ton packing machine*2sets

C.Capacity: 28-35 Ton/Hour.

Main Parts:

(1)TONY Ton Packing Machine

(2) Electronic Platform Scale Metering System

(3) Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

6.图片


7.图片


1. Current Market Demand for Straw Pellets

Currently, straw pellets are not widely used in most parts of my country, primarily due to low market awareness, an imbalance between supply and demand, and immature technology. However, with national policies promoting green and environmentally friendly energy and supporting the industry, market demand for straw pellets is gradually growing. According to Zhilian Data, market demand for straw pellets has reached millions of tons, while supply only accounts for approximately 2% of the national bamboo production, creating a significant supply-demand imbalance.

2. Market Prospects for Straw Pellets

As a renewable fuel, straw pellets offer promising market prospects. First, they align with national policies on environmentally friendly and green energy, resulting in broad market demand. Second, straw pellets have a wide range of uses, including home heating, industrial heating, and power machinery fuel, creating a significant market opportunity. Furthermore, straw pellets have relatively low production and transportation costs, offering significant market advantages. Furthermore, as technology matures and production efficiency and output continue to rise, the competitiveness of straw pellets will continue to improve.

In short, the straw pellet fuel market has broad prospects, and its status will continue to rise with the development of China's economy and changes in the policy environment. Currently, related industry companies need to further strengthen technological research and development, improve product quality, and improve the market supply chain to ensure market prospects and production and sales market share.

8.图片


1. Economical and Applicable.

Straw processed into pellet fuel has a calorific value of 15,100 to 16,800 kJ/kg and sells for around 450 yuan/ton. This price is 50 to 80 yuan/ton more than coal of the same calorific value (excluding energy savings and pollution fees), and significantly lower than diesel and natural gas. Biomass (pellet) gasification boilers offer significant economic advantages. Replacing oil, gas, or electric boilers can save users significant operating costs. While similar in price to coal, its superior environmental performance and recyclability are unmatched by coal-fired boilers. Due to its high volatility and flammability, straw fuel has a wide range of applications. For example, it can be used directly in coal-fired boilers with a capacity of less than 1 ton/h, tea bath furnaces, and low-temperature kilns for drying and heat treatment. With minor furnace modifications, it can also be used in larger boilers and special-purpose kilns with appropriate measures.

2. High combustion efficiency and energy conservation

Because straw fuel has high volatility, low ash and moisture content, and is easily flammable, heat loss from incomplete combustion, including mechanical, chemical, and smoke exhaust, is minimized, resulting in a combustion efficiency exceeding 95%.

In summary, wet straw biomass pellets offer the advantages of bein
