Project Brief Introduction:

1.Product:Wet Straw Pellet Line

2.Capacity:18 T/Hour

3.TONY Brand 18 Ton /Hour Wet Straw Pellet Line Project Process

4.Main Machine: Straw Cutter,Hammer Mill,Large Hydraulic Storage Silo,Rotary Drum Dryer,TONY Pellet Machine TYJ760-III-200kw,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 2700 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

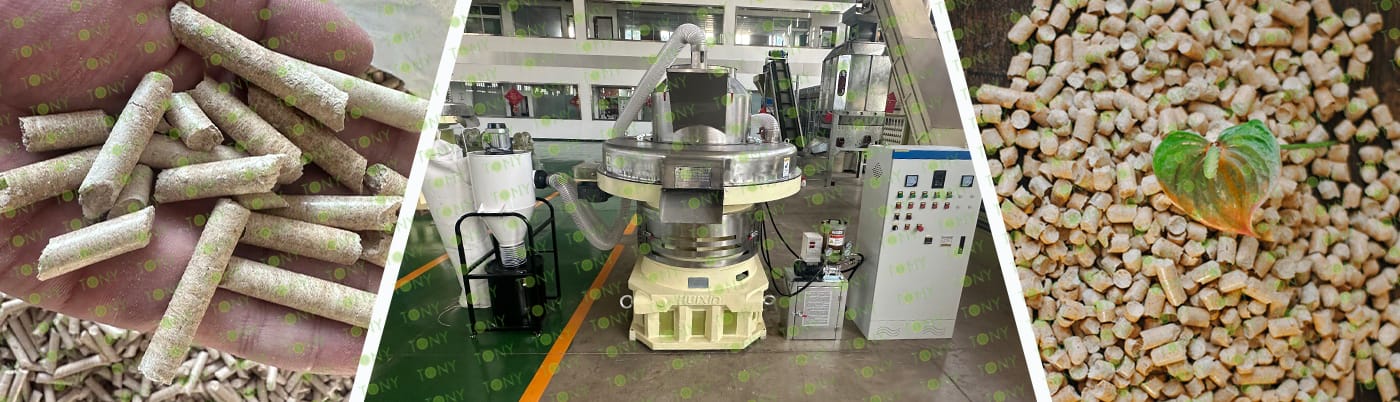

原材料图+颗粒机图片

1. The working principle of  wet straw biomass pellet processing equipment

The working process of the equipment includes the following main steps:

‌Feeding Stage‌: The raw materials enter the equipment through the feed port and are ready for the next step of processing.

‌Preliminary Crushing‌: Before the raw materials enter the compression chamber, they usually need to undergo preliminary crushing to ensure that the raw material particles are uniform in size, which is convenient for subsequent high-pressure compression and molding.

‌High-Pressure Compression‌: After the raw materials enter the compression chamber, they are subjected to strong compression force and are squeezed into strips or other shapes to enhance the bonding force between the particles.

‌High-Temperature Treatment‌: The compressed raw materials enter the high-temperature furnace for heat treatment to promote the pyrolysis and polymerization of components such as lignin, and further improve the calorific value and corrosion resistance of the particles.

‌Cooling And Molding‌: The raw materials after high-temperature treatment need to be cooled by the cooling system to prevent overheating, deformation or combustion, and then molded into regular granular solid fuels under the action of the mold or extrusion plate.

‌Discharging Stage‌: The molded particles are discharged through the discharge port to become the final biomass pellet fuel product.

2. Characteristics of  wet straw biomass pellet processing equipment

(1) High-efficiency crushing: The combination of high-speed rotating blades and screens can quickly and effectively crush straw into the required fine particles, thereby improving biomass utilization.

(2) Versatility: Not only suitable for straw, but also can process other biomass materials such as wood chips, peanut shells, rice husks, etc. This versatility makes it widely used in agriculture, energy and environmental protection industries.

(3) High energy efficiency: Advanced power systems and energy-saving technologies are usually used to improve energy utilization efficiency, reduce energy consumption, and thus save operating costs.

(4) High crushing uniformity: It can achieve uniform and fine crushing of biomass straw, making it easier to carry out subsequent fermentation, pressing or processing.

(5) Automatic control: Many biomass straw crusher equipment is equipped with advanced automatic control systems, which can achieve intelligent operation, easy operation, and improve work efficiency.

(6) Special materials and processes: The main load-bearing components are made of high-alloy wear-resistant materials, and the life of wearing parts is twice that of similar products.

3. Application scenarios of  wet straw biomass pellet processing equipment

(1) Industrial boiler fuel

Application targets: Industrial enterprises that require a stable heat source, such as textile mills, paper mills, food processing plants, and chemical plants (such enterprises traditionally rely on coal-fired boilers, which puts great pressure on environmental protection).

(2) Civilian clean heating/cooking

Application targets: Winter heating, home cooking, and decentralized energy needs in small places such as homestays and farmhouses.

(3) Biomass power generation/cogeneration

Application targets: Small and medium-sized biomass power plants (installed capacity 10-30MW), industrial park cogeneration projects (providing electricity and steam for the park).

(4) Agricultural and animal husbandry auxiliary

Application targets: Organic fertilizer production enterprises, flower and seedling planting bases.

2.图片

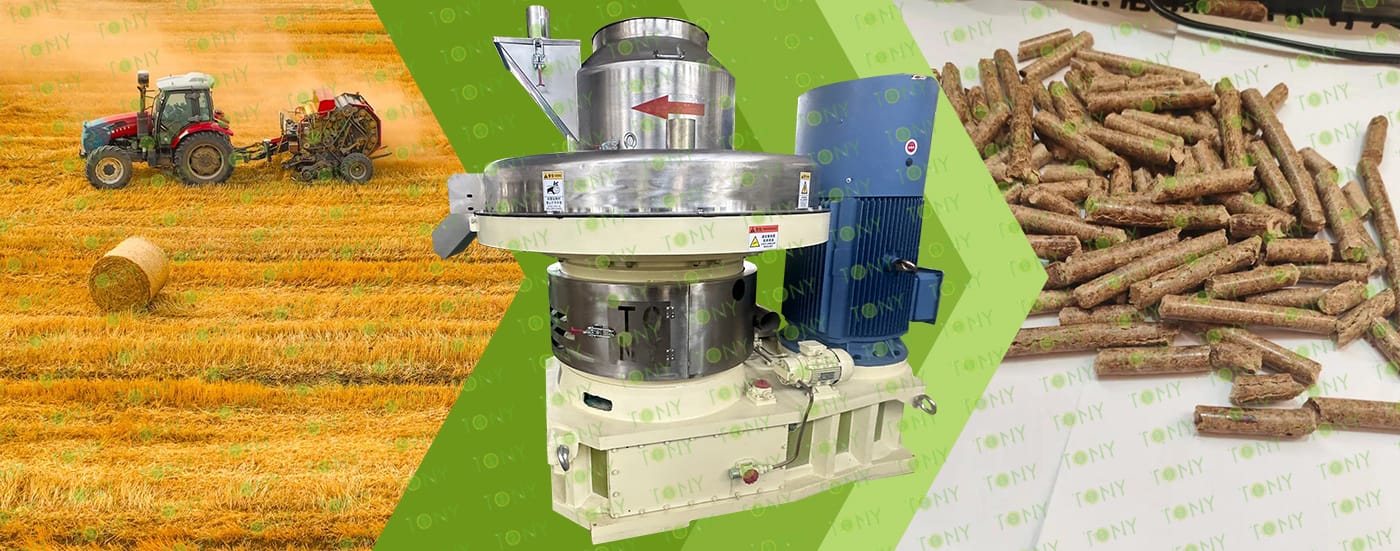

TONY Brand 18 TPH Wet Straw Line can process wet straw and various biomass materials related to agricultural waste into biomass pellets. Straw processing into biomass pellets has a wide range of uses .As fuel: straw pellet fuel can be used as boiler fuel for power plants, industrial boilers, civil heating and other fields. Its calorific value is similar to coal, but the price is lower, and the combustion process produces fewer pollutants, is a more environmentally friendly fuel. As feed: Straw pellets processed by straw pellet machining can be used as feed for livestock. This method can make full use of crop straw, reduce feed costs, and also help solve the problem of straw disposal. These uses can not only effectively use agricultural waste, reduce environmental pollution, but also create economic benefits and promote sustainable agricultural development.

1. Capacity: 18 Ton/Hour

2. Raw materials: Wet straw, including wet corn straw, wet wheat straw, wet cotton straw, wet flax straw, wet beet straw and other agricultural straw

3. Moisture: About 30-35%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, agricultural cooperatives, and small - scale rural processing units that have ready access to wet straw and related agricultural residues.

5. Finished Pellets Markets: Large power plants, domestic heating systems in rural and suburban areas, industrial heating facilities in rural - based industries, combustion heat applications in local manufacturing units, heating systems in rural schools and community centers, boiler rooms in small - scale rural enterprises, and canteens in rural educational institutions.,farms, feed mills.

3.图片


1. Project Name: Wet Straw Production Line

2. Raw Material: Bales of  Wet Straw

3. Moisture Content of Raw Material: 30-35%

4. Capacity: 18 TPH

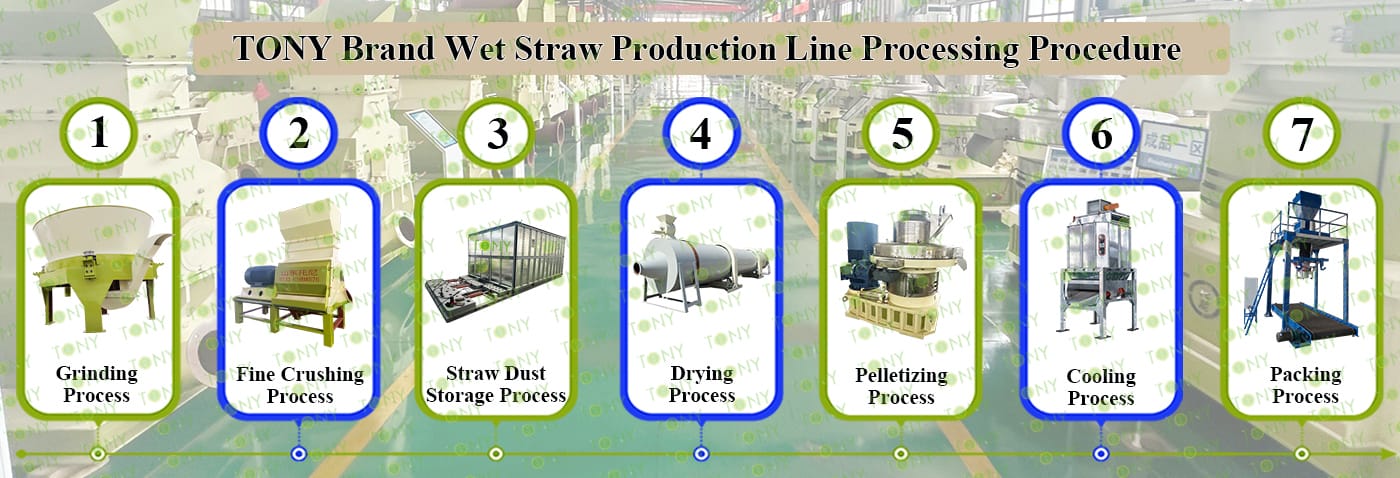

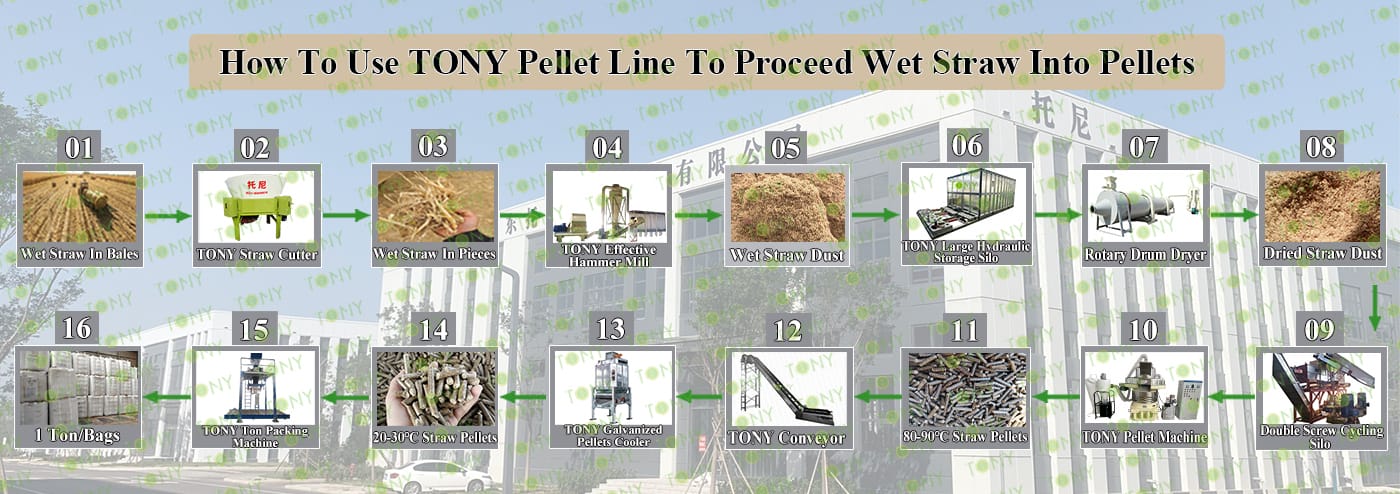

5. Process: Grinding Process - Fine Crushing Process - Straw Dust Storage Process-Drying Process-Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Straw Cutter -TPX2500-132kw, Effective Hammer Mill- TFD75*132-132kw, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-2.8*24m ,TONY Pellet Machine-TYJ760-III-200kw, Galvanized Pellets Cooler, Ton Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

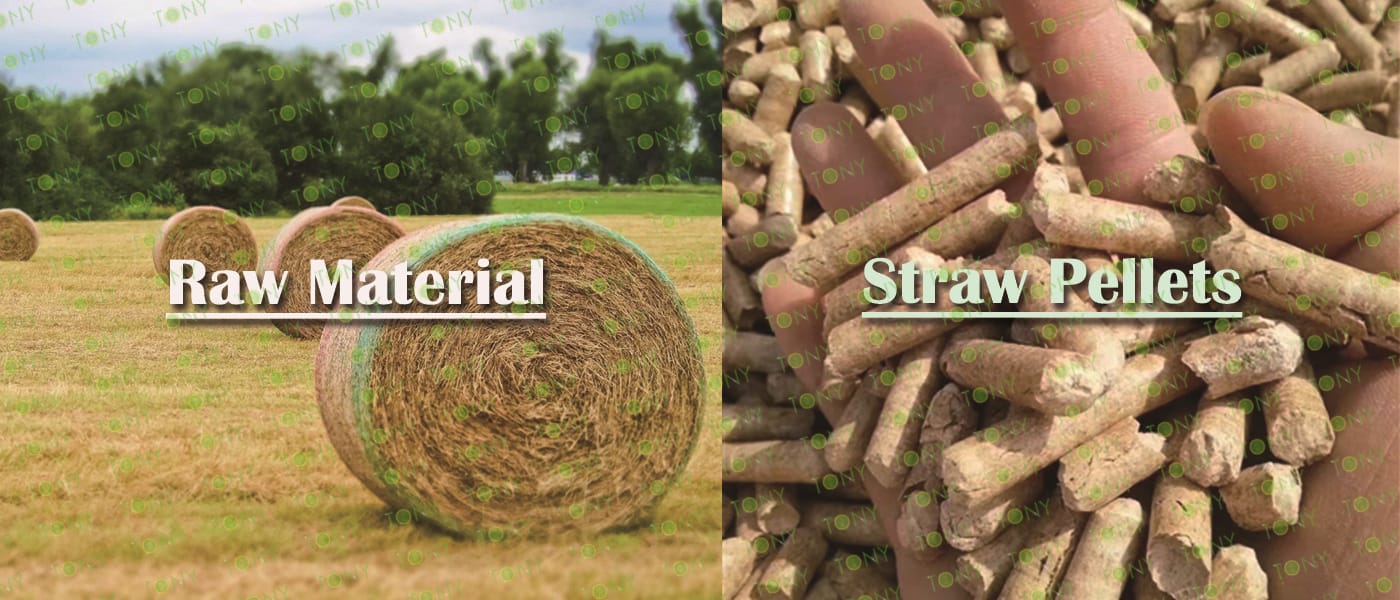

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片


1.Grinding Process:

A.The process is mainly used to grind wet straw within 2.2m in diameter into wet straw pieces. The rotary cutting mode of the outer chain of the gear, the rotary cutting rotor blade is sharp, and the blade types are various, which can be rotated to cut various bales of straw with different diameters, different thicknesses, different lengths and different water contents

B.TONY brand straw cutter TPX2500-132kw models *4sets

C.Capacity:4.5-5Ton/Hour/Set

Main Parts:

(1)Tony's New Straw Cutter

(2)Enlarged Turntable

(3)Rotary Cutting System

(4)Drive system

(5)Electrical Cabinet.

5.2图片


2.Fine Crushing Process:

A. The process is mainly used to crush 60-70mm wet straw pieces into 8-14mm wet straw dust.

B.TONY brand effective hammer mill TFD75*132-132kw *4sets.

C.Capacity: 18 tons/hour.

Main parts:

(1)TONY Effective Hammer Mill

(2)Galvanized Dust Collector.

(3)Sawdust Conveying Fan.

(4)Cyclone With Airlock.

(5)Electrical Cabinet.

5.3图片


3.Straw Dust Storage Process:

A. This process is mainly used to storage the straw dust that comes out of the hammer mill.It is hydraulic galvanized storage silo which is more stable and straw dust in it is not easy to be blocked.

B.TONY Brand Large Hydraulic Storage Silo to storage the straw dust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's new Large Hydraulic Storage Silo.

(2)With Screws Inside the Storage Bin to Prevent Straw Dust Blocked.

5.4图片


4.Drying Process:

A.This process is mainly used to dry the straw dust from 30-35% to 10-15%.  B.Capacity: 18 Ton/Hour.

C.TONY use 2 sets of 2.8*24m rotary drum dryer for this process,TONY hot stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.(Reducers With Motors and Pips)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.5图片

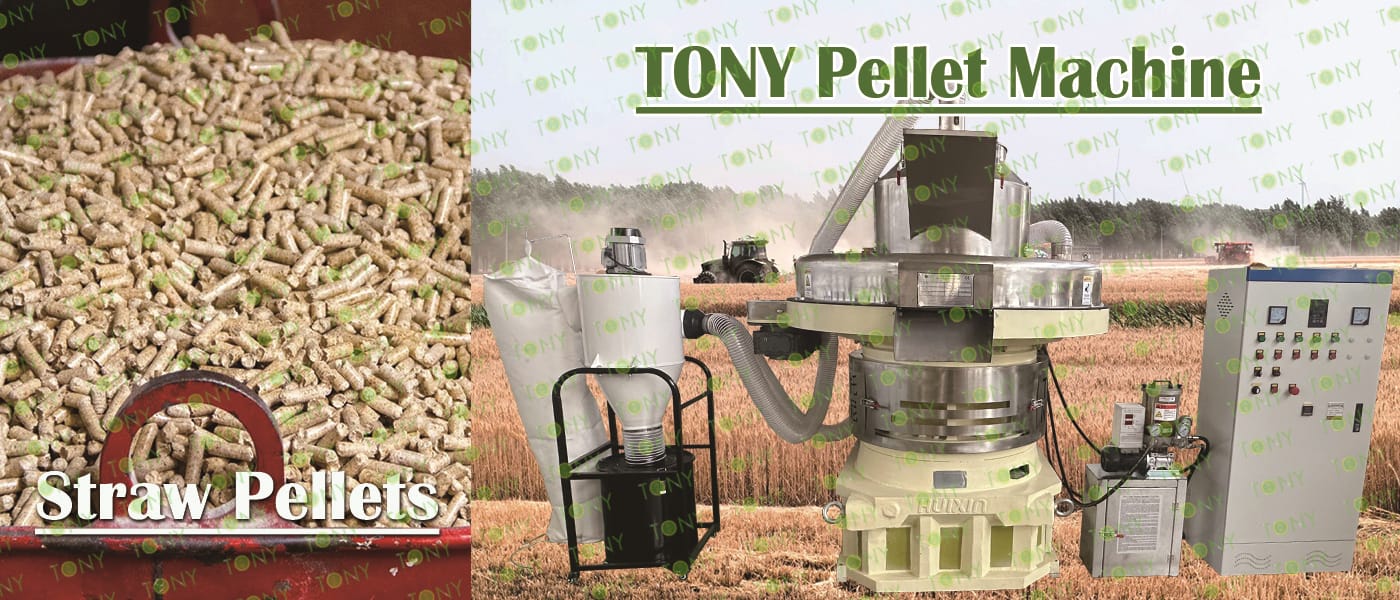

5.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ760-Ⅲ-200kw *6sets

C. Capacity:18Ton/Hour.

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.6图片


6.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*2sets

C.Capacity:18 Ton/Hour.

Main Parts:

(1) TONY's new Galvanized Pellets Cooler Separator With Vibrating Screen.

(2) Cyclone and bags dust collectors.

(3) Fan Blower.

(4) Connect Pipes.

5.7图片


7.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.TONY brand ton packing machine*2sets

Main Parts:

(1)TONY Ton Packing Machine

(2) Electronic Platform Scale Metering System

(3) Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

6.图片


7.图片


1. Current Market Demand for Straw Pellets

Currently, straw pellets are not widely used in most parts of my country, primarily due to low market awareness, an imbalance between supply and demand, and immature technology. However, with national policies promoting green and environmentally friendly energy and supporting the industry, market demand for straw pellets is gradually growing. According to Zhilian Data, market demand for straw pellets has reached millions of tons, while supply only accounts for approximately 2% of the national bamboo production, creating a significant supply-demand imbalance.

2. Market Prospects for Straw Pellets

As a renewable fuel, straw pellets offer promising market prospects. First, they align with national policies on environmentally friendly and green energy, resulting in broad market demand. Second, straw pellets have a wide range of uses, including home heating, industrial heating, and power machinery fuel, creating a significant market opportunity. Furthermore, straw pellets have relatively low production and transportation costs, offering significant market advantages. Furthermore, as technology matures and production efficiency and output continue to rise, the competitiveness of straw pellets will continue to improve.

In short, the straw pellet fuel market has broad prospects, and its status will continue to rise with the development of China's economy and changes in the policy environment. Currently, related industry companies need to further strengthen technological research and development, improve product quality, and improve the market supply chain to ensure market prospects and production and sales market share.

8.图片


Advantages of Wet Straw Biomass Pellets

Processing straw into biomass pellets not only offers numerous advantages in environmental protection, economic and social development, and improving the energy structure, but also offers excellent combustion performance. The main advantages are as follows:

1. Calorific Value and Combustion Residues

The calorific value and ash content of straw biomass pellets after combustion are approximately 10% lower than those of medium-quality coal. However, straw biomass pellets burn completely under normal operating conditions. Coal, on the other hand, burns incompletely, leaving ash containing 10% to 15% combustible components. Therefore, in practical applications, the effective calorific value of the two is comparable.

2. Combustibility

Straw biomass pellets have better ignition properties than coal. They ignite easily, significantly reducing the ignition time required for combustion.

3. Solid Emissions

Straw biomass pellets have significantly lower solid emissions than coal. This not only reduces slag disposal costs but also reduces environmental pollution. Solid emissions from straw biomass pellets are primarily ash, accounting for approximately 0.4% to 7.0% of the total weight. In contrast, solid emissions from coal combustion consist of a mixture of ash, alkali, and unburned coal, accounting for approximately 25% to 40% of the total weight.

4. Air Pollution and Corrosion

Coal causes significantly higher levels of air pollution and boiler corrosion than straw biomass pellets. Coal smoke contains a large amount of particulate carbon as well as toxic and corrosive gases such as sulfur dioxide and carbon monoxide. Straw biomass pellets are primarily composed of C-H organic matter, and their flue gas contains no particulate carbon or sulfur dioxide. Instead, it is primarily composed of C-H volatile gases, with virtually no sulfur dioxide or carbon monoxide. The smoke color during combustion is below Ringelmann Class I, significantly reducing air pollution and carbon dioxide emissions, making straw biomass pellets an internationally recognized "clean fuel."

5. Cost and Time Savings

Compared to burning coal, using straw biomass pellets as a boiler fuel can save costs and time. For example, using straw biomass pellets in a 0.5-ton boiler can reduce fuel costs by 11% and shorten operating time by 34% compared to burning coal. For example, a 0.5-ton boiler can reduce fuel costs by 10% and shorten operating time by 16%.

6. Continuous Combustion

Straw biomass pellets typically burn 8 to 10 times longer than soft bulk materials, maintaining a stable and continuous combustion state, ensuring a more reliable energy supply.
