Project Brief Introduction:

1.Product:Wet Wood Pallets Pellet Line

2.Capacity: 9-10.5T/Hour

3.TONY Brand 9-10.5Ton /Hour Wet Wood Pallets Pellet Line Project Process

4.Main Machine: Comprehensive Chipper,Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ860-Ⅲ-220KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 1380 kw

6.Need Area: About  1568 ㎡  L: 56 M  W: 28 M  H: 9.404 M

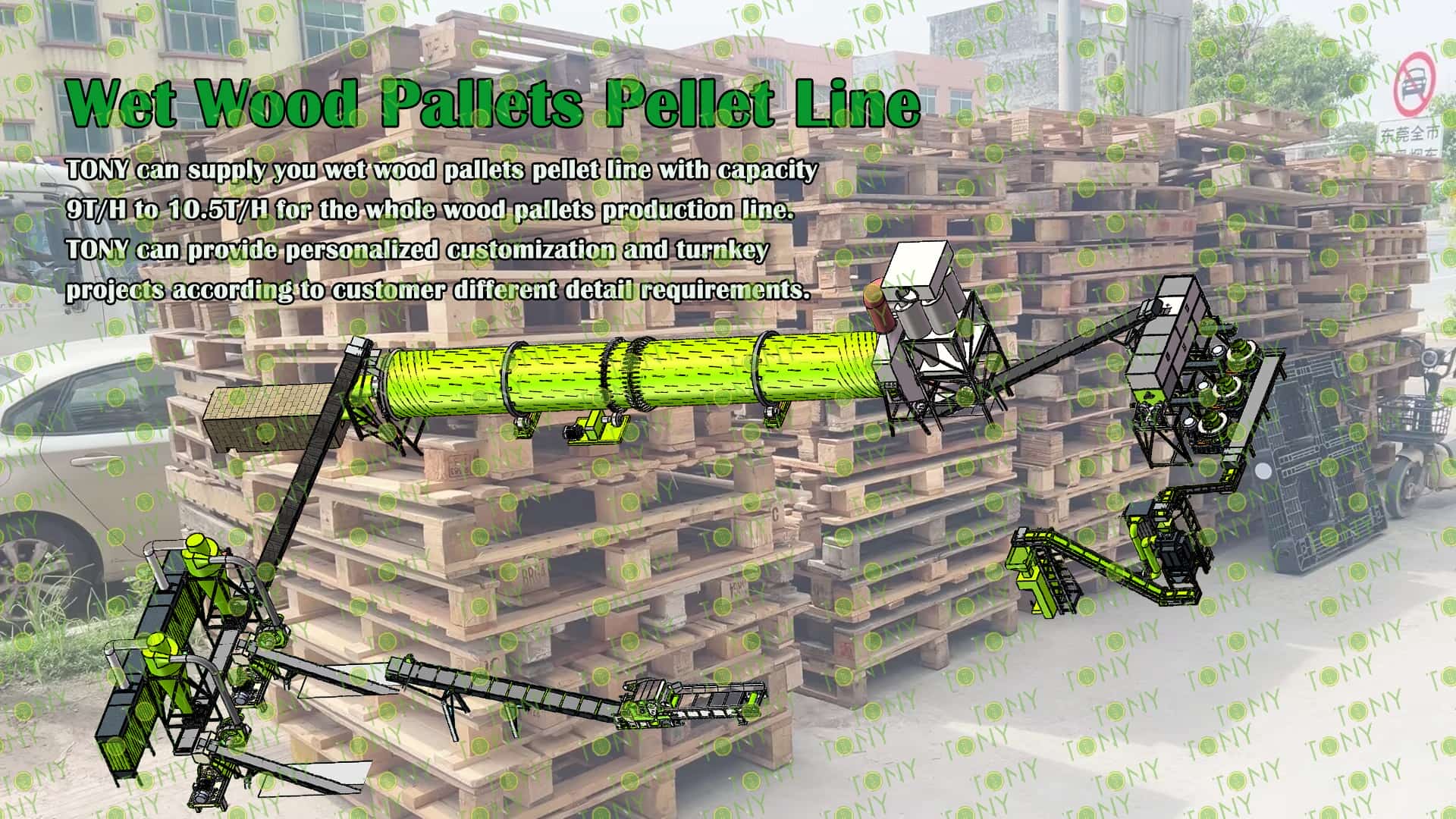

Project Layout For Customer:

1. The working principle of wet wood pallets biomass pellet processing equipment

The core principle of the wood  pellet processing equipment is to convert waste wood pallets (including wood body, a small amount of metal connectors and other impurities) into biomass pellets with high density and stable combustion performance through continuous processes such as crushing → fine crushing → drying → pelletizing → cooling and screening

2. Characteristics of wet wood pallets biomass pellet processing equipment

(1) The wet wood pallet pellet processing equipment is highly efficient and low-consumption, and can quickly process biomass raw materials into fuel pellets, significantly improving production efficiency.

(2) The biomass pellet machine has strong material adaptability and is suitable for the molding of various biomass raw materials. The pellet machine is equipped with molds of various specifications, and the corresponding molds can be selected for processing according to different biomass raw materials, which enhances the adaptability of processing.

(3) The wet wood pallet biomass pellet processing equipment has a mature design, stable finished pellet molding, stable output, and excellent quality.

(4) The biomass pellet processing equipment is simple to operate, easy to use, highly automated, requires less labor, effectively reduces labor intensity, and increases output.

3. Application scenarios of wet wood pallets biomass pellet processing equipment

(1) Civilian solid fuel: Wet pallet pellet fuel has a high utilization rate, is easy to store and use, is hygienic and safe, and can be used for home heating.

(2) Main solid fuel for industrial boilers: It can replace raw coal, heavy oil, and gas, reducing air pollution. Every 10,000 tons of biomass fuel burned can replace 7,000 tons of standard coal, reducing sulfur dioxide emissions by 165 tons, smoke emissions by 80 tons, and carbon dioxide emissions by 14,400 tons.

(3) Thermal power generation: The fuel calorific value can reach 3,400-6,000 kcal.

In short, wet wood pallet biomass pellet fuel can be described as "environmentally friendly", "energy-saving", "renewable", and "zero-carbon emission", and is the best renewable energy source to replace coal. From the perspectives of cost, energy saving, and environmental protection, biomass fuel is a better alternative to coal.

TONY Brand  9-10.5Ton/Hour Wet Wood Pallets Pellet Manufacturing Plant can take wet wood pallets, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with wet wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 9-10.5Ton/Hour

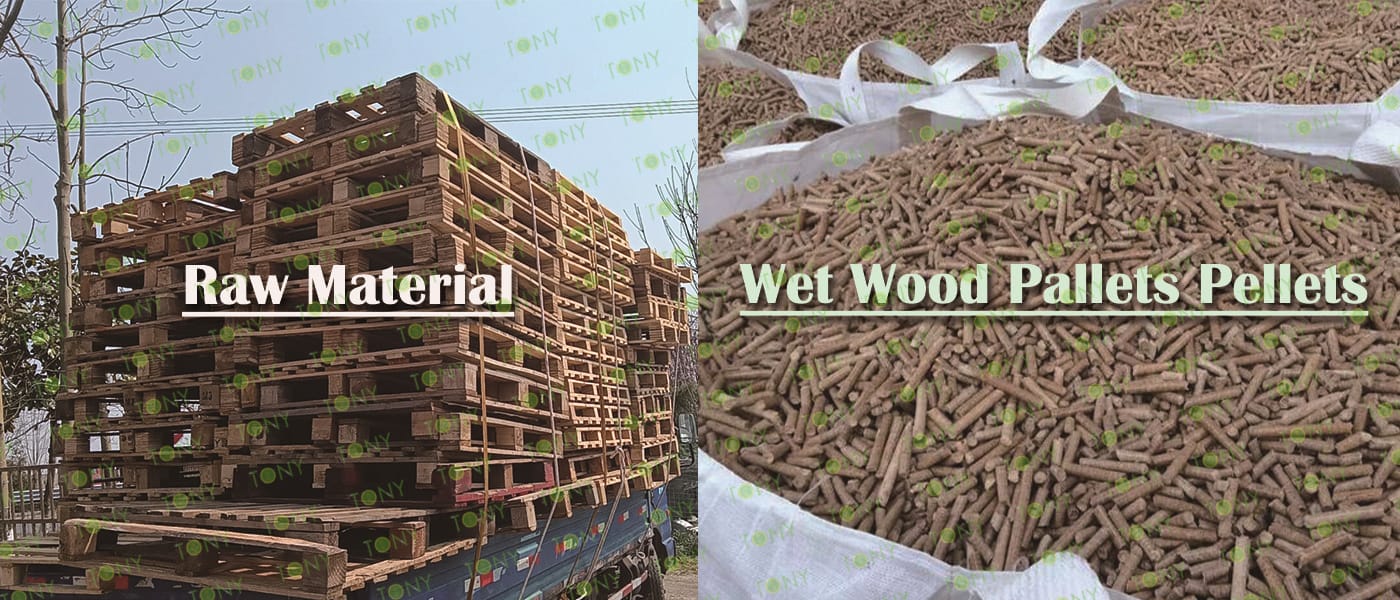

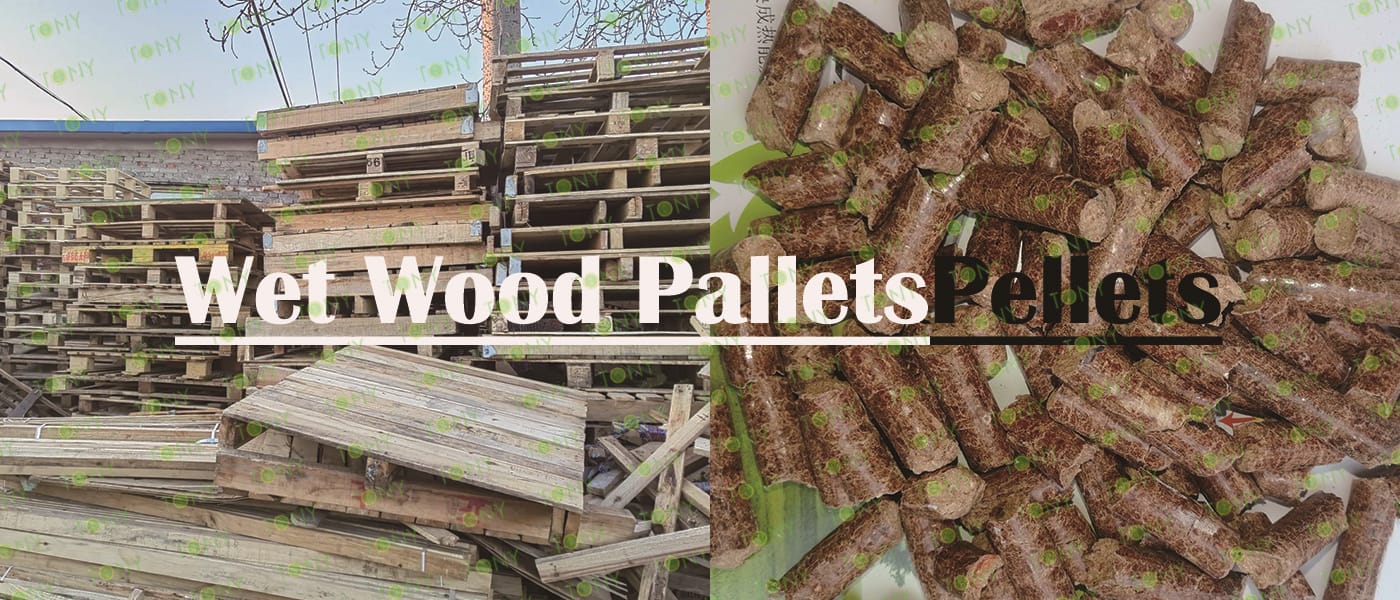

2. Raw materials: Wet wood pallets

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  waste wood pallets or more waste wood raw materials

Suitable customers: Logistics and warehousing companies, various manufacturing plants, ports and airports, construction sites, large supermarkets and shopping malls, and other places where waste wood pallets have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Pallets Pellet Production Line

2. Raw Material: All kinds of wet wood pallets

3. Moisture Content of Raw Material: 40%

4. Capacity:  9-10.5 tons per hour

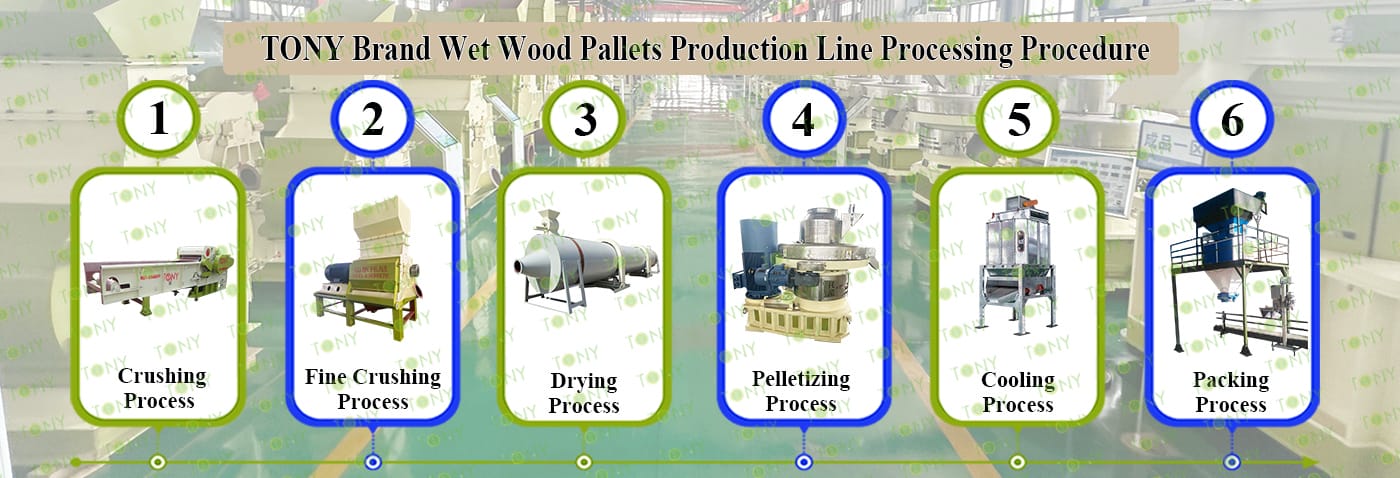

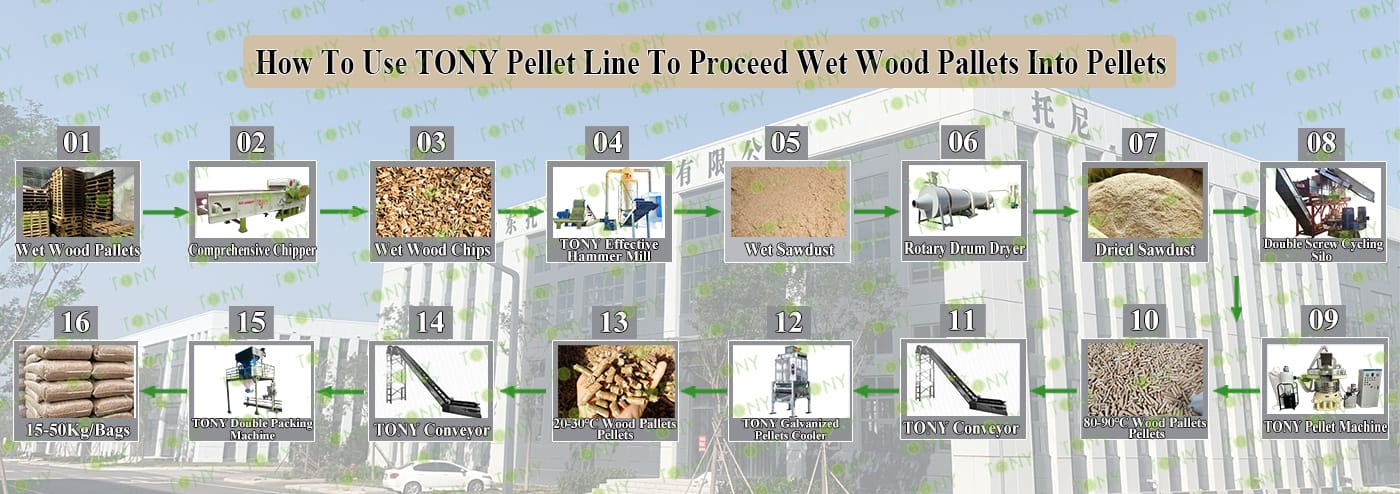

5. Process: Crushing Process - Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1300-132KW, Effective Hammer Mill--TFD75*132-132KW, Rotary Drum Dryer-3*24m, TONY Pellet Machine TYJ860-Ⅲ-220KW, Pellet Cooler, Double Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Rotary Drum Dryer	Double Screw Cycling Silo
1.To Grind Wood pallets Width  ≤1.3m Into25-55mm Wood Chips.   2.Model: TPC1300-132KW With 24 Hammer Heads*1set   3.Capacity: 10-12Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD75*132-132KW*2sets 3.Capacity:4-5Ton/Hour/Set	1.To Dry The 40% Sawdust Into 10-15% Sawdust.  2.Model: THGD3*24*1set 3.Capacity:9-11Ton/Hour/Set	1.To Stroage Sawdust Before Pellet Machine; Adjust The Speed Of Sawdust Entering The Pellet Machine 2.Model: TLC-11*1set 3.Capacity:9-11Ton/Hour/Set
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Double Packing Machine	Belt Conveyor
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-220KW*3sets 3.Capacity:3-3.5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*1set 3.Capacity:9-11Ton/Hour	1.To Pack Pellets Into 15-50Kg/Bags. 2.Model: TPZ-50*1sets  3.Capacity: 9-11Ton/Hour	1.To Transport Wood Chips,Sawdust,Pellets. 2.Width: 80cm*8sets 3.Capacity:Designed With The Whole Line

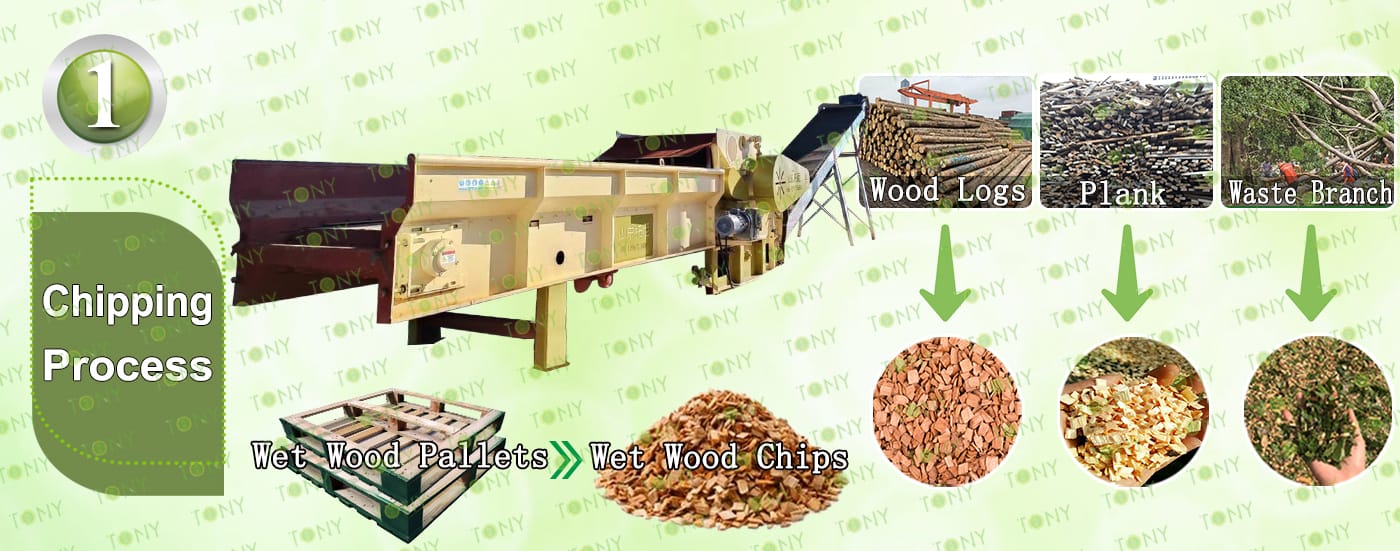

1.Wood Chipping Process：

A. This process is mainly used to grind wooden pallets with nails less than 1.3m  in width into wood chips with a size of 25-55 mm. The final size of the wood chips can be adjusted by replacing the screen with different sizes and replacing or adjusting the hammer heads with different specifications.

B.TONY Brand comprehensive chipper TPC1300-132KW model with  24hammer heads*1set

C.Capacity:10-15Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:8-10Ton/Hour.

C.TONY brand effective hammer mill TFD75*132-132KW*2sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

3.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:9-11Ton/Hour.

C.TONY use 1 set of 3*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

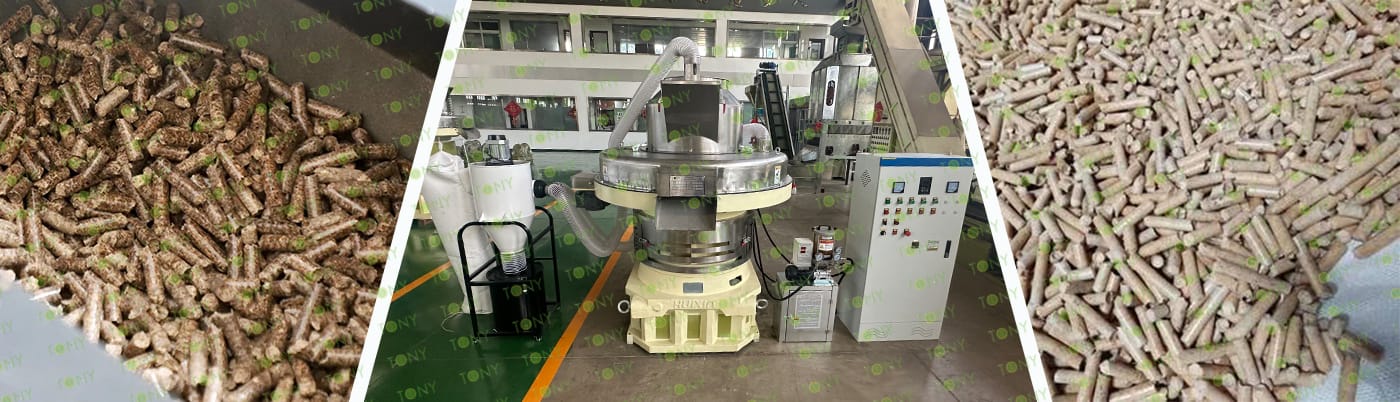

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:9-10.5Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-220KW*3sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

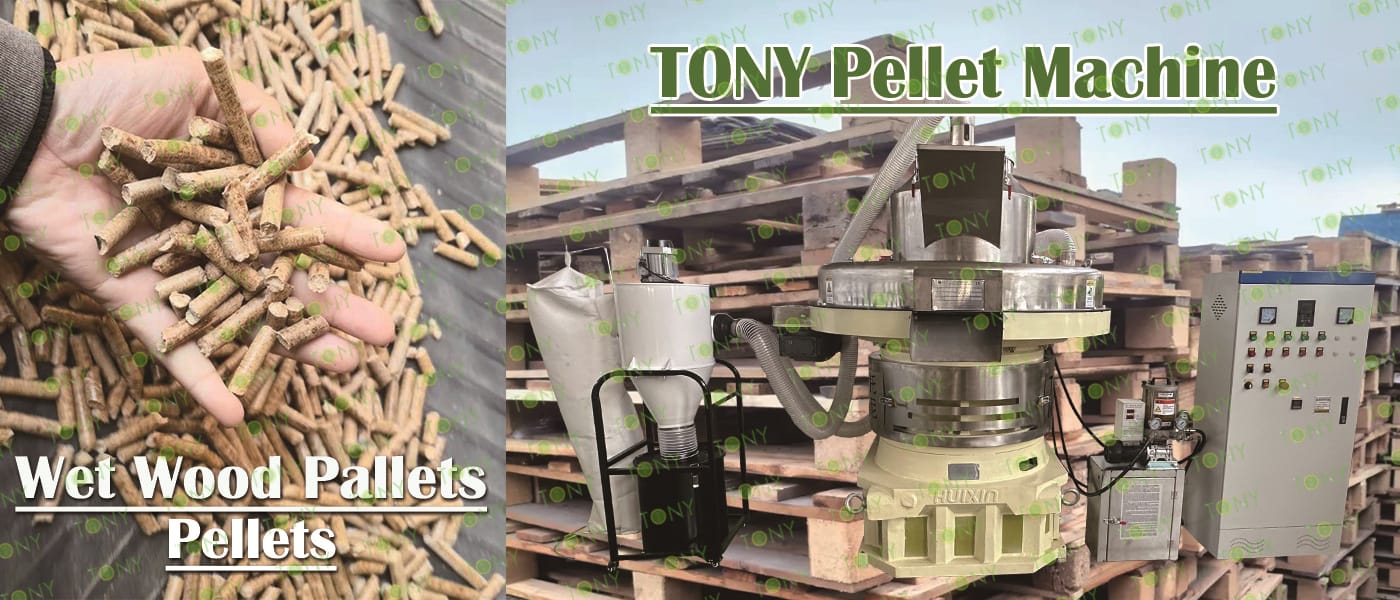

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

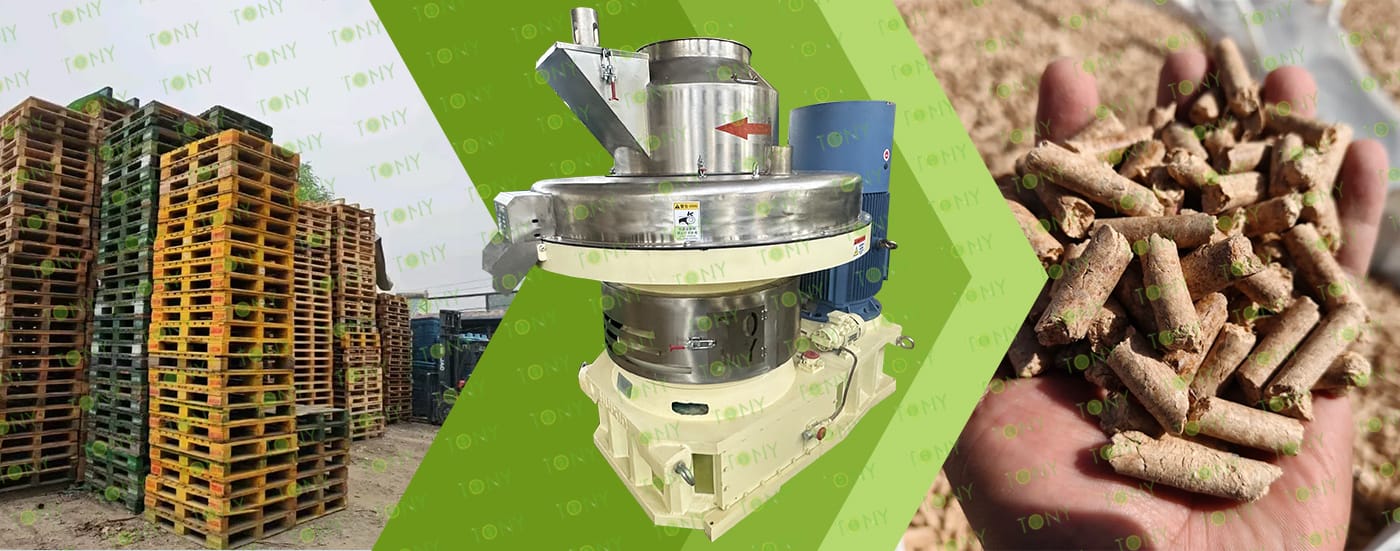

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:9-11Ton/Hour.

C.TONY brand galvanized cooler separator*1sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

6.Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.Capacity:9-11Ton/Hour.

C.TONY Double Packing Machine*1set.

Main Parts:

(1)TONY's Double Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

Project Advantages: Market competitiveness and environmental value

1.Excellent product characteristics and strong market competitiveness

Biomass pellets have many excellent characteristics. Their calorific value is high, generally 4200-4800 kcal/kg, close to medium-quality coal, and can provide sufficient heat; they have low ash content, and very little ash remains after combustion, reducing cleaning costs and environmental pollution; they have low emissions, extremely low sulfur content (usually <0.05%), and low nitrogen content. The pollutants such as SO₂ and NOₓ produced during combustion are much lower than those produced by burning coal, meeting strict environmental protection standards and are highly favored by customers with high environmental protection requirements. In addition, biomass pellets have a regular shape, mostly cylindrical pellets with a diameter of 6-12mm and a length of 20-50mm. The density can reach 0.8-1.2g/cm³, high hardness, not easy to break, and easy to store and transport, further enhancing the market competitiveness of the product.

2.Significant environmental benefits and high social value

The development of the biomass pellet industry is to "turn waste into treasure" for agricultural and forestry waste, realize the recycling of resources, and reduce the pollution of waste to the environment. At the same time, during the combustion process of biomass pellets, the carbon dioxide emissions are basically balanced with the carbon dioxide absorbed during plant growth, achieving "carbon neutrality", helping to alleviate the greenhouse effect and improve air quality. This not only complies with the national environmental protection policy, but also establishes a good corporate image for entrepreneurs, bringing high social reputation and potential business opportunities.

1. Resource Recycling: Solving the "Solid Waste Problem"

Waste-to-Resource: Used wooden pallets are a common source of solid waste in the logistics and warehousing industries. If they are discarded or incinerated without proper treatment, they can lead to resource waste and environmental pollution. Pallet pellets transform them into high-value products.

2. Excellent performance: Suitable for multiple scenarios and easy to use.

As biomass pellet fuel or industrial auxiliary materials, pallet pellets offer stable physical and chemical properties, providing a superior user experience compared to traditional bulk wood, coal, and other materials.

3. Outstanding environmental performance: Low pollution.

The clean nature of pallet pellets is a core competitive advantage.

4. Significant economic value: Low cost and stable returns.

From production to application, the economic advantages of pallet pellets permeate the entire supply chain. Demand for biomass pellets is strong, and revenue is stable.

The core advantages of pallet pellets are their triple combination of environmental protection, cost-effectiveness, and practicality. They solve the solid waste disposal problem of used pallets and provide a clean and efficient alternative energy source. They balance low production costs with convenient application. Therefore, they have broad application prospects in logistics waste recycling, biomass energy, and clean heating. They are also a "circular economy + green energy" project encouraged by current policies.
