Project Brief Introduction:

1.Product:Wet Wood Pallets Pellet Line

2.Capacity: 1-1.5T/Hour

3.TONY Brand 1-1.5Ton /Hour Wet Wood Pallets Pellet Line Project Process

4.Main Machine: Comprehensive Chipper,Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ551-III-90KW(根据实际的颗粒机型号写),Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 290 kw

6.Need Area:  About 338 ㎡  L: 26M  W: 13M  H: 5.151M

Project Layout For Customer:

1. The working principle of wet wood pallets biomass pellet processing equipment

The operating principle of the wet pallet biomass pellet processing equipment can be briefly described as follows: Using high-moisture waste wet pallets as raw material, the equipment transforms the loose wet material into high-density biomass pellets through four core steps: pre-treatment, crushing, nail removal, pulverization, drying, and extrusion molding. The specific process is as follows:

Pre-treatment and impurity removal: Metal nails and other impurities are removed from the wet pallets by crushing equipment, breaking the pallets into wood chips approximately 5 cm in size.

Pulverization and refinement: The crushed wood chips enter a pulverizer (such as a hammer or blade type) and are crushed into uniform wood chips with a particle size of 3-5 mm, providing the appropriate particle size for subsequent extrusion molding. Drying and conditioning: A drum dryer is used to reduce the moisture content of the wet wood to 10%-15% (the optimal moisture content for subsequent molding).

Extrusion molding: The finely pulverized wood chips are fed by a screw conveyor into a ring die (or flat die) pelletizer, where they are heated at high temperatures (heat generated by extrusion friction, reaching a temperature of 100-150°C). The biomass pellets are squeezed into cylindrical particles through the forming holes in the mold under the action of high pressure (70-100℃) and finally cut into fixed lengths (usually 6-10mm) by a cutter. After cooling, the finished biomass pellets are obtained.

2. Characteristics of wet wood pallets biomass pellet processing equipment

Strong Adaptability to Wet Materials: Addressing the high moisture content of wet pallets, a high-power hot air drying system is equipped to quickly reduce the raw material moisture content to the optimal molding range of 10%-20%, while preventing wet material from sticking to the equipment and clogging the conveyor.

Efficient Impurity Removal and Protection: Built-in metal detection and magnetic separation modules precisely separate metal impurities such as nails and wire from the pallets. The crushing and forming components are constructed of wear-resistant materials to prevent impurities from scratching the molds or damaging the transmission mechanism, extending the equipment's service life.

Flexible Raw Material Processing: Adaptable to the irregular shapes of waste pallets, the pre-processing stage uses a shredder to break down large pieces into smaller pieces. An adjustable-speed pulverizer then refines the material into uniform 3-5mm chips. This system is compatible with pallets of varying thicknesses and materials, such as pine and poplar. High Forming Stability: Utilizing a ring die/flat die dual-roller structure, coupled with extrusion friction heating (70-100°C), the high temperature softens wood fibers and improves pellet adhesion. The adjustable pressure system adapts to varying sawdust moisture levels, minimizing pellet cracking and loosening. Finished product density can reach 1.1-1.3g/cm³.

Environmentally Friendly and Energy-Saving: The drying process utilizes waste heat from biomass fuel generated during the forming process for auxiliary heating, reducing external energy consumption. The entire machine is equipped with a sealed dust collection device to reduce sawdust pollution, complying with environmental emission requirements and enabling the recycling of waste wooden pallets.

3. Application scenarios of wet wood pallets biomass pellet processing equipment

Waste Pallet Recycling and Processing

This equipment is suitable for logistics parks, warehouses, e-commerce distribution centers, and other locations that generate large quantities of waste, wet pallets. In these scenarios, the equipment can directly convert accumulated wet pallets (including those soaked in rainwater or damp in storage) into high-density biomass pellets, resolving the issues of wet pallets being difficult to store, prone to mold, and high recycling and transportation costs, achieving "on-site processing, turning waste into value."

Biomass Energy Production

This equipment can be used as specialized processing equipment in biomass pellet plants, specifically targeting wet pallets as a raw material. The pellets produced can be used as fuel for industrial boilers (replacing coal), as feedstock for biomass power plants, or processed into residential heating/cooking fuel. It is particularly suitable for small and medium-sized pellet plants located near the pallet recycling source, reducing raw material procurement and transportation costs.

Agriculture and Forestry

This equipment is suitable for farms, forestry farms, wood processing workshops, and other locations with large quantities of waste pallets. For example, farms can process wet wood pallets into pellets for greenhouse heating and agricultural machinery fuel; forest farms can combine the wet waste generated by their own wood processing with wet wood pallets to improve their self-sufficiency in biomass energy and reduce their dependence on purchased fuel.

TONY Brand 1-1.5 Ton/Hour Wet Wood Pallets Pellet Manufacturing Plant can take wet wood pallets, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with wet wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 1-1.5 Ton/Hour

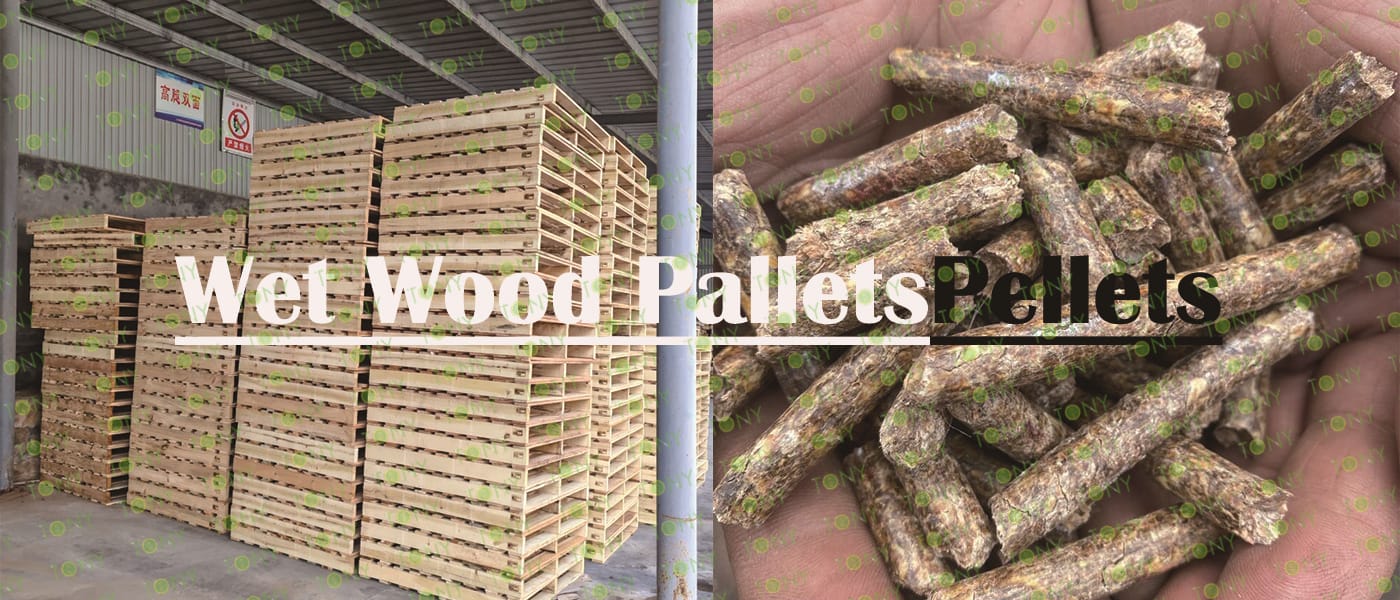

2. Raw materials: Wet wood pallets

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  waste wood pallets or more waste wood raw materials

Suitable customers: Logistics and warehousing companies, various manufacturing plants, ports and airports, construction sites, large supermarkets and shopping malls, and other places where waste wood pallets have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Pallets Pellet Production Line

2. Raw Material: All kinds of wet wood pallets

3. Moisture Content of Raw Material: 40%

4. Capacity: 1-1.5 tons per hour

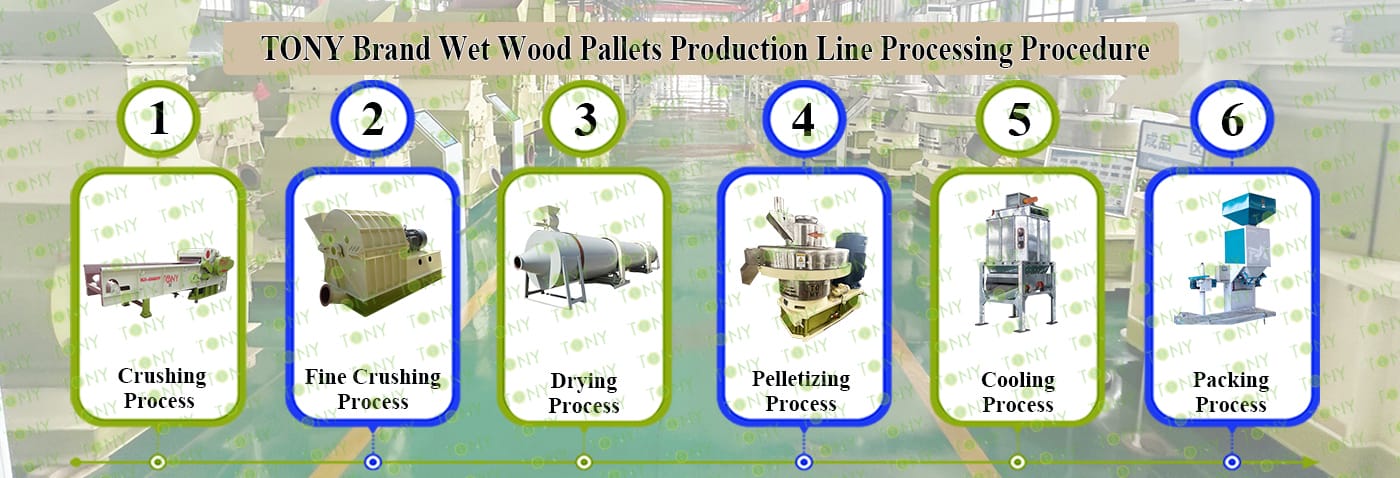

5. Process: Crushing Process - Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1000-90KW, Multifunctional Hammer Mill-TFD65*55-37kw, Rotary Drum Dryer-1.2*12m, TONY Pellet Machine TYJ551 - Ⅲ - 90kw, Pellet Cooler, Semi-automatic Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Multifunctional Hammer Mill	Rotary Drum Dryer
1.To Grind Wood pallets Width  ≤1m Into25-55mm Wood Chips.    2.Model: TPC1000-90KW With16 hammer heads*1sets 3.Capacity: 7-10Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD65*55-37KW*1set 3.Capacity: 1-1.5Ton/Hour/Set	1.To Dry The 40% Sawdust Into 10-15% Sawdust.   2.Model: THGD1.2*12*1set 3.Capacity:1-1.5Ton/Hour/Set
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Semi-automatic Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ551-III-90KW*1 Set   3.Capacity:1-1.5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃  Into 20-30℃ 2.Model: TCN-1.5*1set 3.Capacity:1-1.5Ton/Hour	1.To Pack Pellets Into 15-50KG/Bags. 2.Model: TBF-50*1Set  3.Capacity:1-1.5Ton/Hour

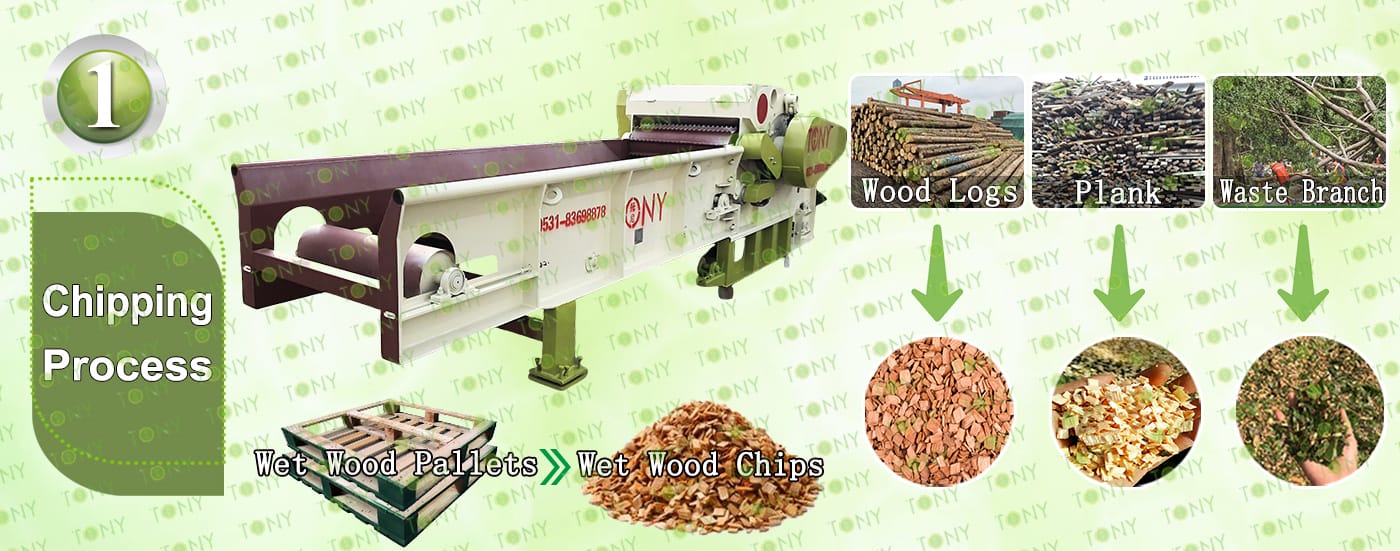

1.Wood Pallets Chipping Process:

A. This process is mainly used to grind wooden pallets with nails less than 1 m  in width into wood chips with a size of 25-55 mm. The final size of the wood chips can be adjusted by replacing the screen with different sizes and replacing or adjusting the hammer heads with different specifications.

B.TONY Brand comprehensive chipper TPC1000-90kw model with  16 hammer heads*1sets

C.Capacity:7-10Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

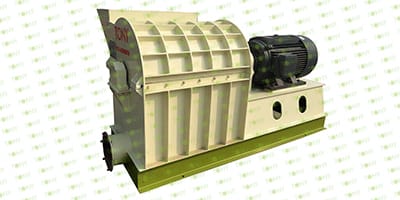

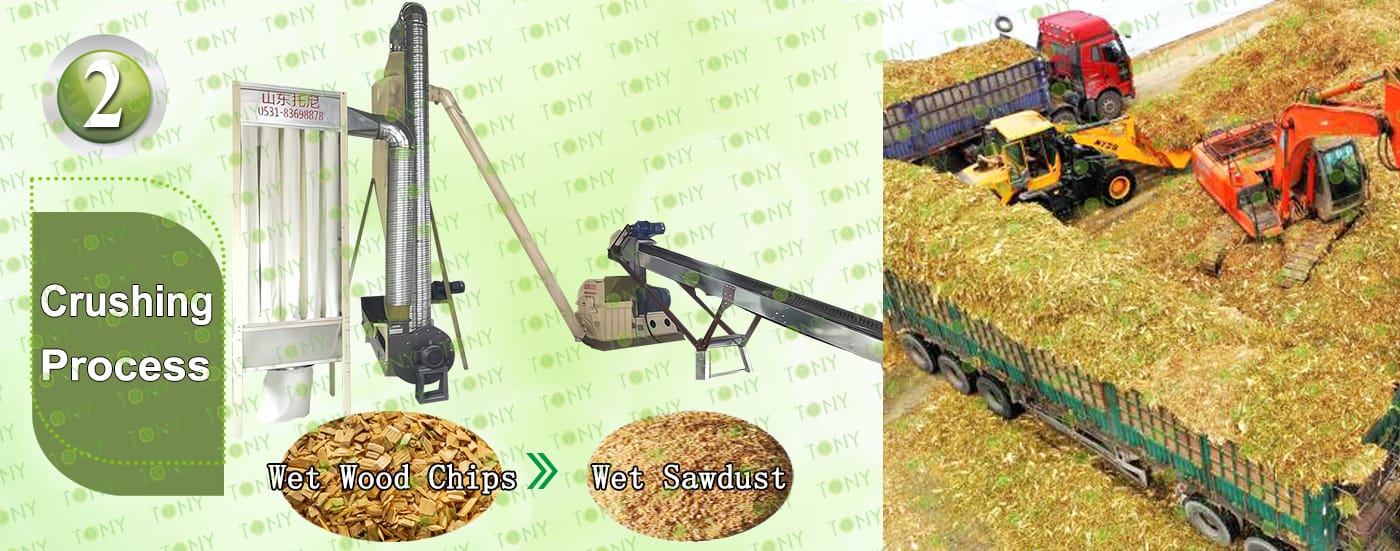

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:1-1.5Ton/Hour.

C.TONY brand multifunctional hammer mill TFD65*55-37KW*1set

Main Parts:

(1)TONY Multifunctional Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

3.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:1-1.5Ton/Hour.

C.TONY use 1set of 1.2*12m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

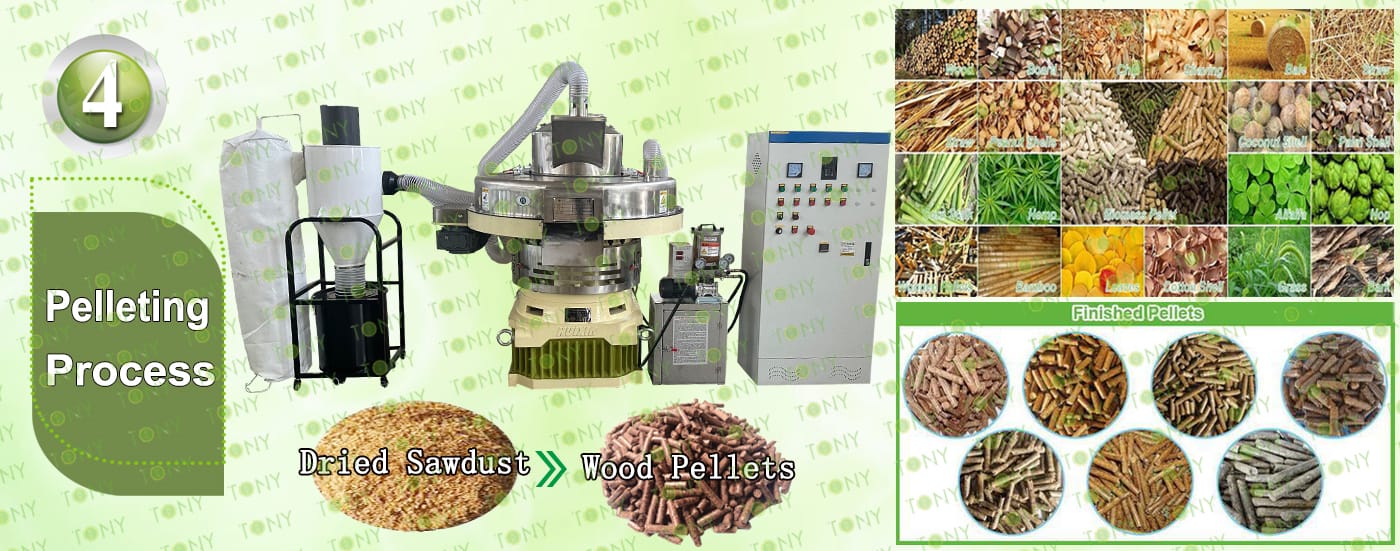

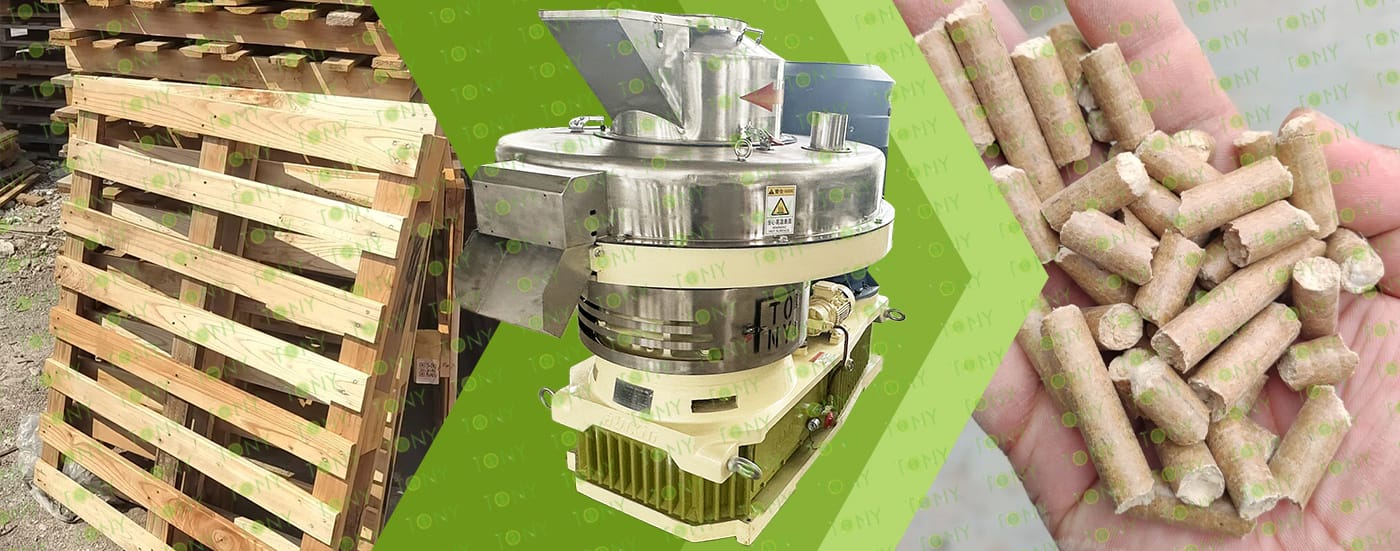

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:1-1.5Ton/Hour.

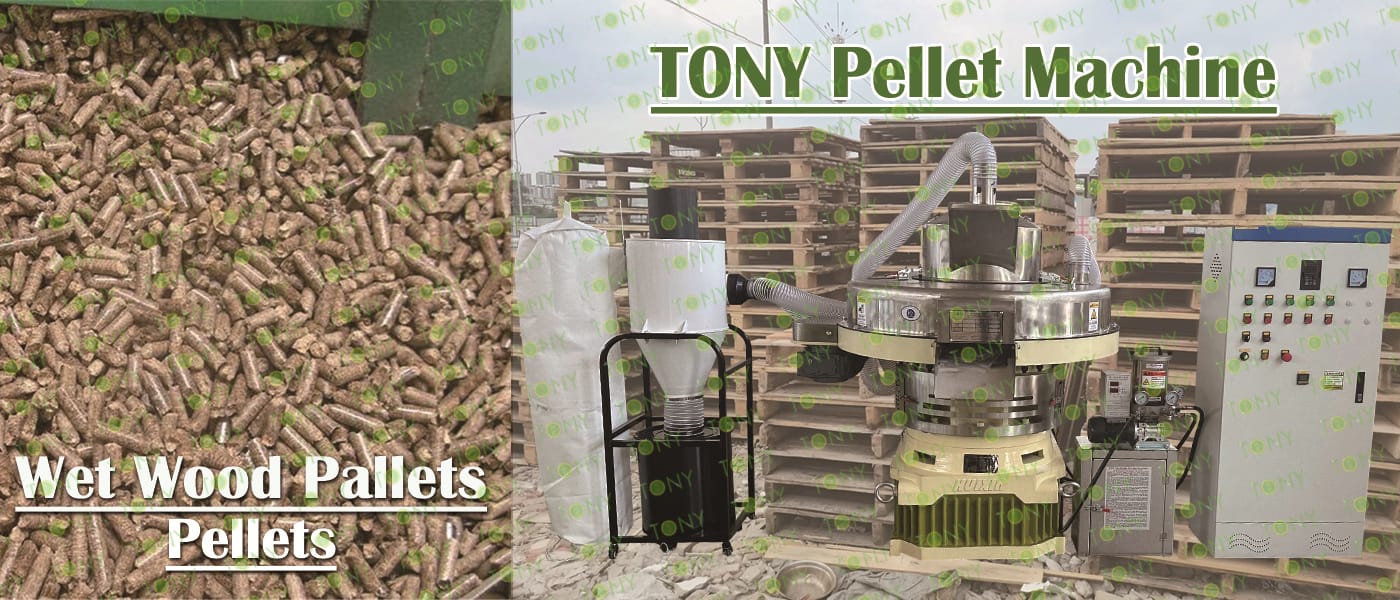

C.TONY brand vertical ring die pellet machine TYJ551-III-90KW*1Set

Main Parts:

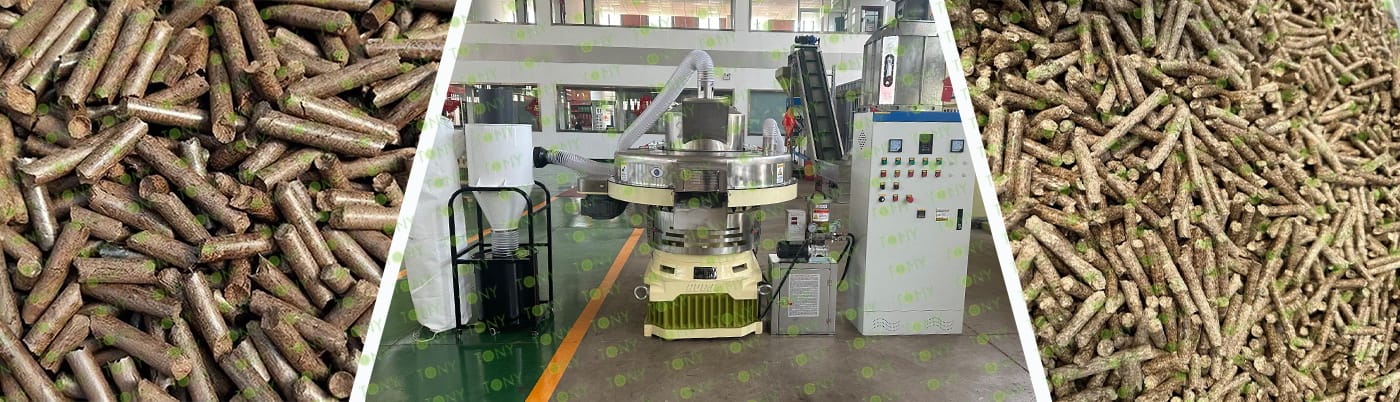

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:1-1.5Ton/Hour.

C.TONY brand galvanized cooler Separator*1sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

6.Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.Capacity:1-1.5Ton/Hour.

C.TONY Semi-Automatic Packing Machine*1 Sets.

Main Parts:

(1)TONY's  Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

With growing environmental awareness and the depletion of fossil fuels, biomass energy has become a key direction for global energy development. Biomass pellets, with their high calorific value, low pollution, and easy storage, continue to see increasing market demand. Discarded wood pallets, as a wood waste material, offer a stable supply, and processing them into biomass pellets aligns with the needs of a circular economy and environmental policies.

1.Easy to obtain:

Wood processing companies and the logistics and warehousing industries produce large quantities of discarded wood pallets annually, at low cost. In some areas, collection is even free, reducing raw material costs.

2.Good economic benefits:

Biomass pellets can be used in industrial boilers, heating, and power generation, generating significant demand both domestically and internationally. Projects like Xingwen County Four Seasons Wood Industry Co., Ltd.'s 8 million yuan investment project can achieve an annual production capacity of 10,000 tons of biomass pellet fuel.

3.Significant environmental benefits:

This allows for waste recycling, reduces pollution from incinerating or landfilling wood pallets, and reduces reliance on fossil fuels. Carbon dioxide emissions from combustion approach carbon cycle equilibrium, contributing to mitigating the greenhouse effect.

1.Widely available and low-cost raw materials.

Discarded wooden pallets are a common waste material in logistics, warehousing, wood processing, and manufacturing, generating significant quantities annually (e.g., discarded pallets from e-commerce and machinery companies). This raw material eliminates the need to purchase additional wood and can often be recycled at a low price. In some areas, collection is even free (companies are willing to pay for the removal of discarded pallets, even though they need to dispose of them). This significantly reduces raw material procurement costs and ensures project profitability.

2.Raw material pre-processing is relatively easy.

Wooden pallets are primarily made from common hardwoods or softwoods, such as pine, fir, and poplar. Their fiber structure is intact, requiring no complex sorting (only impurities like nails and plastic need to be removed). They can be directly crushed and processed, resulting in low energy consumption and high efficiency.

3.Strong raw material supply stability.

The logistics industry has a long-standing demand for wooden pallets, and the generation of discarded pallets has steadily increased with the scale of logistics. By establishing long-term recycling agreements with warehousing companies and manufacturing plants, a stable raw material supply chain can be established, avoiding the risk of running out of material to process.
