1.The working principle of wet wood chips biomass pellet processing equipment

(1)Core Forming: Fiber reorganization and densification through mechanical extrusion is a key step in converting wet wood chips into pellets. The core principle is "high-pressure extrusion + wood fiber self-bonding." Lignin (a natural adhesive that softens under pressure and frictional heat) in the wet wood chips works together with water to tightly bind the fibers, forming pellets with a fixed shape.

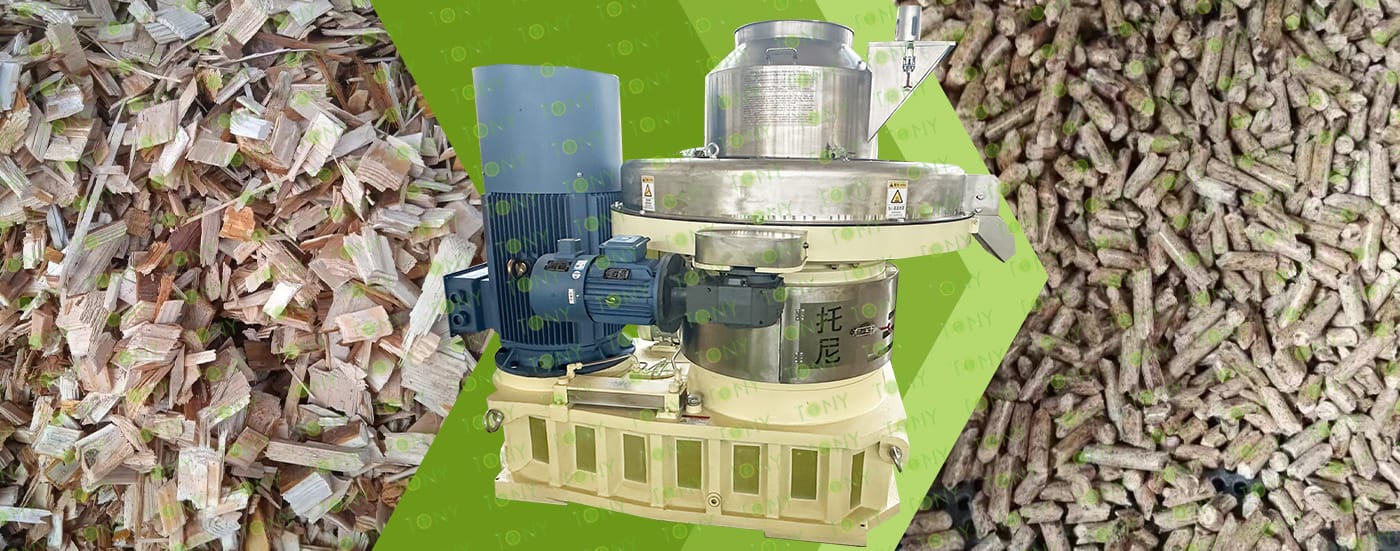

(2)Core component: the forming machine—the "ring die pellet machine," which is more adaptable to wet materials and less prone to clogging.

During the extrusion process, intense friction between the sawdust and the inner wall of the die and the surface of the rollers generates frictional heat of 60-90°C. This temperature softens the lignin in the wood chips (the softening point of lignin is approximately 70-100°C). Simultaneously, the water forms "liquid bridges" that bind the dispersed fibers together, providing a foundation for subsequent shaping.

2.Characteristics of wet wood chips biomass pellet processing equipment

(1)High efficiency and energy saving: For example, pellet machines have low energy consumption, high output, compact process, small footprint, good dust removal effect, low noise, and a good production environment. A production line only requires 2-3 workers and can be operated automatically, reducing labor costs.

(2)Low maintenance cost and easy operation: Wood pellet machines have low maintenance costs and do not require grease injection. Non-professionals do not need much time to complete maintenance. The wearing parts are practical and durable. The roller bearings are made of international brands and are not easy to damage. They are easy to operate and do not require professional operation.

(3)Raw material processing and environmental protection are taken into consideration: The moisture content of the raw materials before pellet processing needs to be controlled at about 10-15%. Therefore, drying equipment may be required in actual production. Wood pellets contain few harmful substances and the content of harmful gas components during combustion is extremely low. The ash after combustion can be used as potash fertilizer, which meets environmental protection requirements.

3.Application scenarios of wet wood chips biomass pellet processing equipment

(1)Biomass power generation/heating enterprises

Typical scenarios: Biomass power plants and industrial boilers (such as heating boilers in textile factories and food factories) require a large amount of stable pellet fuel

(2)Small and medium-sized heating/drying users

Typical scenarios: Rural heating stations, agricultural product drying plants (such as grain, fruit and vegetable drying), greenhouse heating; processed pellets are directly stored in the silo of the heating station and can be taken out as needed.

(3)"Self-circulating" processing in orchards/tea gardens

Typical scenarios: After being processed into pellets, they can be used as fuel for the orchard's "biomass hot air furnace" (for fruit tree frost protection and fruit drying), or crushed and buried in the soil to improve soil quality, realizing "self-circulating waste in the park";

(4)Environmental protection and solid waste treatment fields

Typical scenarios: Urban solid waste treatment plants (sorted wet wood waste), garden waste treatment stations (wet branches, wet shrub slices)

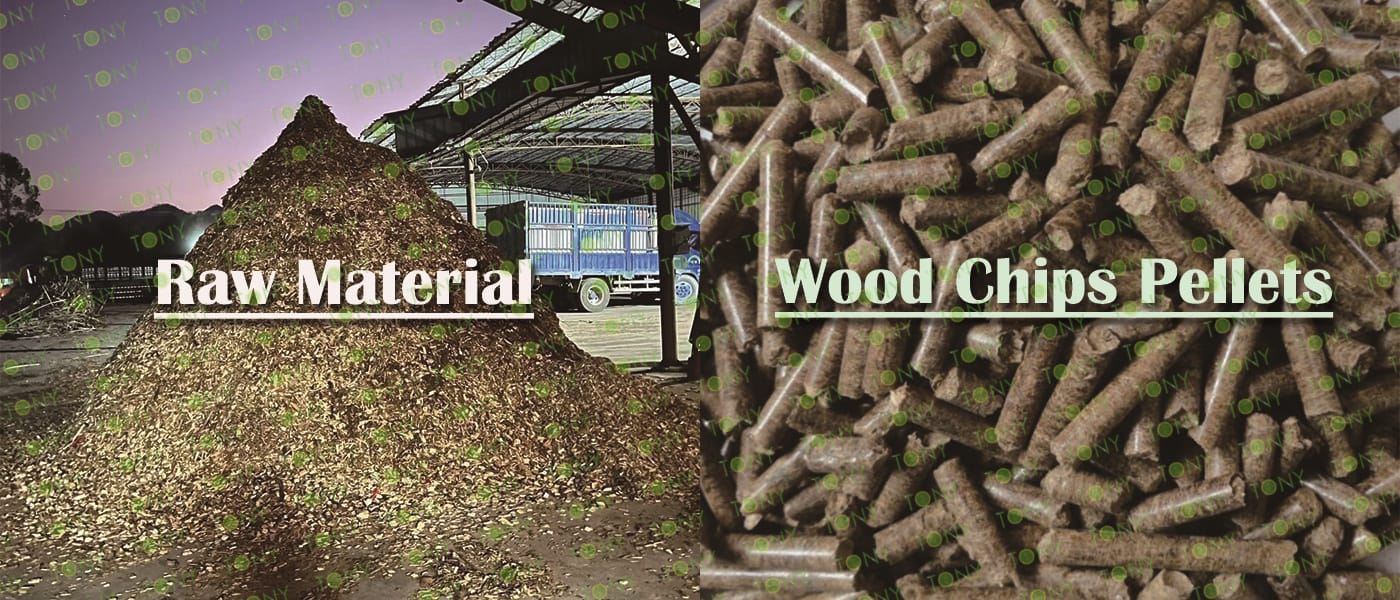

TONY Brand 36-45Ton/Hour Wet Wood Chips Pellet Manufacturing Plant can take wet wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, wet wood chips is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 36-45Ton/Hour

2. Raw materials: Wet wood chips

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood chips or more waste wood raw materials

Suitable customers: Solid wood furniture production, artificial board processing (plywood, fiberboard, particleboard), wood component processing, construction and decoration, packaging and logistics, such as pallets and wooden boxes, will generate a large amount of waste wood chips due to repeated use, size mismatch or changes in cargo transportation needs. Paper and pulp production where waste wood chips have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Chips Pellet Production Line

2. Raw Material: All kinds of wet wood chips

3. Moisture Content of Raw Material: 40%

4. Capacity: 36-45 tons per hour

5. Process:  Fine Crushing Process -Sawdust Storage Process- Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Effective Hammer Mill-TFD100*200-315KW, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-3.2*24m,  TONY Pellet Machine TYJ860-Ⅲ-280KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Effective Hammer Mill	Large Hydraulic Storage Silo	Rotary Drum Dryer
1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD100*200-315KW*4sets 3.Capacity: 9-12Ton/Hour/Set	1.To Storage Sawdust Before Dryer Control Sawdust Flow Entering The Dryer Model: TCY-30*4sets 2.TONY Uses Galvanized Material	1.To Dry The 40% Sawdust Into 10-15% Sawdust.  2.Model: THGD3.2*24*4sets 3.Capacity:9-12Ton/Hour/Set

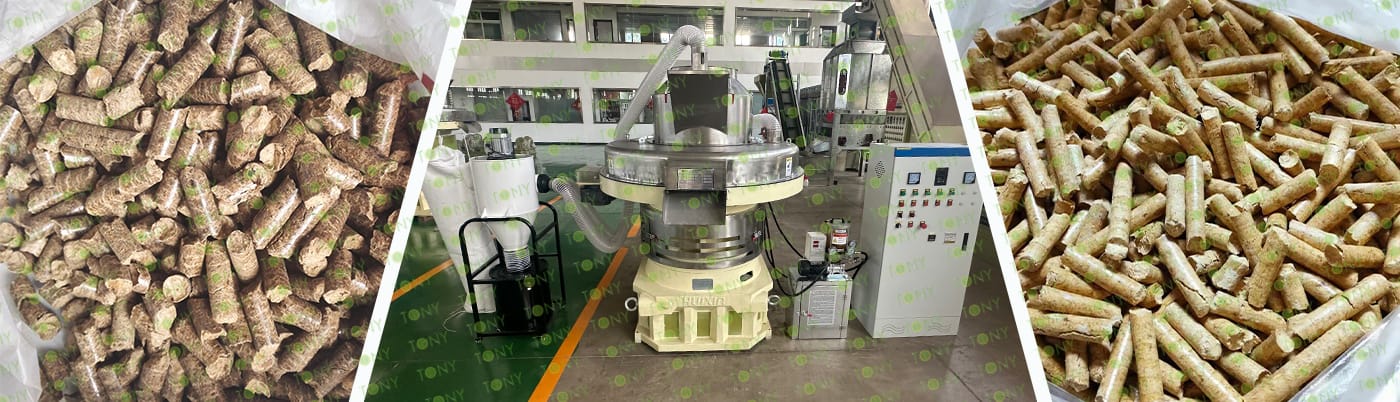

Vertical Ring Die Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*9sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*3sets 3.Capacity:36-45Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags. 2.Model: TBD* 3sets 3.Capacity: 36-45 Ton/Hour

1.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:36-45Ton/Hour.

C.TONY brand effective hammer mill TFD100*200-315KW*4sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

2.Sawdust Storage Process:

A.This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B.The customer chooses one TONY Brand Sawdust Storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust Blocked.

3.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:36-45Ton/Hour.

C.TONY use 4 sets of 3.2*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:36-45 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-280KW*9sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:36-45Ton/Hour.

C.TONY brand galvanized cooler separator*3 sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

6.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.TONY ton packing machine*3sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

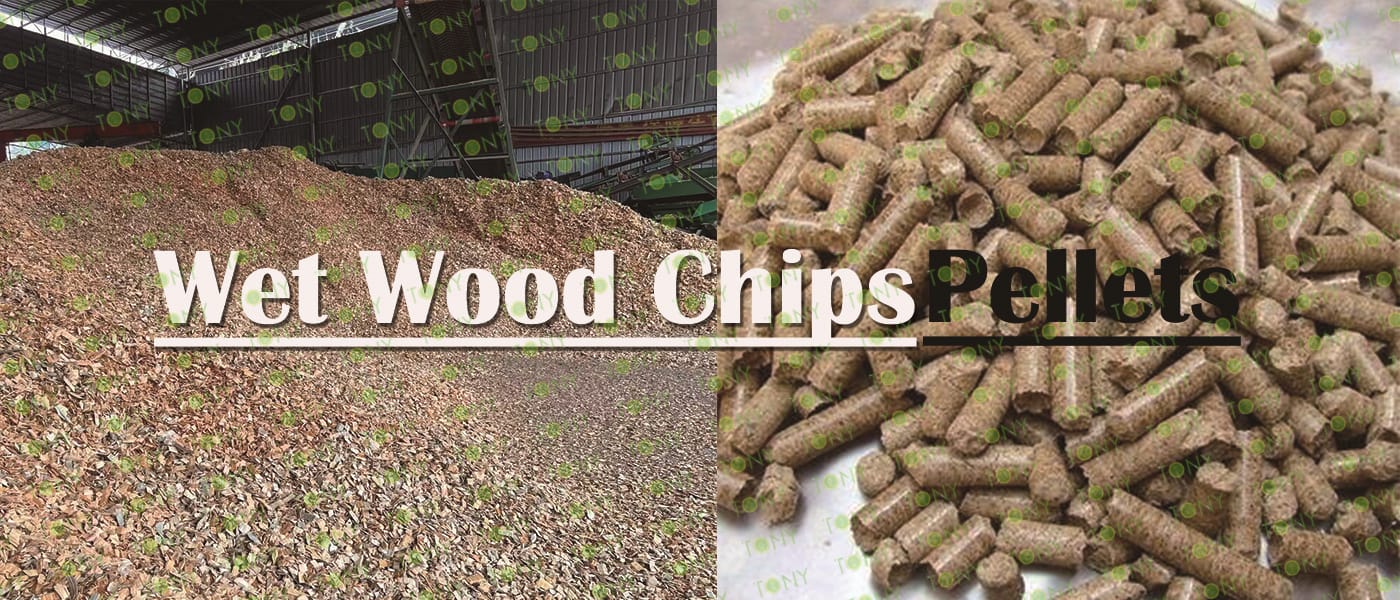

The wet wood chip pellet project is a promising biomass energy utilization project.

1. Project Overview:

The wet wood chip pellet project converts wet wood chips generated during wood processing into high-density, high-calorific value wood pellet fuel or biomass pellet products through a series of processes, including crushing, drying, and pelletizing. These pellets can be widely used in biomass power generation, industrial boiler fuel, and residential heating.

2. Market Demand:

(1)Energy Sector: With the increasing global demand for clean energy, wood pellets, as a renewable biomass fuel, are increasingly being used in biomass power generation and industrial boilers. For example, in Europe, wood pellets have become a key fuel for power generation. The German wood pellet market has an annual demand of over one million tons and is growing at approximately 5% annually.

(2)Construction and Furniture Industry: Wood pellets can also be used as a filler in new building materials and furniture production. They are environmentally friendly, energy-efficient, and offer excellent performance. With the development of the construction industry and growing consumer demand for eco-friendly furniture, market demand is also expanding.

Biomass pellets (i.e., wood pellets) processed from wood chips are a clean, renewable biomass energy product. Their energy advantages are primarily reflected in their high calorific value, easy combustion, and strong stability.

1.High density + high calorific value, high energy efficiency

After compression and pelletization, wood chips are significantly reduced in volume (density can reach 1.1-1.3 tons/m³, 4-5 times that of loose wood chips), while their energy density per unit volume is significantly increased (lower calorific value is approximately 4200-4800 kcal/kg, close to that of medium-quality coal). Heat release is concentrated during combustion, resulting in a thermal efficiency 30%-50% higher than directly burning loose wood chips. This makes them suitable for applications with stable heat demand (such as industrial boilers and biomass power generation).

2.Complete combustion and low pollutant emissions.

Wood pellets have a uniform structure and controllable moisture content (dried to 10%-15% during processing). They are not prone to charring during combustion and contain no harmful elements such as sulfur and phosphorus. Exhaust emissions of sulfur dioxide and nitrogen oxides after combustion are extremely low (far lower than those from coal combustion). Dust emissions can also be reduced to meet environmental standards with simple treatment.

3.Convenient storage and transportation, strong stability.

The pellets have a regular shape (mostly cylindrical, 6-10mm in diameter and 10-30mm in length) and good fluidity. They can be transported in bags or bulk, requiring only one-fifth the storage space of loose wood chips. Furthermore, the pellets have a low moisture content and are resistant to mold and mildew. They can be stored for 6-12 months, eliminating the need to worry about raw material deterioration.
