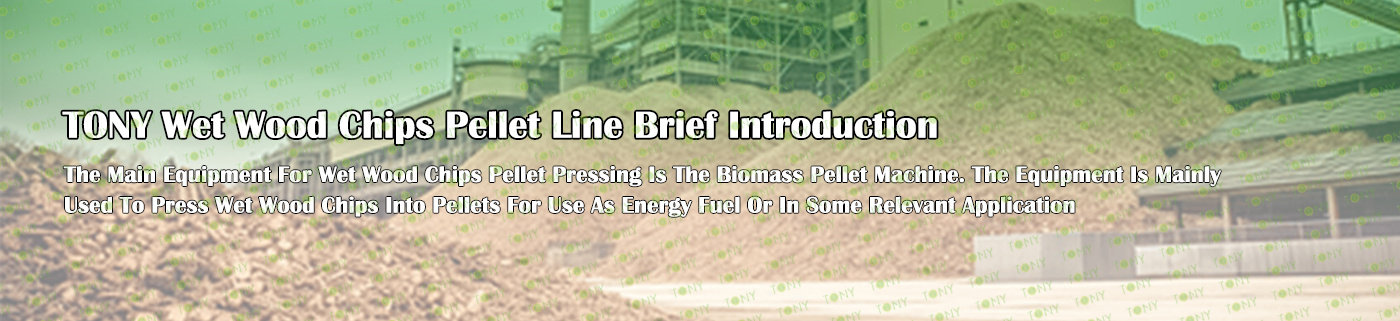

Project Brief Introduction:

1.Product:Wet Wood Chips Pellet Line

2.Capacity: 3T/Hour

3.TONY Brand 3 Ton /Hour Wet Wood Chips Pellet Line Project Process

4.Main Machine: Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ760 - Ⅲ - 200kw,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 380 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

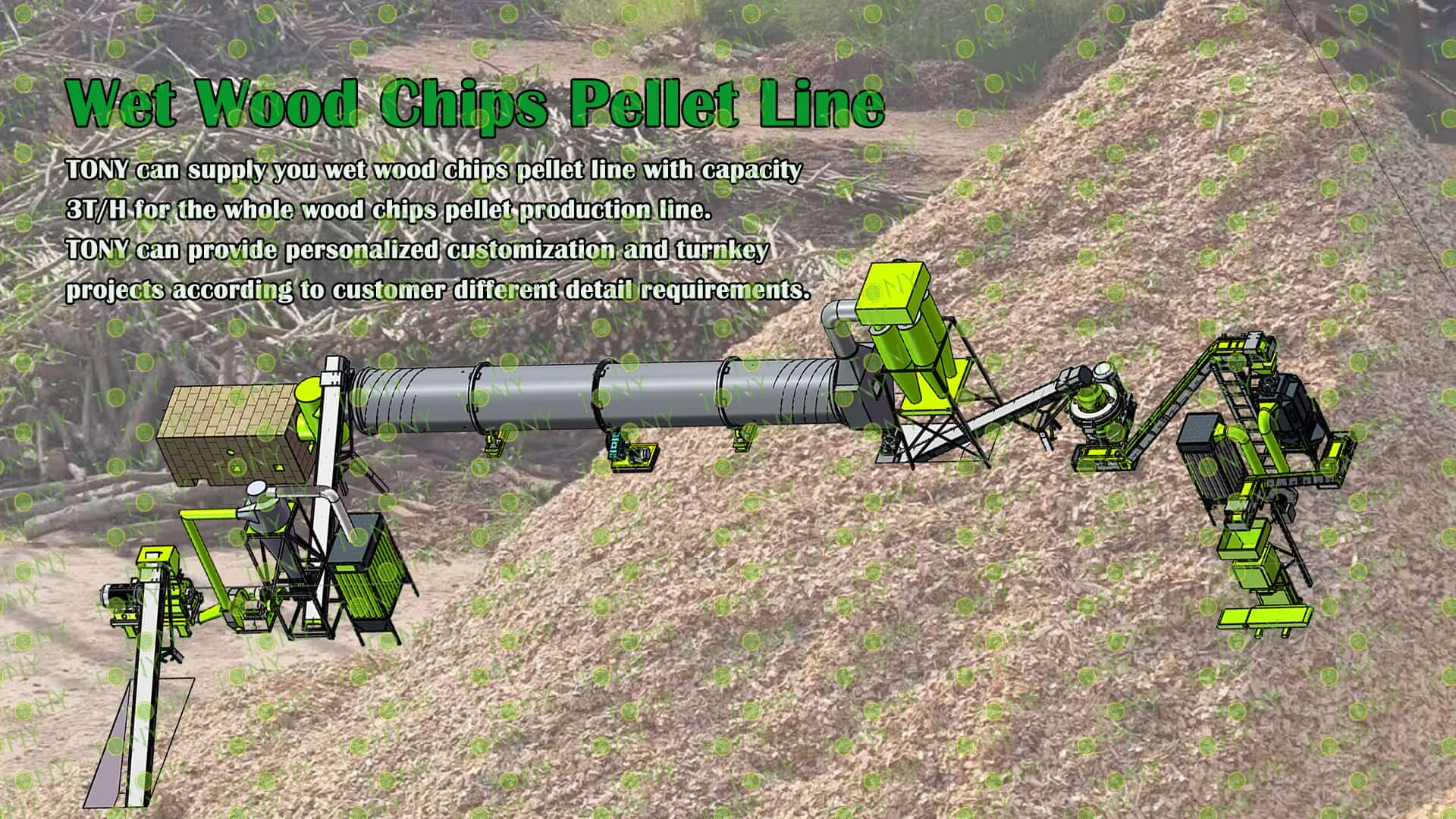

Project Layout For Customer：

三维图

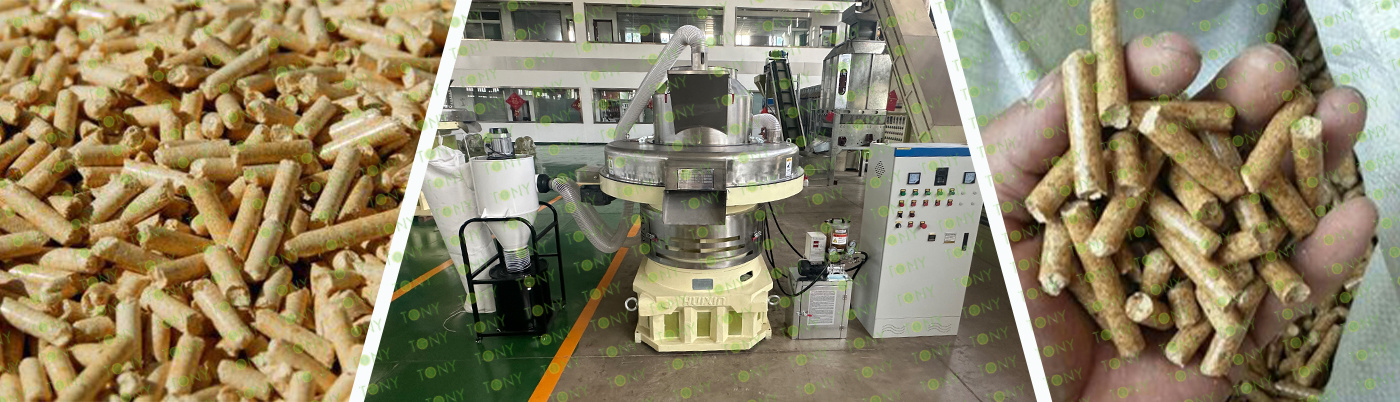

原材料图+颗粒机图片

1. The working principle of wet wood chips biomass pellet processing equipment

Wet wood pellet processing equipment is used to chop and compress wet wood and other biomass materials into pellet fuel. Its working principle is to first grind and dry the wet wood through pre-processing equipment such as grinders and dryers, and then press it into shape through a pelletizer, ultimately producing pellet biomass fuel that meets quality standards.

2. Characteristics of wet wood chips biomass pellet processing equipment

(1) Core features: Exclusive design for "wet wood chips"

Material pretreatment system: Solve the "uneven and agglomerated" problems of wet materials

(2) Molding machine: Anti-clogging and wear-resistant structural optimization

Mold and roller: Wear-resistant + anti-stick coating: The inner wall of the mold forming hole (aperture 6-12mm) and the surface of the roller are sprayed with tungsten carbide or alloy coating, which not only enhances wear resistance (wet materials contain moisture, which can easily accelerate metal corrosion and wear), but also reduces the situation where wet materials "stick to the surface" after softening due to high temperature, reducing the cleaning frequency;

(3) Cooling and screening: "Anti-mildew" design suitable for wet particles

The temperature can be reduced to room temperature ±5℃ within 10-15 minutes, while removing 1-3% of the surface moisture; the vibrating screen adopts a "double-layer screen", the upper layer screens out unqualified particles that are too long/deformed, and the lower layer screens out fine powder after crushing. Both can be returned to the crushing stage through the pipeline for secondary processing, and the material utilization rate is increased to more than 95%.

3. Application scenarios of wet wood chips biomass pellet processing equipment

(1) Wood processing and furniture manufacturing industry clusters

Typical scenarios: solid wood furniture factories, plywood factories, wood flooring factories, and woodworking machinery factories;

Equipment function: converts wet waste wood that originally required payment for removal into biomass pellets that can be used for self-use or export (for example, furniture factories use pellets instead of natural gas to heat and dry wood, reducing energy costs).

(2) Forestry felling and wood storage and transportation sites

Typical scenarios: forest farms, log purchasing stations, and wood transfer terminals;

Equipment function: prevent wet wood chips from becoming moldy and deteriorating during storage and transportation (especially in the rainy season). After being processed into pellets, the volume is reduced to 1/3-1/4 of the original size, reducing transportation costs by more than 60%, and can be sold directly to biomass power plants.

(3) Construction and renovation waste wood processing sites

Typical scenarios: building demolition sites, renovation waste treatment stations, and waste wood recycling plants;

Equipment function: Solve the problem of "wet waste wood being difficult to degrade and easy to pollute" (traditional treatment methods are mostly incineration or landfill, which pollute the environment) and convert it into clean pellet fuel, in line with the "construction waste resource utilization" policy requirements.

2.图片

TONY Brand 3 Ton/Hour Wet Wood Chips Pellet Manufacturing Plant can take wet wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, wet wood chips is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 3 Ton/Hour

2. Raw materials: Wet wood chips

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood chips or more waste wood raw materials

Suitable customers: Solid wood furniture production, artificial board processing (plywood, fiberboard, particleboard), wood component processing, construction and decoration, packaging and logistics, such as pallets and wooden boxes, will generate a large amount of waste wood chips due to repeated use, size mismatch or changes in cargo transportation needs. Paper and pulp production where waste wood chips have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片


原材料--成品图

4.图片

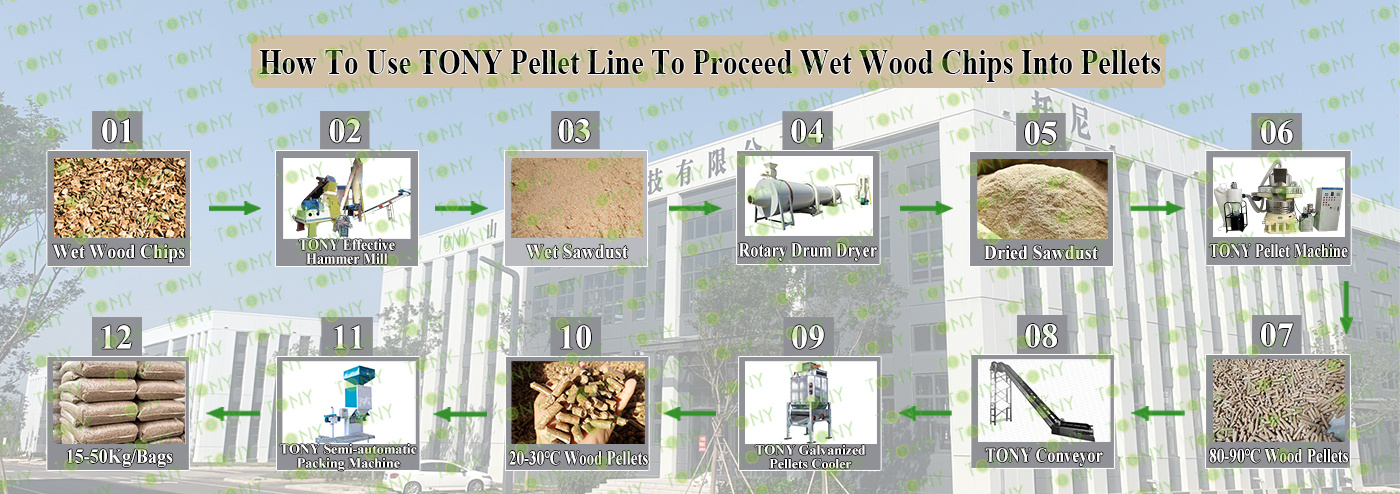

流程图1

流程图.

5.图片

原材料+颗粒图

颗粒+机器图

三维图

三维图

5.1图片

高效粉碎机

带锯末图

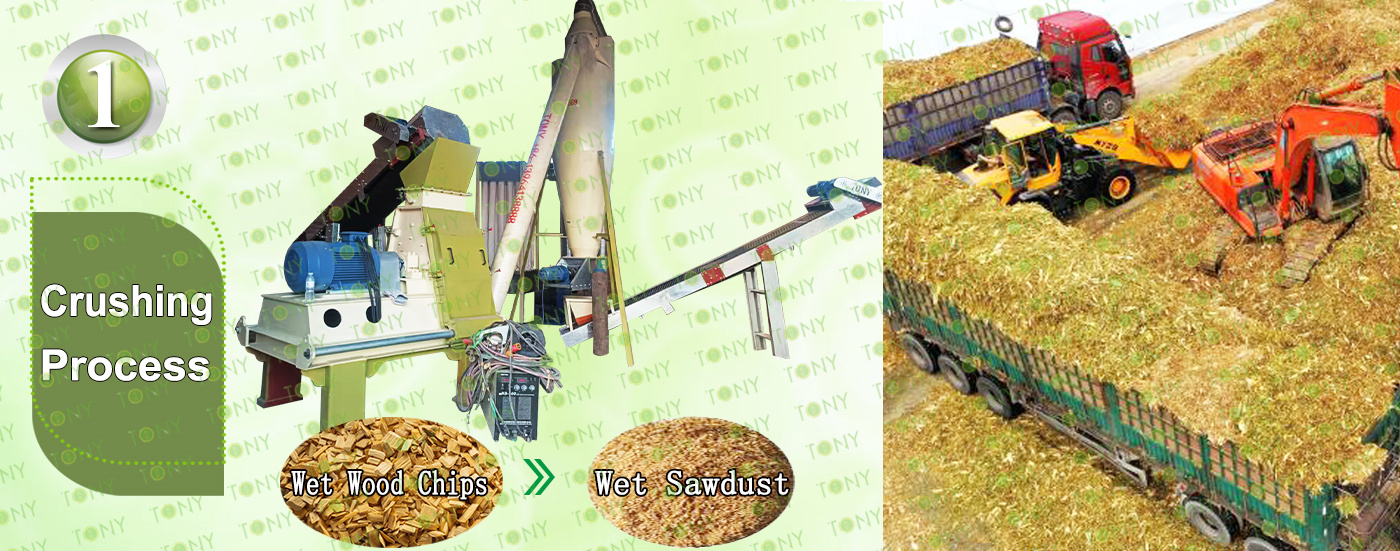

1.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:3-3.5Ton/Hour.

C.TONY brand effective Hammer Mill TFD75*100-90KW*1set

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.2图片

烘干机

带锯末图

2.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:3Ton/Hour.

C.TONY use 1set of 1.8*15m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.3图片

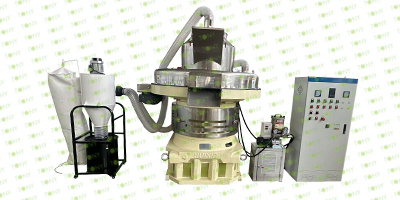

颗粒机四件套带 原材料，颗粒图

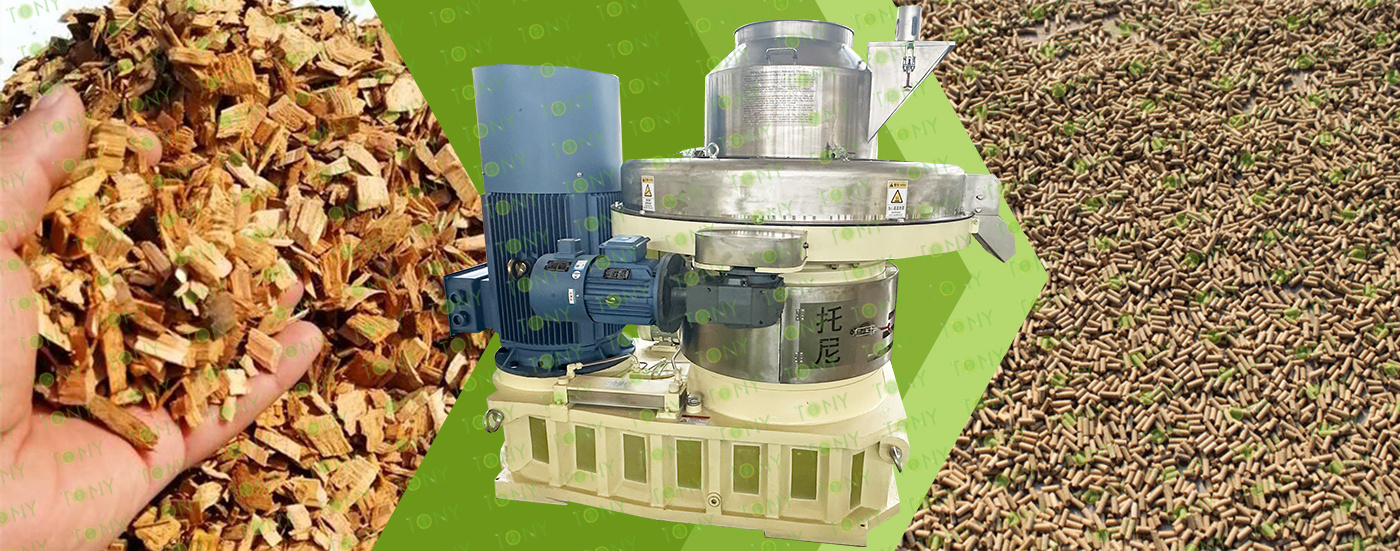

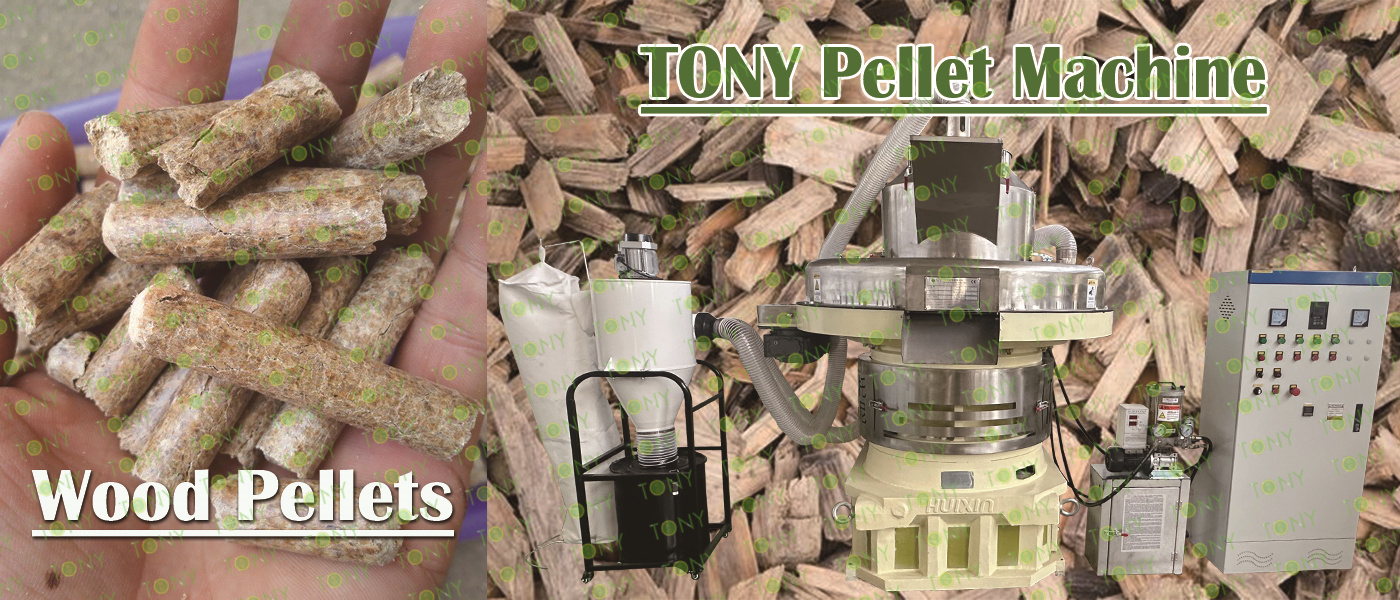

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:3Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ760-III-200KW*1set

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.4图片

镀锌冷却仓加颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:3Ton/Hour.

C.TONY brand galvanized cooler separator*1set

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片

包装机

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:3Ton/Hour.

C.TONY Semi-Automatic Packing Machine*1 Set

Main Parts:

(1)TONY's  Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

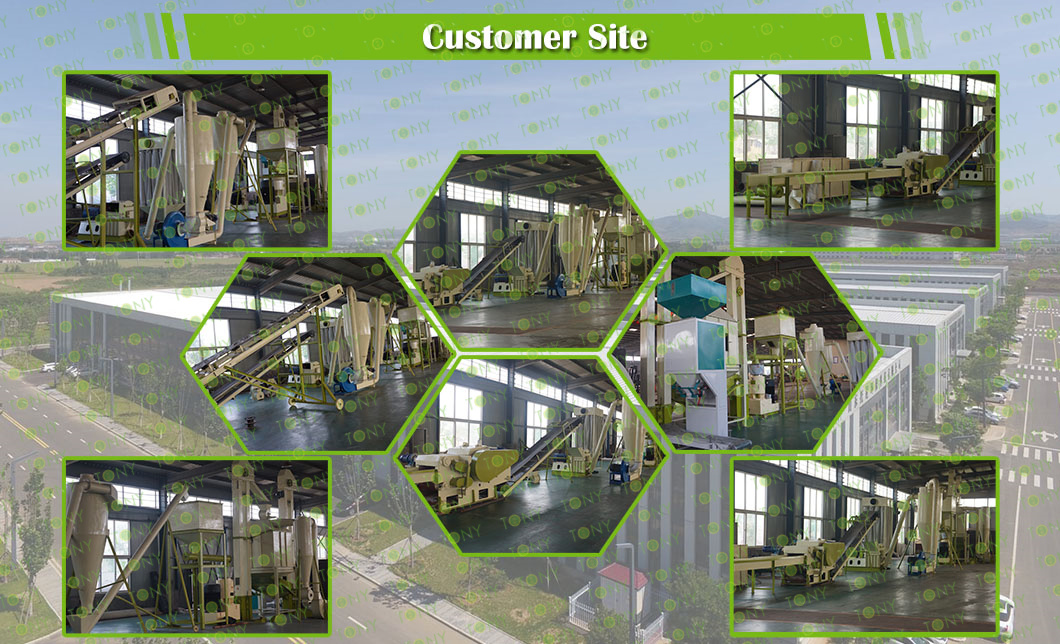

客户生产线案例图

7.图片

图 湿木片+颗粒 颗粒机

Outstanding Environmental Benefits:

Biomass pellets primarily produce carbon dioxide and water during combustion, with minimal emissions of pollutants such as sulfur dioxide, nitrogen oxides, and dust. Furthermore, because the raw materials absorb carbon dioxide during growth, they are nearly "zero-carbon" throughout their lifecycle, offering high environmental value.

Quick Return on Investment:

The investment threshold for this project is relatively low. A small pellet machine can be operational within a day. If the equipment produces 10 tons per day, with an ex-factory price of 800 to 1,100 yuan per ton, the net profit can reach 3,000 yuan per day, typically achieving a payback period of 3-6 months.

Excellent Product Characteristics:

After processing and forming, biomass pellets significantly increase their energy density, making them easier to store and transport. Their regular shape and stable chemical composition provide a stable flame during combustion, with a calorific value generally ranging from 3,500 kcal/kg to 5,000 kcal/kg and a combustion efficiency of 97%, meeting various heating and power generation needs.

8.图片

湿木片图 颗粒图

(1) Wide range of sources and low cost: The raw materials are mainly forestry waste such as wood chips, scraps, branches, and bark generated by wood processing. These materials are available in large quantities in wood processing plants, furniture factories, and other places. Some can be obtained at low prices or even for free, which can effectively control the cost of raw materials.

(2) Strong sustainability: It is a renewable resource. As long as trees are harvested and planted reasonably, a continuous supply of raw materials can be achieved, which is in line with the concept of green development.

(3) High and stable calorific value: The calorific value of wood chip pellets is usually 4000-5000 kcal/kg, and the combustion efficiency can reach more than 90%. It can provide heat stably to meet the needs of industrial heating and household heating.

(4) Complete combustion and low pollution: The pollutants such as sulfur dioxide and nitrogen oxides produced during combustion are much lower than those of coal, and the amount of ash is small, which has little impact on the environment and meets environmental protection standards.

9.图片

绿色地球+原材料+颗粒图
