Project Brief Introduction:

1.Product:Wet Wood Chips Pellet Line

2.Capacity: 3-4 T/Hour

3.TONY Brand 3-4Ton /Hour Wet Wood Chips Pellet Line Project Process

4.Main Machine: Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ551 - Ⅲ - 110kw,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 440 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

Project Layout For Customer：

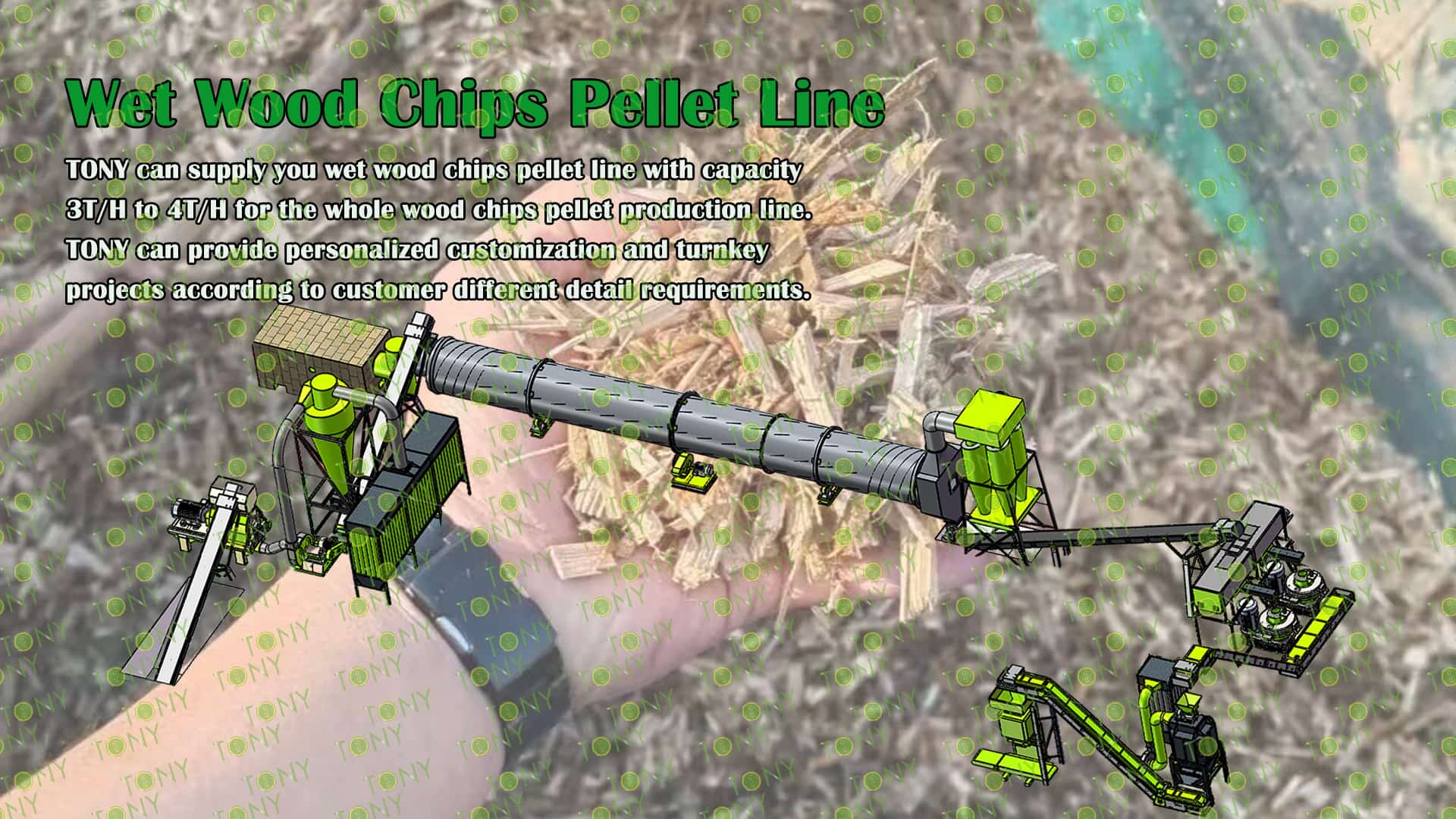

三维图

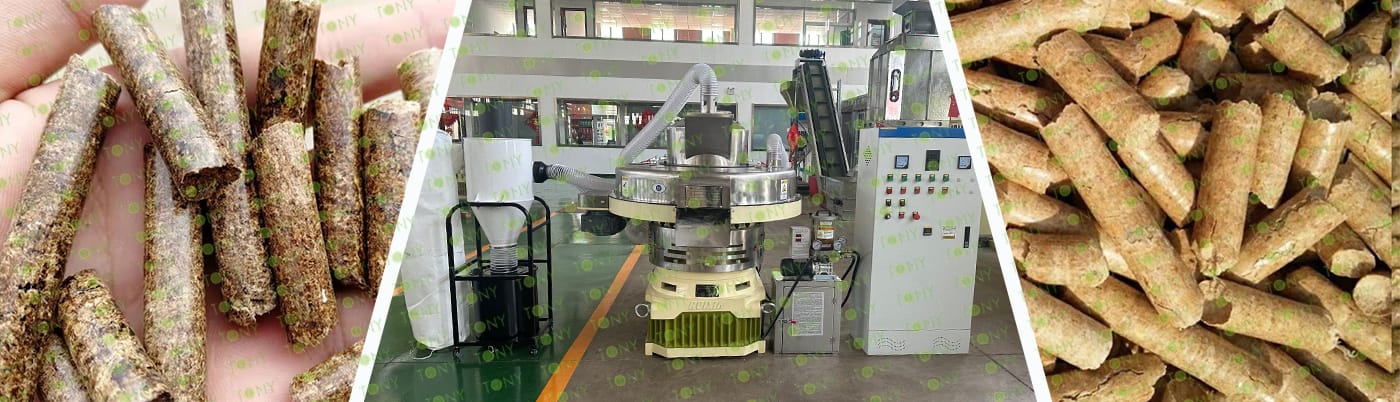

原材料图+颗粒机图片

1. The working principle of wet wood chips biomass pellet processing equipment

Core Forming: Fiber reorganization and densification through mechanical extrusion is a key step in converting wet wood chips into pellets. The core principle is "high-pressure extrusion + wood fiber self-bonding." Lignin (a natural adhesive that softens under pressure and frictional heat) in the wet wood chips works together with water to tightly bind the fibers, forming pellets with a fixed shape.

Core component: the forming machine—the "ring die pellet machine," which is more adaptable to wet materials and less prone to clogging.

During the extrusion process, intense friction between the sawdust and the inner wall of the die and the surface of the rollers generates frictional heat of 60-90°C. This temperature softens the lignin in the wood chips (the softening point of lignin is approximately 70-100°C). Simultaneously, the water forms "liquid bridges" that bind the dispersed fibers together, providing a foundation for subsequent shaping.

2. Characteristics of wet wood chips biomass pellet processing equipment

(1) Wide adaptability of raw materials: Reduce the cost of raw material procurement

Can directly process undried wet wood chips such as fresh leftovers from wood processing plants, wet waste wood from building demolition, wet branch slices after orchard pruning, etc.

In addition to pure wet wood chips, it can also process mixed wet materials containing wood fiber such as "wet sawdust, bark, bamboo chips" (the mixing ratio does not exceed 30%), further broadening the source of raw materials, especially suitable for users near wood processing plants and furniture factories

(2) High processing efficiency: continuous operation + low failure rate

Long continuous operation time: Due to the "integrated design" of pretreatment, molding, and cooling links, and the optimization of anti-clogging structure, the equipment can achieve 8-12 hours of continuous operation

(3) Excellent particle quality: Meet the application needs of multiple scenarios

Stable physical properties:

The molded wet wood particles have high density (1.1-1.3g/cm³), high hardness (compressive strength ≥15MPa), are not easy to break during storage and transportation (breakage rate ≤3%), and have low hygroscopicity (moisture content is stable at 12%-18%), and can be stored for 6-12 =No mold growth for months;

Diverse application scenarios:

As biomass fuel: The calorific value can reach 4200-4500 kcal/kg (close to medium-quality coal) when burned, and the ash content is ≤5%, suitable for industrial boilers and biomass power plants;

After crushing, it can be used as a filling matrix for organic fertilizer, realizing "turning waste into treasure".

(4) Convenient operation and maintenance: Reduce labor and operation and maintenance costs

Intelligent control: If problems such as wet material agglomeration, blockage, motor overload, etc. occur, the machine will automatically shut down and alarm, without the need for manual 24-hour on-duty;

Convenient replacement of wearing parts: The wearing parts such as rollers and molds adopt a "quick-release structure" and have a long service life.

(5) Environmental protection and policy adaptation: Meet the needs of green development

Zero wastewater discharge: No liquid wastewater is generated during the processing; dust is collected by a "bag dust collector"

Comply with biomass energy policy: The wet wood pellets produced are "renewable biomass energy"

3. Application scenarios of wet wood chips biomass pellet processing equipment

(1) Biomass power generation/heating enterprises

Typical scenarios: Biomass power plants and industrial boilers (such as heating boilers in textile factories and food factories) require a large amount of stable pellet fuel

(2) Small and medium-sized heating/drying users

Typical scenarios: Rural heating stations, agricultural product drying plants (such as grain, fruit and vegetable drying), greenhouse heating; processed pellets are directly stored in the silo of the heating station and can be taken out as needed.

(3) "Self-circulating" processing in orchards/tea gardens

Typical scenarios: After being processed into pellets, they can be used as fuel for the orchard's "biomass hot air furnace" (for fruit tree frost protection and fruit drying), or crushed and buried in the soil to improve soil quality, realizing "self-circulating waste in the park";

(4) Environmental protection and solid waste treatment fields

Typical scenarios: Urban solid waste treatment plants (sorted wet wood waste), garden waste treatment stations (wet branches, wet shrub slices)

2.图片

TONY Brand 3-4 Ton/Hour Wet Wood Chips Pellet Manufacturing Plant can take wet wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, wet wood chips is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 3-4 Ton/Hour

2. Raw materials: Wet wood chips

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood chips or more waste wood raw materials

Suitable customers: Solid wood furniture production, artificial board processing (plywood, fiberboard, particleboard), wood component processing, construction and decoration, packaging and logistics, such as pallets and wooden boxes, will generate a large amount of waste wood chips due to repeated use, size mismatch or changes in cargo transportation needs. Paper and pulp production where waste wood chips have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

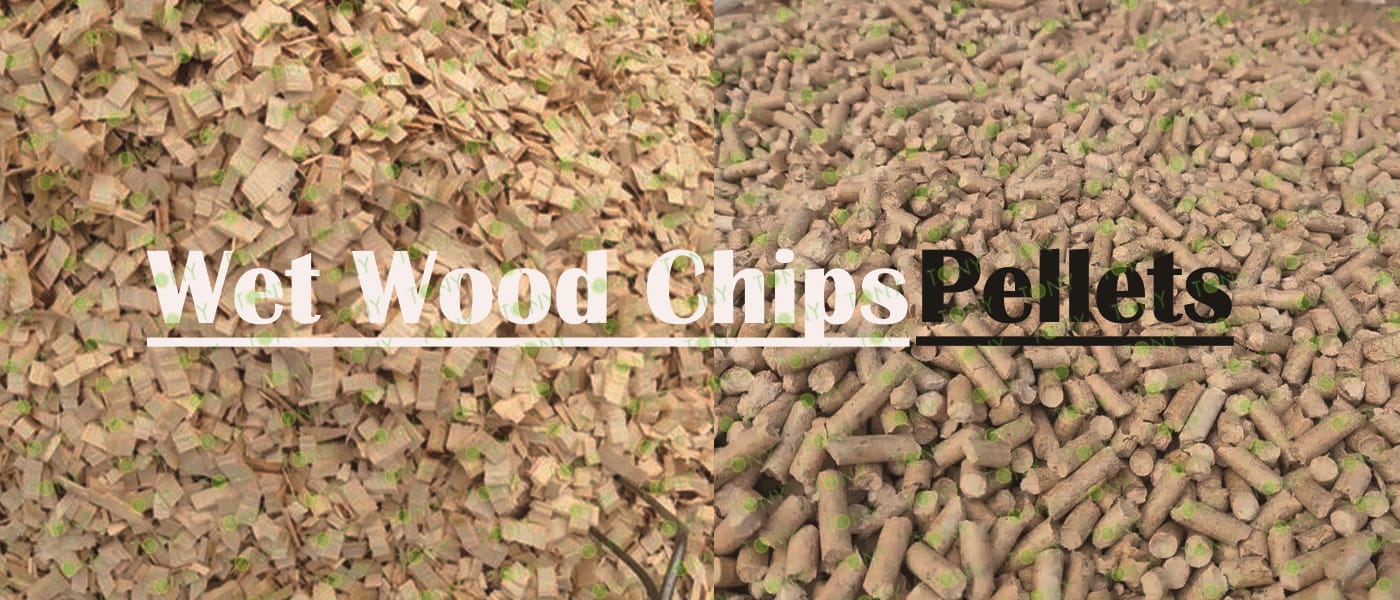

原材料--成品图

1. Project Name: Wet Wood Chips Pellet Production Line

2. Raw Material: All kinds of wet wood chips

3. Moisture Content of Raw Material: 40%

4. Capacity: 3-4 tons per hour

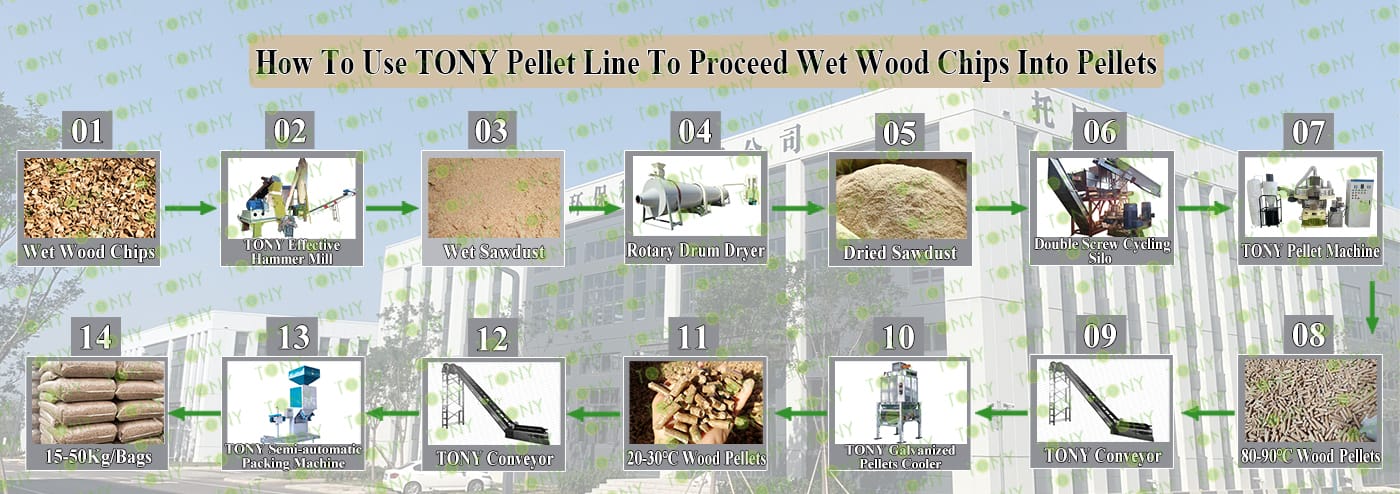

5. Process: Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Effective Hammer Mill-TFD75*100-110kw, Rotary Drum Dryer-1.8*18m, TONY Pellet Machine TYJ551 - Ⅲ - 110kw, Pellet Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片

流程图1

流程图.

5.图片

原材料+颗粒图

颗粒+机器图

三维图

三维图

5.1图片

高效粉碎机

带锯末图

1.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:3-4Ton/Hour.

C.TONY brand effective hammer mill TFD75*100-110KW*1set

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.2图片

烘干机

带锯末图

2.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:3-4Ton/Hour.

C.TONY use 1set of 1.8*18m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.3图片

颗粒机四件套带 原材料，颗粒图

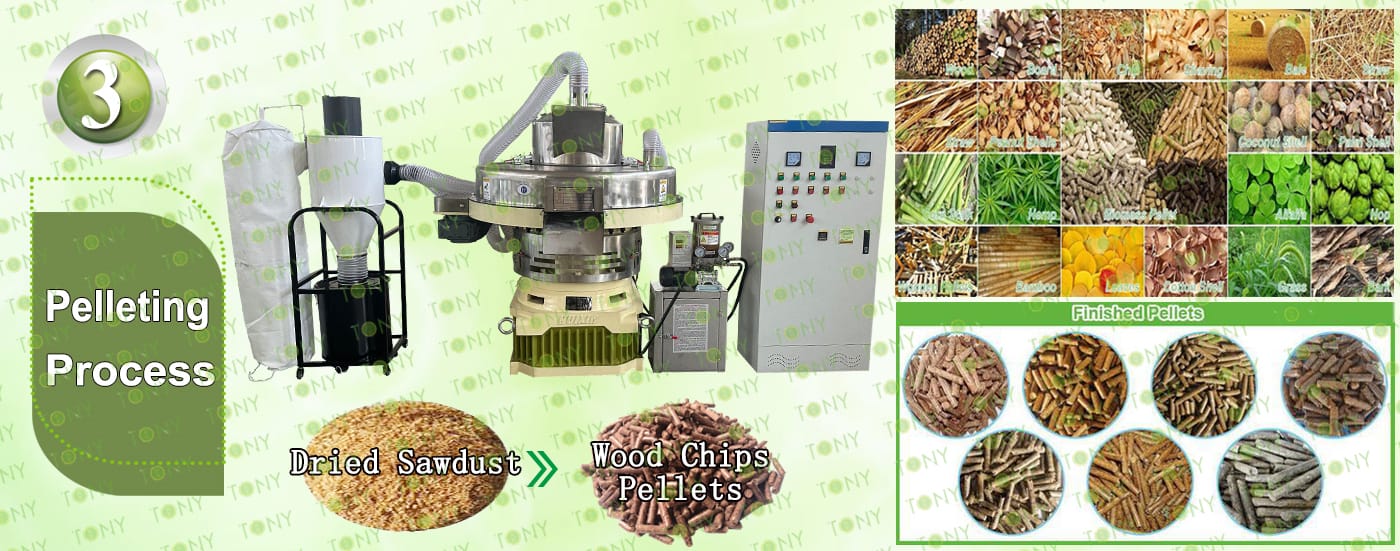

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:3-4 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ551-III-110KW*2sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.4图片

镀锌冷却仓加颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:3-4Ton/Hour.

C.TONY brand galvanized cooler separator*1set

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片

包装机

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:3-4Ton/Hour.

C.TONY Semi-Automatic Packing Machine*1 Set

Main Parts:

(1)TONY's  Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

客户生产线案例图

7.图片

图 湿木片+颗粒 颗粒机

1. Project Core Objectives

The wet wood chip pellet project aims to achieve efficient resource utilization through technological transformation. Its core objective is to convert wet wood chips into high-calorific-value, easily storable biomass pellet fuel, meeting the clean energy needs of industrial boilers and residential heating applications.

2. Market-Driven Logic

With tightening environmental protection policies and growing demand for renewable energy, market demand for biomass pellets, a key alternative to fossil fuels, continues to expand. The project aims to enhance its competitiveness by increasing product density and reducing moisture content (typically ≤15%). Furthermore, the project will optimize its site selection based on regional forestry resource distribution, locating close to raw material production areas to reduce transportation costs.

8.图片

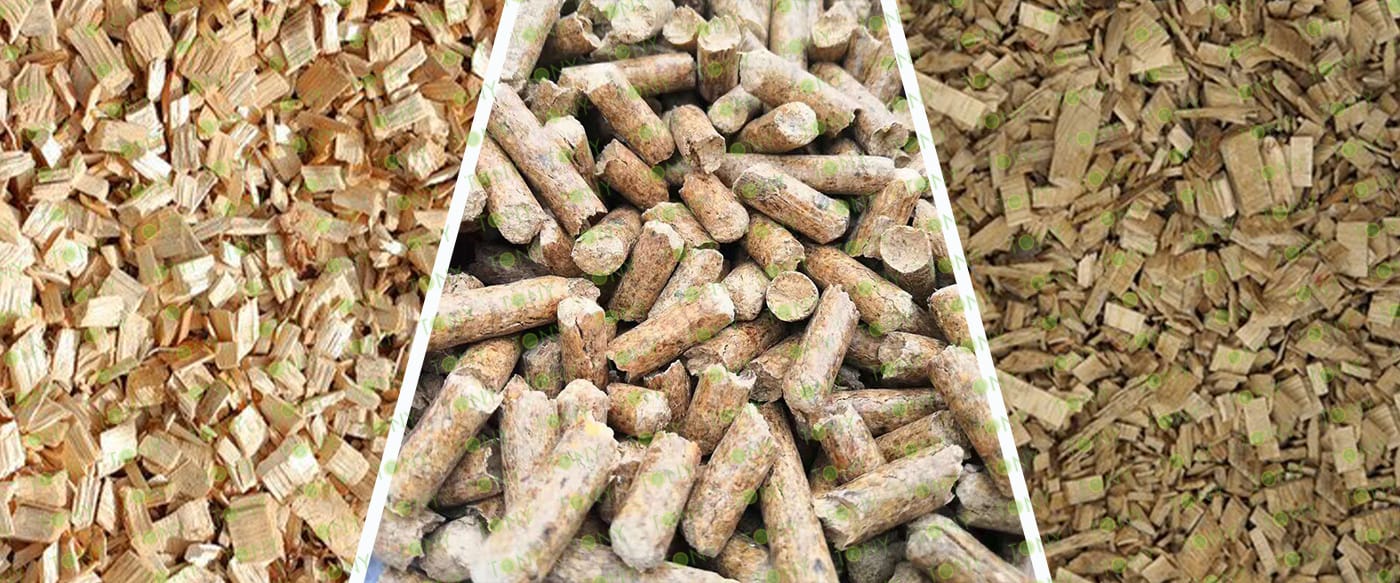

湿木片图 颗粒图

Wood pellets have a wider range of applications than traditional loose wood chips, meeting energy needs across various sectors: industrial, residential, and power generation.

Industrial: As a fuel for industrial boilers (e.g., in the food processing, textile, and chemical industries), they replace coal and natural gas, reducing energy costs. Some high-purity pellets can also be used in biomass gasification power generation and heating projects.

Residential: Suitable for home biomass fireplaces and heating stoves for winter heating. They burn odorlessly and produce minimal smoke, making them cleaner than coal and more economical than electricity (especially in rural areas of northern China, where they are widely used under the "coal to biomass" policy).

Power generation: Large-scale biomass power plants use wood pellets as their core fuel, directly burning them to generate electricity and connect them to the grid. They are an important supplement to renewable energy generation (e.g., some power plants in Europe and China have already implemented them on a large scale).

Other applications: Wood pellets can also be used as animal bedding (water absorption and deodorization), as an auxiliary material for organic fertilizer fermentation, and as a filler in new building materials (such as lightweight insulation), expanding their non-energy applications.
