1.The working principle of wet wood chips biomass pellet processing equipment

Wet wood pellet processing equipment is key to converting wet wood chips into uniform, dry, and storable wood pellets. Its operating principle generally includes four core stages: crushing, drying, compression molding, and cooling. The entire process is designed to increase the density of the raw material, reduce its moisture content, and enhance its performance as a biomass fuel or other applications.

2.Characteristics of wet wood chips biomass pellet processing equipment

(1)Precise machining accuracy: The main housing is made of high-quality steel, with uniform thickness and compact structure; it is carefully machined by imported CNC machining centers, with zero machining accuracy, providing stronger support for normal operation.

(2)Reliable lubrication system: The bearings and oil seals used in the transmission part are all made of high-precision bearings and wear-resistant and temperature-resistant fluororubber oil seals, and a special automatic lubrication system is added, with oil circulation cooling and automatic timed lubrication to ensure that the bearings are fully lubricated and the operation is safer and more reliable.

(3)Durable ring die: The ring die is made of precision and has a unique compression ratio design, which makes the product quality better and the service life of the ring die longer, minimizing the production cost.

(4)Continuous operation capability: The new generation of biomass pellet mill can achieve 24-hour continuous operation

3.Application scenarios of wet wood chips biomass pellet processing equipment

(1)Wood processing and furniture manufacturing industry clusters

Typical scenarios: solid wood furniture factories, plywood factories, wood flooring factories, and woodworking machinery factories;

Equipment function: converts wet waste wood that originally required payment for removal into biomass pellets that can be used for self-use or export (for example, furniture factories use pellets instead of natural gas to heat and dry wood, reducing energy costs).

(2)Forestry felling and wood storage and transportation sites

Typical scenarios: forest farms, log purchasing stations, and wood transfer terminals;

Equipment function: prevent wet wood chips from becoming moldy and deteriorating during storage and transportation (especially in the rainy season). After being processed into pellets, the volume is reduced to 1/3-1/4 of the original size, reducing transportation costs by more than 60%, and can be sold directly to biomass power plants.

(3)Construction and renovation waste wood processing sites

Typical scenarios: building demolition sites, renovation waste treatment stations, and waste wood recycling plants;

Equipment function: Solve the problem of "wet waste wood being difficult to degrade and easy to pollute" (traditional treatment methods are mostly incineration or landfill, which pollute the environment) and convert it into clean pellet fuel, in line with the "construction waste resource utilization" policy requirements.

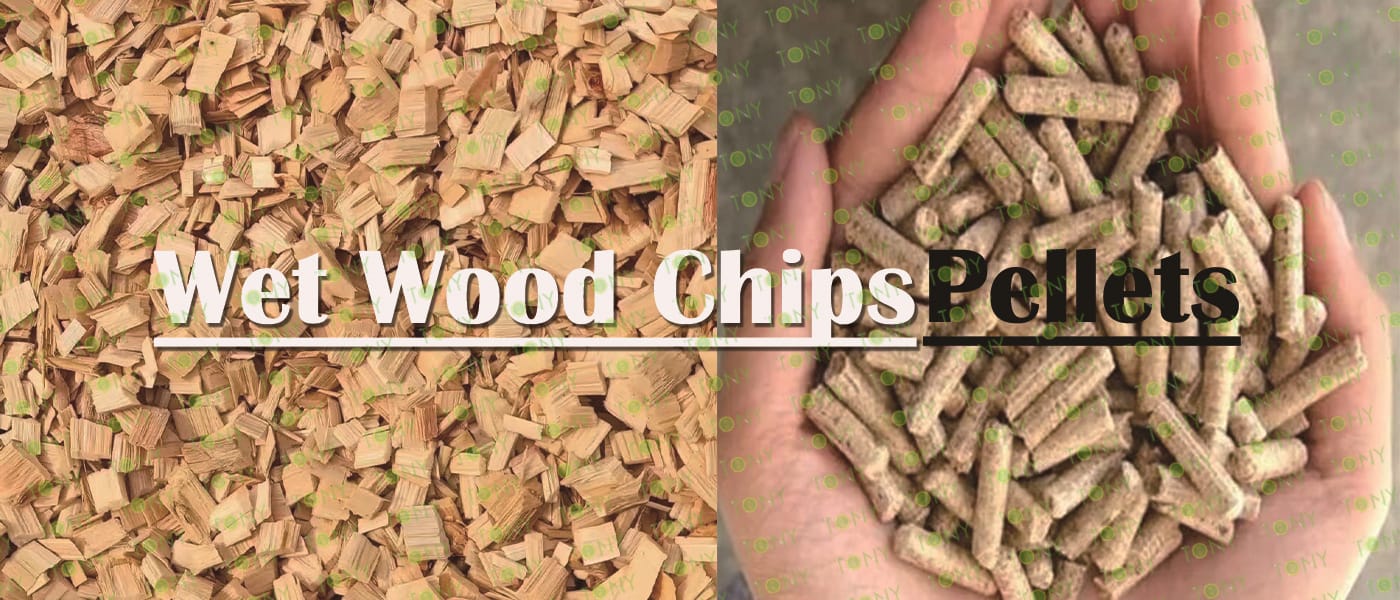

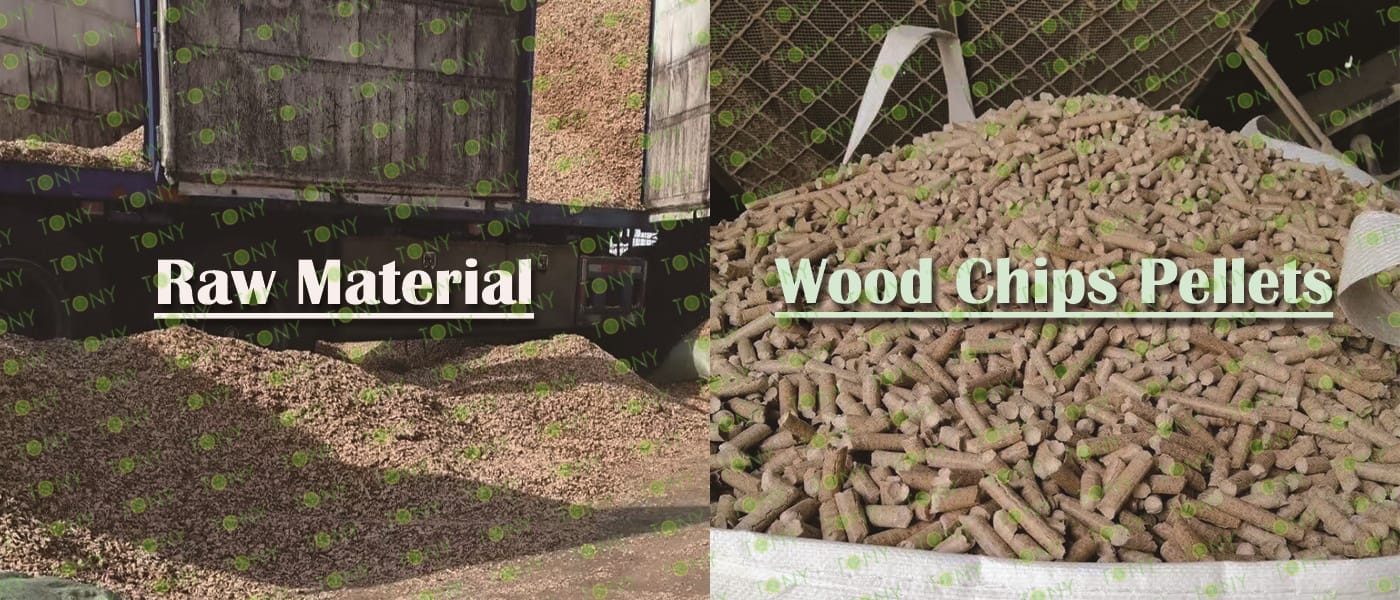

TONY Brand 32-40Ton/Hour Wet Wood Chips Pellet Manufacturing Plant can take wet wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, wet wood chips is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 32-40Ton/Hour

2. Raw materials: Wet wood chips

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood chips or more waste wood raw materials

Suitable customers: Solid wood furniture production, artificial board processing (plywood, fiberboard, particleboard), wood component processing, construction and decoration, packaging and logistics, such as pallets and wooden boxes, will generate a large amount of waste wood chips due to repeated use, size mismatch or changes in cargo transportation needs. Paper and pulp production where waste wood chips have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Chips Pellet Production Line

2. Raw Material: All kinds of wet wood chips

3. Moisture Content of Raw Material: 40%

4. Capacity: 32-40 tons per hour

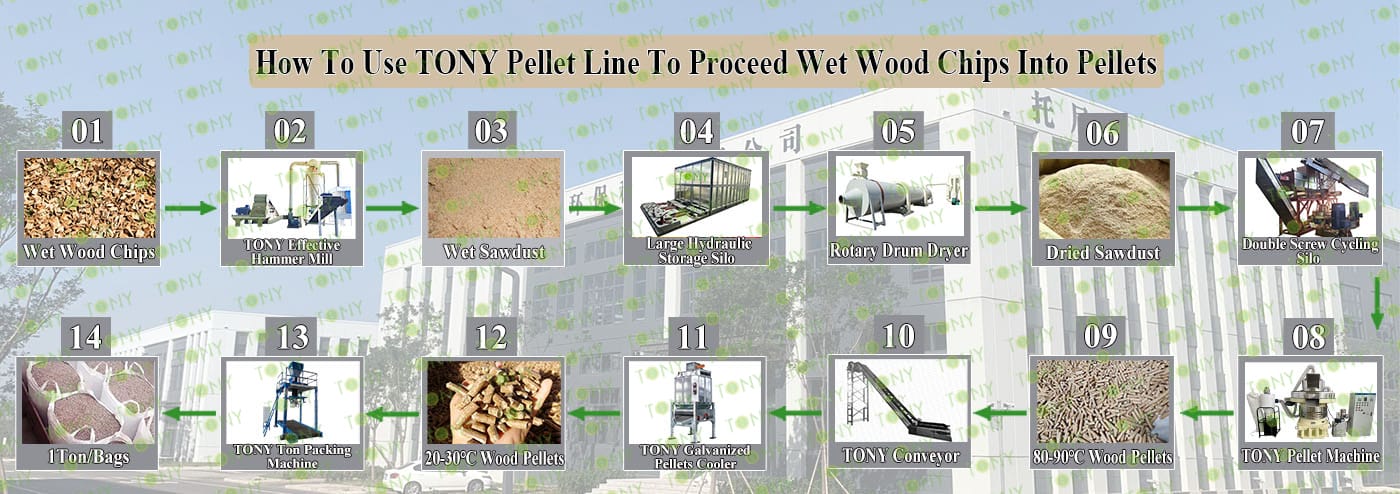

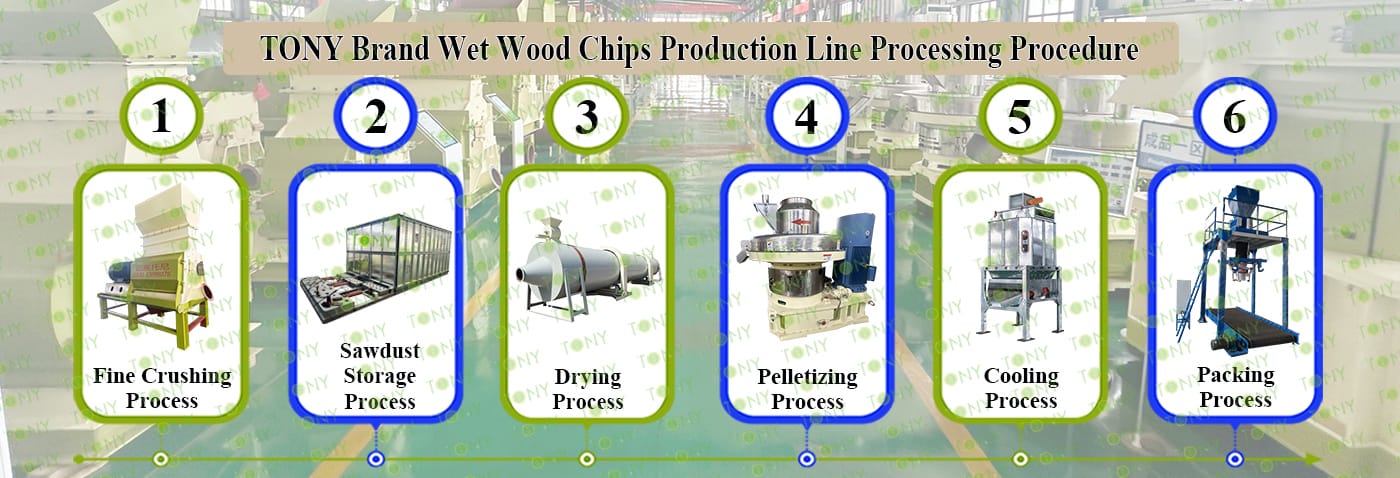

5. Process:  Fine Crushing Process -Sawdust Storage Process- Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Effective Hammer Mill-TFD100*200-315KW, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-2.5*24m,  TONY Pellet Machine TYJ860-Ⅲ-280KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Effective Hammer Mill	Large Hydraulic Storage Silo	Rotary Drum Dryer
1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD100*200-315KW*3sets 3.Capacity: 12-14Ton/Hour/Set	1.To Storage Sawdust Before Dryer Control Sawdust Flow Entering The Dryer Model: TCY-35*3sets 2.TONY Uses Galvanized Material	1.To Dry The 40% Sawdust Into 10-15% Sawdust.  2.Model: THGD2.5*24*6sets 3.Capacity:6-8Ton/Hour/Set
Vertical Ring Die Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*8sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*2sets 3.Capacity:32-40Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags. 2.Model: TBD*2sets 3.Capacity: 32-40 Ton/Hour

1.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:32-40Ton/Hour.

C.TONY brand effective hammer mill TFD100*200-315KW*3sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

2.Sawdust Storage Process:

A. This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B. TONY brand sawdust storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust Blocked.

3.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:32-40Ton/Hour.

C.TONY use 6 sets of 2.5*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

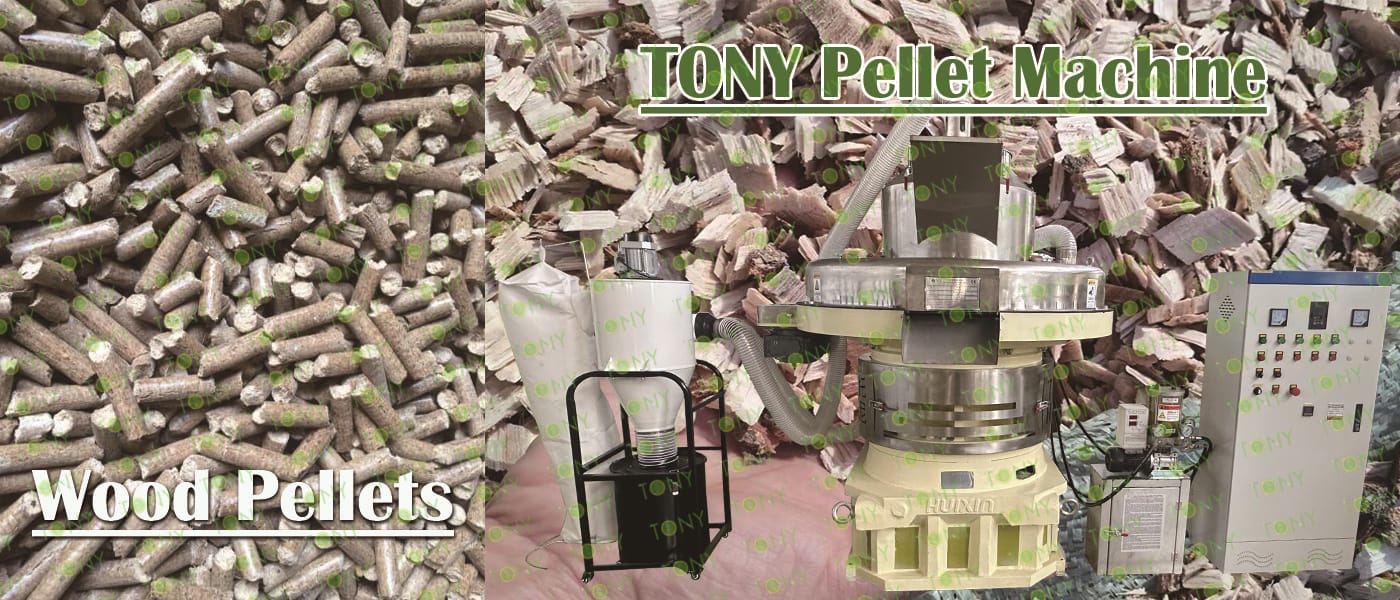

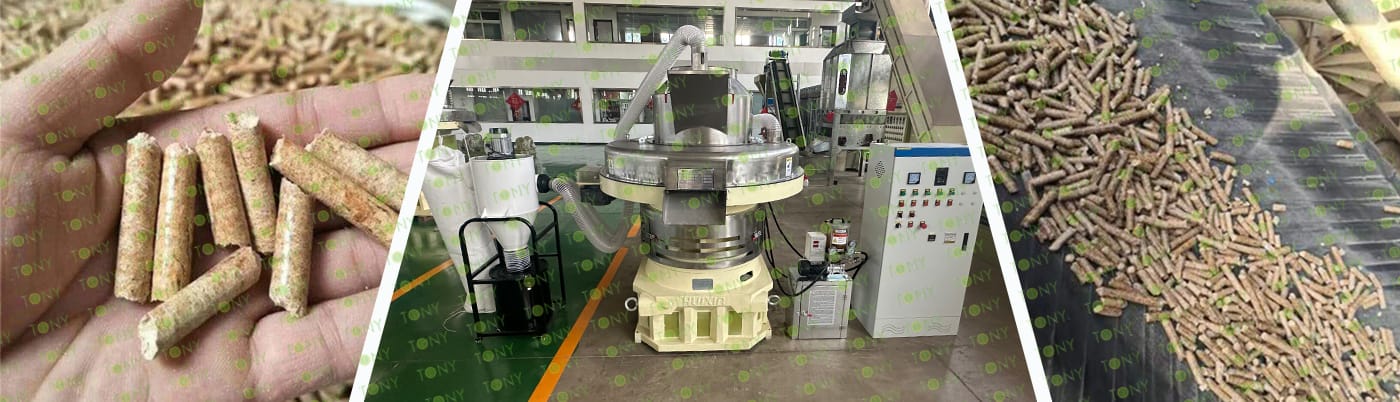

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:32-40 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-280KW*8sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

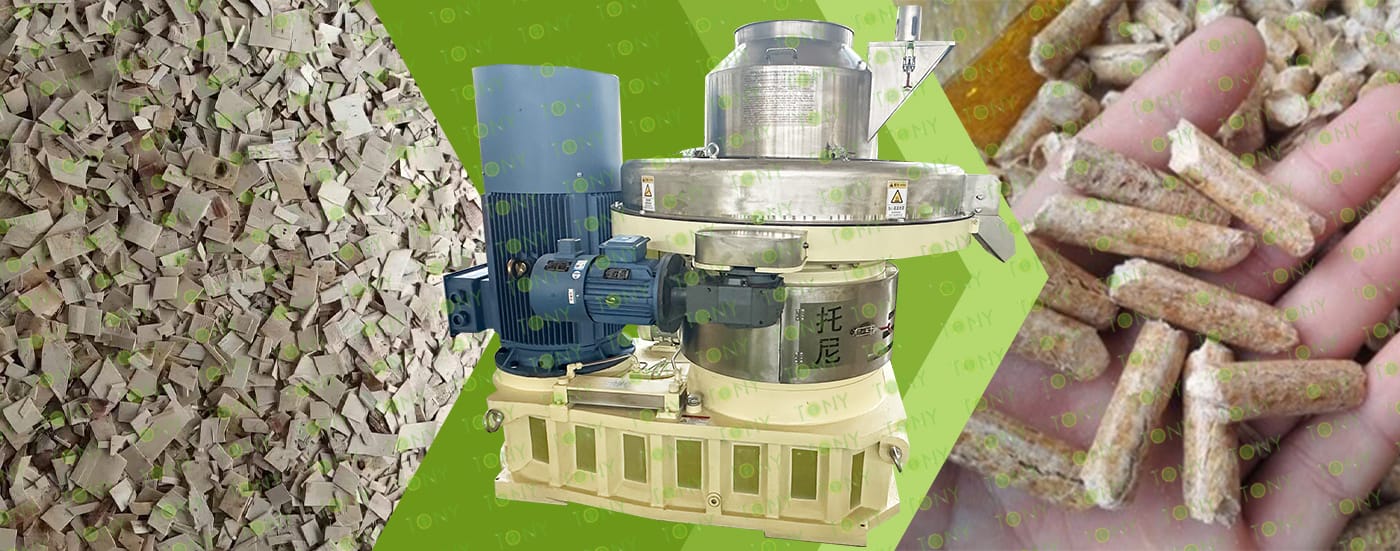

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:32-40Ton/Hour.

C.TONY brand galvanized cooler separator*2 sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

6.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.TONY ton packing machine*2sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

Key Technical Solutions and Production Process for the Wet Wood Chip Pellet Project

1.Pretreatment Technology

Wet wood chips undergo three core processes: crushing, drying, and pelletizing:

Drying: Hot air is used to reduce the moisture content of the wet wood chips from 40%-60% to 10%-15%. This process accounts for 30%-40% of energy consumption and requires a waste heat recovery system to optimize energy consumption.

Pelletizing: A ring die pelletizer is used to press the crushed wood powder into pellets under high temperature and pressure. Key parameters include die hole diameter (typically 6-12mm), forming pressure (50-100MPa), and production temperature (80-120°C).

2.Automation and Intelligent Upgrades

Based on industry technology development trends, the project can incorporate an intelligent manufacturing system. This system dynamically adjusts production parameters through real-time monitoring of moisture content, pellet density, and other data, reducing manual intervention and improving product stability. This will increase production efficiency and reduce defective product rates.

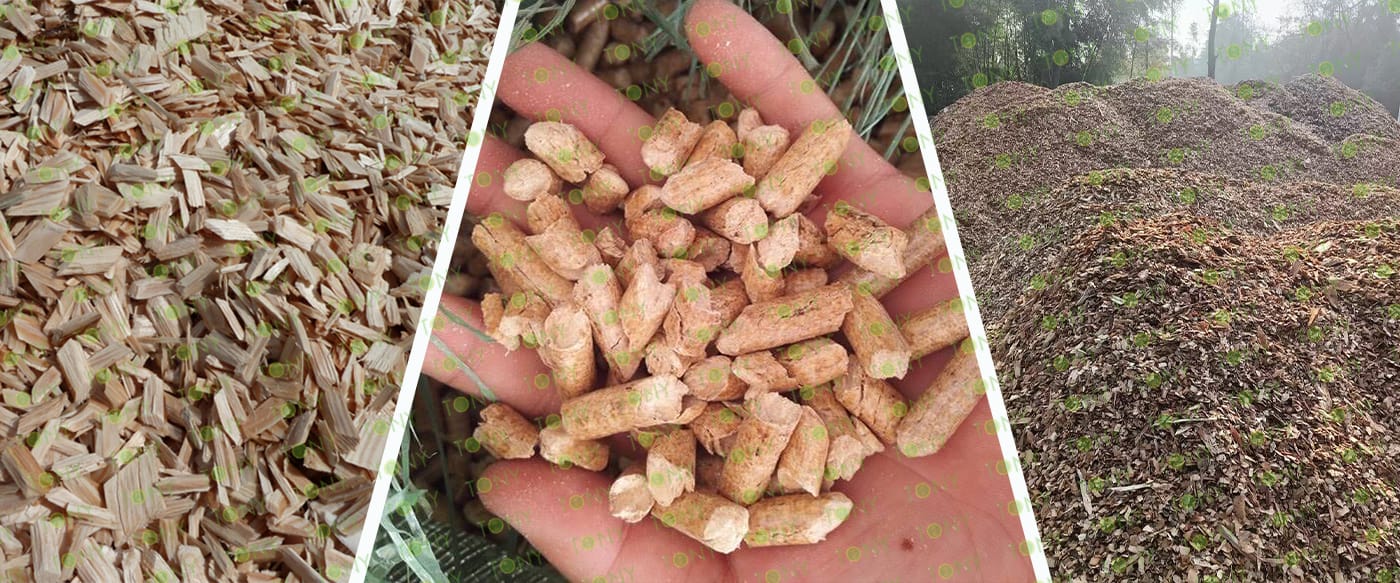

Biomass pellets are a solid fuel made from processed biomass materials such as wood chips. They have the following characteristics:

1.Uniform Size:

Biomass pellets typically range from 6-10 mm in diameter and 10-50 mm in length. This uniformity makes them more stable and efficient during combustion.

2.Low Moisture Content:

The moisture content of biomass pellets is typically below 10%, which helps improve combustion efficiency and reduce smoke and pollutant generation.

3.High Energy Density:

Due to their high density, biomass pellets also have a relatively high energy density, meaning they can provide more calories per unit volume.

4.Easy Storage and Transportation:

Due to their small size and high density, biomass pellets take up less space during storage and transportation, resulting in relatively low transportation costs.

5.Environmentally Friendly:

Biomass pellets produce low smoke and carbon dioxide emissions during combustion, making them a more environmentally friendly fuel option.

6.High Combustion Efficiency:

The high energy density and low moisture content of biomass pellets ensure more complete combustion, with thermal efficiencies generally exceeding 94%.

7.Wide Application:

Biomass pellets are suitable for environments with high environmental requirements, such as food processing plants and pharmaceutical factories. They are also suitable for industrial production lines requiring efficient heat output, such as drying equipment and steam boilers.

In summary, biomass pellets, as a fuel processed from wood chips, offer uniform size, low moisture content, high energy density, ease of storage and transportation, excellent environmental performance, high combustion efficiency, and a wide range of applications.
