1.The working principle of wet wood chips biomass pellet processing equipment

The essence of wet wood chip pellet processing equipment is to "use mechanical high pressure as a driving force, with lignin (a natural binder) and water (an auxiliary bonding agent) as the bond, through a continuous process of 'crushing - extrusion - cutting - cooling' to transform loose wet wood chips into high-density, easily storable solid pellets." Its key advantage lies in its adaptability to wet materials. By optimizing die gaps, controlling frictional heat, and implementing a supporting cooling system, it avoids mold sticking and clogging caused by wet materials during processing. It also utilizes the moisture in the wet material to reduce extrusion resistance and lower equipment energy consumption.

2.Characteristics of wet wood chips biomass pellet processing equipment

(1)Precise machining accuracy: The main housing is made of high-quality steel, with uniform thickness and compact structure; it is carefully machined by imported CNC machining centers, with zero machining accuracy, providing stronger support for normal operation.

(2)Reliable lubrication system: The bearings and oil seals used in the transmission part are all made of high-precision bearings and wear-resistant and temperature-resistant fluororubber oil seals, and a special automatic lubrication system is added, with oil circulation cooling and automatic timed lubrication to ensure that the bearings are fully lubricated and the operation is safer and more reliable.

(3)Durable ring die: The ring die is made of precision and has a unique compression ratio design, which makes the product quality better and the service life of the ring die longer, minimizing the production cost.

(4)Continuous operation capability: The new generation of biomass pellet mill can achieve 24-hour continuous operation

3.Application scenarios of wet wood chips biomass pellet processing equipment

The deployment of wet wood chip pellet processing equipment essentially adheres to the dual principles of "raw material proximity + product proximity"—needing proximity to both wet wood chip production sites (to reduce raw material transportation costs) and pellet demand (to reduce product transportation costs). Therefore, it is primarily concentrated in the following areas:

Wood/furniture industry clusters

Regions rich in forestry resources (such as northern heating areas and biomass power plant clusters);

Cities with strict environmental protection policies and a high demand for solid waste recycling

Across these scenarios, the key is to achieve efficient conversion from wet wood chips to high-value pellets.

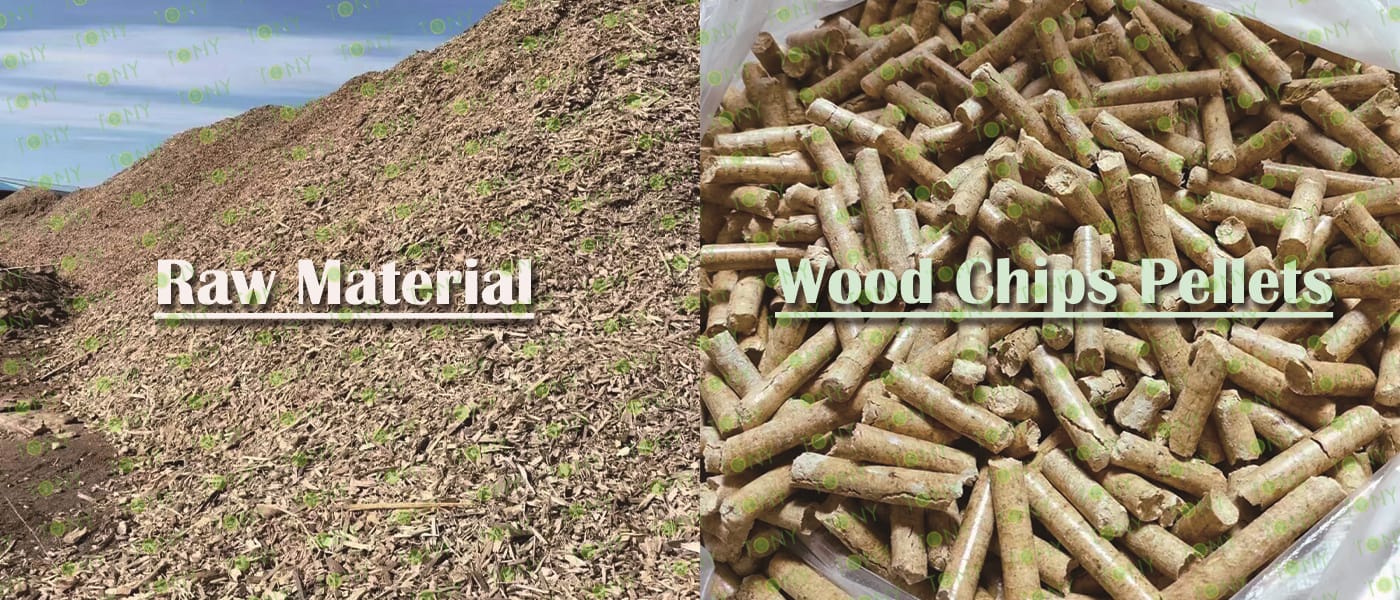

TONY Brand 40-50Ton/Hour Wet Wood Chips Pellet Manufacturing Plant can take wet wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, wet wood chips is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 40-50Ton/Hour

2. Raw materials: Wet wood chips

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood chips or more waste wood raw materials

Suitable customers: Solid wood furniture production, artificial board processing (plywood, fiberboard, particleboard), wood component processing, construction and decoration, packaging and logistics, such as pallets and wooden boxes, will generate a large amount of waste wood chips due to repeated use, size mismatch or changes in cargo transportation needs. Paper and pulp production where waste wood chips have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Chips Pellet Production Line

2. Raw Material: All kinds of wet wood chips

3. Moisture Content of Raw Material: 40%

4. Capacity: 40-50 tons per hour

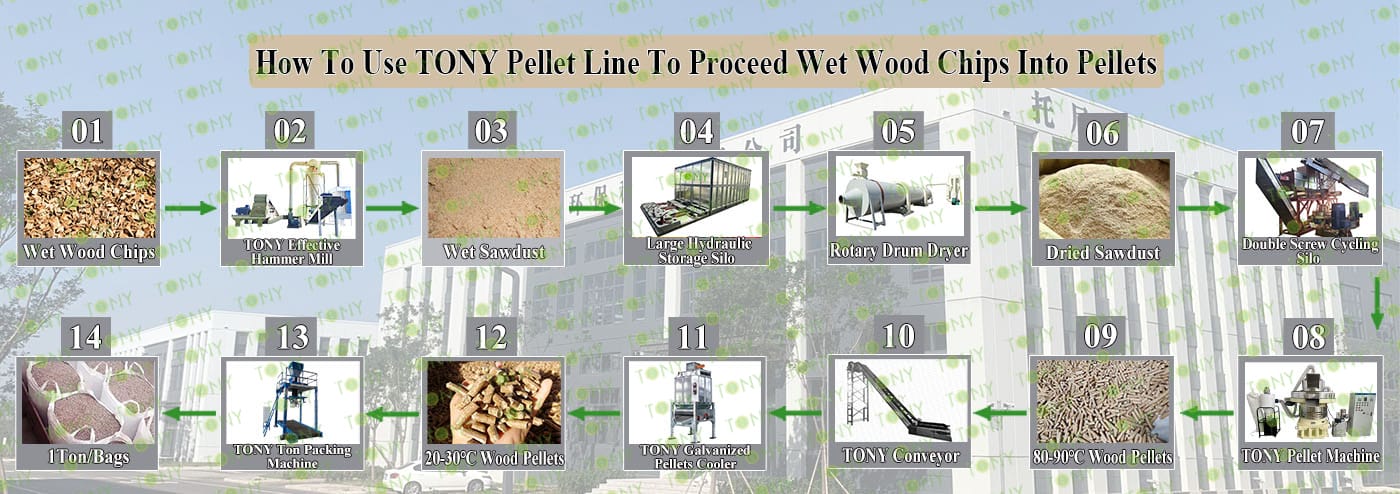

5. Process:  Fine Crushing Process -Sawdust Storage Process- Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Effective Hammer Mill-TFD120-200-355KW, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-3.2*28m,  TONY Pellet Machine TYJ860-Ⅲ-280KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Effective Hammer Mill	Large Hydraulic Storage Silo	Rotary Drum Dryer
1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD120*200-355KW*4sets 3.Capacity: 10-12.5Ton/Hour/Set	1.To Storage Sawdust Before Dryer Control Sawdust Flow Entering The Dryer Model: TCY-35*4sets 2.TONY Uses Galvanized Material	1.To Dry The 40% Sawdust Into 10-15% Sawdust.  2.Model: THGD3.2*28*4sets 3.Capacity:10-12.5Ton/Hour/Set
Vertical Ring Die Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*10sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*2sets 3.Capacity:40-50Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags. 2.Model: TBD*2sets 3.Capacity: 40-50 Ton/Hour

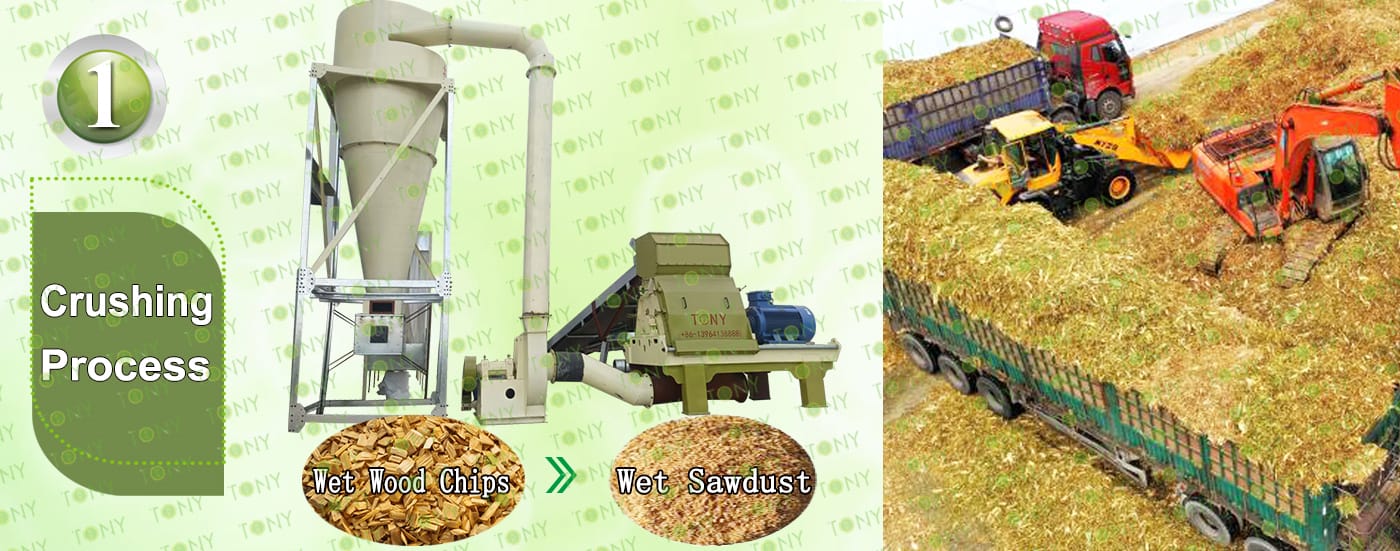

1.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:40-50Ton/Hour.

C.TONY brand effective hammer mill TFD120*200-355KW*4sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

2.Sawdust Storage Process:

A.This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B.TONY brand sawdust storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust Blocked.

3.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:40-50Ton/Hour.

C.TONY use 4 sets of 3.2*28m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

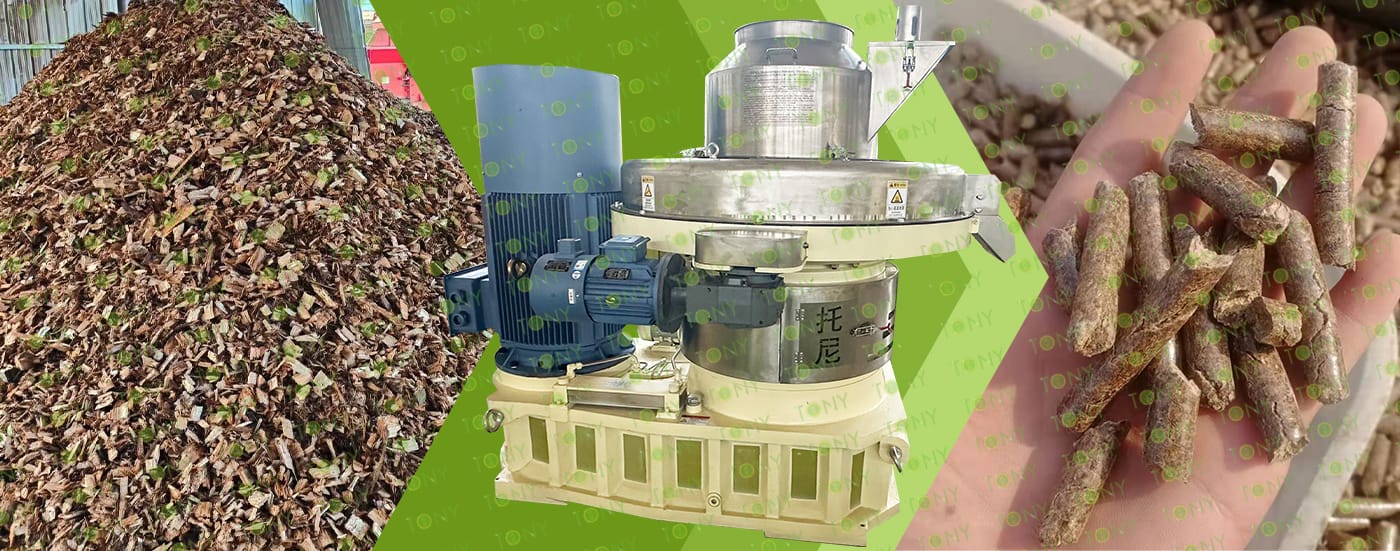

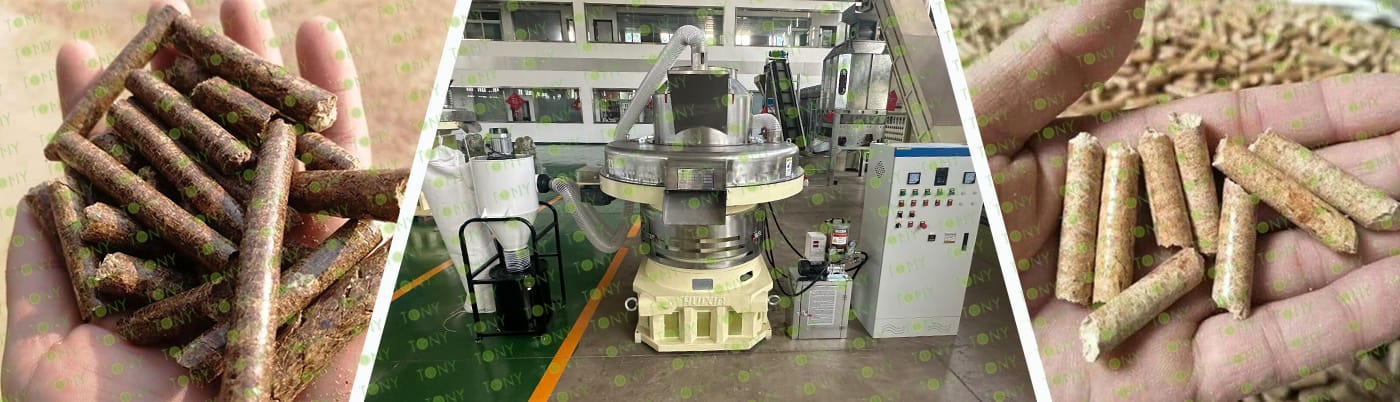

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:40-50Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-280KW*10sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

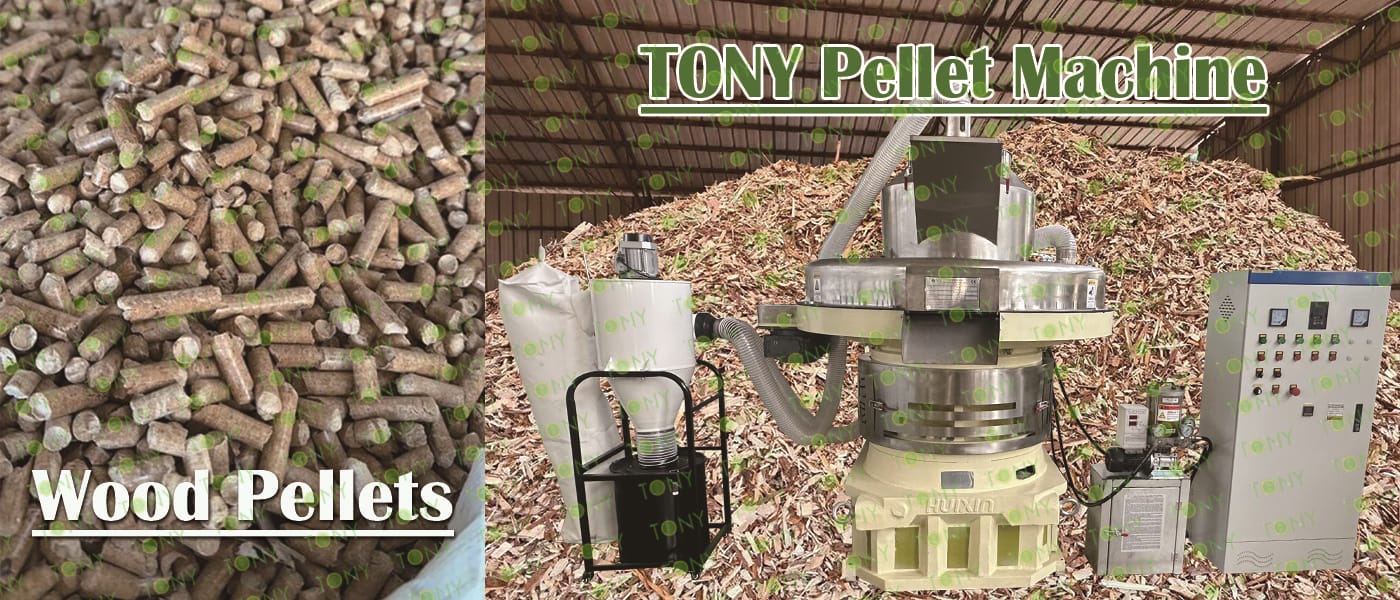

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:40-50Ton/Hour.

C.TONY brand galvanized cooler separator*2sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

6.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.TONY Ton Packing Machine*2sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

Advantages of the Wet Wood Chip Pellet Processing Project

1.Technical Advantages:

Advanced Equipment: Currently, a variety of advanced wet wood chip pellet processing equipment is available on the market, featuring high automation, high production efficiency, high pellet forming rates, and low energy consumption.

Mature Process: The production process for wet wood chip pellet processing is relatively mature. Through pretreatment, drying, crushing, pelletizing, cooling, and screening, wet wood chips can be converted into pellet products that meet quality standards. For example, the TONY pellet machine utilizes a ring die structure, features automatic variable frequency feeding, and hydraulic pressure regulation on the pressure rollers, achieving a pellet forming rate exceeding 98%.

2.Economic Benefits:

Cost-Effectiveness: The project's costs primarily include raw material procurement, equipment investment, energy consumption, and labor costs. If raw material costs and other expenses are properly controlled, the project will achieve high cost-effectiveness.

Revenue: The selling price of wood pellets varies depending on market demand and product quality.

3.Environmental Benefits:

Reduced Forest Resource Depletion: By converting agricultural and forestry waste and waste wood into wood pellets, the project effectively reduces the depletion of natural forest resources and contributes to the recycling of forestry resources.

Reduce Carbon Emissions: The amount of carbon dioxide emissions generated during the combustion of wood pellets is roughly equivalent to the amount of carbon dioxide absorbed during the growth of trees. Wood pellets are low-carbon energy, which helps reduce greenhouse gas emissions and promote the optimization of energy structure and green and low-carbon transformation.

Wood pellets have a wider range of applications than traditional loose wood chips, meeting energy needs across various sectors: industrial, residential, and power generation.

1.Industrial:

As a fuel for industrial boilers (e.g., in the food processing, textile, and chemical industries), they replace coal and natural gas, reducing energy costs. Some high-purity pellets can also be used in biomass gasification power generation and heating projects.

2.Residential:

Suitable for home biomass fireplaces and heating stoves for winter heating. They burn odorlessly and produce minimal smoke, making them cleaner than coal and more economical than electricity (especially in rural areas of northern China, where they are widely used under the "coal to biomass" policy).

3.Power generation:

Large-scale biomass power plants use wood pellets as their core fuel, directly burning them to generate electricity and connect them to the grid. They are an important supplement to renewable energy generation (e.g., some power plants in Europe and China have already implemented them on a large scale).

4.Other applications:

Wood pellets can also be used as animal bedding (water absorption and deodorization), as an auxiliary material for organic fertilizer fermentation, and as a filler in new building materials (such as lightweight insulation), expanding their non-energy applications.
