Project Brief Introduction:

1.Product:Dried Wood Log Pellet Line

2.Capacity:14-16T/Hour

3.TONY Brand 14-16Ton /Hour Dried Wood Log Pellet Line Project Process

4.Main Machine: Comprehensive Chipper,Hammer Mill,TONY Pellet MachineTYJ860-Ⅲ-250KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 2000 kw

6.Need Area: About 1550 ㎡  L: 50M  W: 31M  H: 6.517M

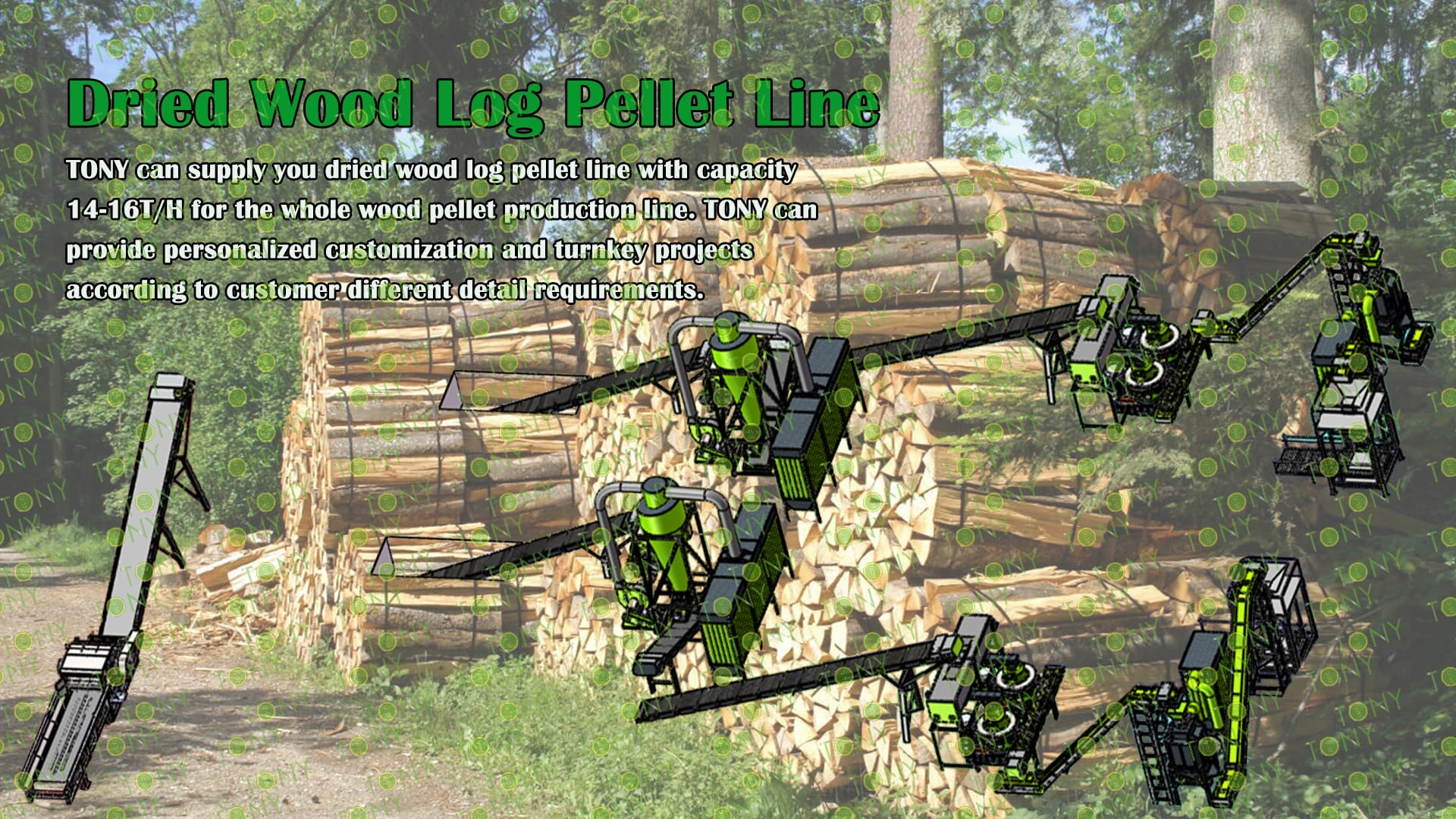

Project Layout For Customer:

1. The working principle of dried wood log biomass pellet processing equipment

The principle of dry wood pellet processing equipment can be simply summarized as follows: first, the dry wood raw materials (such as dry wood chips, wood scraps, etc.) are screened to remove impurities, crushed and screened to obtain qualified fine wood chips with a particle size of 2-5mm; the core link is to feed the fine wood chips into the pellet forming machine. Under the action of 50-100MPa high pressure and friction heat (60-90℃), the adhesiveness of the natural lignin in the wood is softened and forced to be squeezed through the mold to form columnar particles; finally, after cooling (to near room temperature) and screening the finished product to remove debris, qualified dry wood pellets are obtained. The entire process relies on the coordination of multiple equipment to realize the transformation of loose raw materials into high-density pellets.

2. Characteristics of dried wood log biomass pellet processing equipment

(1)Wide Raw Material Compatibility:It can process a variety of dry wood raw materials, such as dry sawdust, wood scraps, dry branches, and bark. It is compatible with materials with a moisture content of 8%-15% (without requiring extensive drying). It has low requirements for raw material form, reducing feed restrictions.

(2)Easy Operation and Maintenance:Most equipment features automated control systems, reducing manual intervention. Key components are constructed of wear-resistant materials and feature a modular structure, allowing for easy disassembly and replacement, reducing maintenance costs.

(3)Environmentally Friendly and Energy-Saving:The processing process uses no chemical additives (relying on the wood's natural lignin for bonding), resulting in zero harmful emissions. Some equipment utilizes frictional heat generated during the forming process to aid in material conditioning. Air cooling is often used in the cooling process (eliminating the need for large amounts of water). Fines and unqualified materials can be recycled back into the production line, minimizing material waste.

3. Application scenarios of dried wood log biomass pellet processing equipment

(1)Biomass Energy:Provides raw materials for biomass power plants, heating companies, and industrial boilers (such as those in food processing and textile mills). It converts dry wood into high-density pellet fuel, replacing traditional energy sources like coal and natural gas and reducing carbon emissions. It can also be used as fuel for household heating stoves and fireplaces, meeting clean heating needs.

(2)Wood Processing and Furniture Industry:Processes dry sawdust, scraps, shavings, and other waste generated by furniture and wood processing plants into pellets. These can be recycled as fuel for in-plant boilers or sold externally, transforming waste into a resource and reducing solid waste disposal costs.

(3)Agriculture and Animal Husbandry Support:First, it processes agricultural and forestry waste such as dry straw and branches into pellets for use as bedding for livestock and poultry (e.g., cowshed and chicken coop bedding, which is highly absorbent and easy to clean). Second, some equipment can process a mixture of dry sawdust and feed ingredients to produce simple biomass feed carrier pellets to aid animal husbandry production. Environmental Protection and Solid Waste Treatment:

For forestry pruning waste, such as dry branches and wood processing waste, this equipment compresses loose waste into high-density pellets, reducing transportation and storage space while also preventing environmental pollution caused by indiscriminate waste stacking, effectively turning waste into treasure.

TONY Brand 14-16Ton/Hour Dried Wood Log Pellet Manufacturing Plant can take dried wood, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with dried wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 14-16Ton/Hour

2. Raw materials: Dried wood logs , branches, small - diameter logs, twigs, etc.

3. Moisture: Dried type, about 10-15%.

4. Application: All kinds of wood - based biomass materials suitable for pellet production.

Suitable customers: Green energy companies, forestry enterprises, and private wood - processing workshops that have advantages in wood raw materials.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Dried Wood Log Pellet Production Line

2. Raw Material: All kinds of Dried wood log

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 14-16 tons per hour

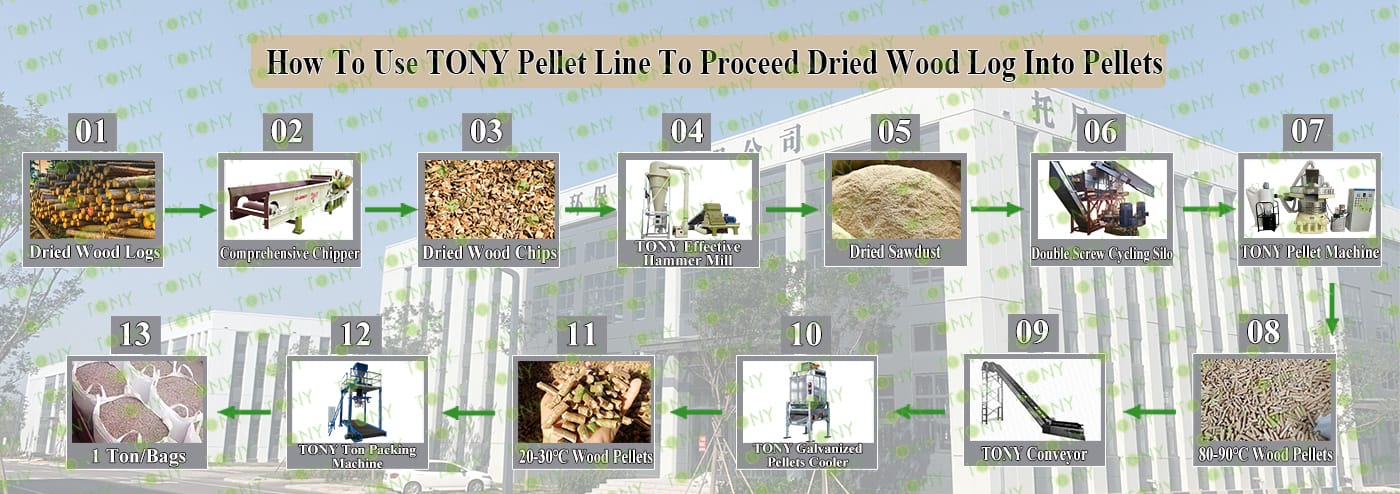

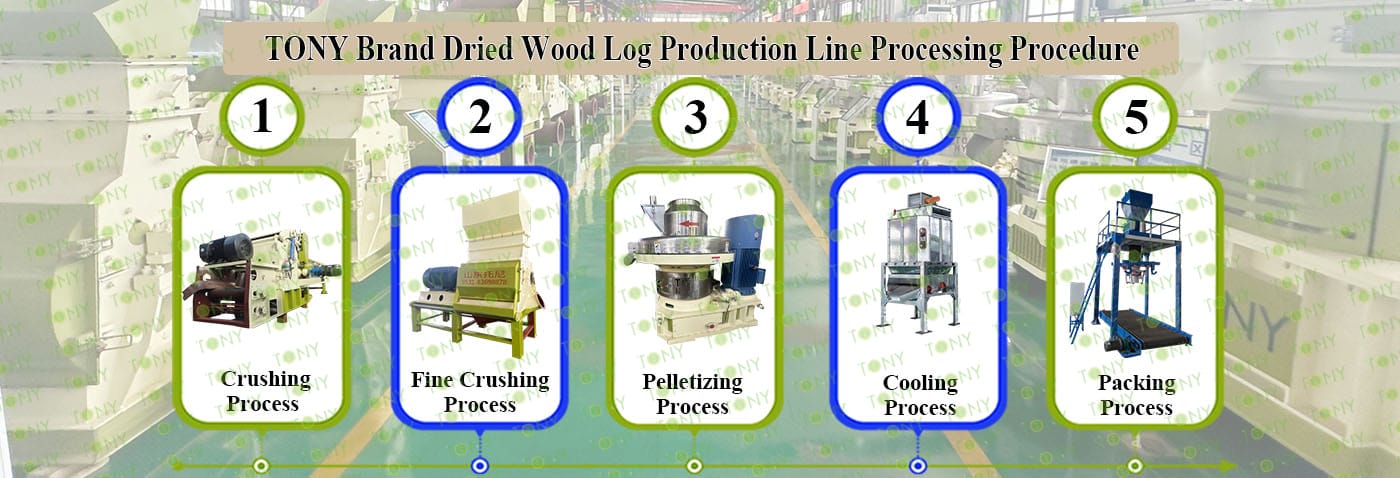

5. Process: Crushing Process - Fine Crushing Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1400-700-250KW, Effective Hammer Mill-TFD85*250-250KW, TONY Pellet Machine TYJ860-Ⅲ-250KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Double Screw Cycling Silo
1.To Grind Wood Logs φ ≤35cm Into25-55mm Wood Chips.    2.Model: TPC1400-700-250KW With 6 Blades*1set    3.Capacity:20-30Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD85*250-250KW*2sets 3.Capacity: 7-8Ton/Hour/Set	1.To Stroage Sawdust Before Pellet Machine; Adjust The Speed Of Sawdust Entering The Pellet Machine 2.Model: TLC-8*2sets 3.Capacity:7-8Ton/Hour/Set

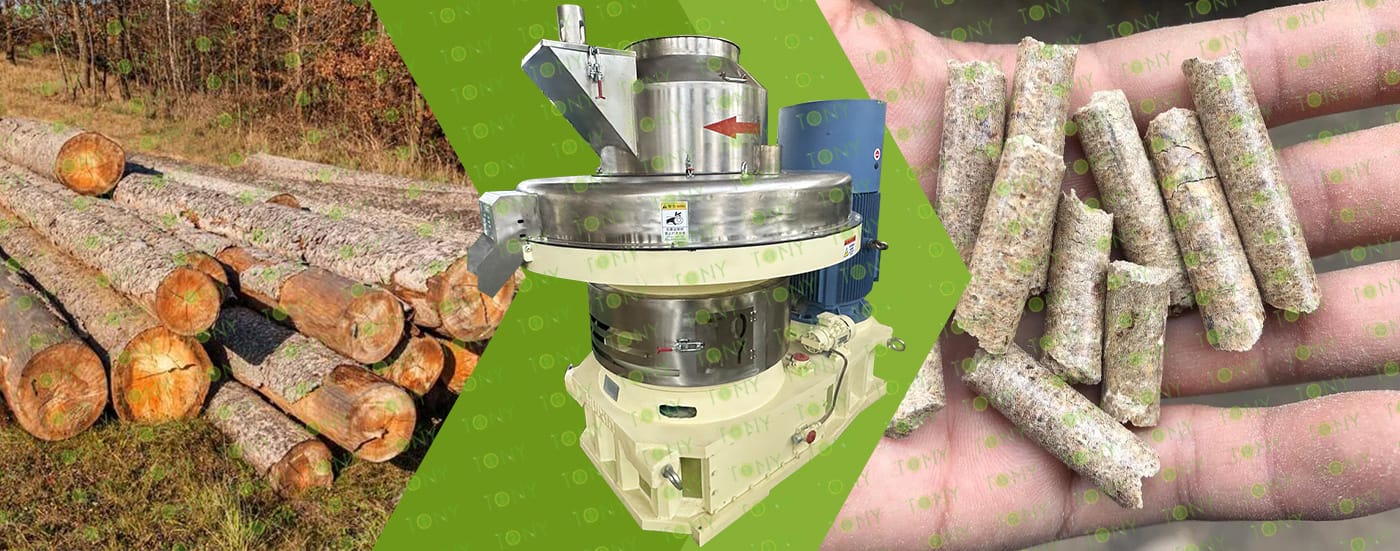

Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-250KW*4sets 3.Capacity:3.5-4.5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-4*2sets 3.Capacity:14-16Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags 2.Model: TBD*2sets 3.Capacity: 14-16Ton/Hour

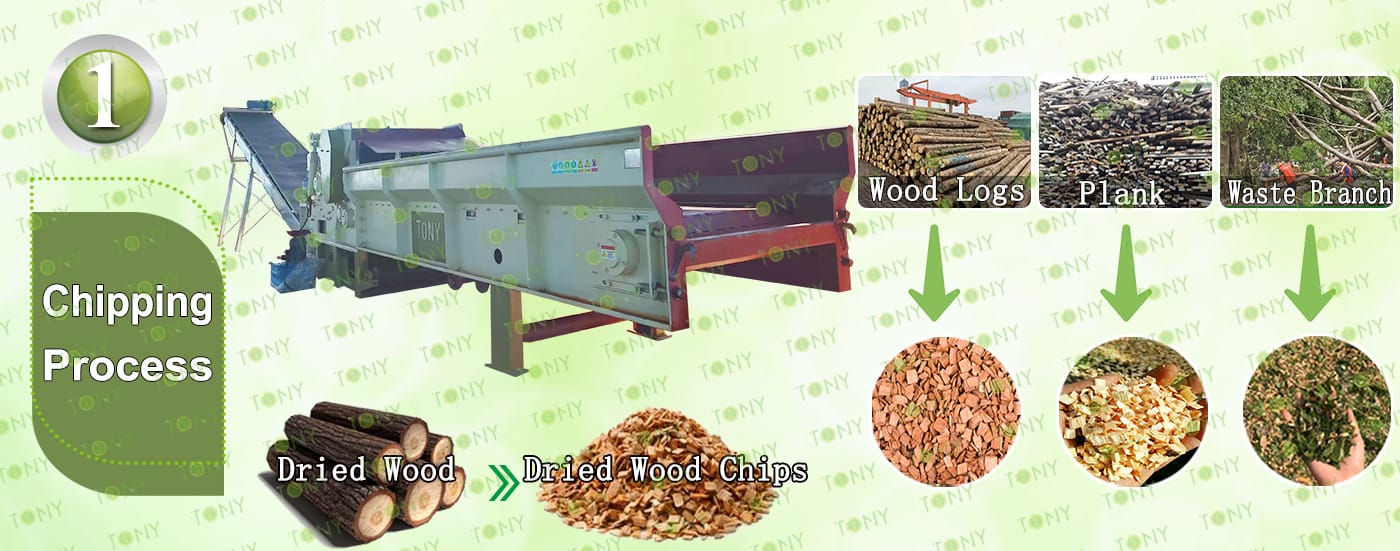

1.Wood Chipping Process:

A.This process is mainly used to grind the wood logs whose diamater is under 35cm into wood chips with size 25-55mm. The finish wood chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY brand TPC1400-700 model with 6 flying blades type

C.Capacity:20-30Ton/Hour.

Main Parts:

(1)TONY's  Comprehensive  Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:14-16Ton/Hour.

C.TONY brand effective hammer mill TFD85*250-250KW*2sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:14-16Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-250KW*4sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.2 sets of TONY galvanized cooler separator with capacity 14-16ton/hour

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.2 Sets of TONY Ton Packing Machine

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

At a time when environmental protection is gaining popularity and energy structure transformation is accelerating, the dry wood biomass pellet project, with its unique advantages, has become a highly promising entrepreneurial option. This project focuses on converting dry wood into efficient and clean biomass pellet fuel, aligning with the trend of sustainable development, offering both economic and environmental benefits, and opening the door to green wealth for entrepreneurs.

Dry wood biomass pellet processing involves crushing, drying, and compressing various types of dry wood, such as discarded furniture, branches, and sawdust, into regular pellets using specialized equipment. These pellets, as high-quality biomass fuel, are widely used in heating, power generation, industrial boilers, and other fields, effectively replacing traditional coal, reducing pollution emissions, and contributing to ecological and environmental protection.

1.Application Adaptability Advantages

(1)Wide Application Range:It can be used not only in home fireplaces and heating stoves, but also in large-scale energy-consuming equipment such as industrial boilers and power plants. In agriculture, it can be used as a heating fuel for greenhouses and in the livestock industry for drying feed, demonstrating its strong adaptability.

(2)Good Equipment Compatibility:Most biomass combustion equipment on the market is designed based on the characteristics of dry wood pellets, allowing for direct use without major equipment modifications, lowering the user barrier.

2.Resource Utilization Advantages

(1)Waste-to-Treasure:The raw materials primarily consist of wood processing waste, branches, bark, and other waste. These resources, which would otherwise be discarded, are converted into highly efficient fuel, achieving resource recycling and reducing landfill volume.

(2)High Renewability:Wood is a renewable resource. Through appropriate forestry planning and planting, it can be continuously sourced. Compared to non-renewable fossil fuels, it offers long-term supply stability.
