Project Brief Introduction:

1.Product:Dried Wood Log Pellet Line

2.Capacity:3.5-4T/Hour

3.TONY Brand3.5-4Ton /Hour Dried Wood Log Pellet Line Project Process

4.Main Machine: Wood Chipper,Hammer Mill,TONY Pellet MachineTYJ860-III-250KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 470 kw

6.Need Area: About 448 ㎡  L: 28M  W:16 M  H:6.517 M

Project Layout For Customer:

1. The working principle of dried wood log biomass pellet processing equipment

The working principle of dried wood log biomass pellet processing equipment

Dry wood biomass pellet processing equipment operates by converting dry wood waste (such as sawdust, shavings, and wood chips) into high-density, regularly shaped biomass pellet fuel through a series of physical processes. This process relies on mechanical extrusion and the natural bonding of lignin, eliminating the need for additional adhesives. The dry wood biomass pellet processing process can be summarized as follows: raw material pretreatment → extrusion molding → post-processing. Because the raw material is "dry wood" (with a moisture content typically controlled at 10%-15%), deep drying is not required. Instead, the process focuses on densifying the material through mechanical force and utilizing the heat generated during processing to activate the bonding properties of lignin, ultimately forming stable pellets.

2. Characteristics of dried wood log biomass pellet processing equipment

Strong adaptability of raw materials, achieving efficient resource utilization

(1) Wide range of raw material sources: It can process a variety of dry wood waste, including sawdust, shavings, scraps after wood processing, and forestry waste (such as branches, bark, etc.), and can be processed without complex pretreatment, effectively realizing "turning waste into treasure".

(2) Clear requirements for raw material moisture content: Based on the characteristics of "dry wood", the equipment is more suitable for processing raw materials with low moisture content (usually 10%-15%), without the need for additional high-intensity drying (or only simple humidity adjustment), reducing energy consumption and processing costs.

The core equipment (pellet mill) has stable performance and high molding efficiency

(3) Relying on natural adhesives (lignin): The high temperature (100-120℃) generated by extrusion softens and melts the lignin in the wood, without the need to add artificial adhesives, which not only reduces costs but also ensures the environmental friendliness of pellet fuel (no harmful residues after combustion).

(4) High particle density and uniform quality: After high-intensity extrusion between the ring die and the roller, the particle density after forming can reach 1.1-1.3g/cm³. It has high hardness, is not easy to break, and has a regular shape (diameter 6-8mm, uniform length), which is convenient for storage and transportation.

(5) Strong continuous production capacity: Modern pellet mills mostly use automated feeding and speed control systems, which can adjust the speed and pressure according to the characteristics of the raw materials to achieve continuous and stable production. The output of a single device can reach hundreds of kilograms to several tons per hour, meeting the needs of different scales (from home workshops to industrial production).

3. Application scenarios of dried wood log biomass pellet processing equipment

Wood processing plants (such as furniture, wood flooring, and plywood factories) generate large quantities of dry sawdust, shavings, offcuts, and scraps during production. These waste materials have a low moisture content (typically ≤15% after natural air drying) and can be directly processed into pellet fuel through dry wood pellet processing without additional drying, thus achieving a "waste-to-energy" internal cycle:

(1)Self-use energy supply: The pellets produced can be directly used in the factory's heating system (such as boilers and kilns), replacing traditional coal and natural gas, reducing energy costs (biomass pellets are typically 30%-50% cheaper than natural gas) and lowering carbon emissions.

(2)Reduced waste disposal costs: Wood waste can be recycled through processing equipment, eliminating the need for waste accumulation and waste incineration (which can be polluting). Excess pellets can even be sold to generate additional revenue.

TONY Brand 3.5-4 Ton/Hour Dried Wood Log Pellet Manufacturing Plant can take dried wood, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with dried wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 3.5-4 Ton/Hour

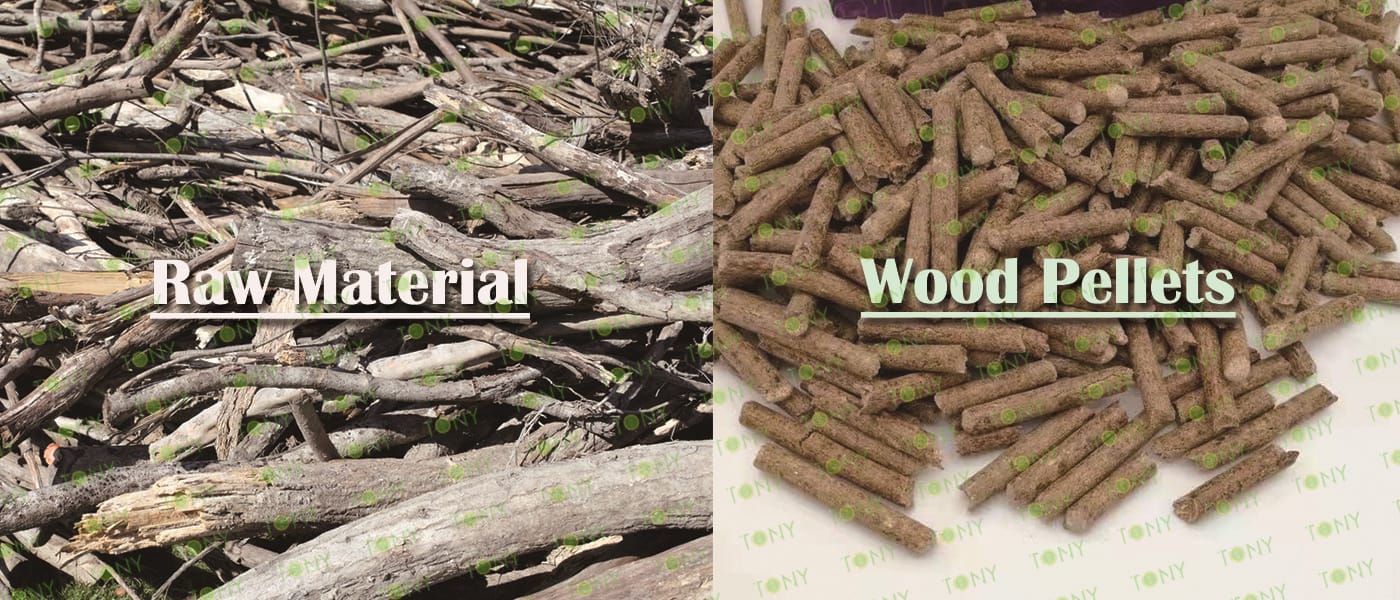

2. Raw materials: Dried wood logs , branches, small - diameter logs, twigs, etc.

3. Moisture: Dried type, about 10-15%.

4. Application: All kinds of wood - based biomass materials suitable for pellet production.

Suitable customers: Green energy companies, forestry enterprises, and private wood - processing workshops that have advantages in wood raw materials.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Dried Wood Log Pellet Production Line

2. Raw Material: All kinds of Dried wood log

3. Moisture Content of Raw Material: 10-15%

4. Capacity: 3.5-4 tons per hour

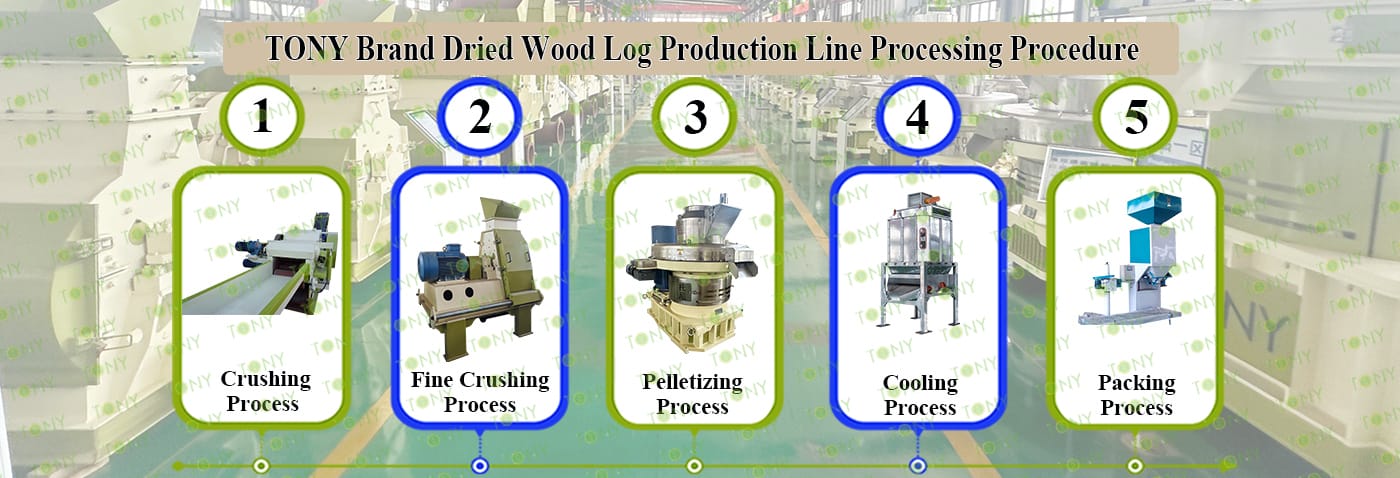

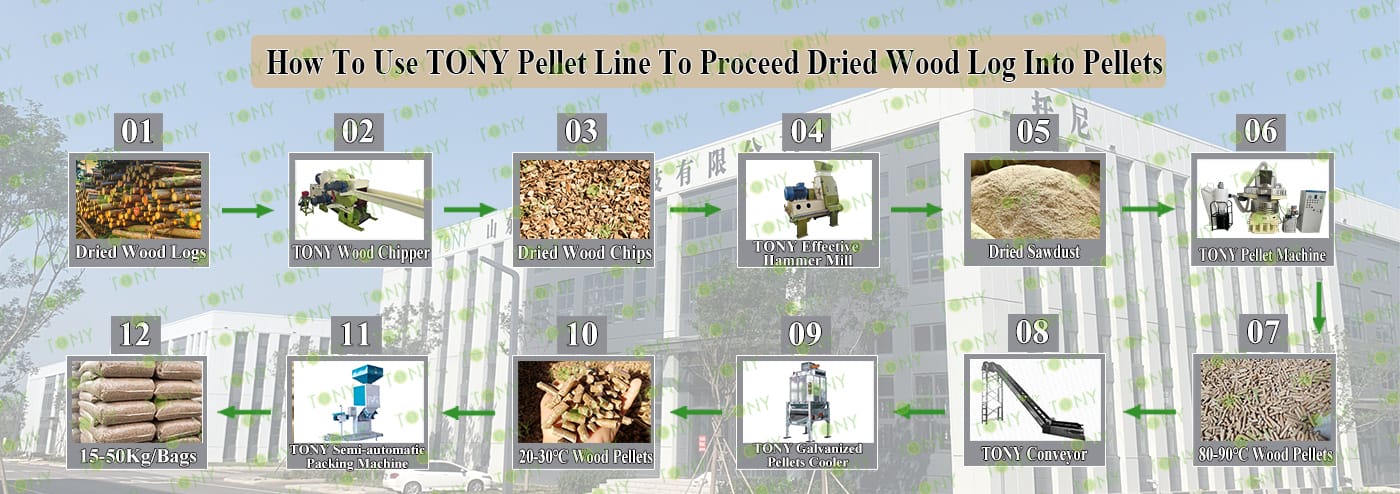

5. Process: Crushing Process - Fine Crushing Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Wood Chipper TPQ216 - 55KW, Effective Hammer Mill-TFD75*100-110kw, TONY Pellet Machine TYJ860 - Ⅲ - 250kw, Pellet Cooler, Small Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Wood Chipper	Effective Hammer Mill	Vertical Ring Die Sawdust Pellet Machine
1.To Grind Wood Logs φ ≤20cm Into25-55mm Wood Chips.   2.Model: TPQ216-55KW With 2 Baldes*1set  3.Capacity: 4-7Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD75*100-110KW*1set 3.Capacity: 3-3.5 Ton/Hour/Set	1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-250KW*1 Set 3.Capacity:3.5-4Ton/Hour/Set 4.New 304SS Type
Galvanized Pellets Cooler	Semi-automatic Packing Machine	Belt Conveyor
1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-2.5*1set 3.Capacity:3.5-4Ton/Hour	1.To Pack Pellets Into 15-50KG/Bags. 2.Model: TBF-50*1set 3.Capacity: 3.5-4Ton/Hour	1.To Transport Wood Chips,Sawdust,Pellets. 2.Width: 50cm*5sets 3.Capacity:Designed With The Whole Line

1.Wood Chipping Process：

A.This process is mainly used to grind the wood logs whose diamater is under 20cm into wood chips with size 25-55mm. The finish wood chips size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY Brand TPQ216 model with 2 flying blades type

C.Capacity:4-7Ton/Hour.

Main Parts:

(1)TONY's Wood Chipper.

(2). Feed And Discharge Belt Frequency Control To Prevent Card Material

(3). Hydraulic System Control Can Be Used For Thicker Materials

(4). Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:3.5-4Ton/Hour.

C.TONY use effective hammer mill TFD75*100*110KW*1set

Main Parts:

(1). TONY Effectivel Hammer Mill.

(2). Galvanized Dust Collector.

(3). Sawdust Transportation Fan Blower.

(4). Cyclone With Airlock.

(5). Electrical Cabinets.

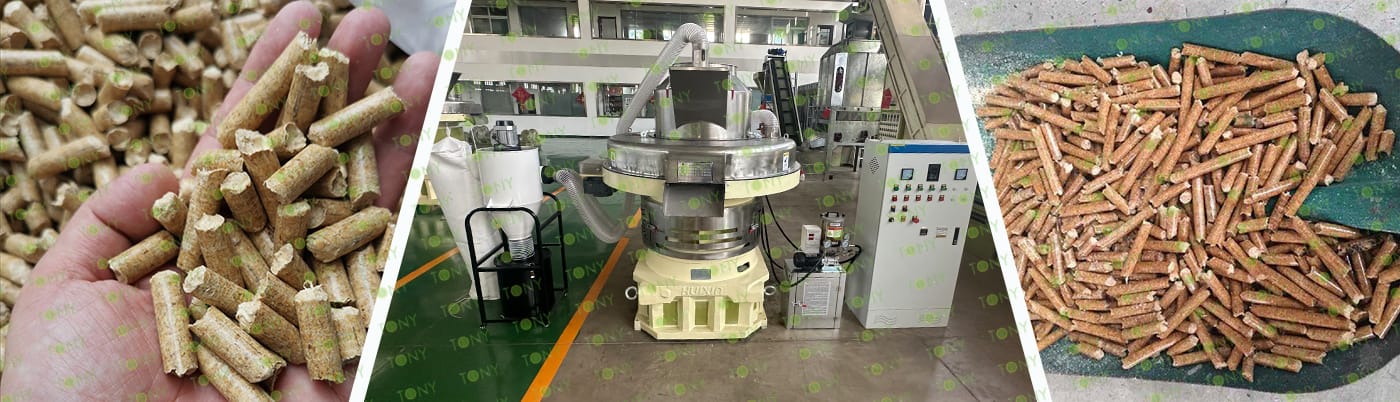

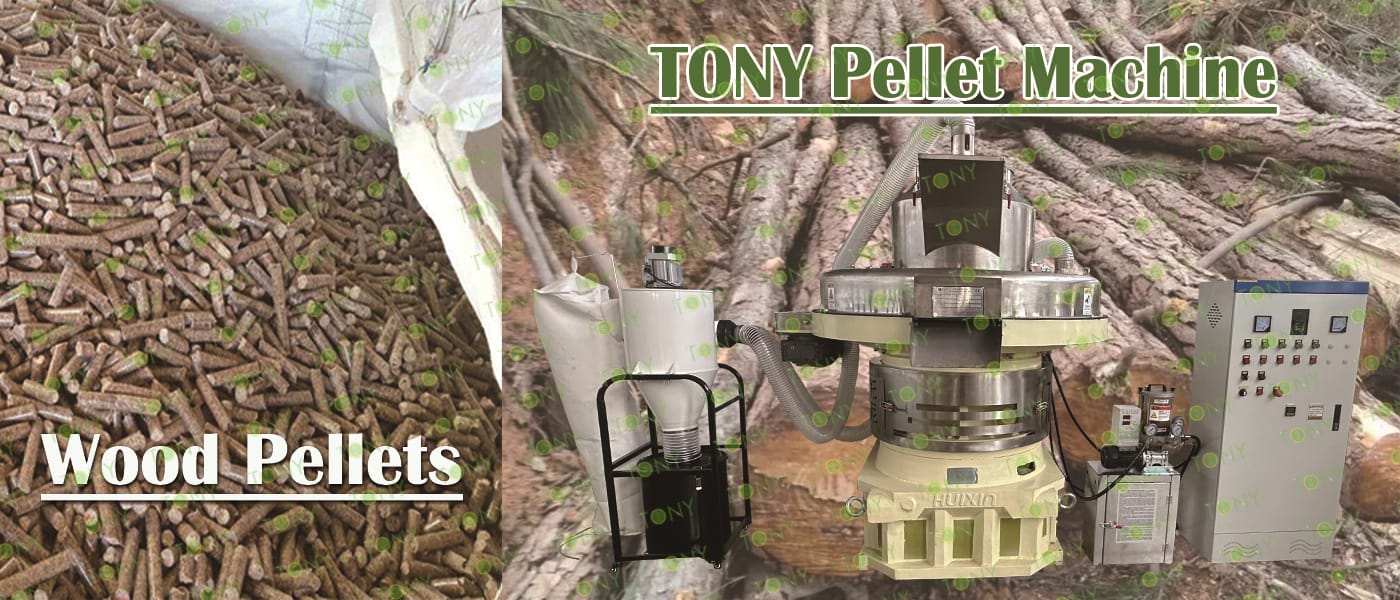

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:3.5-4Ton/Hour.

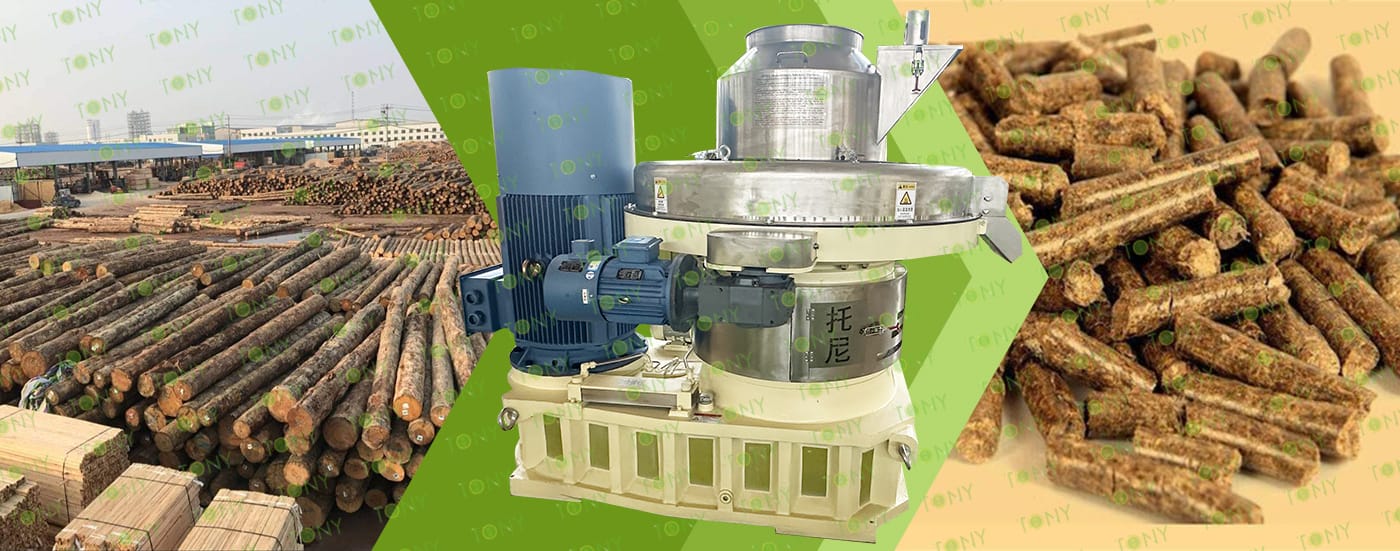

C.TONY Brand Vertical Ring Die Pellet Machine TYJ860-III-250KW*1Sets

Main Parts:

(1). TONY's New Vertical Ring Die Pellet Machine.

(2). Cyclone And Bags Dust Collectors.

(3). Automatic Lubrication System.

(4). Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.1Set Of TONY Galvanized Cooler Seperator With Capacity 3.5-4Ton/Hour

Main Parts:

(1).TONY's Galvanized Cooler Seperator With Vibrating Screen.

(2).Cyclone And Bags Dust Collectors.

(3) .Fan Blower.

(4).Connect Pipes.

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.1 Set of TONY Semi-Automatic Packing Machine.

Main Parts:

(1).TONY's  Semi-Automatic Packing Machine.

(2).Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3).Bags Transportation Conveyors.

(4).Feeding Inlet Silo.

(5).Electrical Cabinets.

Biomass pellet venture capital projects have broad prospects. The following is a detailed introduction to the project:

1. Project Advantages

Strong Market Demand: Biomass pellet fuel, due to its low carbon footprint, environmental friendliness, and high calorific value, enjoys significant demand both domestically and internationally. Domestically, the promotion of industrial boiler renovations, biomass heating, and power plant construction has significantly expanded the market. Stringent environmental regulations in Europe and other regions have also led to a surge in demand for biomass fuel, creating new export opportunities for domestic companies.

Various Raw Material Sources: Biomass pellet production can be sourced from a wide variety of agricultural and forestry waste, such as straw, rice husks, peanut shells, sawdust, and wood scraps. These resources are often abundant in rural areas and surrounding areas, and in some areas are even available free of charge, effectively reducing raw material procurement costs.

2. Cost-Benefit Analysis

Cost Investment: Equipment costs vary significantly depending on production volume and configuration. Pellet machines typically cost tens to hundreds of thousands of yuan. Large-scale biomass pellet production lines require significant equipment investment. Furthermore, there are costs associated with raw material procurement, labor, site rental, and operational maintenance. Profit margin: Different types of biomass pellet fuels have different prices, and the return on investment is relatively considerable.

1.High combustion efficiency and a wide range of applications.

Full combustion: The pellets have a dense structure, ensuring uniform air-fuel contact during combustion, a stable flame, and a thermal efficiency exceeding 85% (higher than the 30%-40% of loose firewood), reducing energy waste.

High adaptability: They can directly replace fuels such as coal and natural gas for use in industrial boilers (in the textile, food, and chemical industries), residential heating (fireplaces, biomass heating stoves), and biomass power plants, without requiring major modifications to existing equipment (only burner parameters need to be adjusted).

2.Stable raw material source and manageable costs

Sufficient raw material: They primarily utilize wood processing waste (such as sawdust and shavings from furniture and plywood factories), eliminating the need to consume high-quality wood, effectively turning waste into valuable resources. Raw material procurement costs are low (typically 100-200 yuan/ton, and in some areas, they are even available free of charge).

Low price volatility: Compared to fuels such as natural gas and coal, which are more susceptible to international energy markets, wood pellet prices are more stable. Their predominantly regional supply limits transportation radius, ensuring manageable long-term costs.

3.Other Features

Easy to Ignite: Low moisture content (typically <10%) allows for fast ignition, and combustion produces no black smoke or odor, providing a superior user experience compared to loose coal and firewood.

Policy Support: As a clean energy source, wood pellets are eligible for national and local subsidies (such as biomass fuel subsidies and energy conservation and emission reduction incentives), further enhancing their economic viability.

In summary, wood pellets, with their environmentally friendly, efficient, convenient, and cost-effective characteristics, have become a valuable alternative to traditional fossil fuels, offering broad application prospects in industrial, residential, and power generation applications.
