Project Brief Introduction:

1.Product:Dried Sawdust Pellet Line

2.Capacity: 3-4T/Hour

3.TONY Brand 3-4Ton /Hour Dried Sawdust Pellet Line Project Process

4.Main Machine:TONY Pellet Machine TYJ551-Ⅲ-110kw,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 255 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

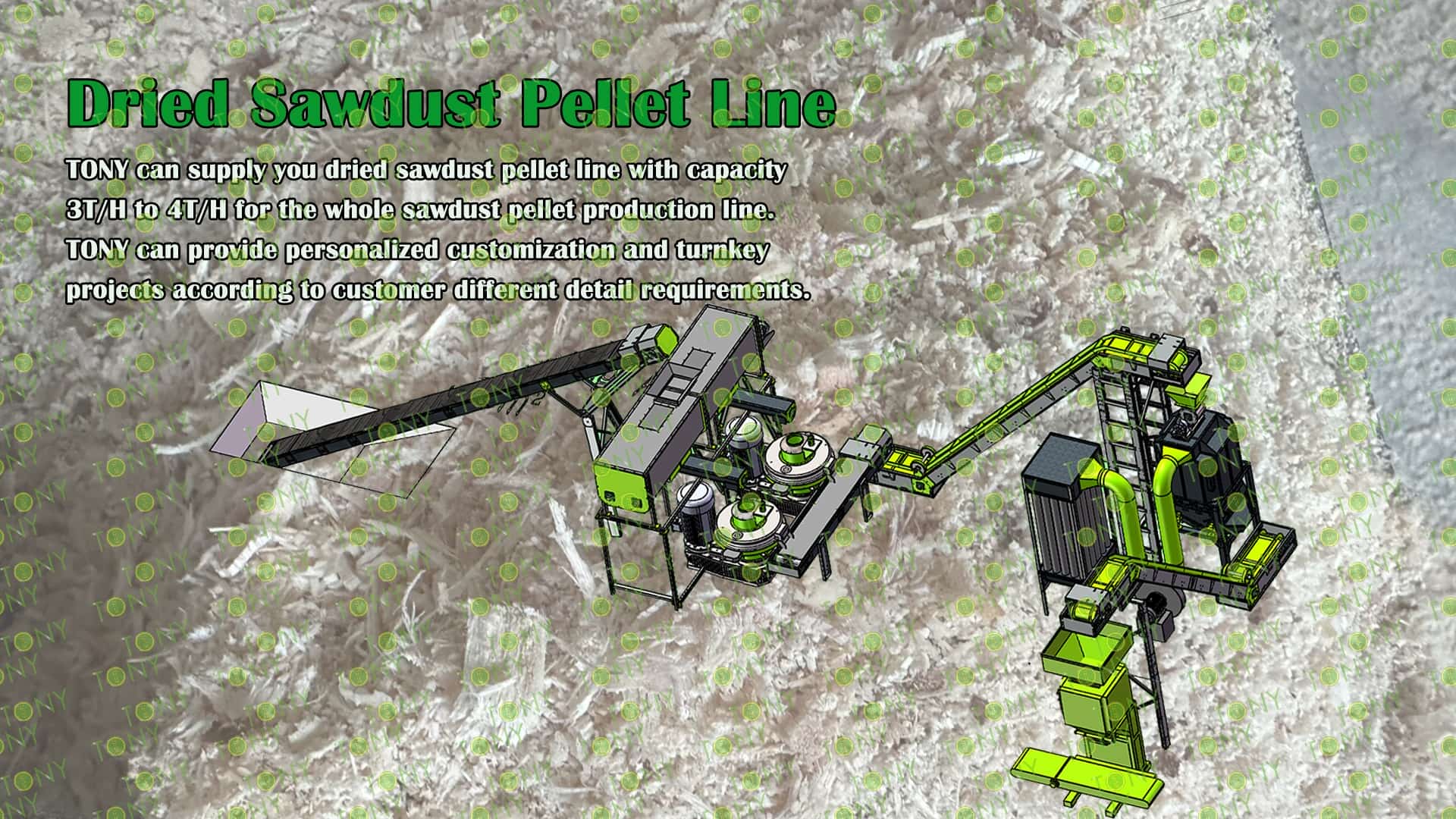

Project Layout For Customer:

三维图

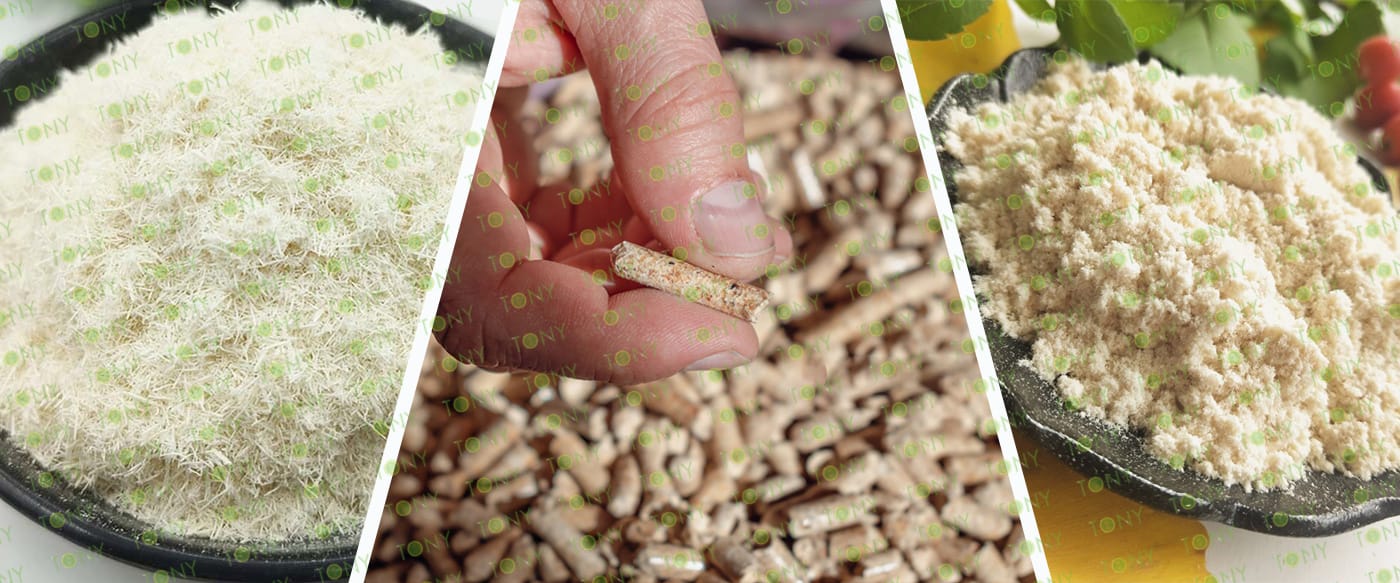

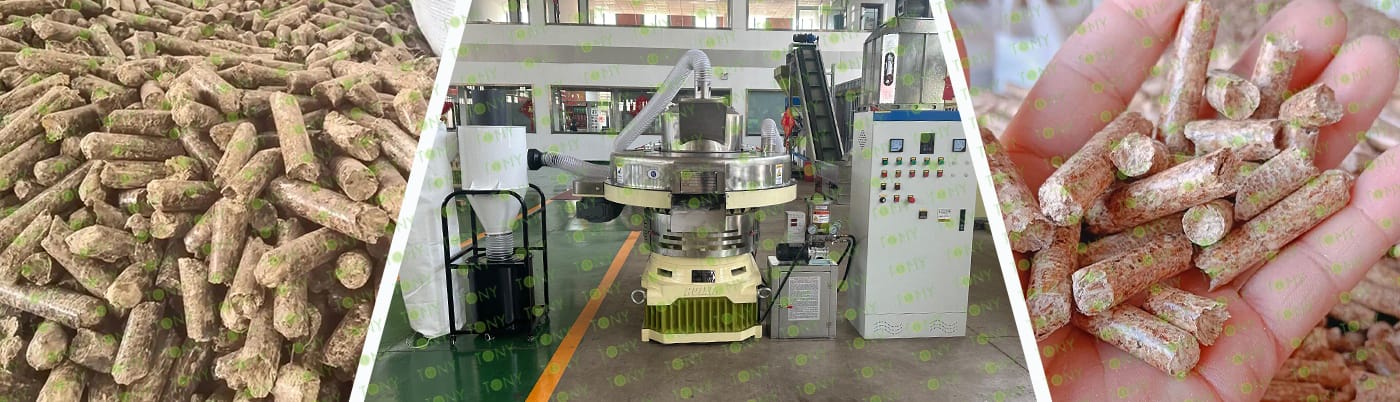

原材料图+颗粒机图片

1. The working principle of dried sawdust biomass pellet processing equipment

Sawdust biomass pellet equipment works by compressing sawdust into pellets through mechanical pressure.

Specifically, this equipment typically consists of a rotating roller and a ring die. Sawdust and other raw materials are pre-processed in the equipment before entering the pelletizing chamber. The rotating roller squeezes the raw materials through the die holes in the ring die, forming pelletized biomass fuel. This process does not require additional adhesives; instead, mechanical pressure generates frictional heat between the raw materials, which solidifies and forms the pellets.

2. Characteristics of dried sawdust biomass pellet processing equipment

(1) High efficiency and energy saving: For example, pellet machines have low energy consumption, high output, compact process, small footprint, good dust removal effect, low noise, and a good production environment. A production line only requires 2-3 workers and can be operated automatically, reducing labor costs.

(2) Low maintenance cost and easy operation: Sawdust pellet machines have low maintenance costs and do not require grease injection. Non-professionals do not need much time to complete maintenance. The wearing parts are practical and durable. The roller bearings are made of international brands and are not easy to damage. They are easy to operate and do not require professional operation.

(3) Raw material processing and environmental protection: The moisture content of the raw materials before pellet processing needs to be controlled at about 10-15%. Therefore, in actual production, drying equipment may be required. Sawdust pellets contain few harmful substances and the content of harmful gas components during combustion is extremely low. The ash after combustion can be used as potash fertilizer, which meets environmental protection requirements.

3. Application scenarios of dried sawdust biomass pellet processing equipment

(1) Building materials industry: Sawdust pellets can be used as raw materials for building materials and used to produce various boards and composite materials.

(2) Furniture factories: During the furniture manufacturing process, scraps and offal can be converted into sawdust pellets through wet sawdust pellet processing equipment. These pellets can be reused or used as fuel.

(3) Forest farms and board mills: Wood waste generated in these places can be processed into sawdust pellets for the production of biomass energy.

(4) Animal husbandry and feed industry: Sawdust pellets can also be used as raw materials for feed pellets. After proper drying and processing, they can meet the needs of animal feed.

2.图片

TONY Brand 3-4 Ton/Hour Dried Sawdust Pellet Manufacturing Plant can take dried sawdust,wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, dried sawdust is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction.

1. Capacity: 3-4 Ton/Hour

2. Raw materials: Dried sawdust

3. Moisture: Dry type, about 10%-15%.

4. Application: All kinds of  wood sawdust or more waste wood raw materials

Suitable customers:Wood processing plants, furniture manufacturing plants, construction sites, landscaping companies and other places with advantageous sawdust resources

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

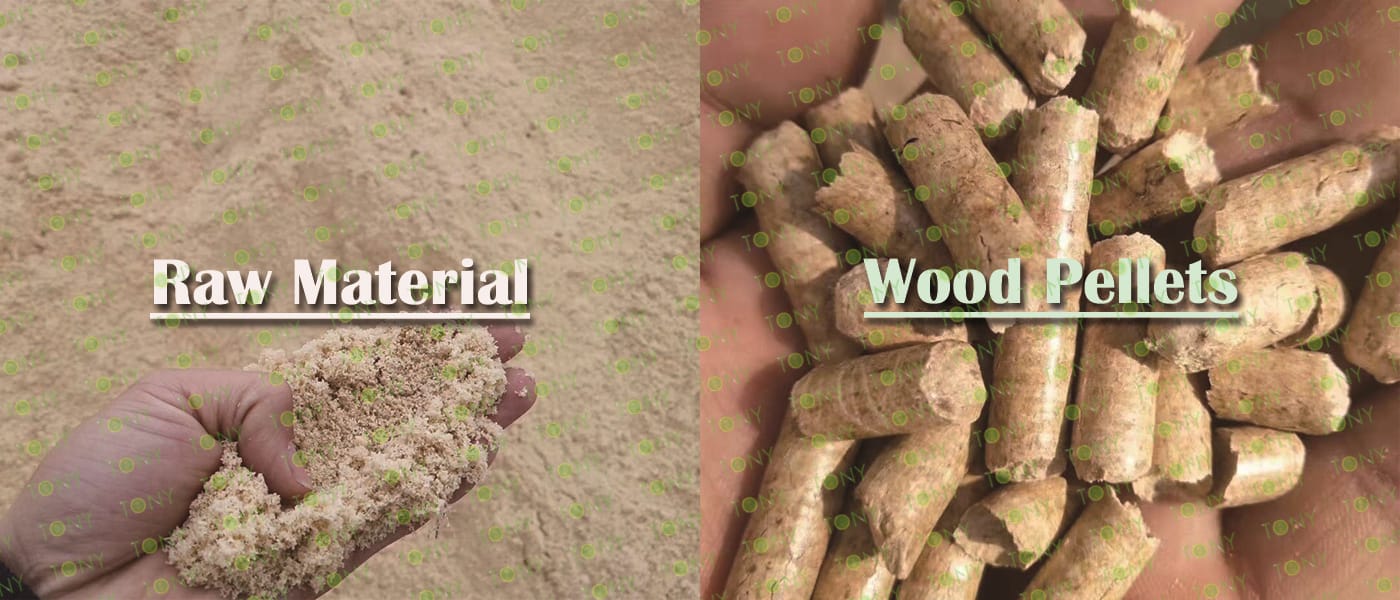

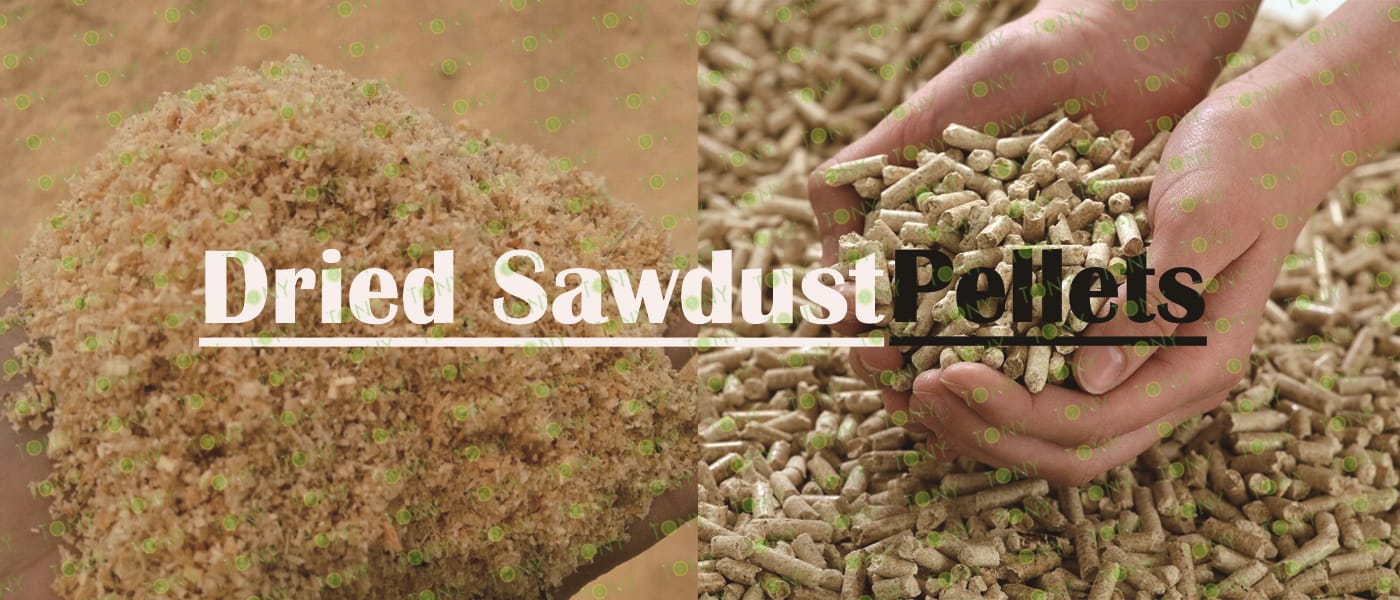

原材料--成品图

1. Project Name: Dried Sawdust Pellet Production Line

2. Raw Material: All kinds of dried sawdust

3. Moisture Content of Raw Material: 10%-15%

4. Capacity: 3-4 tons per hour

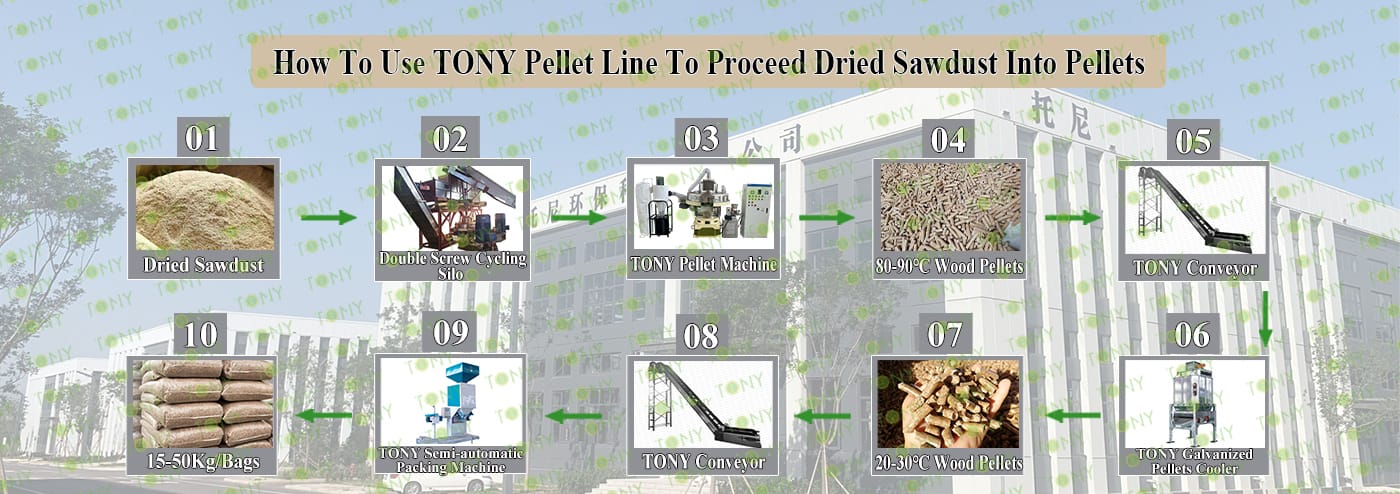

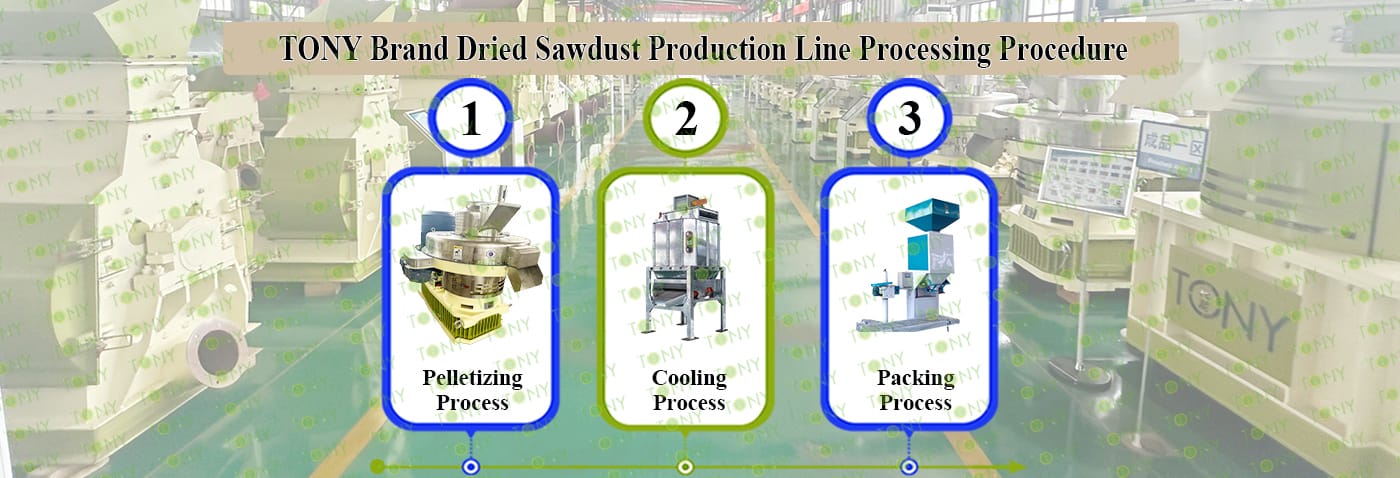

5. Process: Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:  TONY Pellet Machine TYJ551-Ⅲ-110kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片

流程图1

流程图.

5.图片

原材料+颗粒图

颗粒+机器图

三维图

三维图

5.1图片

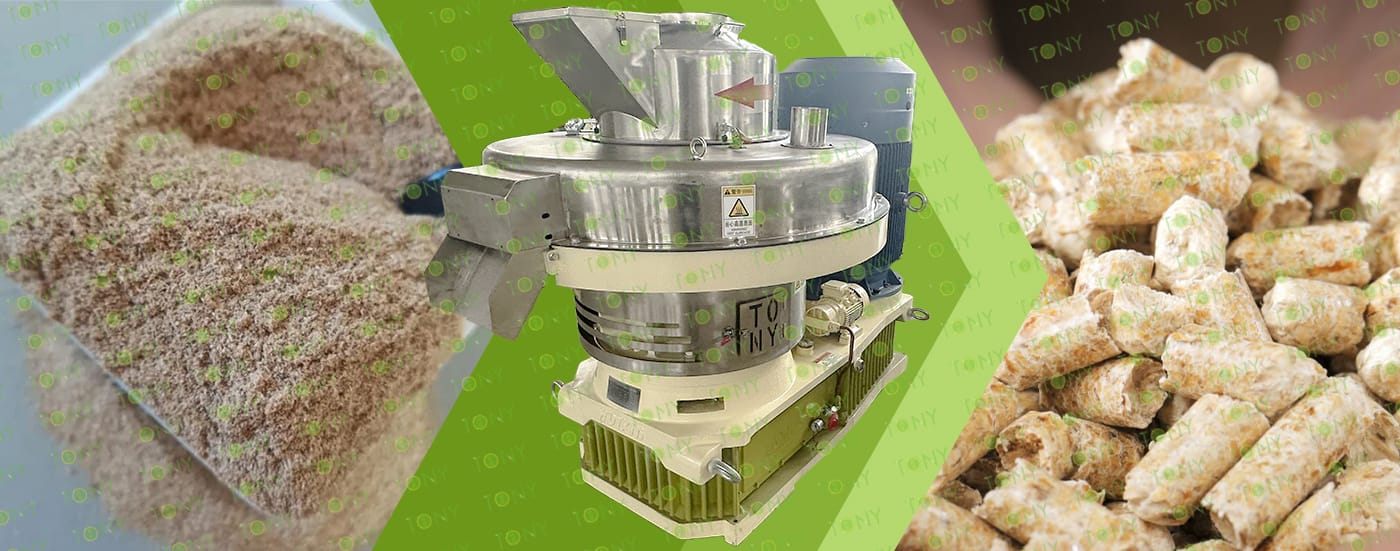

颗粒机四件套带 原材料，颗粒图

1.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:3-4 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ551-III-110KW*2 sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

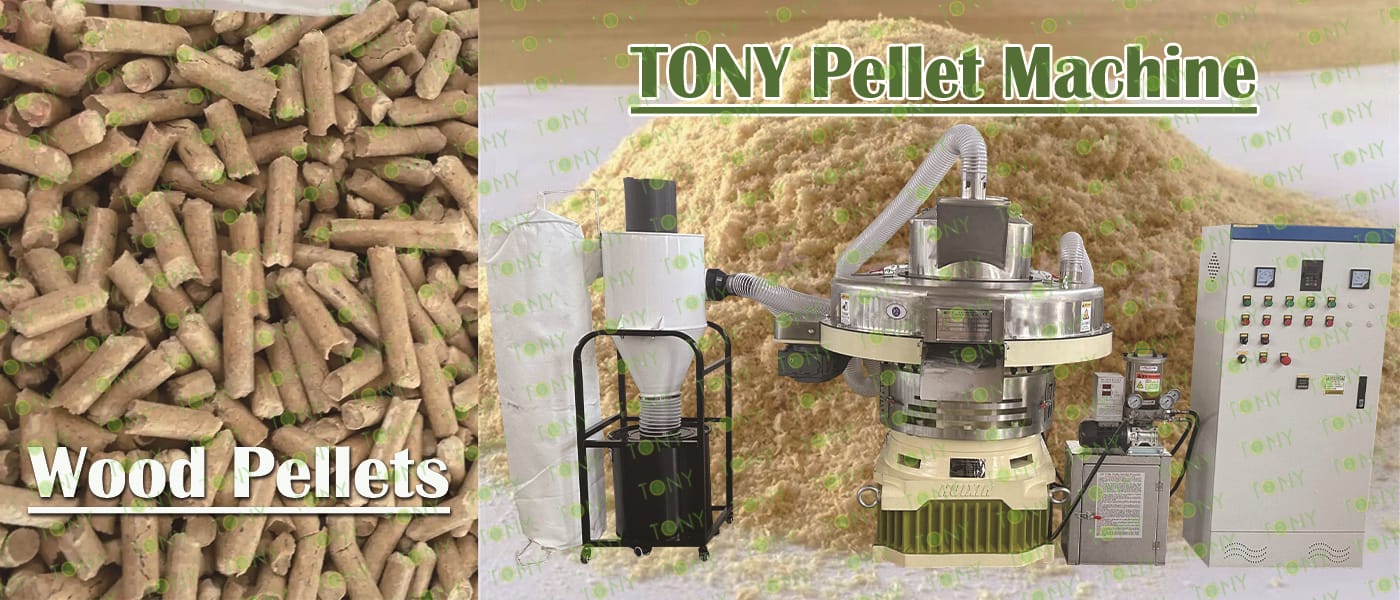

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.2图片

镀锌冷却仓加颗粒图

2.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:3-4 Ton/Hour.

C.TONY brand galvanized pellets cooler *1set

Main Parts:

(1)TONY's Galvanized Pellets Cooler With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3) Fan Blower.

(4)Connect Pipes.

5.3图片

包装机

3.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:3-4 Ton/Hour.

C.TONY semi-automatic packing machine*1 set

Main Parts:

(1)TONY's  Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

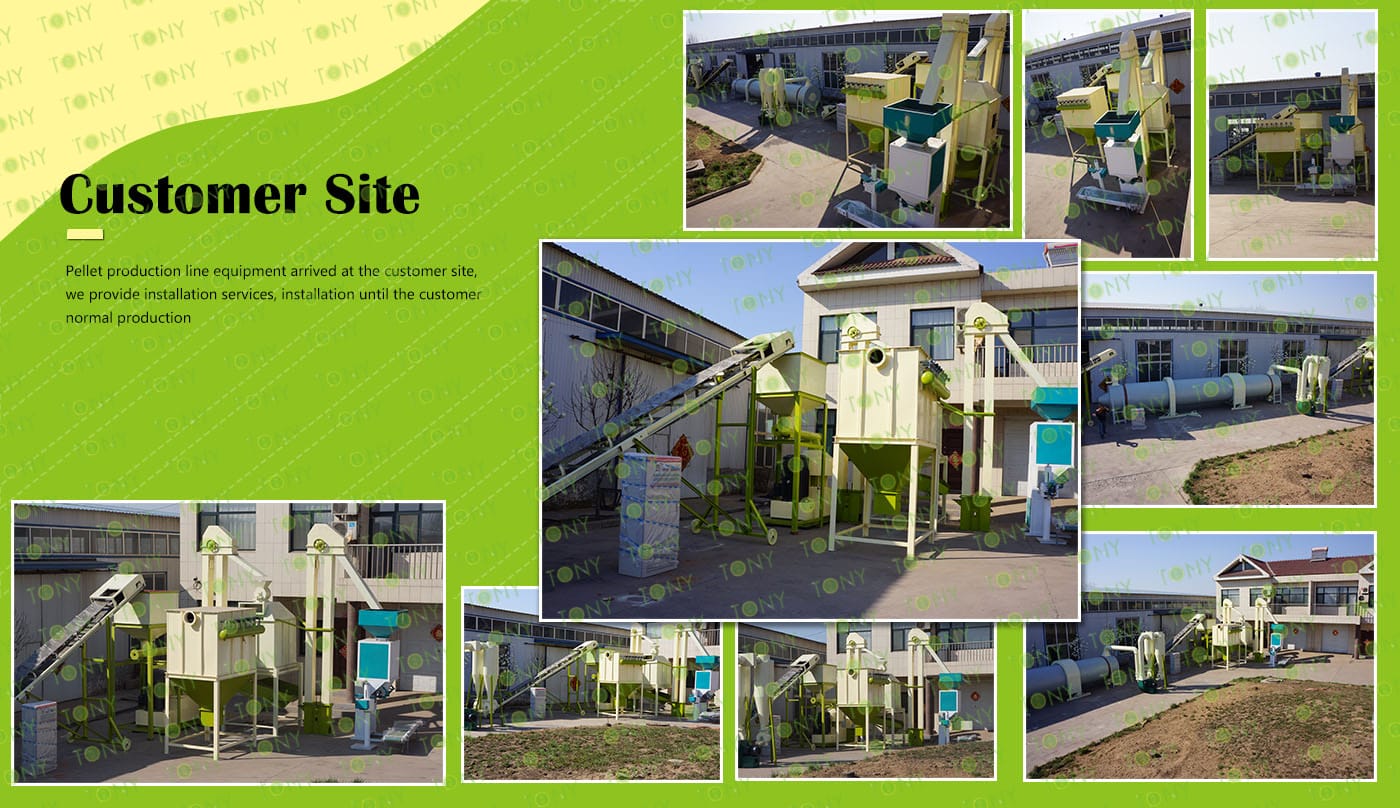

客户生产线案例图

7.图片

图 干锯末+颗粒 颗粒机

The sawdust biomass pellet project is an environmentally friendly investment with broad prospects.

1. Project Background:

Against the backdrop of the deepening implementation of the "Dual Carbon" strategy and the rising costs of traditional energy, the sawdust biomass pellet project has emerged. This project converts sawdust and other waste generated by wood processing plants and furniture factories into high-density biomass pellet fuel through high-pressure extrusion, achieving resource recycling and reuse, meeting environmental requirements, and generating significant economic benefits.

2. Project Investment:

The project investment scale varies depending on the production scale.

3. Equipment Selection:

Selecting efficient, intelligent, and stable sawdust pellet equipment is crucial to the project's success. High-quality equipment should feature core technologies such as high-precision roller die design, strong raw material adaptability, intelligent temperature and pressure control systems, and automatic lubrication and fault detection. 4. Market Demand and Application Scenarios

Stricter environmental protection policies are driving the phase-out of traditional coal-fired boilers. Biomass pellets, due to their cleanliness, high calorific value (comparable to coal), and stable combustion, have become an alternative energy source for industrial boilers, heating equipment, livestock farms, and food processing. Demand has surged, particularly under the "coal-to-biomass" policy.

8.图片

锯末图 颗粒图

Sawdust is originally loose and bulky (1 cubic meter of loose sawdust weighs only about 150-200 kilograms). Processing it into pellets significantly increases its density, solving the pain points of traditional biomass fuels, which are difficult to store and transport:

1. High density and concentrated energy: Pellets can reach a density of 1.1-1.3 tons per cubic meter. The energy of 1 cubic meter of pellets is equivalent to 0.7-0.8 tons of standard coal. Their volume is only 1/5-1/6 of that of loose sawdust. Storage does not require large warehouses; ordinary workshops or simple sheds can be used, saving over 50% of storage space.

2. Low transportation costs and adaptability to large-scale use: The high-density feature significantly improves transportation efficiency. Based on road transportation calculations, a 10-ton truck can transport 10 tons of pellets (approximately 8 cubic meters). If loose sawdust with the same energy is transported, 40-50 cubic meters are required, reducing transportation costs by 60%-70%. It is particularly suitable for "high-volume" scenarios such as industrial enterprises and power plants.

9.图片

绿色地球+原材料+颗粒图
