Project Brief Introduction:

1.Product:Wet Coconut Shell Pellet Line

2.Capacity:6-7 Ton /Hour

3.TONY Brand 6-7 Ton /Hour Wet Coconut Shell Pellet Line Project Process

4.Main Machine: Hammer Mill,Rotary Drum Dryer,TONY Pellet Machine TYJ551-Ⅲ-132KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 900 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

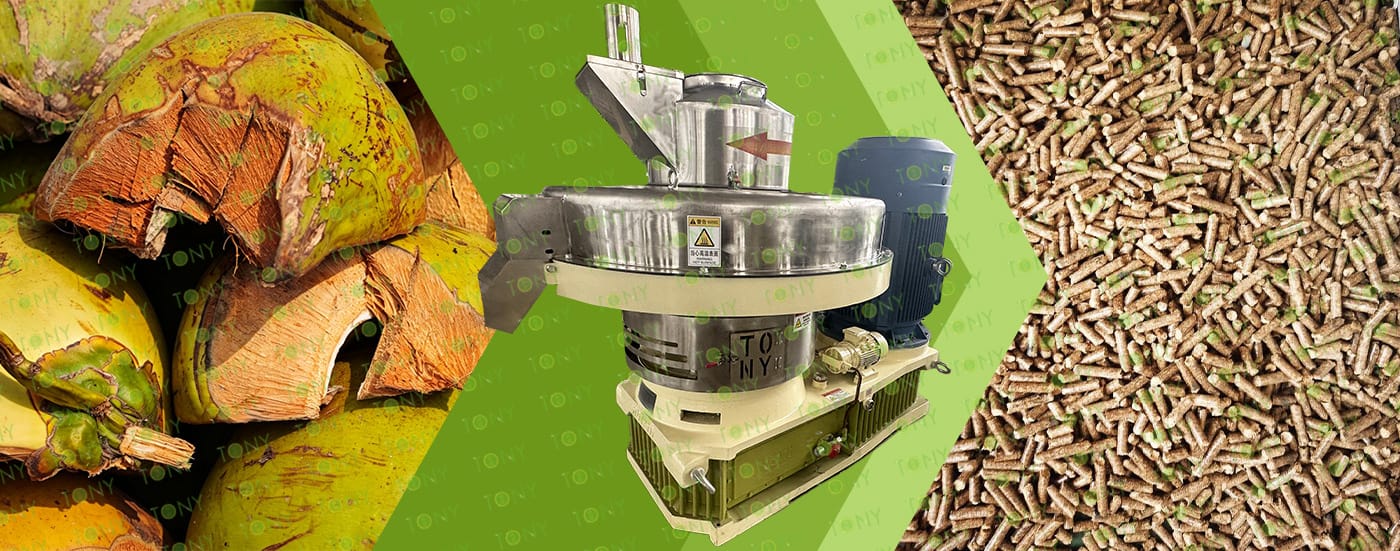

原材料图+颗粒机图片

1. The working principle of wet coconut shell biomass pellet processing equipment

The core components of a ring die pellet mill are the ring die and the pressure roller. The inner wall of the ring die has evenly distributed forming holes with a diameter of 6-10mm (the hole diameter can be adjusted according to requirements). The pressure roller is installed inside the ring die, fitting tightly against the inner wall. When the raw material enters the gap between the ring die and the pressure roller, the motor drives the ring die to rotate at high speed (100-150 r/min). The pressure roller rotates along with the raw material under the action of friction, generating a strong squeezing effect. During the squeezing process, the air between the wet coconut shell fibers is expelled, and at the same time, the lignin (which softens under humid heat) and moisture of the fibers form a "bonding medium," causing the fibers to bind tightly and be forcibly pressed into the forming holes of the ring die.

2. Characteristics of wet coconut shell biomass pellet processing equipment

(1) Integrated Production Line:

Drying, crushing, pelleting, and cooling (included in some models) are integrated into a single production line, reducing raw material transfer links and improving overall efficiency.

(2) Variable Frequency Speed Control:

The core motors mostly use variable frequency control, allowing speed adjustments based on raw material humidity and fiber content, avoiding energy consumption during idling and ensuring stable granule quality.

(3) Corrosion-Resistant Body:

Parts in contact with wet materials are mostly made of stainless steel to prevent rusting from prolonged contact with damp materials, reducing maintenance costs.

3. Application scenarios of wet coconut shell biomass pellet processing equipment

Biomass Energy Processing Clusters – Specialized Production and Distribution

In regions with mature biomass energy industry chains, equipment is primarily used for specialized production of pellet fuel, which is then distributed to downstream markets.

(1) Small and Medium-Sized Biomass Fuel Plants:

These plants centrally purchase wet coconut shells from surrounding production areas, process them into standardized pellets on a large scale using equipment, and then sell them to end customers such as industrial enterprises and heating companies.

(2) Agricultural Waste Integrated Treatment Parks:

 In some areas, to promote environmental protection and resource recycling, integrated treatment parks are being built, equipped with wet coconut shell processing equipment, and linked with other straw and sawdust processing equipment to form diversified biomass fuel production capabilities.

2.图片

TONY Brand 6-7 Ton/Hour Wet Coconut Shell Pellet Manufacturing Plant can take wet coconut shell into biomass pellets.Coconut shells have a high carbon content and high calorific value. When processed into pellets, they burn more completely, resulting in fewer pollutants. The raw material is widely available, representing waste recycling at a low cost. Processing coconut shells into biomass pellets is highly feasible and offers advantages in terms of environmental protection and resource reuse.

1. Capacity: 6-7 Ton/Hour

2. Raw materials: Wet Coconut Shell

3. Moisture: Wet type, about 40-55%.

4. Application: All kinds of biomass materials suitable for pellet production.

Suitable customers: Those working in coconut-producing areas, such as coconut growers and coconut processing companies (e.g., coconut juice factories and coconut meat processing plants); biomass energy entrepreneurs; investors in agriculture/environmental protection; and individuals who can reliably obtain sufficient coconut shell raw materials.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

原材料--成品图

1. Project Name: Wet Coconut Shell Pellet Production Line

2. Raw Material: All kinds of Wet Coconut Shell

3. Moisture Content of Raw Material: 40-55%

4. Capacity: 6-7 TPH

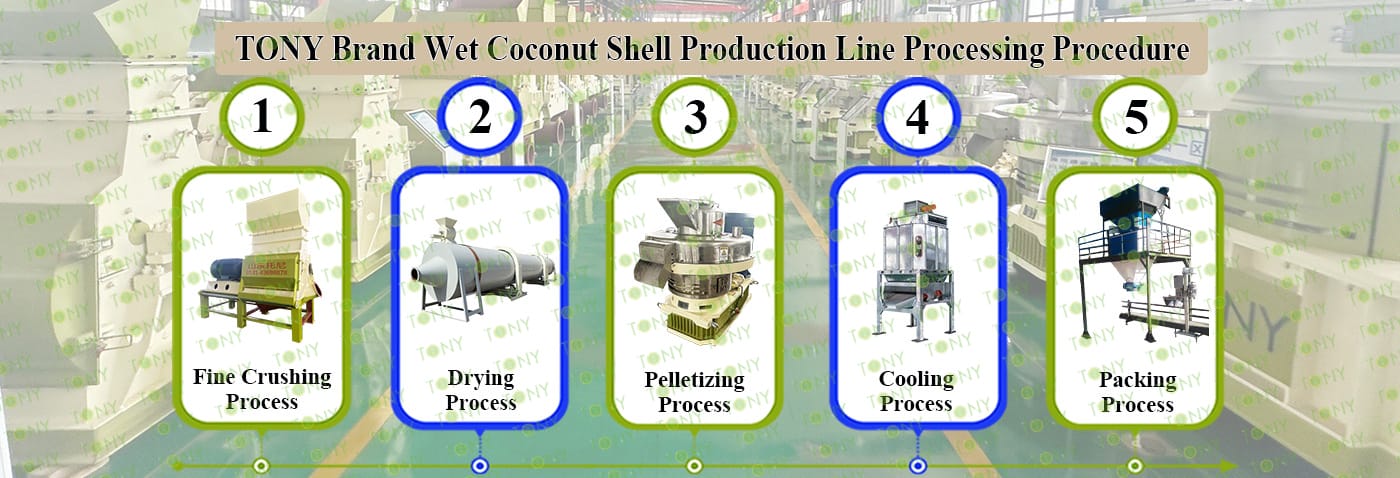

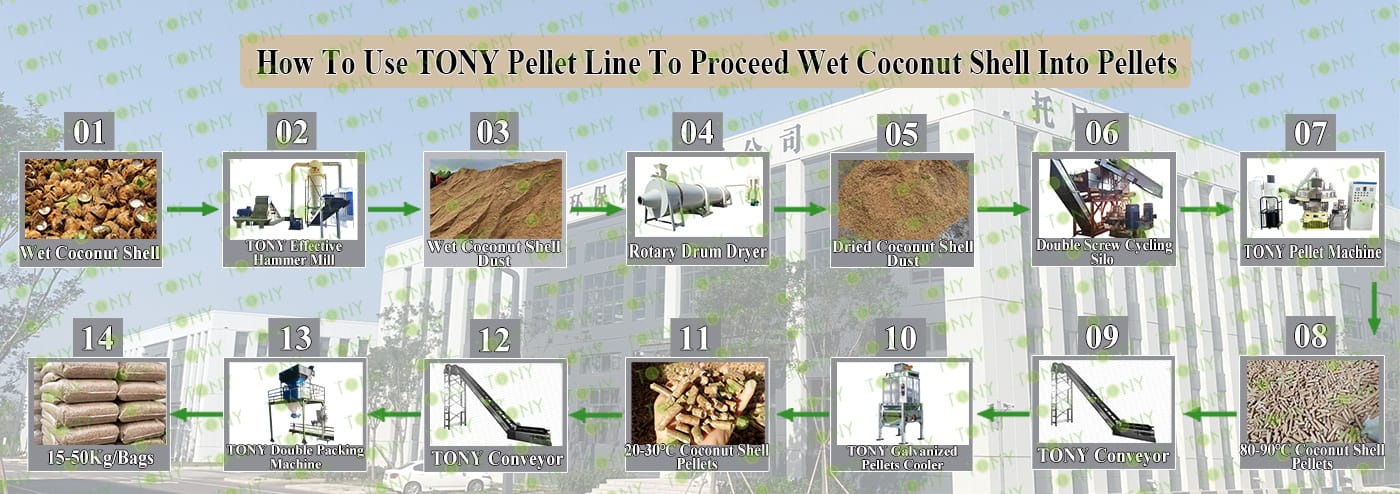

5. Process: Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:Effective Hammer Mill-TFD85*250-250kw, Rotary Drum Dryer-2.2*24m, TONY Pellet Machine- TYJ551-Ⅲ-132kw, Galvanized Pellets Cooler, Double Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

原材料+颗粒图

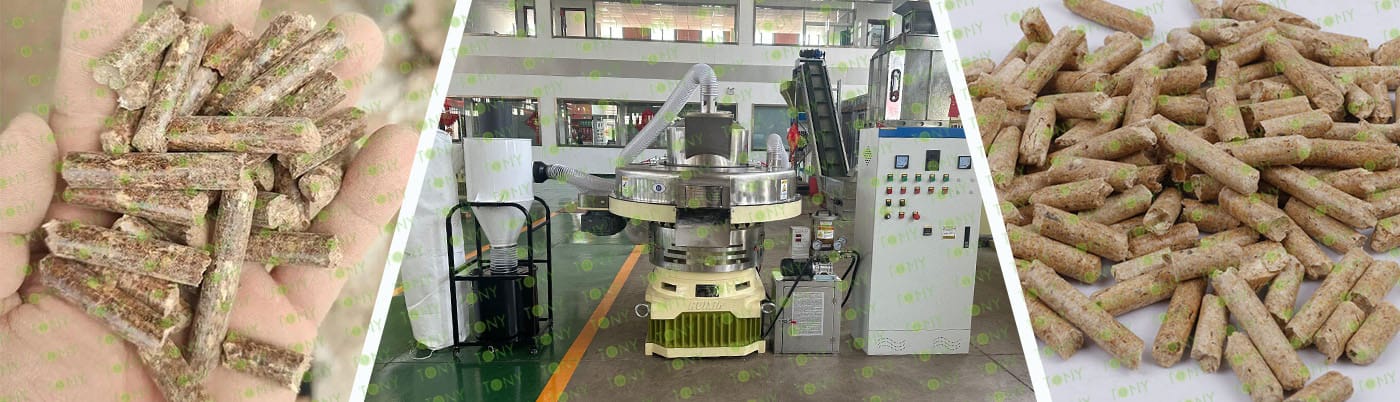

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

高效粉碎机带锯末图

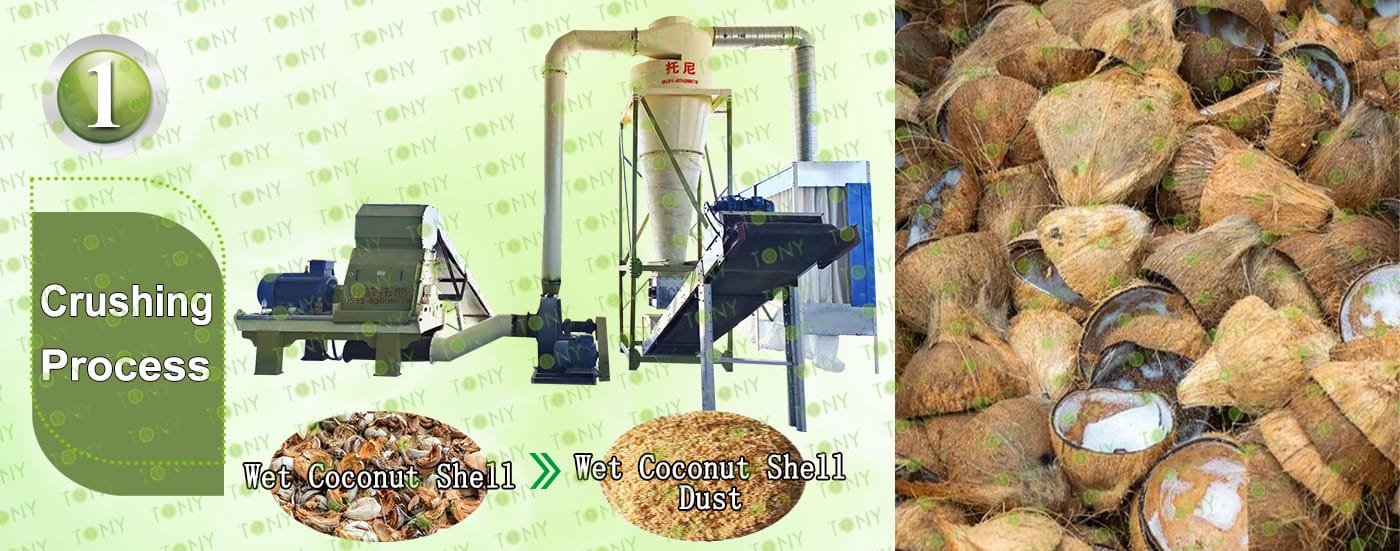

1.Coconut Shell Fine Crushing Process:

A.This process is mainly used to crush coconut shell into 8-14mm coconut shell dust.

B.Capacity:8-10Ton/Hour.

C.TONY brand effective hammer mill TFD85*250-250kw*1set

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.2图片

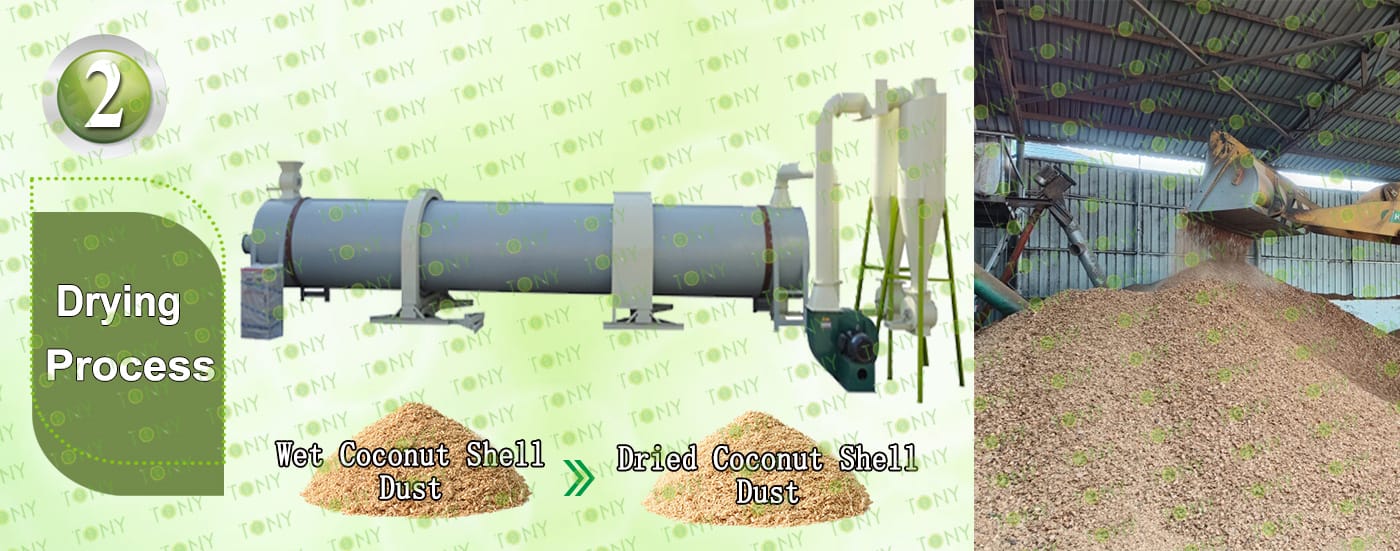

烘干机带锯末图

2.Coconut Shell Dust Drying Process:

A.This process is mainly used to dry the coconut shell dust from 40-55% to 10-15%.

B.Capacity:6-7Ton/Hour.

C.TONY use 1set of 2.2*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.3图片

颗粒机四件套带 原材料，颗粒图

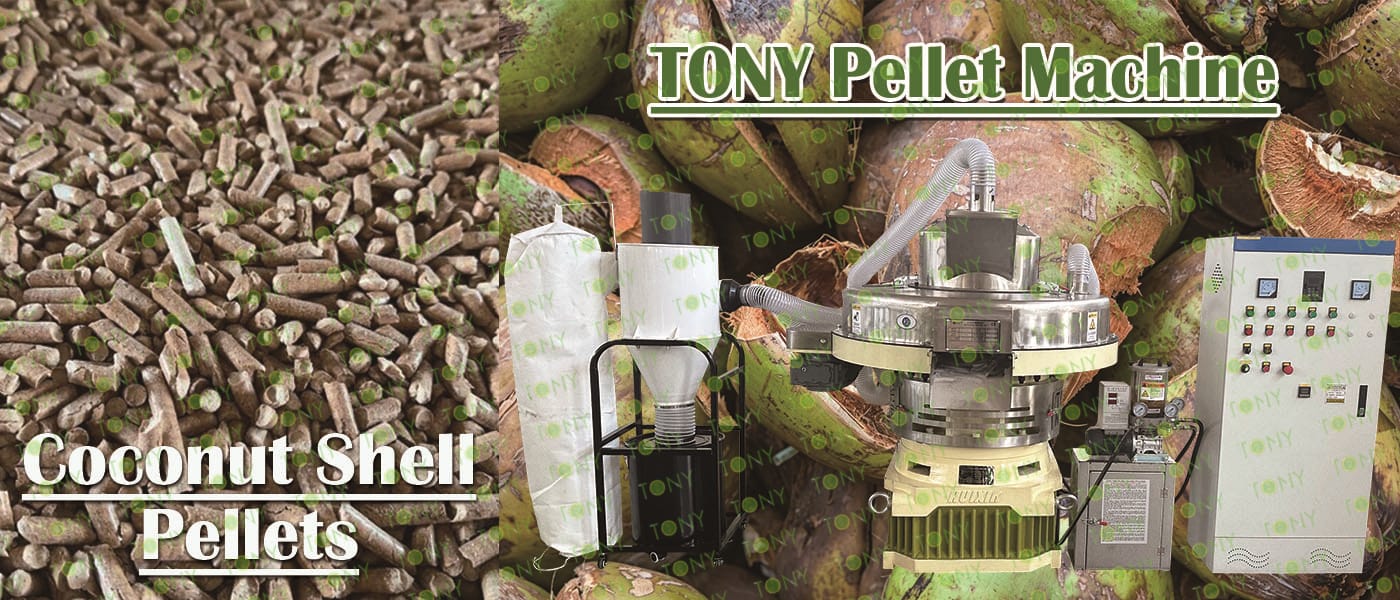

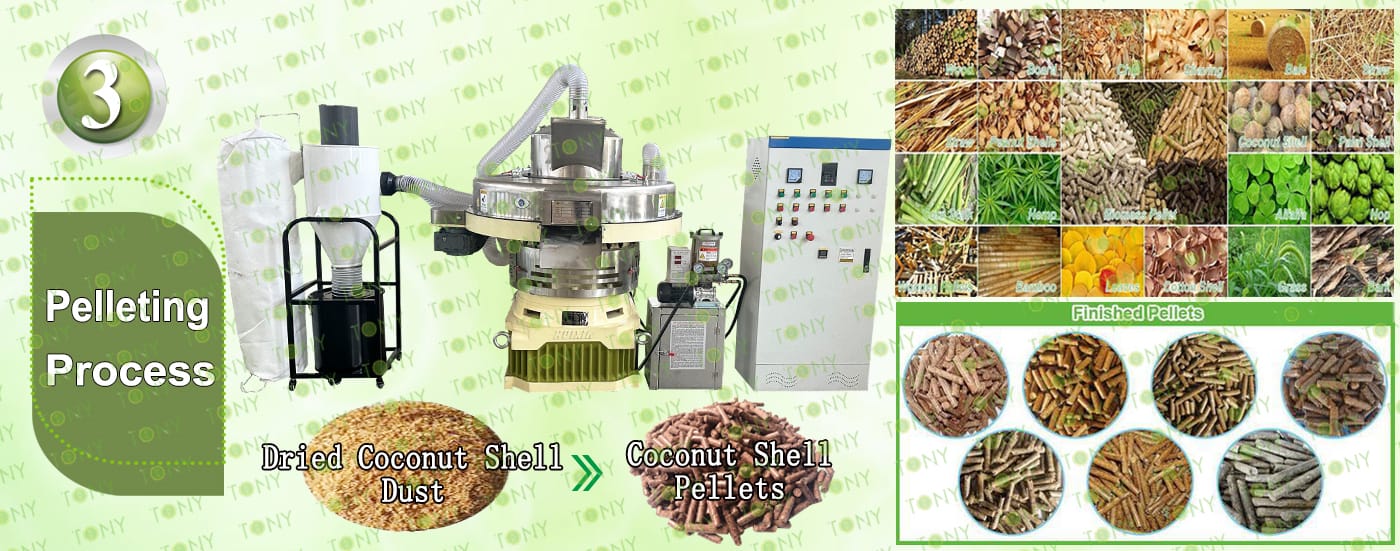

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:6-7 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ551-Ⅲ-132KW*3sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.4图片

镀锌冷却仓加颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:6-7Ton/Hour.

C.TONY brand galvanized cooler separator*1set

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片

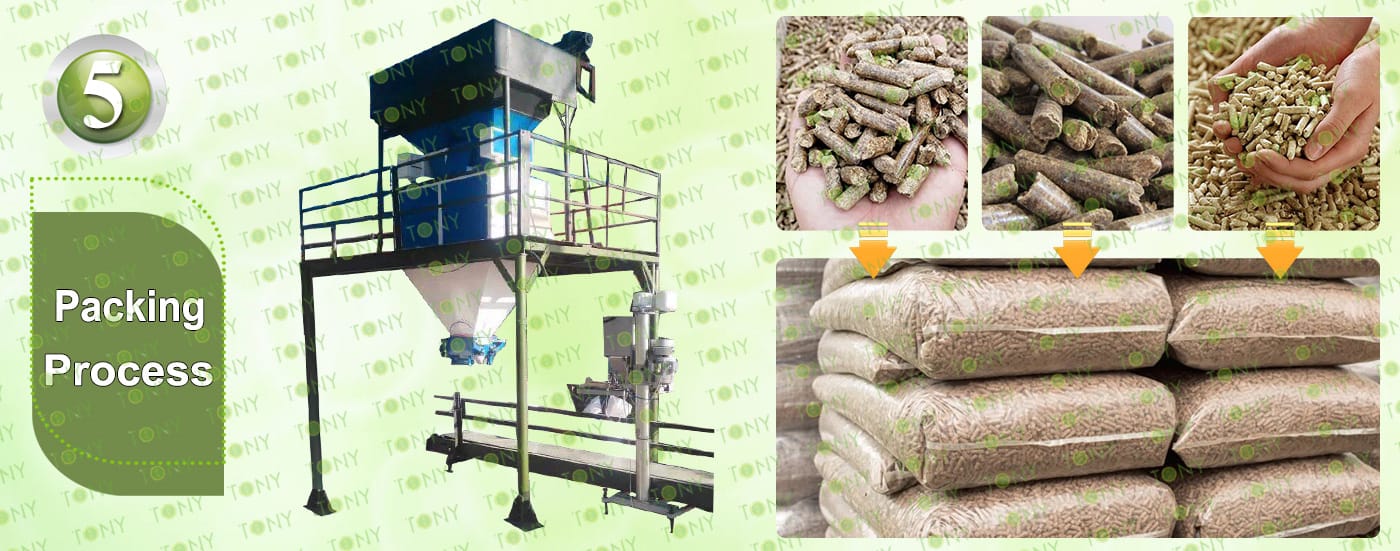

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.Capacity:6-7 Ton/Hour.

C.TONY double packing machine*1 set

Main Parts:

(1)TONY's Double Packing Machine

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

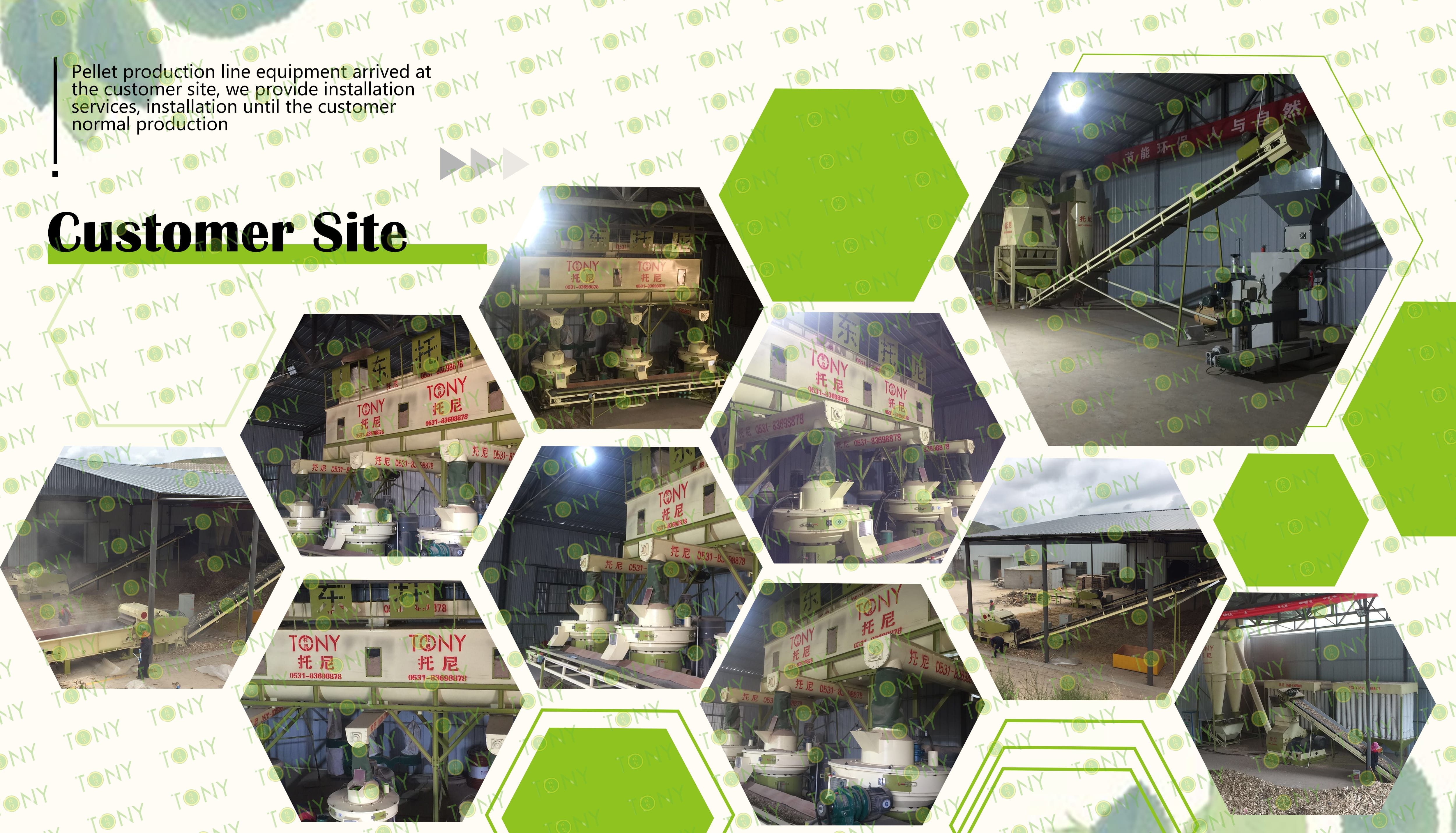

客户生产线案例图

7.图片

图 湿椰壳+颗粒 颗粒机

Core Process of Coconut Shell Biomass Pellet Processing Project

The process is highly standardized and mainly consists of 4 steps, each directly affecting product quality and production capacity.

1. Raw Material Collection and Pre-treatment:

Wet coconut shells (moisture content 40%-60%) are purchased from partners and transported to the equipment via conveyor belt.

2. Crushing and Drying:

The raw materials enter a drum dryer, where hot air (temperature 120-150℃) reduces the moisture content to 15%-20%. They then enter a crusher and are ground into fibrous powder.

3. Pelletizing and Cooling:

The powder enters a pelletizer, where it is compressed under high pressure (die compression ratio) to form pellets with a diameter of 8-12mm. The pellets are then cooled from 60-80℃ to room temperature using a cooler to prevent clumping.

4. Screening and Packaging:

The cooled pellets are screened by a vibrating screen to remove broken particles. Qualified pellets are automatically packaged into bags (usually 25kg/bag) and stored in the finished product warehouse for sale.

8.图片

湿椰壳图 颗粒图

1. High Combustion Efficiency:

Biomass pellets have very high combustion efficiency, generating approximately 75% more heat than regular firewood.

2. Environmental Friendliness:

The carbon dioxide emissions from biomass pellet combustion are equal to the carbon dioxide absorbed, making them a relatively environmentally friendly option.

3. Good Ignition Properties:

Biomass pellet fuel ignites better than coal, is easier to ignite, and significantly shortens start-up time.

4. Low Solid Emissions:

Biomass pellet fuel has lower solid emissions than coal, reducing slag costs and environmental pollution.

5. Low Pollution:

The main components of biomass pellet fuel are C-H organic matter. The flue gas contains no particulate C or SO2 gases; it mainly consists of C-H volatile gases, with SO2 and CO emissions approaching zero. The smoke color during combustion is less than Ringelmann level 1, significantly reducing air pollution and carbon dioxide emissions.

6. Long Burning Time:

Generally, the burning time of biomass pellet fuel is 8-10 times longer than that of loose materials, and it maintains a stable and continuous combustion state.
