Project Brief Introduction:

1.Product:Wet Coconut Shell Pellet Line

2.Capacity:3-4 Ton /Hour

3.TONY Brand 3-4 Ton /Hour Wet Coconut Shell Pellet Line Project Process

4.Main Machine: Hammer Mill,Rotary Drum Dryer,TONY Pellet Machine TYJ551-Ⅲ-110KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 440 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

原材料图+颗粒机图片

1. The working principle of wet coconut shell biomass pellet processing equipment

The core working principle of wet coconut shell processing equipment lies in "humidity matching": precise control of moisture content through the pre-drying stage avoids "overly wet and loose" or "overly dry and difficult to press" during molding; high pressure and high heat enhance fiber adhesion and reduce extrusion resistance; and the cooling stage stabilizes the moisture content of the pellets, ensuring storage performance. Through the coordinated operation of each stage, the entire system transforms previously unusable wet coconut shells into efficient and environmentally friendly biomass pellets, achieving the resource utilization of agricultural waste.

2. Characteristics of wet coconut shell biomass pellet processing equipment

(1) Forced Drying Module:

Equipped with a built-in hot air dryer or drum dryer, it can quickly reduce the moisture content of raw materials to the suitable range of 10%-15% for granulation, eliminating the need for natural sun drying.

(2) Crushing and Grinding Function:

Equipped with a crusher and grinder featuring high-hardness blades, it first crushes the lumpy coconut shells and then grinds them into uniform fibrous powder, preventing jamming during granulation.

(3) Impurity Removal Design:

Some equipment includes magnetic separation or screening devices to remove impurities such as sand and metal that may be mixed into the coconut shells, protecting subsequent granulation components.

3. Application scenarios of wet coconut shell biomass pellet processing equipment

Enterprises with Self-Supply Energy Needs – Decentralized Application Primarily for Self-Use

Some enterprises have their own energy consumption needs and can obtain a stable supply of wet coconut shells. They will independently configure equipment to achieve a closed loop of "raw materials - fuel - self-use".

(1) Coconut Deep Processing Enterprises:

Such as large-scale coconut milk, coconut sugar, and coconut shell activated carbon production enterprises. Wet coconut shells are waste products of their own production. After being processed into pellets, they can be directly used for boiler heating and production heat in the factory, reducing the cost of purchased energy.

(2) Small and Medium-Sized Industrial Enterprises:

Such as food processing plants, wood drying plants, and small paper mills. These enterprises have stable heat energy needs and have a supply of wet coconut shells nearby. They will use equipment to produce pellet fuel to replace raw coal or natural gas, controlling energy consumption costs and meeting environmental protection requirements.

(3) Large-Scale Agricultural Parks/Planting Bases:

Some large farms and plantations in tropical regions (such as rubber plantations and tropical fruit orchards) will use surrounding coconut shell resources to process pellets to provide power for irrigation systems, greenhouse heating, and employee living areas within the park.

2.图片

TONY Brand 3-4 Ton/Hour Wet Coconut Shell Pellet Manufacturing Plant can take wet coconut shell into biomass pellets.Coconut shells have a high carbon content and high calorific value. When processed into pellets, they burn more completely, resulting in fewer pollutants. The raw material is widely available, representing waste recycling at a low cost. Processing coconut shells into biomass pellets is highly feasible and offers advantages in terms of environmental protection and resource reuse.

1. Capacity: 3-4 Ton/Hour

2. Raw materials: Wet Coconut Shell

3. Moisture: Wet type, about 40-55%.

4. Application: All kinds of biomass materials suitable for pellet production.

Suitable customers: Those working in coconut-producing areas, such as coconut growers and coconut processing companies (e.g., coconut juice factories and coconut meat processing plants); biomass energy entrepreneurs; investors in agriculture/environmental protection; and individuals who can reliably obtain sufficient coconut shell raw materials.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

原材料--成品图

1. Project Name: Wet Coconut Shell Pellet Production Line

2. Raw Material: All kinds of Wet Coconut Shell

3. Moisture Content of Raw Material: 40-55%

4. Capacity: 3-4 TPH

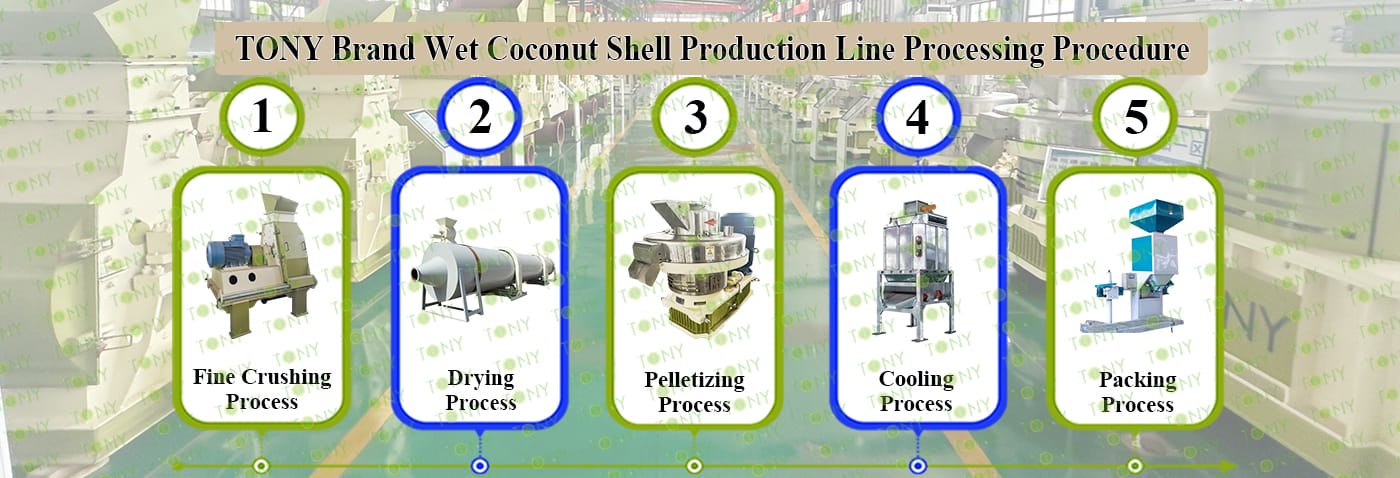

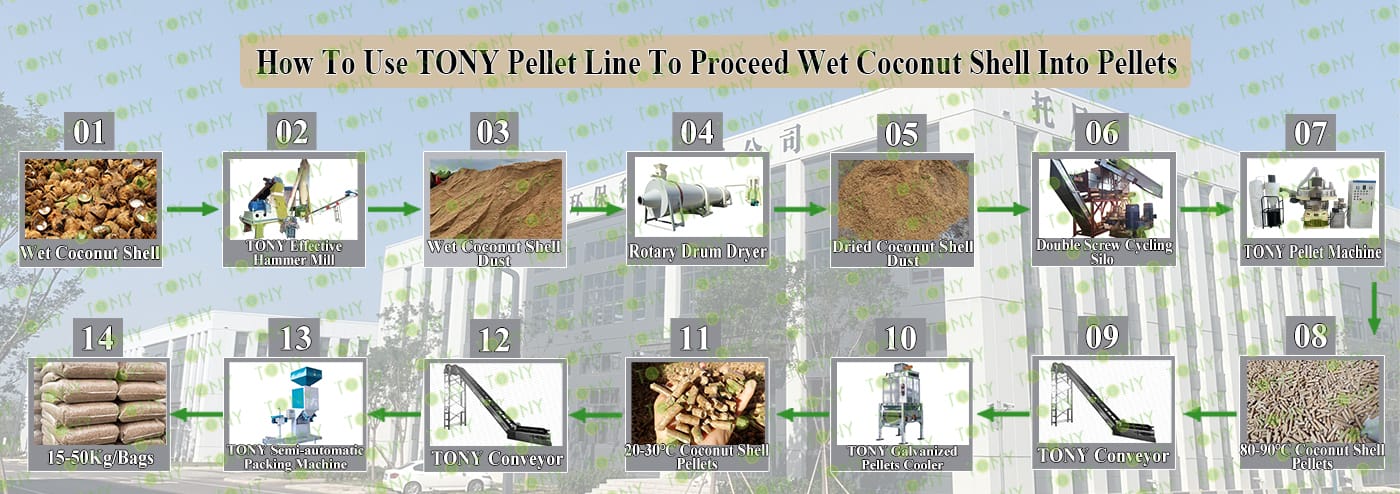

5. Process: Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:Effective Hammer Mill-TFD75*100-110kw, Rotary Drum Dryer-1.8*18m, TONY Pellet Machine- TYJ551-Ⅲ-110kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片



5.图片

原材料+颗粒图

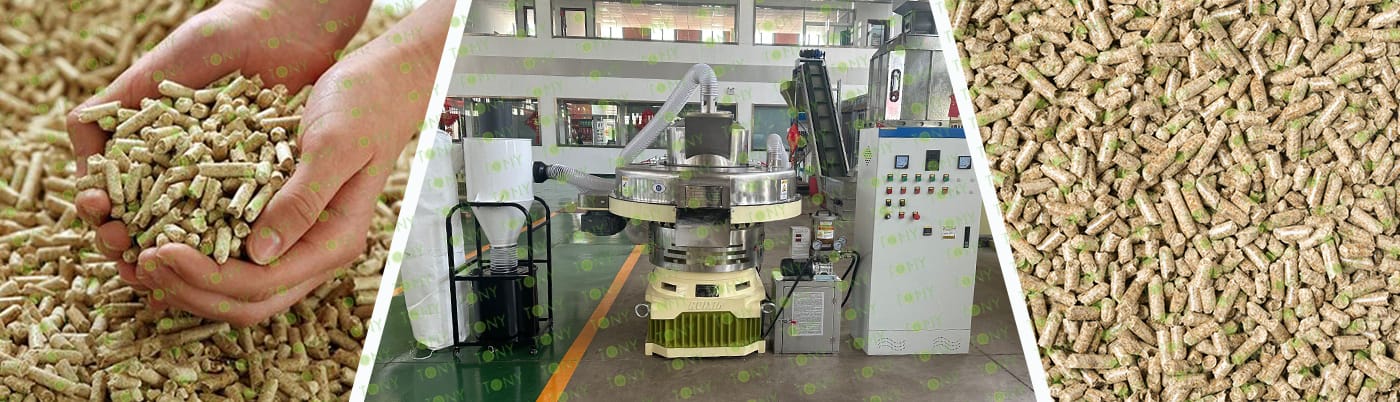

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

高效粉碎机

带锯末图

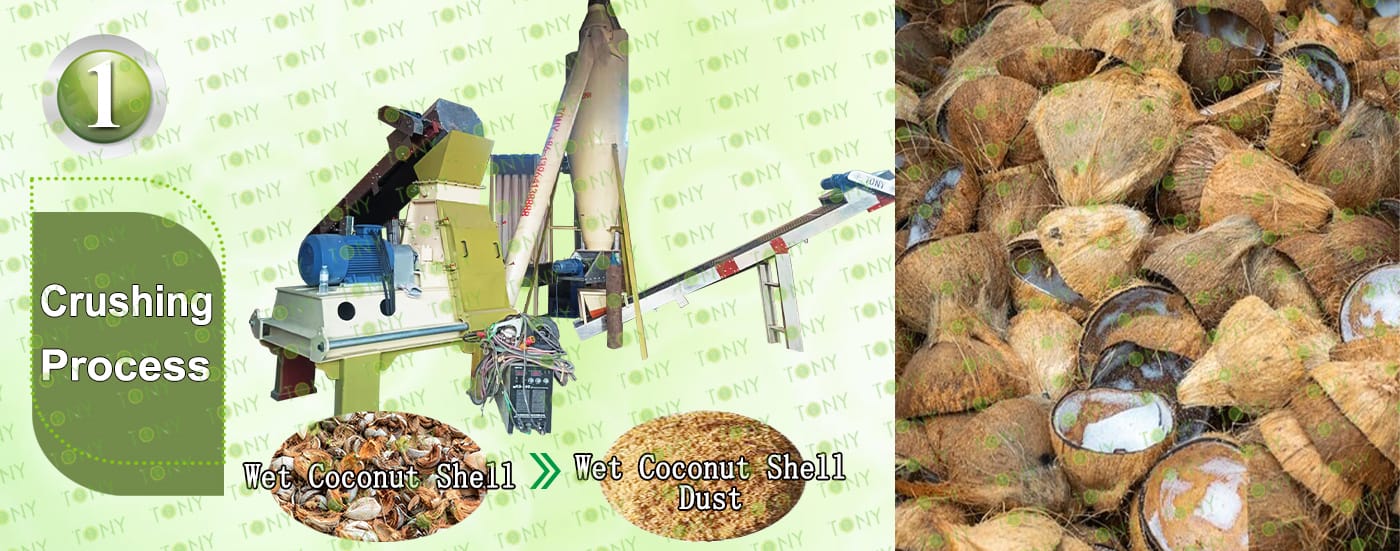

1.Coconut Shell Fine Crushing Process:

A.This process is mainly used to crush coconut shell into 8-14mm coconut shell dust.

B.Capacity:3-4Ton/Hour.

C.TONY brand effective hammer mill TFD75*100-110kw*1set

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.2图片

烘干机

带锯末图

2.Coconut Shell Dust Drying Process:

A.This process is mainly used to dry the coconut shell dust from 40-55% to 10-15%.

B.Capacity:3-4 Ton/Hour.

C.TONY use 1set of 1.8*18m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.3图片

颗粒机四件套带 原材料，颗粒图

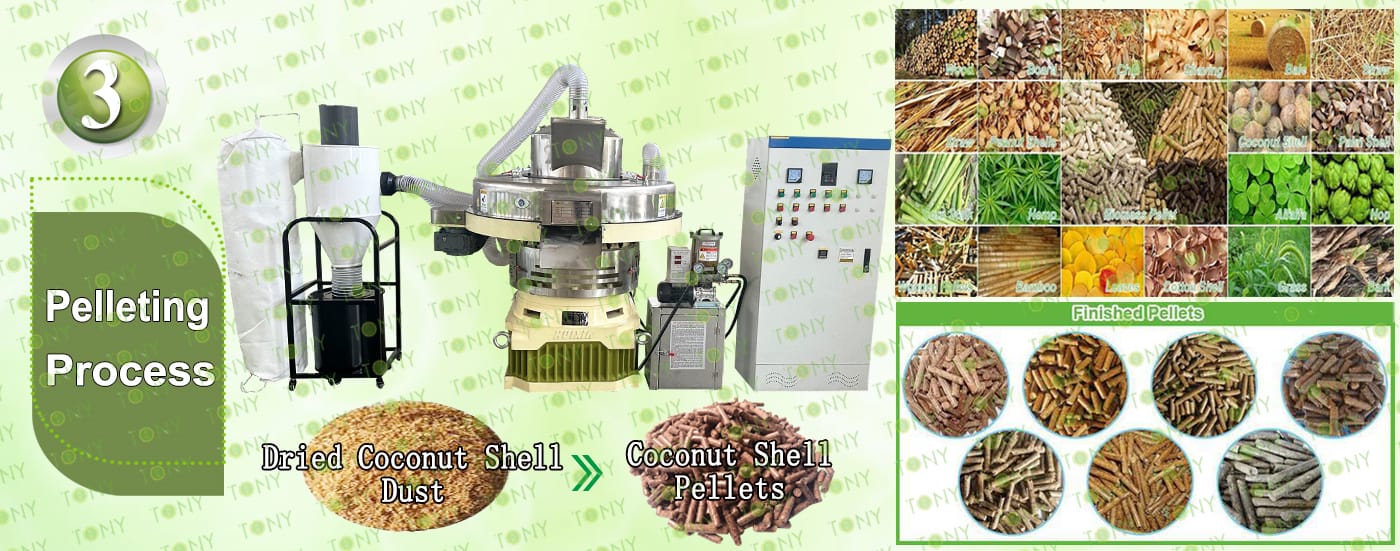

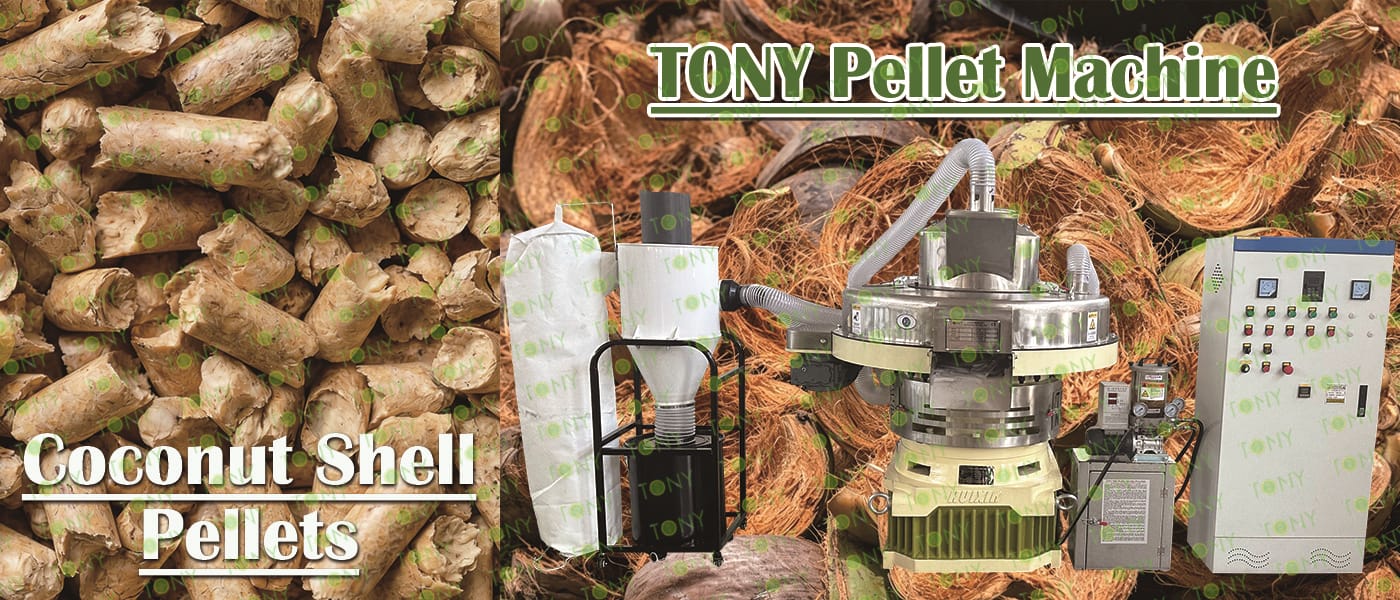

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:3-4 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ551-III-110KW*2sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.4图片

镀锌冷却仓加颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:3-4Ton/Hour.

C.TONY brand galvanized cooler separator*1set

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片

半自动包装机

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.Capacity:3-4Ton/Hour.

C.TONYsemi-automatic packing machine*1 Set

Main Parts:

(1)TONY's  Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

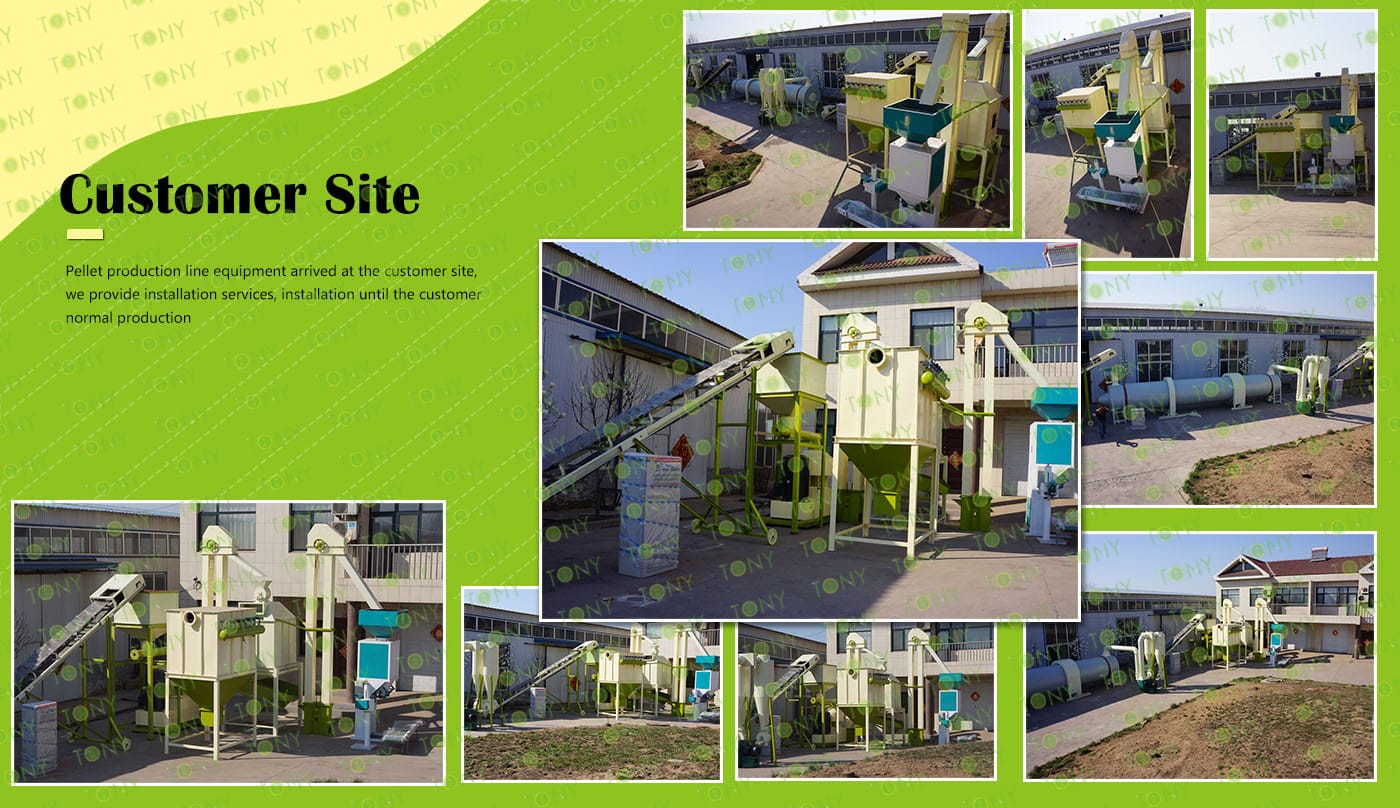

客户生产线案例图

7.图片

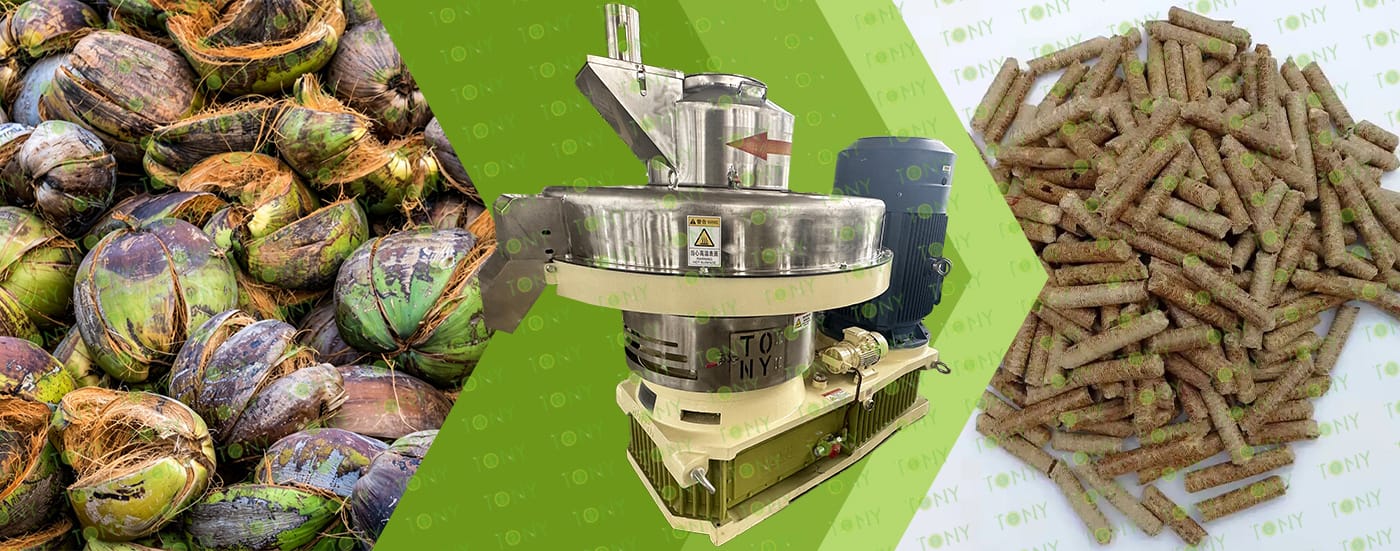

图 湿椰壳+颗粒 颗粒机

Core Process of Coconut Shell Biomass Pellet Processing Project

The process is highly standardized and mainly consists of 4 steps, each directly affecting product quality and production capacity.

1. Raw Material Collection and Pre-treatment:

Wet coconut shells (moisture content 40%-60%) are purchased from partners and transported to the equipment via conveyor belt.

2. Crushing and Drying:

The raw materials enter a drum dryer, where hot air (temperature 120-150℃) reduces the moisture content to 15%-20%. They then enter a crusher and are ground into fibrous powder.

3. Pelletizing and Cooling:

The powder enters a pelletizer, where it is compressed under high pressure (die compression ratio) to form pellets with a diameter of 8-12mm. The pellets are then cooled from 60-80℃ to room temperature using a cooler to prevent clumping.

4. Screening and Packaging:

The cooled pellets are screened by a vibrating screen to remove broken particles. Qualified pellets are automatically packaged into bags (usually 25kg/bag) and stored in the finished product warehouse for sale.

8.图片

湿椰壳图 颗粒图

Compared to fossil fuels, coconut shell biomass pellets align with green development requirements in terms of environmental protection.

1. Low carbon emissions:

As a "carbon-neutral" fuel, the carbon dioxide released during combustion can be absorbed by the coconut tree's growth, forming an ecological cycle and reducing net greenhouse gas emissions.

2. Low pollutant emissions:

During combustion, the sulfur content is below 0.05%, and the nitrogen content is approximately 0.3%-0.5%, with virtually no sulfide or nitrogen oxide emissions. No additional desulfurization and denitrification equipment is required, reducing environmental protection investment.

3. Waste resource utilization:

Wet coconut shells that would otherwise be discarded and rotten are converted into clean energy, reducing the environmental pollution caused by agricultural waste (such as methane produced from decay).

9.图片

绿色地球+原材料+颗粒图
