Project Brief Introduction:

1.Product:Wet Coconut Shell Pellet Line

2.Capacity:0.8-1.2 Ton /Hour

3.TONY Brand 0.8-1.2 Ton /Hour Wet Coconut Shell Pellet Line Project Process

4.Main Machine: Hammer Mill,Rotary Drum Dryer,TONY Pellet Machine TYJ450-Ⅱ-55KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 150 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

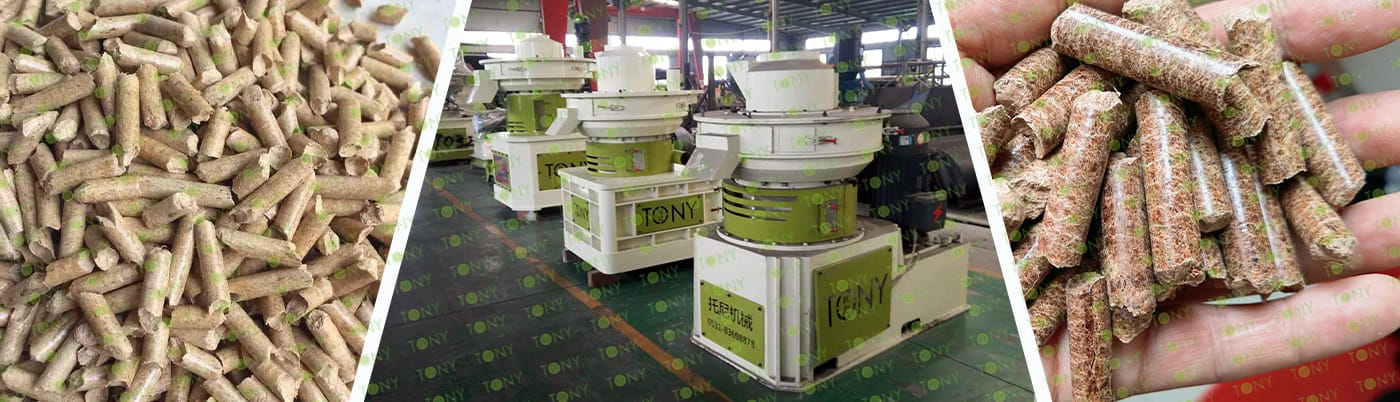

原材料图+颗粒机图片

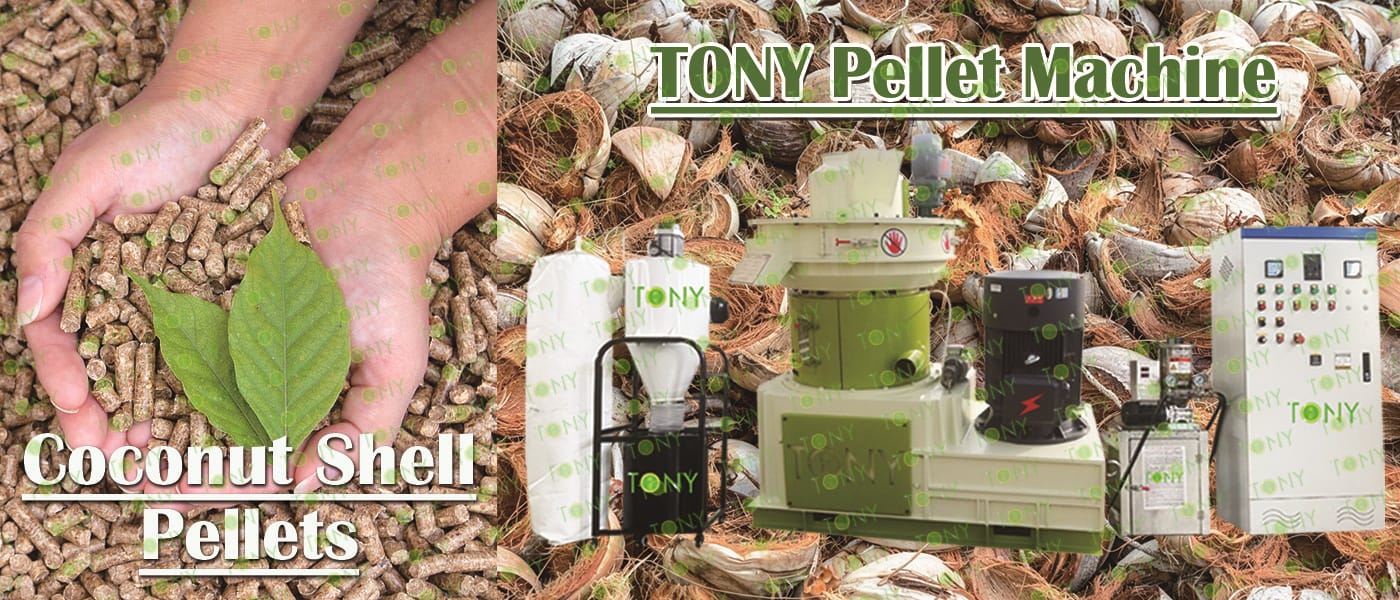

1. The working principle of wet coconut shell biomass pellet processing equipment

The core components of a ring die pellet mill are the ring die and the pressure roller. The inner wall of the ring die has evenly distributed forming holes with a diameter of 6-10mm (the hole diameter can be adjusted according to requirements). The pressure roller is installed inside the ring die, fitting tightly against the inner wall. When the raw material enters the gap between the ring die and the pressure roller, the motor drives the ring die to rotate at high speed (100-150 r/min). The pressure roller rotates along with the raw material under the action of friction, generating a strong squeezing effect. During the squeezing process, the air between the wet coconut shell fibers is expelled, and at the same time, the lignin (which softens under humid heat) and moisture of the fibers form a "bonding medium," causing the fibers to bind tightly and be forcibly pressed into the forming holes of the ring die.

2. Characteristics of wet coconut shell biomass pellet processing equipment

(1) Integrated Production Line:

Drying, crushing, pelleting, and cooling (included in some models) are integrated into a single production line, reducing raw material transfer links and improving overall efficiency.

(2) Variable Frequency Speed Control:

The core motors mostly use variable frequency control, allowing speed adjustments based on raw material humidity and fiber content, avoiding energy consumption during idling and ensuring stable granule quality.

(3) Corrosion-Resistant Body:

Parts in contact with wet materials are mostly made of stainless steel to prevent rusting from prolonged contact with damp materials, reducing maintenance costs.

3. Application scenarios of wet coconut shell biomass pellet processing equipment

Biomass Energy Processing Clusters – Specialized Production and Distribution

In regions with mature biomass energy industry chains, equipment is primarily used for specialized production of pellet fuel, which is then distributed to downstream markets.

(1) Small and Medium-Sized Biomass Fuel Plants:

These plants centrally purchase wet coconut shells from surrounding production areas, process them into standardized pellets on a large scale using equipment, and then sell them to end customers such as industrial enterprises and heating companies.

(2) Agricultural Waste Integrated Treatment Parks:

 In some areas, to promote environmental protection and resource recycling, integrated treatment parks are being built, equipped with wet coconut shell processing equipment, and linked with other straw and sawdust processing equipment to form diversified biomass fuel production capabilities.

2.图片

TONY Brand 0.8-1.2 Ton/Hour Wet Coconut Shell Pellet Manufacturing Plant can take wet coconut shell into biomass pellets.Coconut shells have a high carbon content and high calorific value. When processed into pellets, they burn more completely, resulting in fewer pollutants. The raw material is widely available, representing waste recycling at a low cost. Processing coconut shells into biomass pellets is highly feasible and offers advantages in terms of environmental protection and resource reuse.

1. Capacity: 0.8-1.2 Ton/Hour

2. Raw materials: Wet Coconut Shell

3. Moisture: Wet type, about 40-55%.

4. Application: All kinds of biomass materials suitable for pellet production.

Suitable customers: Those working in coconut-producing areas, such as coconut growers and coconut processing companies (e.g., coconut juice factories and coconut meat processing plants); biomass energy entrepreneurs; investors in agriculture/environmental protection; and individuals who can reliably obtain sufficient coconut shell raw materials.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

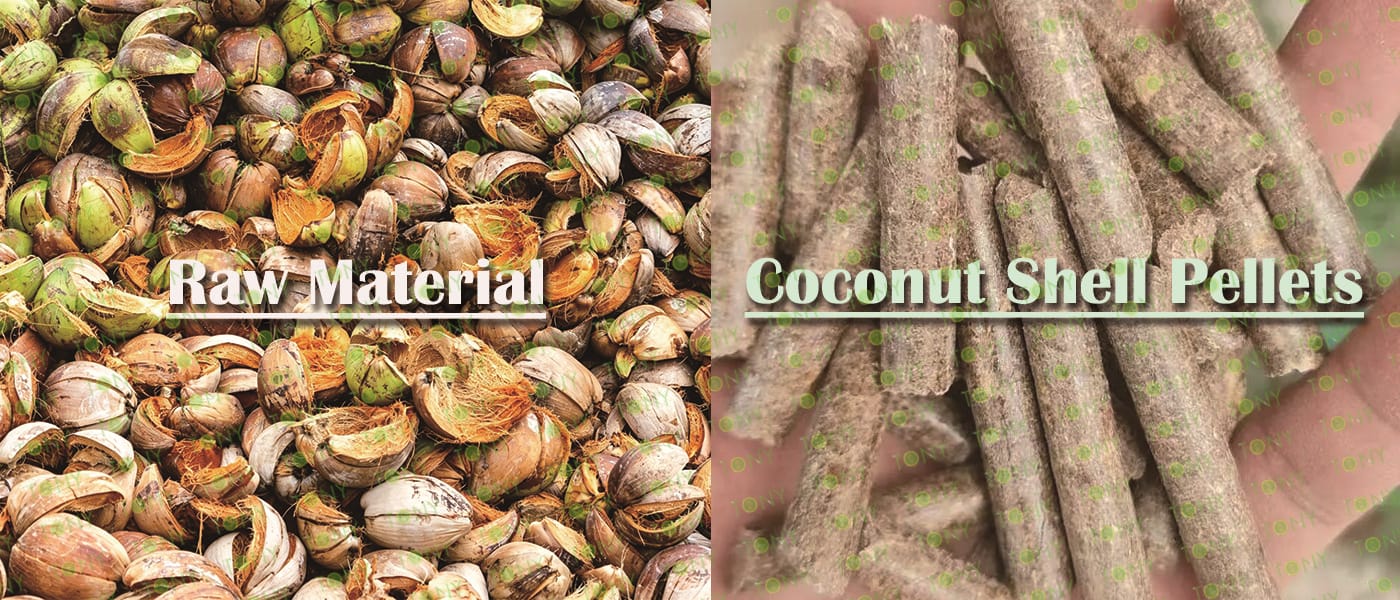

3.图片

原材料--成品图

1. Project Name: Wet Coconut Shell Pellet Production Line

2. Raw Material: All kinds of Wet Coconut Shell

3. Moisture Content of Raw Material: 40-55%

4. Capacity: 0.8-1.2 TPH

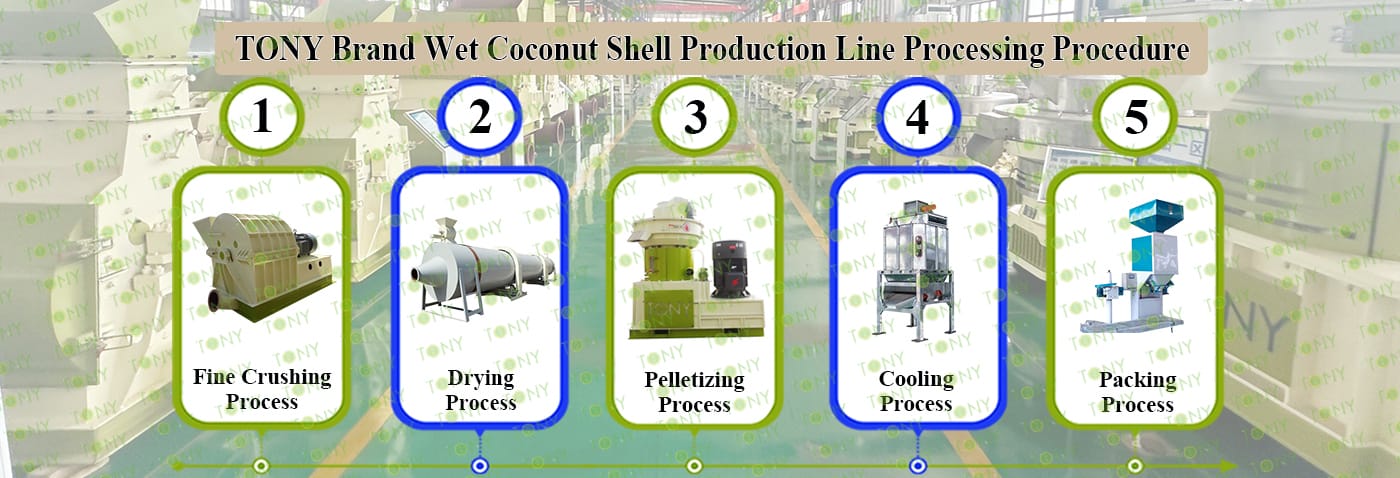

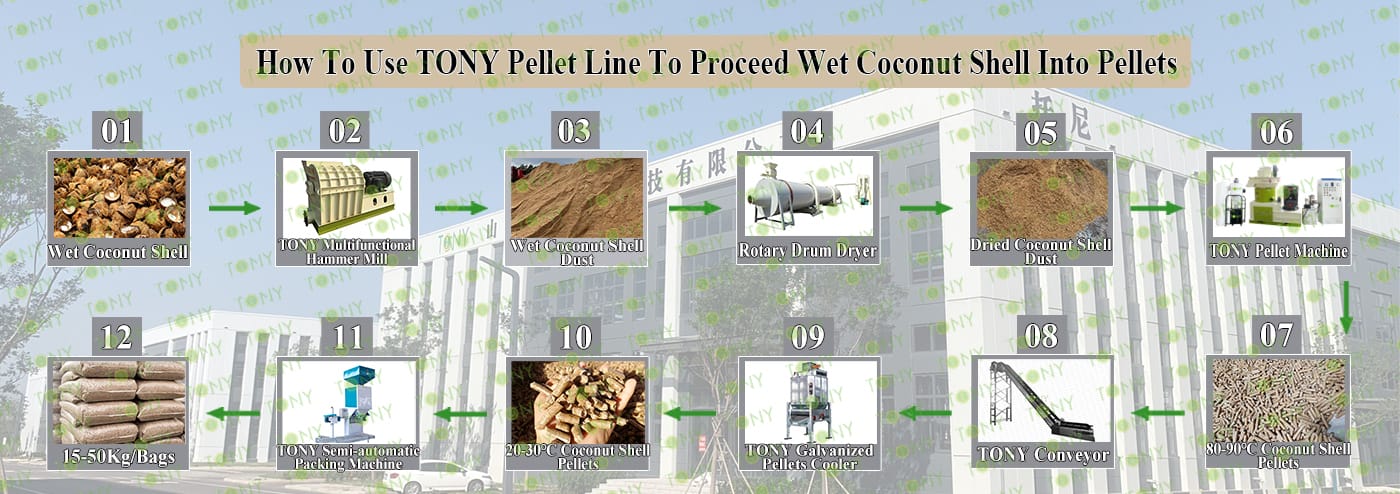

5. Process: Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:  Multifunctional Hammer Mill-TFQ65*55-37kw, Rotary Drum Dryer-1.2*12m, TONY Pellet Machine TYJ450-Ⅱ-55kw, Pellet Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片



5.图片

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

多功能粉碎机

带锯末图

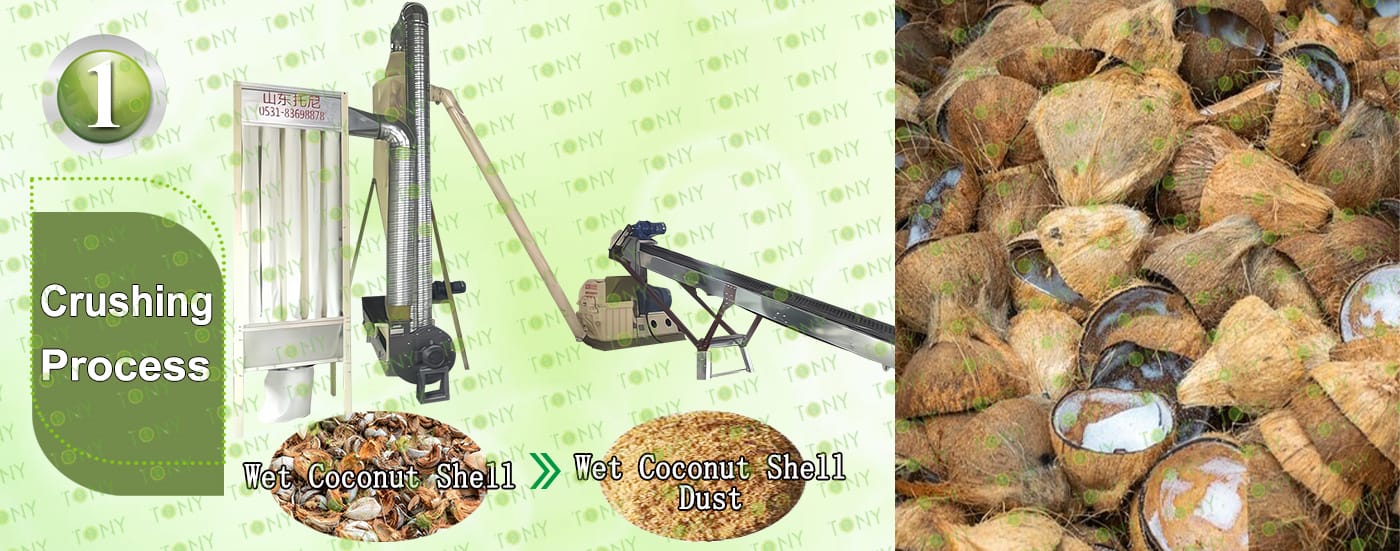

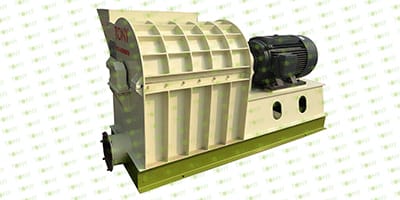

1.Coconut Shell Fine Crushing Process:

A.This process is mainly used to crush coconut shell into 8-14mm coconut shell dust.

B.Capacity:0.8-1.2Ton/Hour.

C.TONY brand multifunctional hammer mill TFQ65*55-37KW*1set

Main Parts:

(1)TONY Multifunctional Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.2图片

烘干机

带锯末图

2.Coconut Shell Dust Drying Process:

A.This process is mainly used to dry the coconut shell dust from 40-55% to 10-15%.

B.Capacity:0.8-1.2Ton/Hour.

C.TONY use 1set of 1.2*12m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.3图片

颗粒机四件套带 原材料，颗粒图

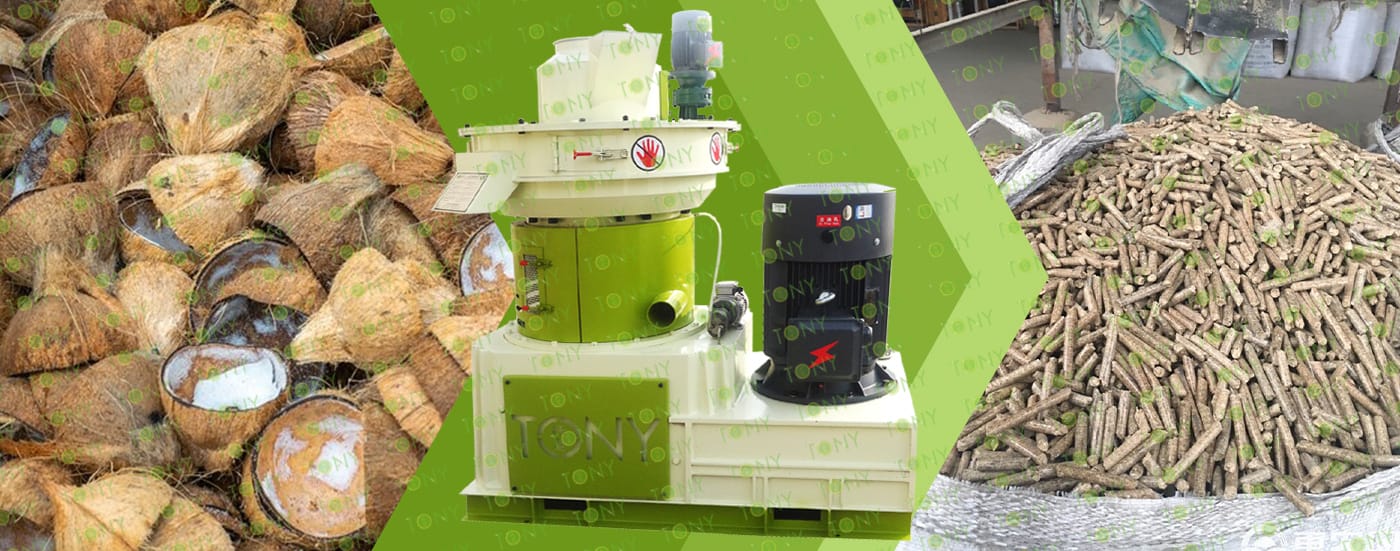

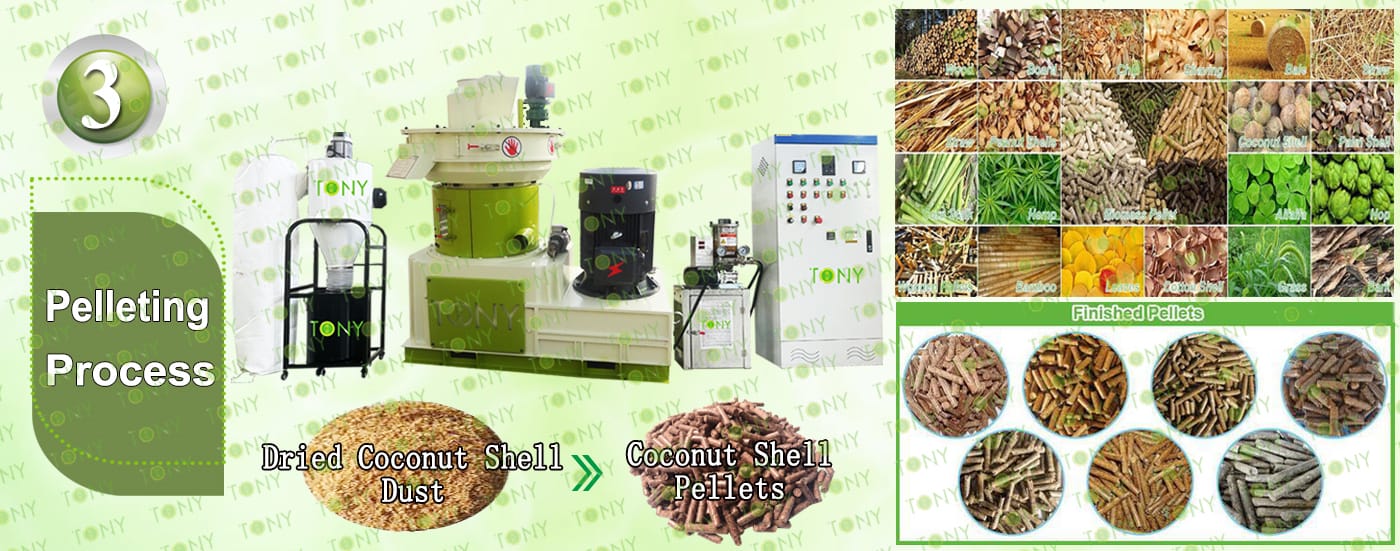

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:0.8-1.2 Ton/Hour.

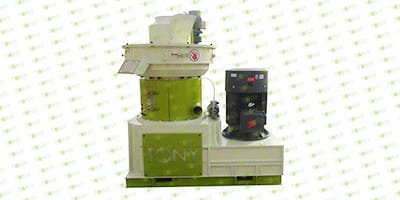

C.TONY brand vertical ring die pellet machine TYJ450-Ⅱ-55KW*1set

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.4图片

镀锌冷却仓加颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:0.8-1.2 Ton/Hour.

C.TONY brand galvanized cooler separator*1set

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片

半自动包装机

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50kg/bags.

B.Capacity:0.8-1.2Ton/Hour.

C.TONY semi-automatic packing machine*1 Set

Main Parts:

(1)TONY's  Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

客户生产线案例图

7.图片

图 湿椰壳+颗粒 颗粒机

Core Conditions for the Successful Implementation of a Coconut Shell Biomass Pellet Processing Project

Three key prerequisites must be met before the project commences, directly impacting cost and efficiency.

1. Raw Material Supply:

A stable source of wet coconut shells must be ensured within a 30-50 km radius, such as from coconut processing plants or coconut farmer cooperatives. Based on a production line with an hourly output of 1 ton, approximately 15 tons of raw materials (wet basis) are required daily, with an annual demand of no less than 5,000 tons.

2. Site and Policy:

The site needs to be planned with a raw material storage area, a production area, and a finished product storage area, totaling approximately 5-10 acres, and must be far from residential areas (to avoid noise pollution). Environmental impact assessment filing and a business license are also required. In some areas, subsidies for the comprehensive utilization of agricultural waste can be applied for.

3. Funding and Technology:

The equipment investment for a basic production line is approximately one million RMB. TONY pellet mill equipment manufacturers can be selected. Other costs include site rental, raw material procurement, and labor costs. Technically, core skills such as equipment maintenance and raw material moisture control are required, which can be addressed through training provided by the equipment manufacturer or by hiring professional technicians.

8.图片

湿椰壳图 颗粒图

When used as fuel, coconut shell pellets offer excellent combustion performance suitable for small to medium-sized heating and power generation needs. Their core advantages lie in their calorific value and combustion stability.

1. High and sustained calorific value:

The lower heating value of the pellets after molding is approximately 18-22 MJ/kg, close to that of medium-quality coal (approximately 20-25 MJ/kg). The flame is stable and the heat release is uniform during combustion, making it suitable for continuous heating applications.

2. Complete combustion and low residue:

Coconut shell fibers burn more completely after compression, resulting in an ash content of only 2%-5%, far lower than that of raw coal (typically above 10%). This reduces the frequency of slag cleaning and the amount of solid waste requiring treatment.

3. Low moisture content:

The moisture content of the processed pellets is controlled at 10%-15%, avoiding heat loss due to excessive moisture during combustion and improving thermal efficiency.
