Project Brief Introduction:

1.Product:Wet Wood Pallets Pellet Line

2.Capacity: 14-16T/Hour

3.TONY Brand 14-16Ton /Hour Wet Wood Pallets Pellet Line Project Process

4.Main Machine: Comprehensive Chipper,Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ860-Ⅲ-250KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 2200 kw

6.Need Area: About  2240 ㎡  L: 70 M  W: 32 M  H: 7.411 M

Project Layout For Customer:

1. The working principle of wet wood pallets biomass pellet processing equipment

The overall principle of wood pallet pellet processing equipment is essentially to transform "irregular, high-impurity, high-moisture" waste wood pallets into "regular, impurity-free, high-density, and easy-to-store" biomass pellets through the continuous physical processing of "dismantling and impurity removal → crushing and volume reduction → crushing and refinement → drying and moisture control → high-temperature and high-pressure molding → cooling and stabilization." No chemical agents are added throughout the process, and molding is achieved by relying on the adhesiveness of the wood's own fibers. This not only solves the problem of environmentally friendly disposal of wood pallet waste, but also achieves resource recycling (the pellets can be used as fuel, feed carrier, etc.).

2. Characteristics of wet wood pallets biomass pellet processing equipment

(1) The wet wood pallet pellet processing equipment is highly efficient and low-consumption, and can quickly process biomass raw materials into fuel pellets, significantly improving production efficiency.

(2) The biomass pellet machine has strong material adaptability and is suitable for the molding of various biomass raw materials. The pellet machine is equipped with molds of various specifications, and the corresponding molds can be selected for processing according to different biomass raw materials, which enhances the adaptability of processing.

(3) The wet wood pallet biomass pellet processing equipment has a mature design, stable finished pellet molding, stable output, and excellent quality.

(4) The biomass pellet processing equipment is simple to operate, easy to use, highly automated, requires less labor, effectively reduces labor intensity, and increases output.

3. Application scenarios of wet wood pallets biomass pellet processing equipment

Processing equipment provides fuel for factory boilers and kilns (replacing coal and oil), such as steam boilers in textile and food processing plants, and heating kilns in the ceramics and building materials industries. Stable pellet production ensures energy supply.

(1)Power Generation:Biomass power plants require large quantities of standardized pellets as fuel. Large-scale processing equipment can meet the power plant's stringent requirements for pellet calorific value and density, ensuring efficient combustion and stable power generation.

(2)Residential Heating:For pellets used in home fireplaces and space heaters, processing equipment must control pellet size and hardness to accommodate residential combustion equipment. The equipment's refined production capabilities directly impact the user experience of these pellets.

(3)Environmental Protection and Waste Management:In waste and sewage treatment plants, processing equipment converts organic waste (such as sludge and food waste) into fuel pellets for resource recovery. Corrosion-resistant and clogging-resistant designs are crucial.

TONY Brand 14-16Ton/Hour Wet Wood Pallets Pellet Manufacturing Plant can take wet wood pallets, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with wet wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 14-16Ton/Hour

2. Raw materials: Wet wood pallets

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  waste wood pallets or more waste wood raw materials

Suitable customers: Logistics and warehousing companies, various manufacturing plants, ports and airports, construction sites, large supermarkets and shopping malls, and other places where waste wood pallets have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Pallets Pellet Production Line

2. Raw Material: All kinds of wet wood pallets

3. Moisture Content of Raw Material: 40%

4. Capacity: 14-16 tons per hour

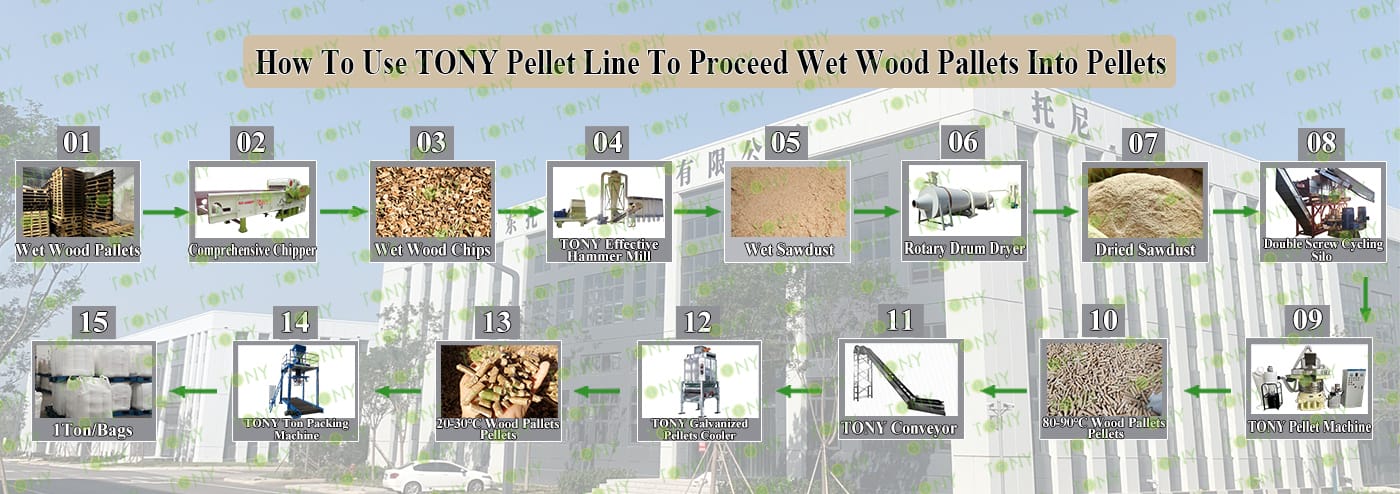

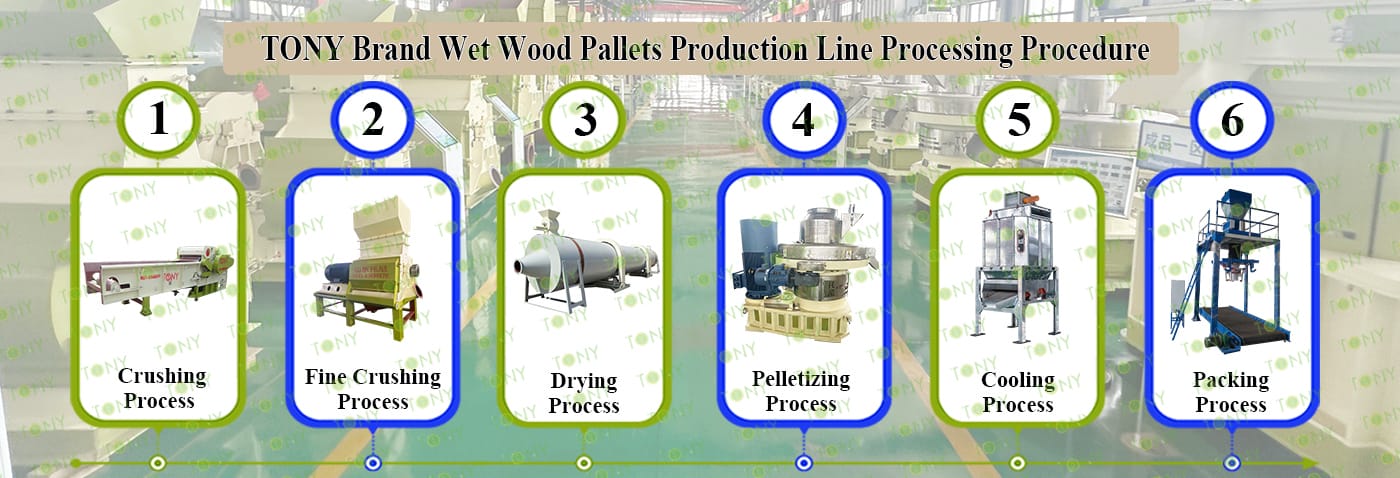

5. Process:  Crushing Process - Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1400-700-250KW, Effective Hammer Mill-TFD85*250-250KW, Rotary Drum Dryer-2.5*24m,  TONY Pellet Machine TYJ860-Ⅲ-250KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Rotary Drum Dryer	Double Screw Cycling Silo
1.To Grind Wood pallets Width  ≤1.4m Into25-55mm Wood Chips.    2.Model: TPC1400-700-250KW With 24 Hammer Heads*1set   3.Capacity: 20-30Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD85*250-250KW*2sets 3.Capacity: 7-8Ton/Hour/Set	1.To Dry The 40% Sawdust Into 10-15% Sawdust.   2.Model: THGD2.5*24*2sets 3.Capacity:7-8Ton/Hour/Set	1.To Stroage Sawdust Before Pellet Machine; Adjust The Speed Of Sawdust Entering The Pellet Machine 2.Model: TLC-8*2 sets 3.Capacity:7-8Ton/Hour/Set
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine	Belt Conveyor
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-250KW*4sets 3.Capacity:3.5-4Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-4*2sets 3.Capacity:14-16Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags. 2.Model: TBD* 2ses 3.Capacity: 14-16 Ton/Hour	1.To Transport Wood Chips,Sawdust,Pellets. 2.Width: 80cm*12sets 3.Capacity:Designed With The Whole Line

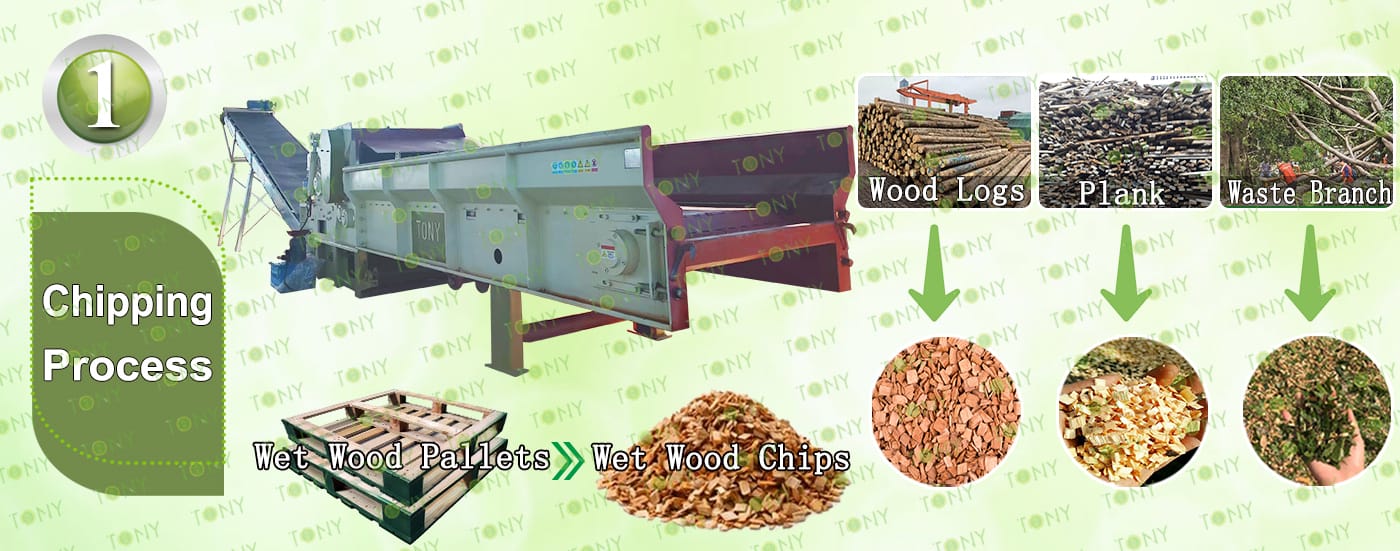

1.Wood Pallets Chipping Process:

A. This process is mainly used to grind wooden pallets with nails less than 1.4 m  in width into wood chips with a size of 25-55 mm. The final size of the wood chips can be adjusted by replacing the screen with different sizes and replacing or adjusting the hammer heads with different specifications.

B.TONY brand comprehensive chipper TPC1400-700-250kw model with  24 hammer heads*1set

C.Capacity:20-30Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:14-16Ton/Hour.

C.TONY brand effective hammer mill TFD85*250-250KW*2sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

3.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:14-16Ton/Hour.

C.TONY use 2 sets of 2.5*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

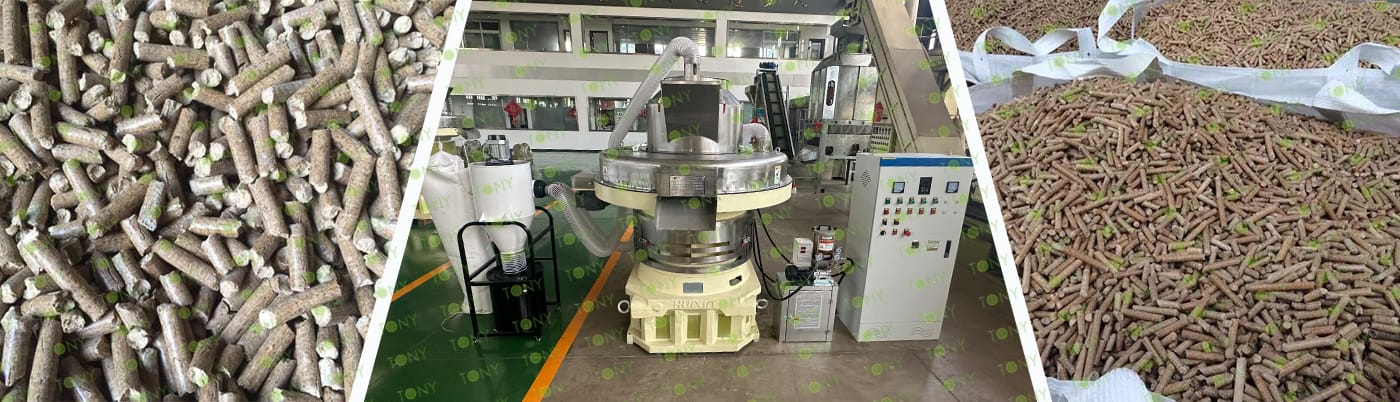

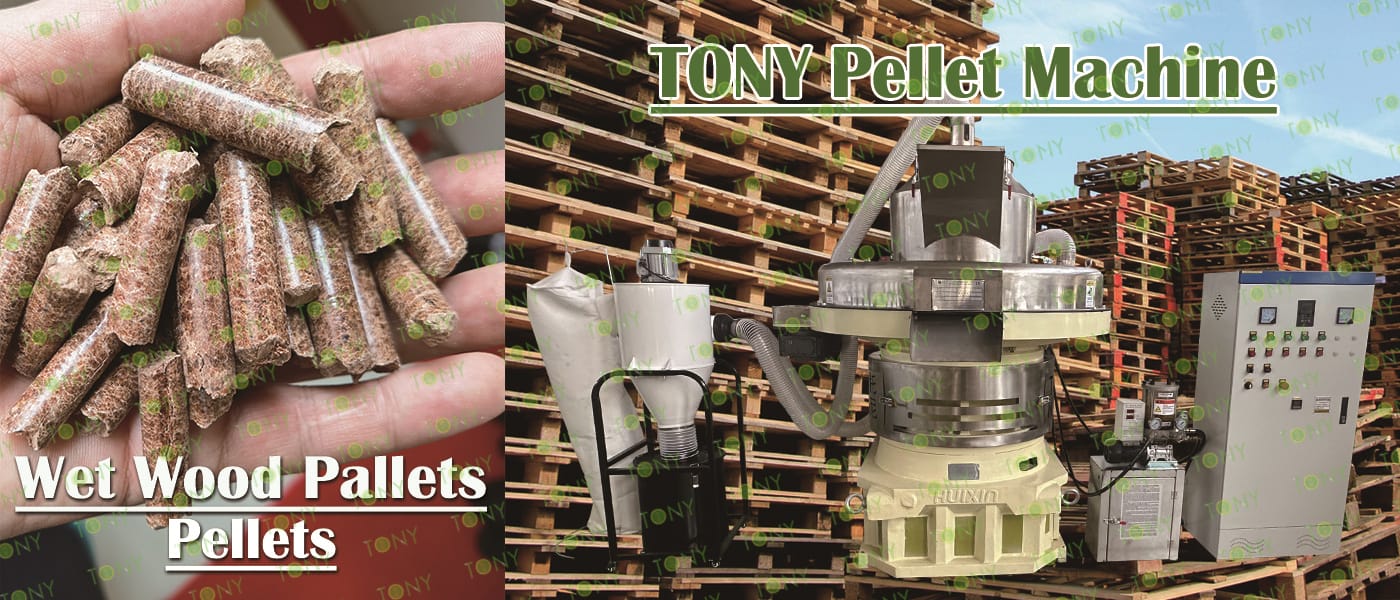

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:14-16Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-250KW*4Sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:14-16Ton/Hour.

C.TONY brand galvanized cooler separator*2sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

6.Packing Process:

A.This process is mainly used to pack pellets into 1ton/bags.

B.Capacity:14-16Ton/Hour.

C.TONY brand ton packing machine*2sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

For investors, it is better to give priority to regions with abundant raw materials and strong policy support. By locking in raw material supply, improving production capacity utilization and expanding high-end markets (such as exports and civilian use), the return cycle can be further shortened and rapid profits can be achieved.

Wood Pellet Processing Investment Costs

1.Equipment Investment:

Equipment investment varies significantly depending on the project scale and equipment selected. A small semi-automatic production line may cost only tens to hundreds of thousands of yuan, while a large fully automated production line can cost millions or even more.

2.Plant and Site Costs:

You need to select an appropriate plant and site based on your production scale. Rental or construction costs vary by region.

Raw Material Procurement and Transportation Costs: Raw material costs are affected by factors such as region, season, and raw material type, while transportation costs are related to the raw material sourcing radius and product sales range.

3.Environmental and Other Expenses:

These include the investment and operating costs of environmental protection equipment, utilities, and employee salaries.

1.Environmental protection:

Wood pellet fuel has the characteristics of low carbon and low sulfur. Compared with coal, carbon dioxide emissions are reduced by 97.91%, sulfur dioxide emissions are reduced by 99.15%, and nitrogen dioxide emissions are reduced by 72.09%. Therefore, the emissions of biomass pellet fuel are almost zero compared to the high pollution emissions of coal.

2.Renewable raw materials:

The main raw materials of wood pellet fuel are agricultural and forestry waste, such as branches, sawdust, straw, etc. These raw materials are not only cheap, but also renewable resources, which helps to achieve sustainable development.

3.High calorific value:

The calorific value of biomass pellet fuel reaches 3600-4200 kcal/kg. Using a special biomass heating furnace, the thermal efficiency can reach over 85%.

4.Cost-effectiveness:

The cost of wood pellet fuel is relatively low and the operating cost is not high. In addition, due to its environmental protection characteristics, it is supported by national policies, which also helps to reduce its use cost.

5.Wide range of applications:

Wood pellet fuel can be used in many occasions, such as home heating, cooking, hot water supply and biomass power plants, etc.
