Project Brief Introduction:

1.Product:Wet Wood Chips Pellet Line

2.Capacity: 9-10.5T/Hour

3.TONY Brand 9-10.5Ton /Hour Wet Wood Chips Pellet Line Project Process

4.Main Machine: Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ860-Ⅲ-220KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 1220 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

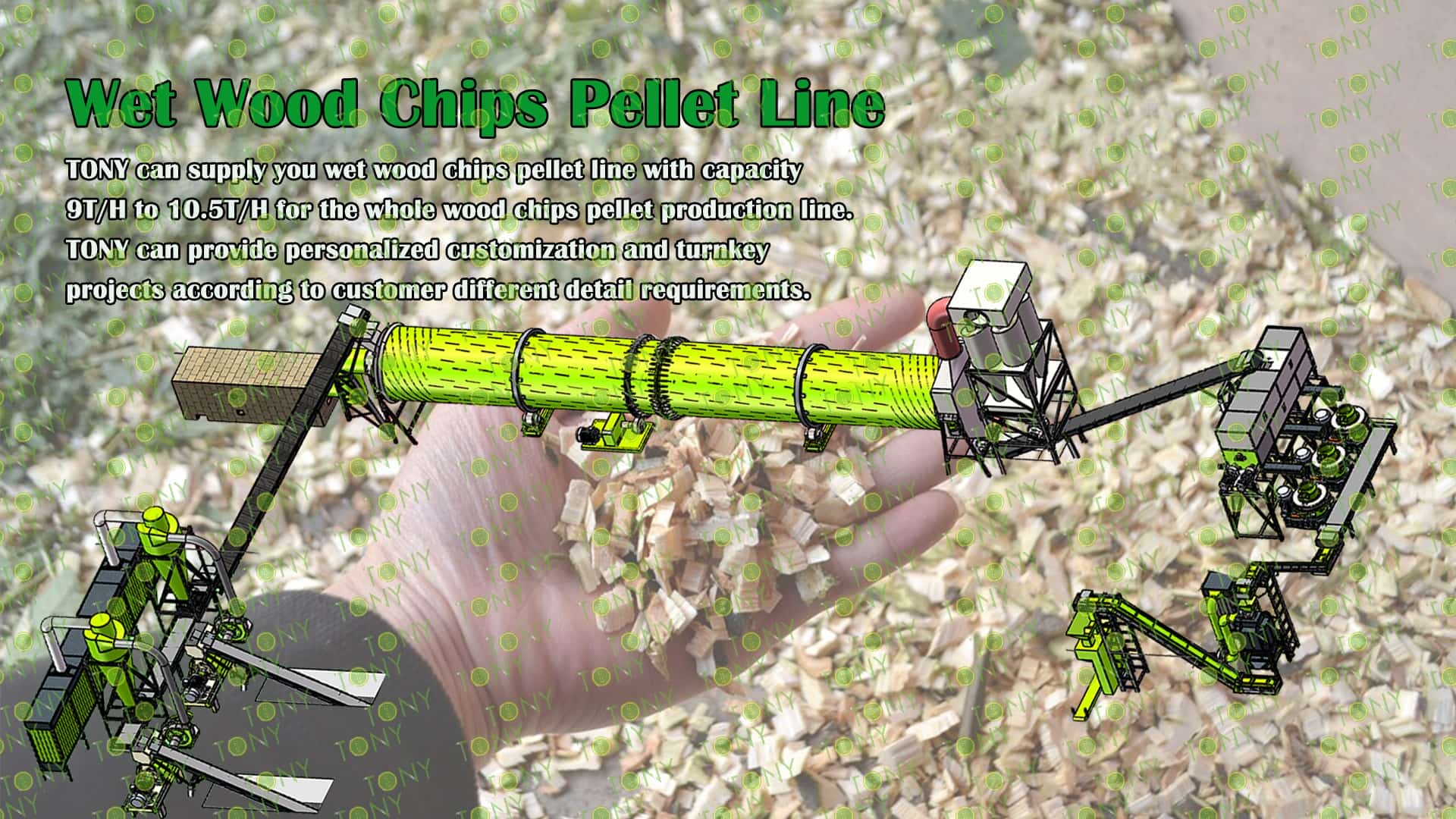

Project Layout For Customer:

三维图

1. The working principle of wet wood chips biomass pellet processing equipment

Core Forming: Fiber reorganization and densification through mechanical extrusion is a key step in converting wet wood chips into pellets. The core principle is "high-pressure extrusion + wood fiber self-bonding." Lignin (a natural adhesive that softens under pressure and frictional heat) in the wet wood chips works together with water to tightly bind the fibers, forming pellets with a fixed shape.

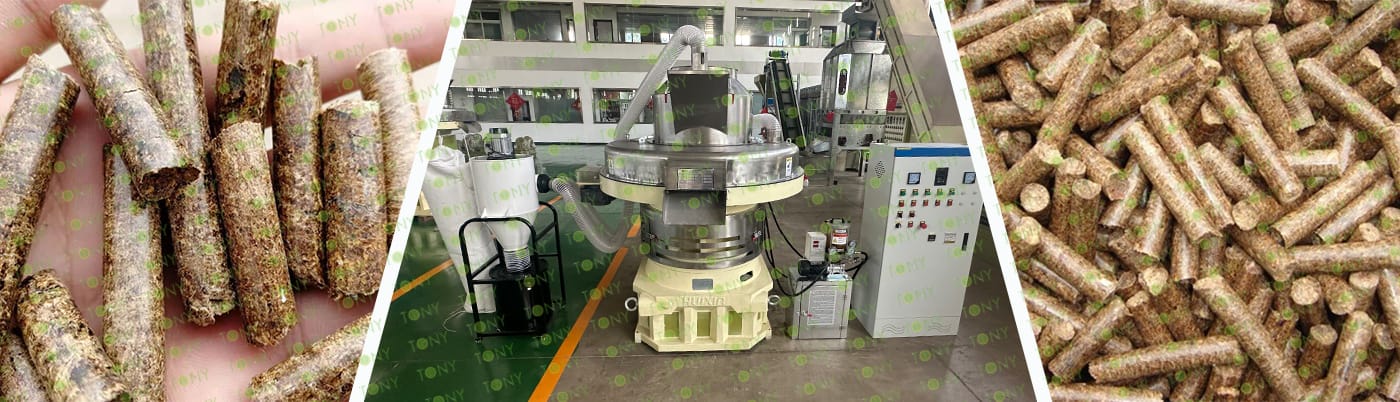

Core component: the forming machine—the "ring die pellet machine," which is more adaptable to wet materials and less prone to clogging.

During the extrusion process, intense friction between the sawdust and the inner wall of the die and the surface of the rollers generates frictional heat of 60-90°C. This temperature softens the lignin in the wood chips (the softening point of lignin is approximately 70-100°C). Simultaneously, the water forms "liquid bridges" that bind the dispersed fibers together, providing a foundation for subsequent shaping.

2. Characteristics of wet wood chips biomass pellet processing equipment

(1)Wide adaptability of raw materials: Reduce the cost of raw material procurement

Can directly process undried wet wood chips such as fresh leftovers from wood processing plants, wet waste wood from building demolition, wet branch slices after orchard pruning, etc.

In addition to pure wet wood chips, it can also process mixed wet materials containing wood fiber such as "wet sawdust, bark, bamboo chips" (the mixing ratio does not exceed 30%), further broadening the source of raw materials, especially suitable for users near wood processing plants and furniture factories

(2)High processing efficiency: continuous operation + low failure rate

Long continuous operation time: Due to the "integrated design" of pretreatment, molding, and cooling links, and the optimization of anti-clogging structure, the equipment can achieve 8-12 hours of continuous operation

(3)Excellent particle quality: Meet the application needs of multiple scenarios

Stable physical properties: The molded wet wood particles have high density (1.1-1.3g/cm³), high hardness (compressive strength ≥15MPa), are not easy to break during storage and transportation (breakage rate ≤3%), and have low hygroscopicity (moisture content is stable at 12%-18%), and can be stored for 6-12 =No mold growth for months;

Diverse application scenarios:As biomass fuel: The calorific value can reach 4200-4500 kcal/kg (close to medium-quality coal) when burned, and the ash content is ≤5%, suitable for industrial boilers and biomass power plants;

After crushing, it can be used as a filling matrix for organic fertilizer, realizing "turning waste into treasure".

(4)Convenient operation and maintenance: Reduce labor and operation and maintenance costs

Intelligent control: If problems such as wet material agglomeration, blockage, motor overload, etc. occur, the machine will automatically shut down and alarm, without the need for manual 24-hour on-duty;

(5)Convenient replacement of wearing parts: The wearing parts such as rollers and molds adopt a "quick-release structure" and have a long service life.

Environmental protection and policy adaptation: Meet the needs of green development

Zero wastewater discharge: No liquid wastewater is generated during the processing; dust is collected by a "bag dust collector"

Comply with biomass energy policy: The wet wood pellets produced are "renewable biomass energy"

3. Application scenarios of wet wood chips biomass pellet processing equipment

In the clean energy sector, it is the core of biomass fuel production. Wet wood chip waste from lumber processing plants and furniture factories, after being processed into high-density pellets, can be used as fuel in biomass boilers, replacing coal for factory and industrial heating. It can also be used in biomass power plants and household heating stoves. Its high combustion efficiency and low carbon emissions make it suitable for the energy transition under the "dual carbon" goals. It is particularly popular in winter heating and small- and medium-sized power generation projects in northern China.

In industrial production, it supports raw material processing. The wood-based panel industry uses the wet wood chip pellets produced by the equipment as the base material for fiberboard and particleboard. The pelletized structure facilitates subsequent glue mixing and hot pressing, improving the uniformity of the board density. The papermaking industry compresses the wet wood chips using the equipment to reduce water loss and volume during transportation, thereby lowering transportation costs. Furthermore, the pelletized shape ensures uniform feeding in the pulping process, ensuring paper quality.

In agriculture and forestry, it promotes waste resource utilization. Wet wood chips from felled trees and wet fruit tree branches from orchard pruning can be processed into pellets and used as fuel for orchard frost protection and heating, as well as for greenhouse heating. The pellets can also be processed into organic mulch and used to cover farmland or forests, retaining water and suppressing weeds. This helps recycle agricultural and forestry waste and reduces incineration pollution.

In environmentally friendly treatment scenarios, it is a key tool for solid waste reduction. Wet wood chip waste from timber companies, if directly piled, is prone to rotting and stinking. Compressing it into pellets can reduce its volume by 60%-80%, making it easier to store and transport, and reducing disposal costs. The pellets can also be used as auxiliary fuel in waste incineration plants, raising the incineration temperature and reducing harmful gas emissions, meeting the needs of environmentally friendly solid waste treatment.

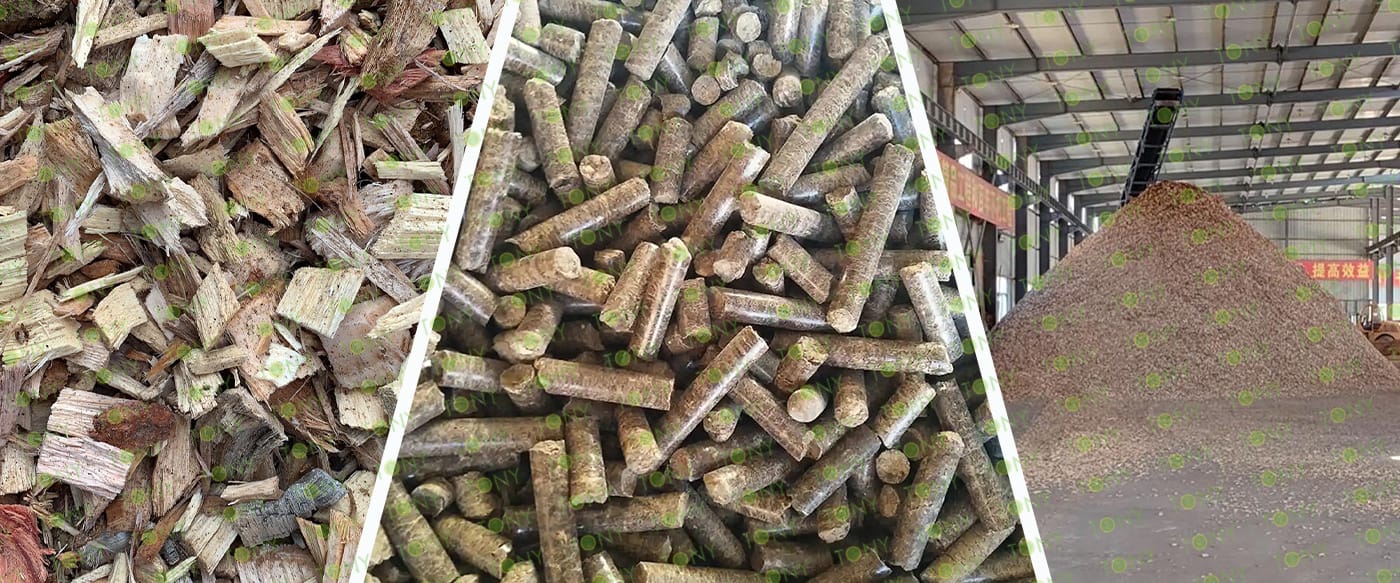

TONY Brand 9-10.5Ton/Hour Wet Wood Chips Pellet Manufacturing Plant can take wet wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, wet wood chips is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 9-10.5Ton/Hour

2. Raw materials: Wet wood chips

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood chips or more waste wood raw materials

Suitable customers: Solid wood furniture production, artificial board processing (plywood, fiberboard, particleboard), wood component processing, construction and decoration, packaging and logistics, such as pallets and wooden boxes, will generate a large amount of waste wood chips due to repeated use, size mismatch or changes in cargo transportation needs. Paper and pulp production where waste wood chips have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Chips Pellet Production Line

2. Raw Material: All kinds of wet wood chips

3. Moisture Content of Raw Material: 40%

4. Capacity: 9-10.5 tons per hour

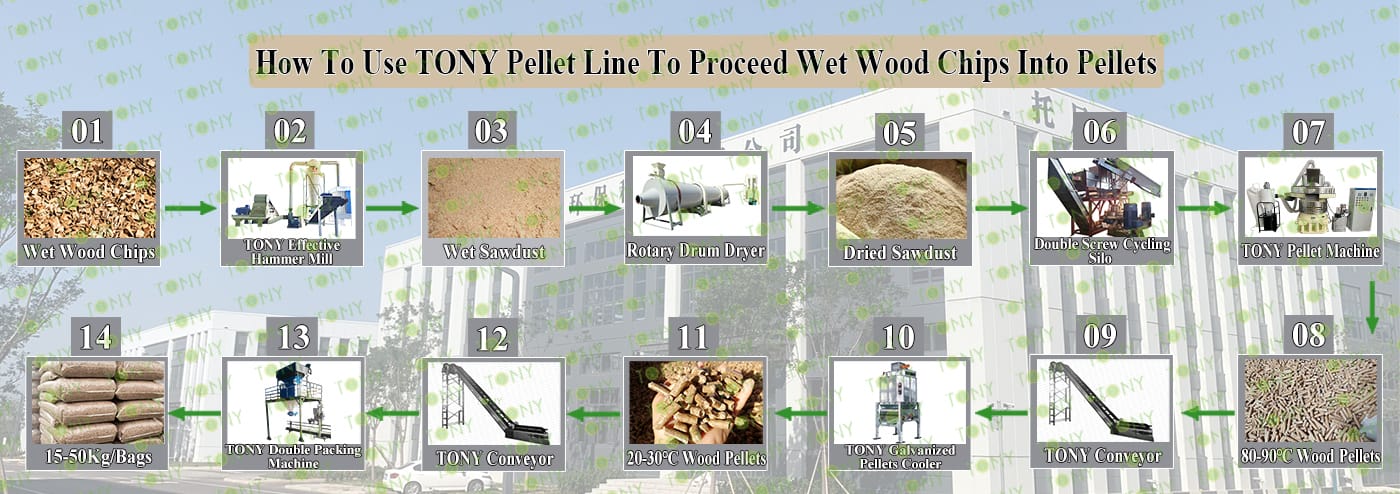

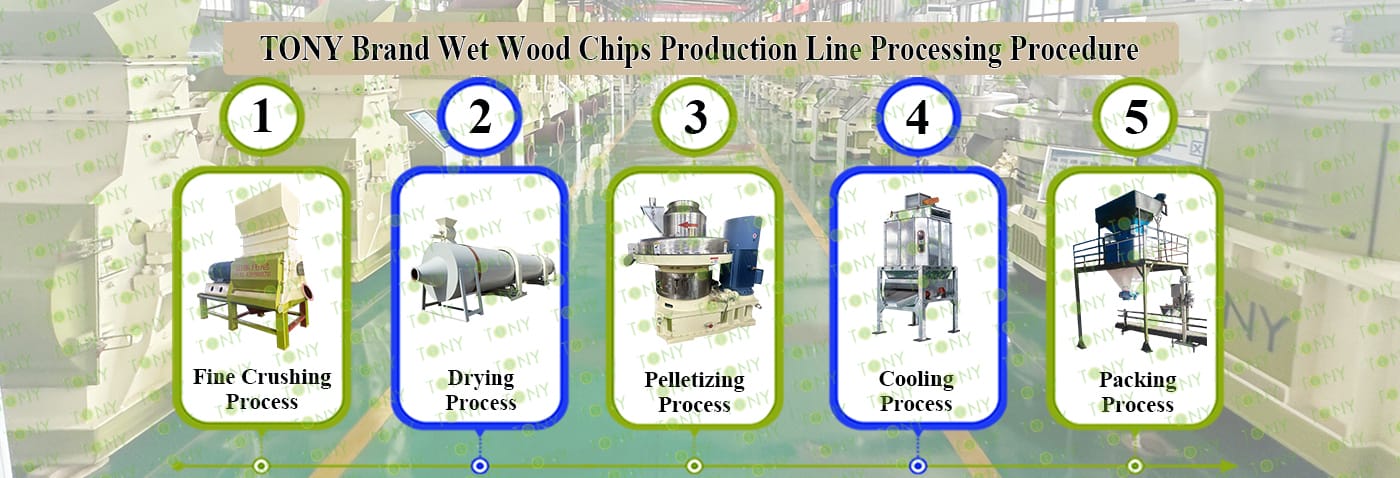

5. Process: Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Effective Hammer Mill-TFD75*132-132KW, Rotary Drum Dryer-3*24m, TONY Pellet Machine TYJ860-Ⅲ-220KW, Pellet Cooler, Double Packing Machine and Belt Conveyors

三维图

三维图

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Effective Hammer Mill	Rotary Drum Dryer	Double Screw Cycling Silo
1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD75*132-132KW*2sets  3.Capacity: 9-10.5Ton/Hour/Set	1.To Dry The 40% Sawdust Into 10-15% Sawdust.  2.Model: THGD3*24*1set  3.Capacity:9-10.5Ton/Hour/Set	1.To Stroage Sawdust Before Pellet Machine; Adjust The Speed Of Sawdust Entering The Pellet Machine 2.Model: TLC-11*1set  3.Capacity:9-10.5Ton/Hour/Set
Vertical Ring Die Pellet Machine	Galvanized Pellets Cooler	Double Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-220KW*3sets  3.Capacity:3-4Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃  Into 20-30℃ 2.Model: TCN-10*1set 3.Capacity:9-10.5Ton/Hour	1.To Pack Pellets Into 15-50Kg/Bags. 2.Model: TPZ-50*1set  3.Capacity: 9-10.5Ton/Hour

三维图

1.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:9-10.5Ton/Hour.

C.TONY brand effective hammer mill TFD75*132-132KW*2sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

2.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:9-10.5Ton/Hour.

C.TONY use 1set of 3*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:9-10.5Ton/Hour.

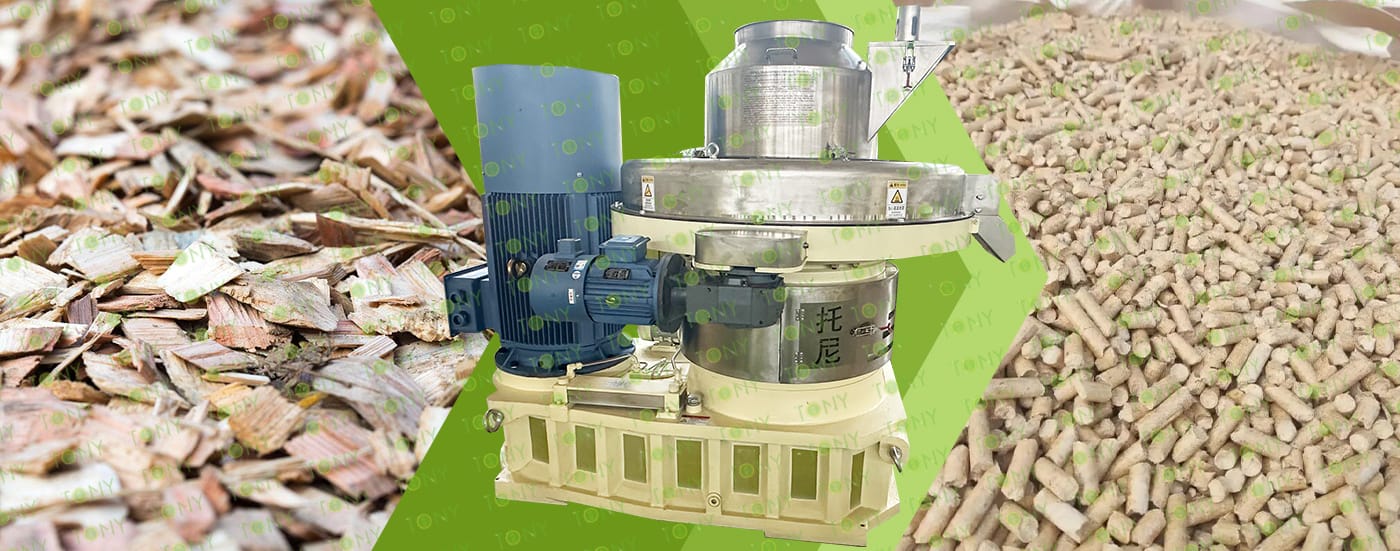

C.TONY brand vertical ring die pellet machine TYJ860-III-220KW*3sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:9-10.5Ton/Hour.

C.TONY brand galvanized cooler separator*1set

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

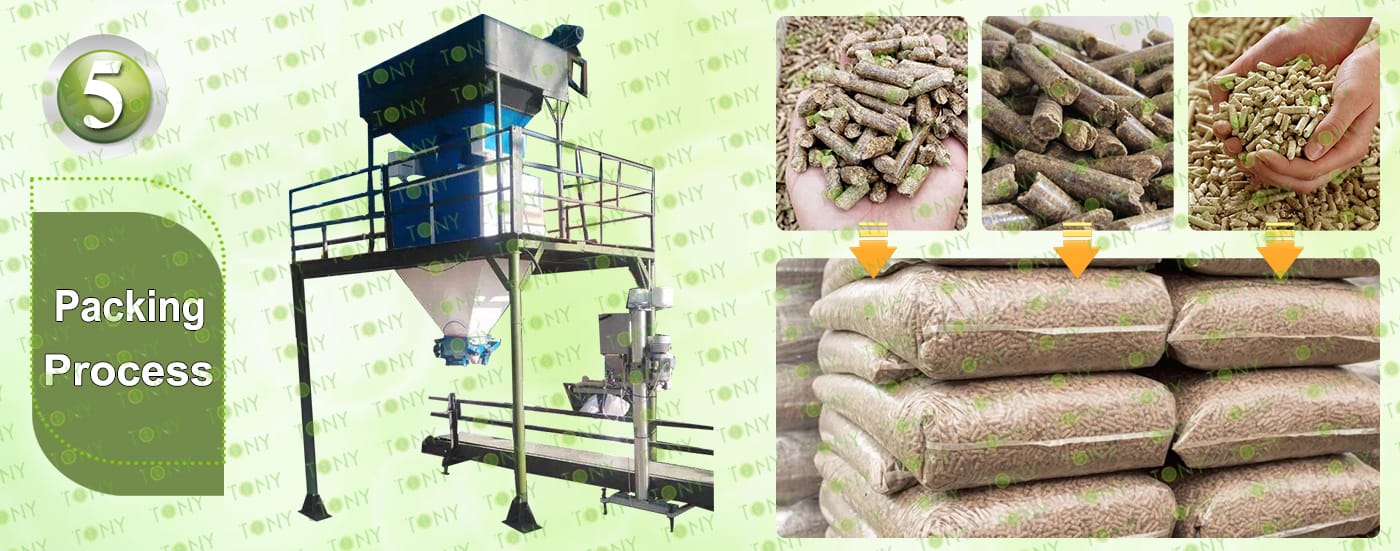

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50Kg/Bags.

B.Capacity:9-10.5Ton/Hour.

C.TONY double packing machine*1set

Main Parts:

(1)TONY's  double packing machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

1.Strong policy support:

With the ongoing advancement of the "Dual Carbon" strategy, China has introduced a series of policies to encourage the development and application of biomass energy. For example, the "14th Five-Year Plan for Renewable Energy Development" explicitly supports this sector, creating a favorable policy environment for biomass pellet processing projects.

2.Abundant raw material resources:

The raw materials for biomass pellets primarily consist of agricultural and forestry waste, such as straw, sawdust, rice husks, and peanut shells. These sources are widespread, and in some areas, these raw materials are even available free of charge, effectively reducing procurement costs.

3.Strong market demand:

Biomass pellets can be used for industrial heating, residential heating, power generation, animal husbandry, and other applications. With increasing environmental protection requirements, traditional coal-fired boilers are gradually being phased out. Demand for biomass pellets is rapidly growing in areas such as industrial boiler renovation, biomass heating, and power plants.

1.Storage and Transportation Advantages

(1)High Density for Easy Storage:

After compression molding, the volume is significantly reduced, making it easy to store and resistant to moisture and deterioration.

(2)Easy Transportation:

The regular shape facilitates mechanized loading and unloading and transportation, reducing logistics costs.

2.Application Advantages

(1)Wide Range of Applications:

It can be used in a variety of applications, including industrial boilers, biomass power plants, home fireplaces, and agricultural greenhouse heating, replacing traditional energy sources such as coal and natural gas, offering high application flexibility.

(2)Convenient Use:

It can be fed through automated equipment, making operation simple and compatible with many existing combustion equipment, eliminating the need for major equipment modifications.
