Project Brief Introduction:

1.Product:Wet EFB Pellet Line

2.Capacity:1.5-2T/Hour

3.TONY Bran1.5-2 Ton /Hour Wet EFB Pellet Line Project Process

4.Main Machine:Comprehensive Chipper, Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ551-Ⅲ-110kw,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 340 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

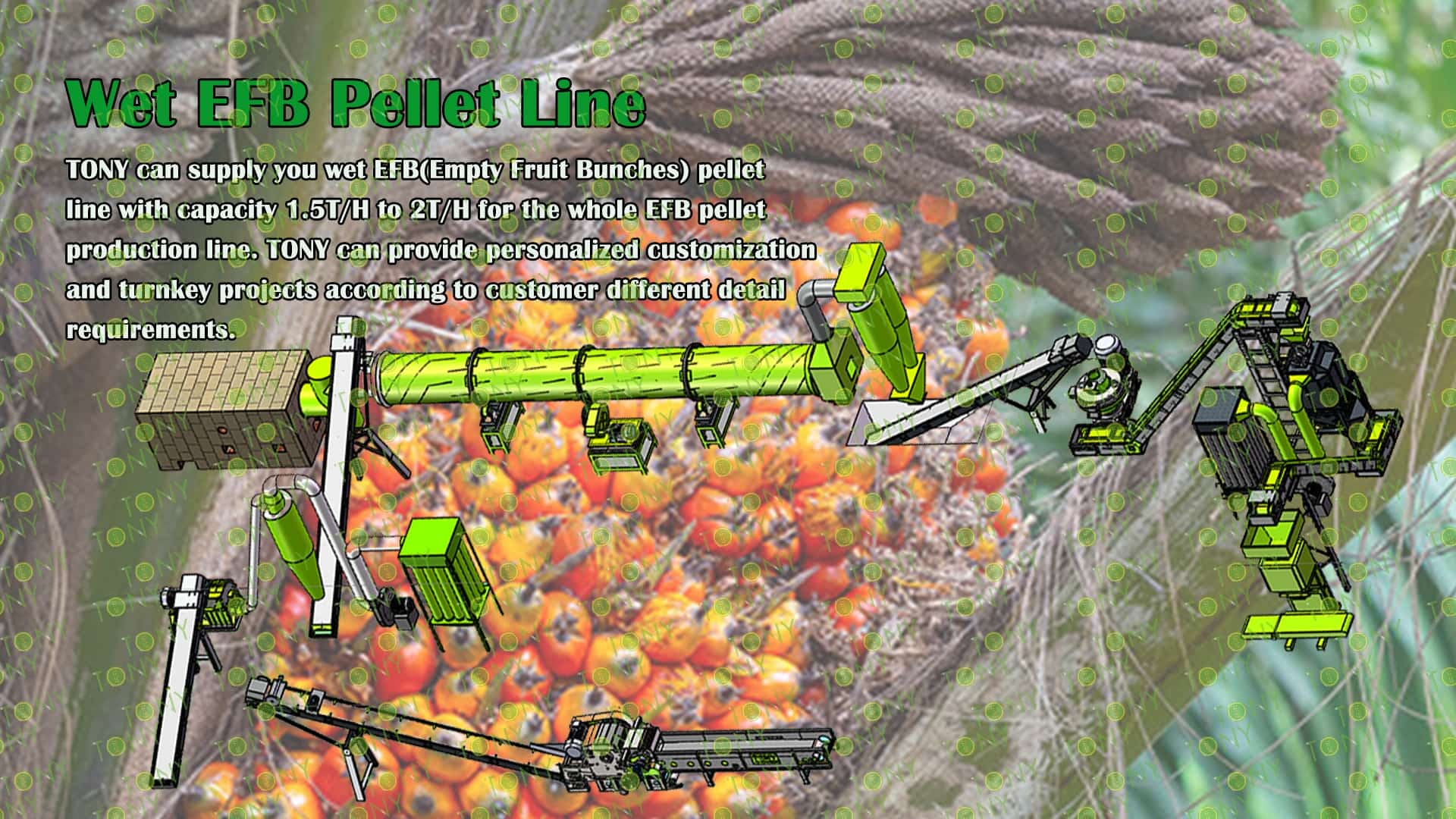

Project Layout For Customer:

三维图

原材料图+颗粒机图片

1. The working principle of wet EFB biomass pellet processing equipment

The principle of the wet EFB pellet processing equipment is to squeeze the wet EFB into pellets by physical means. During the pelletizing process, the biomass sawdust raw material falls vertically from the feed port. The rotation of the pressing roller makes the material continuously and evenly distributed on the surface of the inner cavity of the mold. Under the rolling of the pressing roller, the powdered material passes through the holes of the mold. In this process, the material is subjected to high pressure and high temperature, which causes physical changes or appropriate chemical changes, prompting the powdered material to form a continuously elongated cylindrical solid body. The pellets are then cut by a cutting knife and discharged from the discharge port. At this point, the pellet pressing process is completed.

2. Characteristics of wet EFB biomass pellet processing equipment

(1)Efficient pelletizing and stable pellet quality. The core equipment, the ring die pelletizer, utilizes a high-strength alloy ring die and wear-resistant rollers to withstand the high friction of wet sawdust, ensuring continuous production.

(2)Highly adaptable to high-moisture raw materials, it can quickly reduce moisture to the required 10%-15% for pelletizing. Even with large moisture fluctuations (such as sawdust collected during the rainy season), stable operation is maintained.

(3)Energy-saving and environmentally friendly, with high resource utilization.

(4)Highly automated and easy to operate, it monitors parameters such as raw material moisture, pelletizing temperature, and output in real time, automatically adjusting drying time, feed rate, roller speed, and other parameters to minimize manual intervention.

3. Application scenarios of wet EFB biomass pellet processing equipment

(1) Pulp and Paper Industry: Wet palm fruit bunch (EFB) pellet processing equipment effectively removes residual oil, fruit particles, and non-fibrous skin components from palm fruit bunches (EFBs), which are detrimental to pulping. This reduces water and chemical consumption in subsequent pulping and improves the quality and papermaking properties of the resulting pulp.

(2)Biomass Energy Production: Wet palm fruit bunch (EFB) pellets can be used as biomass fuel for power generation or heating. After processing through extrusion and dehydration, the EFB pellets have a high calorific value, making them a viable alternative to traditional fossil fuels and reducing greenhouse gas emissions.

(3)Fertilizer Manufacturing: Processed wet palm fruit bunch (EFB) pellets can be converted into organic fertilizer for agricultural use. These pellets are rich in nutrients, improving soil structure and increasing crop yield and quality.

2.图片

TONY Brand 1.5-2 Ton/Hour Wet EFB Pellet Manufacturing Plant can take wet EFB as the main raw material. After pretreatment and processing, it is solidified into high - density EFB pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in EFB resources.

1. Capacity: 1.5-2 Ton/Hour

2. Raw materials: Wet EFB

3. Moisture: Wet type, about 40%.

4. Application: All kinds of EFB materials suitable for pellet production.

Suitable customers: Palm plantation owners or related agricultural enterprises have abundant EFB resources. For example, palm oil mills generate a large amount of EFB waste during the production process. Energy companies, EFB biomass pellets as a clean energy, can be used in industrial heating, power generation and other fields, and have synergy with the existing business of energy companies. Environmental investors, investors with financial strength, technology investors, etc.and other places where EFB raw materials have advantages

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片


原材料--成品图

1. Project Name: Wet EFB Pellet Production Line

2. Raw Material: All kinds of wet EFB

3. Moisture Content of Raw Material: 40%

4. Capacity: 1.5-2 tons per hour

5. Process: Crushing Process - Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper -TPC1000 - 90kw,Effective Hammer Mill-TFD65*55-45kw, Rotary Drum Dryer-1.6*12m, TONY Pellet Machine- TYJ551-Ⅲ-110kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片

流程图1

流程图.

5.图片

原材料+颗粒图

颗粒+机器图

三维图

三维图

5.1图片

TPC1000-90KW机器图

带原材料-成品图

1.Wet EFB To Palm Fiber Process:

A.This process is mainly used to grind the EFB into palm fiber with size 25-55mm. The finish  palm fiber  size can be adjustable by changing different sizes of screeners and adding flying knives inside the wood chipper.

B.TONY brand comprehensive chipper TPC1000-90kw with 6 flying blades type*1 set

C.Capacity:7-10 Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

5.2图片

高效粉碎机

带锯末图

2.Palm Fiber Fine Crushing Process:

A.This process is mainly used to crush 25-55mm palm fiber into 8-14mm palm dust.

B.Capacity:1.5-2 Ton/Hour.

C.TONY brand effective hammer mill TFD65*55-45kw*1set

Main Parts:

(1)TONY Effective Hammer Mill

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.3图片

烘干机

带锯末图

3.Wet Palm Dust Drying Process:

A.This process is mainly used to dry the palm dust  from 40% to 10-15%.

B.Capacity:1.5-2 Ton/Hour.

C.TONY use 1 set of 1.6*12m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.4图片

颗粒机四件套带 原材料，颗粒图

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:1.5-2Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ551-III-110kw*1 set

Main Parts:

(1)TONY's new Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.5图片

镀锌冷却仓加颗粒图

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:1.5-2 Ton/Hour.

C.TONY brand galvanized pellets cooler *1 set

Main Parts:

(1)TONY's new Galvanized Pellets Cooler With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3) Fan Blower.

(4)Connect Pipes.

5.6图片

包装机

6.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:1.5-2 Ton/Hour.

C.TONY  brand semi-automatic packing machine*1 set

Main Parts:

(1)TONY Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

客户生产线案例图

7.图片

图 湿EFB+颗粒 颗粒机

After drying and other pre-treatment, wet palm fruit bunch pellets can be used as biomass fuel. Compared with traditional fossil fuels, it has the advantages of being renewable and having relatively low carbon dioxide emissions. In some regional heating systems, the heat generated by the combustion of wet palm fruit bunch pellets can be used for heating residents, heating in industrial production processes, etc. Biomass pellet heating systems are widely used, and wet palm fruit bunch pellets are used as one of the raw materials to provide local residents with a warm winter living environment. This is because it has good combustion performance, can effectively release heat, and has a relatively wide source and relatively low cost.

8.图片

湿EFB图 颗粒图

1.Renewable Resource:EFBs are the primary waste product from palm oil mills after the oil is extracted from palm fruit. They are a renewable resource. Using this waste to produce pellet fuel helps reduce dependence on fossil fuels and minimize environmental pollution.

2.High Calorific Value:EFB pellets have a high calorific value, making them an efficient fuel. They can be used as a key fuel in biomass power plants or as boiler fuel, providing stable energy output.

3. Environmentally Friendly: Compared to traditional fossil fuels, the combustion of EFB pellets produces lower carbon dioxide emissions, helping to reduce greenhouse gas emissions. Furthermore, using these pellets reduces environmental pollution, as they are produced during the processing of agricultural waste.

4. Economic Benefits: Converting empty fruit bunches into pellet fuel not only solves waste disposal issues but also creates additional economic value. For example, by processing palm fruit bunches into pellets and signing long-term sales contracts, this demonstrates the market potential and economic benefits of this sector.
