Project Brief Introduction:

1.Product:Wet Wood Pallets Pellet Line

2.Capacity:15-18T/Hour

3.TONY Brand 15-18Ton /Hour Wet Wood Pallets Pellet Line Project Process

4.Main Machine: Comprehensive Chipper,Hammer Mill,Large Hydraulic Storage Silo, Rotary Drum Dryer,TONY Pellet Machine TYJ760 - Ⅲ -160KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 2250 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

Project Layout For Customer:

三维图

1. The working principle of wet wood pallets biomass pellet processing equipment

The core principle of wood pellet processing equipment (such as wood chip pellet machines) is to convert biomass feedstock into high-density pellet fuel through mechanical extrusion. The basic process includes three steps: feedstock pretreatment (crushing, drying, and screening), mechanical pressing, and finished product processing (cooling and packaging). For example, in a ring die pellet machine, a motor connected to a reducer via a coupling drives the ring die to rotate. Gravity forces the feedstock into the pressing zone, where the pressing rollers squeeze the material into the ring die holes. After being formed in the die, the pellets are cut into pellets of a fixed length by a cutter.

2. Characteristics of wet wood pallets biomass pellet processing equipment

(1) High-strength crushing/smashing system to cope with "large block + hard" raw materials

Wood pallets are mostly whole boards (usually 1.2m×1.0m, 1.1m×1.1m in size), and some are plywood and solid wood hard materials. The crusher needs to have high torque and wear resistance

(2) High-efficiency impurity removal device to accurately separate "metal + non-metal" impurities

The key pain point of wood pallet processing is "containing metal nails and plastic accessories". The equipment usually integrates a multi-stage impurity removal system to ensure the purity of the particles

(3) Wide range of moisture content adaptation to reduce drying energy consumption

Wood pallets have different storage environments and large differences in moisture content (15%-30%). The drying system of the equipment (mostly a drum hot air dryer) can achieve precise temperature control (80-120℃) and humidity adjustment, stabilizing the moisture content of wood chips at 10%-15% (the optimal humidity for pelletizing)

(4)Wood pallet pellet processing requires multiple steps: crushing → impurity removal → pulverization → drying → pelletizing → cooling → screening. Equipment typically comes in the form of a complete production line, with core features including a consistent process flow and a high degree of automation.

(5)Wood pallet raw materials (especially plywood and hardwood) subject equipment components to significant wear and tear, making durability a key feature.

(6)Wood pallet processing is prone to dust and noise, and poses significant risks to mechanical safety. Therefore, the equipment features specific environmental and safety design features.

(7)Wood pallet pellet production equipment can be flexibly adjusted based on the user's production capacity, site, and intended use of the finished product, meeting diverse needs.

3. Application scenarios of wet wood pallets biomass pellet processing equipment

(1)Logistics/Warehousing Companies Build Their Own Recycling Lines

Large logistics parks and e-commerce warehouses generate thousands to tens of thousands of pieces of waste wet pallets annually. This equipment allows for on-site processing: Instead of sending the waste pallets for drying, the wet pallets are directly crushed into wood chips. The equipment's built-in drying system reduces the moisture content to pelletizing requirements, ultimately producing fuel pellets for the company's own forklifts and boilers, or for external sales. This reduces waste disposal costs and generates additional revenue.

(2)Professional Waste Wood Pallet Recycling Companies

For companies specializing in the recycling and reuse of wood pallets, traditional methods only allow for the disassembly and reassembly of dry pallets. Wet pallets, prone to mold and deformation, are often treated as waste. This type of equipment can expand their business scope by processing recycled wet pallets into biomass pellets, addressing the problem of unusable wet materials and forming a complete "recycling-processing-sales" industry chain. This equipment is particularly suitable for locations near ports and industrial parks (near concentrated sources of wood pallets). Wood Processing/Furniture Factory Ancillary Processing

Wood processing and furniture factory operations generate wet pallets (for transporting finished products) and scraps. This equipment can process these wet pallets and scraps together, eliminating the need for separate handling of different materials. This allows one device to process multiple wet materials, improving resource utilization.

TONY Brand 15-18Ton/Hour Wet Wood Pallets Pellet Manufacturing Plant can take wet wood pallets, various types of wood - related biomass materials, such as branches, small - diameter logs, and wood shavings, with wet wood as the main raw material. After pretreatment and processing, it is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 15-18Ton/Hour

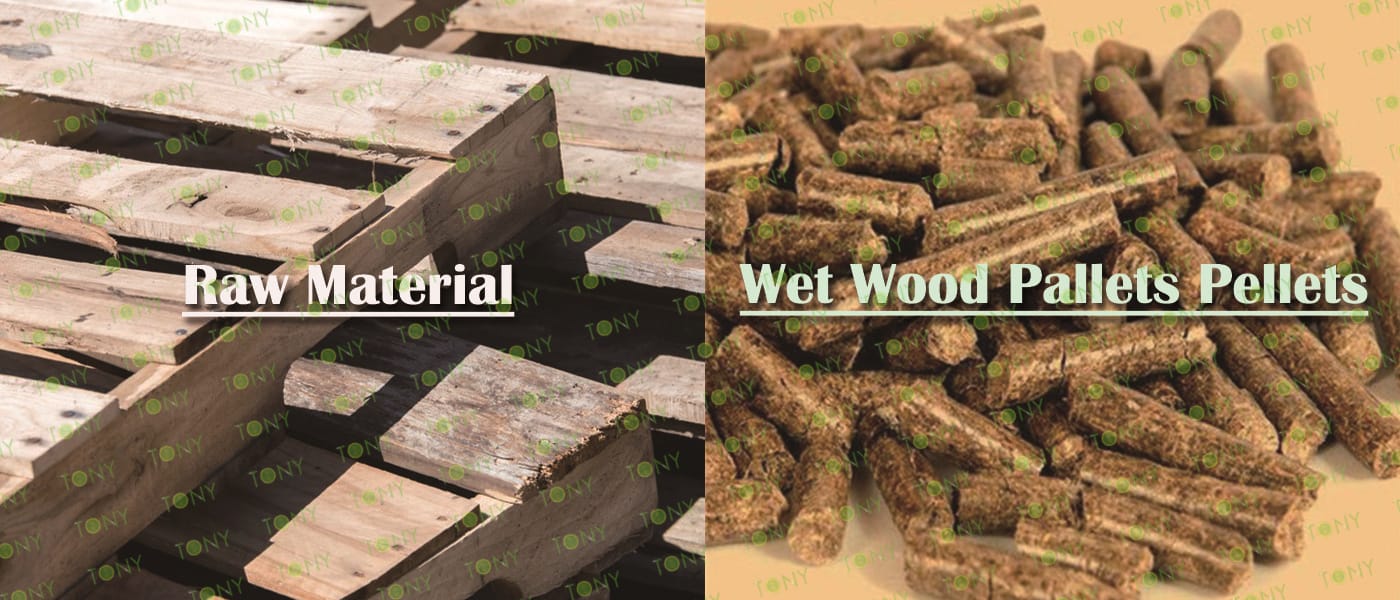

2. Raw materials: Wet wood pallets

3. Moisture: Wet type, about 40%.

4. Application: All kinds of waste wood pallets or more waste wood raw materials

Suitable customers: Logistics and warehousing companies, various manufacturing plants, ports and airports, construction sites, large supermarkets and shopping malls, and other places where waste wood pallets have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Pallets Pellet Production Line

2. Raw Material: All kinds of wet wood pallets

3. Moisture Content of Raw Material: 40%

4. Capacity: 15-18 tons per hour

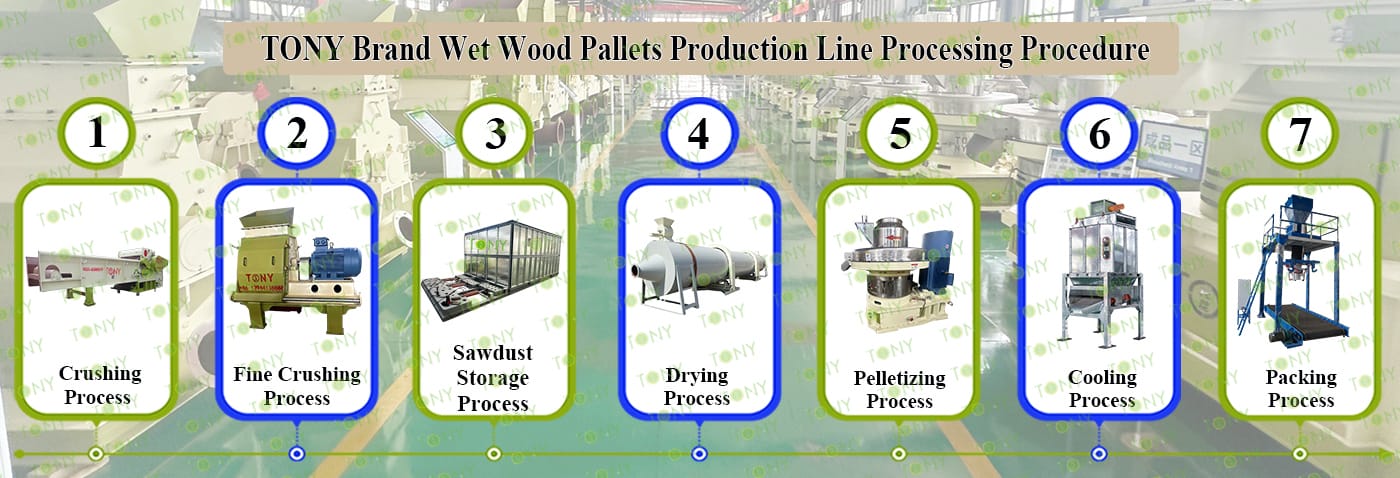

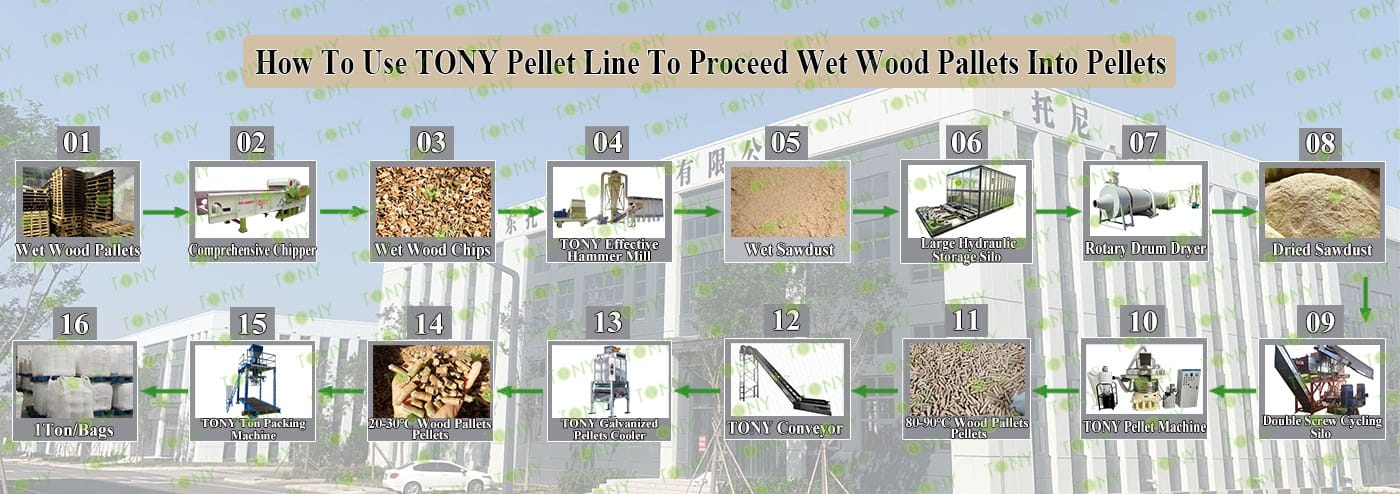

5. Process:  Crushing Process - Fine Crushing Process -Sawdust Storage Process- Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Comprehensive Chipper TPC1600-1000-250KW, Effective Hammer Mill-TFD85*250-250KW, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-2.5*24m,  TONY Pellet Machine TYJ760-Ⅲ-160KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

三维图

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Comprehensive Chipper	Effective Hammer Mill	Large Hydraulic Storage Silo	Rotary Drum Dryer
1.To Grind Wood pallets Width  ≤1.6m Into25-55mm Wood Chips.    2.Model: TPC1600-1000-250KW With 24 Hammer Heads*1set   3.Capacity: 20-30Ton/Hour.	1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD85*250-250KW*2sets 3.Capacity: 8-10Ton/Hour/Set	1.To Storage Sawdust Before Dryer Control Sawdust Flow Entering The Dryer Model: TCY-25*2sets 2.TONY Uses Galvanized Material	1.To Dry The 40% Sawdust Into 10-15% Sawdust.   2.Model: THGD2.5*24*2sets 3.Capacity:8-9Ton/Hour/Set
Vertical Ring Die Sawdust Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine	Belt Conveyor
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ760-III-160KW*6sets 3.Capacity:2.5-3Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-4*2sets 3.Capacity:15-18Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags. 2.Model: TBD* 2sets 3.Capacity: 15-18 Ton/Hour	1.To Transport Wood Chips,Sawdust,Pellets. 2.Width: 80cm*14sets 3.Capacity:Designed With The Whole Line

三维图

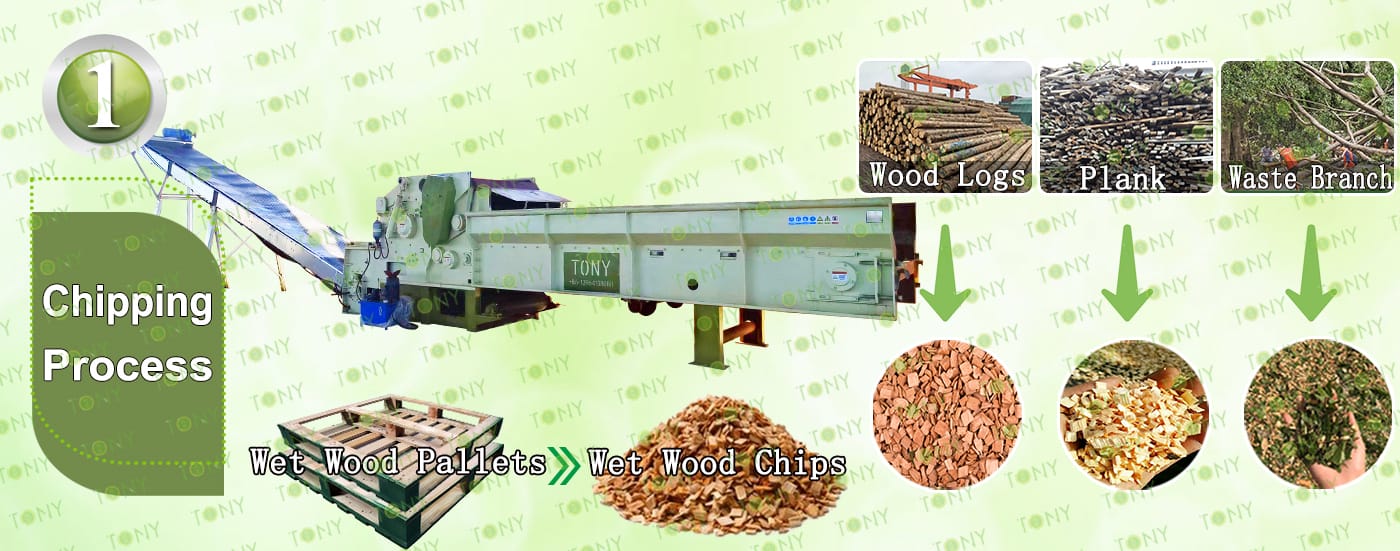

1.Wood Pallets Chipping Process:

A. This process is mainly used to grind wooden pallets with nails less than 1.6 m  in width into wood chips with a size of 25-55 mm. The final size of the wood chips can be adjusted by replacing the screen with different sizes and replacing or adjusting the hammer heads with different specifications.

B.TONY brand comprehensive chipper TPC1600-1000-250kw model with  24 hammer heads*1set

C.Capacity:15-18Ton/Hour.

Main Parts:

(1)TONY's Comprehensive Chipper.

(2)Feed And Discharge Belt Frequency Control To Prevent Card Material

(3)Hydraulic System Control Can Be Used For Thicker Materials

(4)Electronic Control System Allows The Equipment To Be Used Normally

Contact Tony For More Details With Quotation

2.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:15-18Ton/Hour.

C.TONY brand effective hammer mill TFD85*250-250KW*2sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

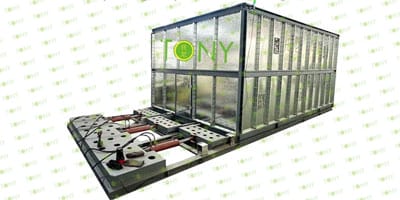

3.Sawdust Storage Process:

A. This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B. TONY brand sawdust storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2) With screws inside the storage bin to prevent sawdust blocked.

4.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:15-18Ton/Hour.

C.TONY use 2 sets of 2.5*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

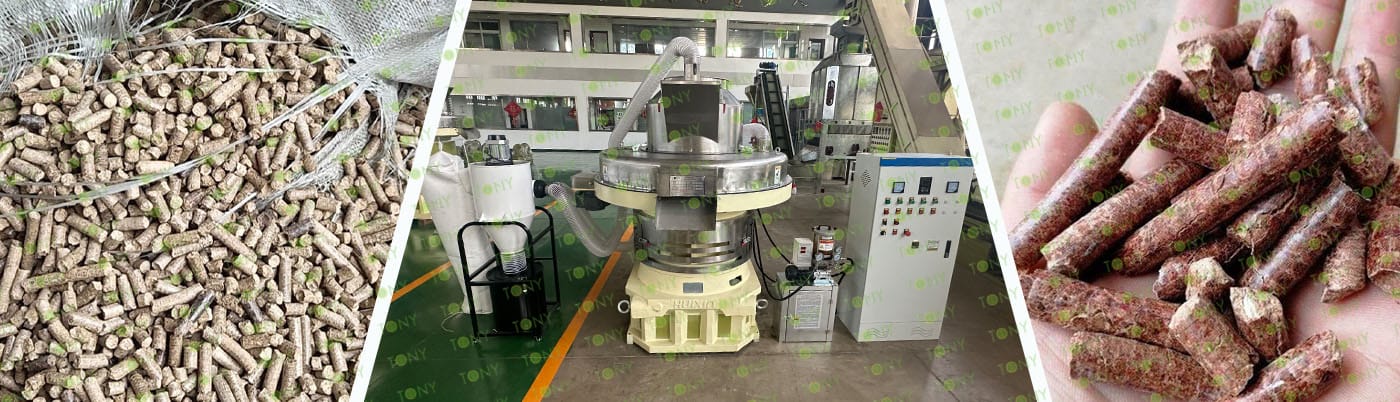

5.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:15-18Ton/Hour.

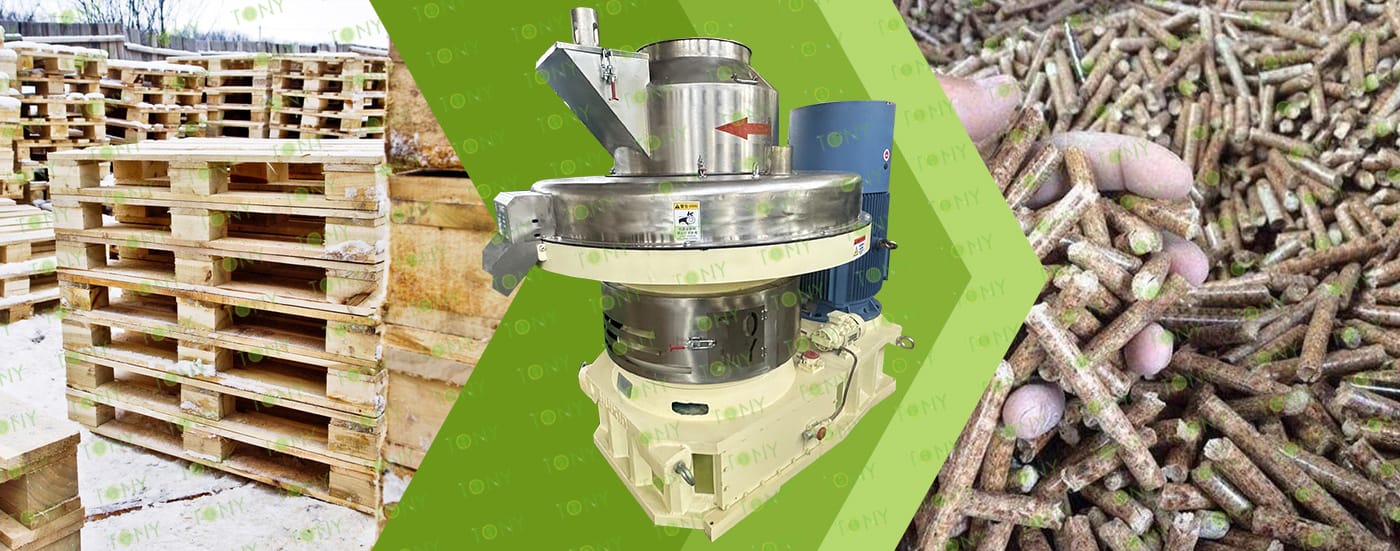

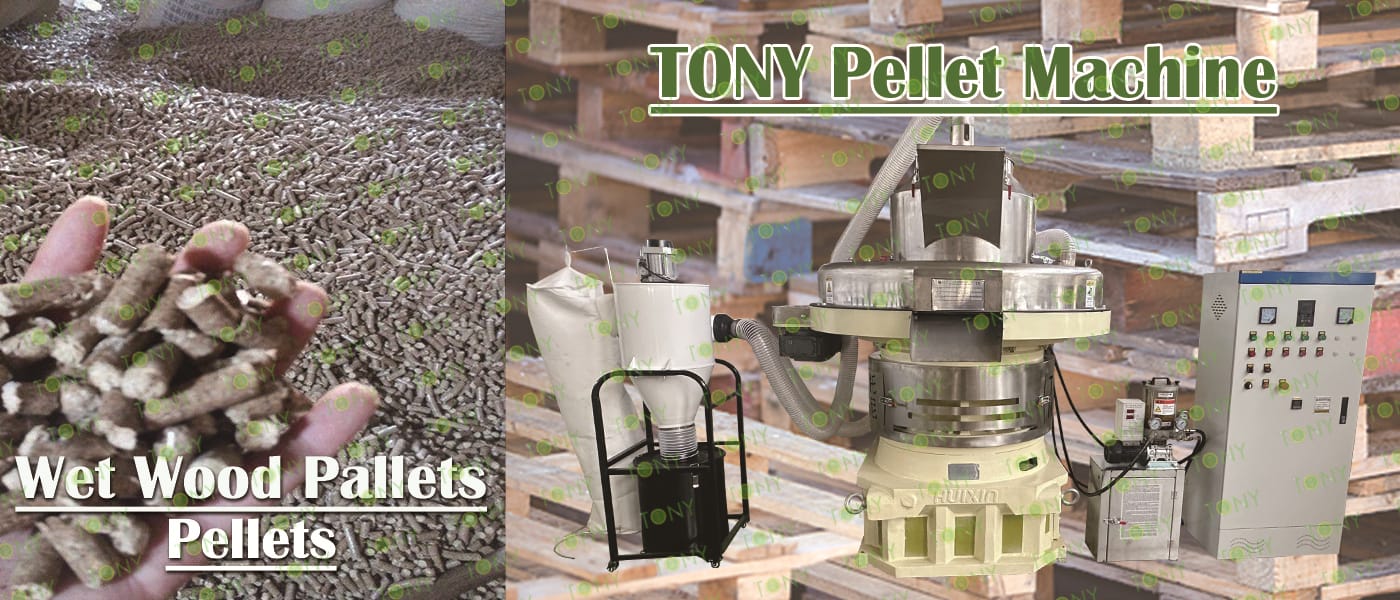

C.TONY brand vertical ring die pellet machine TYJ760-III-160KW*6Sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

6.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:15-18Ton/Hour.

C.TONY brand galvanized cooler separator*2sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

7.Packing Process:

A.This process is mainly used to pack pellets into 1ton/bags.

B.Capacity:15-18Ton/Hour.

C.TONY brand ton packing machine*2sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

Project Advantages: Market competitiveness and environmental value

1.Excellent product characteristics and strong market competitiveness

Biomass pellets have many excellent characteristics. Their calorific value is high, generally 4200-4800 kcal/kg, close to medium-quality coal, and can provide sufficient heat; they have low ash content, and very little ash remains after combustion, reducing cleaning costs and environmental pollution; they have low emissions, extremely low sulfur content (usually <0.05%), and low nitrogen content. The pollutants such as SO₂ and NOₓ produced during combustion are much lower than those produced by burning coal, meeting strict environmental protection standards and are highly favored by customers with high environmental protection requirements. In addition, biomass pellets have a regular shape, mostly cylindrical pellets with a diameter of 6-12mm and a length of 20-50mm. The density can reach 0.8-1.2g/cm³, high hardness, not easy to break, and easy to store and transport, further enhancing the market competitiveness of the product.

2.Significant environmental benefits and high social value

The development of the biomass pellet industry is to "turn waste into treasure" for agricultural and forestry waste, realize the recycling of resources, and reduce the pollution of waste to the environment. At the same time, during the combustion process of biomass pellets, the carbon dioxide emissions are basically balanced with the carbon dioxide absorbed during plant growth, achieving "carbon neutrality", helping to alleviate the greenhouse effect and improve air quality. This not only complies with the national environmental protection policy, but also establishes a good corporate image for entrepreneurs, bringing high social reputation and potential business opportunities.

As biomass pellet fuel or industrial auxiliary material, wood pallet pellets offer stable physical and chemical properties, and their user experience surpasses traditional loose wood and coal. Specifically, they demonstrate the following:

1. High energy density and excellent combustion efficiency

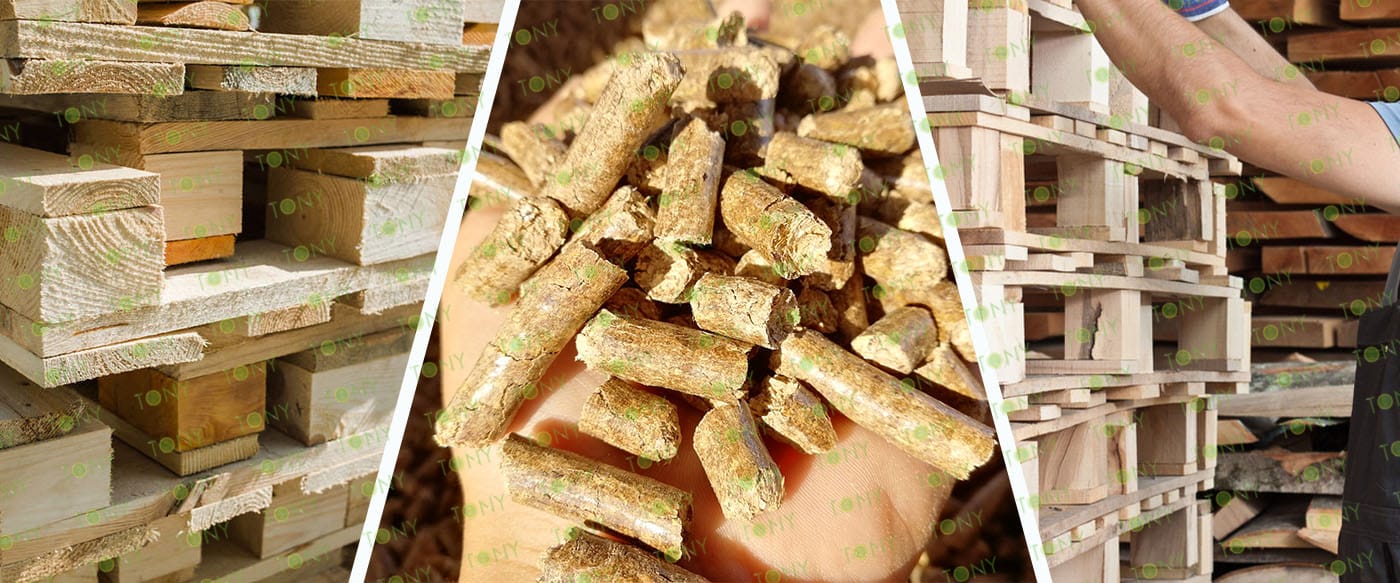

After compression molding, wood pallet pellets achieve a density of 1.1-1.3g/cm³ (much higher than the 0.4-0.6g/cm³ of loose wood), a volume reduction of 6-8 times, and a calorific value per unit volume of 4200-4800kcal/kg (similar to medium-quality coal). They also resist slagging during combustion (due to the low ash content of 1%-3% found in softwood, wood pallets are primarily made of softwood). Their thermal efficiency is over 30% higher than that of loose wood, making them suitable for use in boilers, fireplaces, hot air furnaces, and other equipment.

2. Convenient Storage and Transportation, Low Cost

The pellets have a regular shape (mostly cylindrical, 6-10mm in diameter and 10-30mm in length) and good fluidity. They can be transported in bags, silos, or conveyor belts, and are resistant to moisture and deformation. They require only one-fifth the storage space of bulk wood of the same thermal mass, and there's no concern for insect infestation or mildew (the high temperatures during the pelletizing process kill insect eggs and mold), reducing labor and space costs during storage and transportation.

3. Low Entry Points, Wide Adaptability

Wood pallet pellets can be directly used in automated biomass combustion equipment (such as pellet stoves and biomass boilers). No complex pre-processing (such as chopping or pulverizing) is required; simply feed the pellets at a constant rate through a feeder. Operation is simple, making them suitable for industrial heating, home heating, agricultural greenhouse insulation, and other applications. They can also serve as an auxiliary fuel in biomass power plants.
