1. The working principle of wet wood chips biomass pellet processing equipment

The essence of wet wood chip pellet processing equipment is to "use mechanical high pressure as a driving force, with lignin (a natural binder) and water (an auxiliary bonding agent) as the bond, through a continuous process of 'crushing - extrusion - cutting - cooling' to transform loose wet wood chips into high-density, easily storable solid pellets." Its key advantage lies in its adaptability to wet materials. By optimizing die gaps, controlling frictional heat, and implementing a supporting cooling system, it avoids mold sticking and clogging caused by wet materials during processing. It also utilizes the moisture in the wet material to reduce extrusion resistance and lower equipment energy consumption.

2. Characteristics of wet wood chips biomass pellet processing equipment

(1)Precise machining accuracy: The main housing is made of high-quality steel, with uniform thickness and compact structure; it is carefully machined by imported CNC machining centers, with zero machining accuracy, providing stronger support for normal operation.

(2)Reliable lubrication system: The bearings and oil seals used in the transmission part are all made of high-precision bearings and wear-resistant and temperature-resistant fluororubber oil seals, and a special automatic lubrication system is added, with oil circulation cooling and automatic timed lubrication to ensure that the bearings are fully lubricated and the operation is safer and more reliable.

(3)Durable ring die: The ring die is made of precision and has a unique compression ratio design, which makes the product quality better and the service life of the ring die longer, minimizing the production cost.

(4)Continuous operation capability: The new generation of biomass pellet mill can achieve 24-hour continuous operation

3. Application scenarios of wet wood chips biomass pellet processing equipment

(1)Building materials industry: Wood chips can be used as raw materials for building materials and used to produce various boards and composite materials.

(2)Furniture factories: During the furniture manufacturing process, scraps and leftovers can be converted into wood chips through wet wood chip processing equipment. These pellets can be reused or used as fuel.

(3)Forestry and board mills: Wood waste generated in these places can be processed into wood chips for the production of biomass energy.

(4)Animal husbandry and feed industry: Wood chips can also be used as raw materials for feed pellets. After proper drying and processing, they can meet the needs of animal feed.

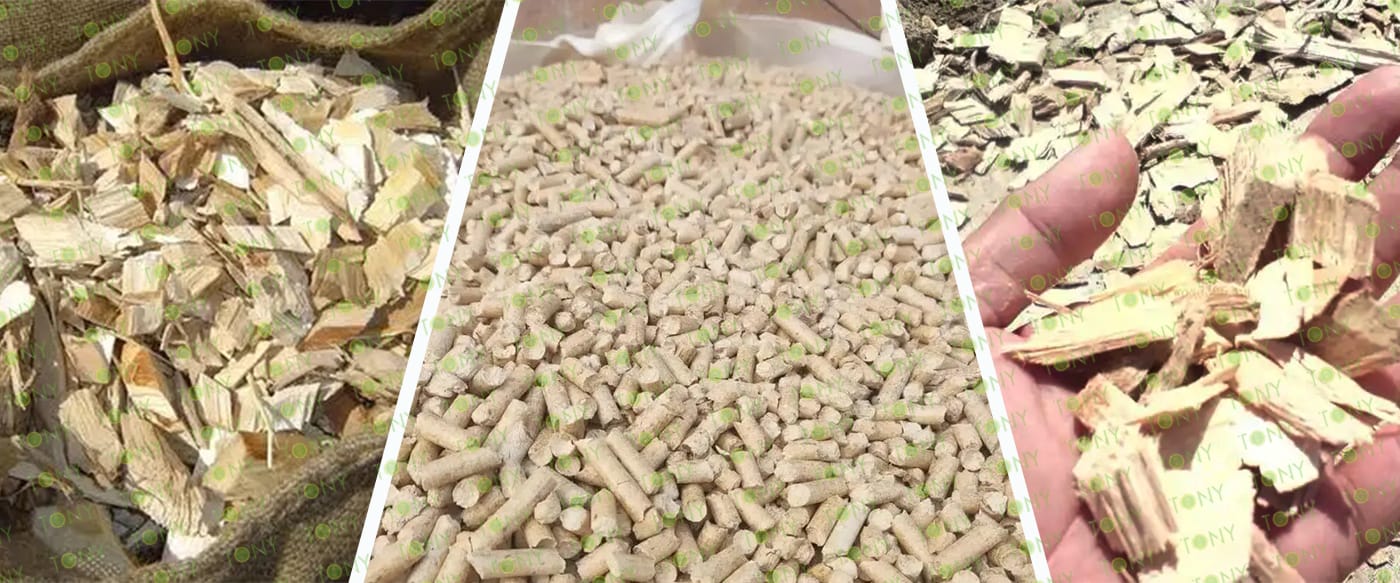

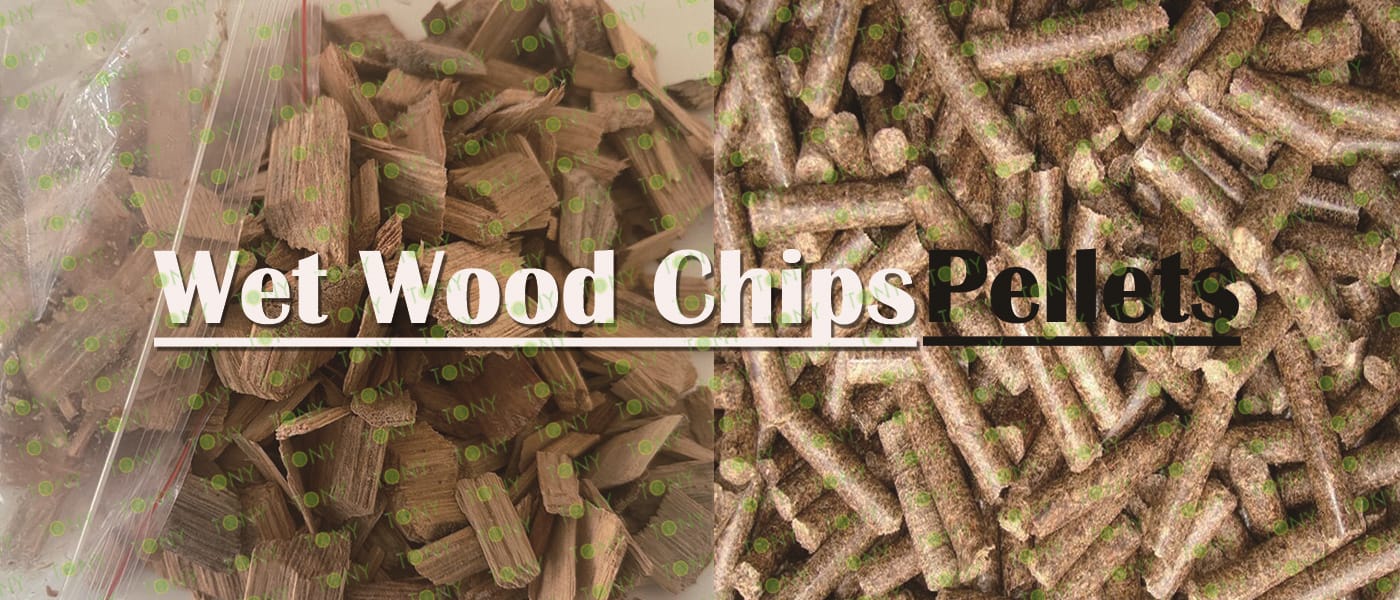

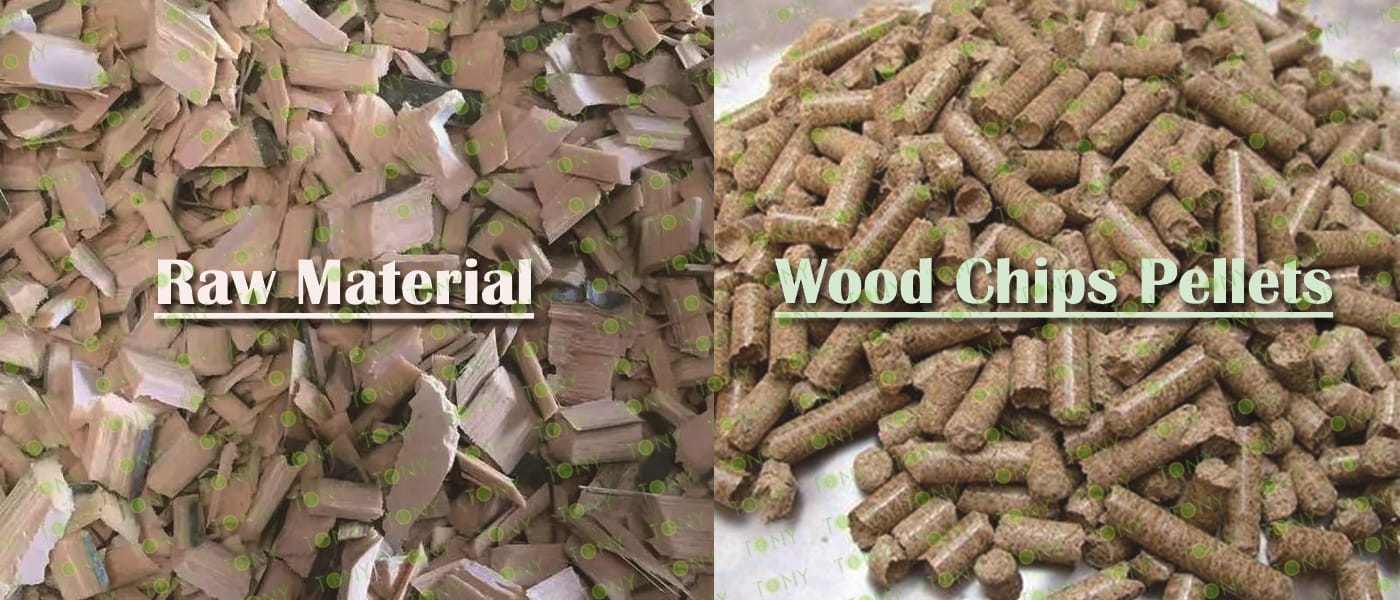

TONY Brand 24-30Ton/Hour Wet Wood Chips Pellet Manufacturing Plant can take wet wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, wet wood chips is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 24-30Ton/Hour

2. Raw materials: Wet wood chips

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood chips or more waste wood raw materials

Suitable customers: Solid wood furniture production, artificial board processing (plywood, fiberboard, particleboard), wood component processing, construction and decoration, packaging and logistics, such as pallets and wooden boxes, will generate a large amount of waste wood chips due to repeated use, size mismatch or changes in cargo transportation needs. Paper and pulp production where waste wood chips have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Chips Pellet Production Line

2. Raw Material: All kinds of wet wood chips

3. Moisture Content of Raw Material: 40%

4. Capacity: 24-30 tons per hour

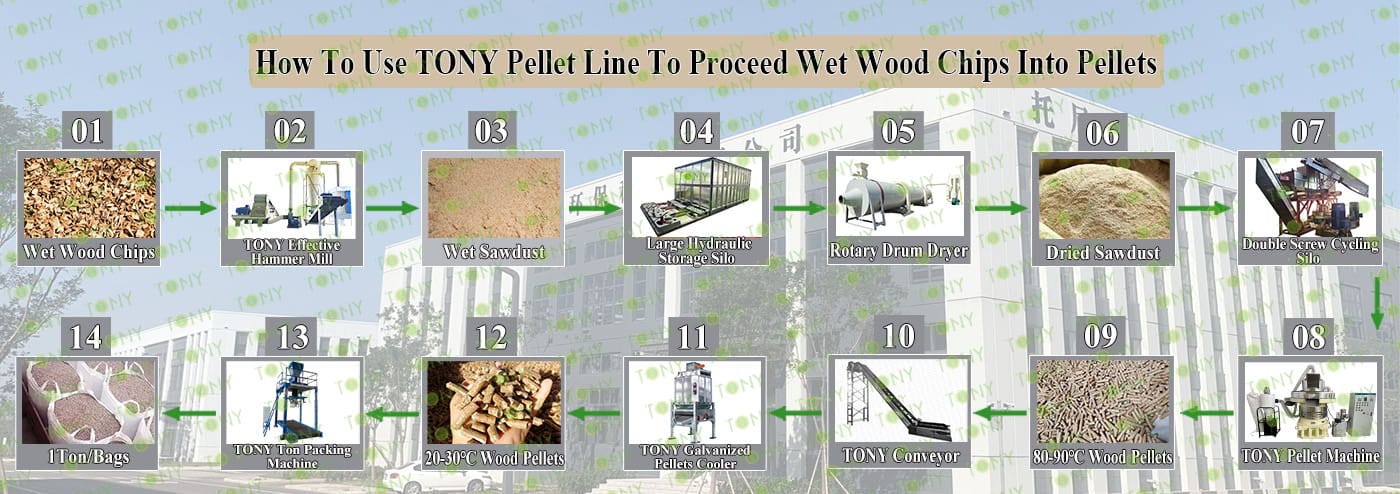

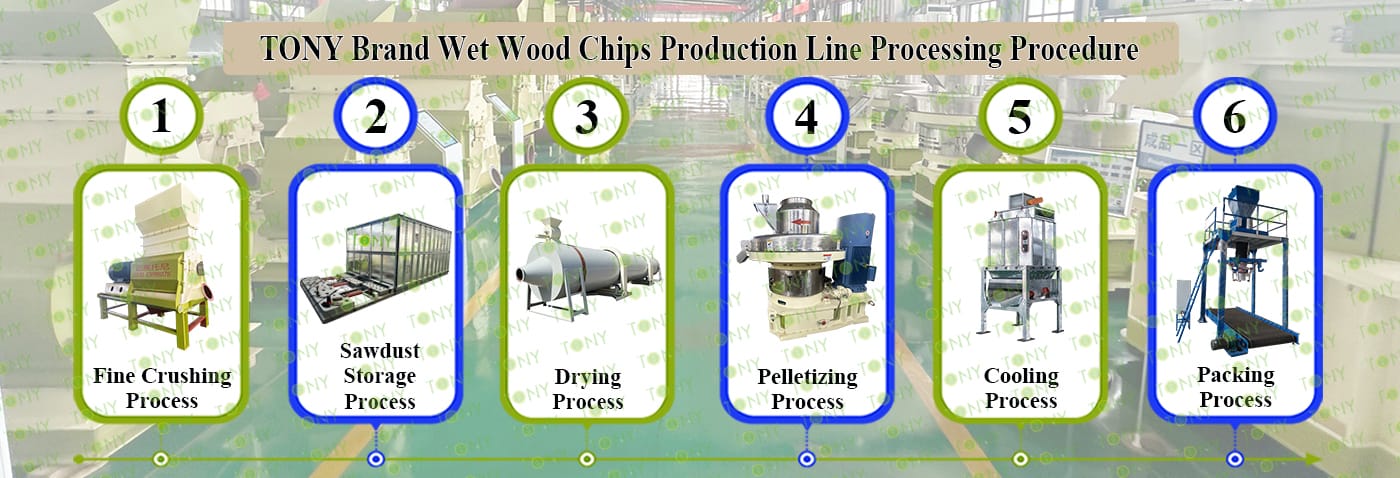

5. Process:  Fine Crushing Process -Sawdust Storage Process- Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Effective Hammer Mill-TFD85*220-220KW, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-2*24m,  TONY Pellet Machine TYJ860-Ⅲ-280KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Effective Hammer Mill	Large Hydraulic Storage Silo	Rotary Drum Dryer
1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD85*220-220KW*4sets 3.Capacity: 7-8Ton/Hour/Set	1.To Storage Sawdust Before Dryer Control Sawdust Flow Entering The Dryer 2.Model: TCY-40*2sets 3.TONY Uses Galvanized Material	1.To Dry The 40% Sawdust Into 10-15% Sawdust.   2.Model: THGD2*24*4sets 3.Capacity:6-8Ton/Hour/Set
Vertical Ring Die Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-280KW*6sets 3.Capacity:4-5Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-10*2sets 3.Capacity:24-30Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags. 2.Model: TBD* 2sets 3.Capacity: 24-30 Ton/Hour

1.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:24-30Ton/Hour.

C.TONY brand effective hammer mill TFD85*220-220KW*4sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

2.Sawdust Storage Process:

A. This process is mainly used to storage the sawdust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and sawdust in it is not easy to be blocked.

B. TONY brand sawdust storage to storage the sawdust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the sawdust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Sawdust Storage Bin.

(2)With Screws Inside The Storage Bin To Prevent Sawdust Blocked.

3.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:24-30Ton/Hour.

C.TONY use 4 sets of 2*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

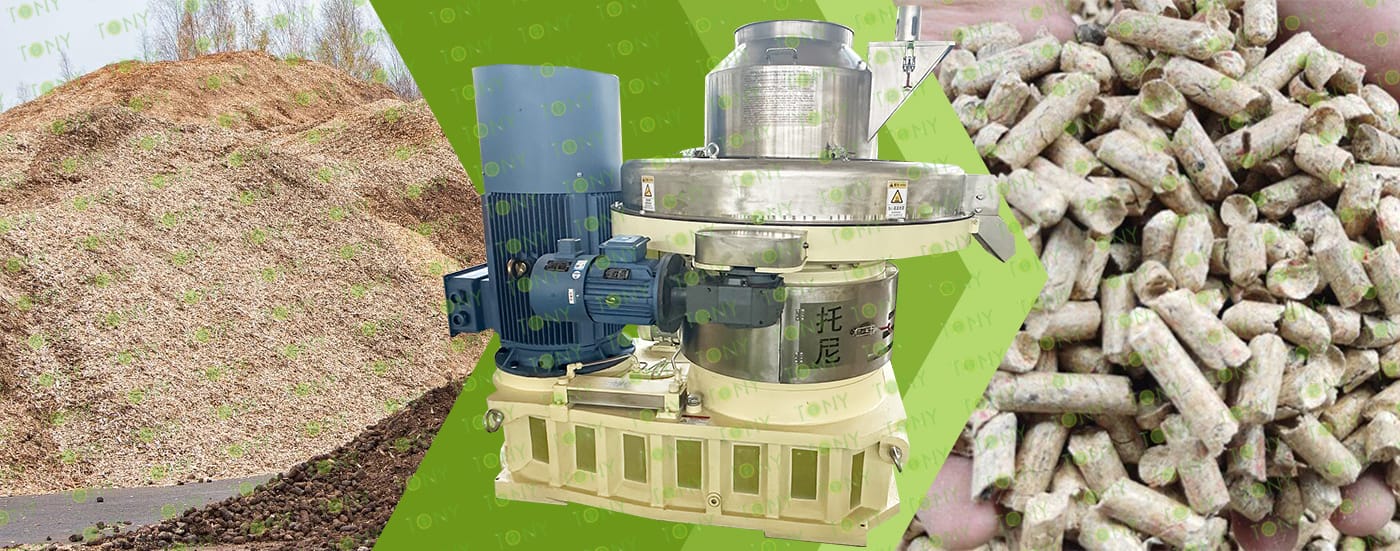

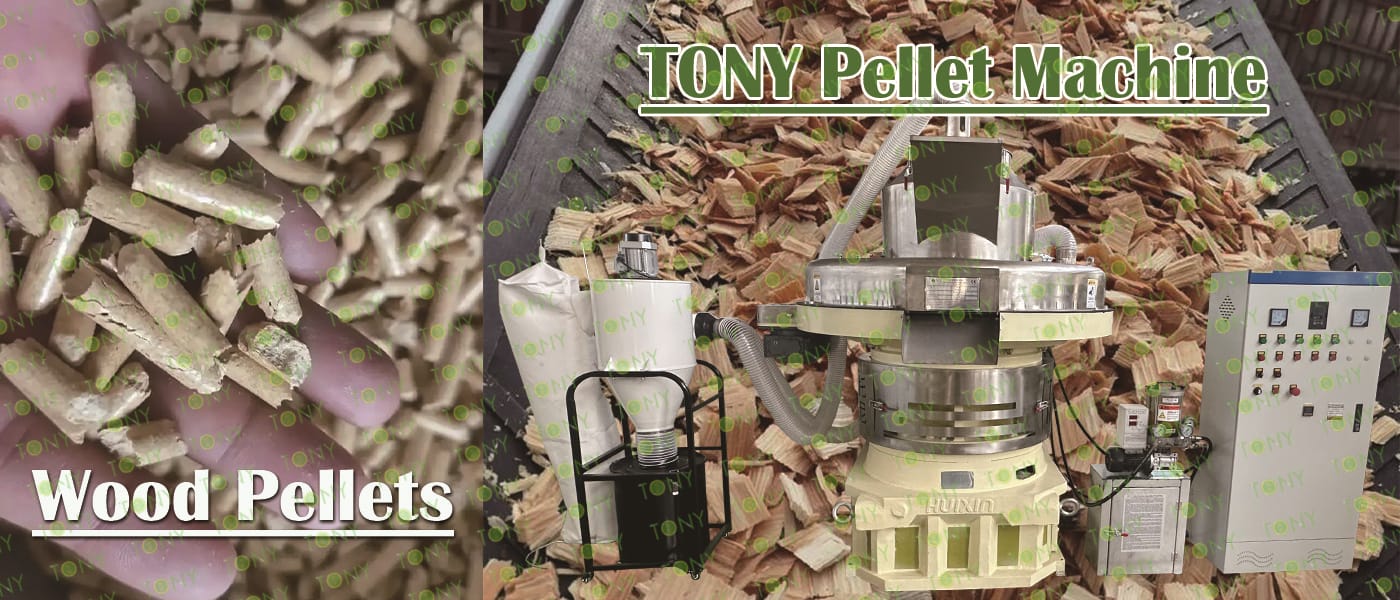

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:24-30Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-280KW*6sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:24-30Ton/Hour.

C.TONY brand galvanized cooler separator*2 sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

6.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.TONY ton packing machine*2sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

Raw material advantages of wet wood chip pellet processing projects:

The core drawbacks of wet wood chips are their high moisture content, high transportation costs, and susceptibility to deterioration. Traditional disposal methods (landfill and incineration) require fees. This project effectively transforms these into raw material advantages:

1.Extremely low raw material costs, even negative costs

Wet wood chips are mostly waste from wood processing (furniture factories, plywood factories), forestry harvesting (tree branches/tailings), and building demolition (waste timber). Most companies have to pay for their removal and disposal. Project owners not only avoid purchasing these, but can even charge a "waste disposal fee" in some cases.

Compared to "dry wood chip pellet processing," wet wood chip raw material costs are directly reduced by over 80%, significantly reducing the total project cost.

2.Wide range of raw material sources and strong regional adaptability.

As long as there are areas with wood processing, forestry, construction, and landscaping activities, there will be a stable supply of wet wood chips (such as furniture industry clusters, areas surrounding forest farms, and urban demolition sites). This eliminates reliance on a single raw material source and eliminates the "raw material competition" (dry wood chips must compete with industries like papermaking and wood-based panels, while wet wood chips have no other high-value uses), ensuring long-term raw material stability.

1. Environmental protection and sustainable development value

(1)Renewable energy attribute: The raw materials come from biomass waste such as wood chips, which are renewable resources. Replacing fossil fuels such as coal can reduce dependence on non-renewable energy and conform to the concept of circular economy

(2)Low carbon emission characteristics: The carbon dioxide emissions during combustion are much lower than those of fossil fuels, and the carbon absorbed by biomass during growth can offset the carbon released by combustion, achieving "carbon neutrality" and helping to slow down global climate change

(3)Solid waste resource utilization: Converting urban wood waste such as construction wood waste and garden branches into energy solves the environmental pollution problems caused by traditional incineration treatment, and has both biomass and sustainable development value. Ecological and social benefits

2. Energy utilization and economic advantages

(1)High calorific value and combustion efficiency: processed biomass pellets have high calorific value, long combustion time, and complete combustion. The energy conversion efficiency is comparable to that of wood chips with the same calorific value, which can meet the diverse needs of industrial production, power generation, and residential heating.

(2)Optimized storage and transportation costs: pellets have regular shape and high density, and the volume is only 1/5-1/3 of wood chips, which significantly reduces storage space occupation and transportation costs, making it suitable for large-scale distribution.

(3)High maturity of processing technology: small investment in production equipment, low energy consumption, and energy saving of 30%-50% in the drying process. The industry chain is well-equipped and economically feasible.
