Project Brief Introduction:

1.Product:Wet Wood Chips Pellet Line

2.Capacity: 12-14T/Hour

3.TONY Brand 12-14Ton /Hour Wet Wood Chips Pellet Line Project Process

4.Main Machine: Hammer Mill, Rotary Drum Dryer,TONY Pellet Machine TYJ860-Ⅲ-220KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 1700 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

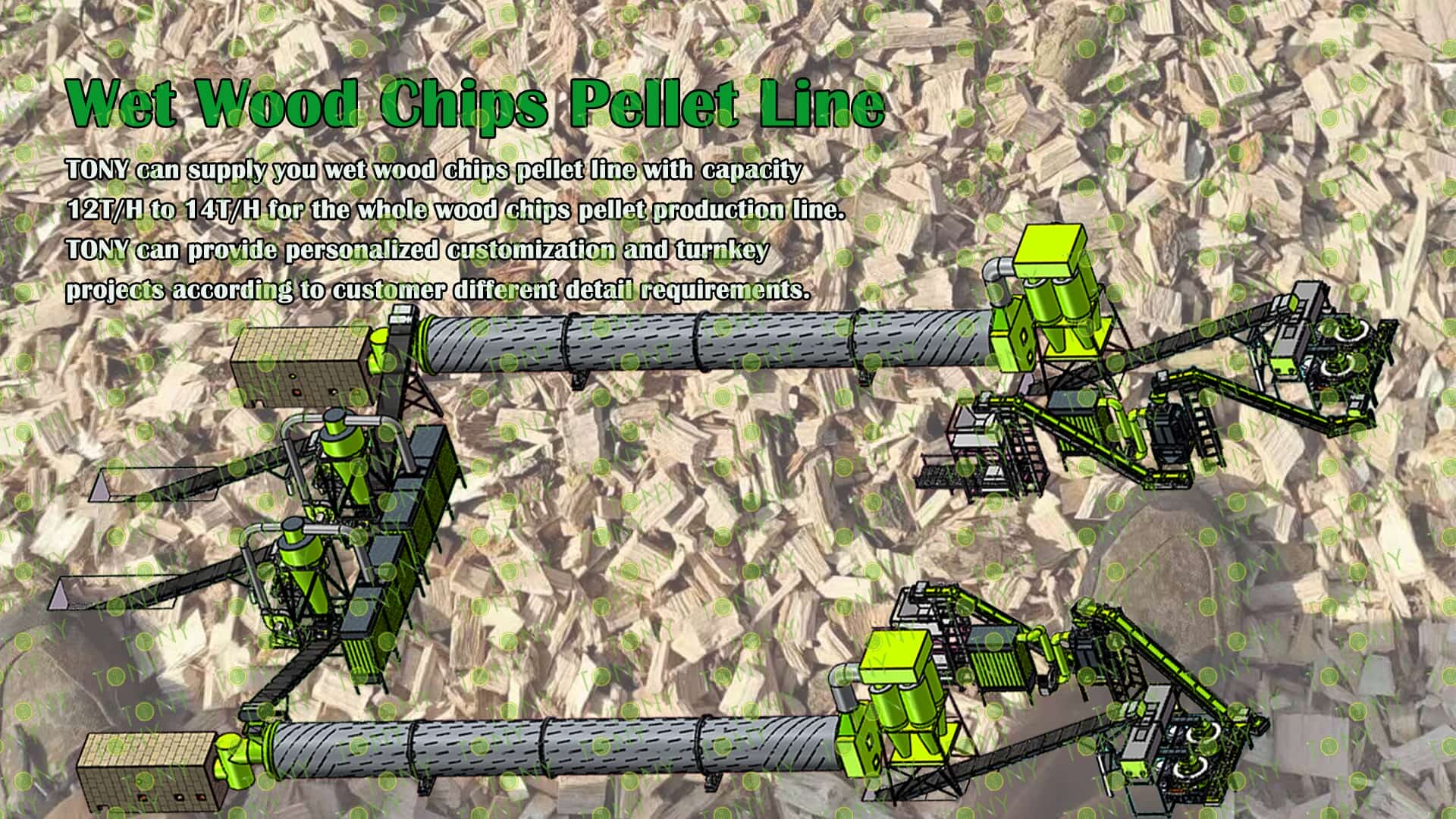

Project Layout For Customer:

三维图

1. The working principle of wet wood chips biomass pellet processing equipment

Biomass pellet processing converts loose agricultural and forestry waste (such as wood chips, sawdust, straw, and rice husks) into high-density, regularly shaped pellet fuel through a series of physical and mechanical processes. The core process includes three key steps: raw material pretreatment (crushing and pulverization), drying, and pelletizing. Each step requires specialized equipment to transform the material's physical state.

2. Characteristics of wet wood chips biomass pellet processing equipment

Wood pellet processing equipment (i.e., wood biomass pellet machines and supporting production lines) is specifically designed to process wood materials such as wood chips, sawdust, wood shavings, and branches into high-density pellets.

(1)It is compatible with a wide range of wood materials: wood chips, sawdust, wood chips, shavings, wood chaff, shredded branches, and waste wood. Both softwoods (such as pine and fir) and hardwoods (such as oak and birch) can be efficiently processed after pretreatment (crushing and pulverization).

(2)To address raw material moisture fluctuations: Dedicated drying equipment (such as drum dryers) can control the moisture content of wood raw materials to 10%-15% (the optimal moisture range for wood pellet production), avoiding problems such as clogging and loose pellets caused by excessive moisture.

(3)Flexible particle size control: The accompanying pulverizer can crush wood raw materials to the size of sawdust, meeting the pellet machine's fineness requirements and ensuring uniform pellets.

3. Application scenarios of wet wood chips biomass pellet processing equipment

(1)In the clean energy sector, it is the core of biomass fuel production. Wet wood chip waste from lumber processing plants and furniture factories, after being processed into high-density pellets, can be used as fuel in biomass boilers, replacing coal for factory and industrial heating. It can also be used in biomass power plants and household heating stoves. Its high combustion efficiency and low carbon emissions make it suitable for the energy transition under the "dual carbon" goals. It is particularly popular in winter heating and small- and medium-sized power generation projects in northern China.

(2)In industrial production, it supports raw material processing. The wood-based panel industry uses the wet wood chip pellets produced by the equipment as the base material for fiberboard and particleboard. The pelletized structure facilitates subsequent glue mixing and hot pressing, improving the uniformity of the board density. The papermaking industry compresses the wet wood chips using the equipment to reduce water loss and volume during transportation, thereby lowering transportation costs. Furthermore, the pelletized shape ensures uniform feeding in the pulping process, ensuring paper quality.

(3)In agriculture and forestry, it promotes waste resource utilization. Wet wood chips from felled trees and wet fruit tree branches from orchard pruning can be processed into pellets and used as fuel for orchard frost protection and heating, as well as for greenhouse heating. The pellets can also be processed into organic mulch and used to cover farmland or forests, retaining water and suppressing weeds. This helps recycle agricultural and forestry waste and reduces incineration pollution.

(4)In environmentally friendly treatment scenarios, it is a key tool for solid waste reduction. Wet wood chip waste from timber companies, if directly piled, is prone to rotting and stinking. Compressing it into pellets can reduce its volume by 60%-80%, making it easier to store and transport, and reducing disposal costs. The pellets can also be used as auxiliary fuel in waste incineration plants, raising the incineration temperature and reducing harmful gas emissions, meeting the needs of environmentally friendly solid waste treatment.

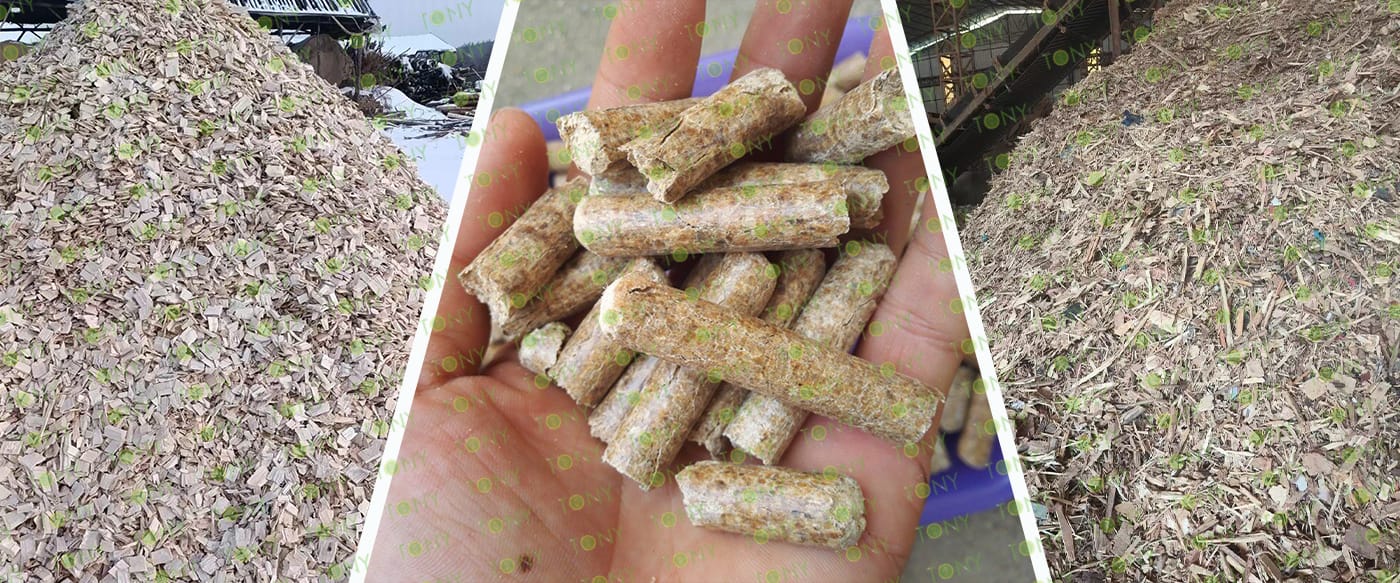

TONY Brand 12-14Ton/Hour Wet Wood Chips Pellet Manufacturing Plant can take wet wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, wet wood chips is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction. At present, it has been widely used in regions rich in wood resources.

1. Capacity: 12-14Ton/Hour

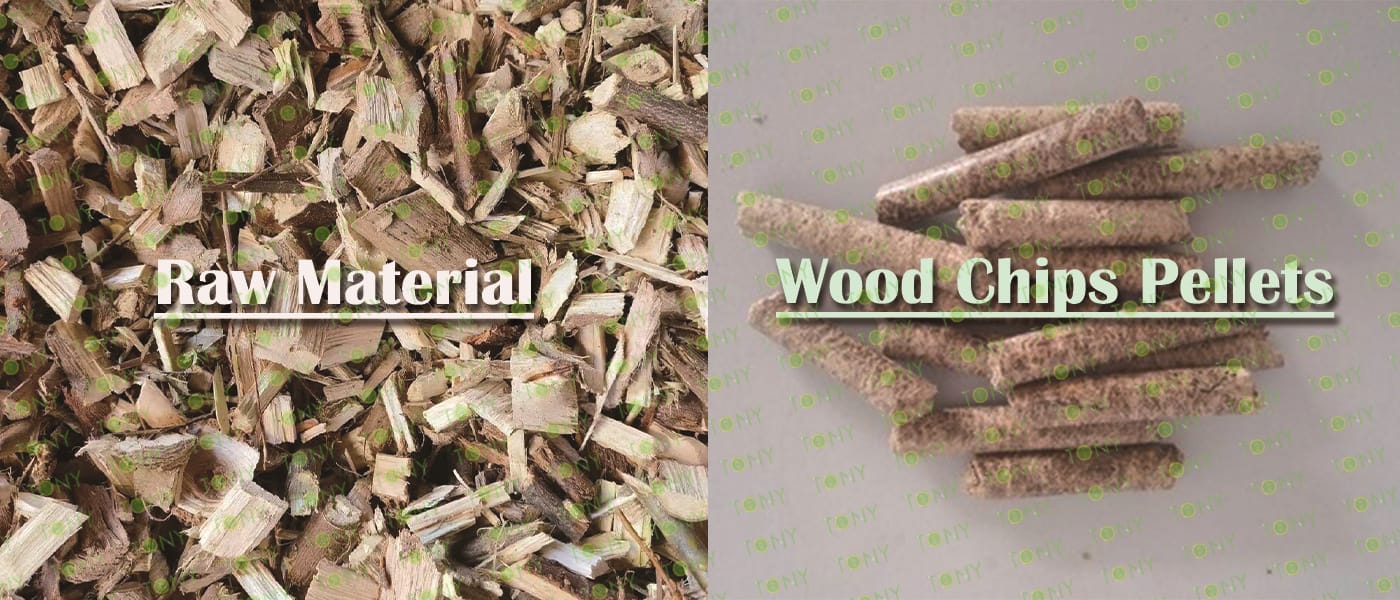

2. Raw materials: Wet wood chips

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood chips or more waste wood raw materials

Suitable customers: Solid wood furniture production, artificial board processing (plywood, fiberboard, particleboard), wood component processing, construction and decoration, packaging and logistics, such as pallets and wooden boxes, will generate a large amount of waste wood chips due to repeated use, size mismatch or changes in cargo transportation needs. Paper and pulp production where waste wood chips have advantages

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

1. Project Name: Wet Wood Chips Pellet Production Line

2. Raw Material: All kinds of wet wood chips

3. Moisture Content of Raw Material: 40%

4. Capacity: 12-14 tons per hour

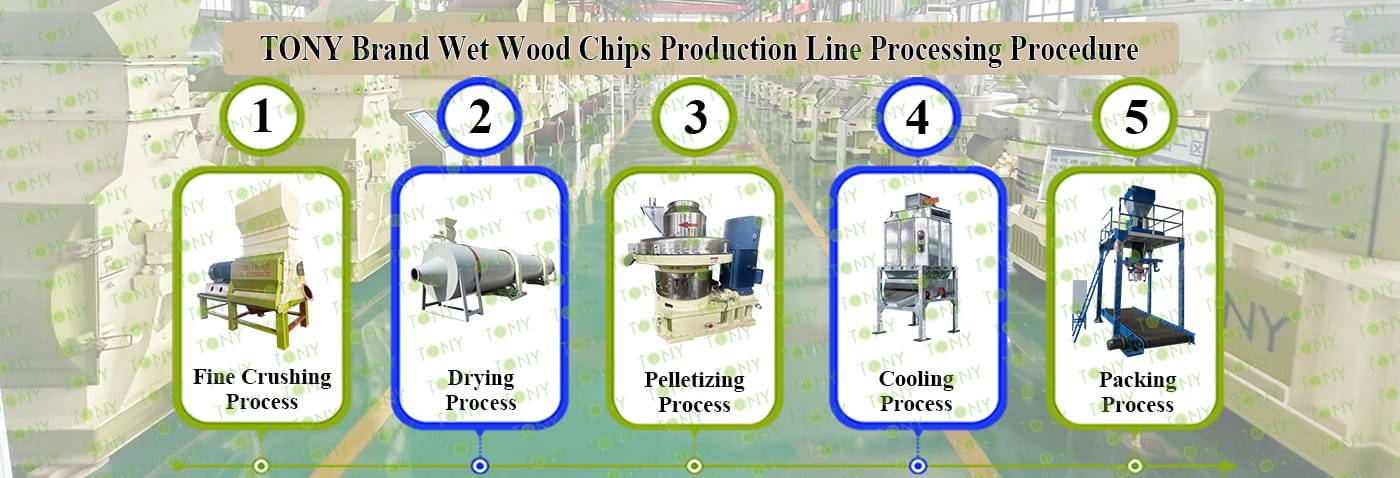

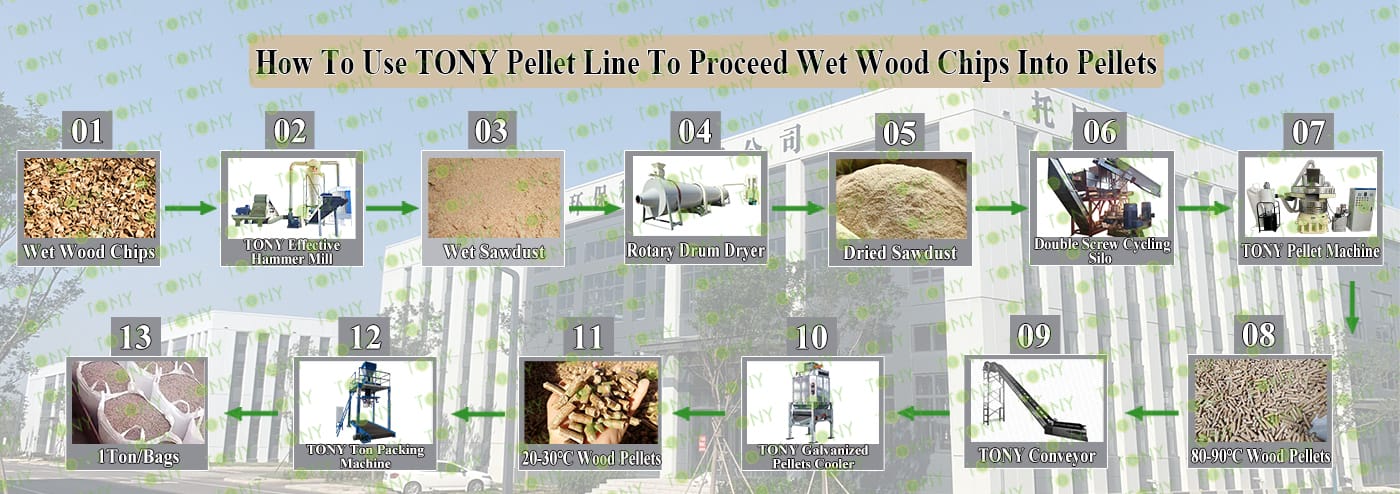

5. Process:  Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Effective Hammer Mill-TFD85*220-220KW,Rotary Drum Dryer-2*24m,  TONY Pellet Machine TYJ860-Ⅲ-220KW, Pellet Cooler, Ton Packing Machine and Belt Conveyors

三维图

三维图

Next, TONY Will Introduce To You All The Necessary Machinery That Will Be Used For The Whole Pellet Production Line. Some Machines Can Be Custom - Made By Customers According To Different Customers' Detailed Demands. Contact TONY For More Details, Including Quotation And Layout.
Effective Hammer Mill	Rotary Drum Dryer	Double Screw Cycling Silo
1.To Crush 25-55mm Wood Chips Into 8-14mm Sawdust. 2.Model: TFD85*220-220KW*2sets 3.Capacity: 7-8Ton/Hour/Set	1.To Dry The 40% Sawdust Into 10-15% Sawdust.  2.Model: THGD2*24*2sets 3.Capacity:6-7Ton/Hour/Set	1.To Stroage Sawdust Before Pellet Machine; Adjust The Speed Of Sawdust Entering The Pellet Machine 2.Model: TLC-7*2sets 3.Capacity:6-7Ton/Hour/Set
Vertical Ring Die Pellet Machine	Galvanized Pellets Cooler	Ton Packing Machine
1.To Press Dry Sawdust Into 6-8mm Biomass Pellets 2.Model: TYJ860-III-220KW*4sets  3.Capacity:3-4Ton/Hour/Set 4.New 304SS Type	1.To Cool Pellets From 80-90℃ Into 20-30℃ 2.Model: TCN-4*2sets 3.Capacity:12-14Ton/Hour	1.To Pack Pellets Into 1 Ton/Bags. 2.Model: TBD* 2sets 3.Capacity: 12-14 Ton/Hour

三维图

1.Wood Chips Fine Crushing Process:

A.This process is mainly used to crush 25-55mm wood chips into 8-14mm sawdust.

B.Capacity:12-14Ton/Hour.

C.TONY brand effective hammer mill TFD85*220-220KW*2sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

2.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:12-14Ton/Hour.

C.TONY use 2 sets of 2*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

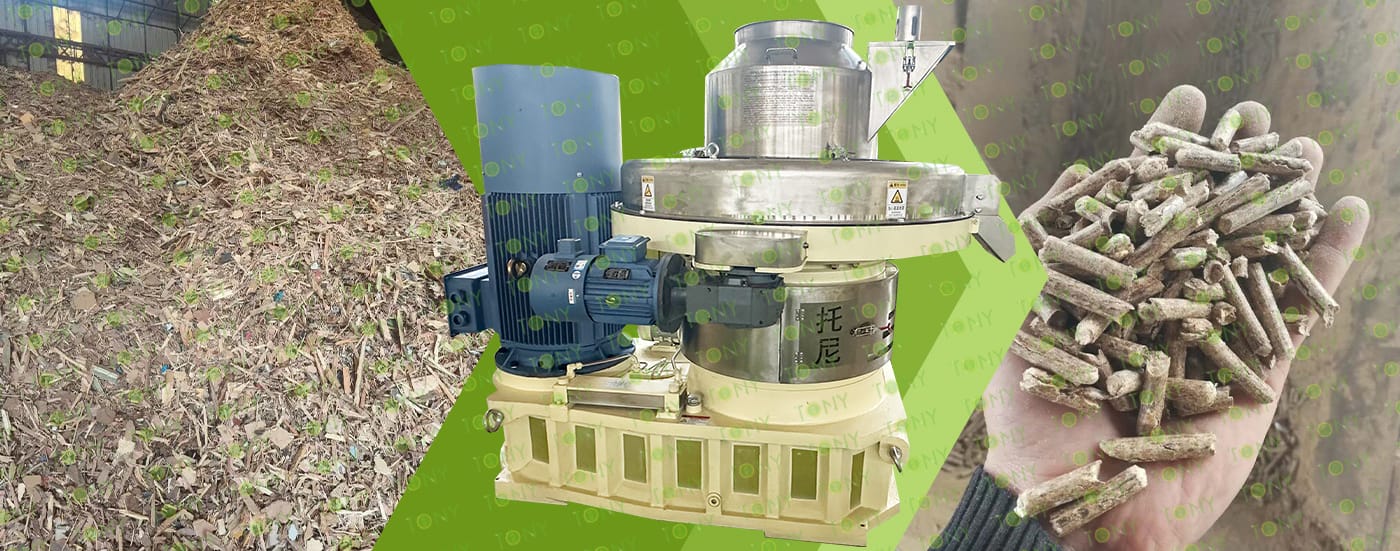

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:12-14 Ton/Hour.

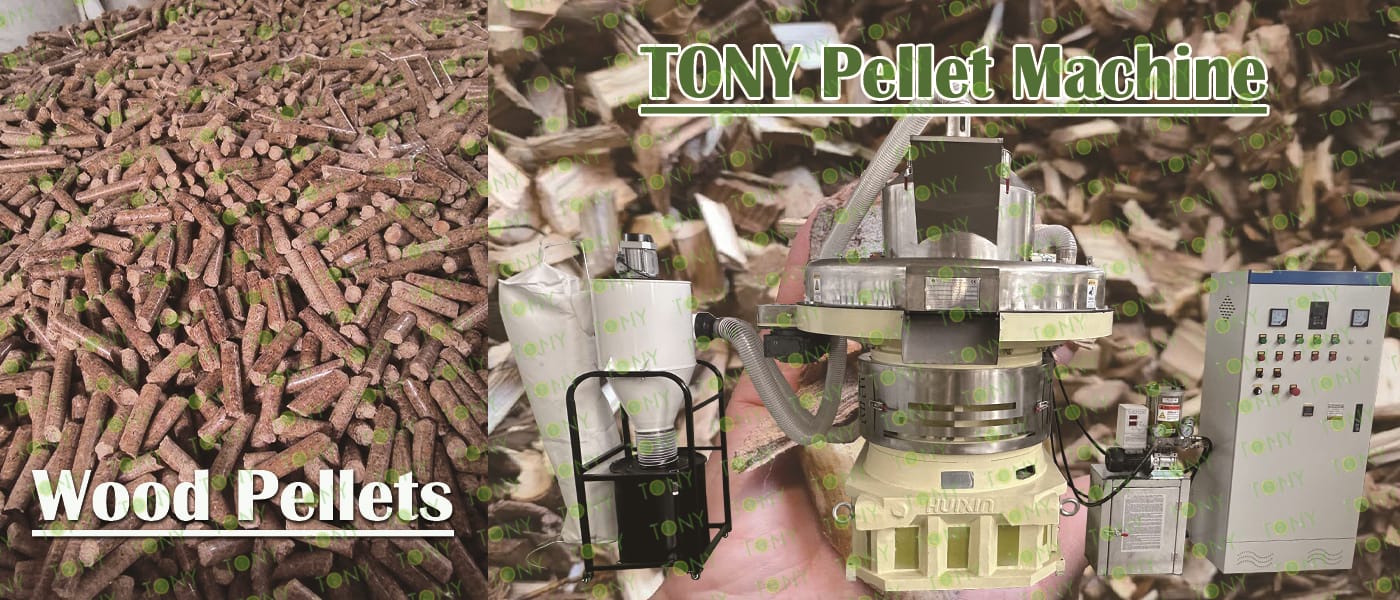

C.TONY brand vertical ring die pellet machine TYJ860-III-220KW*4sets

D.Double screw cycling silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:12-14Ton/Hour.

C.TONY brand galvanized cooler separator*2 sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.TONY ton packing machine*2sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

The wet wood chip biomass pellet project uses wet wood chips processed from forestry waste (such as sawdust and branches) as raw material. Through drying, crushing, and extrusion, it produces biomass pellet fuel, an environmentally friendly project that combines resource recycling with clean energy production.

For raw material supply, the project can rely on forestry production areas and timber processing plants to obtain wet wood chips, which is a low-cost and stable source and also solves the pollution problem of forestry waste storage. On the market side, biomass pellets can be widely used in industrial boilers, home heating, and agricultural greenhouse insulation. In recent years, driven by the "dual carbon" policy, domestic and international demand has continued to grow, especially in Europe, Japan, and South Korea, which has seen strong import demand, resulting in considerable profit potential for the project.

In addition, the project investment is flexible. Equipment investment for a small production line (50 tons per day) is approximately 2-3 million yuan, while for a medium-sized production line (100 tons per day) it is approximately 5-8 million yuan. Environmental protection and agricultural subsidies are available in some regions to reduce initial costs. However, it is important to select a site close to the raw material production area to reduce transportation costs, and at the same time be equipped with a complete dust collection system to meet environmental emission requirements and ensure the sustainable operation of the project.

1.Wide Range of Applications:

It can be used not only in home fireplaces and stoves, but also in large energy-consuming equipment such as industrial boilers and power plants. Furthermore, in agriculture, it can be used as a heating fuel for greenhouses and in the livestock industry for drying feed, demonstrating its strong adaptability.

2.High Renewability:

Wood is a renewable resource. Through effective forestry planning and planting, it can be continuously sourced, offering long-term supply stability compared to non-renewable fossil fuels.
