Project Brief Introduction:

1.Product:Wet Sawdust Pellet Line

2.Capacity: 14-16 T/Hour

3.TONY Brand 14-16 Ton /Hour Wet Sawdust Pellet Line Project Process

4.Main Machine: Rotary Drum Dryer,TONY Pellet Machine TYJ860-Ⅲ-250KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 1280 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

Project Layout For Customer:

三维图

原材料图+颗粒机图片

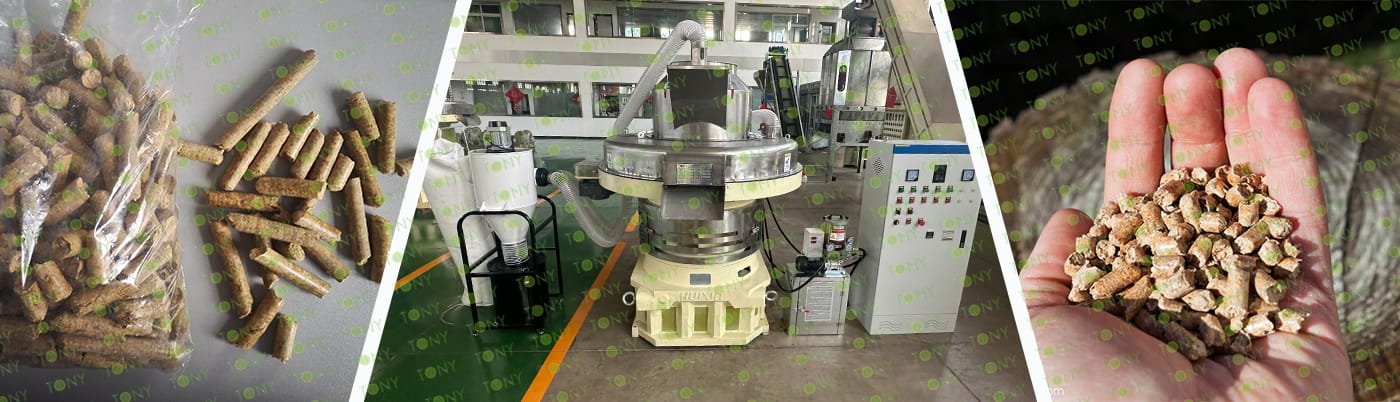

1. The working principle of wet sawdust biomass pellet processing equipment

Wet sawdust is fed into the pelletizer's ring or flat die. A rotating drum compresses the sawdust within the die, forming pellets of a specific density and shape. During this process, the inherent moisture and fiber structure of the wet sawdust combine under pressure, forming pellets without the need for additional binders. (If the moisture content is too high, drying may be necessary to adjust the moisture content.)

2. Characteristics of wet sawdust biomass pellet processing equipment

(1) Strong adaptability: It can process high-moisture wet sawdust, reducing initial drying costs.

(2) High molding efficiency: Loose sawdust is quickly compressed into pellets through mechanical extrusion, with a high degree of automation and strong continuous production capacity.

(3) Stable pellet quality: The pellets after molding have high density and moderate hardness, are easy to store and transport, and are not easy to break.

(4) Compact structure: The equipment integrates pretreatment, pelletizing and other functions, occupies a small area, and is relatively easy to operate and maintain.

3. Application scenarios of wet sawdust biomass pellet processing equipment

(1) Biomass energy: Wet sawdust is processed into biomass pellet fuel for use in boilers, fireplaces, and other heating or power generation applications.

(2) Agriculture: Sawdust pellets can be used as organic fertilizer carriers, edible fungus culture media, etc.

(3) Forestry processing: Wet sawdust waste generated by wood processing is processed to achieve resource recycling and reuse, thereby reducing waste pollution.

2.图片

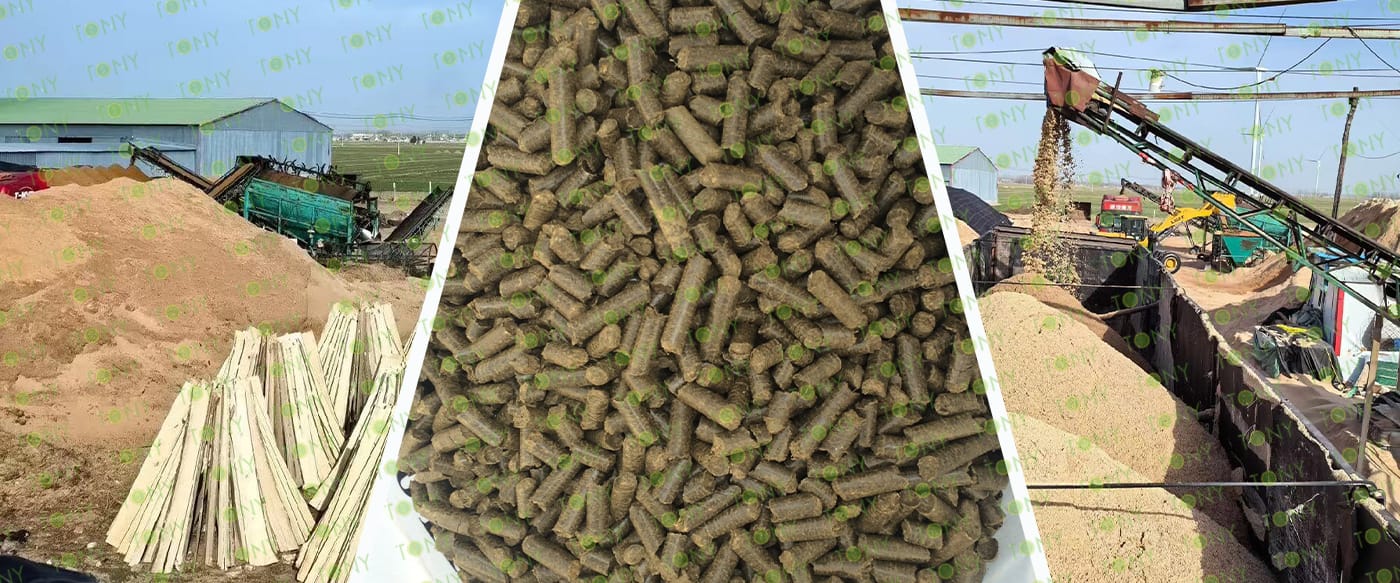

TONY Brand 14-16 Ton/Hour Wet Sawdust Pellet Manufacturing Plant can take wet sawdust,wood chips, various types of wood - related biomass materials, such as wood pallets,branches, wood logs, and wood shavings. After pretreatment and processing, wet sawdust is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction.

1. Capacity: 14-16 Ton/Hour

2. Raw materials: Wet sawdust

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood sawdust or more waste wood raw materials

Suitable customers:Wood processing plants, furniture manufacturing plants, construction sites, landscaping companies and other places with advantageous sawdust resources

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

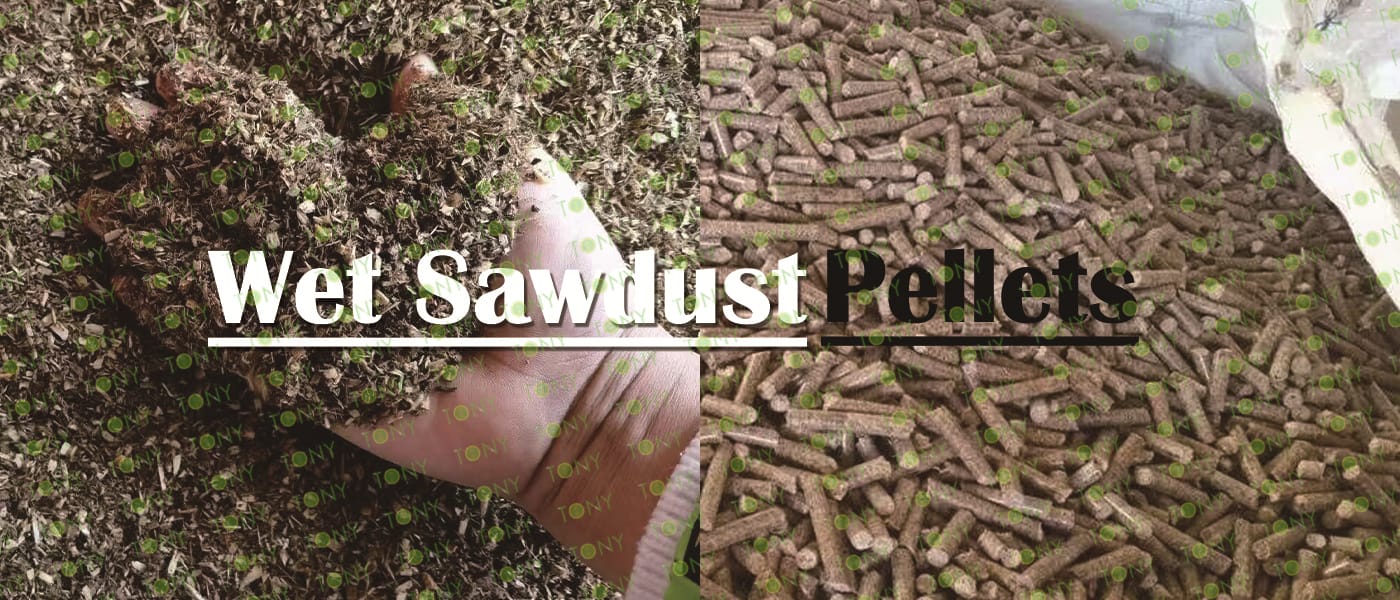

原材料--成品图

1. Project Name: Wet Sawdust Pellet Production Line

2. Raw Material: All kinds of wet sawdust

3. Moisture Content of Raw Material: 40%

4. Capacity: 14-16 tons per hour

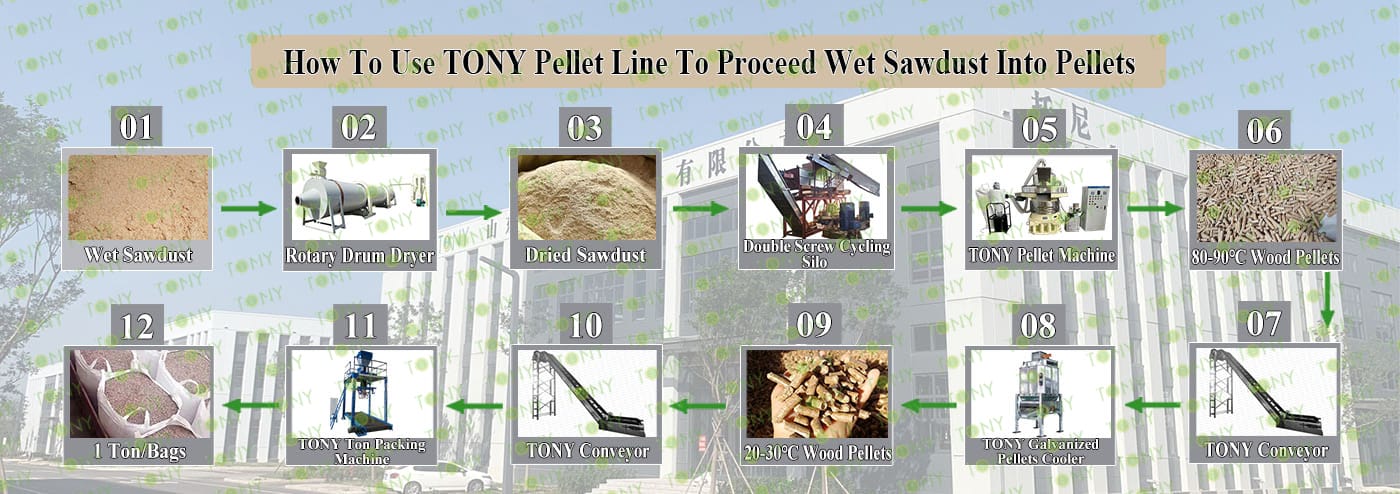

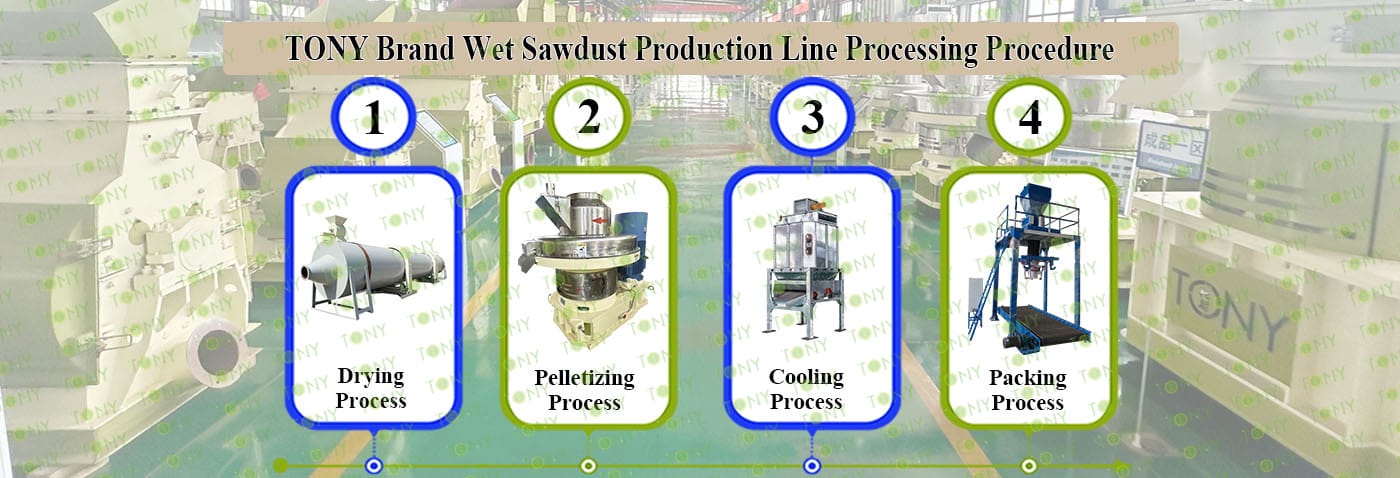

5. Process: Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:  Rotary Drum Dryer-2.5*24m, TONY Pellet Machine TYJ860-Ⅲ-250kw, Galvanized Pellets Cooler, Ton Packing Machine and Belt Conveyors

4.图片

流程图1

流程图.

5.图片

原材料+颗粒图

颗粒+机器图

三维图

三维图

三维图

5.1图片

烘干机

带锯末图

1.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:14-16Ton/Hour.

C.TONY use 2 sets of 2.5*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.2图片

颗粒机四件套带 原材料，颗粒图

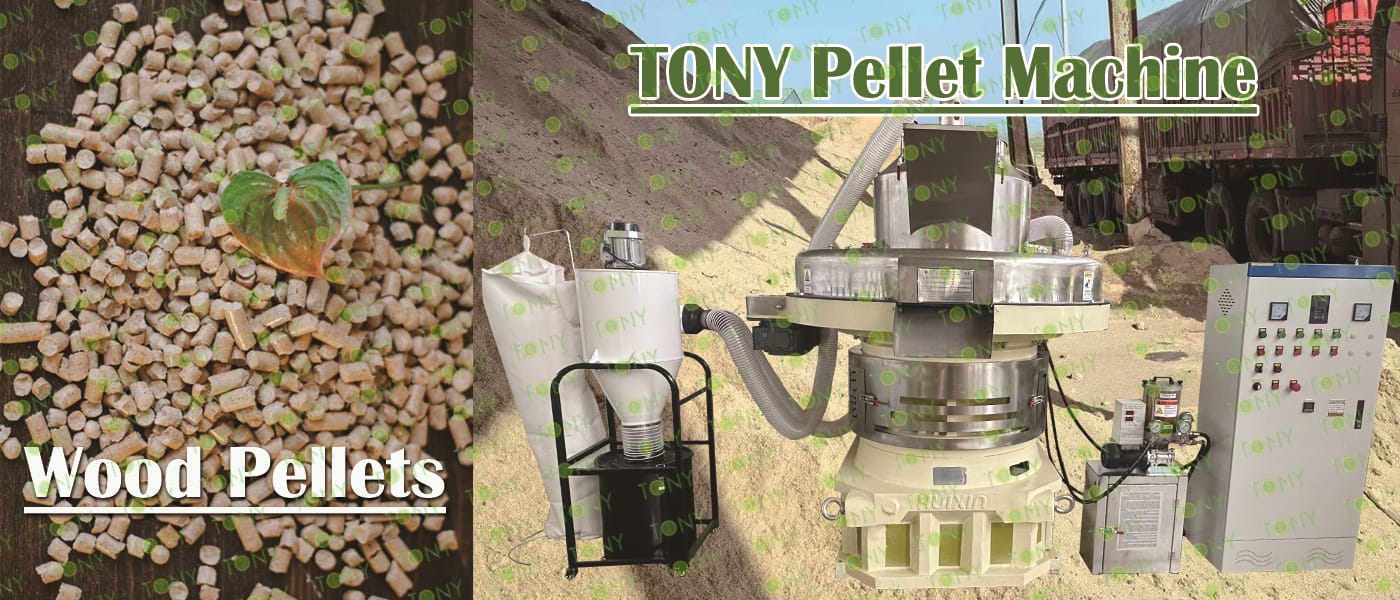

2.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:14-16 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-III-250KW*4 sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.3图片

镀锌冷却仓加颗粒图

3.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:14-16Ton/Hour.

C.TONY brand galvanized pellets cooler *2 sets

Main Parts:

(1)TONY's Galvanized Pellets Cooler With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3) Fan Blower.

(4)Connect Pipes.

5.4图片

吨包机

4.Packing Process:

A.This process is mainly used to pack pellets into 1Ton/Bags.

B.Capacity:14-16 Ton/Hour.

B.TONY band ton packing machine*2 set

Main Parts:

(1)TONY Ton Packing Machine

(2) Electronic Platform Scale Metering System

(3) Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

6.图片

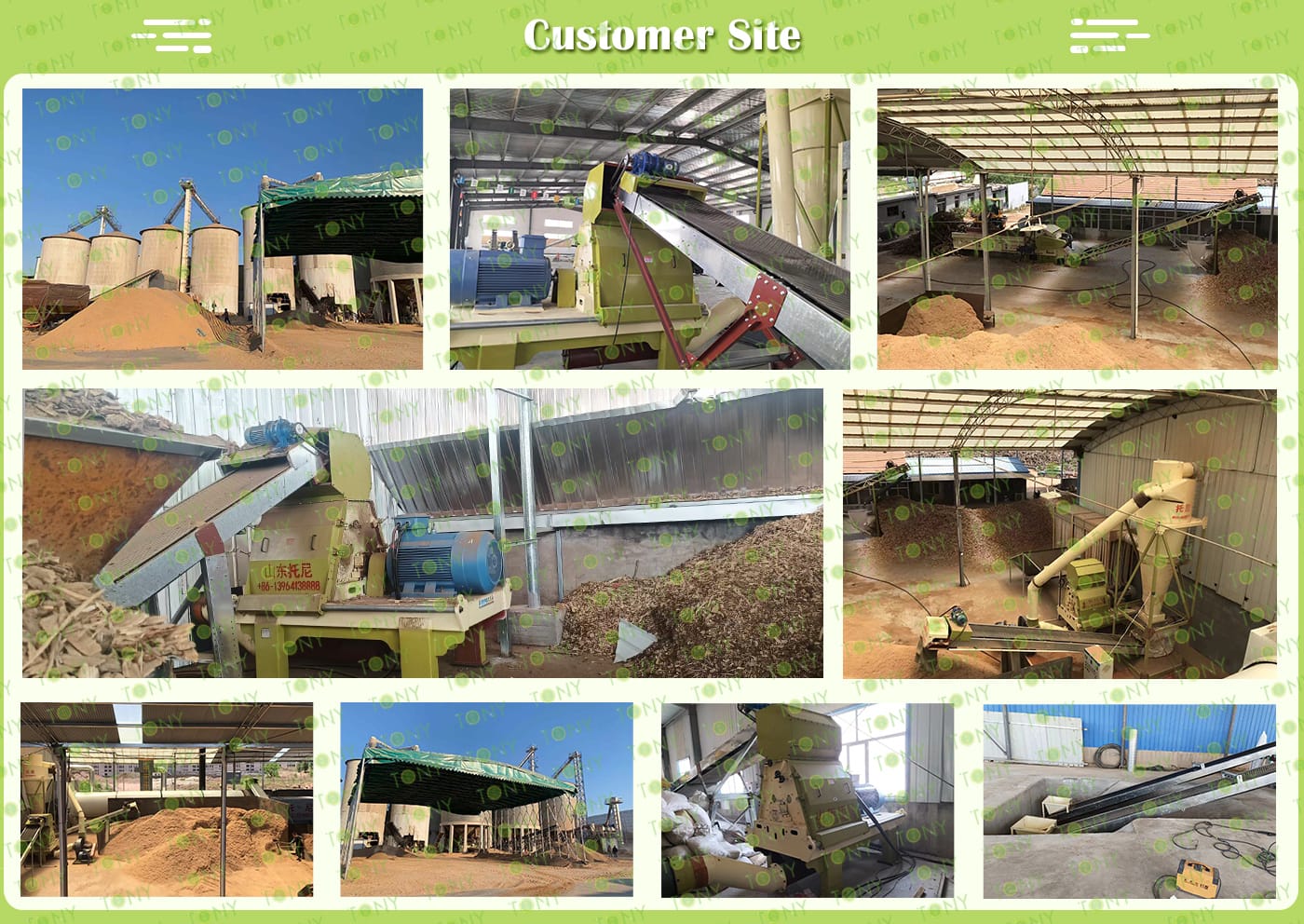

客户生产线案例图

7.图片

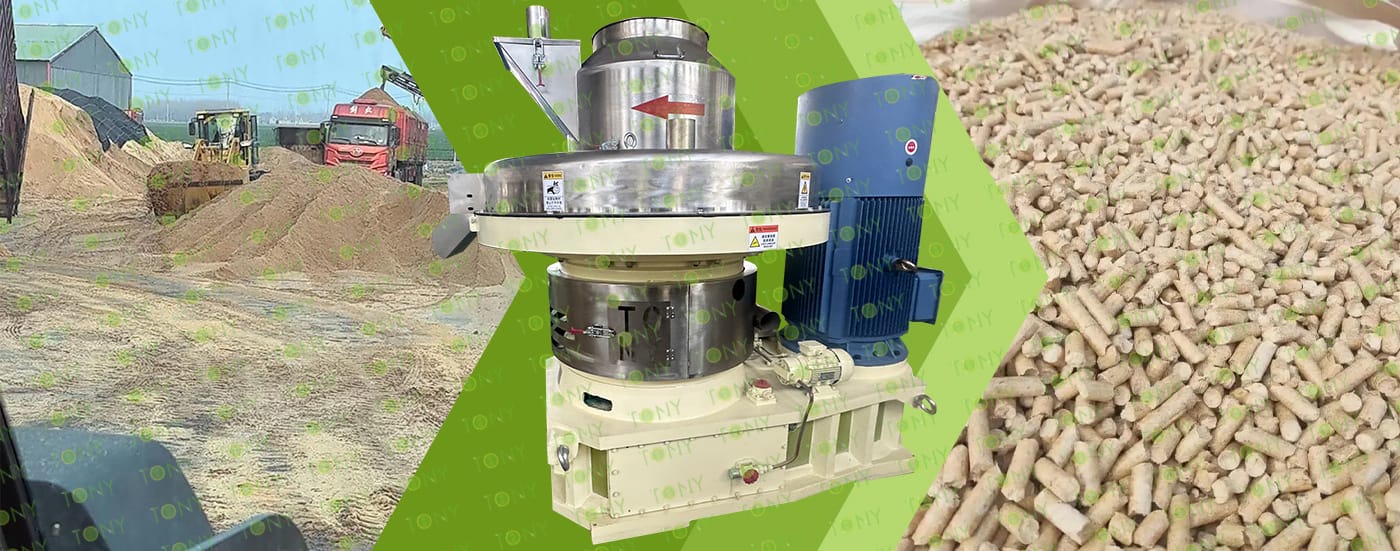

图 湿锯末+颗粒 颗粒机

The biomass pellet processing entrepreneurial project is a promising project. The following is an introduction from the perspectives of project background and advantages: Project background: With the advancement of the "dual carbon" goal and the rise in traditional energy prices, the market demand for biomass pellets as a clean energy source continues to grow. In 2024, China's annual demand for biomass pellet fuel will exceed 45 million tons, and there is a production capacity gap in some regions, which provides opportunities for entrepreneurship.

Project advantages：

(1) Abundant raw materials: The raw materials are widely available and the acquisition cost is low. In some areas, they can even be obtained at zero cost.

(2) Significant environmental benefits: The emission of harmful substances such as sulfur dioxide and nitrogen oxides produced by the combustion of biomass pellets is almost zero, and the ashes after combustion can also be used as organic potassium fertilizer, which meets environmental protection requirements.

(3) Large profit margin: The current ex-factory price of biomass pellets is about 700 to 1,000 yuan/ton, and it can even be sold for more than 1,100 yuan/ton during the peak heating season in winter. Calculated based on a small processing plant with a daily output of 10 tons of pellets, the monthly profit can easily exceed 90,000 yuan.

8.图片

锯末图 颗粒图

(1) Wide availability and low cost: These materials are available in large quantities in wood processing plants, furniture factories, and other places. Some materials are available at low prices or even for free, effectively controlling the cost of raw materials.

(2) High and stable calorific value: The calorific value of wood pellets is usually 4000-5000 kcal/kg, and the combustion efficiency can reach more than 90%, which can stably provide heat to meet the needs of industrial heating and residential heating.

(3) Complete combustion and low pollution: The pollutants such as sulfur dioxide and nitrogen oxides produced during the combustion process are much lower than those of coal, and the ash content is low, which has little impact on the environment and meets environmental protection standards.
