Project Brief Introduction:

1.Product:Wet Palm Nut Shell Pellet Line

2.Capacity:6 Ton /Hour

3.TONY Brand 6 Ton /Hour Wet Palm Nut Shell Pellet Line Project Process

4.Main Machine: Hammer Mill,Rotary Drum Dryer,TONY Pellet Machine TYJ760-Ⅲ-200KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 810 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

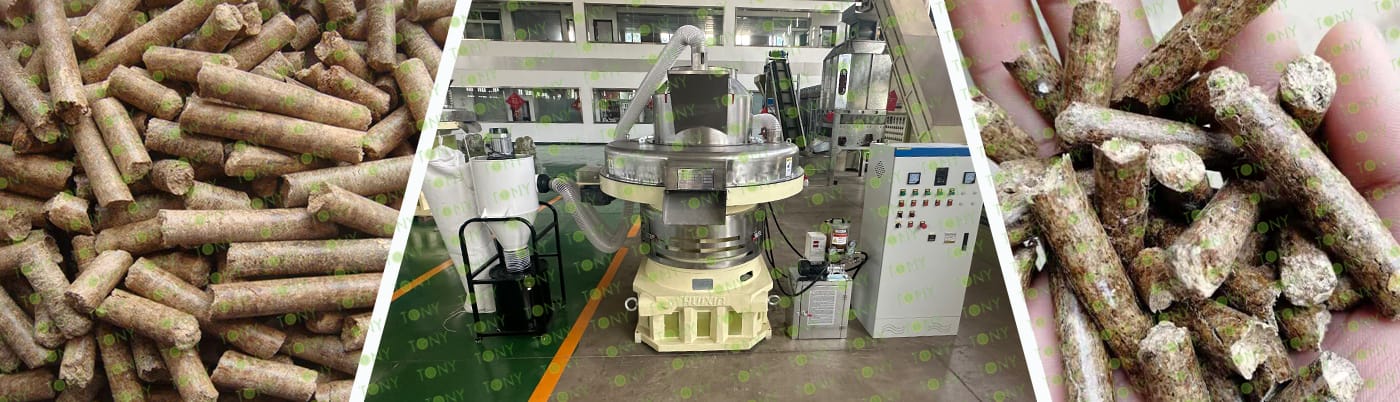

原材料图+颗粒机图片

1. The working principle of wet palm nut shell biomass pellet processing equipment

Wet Palm Nut Shell pellet processing equipment uses Wet Palm Nut Shell as raw material, processing it into pellet fuel through crushing, drying, and pelleting processes. During processing, the raw material is first crushed into fine particles that meet the requirements of subsequent processing; then it enters a drying section to reduce the moisture content to a suitable range for pelleting; finally, it enters the pelleting stage, where pellets are formed under the extrusion and other forces of the equipment.

2. Characteristics of wet palm nut shell biomass pellet processing equipment

(1) The motor shaft and the gear shaft are directly connected, which provides stronger power transmission, greater torque resistance, higher stability and lower maintenance rate.

(2) The bearing chamber has been improved, the sealing method has been changed, and forged tempered wear-resistant materials are used to prevent dust from falling into the bearing chamber.

(3) The gearbox body is larger, the gears are larger, the output power is higher, and the power consumption is lower.

(4) The bearings use genuine heavy-duty Harbin shafts, which have longer bearing life and lower maintenance rate for the whole machine.

(5) The ring die adopts a vertical double-layer structure, with both upper and lower layers used, which improves utilization, reduces costs and increases efficiency.

(6) The pressure wheel rotates, the material is centrifuged, and the surrounding material is evenly distributed.

(7) High efficiency and energy saving, automatic timed oil supply and lubrication ensure that the bearings are fully lubricated and the operation is safer and more reliable.

(8) High-pressure filtration and clean and smooth independent frequency conversion device ensure the output of particles.

3. Application scenarios of wet palm nut shell biomass pellet processing equipment

The main reasons for using Wet Palm Nut Shell to make pellet fuel are its environmental friendliness and economic efficiency. Sugarcane bagasse is a renewable biomass resource. Making it into pellet fuel not only reduces waste generation and disposal but also saves energy and raw materials, reduces carbon emissions, and has high economic value. Furthermore, Wet Palm Nut Shell pellet fuel can reduce greenhouse gas emissions and mitigate environmental pollution. Because Wet Palm Nut Shell pellet fuel is inexpensive, with a market price of approximately 800-900 yuan per ton, it can replace coal, making it even more economically viable. Wet Palm Nut Shell is a byproduct; processing it into pellet fuel allows for the full utilization of this resource and avoids waste.

2.图片

TONY Brand 6 Ton/Hour Wet Palm Nut Shell Pellet Manufacturing Plant can take wet palm nut shell into biomass pellets.Palm nut shells are a high-density raw material with a calorific value of 4000-4500 kcal/kg, exhibiting good strength and resistance to breakage after molding. Processing palm fruit shells into biomass pellets represents the recycling of agricultural waste, resulting in low carbon emissions. Furthermore, the raw material is widely available and inexpensive. It can replace coal in boiler combustion, power generation, and heating, making it suitable for both industrial and residential applications. The technology for processing Palm nut shells shells into biomass pellets is mature and highly feasible, making it a high-quality biomass energy raw material.

1. Capacity: 6 Ton/Hour

2. Raw materials: Wet Palm Nut Shell

3. Moisture: Wet type, about 40-55%.

4. Application: All kinds of biomass materials suitable for pellet production.

Suitable customers: Processing palm nut shells into biomass pellets is suitable for individuals or entities with raw material resources, targeting the energy alternative market, and possessing basic facilities and capital. Examples include palm growers/cooperatives, biomass energy entrepreneurs, existing biomass processing companies, businesses with heating/power generation needs, and investors in the environmental protection sector.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

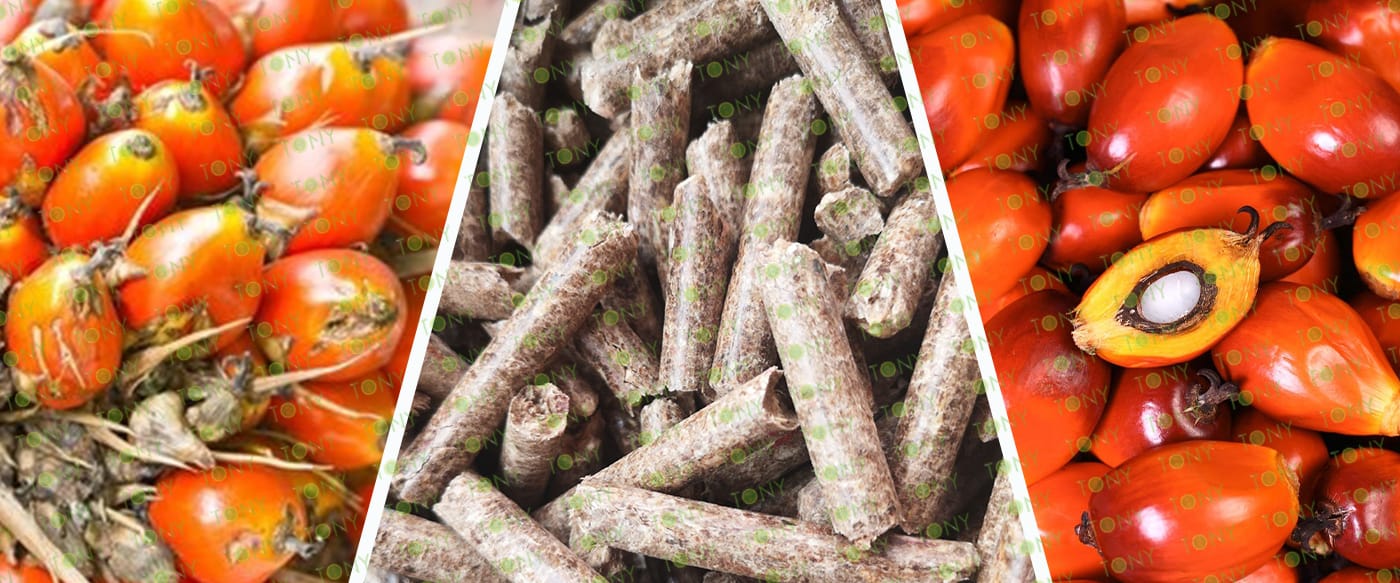

原材料--成品图

1. Project Name: Wet Palm Nut Shell Pellet Production Line

2. Raw Material: All kinds of Wet Palm Nut Shell

3. Moisture Content of Raw Material: 40-55%

4. Capacity: 6 TPH

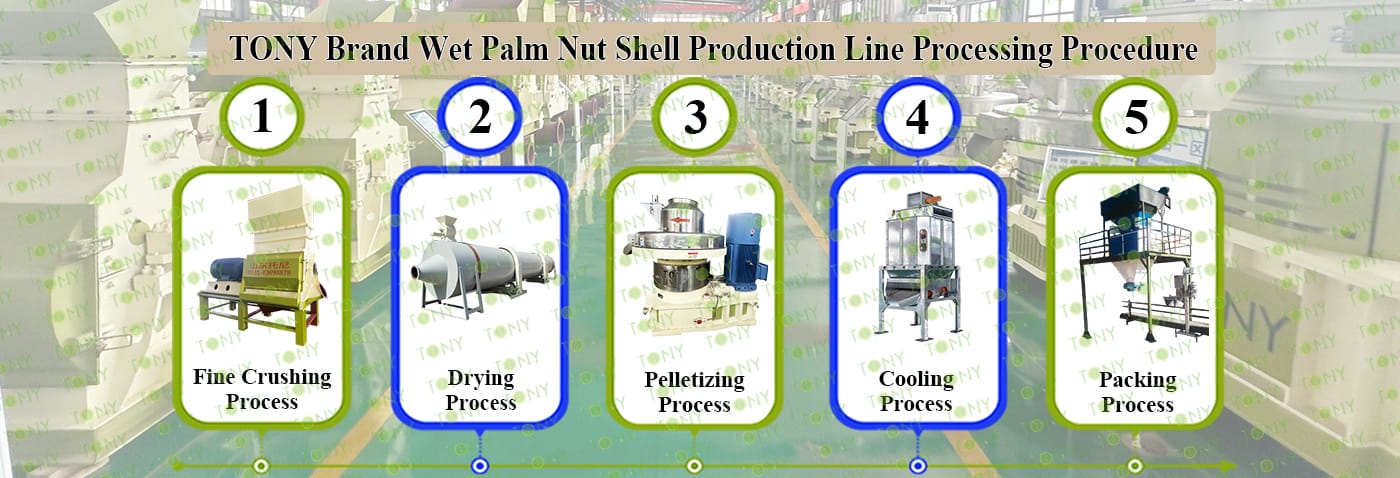

5. Process: Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: Effective Hammer Mill-TFD85*220-220kw, Rotary Drum Dryer-2*24m, TONY Pellet Machine- TYJ760-Ⅲ-200kw, Galvanized Pellets Cooler, Double Packing Machine and Belt Conveyors

4.图片

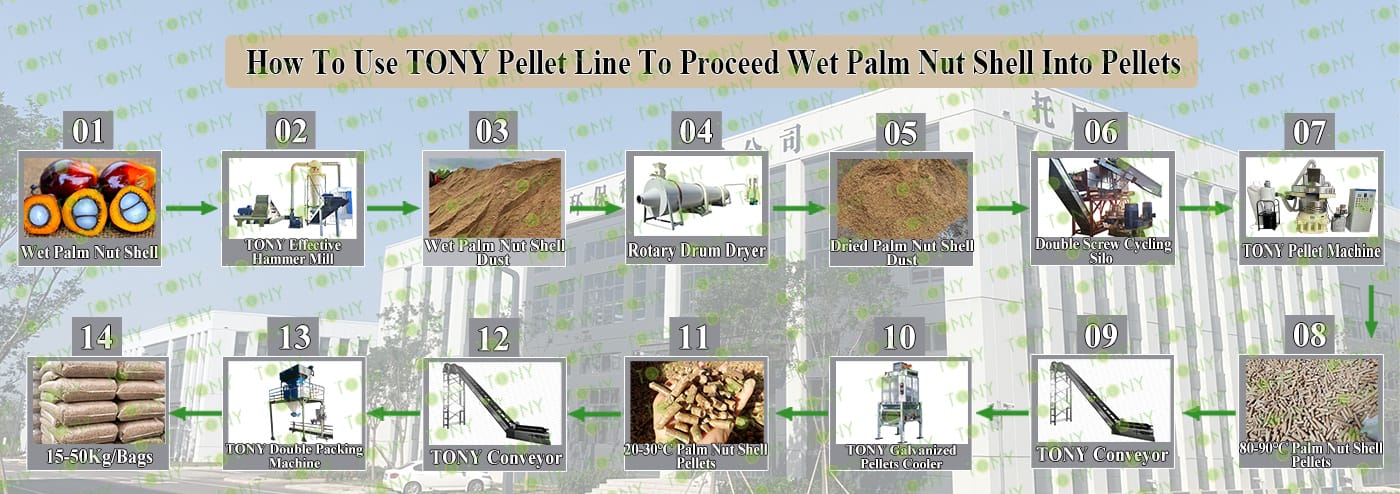

流程图1

流程图2

5.图片

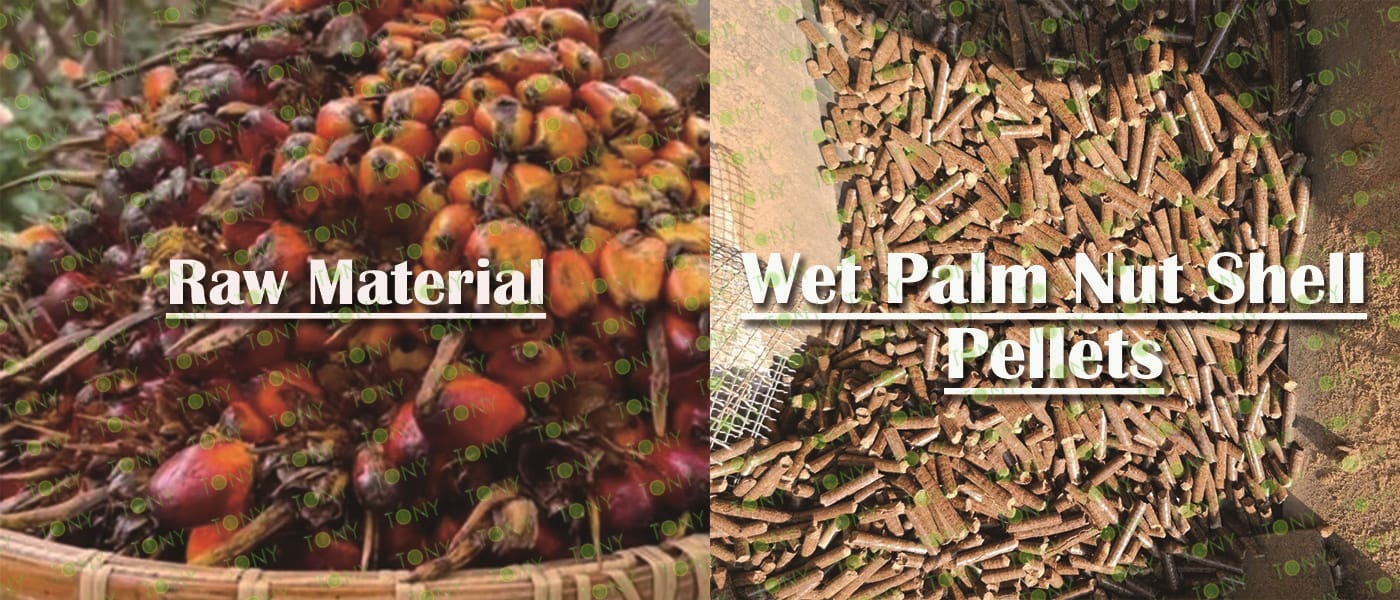

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

高效粉碎机

带锯末图

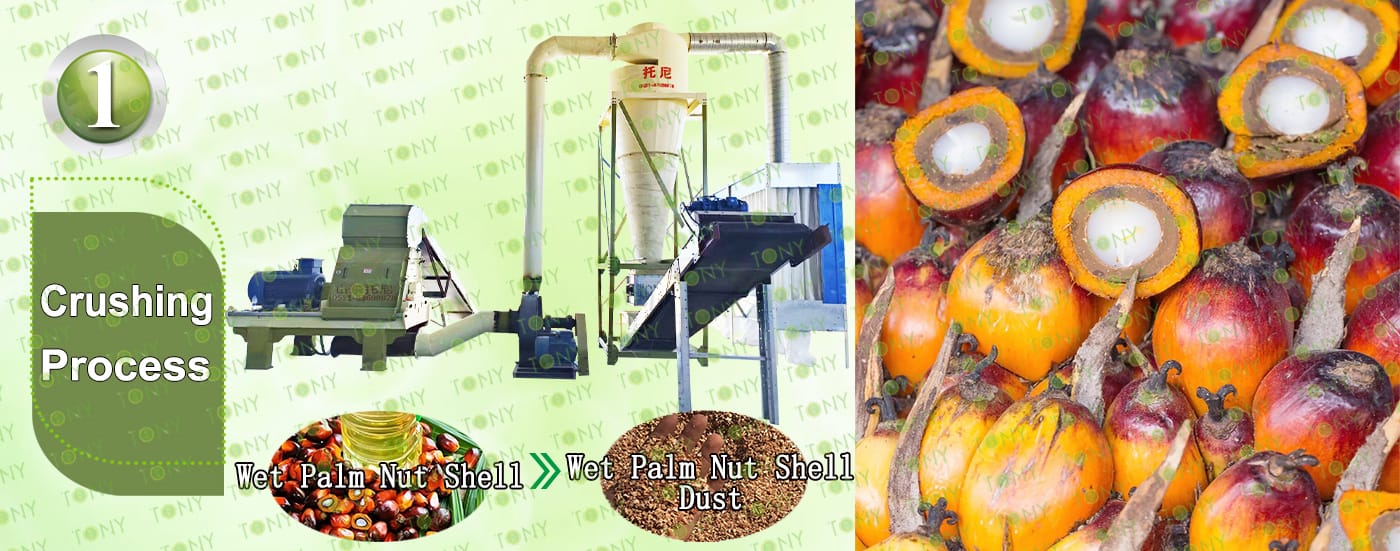

1.Palm Nut Shell Fine Crushing Process:

A.This process is mainly used to crush palm nut shell into 8-14mm palm nut shell dust.

B.Capacity:6Ton/Hour.

C.TONY brand effective hammer mill TFD85*220-220kw*1set

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.2图片

烘干机

带锯末图

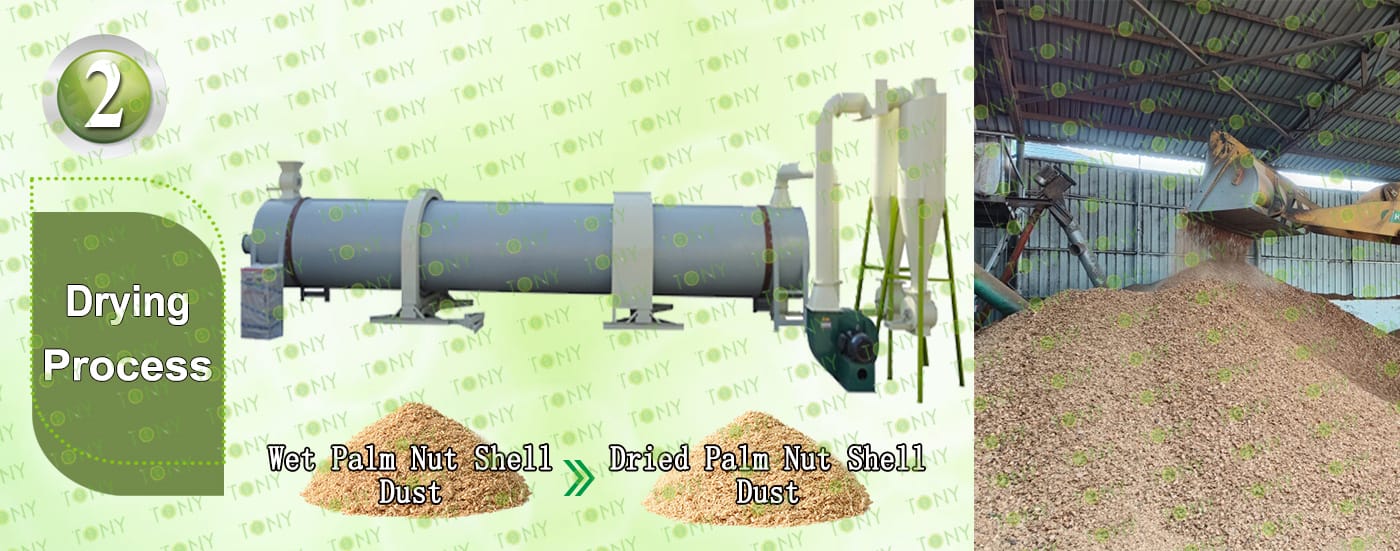

2.Palm Nut Shell Dust Drying Process:

A.This process is mainly used to dry the palm nut shell dust from 40-55% to 10-15%.

B.Capacity:6Ton/Hour.

C.TONY use 1set of 2*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.3图片

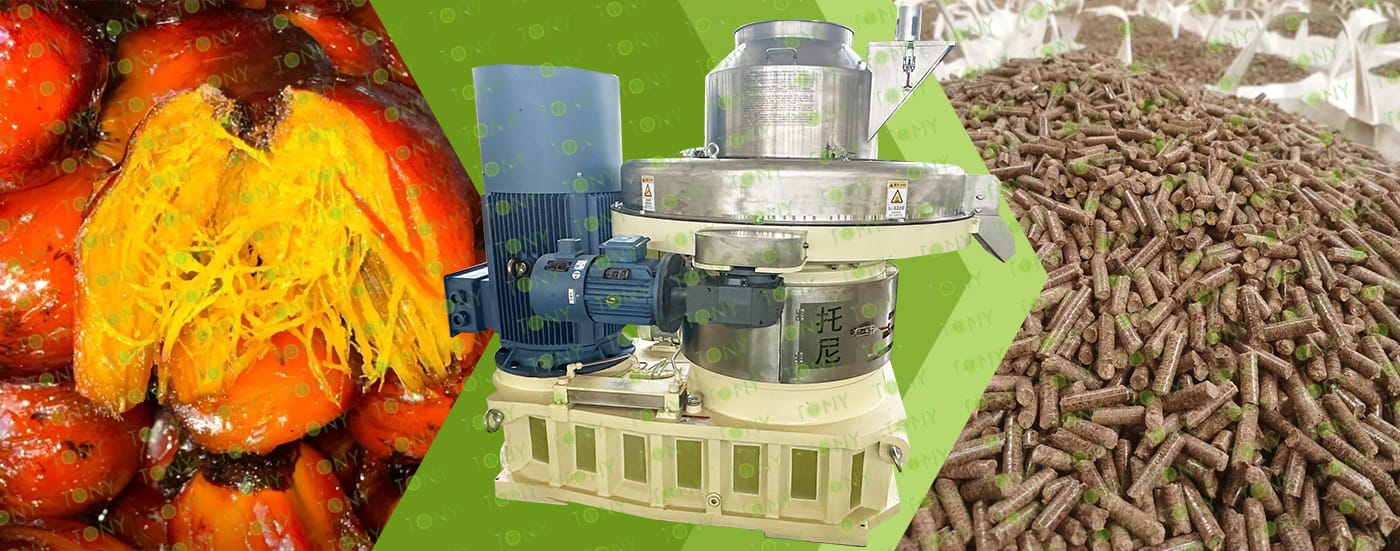

颗粒机四件套带 原材料，颗粒图

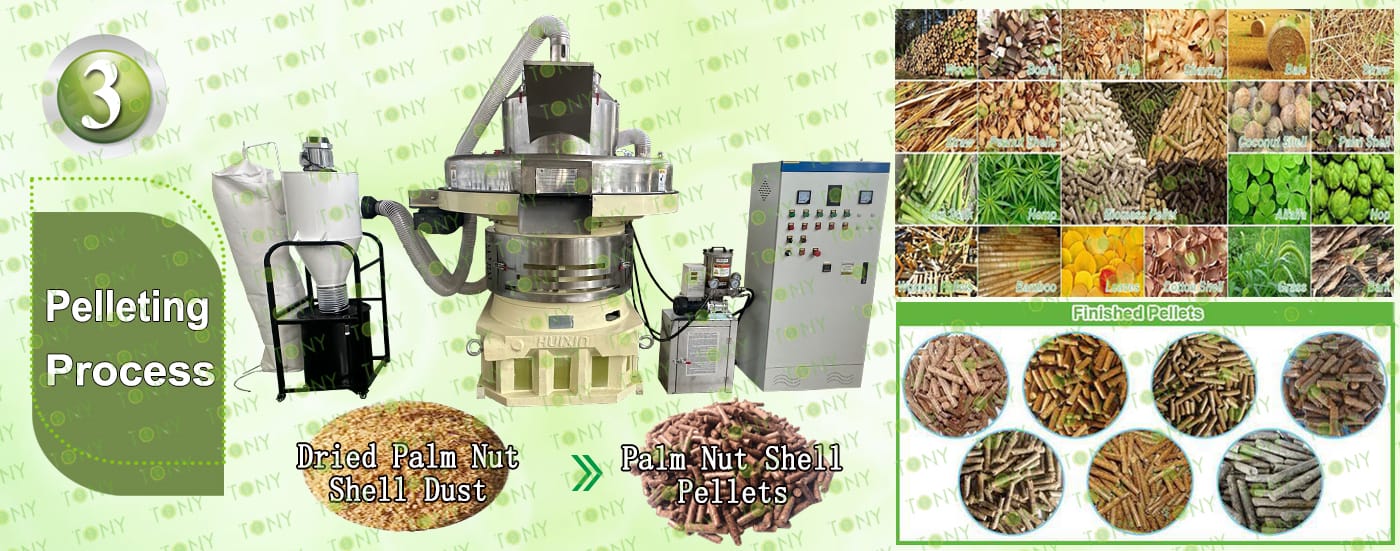

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:6 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ760-III-200KW*2sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

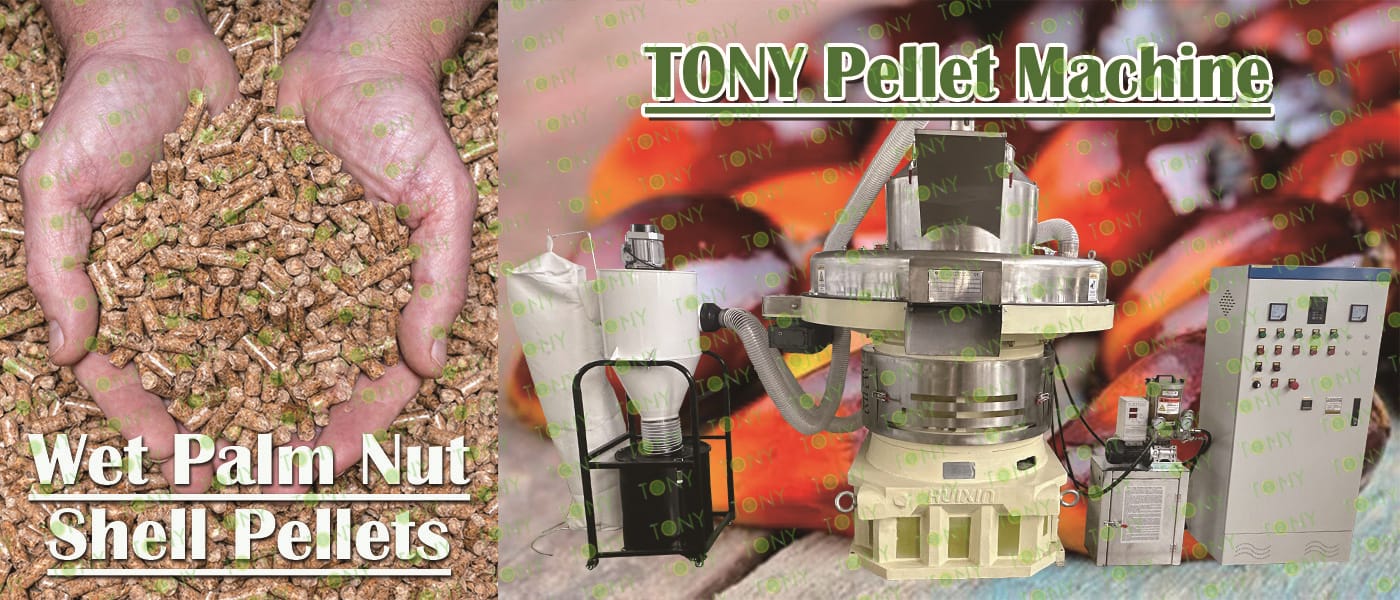

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.4图片

镀锌冷却仓加颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:6Ton/Hour.

C.TONY brand galvanized cooler separator*1set

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片

半自动包装机

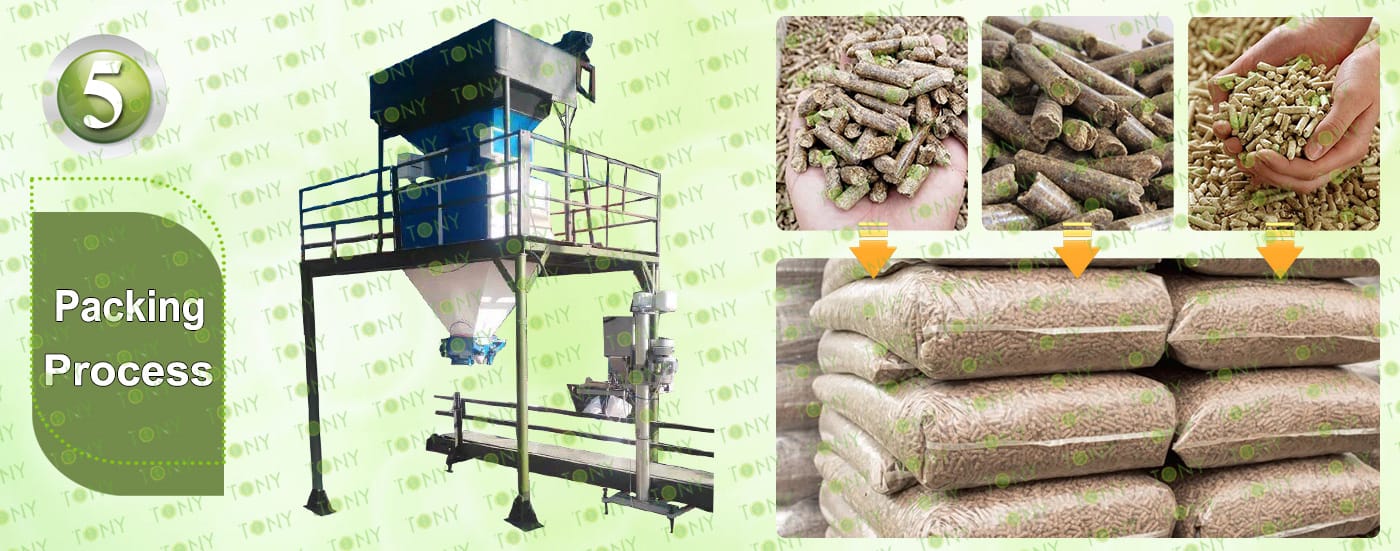

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:6Ton/Hour.

C.TONY double packing machine*1 set

Main Parts:

(1)TONY's  Double Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

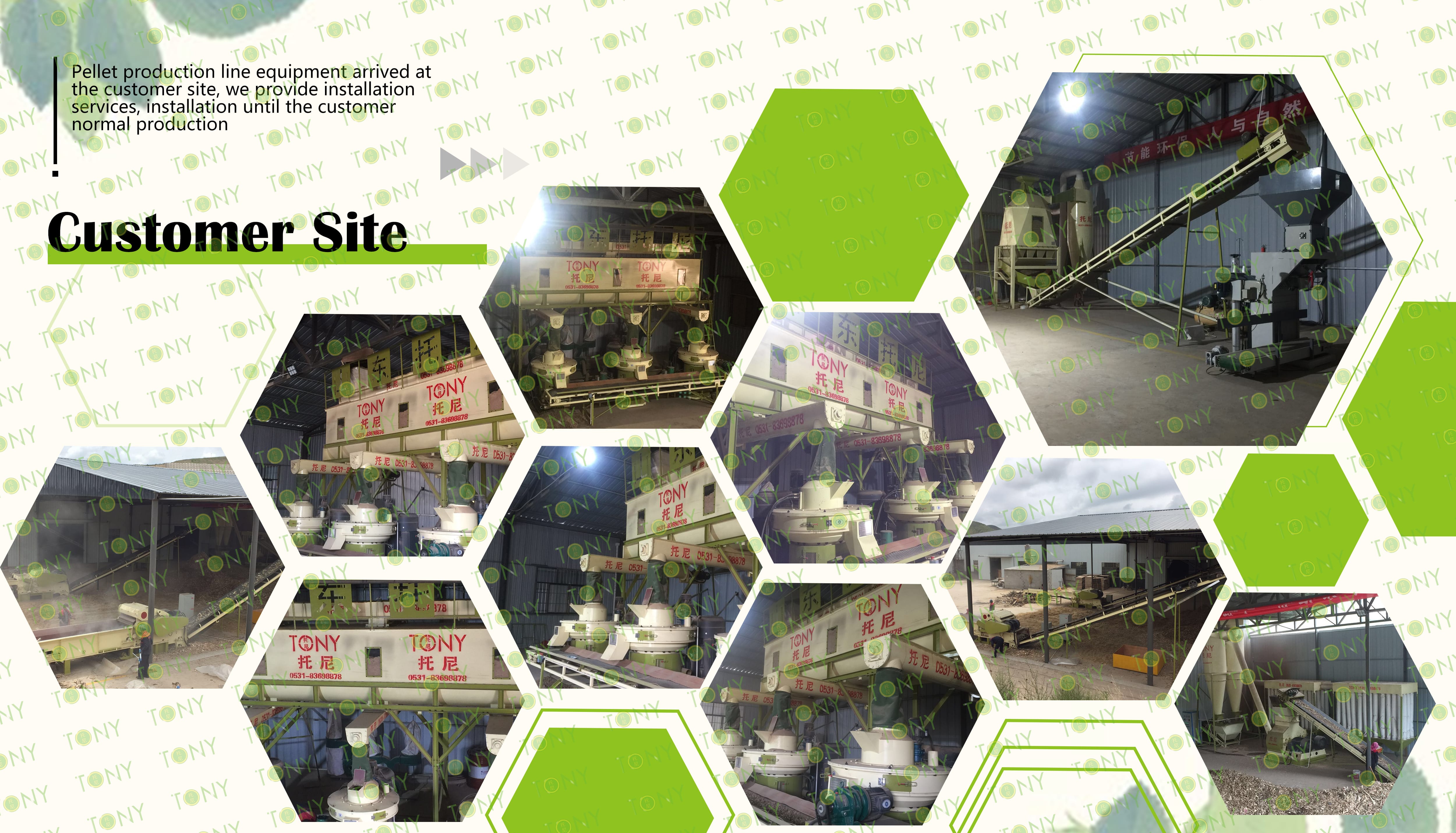

客户生产线案例图

7.图片

图 湿棕榈坚果壳+颗粒 颗粒机

Biomass pellet fuel is widely used in industrial boilers, heating equipment, livestock farms, food processing, textile printing and dyeing, and building materials industries due to its advantages such as being clean and environmentally friendly, having a high calorific value, and stable combustion. With the strict enforcement of environmental policies, traditional coal-fired boilers are being gradually phased out, and biomass pellets, as a high-quality alternative to coal, are experiencing continuous market demand growth. The raw materials for biomass pellets are mainly agricultural and forestry waste, such as sawdust, rice husks, straw, and sawdust. These raw materials are abundant in rural areas, and in some areas are even free, which not only reduces raw material costs but also enables the resource utilization of waste.

8.图片

湿棕榈坚果壳图 颗粒图

Wet Palm Nut Shell biomass pellets are fuel pellets processed from waste palm shells generated during palm oil production. Their advantages are mainly reflected in four dimensions: environmental friendliness, economy, energy efficiency, and resource recycling. They are particularly suitable for promotion in tropical palm oil producing areas. Wet Palm Nut Shell has a dry basis calorific value of 4000-4500 kcal/kg, approaching the level of low-rank coal, and its combustion efficiency is significantly higher than straw-based biomass (such as rice husks: 3000-3500 kcal/kg). After extrusion molding, the moisture content of the wet material is reduced to below 15%, enhancing combustion stability and reducing coking. Palm Nut Shell accounts for 60%-70% of the weight of Palm Nut Shell. Traditional disposal methods (landfill/open storage) release methane (a greenhouse gas) and leach polluting palmitic acid. Pelletization completely solves the pollution problem.
