Project Brief Introduction:

1.Product:Wet Palm Nut Shell Pellet Line

2.Capacity:1.5-2 Ton /Hour

3.TONY Brand 1.5-2 Ton /Hour Wet Palm Nut Shell Pellet Line Project Process

4.Main Machine: Hammer Mill,Rotary Drum Dryer,TONY Pellet Machine TYJ551-Ⅲ-110KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 240 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

原材料图+颗粒机图片

1. The working principle of wet palm nut shell biomass pellet processing equipment

The Wet Palm Nut Shell pellet processing equipment mainly consists of a crusher, dryer, pelletizer, cooler, and packaging machine. First, a high-efficiency crusher grinds the raw material into sawdust. Then, a drum dryer dries the Wet Palm Nut Shell to 10-15% moisture, causing it to solidify. Next, the coconut shell powder is fed into a biomass pelletizer, where it is extruded into pellets through molds and rollers. Afterward, a pellet cooler cools the pellets to save space and processing time, and makes them easier to package and transport. Finally, a packaging machine packages the cooled pellets for easy storage and transportation.

2. Characteristics of wet palm nut shell biomass pellet processing equipment

(1)High-efficiency drying: Wet Palm Nut Shell has a high moisture content and typically requires a drying process to reduce it to within 10-15%.High-efficiency drying equipment ensures that bagasse reaches the appropriate moisture content in a short time, improving the effectiveness of subsequent pelleting processes.

(2)Durability: In Wet Palm Nut Shell pelletizers, dies and rollers are wear parts; therefore, the processing equipment should be durable and have a long service life. Users should pay attention to maintenance. The high-wear-resistant dies and rollers used by our company have a much longer service life and output than ordinary ones.

(3)High degree of automation: Modern Wet Palm Nut Shell pelletizing equipment is usually equipped with an automated control system, enabling continuous production, reducing manual intervention, and improving production efficiency and product quality stability.

(4)Environmental protection and energy saving: With increasing environmental awareness, processing equipment should have energy-saving and emission-reduction features to reduce environmental impact. For example, using high-efficiency drying equipment can reduce energy consumption.

(5)adapt to changes in the characteristics of different raw materials and production scale, possessing good flexibility and adaptability.

3. Application scenarios of wet palm nut shell biomass pellet processing equipment

(1)Hot Water and Industrial Boilers: This pellet fuel is suitable for hot water and industrial boilers, providing a stable heat source.

(2)Biomass Power Plants: Wet Palm Nut Shell pellets are an important fuel source for biomass power plants, contributing to the sustainable use of energy.

(3)Agriculture and Forestry: In agricultural production, the ash from combustion can be used directly as potash fertilizer, promoting crop growth. Furthermore, the production of Wet Palm Nut Shell pellets can help manage agricultural waste and reduce environmental pollution.

(4)Environmental Protection: Because Wet Palm Nut Shell pellets are renewable and do not release other harmful gases during combustion, their use is environmentally friendly and helps reduce greenhouse gas

2.图片

TONY Brand 1.5-2 Ton/Hour Wet Palm Nut Shell Pellet Manufacturing Plant can take wet palm nut shell into biomass pellets.Palm nut shells are a high-density raw material with a calorific value of 4000-4500 kcal/kg, exhibiting good strength and resistance to breakage after molding. Processing palm fruit shells into biomass pellets represents the recycling of agricultural waste, resulting in low carbon emissions. Furthermore, the raw material is widely available and inexpensive. It can replace coal in boiler combustion, power generation, and heating, making it suitable for both industrial and residential applications. The technology for processing Palm nut shells shells into biomass pellets is mature and highly feasible, making it a high-quality biomass energy raw material.

1. Capacity: 1.5-2 Ton/Hour

2. Raw materials: Wet Palm Nut Shell

3. Moisture: Wet type, about 40-55%.

4. Application: All kinds of biomass materials suitable for pellet production.

Suitable customers: Processing palm nut shells into biomass pellets is suitable for individuals or entities with raw material resources, targeting the energy alternative market, and possessing basic facilities and capital. Examples include palm growers/cooperatives, biomass energy entrepreneurs, existing biomass processing companies, businesses with heating/power generation needs, and investors in the environmental protection sector.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

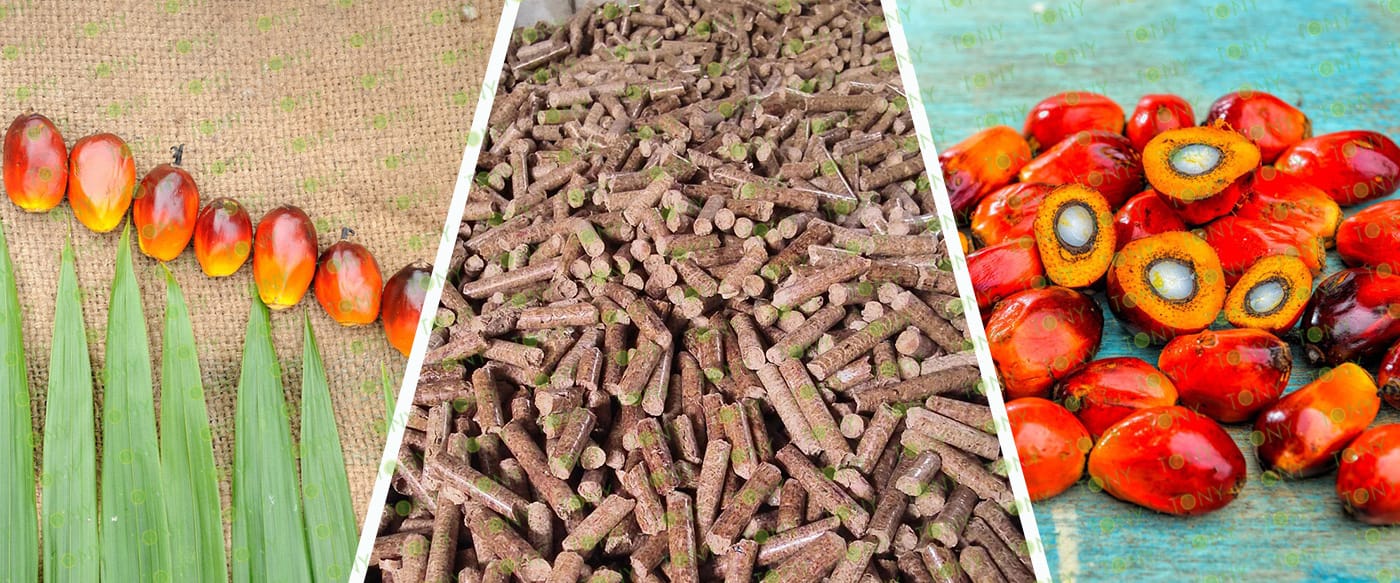

原材料--成品图

1. Project Name: Wet Palm Nut Shell Pellet Production Line

2. Raw Material: All kinds of Wet Palm Nut Shell

3. Moisture Content of Raw Material: 40-55%

4. Capacity: 1.5-2 TPH

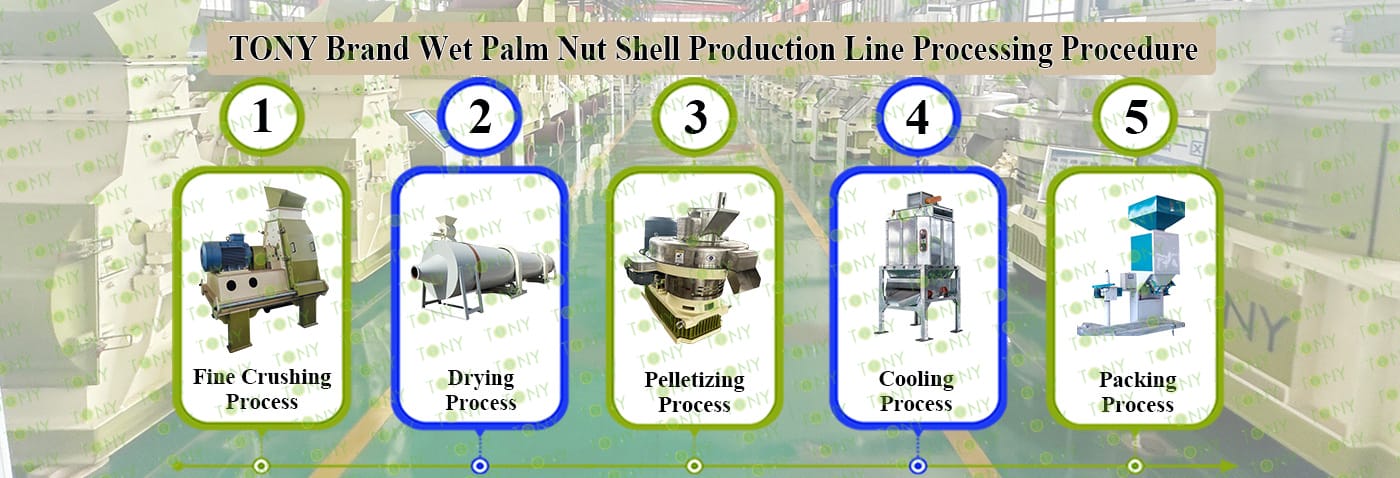

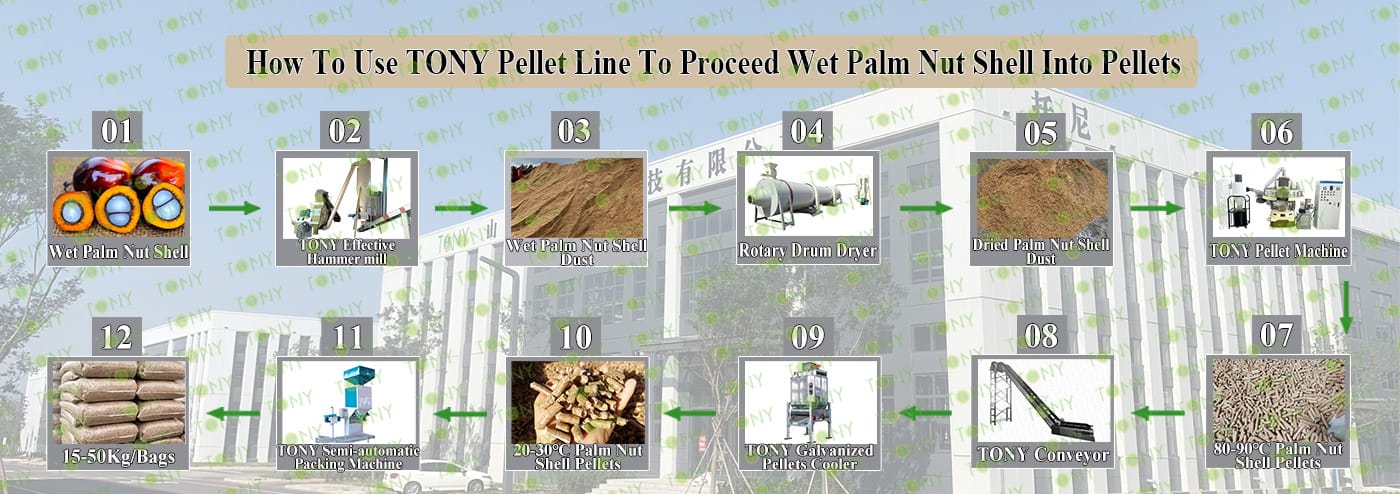

5. Process: Fine Crushing Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:   Effective Hammer mill-TFD65*55-45kw, Rotary Drum Dryer-1.6*12m, TONY Pellet Machine TYJ551-Ⅲ-110kw, Pellet Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

多功能粉碎机带锯末图

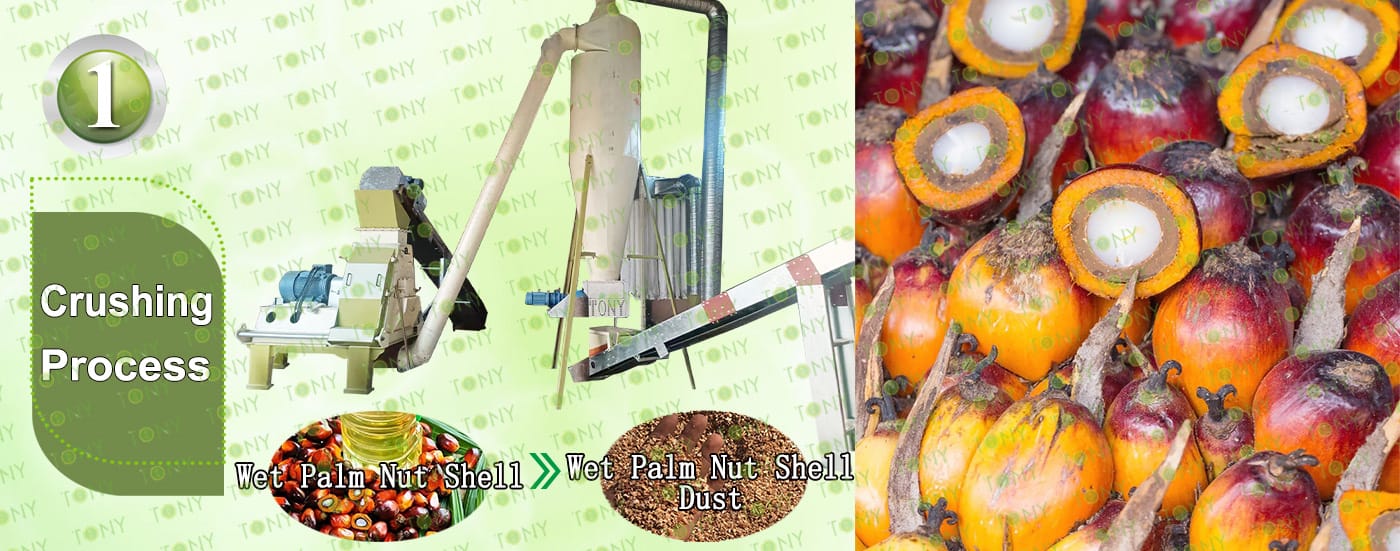

1.Palm Nut Shell Fine Crushing Process:

A.This process is mainly used to crush palm nut shell into 8-14mm palm nut shell dust.

B.Capacity:1.5-2Ton/Hour.

C.TONY brand effective hammer mill TFD65*55-45KW*1set

Main Parts:

(1)TONY Effective Hammer mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.2图片

烘干机带锯末图

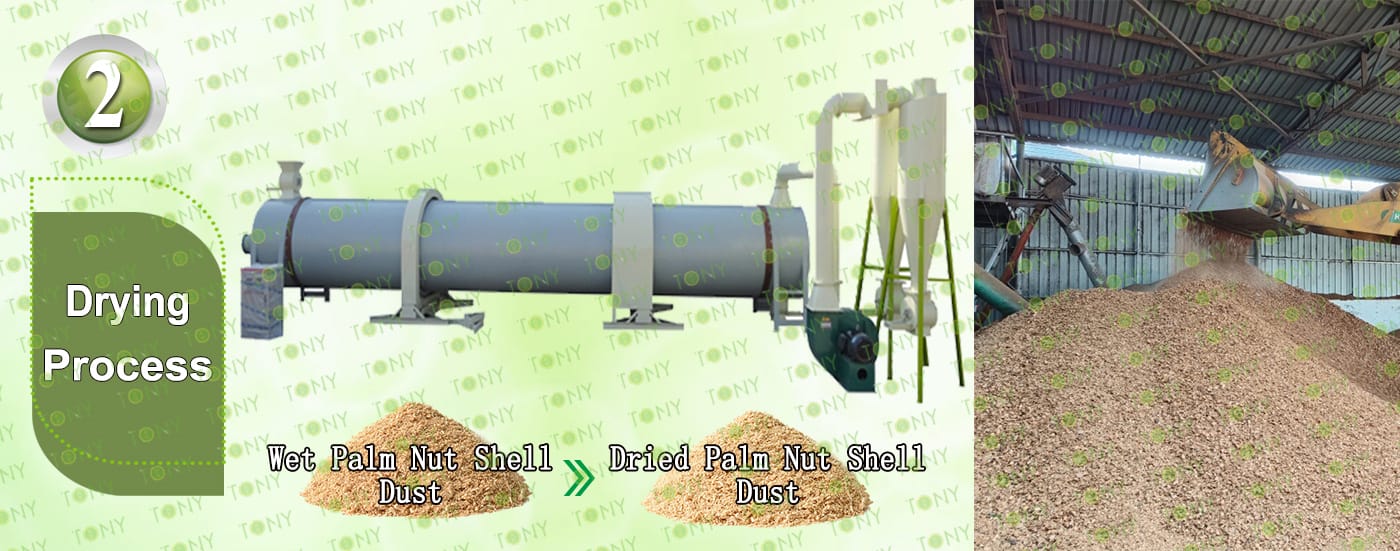

2.Palm Nut Shell Dust Drying Process:

A.This process is mainly used to dry the palm nut shell dust from 40-55% to 10-15%.

B.Capacity:1.5-2Ton/Hour.

C.TONY use 1set of 1.6*12m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

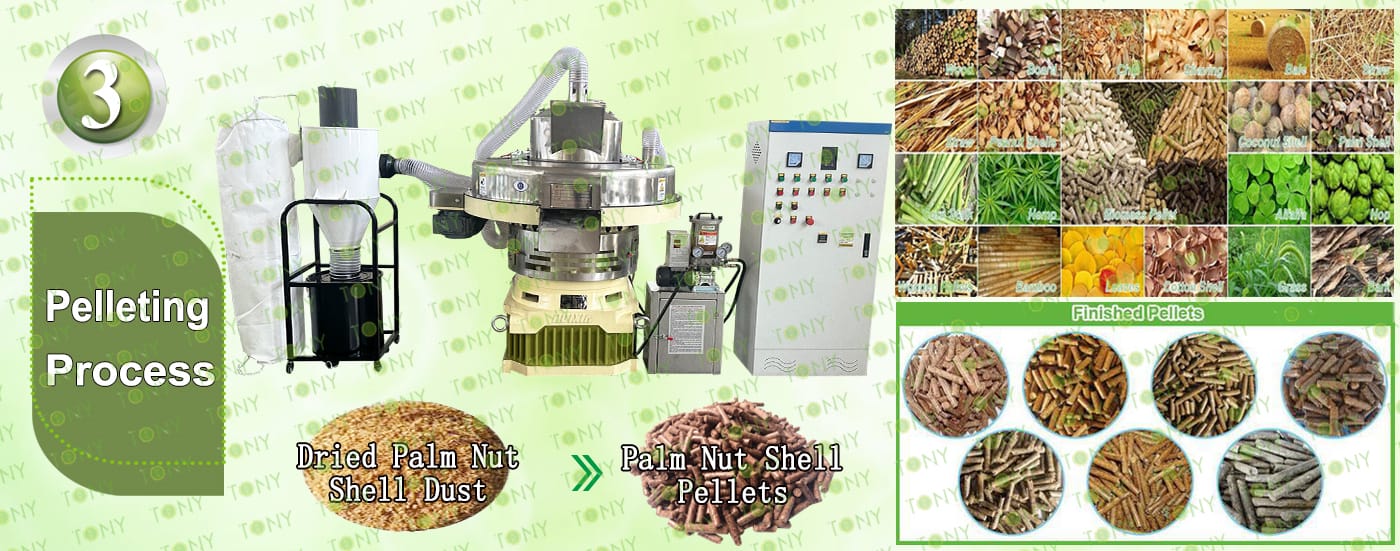

5.3图片

颗粒机四件套带 原材料，颗粒图

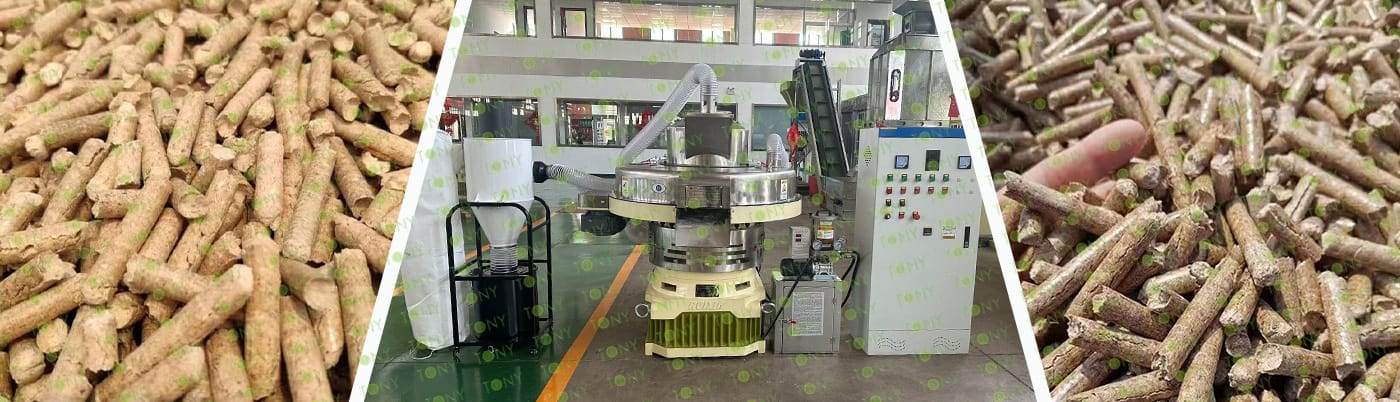

3.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:1.5-2 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ551-III-110KW*1set

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.4图片

镀锌冷却仓加颗粒图

4.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:1.5-2Ton/Hour.

C.TONY brand galvanized cooler separator*1set

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.5图片

半自动包装机

5.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:1.5-2Ton/Hour.

C.TONY semi-automatic packing machine*1 set

Main Parts:

(1)TONY's  Semi-Automatic Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

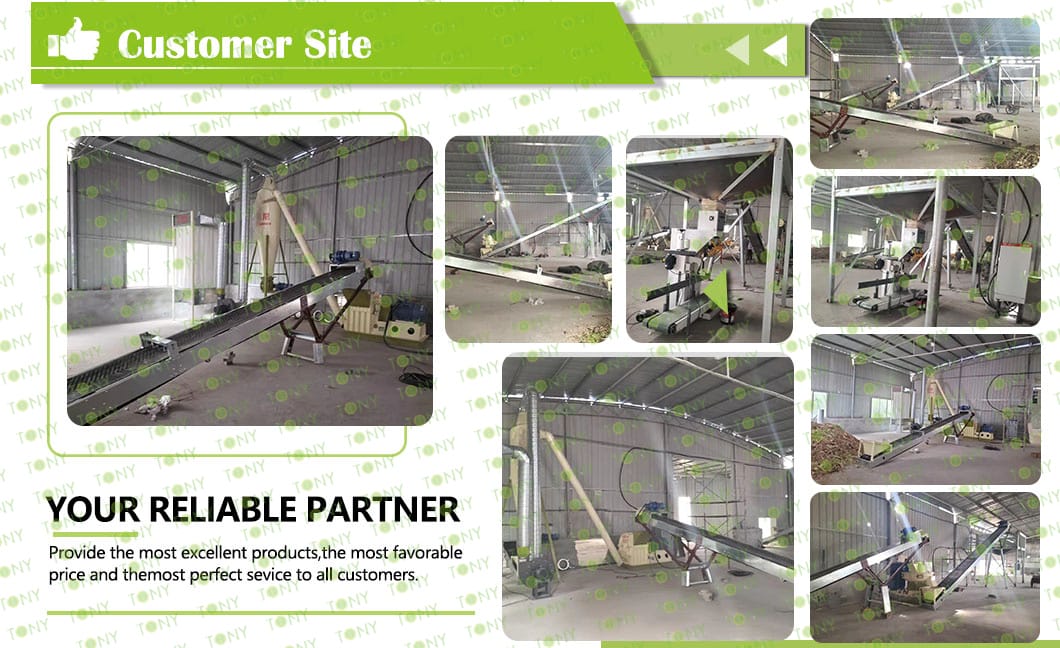

客户生产线案例图

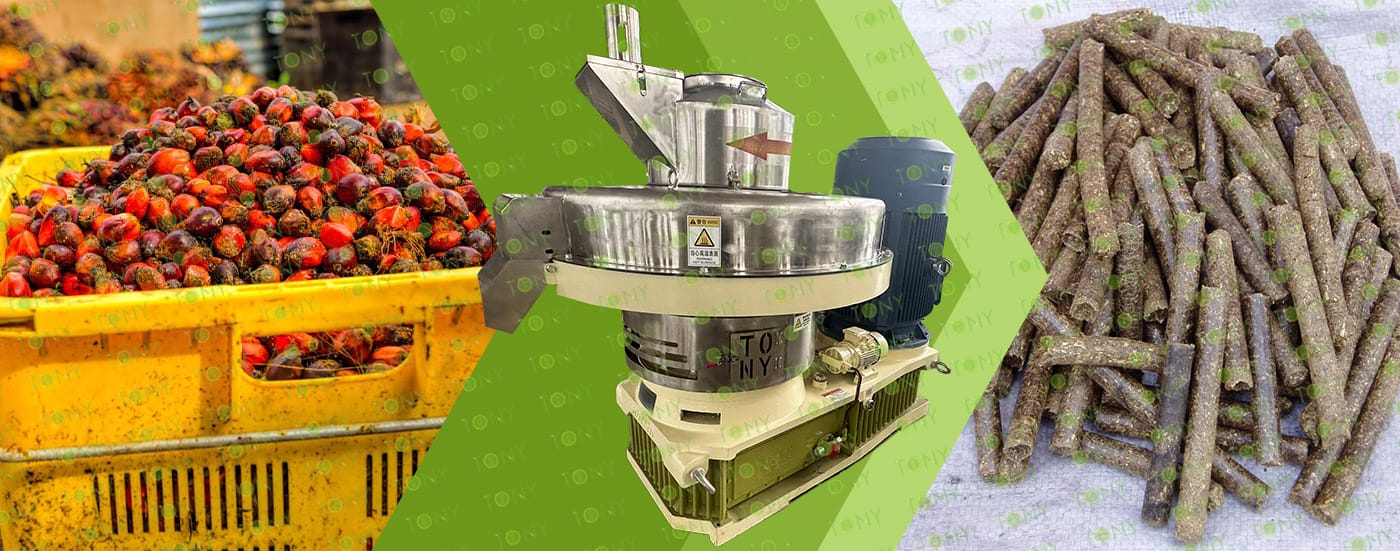

7.图片

图 湿棕榈坚果壳+颗粒 颗粒机

After drying and other pretreatment, Wet Palm Nut Shell pellets can be used as biomass fuel. Compared to traditional fossil fuels, they have the advantages of being renewable and having relatively low carbon dioxide emissions. In some district heating systems, the heat generated by burning Wet Palm Nut Shell pellets can be used for residential heating and heating processes in industrial production. For example, in parts of Northern Europe, biomass pellet heating systems are widely used, with Wet Palm Nut Shell pellets serving as one of the raw materials to provide a warm winter environment for local residents. This is because they have good combustion performance, effectively release heat, are relatively widely available, and have relatively low costs.

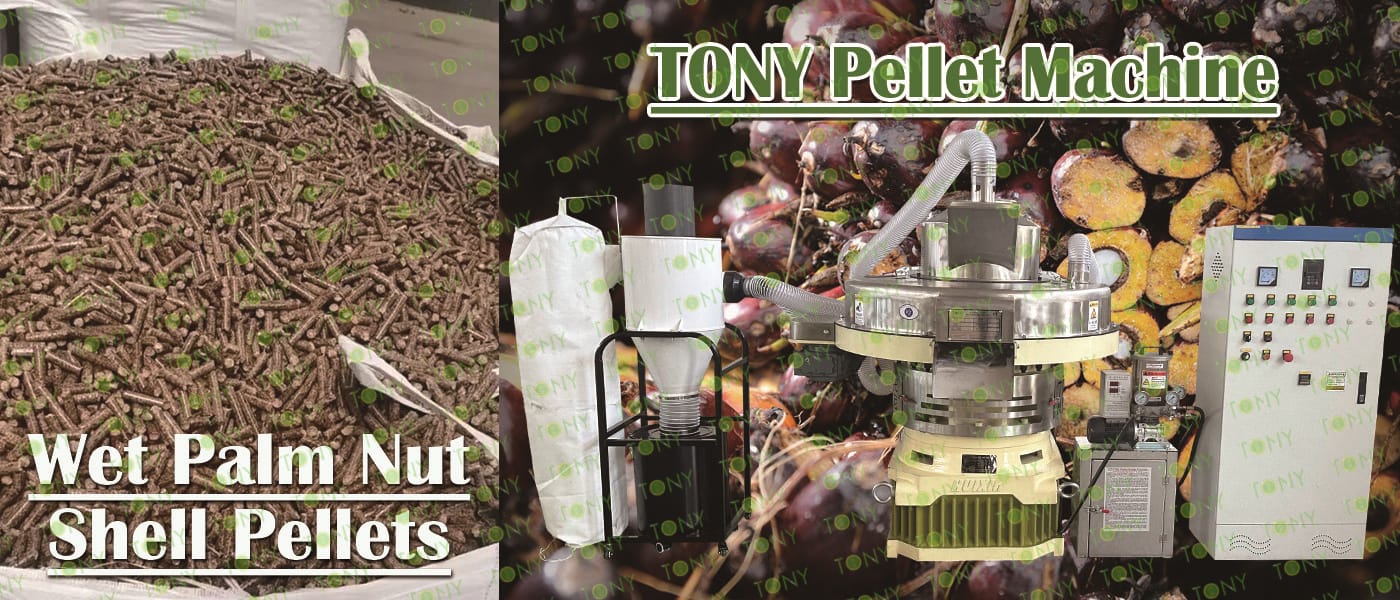

8.图片

湿棕榈坚果壳图 颗粒图

1. High Calorific Value: Wet Palm Nut Shell biomass pellets have a high calorific value of 4300-4800 Kcal/KG, with a moisture content below 18% and an ash content of less than 3%, ensuring complete combustion and making them particularly suitable for large boilers.

2. Environmental Friendliness: Compared to traditional coal and heavy oil, it significantly outperforms national standards in four key indicators: smoke, sulfur dioxide, nitrogen oxides, and smoke opacity. Combustion does not produce sulfur dioxide or phosphorus pentoxide, and its unique chemical properties can reduce greenhouse gas emissions.

3. Renewability: Palm trees have a short growth cycle, allowing for rapid recovery and recycling, making it a long-term, reliable, and stable renewable biofuel.

4. Stable Properties and Good Storage: Wet Palm Nut Shell has a high density , making it less prone to breakage and easy to store and transport. Its total moisture content generally does not exceed %, and it dries quickly after being wetted. It can withstand long-term exposure to sun and rain (1-2 years).

5. Economic Benefits: Biomass pellets have a high calorific value, which can replace fossil fuels and reduce energy costs.

6. Abundant Raw Materials: my country generates a large amount of agricultural and forestry waste annually, providing abundant raw materials for biomass pellets.
