Project Brief Introduction:

1.Product:Wet Sawdust Pellet Line

2.Capacity: 6-7.5 T/Hour

3.TONY Brand 6-7.5 Ton /Hour Wet Sawdust Pellet Line Project Process

4.Main Machine: Rotary Drum Dryer,TONY Pellet Machine TYJ551-Ⅲ-132KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 515 kw

6.Need Area: About   ㎡  L:  M  W:  M  H:  M

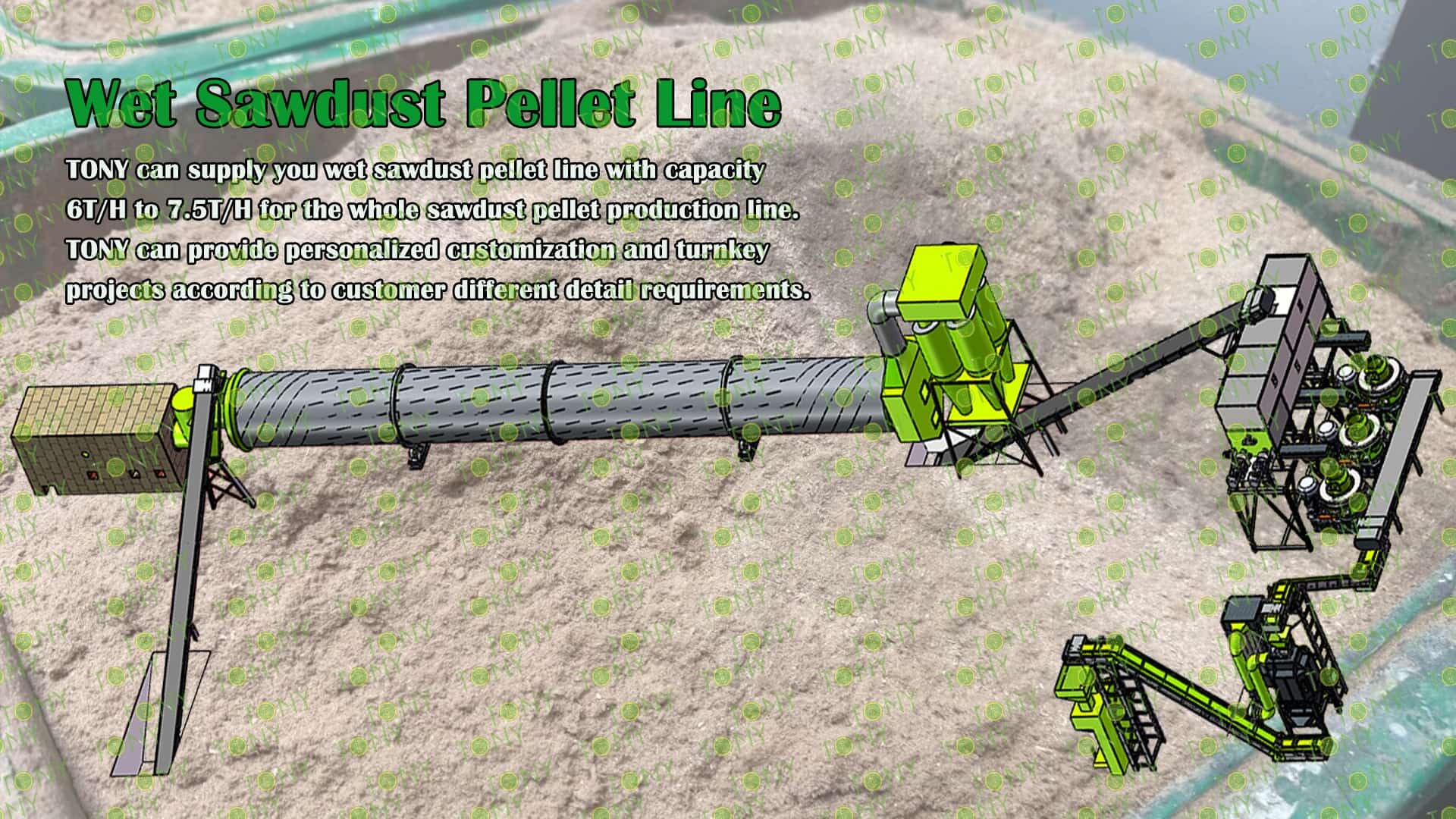

Project Layout For Customer:

三维图

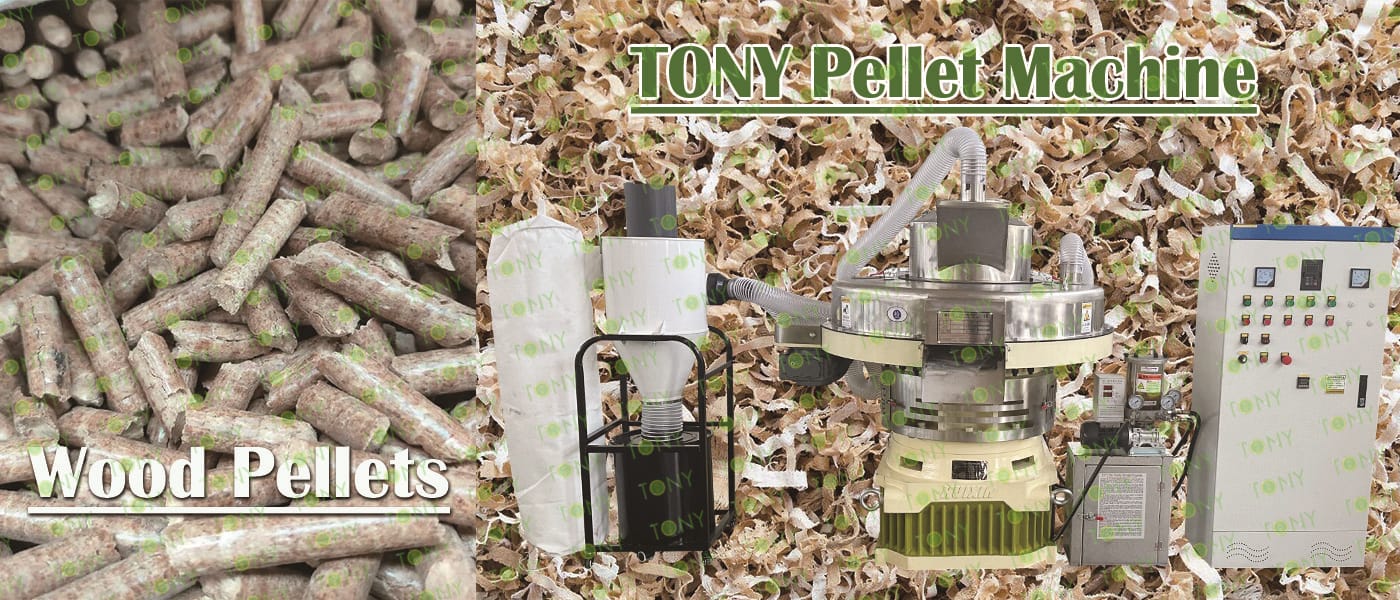

原材料图+颗粒机图片

1. The working principle of wet sawdust biomass pellet processing equipment

The initial dehydration is achieved through strong mechanical pressure, and the friction heat generated during the extrusion process is used to achieve self-drying of the material and plasticization of the lignin, and finally the material is formed into dense particles under high pressure in the mold.

2. Characteristics of wet sawdust biomass pellet processing equipment

(1) Strong adaptability: It can process wet sawdust with high moisture content, reducing the initial drying cost.

(2) High molding efficiency: Sawdust is quickly compressed into pellets through mechanical extrusion, with a high degree of automation and strong continuous production capacity.

(3) Stable pellet quality: The pellets after molding have high density and moderate hardness, making them easy to store and transport and not easy to break.

(4) Compact structure: The equipment integrates pretreatment and pelletizing functions, occupies a small area, and is relatively easy to operate and maintain.

3. Application scenarios of wet sawdust biomass pellet processing equipment

(1) Environmental Protection: Processing solid waste such as tree branches from urban landscaping pruning and furniture factory scraps, turning waste into valuables and reducing landfill volume.

(2) Forestry Processing: Processing wet sawdust waste from wood processing, recycling it for resource reuse and reducing waste pollution.

(3) Biomass Energy: Processing wet sawdust into biomass pellet fuel for use in boilers, fireplaces, and other heating or power generation applications.chieving resource recycling and reducing environmental pollution.

2.图片

TONY Brand 6-7.5Ton/Hour Wet Sawdust Pellet Manufacturing Plant can take wet sawdust,wood chips, various types of wood - related biomass materials, such as wood pallets ,branches, wood logs, and wood shavings. After pretreatment and processing, wet sawdust is solidified into high - density wood pellet fuel. This fuel is an ideal substitute for coal and oil and plays a role in energy conservation and emission reduction.

1. Capacity: 6-7.5 Ton/Hour

2. Raw materials: Wet sawdust

3. Moisture: Wet type, about 40%.

4. Application: All kinds of  wood sawdust or more waste wood raw materials

Suitable customers:Wood processing plants, furniture manufacturing plants, construction sites, landscaping companies and other places with advantageous sawdust resources

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片

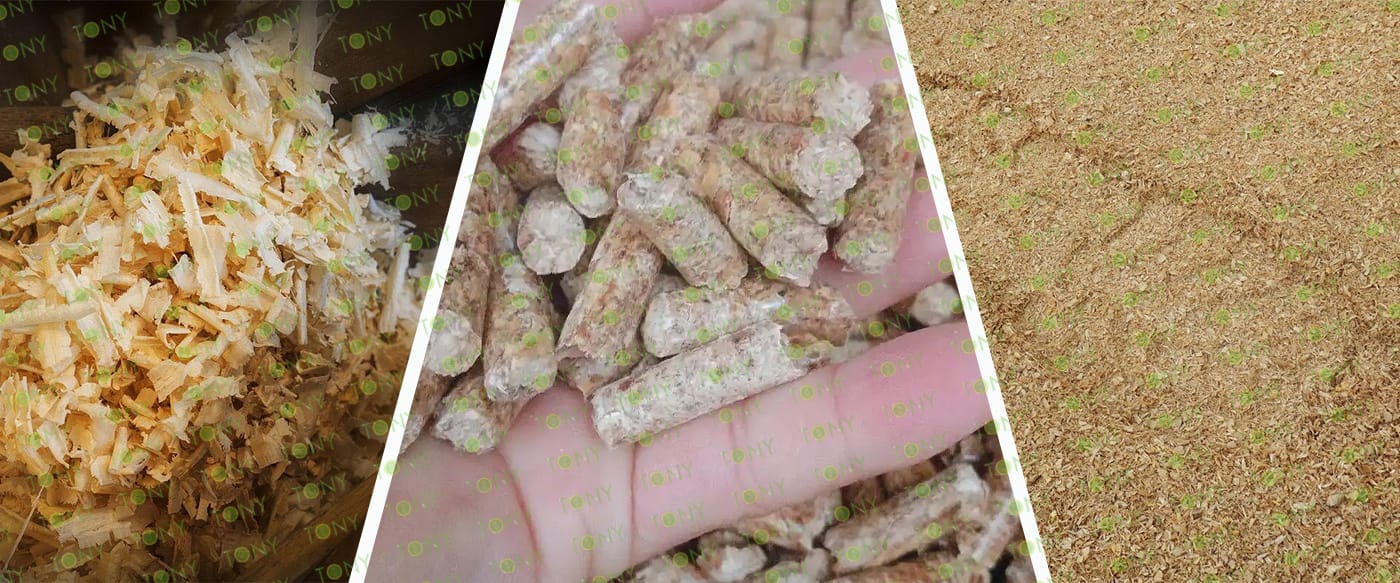

原材料--成品图

1. Project Name: Wet Sawdust Pellet Production Line

2. Raw Material: All kinds of wet sawdust

3. Moisture Content of Raw Material: 40%

4. Capacity: 6-7.5 tons per hour

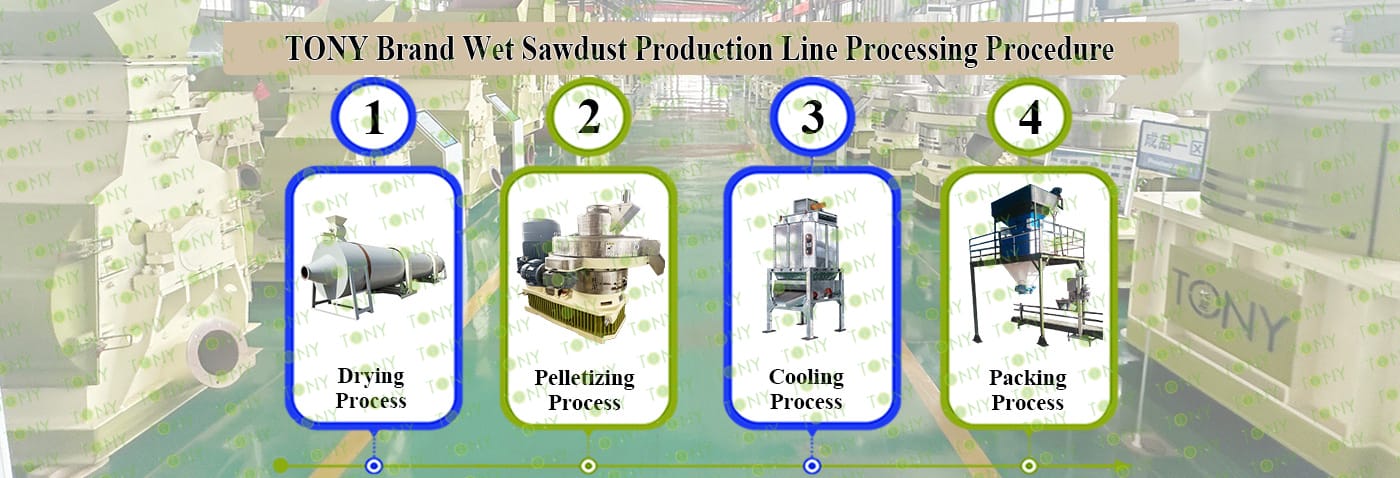

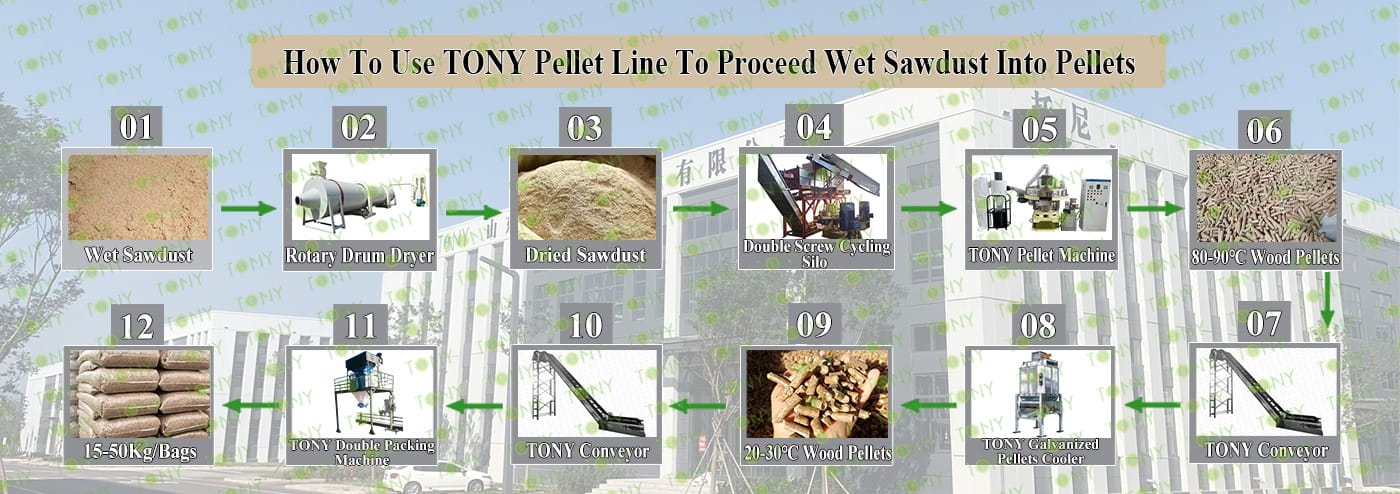

5. Process: Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:  Rotary Drum Dryer-2.2*24m, TONY Pellet Machine TYJ551-Ⅲ-132kw, Galvanized Pellets Cooler, Double Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

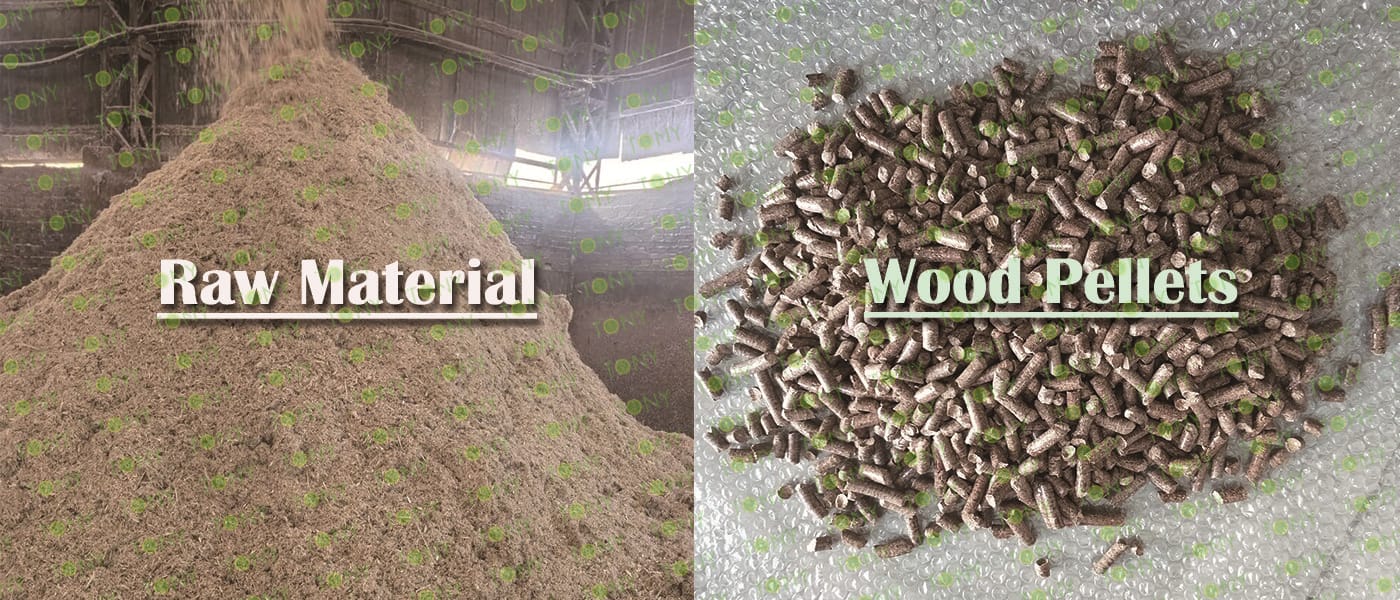

原材料+颗粒图

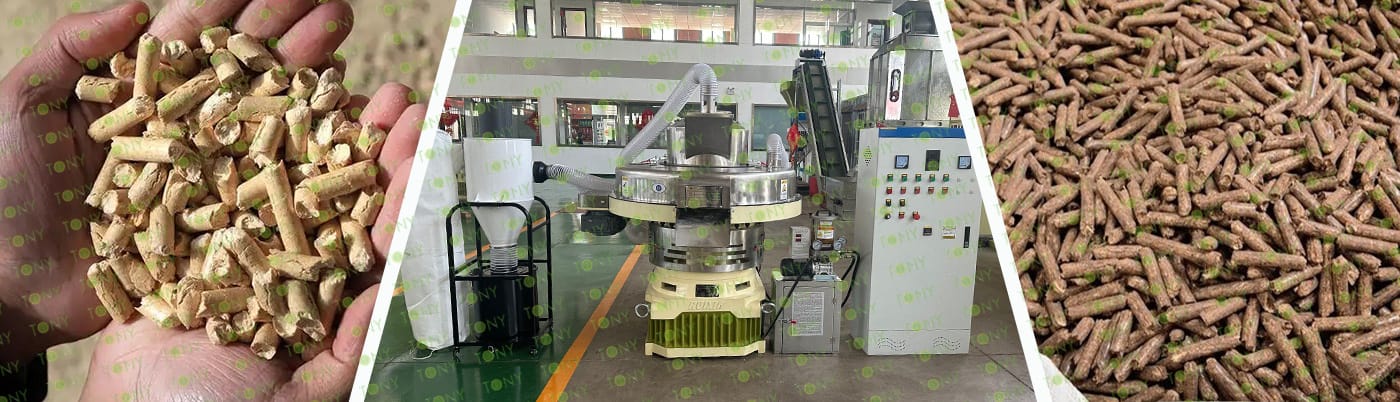

颗粒+机器图

三维图2张（长宽高）

5.1图片

烘干机带锯末图

1.Sawdust Drying Process:

A.This process is mainly used to dry the sawdust from 40% to 10-15%.

B.Capacity:6-7.5Ton/Hour.

C.TONY use 1set of 2.2*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.2图片

颗粒机四件套带 原材料，颗粒图

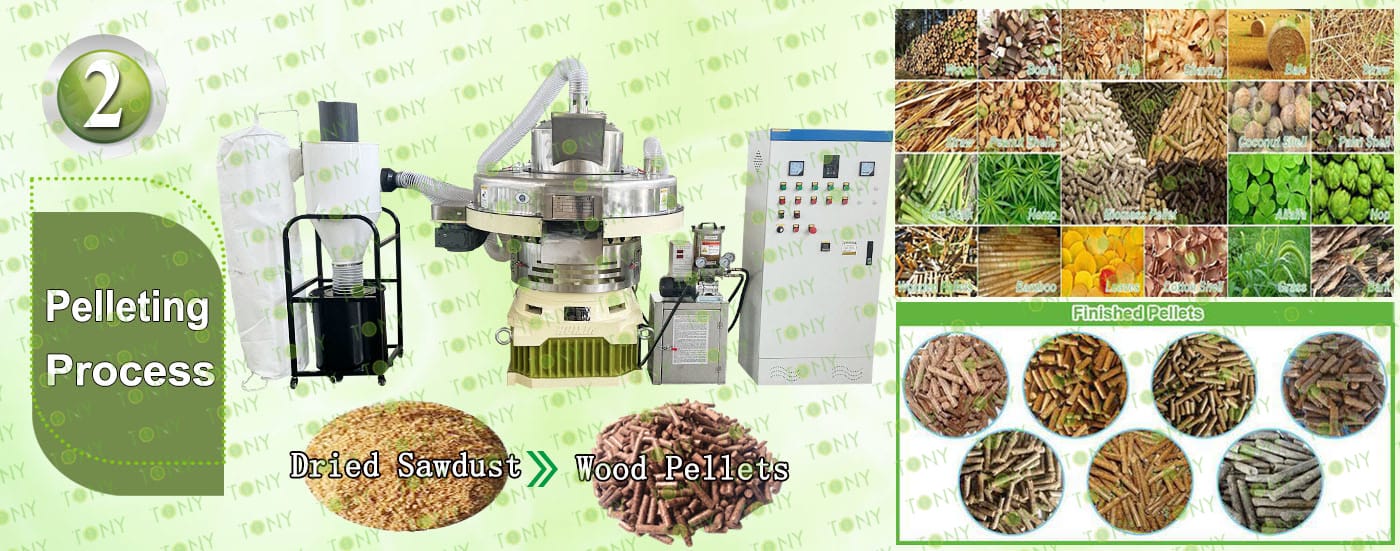

2.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:6-7.5 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ551-III-132KW*3 sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.3图片

镀锌冷却仓加颗粒图

3.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:6-7.5Ton/Hour.

C.TONY brand galvanized pellets cooler *1set

Main Parts:

(1)TONY's Galvanized Pellets Cooler With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3) Fan Blower.

(4)Connect Pipes.

5.4图片

包装机图片

4.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:6-7.5Ton/Hour.

C.TONY double packing machine*1 set

Main Parts:

(1)TONY's  Double Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

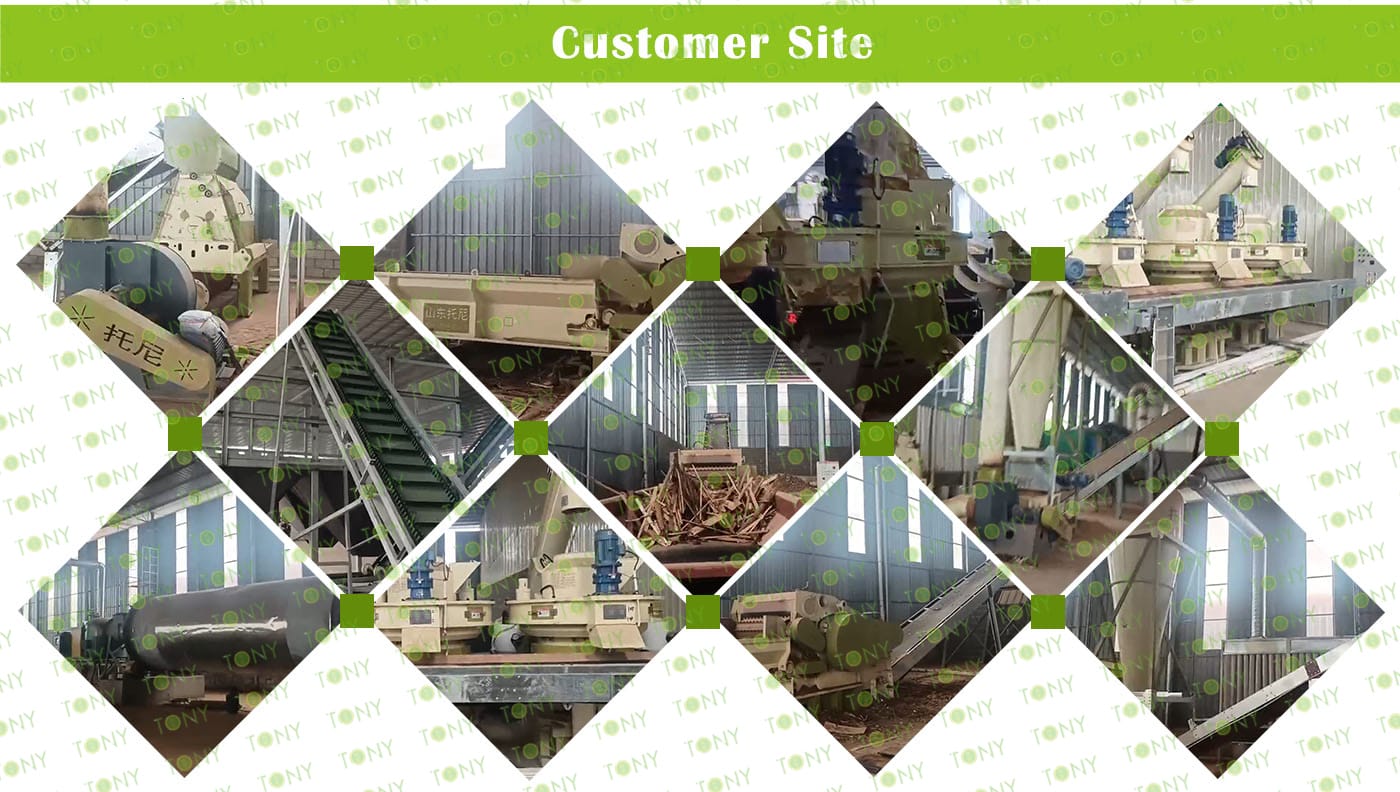

客户生产线案例图

7.图片

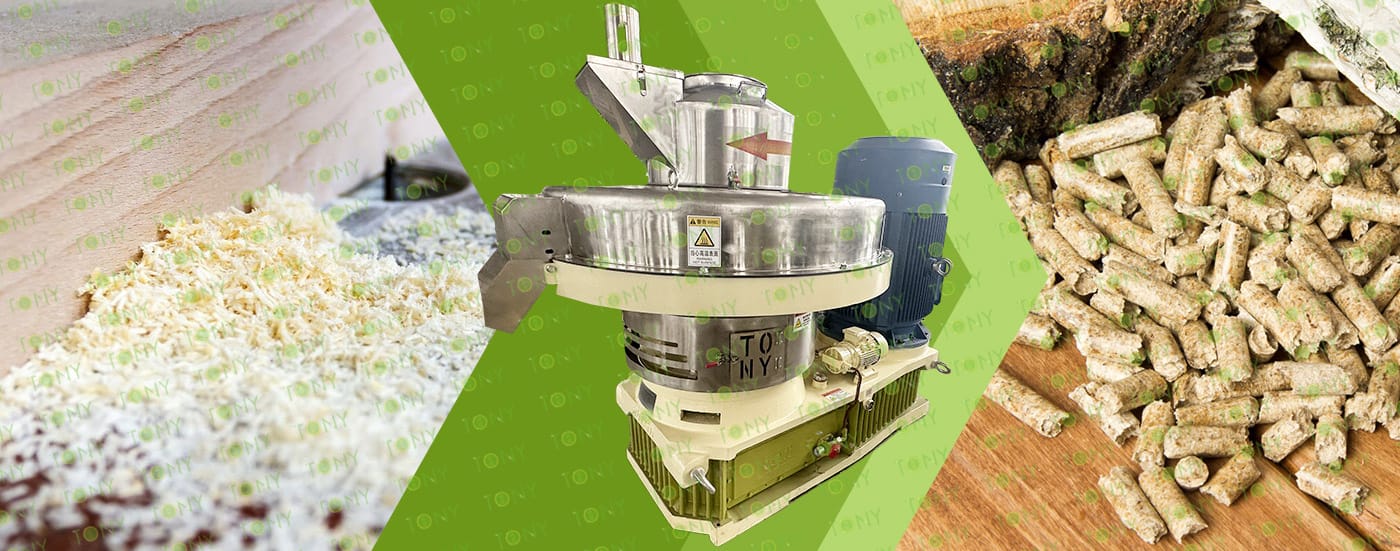

图 湿锯末+颗粒 颗粒机

The wet sawdust biomass pellet project is a resource recycling project that transforms forestry processing waste (wet sawdust) into clean, environmentally friendly biomass pellet fuel through specialized processes, achieving both environmental and economic benefits.

The project's raw material primarily comes from wet sawdust generated by wood processing plants and furniture factories. This raw material typically has a moisture content of 40%-60%. Traditionally, it has been discarded or incinerated, wasting resources and polluting the environment. The project purchases wet sawdust, first using dehydration equipment (such as a drum dryer) to reduce its moisture content to 15%-20%, then crushing it to a uniform particle size. The pellets are then fed into a biomass pellet machine, where they are pressed into cylindrical pellets under high temperature and pressure. No chemicals are added during the processing, relying solely on the sawdust's natural fibers for bonding, ensuring a green and environmentally friendly product.

The resulting biomass pellet fuel boasts a combustion efficiency exceeding 85%, significantly higher than traditional coal (approximately 60%). The resulting ash content is only 2%-5% after combustion, and the sulfur content is less than 0.05%, meeting national environmental emission standards. It can replace fossil fuels such as coal and natural gas and is widely used in industrial boilers, home heating, and agricultural greenhouse heating.

From a market perspective, the global energy transition is accelerating, and my country is vigorously promoting clean energy. The demand for biomass pellet fuel is growing at an average annual rate of over 15%. The project offers flexible investment options, low raw material costs, and a typical payback period of 1-2 years. Furthermore, the project benefits from national policies such as renewable energy subsidies and tax exemptions, demonstrating strong sustainable development potential.

8.图片

锯末图 颗粒图

Sawdust biomass pellets are a new fuel made from forestry waste, sawdust. They combine resource recycling, environmental friendliness, and practicality. Their core features and advantages are as follows:

In terms of raw materials and production, they boast a broad and low-cost source. Relying on waste sawdust from wood processing plants and furniture factories, they eliminate the need for additional farmland or the consumption of high-quality resources, resulting in a low raw material price. Furthermore, the production process is chemical-free, relying solely on the sawdust's own fibers bonded together under high temperature and high pressure, preserving the product's natural properties. Furthermore, their uniform shape makes them easy to store and stack, reducing warehouse space and transport costs by 30%-50%.

In terms of performance, their high combustion efficiency and low pollution levels are their key advantages: Their combustion efficiency exceeds 85%, far exceeding that of traditional coal, enabling rapid heat release. Their ash content after combustion is only 2%-5%, and their sulfur content is less than 0.05%, significantly lower than that of coal. Pollutants such as sulfur dioxide and dust are minimal, meeting national environmental standards and offering a direct alternative to fossil fuels such as coal and natural gas.

9.图片

绿色地球+原材料+颗粒图
