Project Brief Introduction:

1.Product:Wet Palm Nut Shell Pellet Line

2.Capacity:18-20 Ton /Hour

3.TONY Brand 18-20 Ton /Hour Wet Palm Nut Shell Pellet Line Project Process

4.Main Machine: Hammer Mill,Large Hydraulic Storage Silo,Rotary Drum Dryer,TONY Pellet Machine TYJ860-Ⅲ-280KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 2170 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

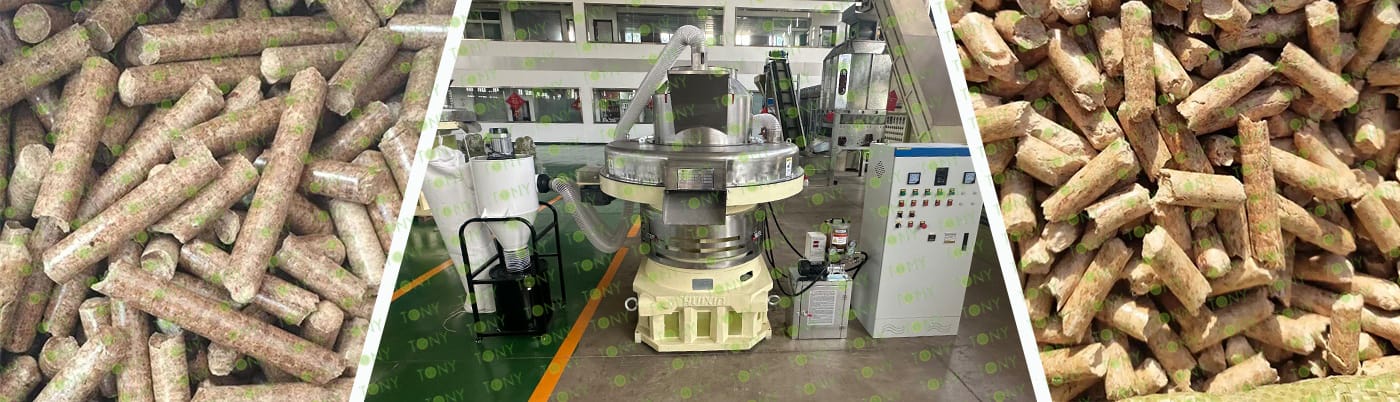

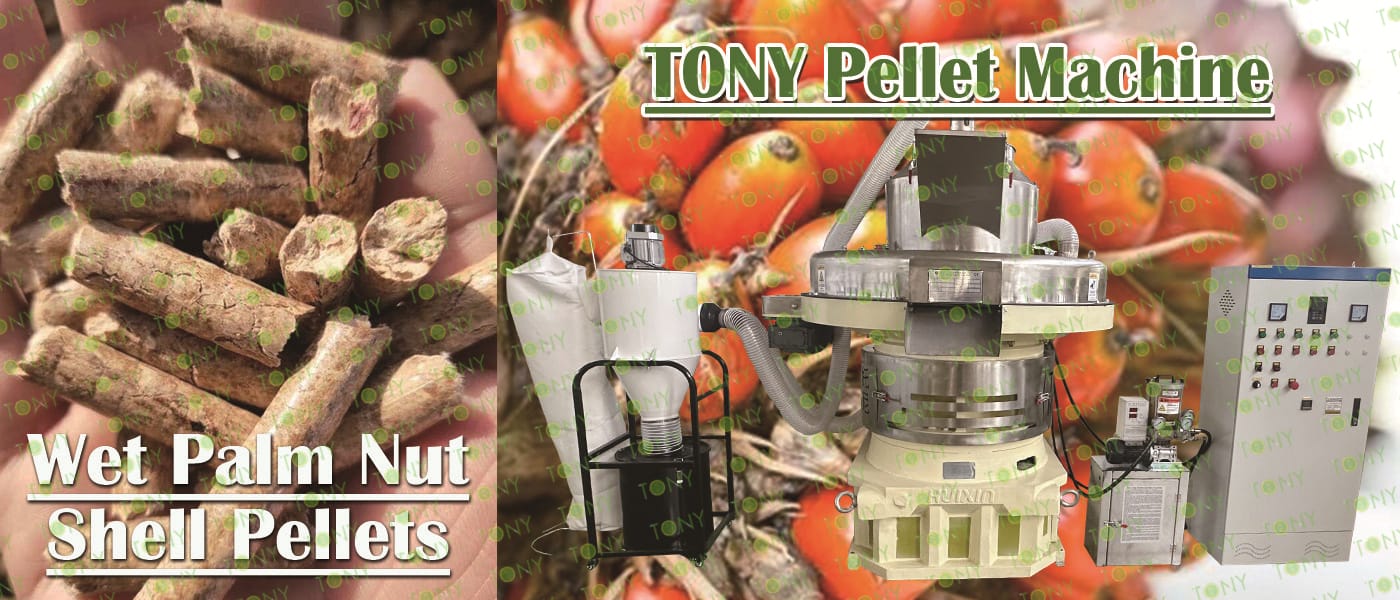

原材料图+颗粒机图片

1. The working principle of wet palm nut shell biomass pellet processing equipment

The pellet mill is the core equipment. Its working principle is "mechanical high-pressure extrusion + mold shaping," which uses external force to overcome the gaps between raw material particles, compressing loose fibers into high-density particles.

(1) Feeding and Pre-compression: The raw material is fed into the pelleting chamber at a constant speed through a screw feeder. The frequency conversion control of the feeder (speed 10-20 r/min) ensures a stable supply of raw materials.

(2) High-pressure molding: A pair of pressure rollers in the pelleting chamber use high pressure to extrude the raw material into the annular hole (hole diameter 8-12 mm) of the mold. The principle is to use high pressure to make the raw material fibers adhere tightly, while the frictional heat generated by extrusion (temperature rises to 60-80℃) further activates the binding effect of lignin, causing the raw material to form a continuous columnar body within the mold hole.

(3) Cutting and Demolding: Fixed cutters on the outside of the mold (blade spacing matches the particle length, usually 3-5 cm) cut the extruded columnar body, forming standardized particles. The particles are demolded by their own gravity and slight vibration of the mold, falling into the subsequent cooling system.

2. Characteristics of wet palm nut shell biomass pellet processing equipment

(1) Integrated Layout:

Drying, crushing, granulation, and cooling (in some models) are integrated into a single production line. Raw materials are automatically transported via conveyor belts, eliminating the need for manual handling. A production line with a capacity of 2 tons per hour requires only 3-5 operators, significantly reducing labor costs.

(2) Variable Frequency Speed Control and Intelligent Temperature Control:

Core motors (such as the feed motor and drying fan) are controlled by variable frequency, allowing for speed adjustments based on raw material humidity and fiber content, avoiding energy consumption during idling. The dryer and granulator are equipped with intelligent temperature control systems that monitor temperature in real time and automatically adjust the heat source supply, ensuring stable moisture content in the finished product. The thermal efficiency is approximately 15% higher than traditional equipment.

(3) Flexible Raw Material Adaptability:

In addition to dehumidifying palm nut shells, the equipment is compatible with processing other biomass raw materials such as palm fiber, coconut shells, and sawdust. Only mold changes or parameter adjustments are needed, making it suitable for processing plants with diverse raw material sources and improving equipment utilization.

3. Application scenarios of wet palm nut shell biomass pellet processing equipment

Enterprises with Self-Supply Energy Needs – Decentralized Application Primarily for Self-Use

Some enterprises have stable heat or electricity needs and can obtain sufficient quantities of wet palm nut shells. They will independently configure equipment to form a closed loop of "raw materials - processing - self-use," reducing energy costs.

(1) Palm oil deep processing enterprises:

Such as large palm oil refineries and palm kernel processing plants, wet palm nut shells are a "byproduct" of their own production. After being processed into pellets, they can be directly used in the plant's steam boilers (providing high-temperature steam required for refining), workshop heating, or power supply for employee living areas. Compared to using natural gas or raw coal, energy costs can be reduced by 30%-40%.

(2) Small and medium-sized industrial enterprises in tropical regions:

Such as tropical fruit processing plants (mango and pineapple drying) and timber processing plants (board drying). These enterprises have a continuous and stable demand for heat energy. If there are palm plantations or processing bases nearby, they will use equipment to convert wet palm nut shells into fuel, replacing expensive commercial energy, while also meeting the local environmental protection policy requirements for "clean energy use."

(3) Large-scale plantations/farms:

Some large palm plantations or integrated farms will be equipped with small equipment (1-2 tons per hour) to process the wet palm nut shells produced in the park into granules for power supply of irrigation system, heating of farm greenhouses, or to provide domestic heat for staff dormitories in the park, so as to realize the energy cycle of "self-production and self-sales".

2.图片

TONY Brand 18-20 Ton/Hour Wet Palm Nut Shell Pellet Manufacturing Plant can take wet palm nut shell into biomass pellets.Palm nut shells are a high-density raw material with a calorific value of 4000-4500 kcal/kg, exhibiting good strength and resistance to breakage after molding. Processing palm fruit shells into biomass pellets represents the recycling of agricultural waste, resulting in low carbon emissions. Furthermore, the raw material is widely available and inexpensive. It can replace coal in boiler combustion, power generation, and heating, making it suitable for both industrial and residential applications. The technology for processing Palm nut shells shells into biomass pellets is mature and highly feasible, making it a high-quality biomass energy raw material.

1. Capacity: 18-20 Ton/Hour

2. Raw materials: Wet Palm Nut Shell

3. Moisture: Wet type, about 40-55%.

4. Application: All kinds of biomass materials suitable for pellet production.

Suitable customers: Processing palm nut shells into biomass pellets is suitable for individuals or entities with raw material resources, targeting the energy alternative market, and possessing basic facilities and capital. Examples include palm growers/cooperatives, biomass energy entrepreneurs, existing biomass processing companies, businesses with heating/power generation needs, and investors in the environmental protection sector.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片


1. Project Name: Wet Palm Nut Shell Pellet Production Line

2. Raw Material: All kinds of Wet Palm Nut Shell

3. Moisture Content of Raw Material: 40-55%

4. Capacity: 18-20 TPH

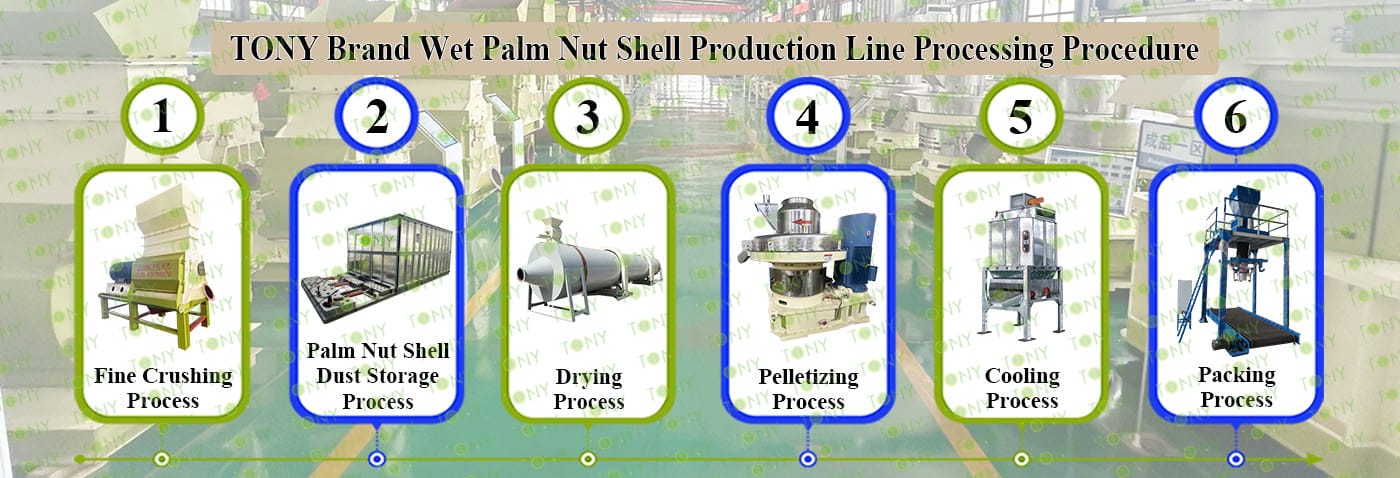

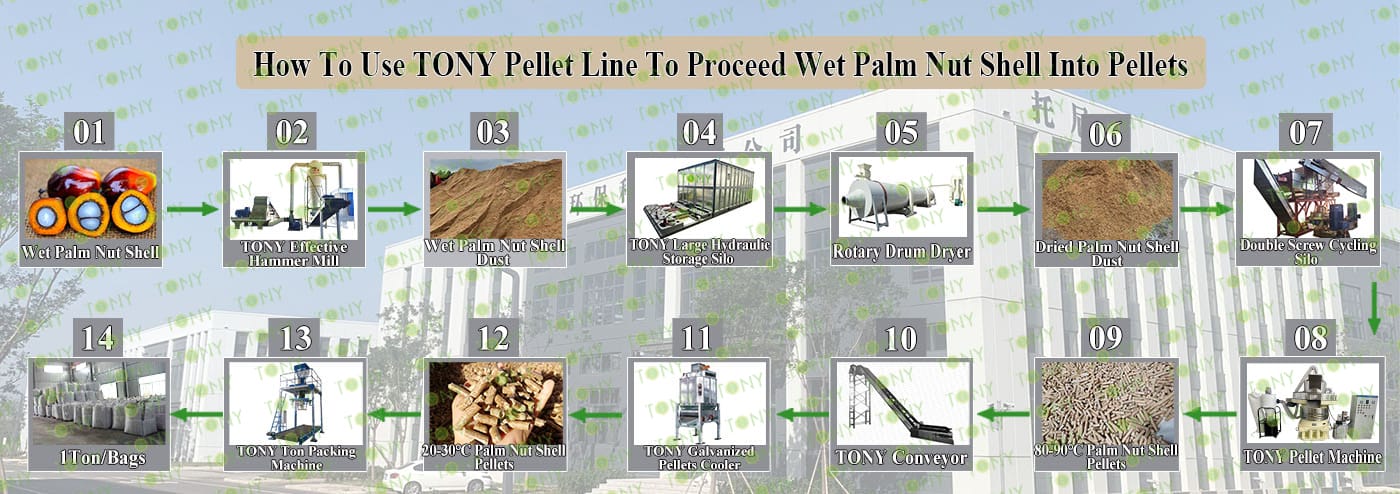

5. Process: Fine Crushing Process - Palm Nut Shell Dust Storage Process - Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:Effective Hammer Mill-TFD75*132-132kw, TONY Large Hydraulic Storage Silo,Rotary Drum Dryer-3*24m, TONY Pellet Machine- TYJ860-Ⅲ-280kw, Galvanized Pellets Cooler, Ton Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

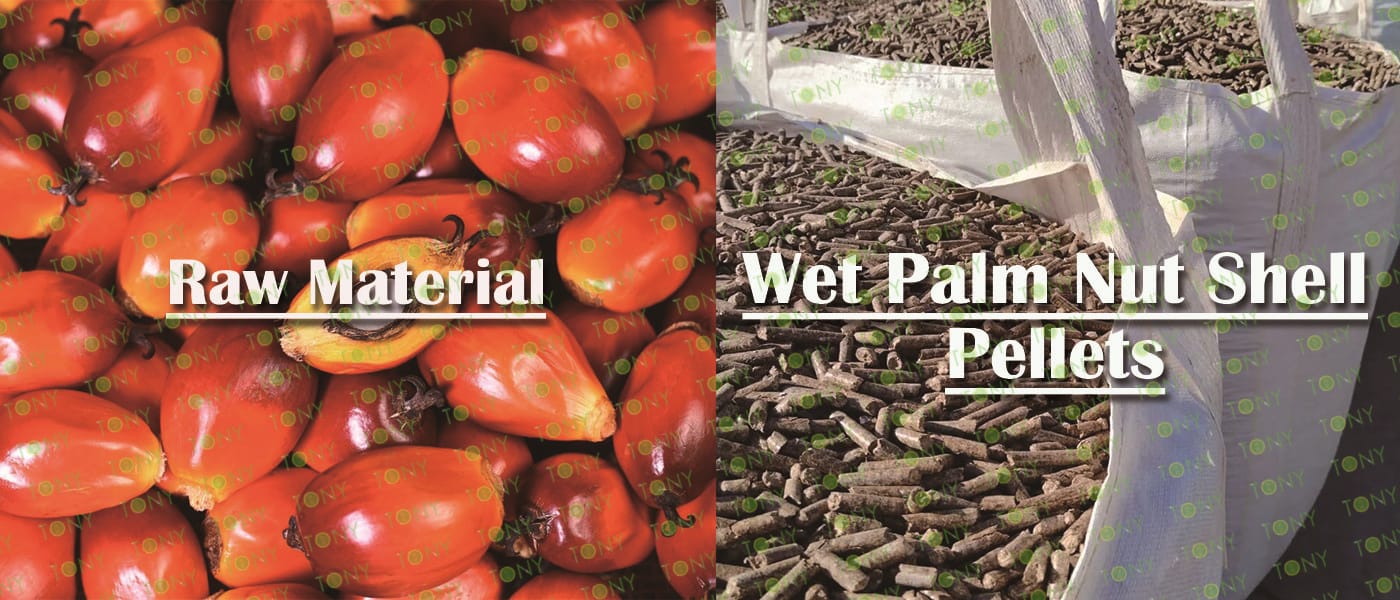

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

高效粉碎机带锯末图

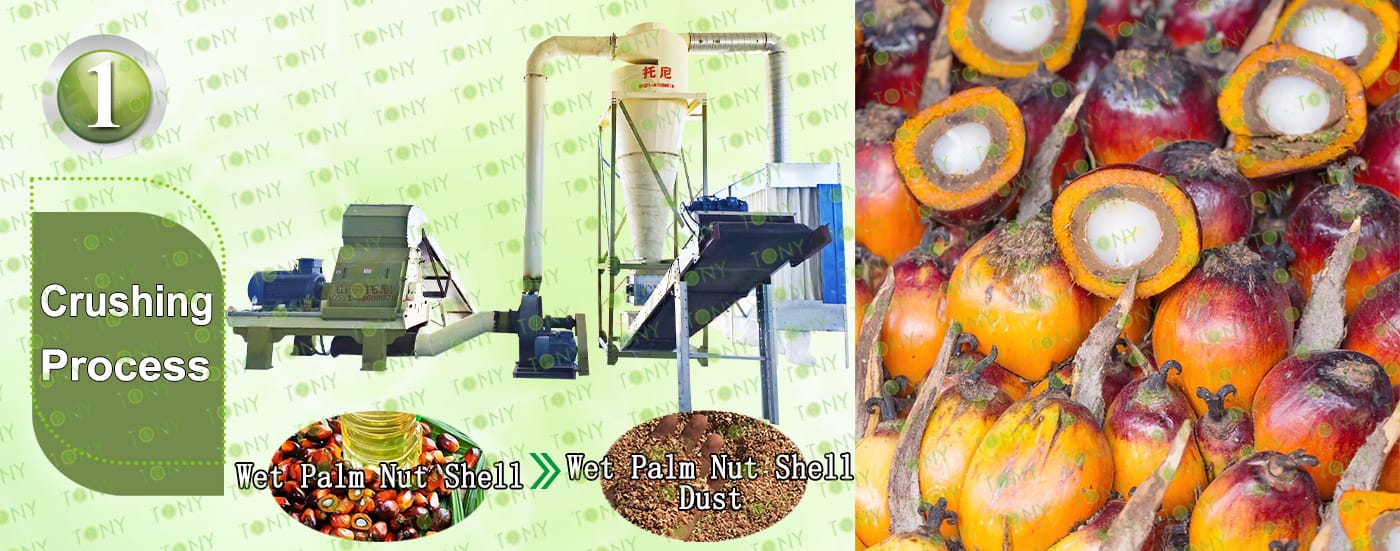

1.Palm Nut Shell Fine Crushing Process:

A.This process is mainly used to crush palm nut shell into 8-14mm palm nut shell dust.

B.Capacity:18-20 Ton/Hour.

C.TONY brand effective hammer mill TFD75*132-132kw*4sets

Main Parts:

(1)TONY Effective Hammer Mill.

(2)Galvanized Dust Collector.

(3)Sawdust Transportation Fan Blower.

(4)Cyclone With Airlock.

(5)Electrical Cabinets.

5.2图片

大型液压料仓

2.Palm Nut Shell Dust Storage Process:

A. This process is mainly used to storage the palm nut shell dust that comes out of the hammer mill.It is hydraulic galvanized storage bin which is more stalbe and palm nut shell dust in it is not easy to be blocked.

B. The customer chooses TONY Brand Large Hydraulic Storage Silo to storage the palm nut shell dust that comes out of  the hammer mill.This process can be optional by customer.If customer do not chose the storage bin,he can storage the palm nut shell dust on the ground directly which may need some labour.

Main Parts:

(1)TONY's New Large Hydraulic Storage Silo.

(2)With Screws Inside The Storage Bin To Prevent Palm Nut Shell Dust Blocked.

5.3图片

烘干机带锯末图

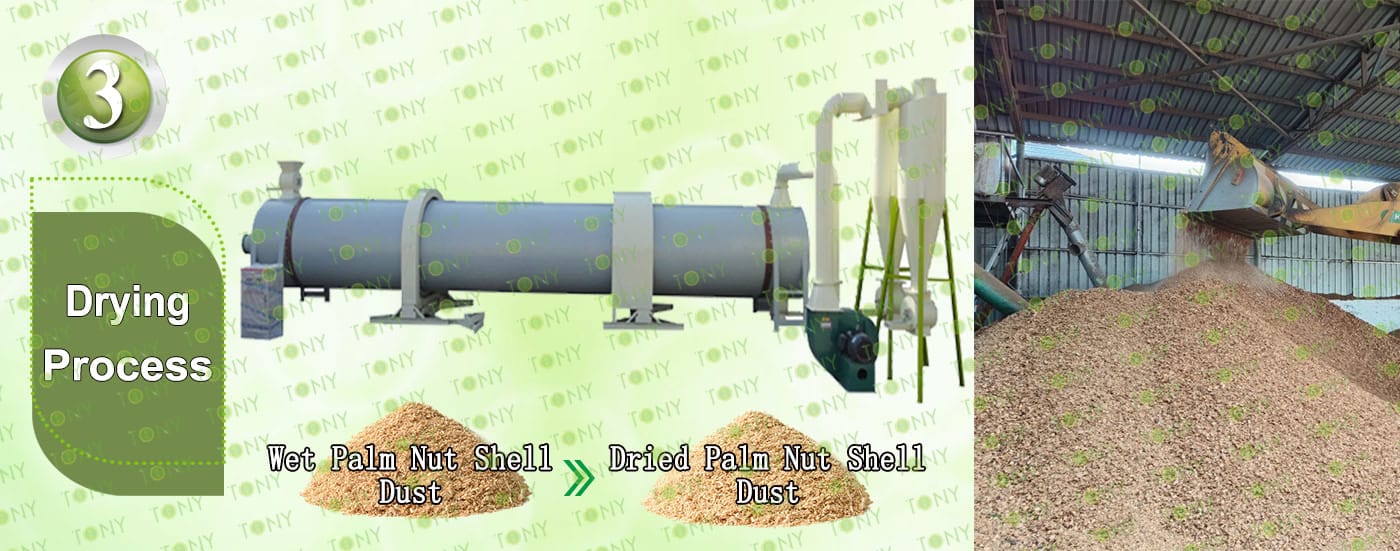

3.Palm Nut Shell Dust Drying Process:

A.This process is mainly used to dry the palm nut shell dust from 40-55% to 10-15%.

B.Capacity:18-20Ton/Hour.

C.TONY use 2 sets of 3*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.4图片

颗粒机四件套带 原材料，颗粒图

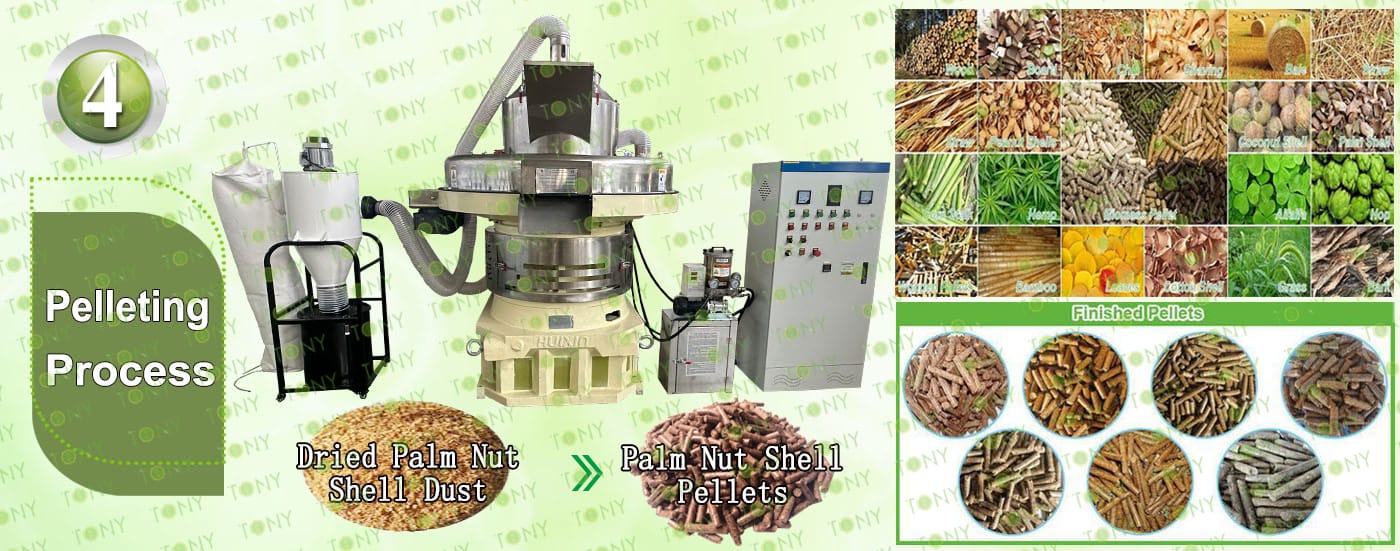

4.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:18-20 Ton/Hour.

C.TONY brand vertical ring die pellet machine TYJ860-Ⅲ-280kw*4sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.5图片

镀锌冷却仓加颗粒图

5.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:18-20Ton/Hour.

C.TONY brand galvanized cooler separator*2 sets

Main Parts:

(1)TONY's Galvanized Cooler Separator With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.6图片

吨包机

6.Packing Process:

A.This process is mainly used to pack pellets into 1 ton/bags.

B.Capacity:18-20 Ton/Hour.

C.TONY brand ton packing machine*2 sets

Main Parts:

(1)TONY Ton Packing Machine

(2)Electronic Platform Scale Metering System

(3)Automatic Tare, Zero, and Drop Correction Functions

(4)Feeding System Features Fast, Medium, and Slow Feeding Speeds to Ensure Measuring Accuracy

6.图片

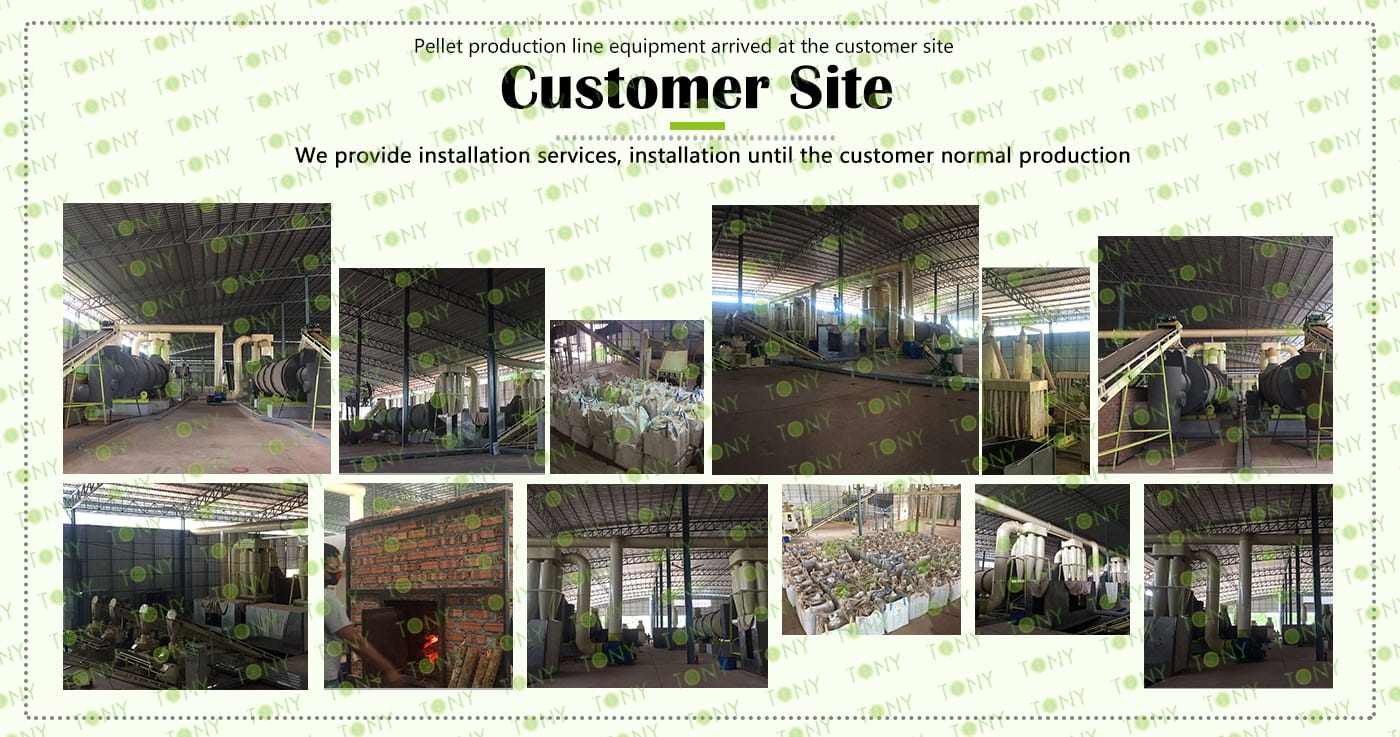

客户生产线案例图

7.图片

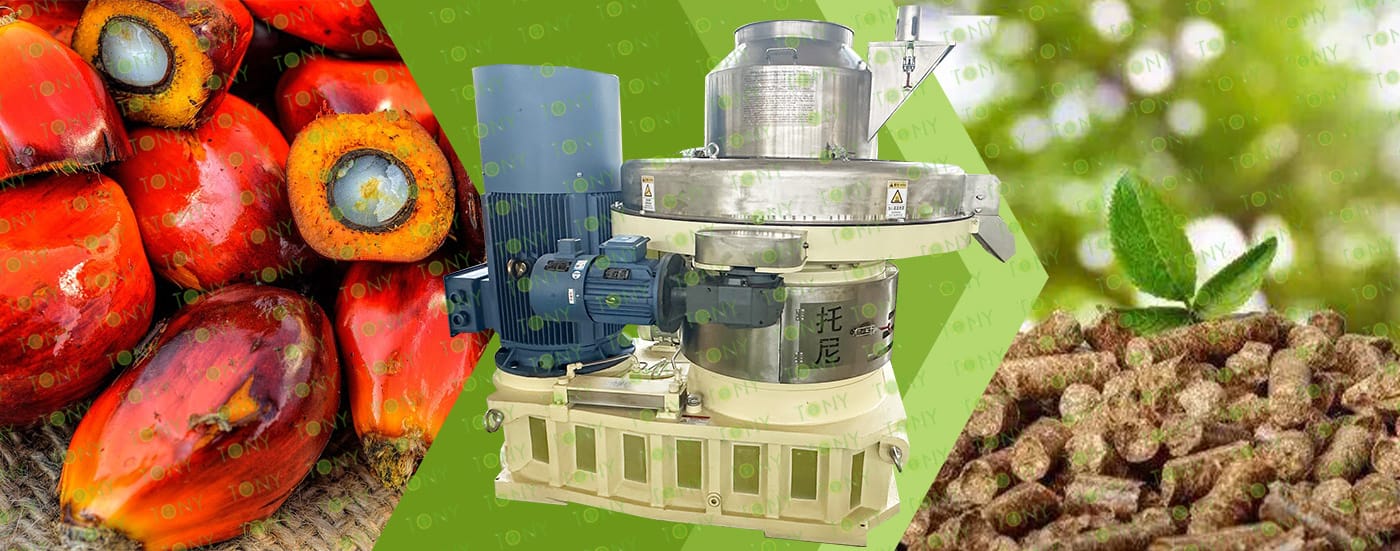

图 湿棕榈坚果壳+颗粒 颗粒机

Core Conditions for Palm Nut Shell Processing into Biomass Pellets Projects: Three Foundations Determining Feasibility

The key to project success lies in the matching of raw materials, policies, and funding; all three are indispensable.

1. Raw Material Supply:

The project needs to be located in a concentrated palm fruit processing area (e.g., within 30 kilometers of a palm oil mill) to ensure a daily supply of 15-50 tons of wet palm nut shells (depending on the production line). Wet palm nut shells are mostly waste from palm oil mills and can initially be obtained for free or at a low price (a small transportation fee may be required in some areas). Long-term cooperation agreements are necessary to lock in supply and prevent supply disruptions.

2. Policies and Site:

The project must comply with local environmental policies, obtaining environmental impact assessment filing and a business license. The site needs to include a raw material storage area (rain and moisture protection), a production area, and a finished product warehouse, with a total area of ​​approximately 5-15 mu (for a production line of 1-5 tons per hour). It must be far from residential areas to reduce noise and dust impacts. Some tropical regions offer subsidies for biomass projects (e.g., equipment purchase subsidies, production subsidies); applications can be made in advance to reduce costs.

3. Capital Investment:

Project investment fluctuates with production capacity, with a small-scale production line requiring approximately one million yuan (including equipment, site rental, and initial raw materials). Funds must cover equipment procurement (60%-70%), working capital (raw material reserves, labor), and contingency costs.

8.图片

湿棕榈坚果壳图 颗粒图

1. Outstanding Environmental Benefits, Aligned with Policy Direction:

It contains no sulfur or phosphorus during combustion, producing no polluting gases such as sulfur dioxide and phosphorus pentoxide, reducing air pollution at its source.

Post-combustion dust emissions are low, with a Ringelmann blackness level of less than 1, far below the emission standards of traditional fossil fuels, easily meeting environmental requirements in various regions.

As a renewable energy source, its carbon emissions can be offset through plant growth cycles, achieving "carbon neutrality," aligning with the global trend of green energy development.

2. Superior Combustion Performance and High Practical Value:

It has a high and stable calorific value, typically reaching 4600-5000 Kcal/kg, close to that of medium-quality coal, meeting the needs of various scenarios such as industrial boilers and residential heating.

Key indicators are excellent: moisture content is less than 8%, ash content is less than 3%, and volatile matter is over 70%, making it easy to ignite and burn completely, with a combustion efficiency exceeding 80%.

Low ash content after combustion not only reduces cleanup costs, but the ash can also be recycled as potash fertilizer, further enhancing resource value.
